1. B EFORE YOU B EGIN
What is Included
1 x Hurricane™ 700
1 x Power Cord
1 x Fog Fluid (0.5 L)
1 x Warranty Card
1 x User Manual
Unpacking Instructions
Immediately upon receiving this product, carefully unpack it and check the container in
which you received it. Make sure that you have received all the parts indicated above
and that they are all in good condition. If the material inside the container (this product
and any other accessory included with it) appears damaged from shipping, or if the
container shows signs of mishandling, notify the shipper immediately. In addition,
retain the container and all the packing material for inspection.
See the Claims section in the “Technical Information” chapter.
Claims
The carrier is responsible for any damage incurred during shipping to this product or
any part that shipped with it. Therefore, if the received merchandise appears to have
damages caused during shipping, the customer must submit the damage report and
any related claims with the carrier, not CHAUVET®. The customer must submit the
report upon reception of the damaged merchandise. Failure to do so in a timely
manner may invalidate the customer’s claim with the carrier.
For other issues such as missing components or parts, damage not related to
shipping, or concealed damage, the customer must make claims to CHAUVET®
within seven (7) days of receiving the merchandise.
Text Conventions
Convention Meaning
[10] A DIP switch to be configured
<Menu> A key to be pressed on the product’s control panel
1~512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified (for example, showing the operating
mode/current status)
Menu > Settings A sequence of menu options to be followed
ON A value to be entered or selected
Icons
Icon Meaning
This paragraph contains critical installation, configuration, or operation
information. Failure to comply with this information may render the
product partially or completely inoperative, cause damage to the
product, or cause harm to the user.
This paragraph contains important installation or configuration
information. Failure to comply with this information may prevent the
product from functioning correctly.
This paragraph reminds you of useful, although not critical, information.

Page 4 of 12 Hurricane™ 700 User Manual (Rev. 08)
Product at a Glance
Use on Dimmer

Auto Programs

Outdoor Use

Auto-ranging Power Supply

Sound Activated

Replaceable Fuse

DMX

User Serviceable

Master/Slave

Duty Cycle

Safety Notes
Please read the following notes carefully because they include important safety
information about the installation, usage, and maintenance of this product.
Keep this User Manual for future consultation. If you sell this product to another
user, be sure that they also receive this document.
Always make sure that the voltage of the outlet to which you are connecting this
product is within the range stated on the decal or rear panel of the product.
This product is for indoor use only! To prevent risk of fire or shock, do not expose
this product to rain or moisture.
Make sure there are no flammable materials close to the unit while operating.
Always install this product in a location with adequate ventilation, at least 20 in (50
cm) from adjacent surfaces.
Be sure that no ventilation slots on the unit’s housing are blocked.
Always disconnect this product from the power source before cleaning it or
replacing the fuse.
Make sure to replace the fuse with another of the same type and rating.
If mounting this product overhead, always secure it to a fastening device using a
safety cable.
The maximum ambient temperature (Ta) is 104° F (40° C). Do not operate this
product at higher temperatures.
In the event of a serious operating problem, stop using the unit immediately.
Never try to repair this product. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical
assistance center.
Never connect this product to a dimmer pack.
Make sure the power cord is not crimped or damaged.
Never disconnect the power cord by pulling or tugging on the cord.
Never carry a product from the power cord or any moving part. Always use the
hanging/mounting bracket or the handles.
Do not touch the output nozzle on this product. It is very hot during operation and
it may remain hot for several hours after turning the unit off.
Do not mount this product on a flammable surface (e.g., wood, linoleum, carton,
plastic, or carpet).
Make sure there are no flammable materials close to the unit while operating.
Depending on the amount of fog generated, all fog machines may set off smoke
detectors.
Do not use as a space heater.
FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your
Hurricane™ 700. Make sure you use FCQ regularly to increase the life of your
fogger.

Hurricane™ 700 User Manual (Rev. 08) Page 5 of 12
2. I NTRODUCTION

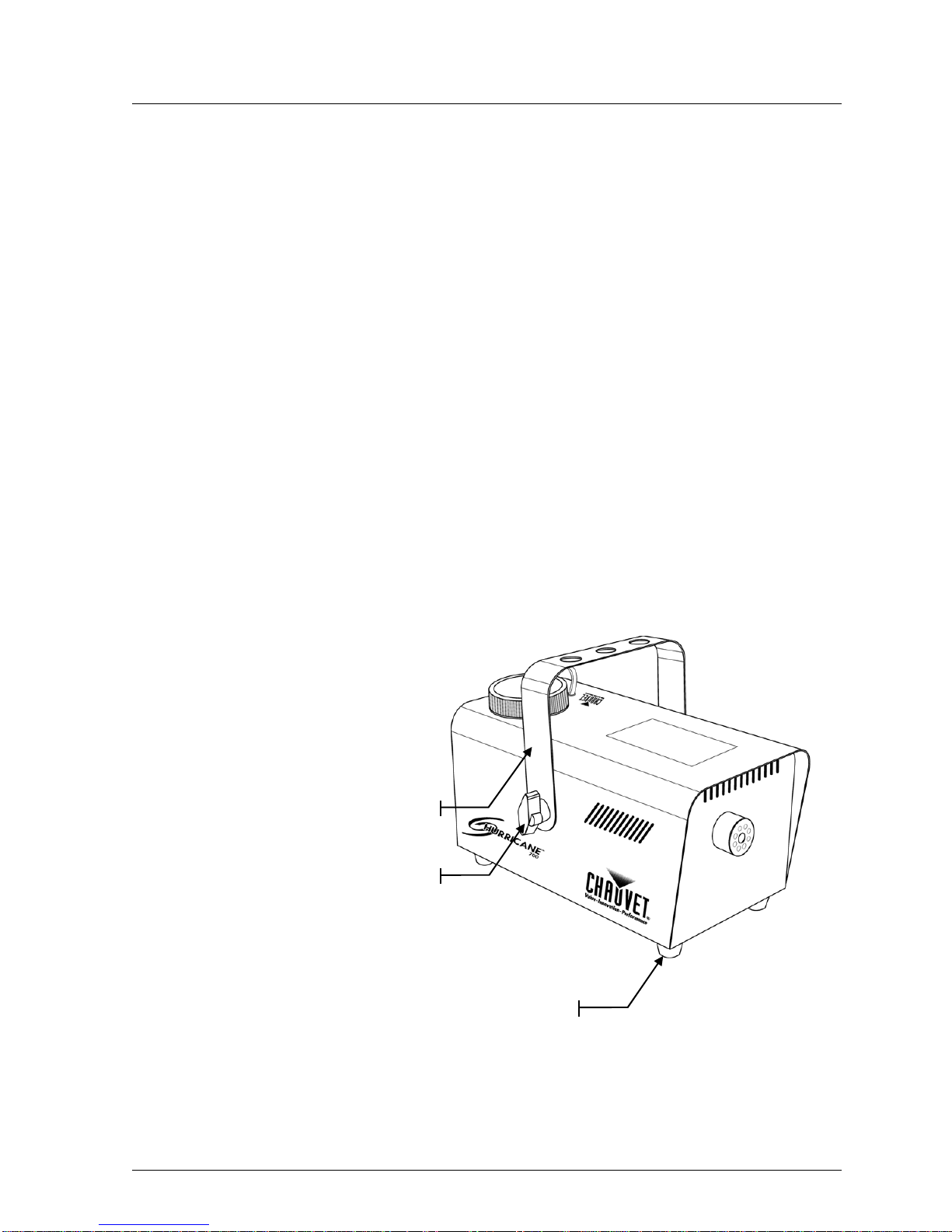

Product Overview
Hanging bracket
Fluid level indicator
Connector for the
wired remote
IEC power in
Fuseholde
r
Output nozzle
Fluid reservoi
r
cove
r
Rubber feet (4)
Bracket knob

Page 6 of 12 Hurricane™ 700 User Manual (Rev. 08)
3. S ETUP
AC Power
This product is not switching. It is model-specific. It may run on either 120V, 60 Hz or
230 V, 50 Hz.
To determine the power requirements for a particular product, see the label affixed to
the back plate of the product or refer to the product’s specifications chart. A product’s
listed current rating indicates its average current draw under normal conditions.
Always connect this product to a protected circuit (circuit breaker or fuse),
making sure that it has an appropriate electrical ground to avoid the risk of
electrocution or fire.
Never connect this product to a rheostat (variable resistor) or dimmer circuit,
even if the rheostat or dimmer channel serves only as a 0 to 100% switch.
Replacing the Fuse
Unplug the IEC power cable before replacing the fuse!
This product has a replaceable fuse. In the event that the fuse needs to be replaced,
follow the instructions provided below.
1. Using a flat head screwdriver, remove the fuseholder from the IEC housing.
2. Remove the bad fuse from the fuseholder.
3. Insert the new fuse into the fuseholder.
4. Install the fuseholder in the IEC housing.

Hurricane™ 700 User Manual (Rev. 08) Page 7 of 12
Mounting
Orientation
The Hurricane™ 700 may be mounted in any position, provided there is adequate
room for ventilation around it.
Rigging
Be sure that the structure or surface on which you are mounting this product can
support its weight and operating temperature. Please see the “Technical
Specifications” section of this manual for weight information. Refer to the following
notes on rigging.
Make sure to mount the product securely to a rigging point, whether an
elevated platform or a truss.
When rigging this product onto a truss, you should use a mounting clamp of
appropriate weight capacity. The bracket has a 13 mm hole, which is
appropriate for this purpose.
When mounting this product overhead, always use a safety cable.
Before deciding on a location for this product, always make sure that it will
be easy to access the unit for maintenance and programming purposes.
The bracket knobs allow for directional adjustment when aiming the product
to the desired angle. Only loosen or tighten the bracket knobs using your
bare hands. Using tools could damage the knobs.
MountingDiagram
Bracket knob
Rubber feet
Hanging bracket

Page 8 of 12 Hurricane™ 700 User Manual (Rev. 08)
4. O PERATION
Using the Wired Remote
Trigger the Hurricane™ 700 by using the included wired remote. This remote has an
LED indicator, which is used to indicate when the fogger has reached the required
operating temperature.
The button on the remote is momentary.
The length of the wired remote is 13 ft (4 m).
Fill the fluid reservoir with fog fluid before operating the Hurricane™ 700!
AC-W wireless controlle
r
is now available for use with the
Hurricane 700 (V2). The AC-W is a wireless trigger that does not
need an external power supply — easy setup and easy teardown.
In addition, the AC-W has an operation range of 100 ft
(unobstructed) for increased flexibility enabling the attached
machines to be triggered from almost anywhere.
To purchase the AC-W, call Chauvet Lighting at [phone]
or visit our website: http://www.chauvetlighting.com.
NEW!

Hurricane™ 700 User Manual (Rev. 08) Page 9 of 12
5. T ECHNICAL I NFORMATION
General Maintenance
Do not allow the fog machine to become contaminated. Chauvet recommends after
every 40 hours of continuous operation, run a cleaning solution composed of 80%
distilled water and 20% distilled vinegar through the system to prevent the
accumulation of particulate matter in the heating element.
The recommended cleaning regimen is:
1. Empty all fog liquid from the machine. Add cleaning solution to tank. Plug
unit in and begin warm up.
2. Run the unit in a well-ventilated area until the tank is almost empty. Do not
allow the pump to run dry.
3. Cleaning is now complete. Refill with fog liquid. Run the machine briefly to
clear any cleaning solution from the pump and heater.
4. Do not operate the machine without liquid at any time.
FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your
Hurricane™ 700. Make sure you use FCQ regularly to increase the life of your
fogger.
Storage
1. When storing run distilled water (not tap water) through the system as
described in the cleaning regimen above. This will help avoid any particles
condensing inside the pump or heater.
2. It is strongly recommended to test-run the machine on a monthly basis in
order to achieve its best fogging condition.
Never place the fog/hazer machine on any flammable material (i.e. carpet,
fabric etc.) during operation. All fog/hazer machines should always be on a
non-flammable surface, such as concrete or tile.
Depending on the amount of fog/haze generated, all fog machines may set
off smoke detectors.

Page 10 of 12 Hurricane™ 700 User Manual (Rev. 08)
General Troubleshooting
Symptom Possible Cause Possible Action
Circuit breaker
or fuse keeps
blowing

Excessive load on the circuit

Make sure that the total load
does not exceed 80% of the
breaker or fuse nominal current

Short circuit along the power
lines

Check the power lines and
power cords
Product does not
power up

No energy on power outlet

Check power outlet
Change to another outlet

Loose or damaged power cord

Check the power cord

Blown fuse

Replace blown fuse with a good
one of the same type and rating

Internal problem

Send product for repair
If you still experience problems after trying the above solutions, contact
CHAUVET® Technical Support.

Hurricane™ 700 User Manual (Rev. 08) Page 11 of 12
Returns Procedure
The user must send the merchandise prepaid, in the original box, and with its original
packing and accessories. CHAUVET® will not issue call tags.
Call CHAUVET® and request a Return Merchandise Authorization Number (RMA #)
before shipping the product. Be prepared to provide the model number, serial
number, and a brief description of the cause for the return.
The user must clearly label the package with a Return Merchandise Authorization
Number (RMA #). CHAUVET® will refuse any product returned without an RMA #.
DO NOT write the RMA # directly on the box. Instead, write it on a properly
affixed label.
Once you have received the RMA #, please include the following information on a
piece of paper inside the box:
Your name
Your address
Your phone number
The RMA #
A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate
packaging will be the customer’s responsibility. As a suggestion, proper UPS packing
or double-boxing is always a safe method to use.
CHAUVET® reserves the right to use its own discretion to repair or replace
returned product(s).
Contact Information
World Headquarters United Kingdom & Ireland
CHAUVET® CHAUVET® Europe Ltd.
General Information
Address: 5200 NW 108th Avenue
Sunrise, FL 33351
Voice: [phone]
Fax: [phone]
Toll free: [phone]
Technical Support
Voice: [phone] (Press 4)
Fax: [phone]
General Information
Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: [phone]
Fax: [phone]
Email: [e-mail]
World Wide Web www.chauvetlighting.com World Wide Web www.chauvetlighting.co.uk

Page 12 of 12 Hurricane™ 700 User Manual (Rev. 08)
6.TECHNICAL SPECIFICATIONS
Dimensions and Weight
Length Width Height Weight
8.5 in (215 mm) 7.1 in (180 mm) 4.9 in (124 mm) 4.05 lbs (1.84 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Power Supply Type Range Voltage Selection
Model-specific 115 V, 60 Hz or 230 V, 50 Hz N/A
Model 120 V, 60 Hz 230 V, 50 Hz
Consumption 471 W (3.93 A) 471 W (2.05 A)
Power I/O Input Output
Connectors IEC N/A
Cord plug Edison N/A
Fuse size 120 V, 60 Hz 230 V, 50 Hz
Rating F 5 A, 250 V F 3 A, 250 V
Operating Parameters
Fluid Consumption Fog Output Heat-up Time
7.5 mL / min 1,500 cfm 2.5 min
Tank Capacity
0.6 L
Thermal
Maximum External Temp. Cooling System
104° F (40° C) Convection
Ordering
120 V, 60 Hz
Item Name Item Number Item Code
Hurricane™ 700 H700 09070161
230 V, 50 Hz
Item Name Item Number Item Code
Hurricane™ 700 220V 220VH700 09070323
Approved Fog Fluids
Item Name Item Number Item Code
Standard Fog Fluid (gallon) FJU 14070153
Item Name Item Number Item Code
Standard Fog Fluid (quart) FJQ 14070152
Item Name Item Number Item Code
High Density Fog Fluid (gallon) HDF 14070163
