Chauvet Nexus Aq 5x5 User manual

Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL

Nexus™ Aq 5x5 QRG EN
2
About this
Guide
The Nexus™ Aq 5x5 Quick Reference Guide (QRG) has basic product
information such as connection, mounting, menu options, and DMX values.
Download the User Manual from www.chauvetprofessional.com
for more
details.
Disclaimer
The information and specifications contained in this QRG are subject to
change without notice.
Safety Notes
•DO NOT open this product. It contains no user-serviceable parts.
•DO NOT look at the light source when the product is on.
•
CAUTION: This product’s housing may be hot when lights are
operating.
•
Mount this product in a location with adequate ventilation, at least
20 in (50 cm) from adjacent surfaces.
•
DO NOT leave any flammable material within 50 cm of this product
while operating or connected to power.
•USE a safety cable when mounting this product overhead.
•DO NOT hang product using only the coffin locks.
•
DO NOT operate this product outdoors or in any location where dust,
excessive heat, water, or humidity may affect it. (IP20)
•
DO NOT operate this product if the housing, lenses, or cables appear
damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•ONLY use the hanging/mounting bracket to carry this product.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 104 °F (40 °
C). Do not
operate this product at higher temperatures.
•
CAUTION: When transferring product from extreme temperature
environments, (e
.g. cold truck to warm humid ballroom)
condensation may form on the internal electronics of the product. To
avoid causing a failure, allow product to fully acclimate to the
surrounding environment before connecting it to power.
•To eliminate unnecessary wea
r and improve its lifespan, during
periods of non-
use completely disconnect the product from power via
breaker or by unplugging it.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact
your distributor to request support or return a product. Visit
www.chauvetprofessional.com for contact information.
What is
Included
•Nexus™ Aq 5x5
•
Neutrik® powerCON® power
cord
•#8 Allen key with handle
•Warranty Card
•Quick Reference Guide

Nexus™ Aq 5x5 QRG EN
3
AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100 to 240 VAC, 50/60 Hz.
To eliminate unnecessary wear and improve its lifespan, during periods
of non-
use completely disconnect the product from power via breaker
or by unplugging it.
Power Linking
The Nexus™ Aq 5x5 supports power linking in the quantities listed below.
Do not link more than:
•5 products at 120 V,
•8 products at 208 V, or
•9 products at 230 V.
Power linking cords can be purchased separately.

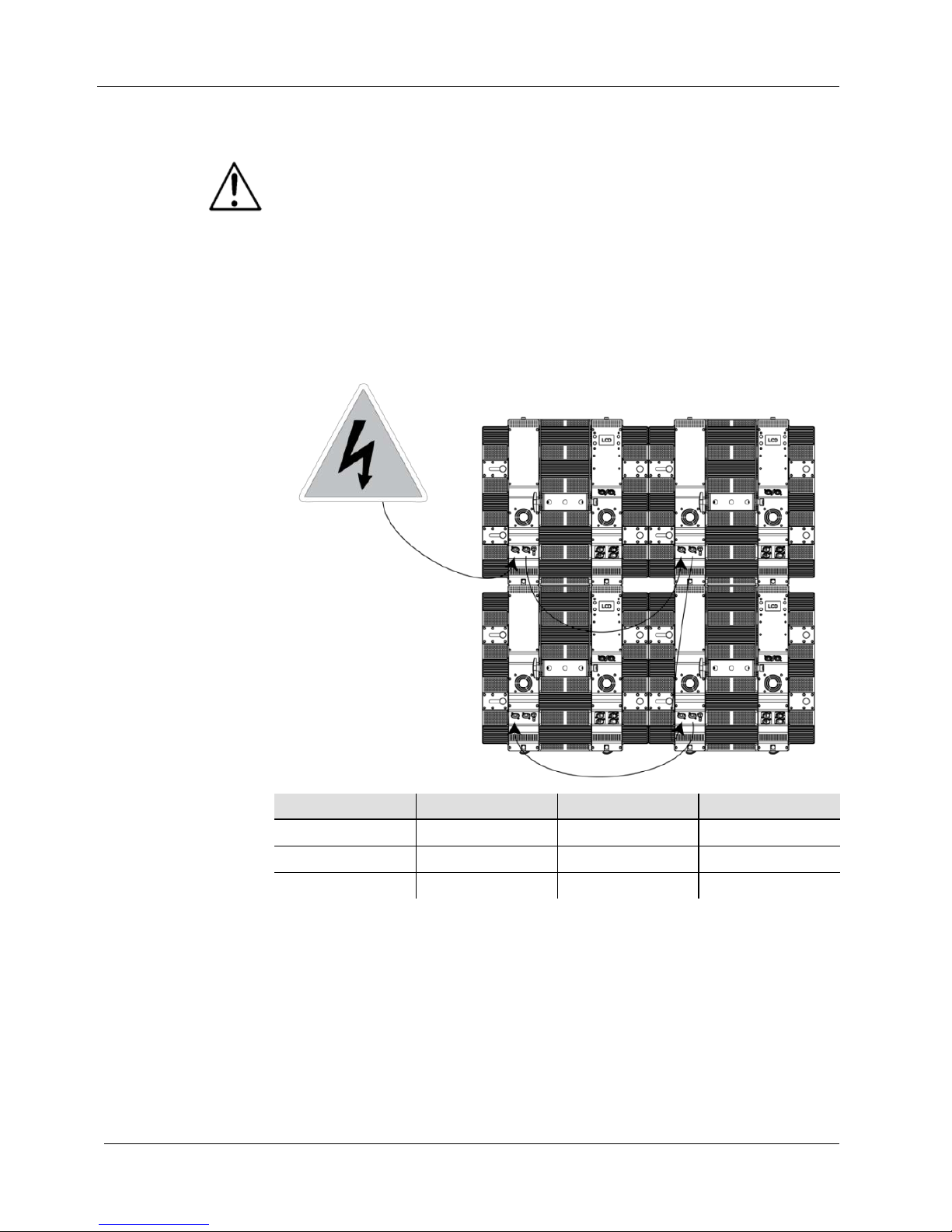

Power Linking
Diagram
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Replacing the
Fuse
1. Disconnect the product from power.
2. Using a flat-head
screwdriver, unscrew the fuse holder cap from the
housing.
3. Remove blown fuse and replace it
with a good fuse of the same type
and rating.
4. Screw the fuse holder cap back in place.
5. Reconnect the product to power.

Nexus™ Aq 5x5 QRG EN
4
DMX Linking
The Nexus™ Aq 5x5 works in Master/Slave mode or with a DMX
controller using its DMX ports
. A DMX Primer is available from
www.chauvetprofessional.com.
DMX Linking
Diagram
DMX
Personalities
The Nexus™ Aq 5x5 has 11 DMX personalities: 3Ch, 4Ch, 6Ch, 10Ch,
15Ch, 75Ch, 100Ch, 105Ch, 111Ch, HSV, and HSI.
For more
information, see the DMX Values in this QRG or the
User Manual on the
Chauvet website at http://www.chauvetlighting.com/product-manuals-
literature/.
In the 3- and 75-channel DMX personalities of Nexus™ Aq 5x5, only
red, green, and blue values can be changed. These DMX personalities
use the unique Auto Color function. Auto Color automaticall
y mixes
and blends the white emitted by the LEDs into the RGB values from
the controller to expand the range of color and enhance color
rendering.
Master/Slave
Mode
The Nexus™ Aq 5x5 works in Master/Slave mode. For more information,
see the User Manual on the Chauvet website.
Ethernet
Connections
Ethernet connections link Nexus™ Aq 5x5 panels to routers and each
other through their Neutrik® etherCON® ports
. Ethernet connections are
for running TCP/IP-based control system, such as Kling-
Net and
Art-Net®. All Neutrik®
etherCON® ports can be either input or output
ports
, and panels can be linked to each other, but the start of each chain of
panels must be a router port.
DMX Controller or Master
Other
DMX Products

Nexus™ Aq 5x5 QRG EN
5
Ethernet
Connections
Diagram
Kling-Net Mode
Kling-Net is a network protocol that uses TCP/IP to send DMX over
a network and into the Neutrik® etherCON® connection ports of
the Nexus™ Aq 5x5 panels. Kling-Net works seamlessly with
Kling-Net-supported ArKaos software
for configuring and mapping
display devices. For more information, see t
he User Manual on the
Chauvet website at http://www.chauvetlighting.com/product-manuals-
literature/.
Art-Net™ Mode
Art-Net™ is an Ethernet protocol that uses TCP/IP to send DMX
signals over a network and into the Neutrik®
etherCON® connection
ports of the Nexus™ Aq 5x5 panels. Art-
Net™ requires configuration
through the control panel. For more information, see the Menu Map
in
this QRG or the User Manual on the Chauvet website.
An Art-Net™ Primer is available from www.chauvetprofessional.com
.
Art-Net™ is designed and copyrighted by Artistic Licence Holdings Ltd.
Nexus™ Aq 5x5 panels do not work with Art-Net™ controllers sending
in Broadcast mode. For information about the controller’s mode, see
the controller’s User Manual.
Reset To
Factory
Defaults
1. Disconnect the Nexus™ Aq 5x5 from power.
2. Press and hold <MENU> and <ENTER> simultaneously.
3. Reconnect the Nexus™ Aq 5x5 to power.
4. Release <MENU> and <ENTER>. The words
Factory reset?
ENTER = Confirm show on the display.
5. Press <ENTER>.
NOTE: Do not use the
router WAN port!
Router
Computer or Controller
Running TCP/IP-based
protocol, such as Kling-Net
or Art-Net™
Nexus™ Aq 5x5
Panels
More
Nexus™ Aq 5x5 Panels

Nexus™ Aq 5x5 QRG EN
6
Kling-Net
Mapper
Kling-Net Mapper is part of the Arkaos software package. It informs the
ArKaos software about the layout of the Nexus™ Aq 5x5
products in a
process called mapping.
The following section provides step-by-step instruc
tions for mapping the
Nexus™ Aq 5x5 products.
Part 1: Confirm
Network
Connectivity
1. Connect the Arkaos computer and Nexus™ Aq 5x5s to the same
network. For more information, see Ethernet Connections Diagram.
2. Set the all the Nexus™ Aq 5x5s to Kling-Net operating mode.
3. Open the ArKaos Kling-Net Mapper. All the Kling-Net™ devices
populate a list on the left side of the screen in the Connected Devices
window.
The Connected
Devices Window
It can take up to 20 seconds for all the products to populate the list and the
color of the device’s listing provides information about its status.
Colors and Activity
Explanation
Black with an ID number and IP
address There is connectivity and everything is working properly, but the device is not yet mapped.
Green with an ID number and IP
address
There is connectivity and everything is working
properly, and the device is mapped.
Black to red with no IP address during
initial population
The King-Net™ Mapper could not find an IP
address for the device, most likely because the
system is using an Ethernet switch instead of
an Ethernet hub.
Black to red after initial population The connectivity has been lost.
Part 2: Test
Network
Connectivity
1. Select the Output dropdown icon from the tool bar at the top of the
Kling-Net Mapper screen. One of the options will be Test Pattern.
2. Select Test Pattern. The image to the right of the icon is a small
screen, indicating that Test Pattern is the current mode.
3. Select the icon to the right of the Output dropdown icon. One of the
options will be Flashing Output Selection.
4. Select Flashing Output Selection. The icon is a faded green square
with an arrow, indicating that a flashing green light is the current test
pattern.
5.
Left click once on an LED display product. The product flashes green.
6. Repeat Step 4 for every product in the list.

Nexus™ Aq 5x5 QRG EN
7
Part 3: Map The
Products For
ArKaos
1. Make sure the Nexus™ Aq 5x5 products are all listed in the
Connected Devices window and have flashed when tested. For more
information, see Part1: Confirming Connectivity.
2. Click on the first product in the list and drag it onto the mapping
image in the center of the screen. A shape representing the display
product shows on the mapping image. The product displays the pattern
on the mapping image.
3. Drag, rotate, and resize the shape on the mapping image until it is in
the position needed for the presentation layout.
4. Repeat Steps 2 thru 3 for every Nexus™ Aq 5x5 product.
5. Complete Parts 1 and 2.
6. Click on File in the Arkaos Kling-Net Mapper.
7. Click on Save As.
8. Save the file.
Remember the location of the file because the file must be loaded into
ArKaos software.
Mounting
Nexus™ Aq 5x5 panels are rigged using the CHAUVET® Affinity™ Rig
Kit or the CHAUVET® CLP-
15 clamp, both of which are sold separately.
The rig kit can bear the weight of 16 panels, in 1 column of 16,
or 2
columns of 8. The rig kit has 3 holes for M12-compatible bolts an
d works
with most standard truss clamps. The mounting clamp
can bear the weight
of 4 panels hung in a single column. The mounting clamp
has one hole for
M12-compatible bolts and fits most standard truss.
The coffin locks on the top and bottom of the Nexus™ Aq 5x5
panels
connect the tops and bottoms, and bear the weight, of the panels. The
locking bolt
connectors on the sides connect the panels and align the pixels
into rows, but they can not bear the weight of the panels.
•When using only the integrated bracket, do not link more than 4
panels in one column.
•The locking bolt connectors on the sides of the Nexus™ Aq 5x5
panels is not load-bearing. Do not hang the panels sideways.

Nexus™ Aq 5x5 QRG EN
8
Mounting
Diagram with
Affinity™ Rig Kit
Mounting
Diagram with
Mounting Clamp
Horizontal Panel
Connection
#8 Allen Key
With Handle
Position The Bracket At The
Top Of The Panel
Up To 4 Panels
In A Single
Column
Mounting Clamp
into Bracket
Rig Kit Attached
To 2 Panels
Rig Kit Attached
To 1 Panel
Coffin Locks
Locking Bolt
Connectors
Bottom Of Panel
Top Of Panel
Up to 16 Panels in
a Single Column
Up to 16 Panels in
2 Columns of 8

Nexus™ Aq 5x5 QRG EN
9
Control Panel
Button
Function
<MENU/ESC>
Scrolls through the main menu options or exits the current menu
option
<ENTER> Enters into the highlighted menu option or sets the currently
selected value
<UP> Navigates up through a list of menu options or values
<DOWN> Navigates down through a list of menu options or values
Menu Map
Main Level
Programming Levels
Description
Auto Show
Auto 0–9
Show Speed
000–100
Selects an auto program and its speed
Fade
Selects color fade and its speed
Static
Fixture Color
R
Selects a preset color
G
B
W
GB
RB
RG
RGB
RW
GW
BW
RGW
RBW
GBW
RGBW
Manual Color
Red
000–255 Sets color levels for manual color mixing
Green
Blue
White
Dimmer Mode
Off
Sets dimming curve
Dimmer 1–3
Back Lite
On
Sets control panel backlight time
10S
20S
30S
Information
Auto Test
Starts a self-test
Fixture Hours
Shows total operating hours
Version
Shows software version
IP Address
Shows IP address
Device ID
Shows ID number
DMX Address
001–512
Sets DMX start channel for DMX mode

Nexus™ Aq 5x5 QRG EN
10
Main Level
Programming Levels
Description
DMX Channel
3Ch
Sets DMX personality for DMX, Art-Net™
mode, and Kling-Net modes
4Ch
6Ch
10Ch
15Ch
75Ch
100Ch
105Ch
111Ch
HSV
HSI
Master/Slave
Master
Sets Master mode
Slave
Sets Slave mode
White Balance
Red 125–255
Sets red, green, and blue maximum values
for white balance
Green 125–255
Blue 125–255
Temperature
Shows product’s internal temperature
Fan Setup
Auto
Sets fan to stop if the product is cool
High
Sets fan to run continuously
Ethernet Settings Protocol
Kling-Net
Sets Kling-Net protocol
Art-Net
IP Mode
Static
Sets product to use its internal IP address
DHCP
Sets product to use dynamic IP addressing
Manual
Sets product to use manual IP addressing
Net
000–127
Sets the net address of the product
Subnet
00–15
Sets the subnet of the product
Universe
Sets the universe of the product
Start
Channel
001–512 Sets the DMX start channel of the product

Nexus™ Aq 5x5 QRG EN
11
DMX Values
111Ch
Channel
Function
Value
Percent/Setting
1 Red 1 000 ó255 0–100%
2
Green 1
000
ó
255
0–100%
3
Blue 1
000
ó
255
0–100%
4
White 1
000
ó
255
0–100%
5
Red 2
000
ó
255
0–100%
6
Green 2
000
ó
255
0–100%
7
Blue 2
000
ó
255
0–100%
8
White 2
000
ó
255
0–100%
9
Red 3
000
ó
255
0–100%
10
Green 3
000
ó
255
0–100%
11
Blue 3
000
ó
255
0–100%
12 White 3 000 ó255 0–100%
13
Red 4
000
ó
255
0–100%
14
Green 4
000
ó
255
0–100%
15
Blue 4
000
ó
255
0–100%
16
White 4
000
ó
255
0–100%
17
Red 5
000
ó
255
0–100%
18
Green 5
000
ó
255
0–100%
19
Blue 5
000
ó
255
0–100%
20
White 5
000
ó
255
0–100%
21
Red 6
000
ó
255
0–100%
22
Green 6
000
ó
255
0–100%
23
Blue 6
000
ó
255
0–100%
24
White 6
000
ó
255
0–100%
25
Red 7
000
ó
255
0–100%
26
Green 7
000
ó
255
0–100%
27
Blue 7
000
ó
255
0–100%
28
White 7
000
ó
255
0–100%
29
Red 8
000
ó
255
0–100%
30
Green 8
000
ó
255
0–100%
31
Blue 8
000
ó
255
0–100%
32
White 8
000
ó
255
0–100%
33
Red 9
000
ó
255
0–100%
34
Green 9
000
ó
255
0–100%

Nexus™ Aq 5x5 QRG EN
12
111Ch
Channel
Function
Value
Percent/Setting
35
Blue 9
000
ó
255
0–100%
36
White 9
000
ó
255
0–100%
37
Red 10
000
ó
255
0–100%
38
Green 10
000
ó
255
0–100%
39
Blue 10
000
ó
255
0–100%
40
White 10
000
ó
255
0–100%
41
Red 11
000
ó
255
0–100%
42
Green 11
000
ó
255
0–100%
43
Blue 11
000
ó
255
0–100%
44
White 11
000
ó
255
0–100%
45
Red 12
000
ó
255
0–100%
46
Green 12
000
ó
255
0–100%
47
Blue 12
000
ó
255
0–100%
48
White 12
000
ó
255
0–100%
49
Red 13
000
ó
255
0–100%
50
Green 13
000
ó
255
0–100%
51
Blue 13
000
ó
255
0–100%
52
White 13
000
ó
255
0–100%
53
Red 14
000
ó
255
0–100%
54
Green 14
000
ó
255
0–100%
55
Blue 14
000
ó
255
0–100%
56
White 14
000
ó
255
0–100%
57
Red 15
000
ó
255
0–100%
58
Green 15
000
ó
255
0–100%
59
Blue 15
000
ó
255
0–100%
60
White 15
000
ó
255
0–100%
61
Red 16
000
ó
255
0–100%
62
Green 16
000
ó
255
0–100%
63 Blue 16 000 ó255
0–100%
64
White 16
000
ó
255
0–100%
65
Red 17
000
ó
255
0–100%
66
Green 17
000
ó
255
0–100%
67
Blue 17
000
ó
255
0–100%
68
White 17
000
ó
255
0–100%
69
Red 18
000
ó
255
0–100%
70
Green 18
000
ó
255
0–100%

Nexus™ Aq 5x5 QRG EN
13
111Ch
Channel
Function
Value
Percent/Setting
71
Blue 18
000
ó
255
0–100%
72
White 18
000
ó
255
0–100%
73
Red 19
000
ó
255
0–100%
74
Green 19
000
ó
255
0–100%
75
Blue 19
000
ó
255
0–100%
76
White 19
000
ó
255
0–100%
77
Red 20
000
ó
255
0–100%
78
Green 20
000
ó
255
0–100%
79
Blue 20
000
ó
255
0–100%
80
White 20
000
ó
255
0–100%
81
Red 21
000
ó
255
0–100%
82
Green 21
000
ó
255
0–100%
83
Blue 21
000
ó
255
0–100%
84
White 21
000
ó
255
0–100%
85
Red 22
000
ó
255
0–100%
86
Green 22
000
ó
255
0–100%
87
Blue 22
000
ó
255
0–100%
88
White 22
000
ó
255
0–100%
89
Red 23
000
ó
255
0–100%
90
Green 23
000
ó
255
0–100%
91
Blue 23
000
ó
255
0–100%
92
White 23
000
ó
255
0–100%
93
Red 24
000
ó
255
0–100%
94
Green 24
000
ó
255
0–100%
95
Blue 24
000
ó
255
0–100%
96
White 24
000
ó
255
0–100%
97
Red 25
000
ó
255
0–100%
98
Green 25
000
ó
255
0–100%
99 Blue 25 000 ó255 0–100%
100
White 25
000
ó
255
0–100%

Nexus™ Aq 5x5 QRG EN
14
111Ch
Channel
Function
Value
Percent/Setting
101 Color Macro +
White Balance
000
ó
010
011 ó030
031 ó050
051 ó070
071 ó090
091 ó110
111 ó130
131 ó150
151 ó170
171 ó200
201 ó205
206 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251
ó
255
No function
R: 100% G: 0–100%B: 0
R: 100%–0 G: 100% B: 0
R: 0 G: 100% B: 0–100%
R: 0 G: 100%–0B: 100%
R: 0–100% G: 0 B: 100%
R: 100% G: 0 B: 100%–0
R: 100% G: 0–100%B: 0–100%
R: 100%–0 G: 100%–0B: 100%
RGBW: 100%
White 1
White 2
White 3
White 4
White 5
White 6
White 7
White 8
White 9
White 10
White 11
102 Foreground 000 ó010
011
ó
255
No function
Foreground color
103
Foreground
Dimmer
000 ó255
0–100%
104 Background 000 ó010
011
ó
255
No function
Background color
105
Background
Dimmer
000 ó255
0–100%
106 Alphanumeric 000
001 ó127
128
ó
255
No function
Numeric characters 1–0
Alpha characters A–Z

Nexus™ Aq 5x5 QRG EN
15
111Ch
Channel
Function
Value
Percent/Setting
107 Virtual Gobo Maps
000
ó
010
011 ó020
021 ó029
030 ó038
039 ó047
048 ó056
057 ó065
066 ó074
075 ó083
084 ó092
093 ó101
102 ó110
111 ó119
120 ó128
129 ó137
138 ó146
147 ó155
156 ó164
165 ó173
174 ó182
183 ó191
192 ó200
201 ó209
210 ó218
219 ó227
228 ó236
237 ó246
247
ó
255
No function
Simple cross
Simple box
Square imploder
Square exploder
Diamond imploder
Diamond exploder
Two-Line spinner
Triangle spinner
Tri-Downer
Tri-Upper
Bowtie spinner
One-Liner
Line hop up
Line hop down
Line hop up/down
T-Spin
Upside down T-Spin
Diamond spoke spin
Line hop left
Line hop right
Line hop left/right
Double verticals
Double horizontals
Diagonal right
Diagonal left
Moving squares
Clock
108
Virtual Gobo
Speed
000
ó
010
011 ó100
101 ó149
150 ó202
203 ó255
No function
Gobo index
No function
Gobo speed clockwise, fast to slow
Gobo speed counter-clockwise,
slow to fast
Alphanumeric
Rotation
000 ó063
064 ó127
128 ó191
192 ó255
0°
90°
180°
270°
109
Dimmer
000
ó
255
0–100%
110 Strobe 000 ó010
011 ó255 No function 0–20 Hz
111 Dimmer Speed
Mode
000
ó
051
052 ó101
102 ó152
153 ó203
204
ó
255
Preset dimmer speed from display menu
Linear dimmer
Nonlinear dimming curve 1 (fastest)
Nonlinear dimming curve 2
Nonlinear dimming curve 3 (slowest)

Nexus™ Aq 5x5 QRG EN
16
105Ch
Channel
Function
Value
Percent/Setting
1
Red 1
000
ó
255
0–100%
2
Green 1
000
ó
255
0–100%
3
Blue 1
000
ó
255
0–100%
4
White 1
000
ó
255
0–100%
5
Red 2
000
ó
255
0–100%
6
Green 2
000
ó
255
0–100%
7
Blue 2
000
ó
255
0–100%
8
White 2
000
ó
255
0–100%
9
Red 3
000
ó
255
0–100%
10
Green 3
000
ó
255
0–100%
11
Blue 3
000
ó
255
0–100%
12
White 3
000
ó
255
0–100%
13
Red 4
000
ó
255
0–100%
14
Green 4
000
ó
255
0–100%
15
Blue 4
000
ó
255
0–100%
16
White 4
000
ó
255
0–100%
17
Red 5
000
ó
255
0–100%
18
Green 5
000
ó
255
0–100%
19
Blue 5
000
ó
255
0–100%
20
White 5
000
ó
255
0–100%
21
Red 6
000
ó
255
0–100%
22
Green 6
000
ó
255
0–100%
23
Blue 6
000
ó
255
0–100%
24
White 6
000
ó
255
0–100%
25
Red 7
000
ó
255
0–100%
26
Green 7
000
ó
255
0–100%
27
Blue 7
000
ó
255
0–100%
28
White 7
000
ó
255
0–100%
29 Red 8 000 ó255
0–100%
30
Green 8
000
ó
255
0–100%
31
Blue 8
000
ó
255
0–100%
32
White 8
000
ó
255
0–100%
33
Red 9
000
ó
255
0–100%
34
Green 9
000
ó
255
0–100%
35
Blue 9
000
ó
255
0–100%
36
White 9
000
ó
255
0–100%

Nexus™ Aq 5x5 QRG EN
17
105Ch
Channel
Function
Value
Percent/Setting
37
Red 10
000
ó
255
0–100%
38
Green 10
000
ó
255
0–100%
39
Blue 10
000
ó
255
0–100%
40
White 10
000
ó
255
0–100%
41
Red 11
000
ó
255
0–100%
42
Green 11
000
ó
255
0–100%
43
Blue 11
000
ó
255
0–100%
44
White 11
000
ó
255
0–100%
45
Red 12
000
ó
255
0–100%
46
Green 12
000
ó
255
0–100%
47
Blue 12
000
ó
255
0–100%
48
White 12
000
ó
255
0–100%
49
Red 13
000
ó
255
0–100%
50
Green 13
000 ó255 0–100%
51 Blue 13 000 ó255 0–100%
52
White 13
000
ó
255
0–100%
53
Red 14
000
ó
255
0–100%
54
Green 14
000
ó
255
0–100%
55
Blue 14
000
ó
255
0–100%
56
White 14
000
ó
255
0–100%
57
Red 15
000
ó
255
0–100%
58
Green 15
000
ó
255
0–100%
59
Blue 15
000
ó
255
0–100%
60
White 15
000
ó
255
0–100%
61
Red 16
000
ó
255
0–100%
62
Green 16
000
ó
255
0–100%
63
Blue 16
000
ó
255
0–100%
64
White 16
000
ó
255
0–100%
65
Red 17
000
ó
255
0–100%
66
Green 17
000
ó
255
0–100%
67
Blue 17
000
ó
255
0–100%
68
White 17
000
ó
255
0–100%
69 Red 18 000 ó255 0–100%
70
Green 18
000
ó
255
0–100%
71
Blue 18
000
ó
255
0–100%
72
White 18
000
ó
255
0–100%

Nexus™ Aq 5x5 QRG EN
18
105Ch
Channel
Function
Value
Percent/Setting
73
Red 19
000
ó
255
0–100%
74
Green 19
000
ó
255
0–100%
75
Blue 19
000
ó
255
0–100%
76
White 19
000
ó
255
0–100%
77
Red 20
000
ó
255
0–100%
78
Green 20
000
ó
255
0–100%
79
Blue 20
000
ó
255
0–100%
80
White 20
000
ó
255
0–100%
81
Red 21
000
ó
255
0–100%
82
Green 21
000
ó
255
0–100%
83
Blue 21
000
ó
255
0–100%
84
White 21
000
ó
255
0–100%
85
Red 22
000
ó
255
0–100%
86
Green 22
000
ó
255
0–100%
87
Blue 22
000
ó
255
0–100%
88
White 22
000
ó
255
0–100%
89
Red 23
000
ó
255
0–100%
90
Green 23
000
ó
255
0–100%
91
Blue 23
000
ó
255
0–100%
92
White 23
000
ó
255
0–100%
93
Red 24
000
ó
255
0–100%
94
Green 24
000
ó
255
0–100%
95
Blue 24
000
ó
255
0–100%
96
White 24
000
ó
255
0–100%
97
Red 25
000
ó
255
0–100%
98
Green 25
000
ó
255
0–100%
99
Blue 25
000
ó
255
0–100%
100
White 25
000
ó
255
0–100%

Nexus™ Aq 5x5 QRG EN
19
105Ch
Channel
Function
Value
Percent/Setting
101 Auto Programs
000
ó
010
011 ó031
032 ó051
052 ó072
073 ó092
093 ó112
113 ó133
134 ó153
154 ó173
174 ó194
195 ó234
235
ó
255
No function
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Auto 6
Auto 7
Auto 8
Auto 9
Fade
Auto 0 (cycles through Auto 1–9)
102 Auto Speed 000 ó255
Slow to fast, when CH. 101 is set to fade
or has Auto 0–9 activated
103
Dimmer
000
ó
255
0–100%
104 Strobe
000
ó
010
011
ó
255
No function
0–20 Hz
105 Dimmer Speed
Mode
000 ó051
052 ó101
102 ó152
153 ó203
204 ó255
Preset dimmer speed from display menu
Linear dimmer
Nonlinear dimming curve 1 (fastest)
Nonlinear dimming curve 2
Nonlinear dimming curve 3 (slowest)
100Ch
Channel Function Value Percent/Setting
1
Red 1
000
ó
255
0–100%
2
Green 1
000
ó
255
0–100%
3
Blue 1
000
ó
255
0–100%
4
White 1
000
ó
255
0–100%
5
Red 2
000
ó
255
0–100%
6
Green 2
000
ó
255
0–100%
7
Blue 2
000
ó
255
0–100%
8
White 2
000
ó
255
0–100%
9
Red 3
000
ó
255
0–100%
10
Green 3
000
ó
255
0–100%
11
Blue 3
000
ó
255
0–100%
12
White 3
000
ó
255
0–100%
13
Red 4
000
ó
255
0–100%
14
Green 4
000
ó
255
0–100%
15
Blue 4
000
ó
255
0–100%
16
White 4
000
ó
255
0–100%

Nexus™ Aq 5x5 QRG EN
20
100Ch
Channel
Function
Value
Percent/Setting
17
Red 5
000
ó
255
0–100%
18
Green 5
000
ó
255
0–100%
19
Blue 5
000
ó
255
0–100%
20
White 5
000
ó
255
0–100%
21
Red 6
000
ó
255
0–100%
22
Green 6
000
ó
255
0–100%
23
Blue 6
000
ó
255
0–100%
24
White 6
000
ó
255
0–100%
25
Red 7
000
ó
255
0–100%
26
Green 7
000
ó
255
0–100%
27
Blue 7
000
ó
255
0–100%
28
White 7
000
ó
255
0–100%
29
Red 8
000
ó
255
0–100%
30
Green 8
000
ó
255
0–100%
31
Blue 8
000
ó
255
0–100%
32
White 8
000
ó
255
0–100%
33
Red 9
000
ó
255
0–100%
34
Green 9
000
ó
255
0–100%
35
Blue 9
000
ó
255
0–100%
36
White 9
000
ó
255
0–100%
37
Red 10
000
ó
255
0–100%
38
Green 10
000
ó
255
0–100%
39
Blue 10
000
ó
255
0–100%
40
White 10
000
ó
255
0–100%
41
Red 11
000
ó
255
0–100%
42
Green 11
000
ó
255
0–100%
43
Blue 11
000
ó
255
0–100%
44
White 11
000
ó
255
0–100%
45 Red 12 000 ó255 0–100%
46
Green 12
000
ó
255
0–100%
47
Blue 12
000
ó
255
0–100%
48
White 12
000
ó
255
0–100%
49
Red 13
000
ó
255
0–100%
50
Green 13
000
ó
255
0–100%
51
Blue 13
000
ó
255
0–100%
52
White 13
000
ó
255
0–100%
