TABLE OF CONTENT
BEFORE YOU BEGIN 3
WHAT IS INCLUDED .......................................•.••..............••• '" ...........••...........••••............•••..............••.............•••........••••.........••......•....... 3
UNPACKING INSTRUCTIONS ...........................•................•.............. :.•.............••..............•...............•.•............•.........................•............... 3
AC POWER .•............•...................................••...............••..............•......... ,....••••...........•...............•........................•.............................. 3
SAFETY INSTRUCTIONS •.•.•....•.......•................•.•...............••..............•.............••............•.•.....................................................•................ 3
INTRODUCTION 4
FEATURES ........•.......•......•........•..••.•...........•.••..•............••••............•.............•.••...•........•...............•............•.•...•............................•....•.. 4
DMX CHANNEL SUMMARY .•.•..•..•.••..•..........•.••.....•......•..•.............••.•.......•.•••••••..•........•.•...........•..•............•..... :.....•.•..........•.•................ 4
PRODUCT OVERViEW ......•.........•.•.•.....•.......•..............................................................................•.......................................................... 4
SETUP 5
LAMP ...........................•..............................•.•...............•.................•.•...........................................•...•...•..•.....•....••........•.••.................. 5
lamp installation 5
POWER •........•..•...•.......................•.............••.............................................................................•.•.......................••..........••.................. 5
MOUNTING ..................................•.•...............••••...........•••.............••...........•...............•........................................•.............•................... 6
Orientation 6
Rigging 6
OPERATING INSTRUCTIONS 7
OPERATING MODES .................•.•..............................•••.•...........•..•...........•••............••..•....•...••••............•............••....................... : 7
Stand Alone 7
Master/Slave 7
Master/Slave settings 7
Show Customization 8
CA-8 & CA-8F Easy Controller (Optional) 8
CA-32 Colormix Controller (Optional) 9
OMX Mode : 9
Setting the starting address 9
APPENDIX 11
DMX PRIMER ..••.......•...........................•••.............•••..............•••...........•.............•................•.•.•........••.......•................ ,'..........••.......•... 11
Fixture Linking 11
DMX CHANNEL VALUES .......••.............................................•••........•......•..........•.•.............•••.....................•.•.........................•.........•... 12
MAINTENANCE ......................•.............................•................•••.....•......•.........•.•...............•••..........•.•.•........••••..................................... 13
RETURNS PROCEDURE ........................•................•••.............•.............••...........•...............•..............•...........•...........•..........••••.•........... 13
CLAIMS .•.••............•..•.•..••..•..•....•...•...•.••.....•.......•.•.............................••............•.............•.......•.....•.•........•.•..•..........•..........••.............. 13
GENERAL TROUBLESHOOTING .............•..............•.................•............••..........•...............•..............•.......................•..•.•.....................•... 14
TECHNICAL SPECiFiCATIONS ...............•...............•••..............•.............•.............•..........................................•..........•.•........•.•................ 15
TFX-900 User Manual 2

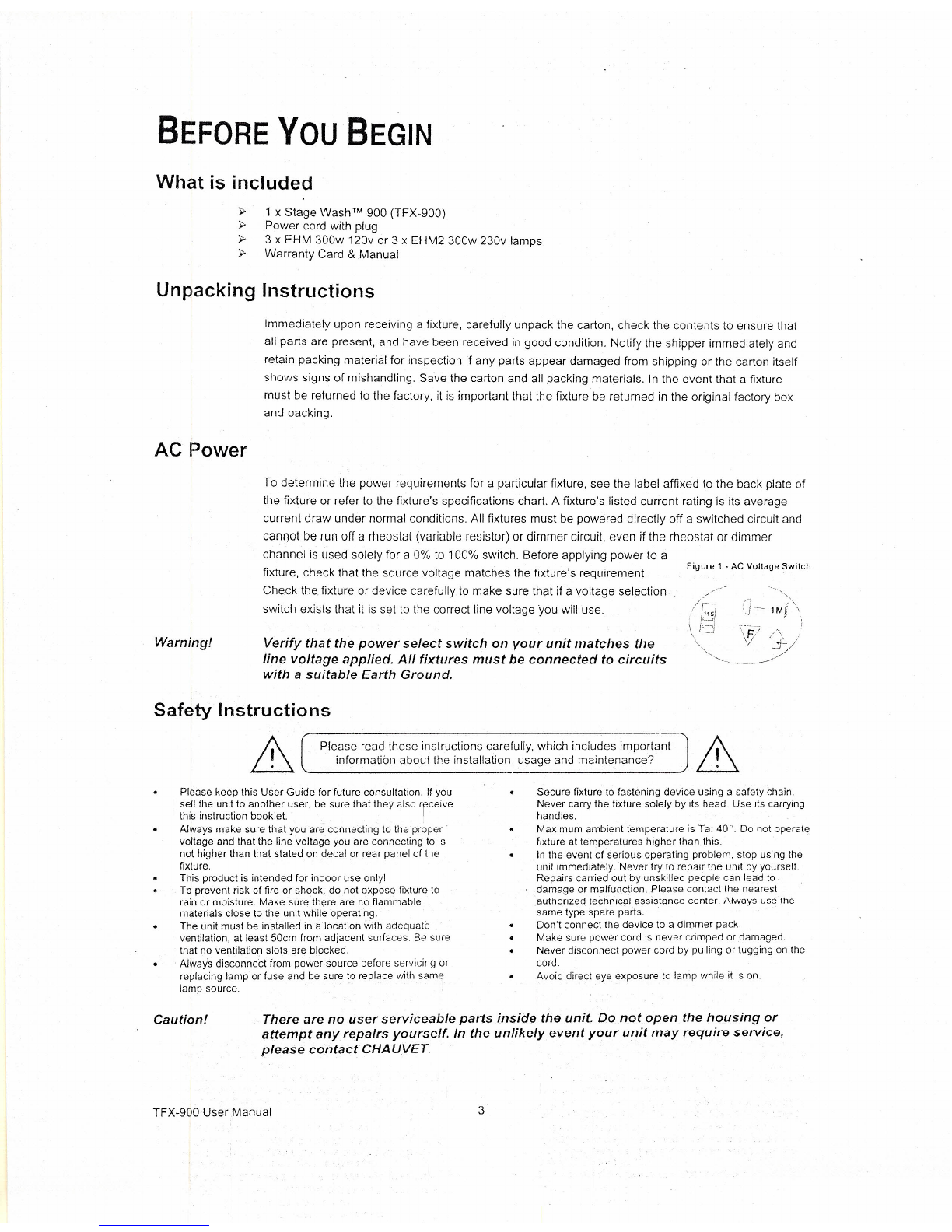

BEFORE You BEGIN
What is included
» 1 x Stage Wash™ 900 (TFX-900)
»Power cord with plug
»3 x EHM 300w 120v or 3 x EHM2 300w 230v lamps
»Warranty Card & Manual
Unpacking Instructions
AC Power
Warning
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box
and packing.
To determine the power requirements for a particular fixture, see the label affixed to the back plate of
the fixture or refer to the fixture's specifications chart. A fixture's listed current rating is its average
current draw under normal conditions. All fixtures must be powered directly off a switched circuit and
cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch. Before applying power to a
fixture, check that the source voltage matches the fixture's requirement.
Check the. fixture or device carefully to make sure that if a voltage selection
switch exists that it is set to the correct line voltage you will use.
Figure 1 - AC Voltage Switch
Verify that the power select switch on your unit matches the
line voltage applied. All fixtures must be connected to circuits
with a suitable Earth Ground.
\"------ .. ,
\~/
Safety Instructions
Please read these instructions carefully, which includes important
information about the installation. usage and maintenance?
Please keep this User Guide for future consultation. If you
sell the unit to another user, be sure that they also receive
this instruction booklet. I
Always make sure that you are connecting to the proper
voltage and that the line voltage you are connecting to is
not higher than that stated on decal or rear panel of the
fixture.
This product is intended for indoor use only
To prevent risk of fire or shock, do not expose fixture to
rain or moisture. Make sure there are no flammable
materials close to the unit while operating.
The unit must be installed in a location with adequate
ventilation, at least 50cm from adjacent surfaces. Be sure
that no ventilation slots are blocked.
Always disconnect from power source before servicing or
replacing lamp or fuse and be sure to replace with same
lamp source.
Caution
TFX-900 User Manual
Secure fixture to fastening device using a safety chain.
Never carry the fixture solely by its head Use its carrying
handles.
Maximum ambient temperature is Ta: 40° Do not operate
fixture at temperatures higher than this.
In the event of serious operating problem, stop using the
unit immediately. Never try to repair the unit by yourself.
Repairs carried out by unskilled people can lead to
damage or malfunction: Please contact the nearest
authorized technical assistance center. Always usethe
same type spare parts.
Don't connect the device to a dimmer pack.
Make sure power cord is never crimped or damaged.
Never disconnect power cord by pulling or tugging on the
cord.
Avoid direct eye exposure to lamp while it is on.
There are no user serviceable parts inside the unit. Do not open the housing or
attempt any repairs yourself. In the unlikely event your unit may require service,
please contact CHAUVET.
3

INTRODUCTION
Features
• professional grade color wash using red, green and blue heat resistant dichroic filters
• 32 pre-set colors and various chase patterns
• barn doors
• 900 watts of explosive brightness
• multi-purpose yoke/floor stand system
switch-selectable power settings 115v or 230v, (240vavailable)
• DMX-S12 Control
• Master/Slave operation

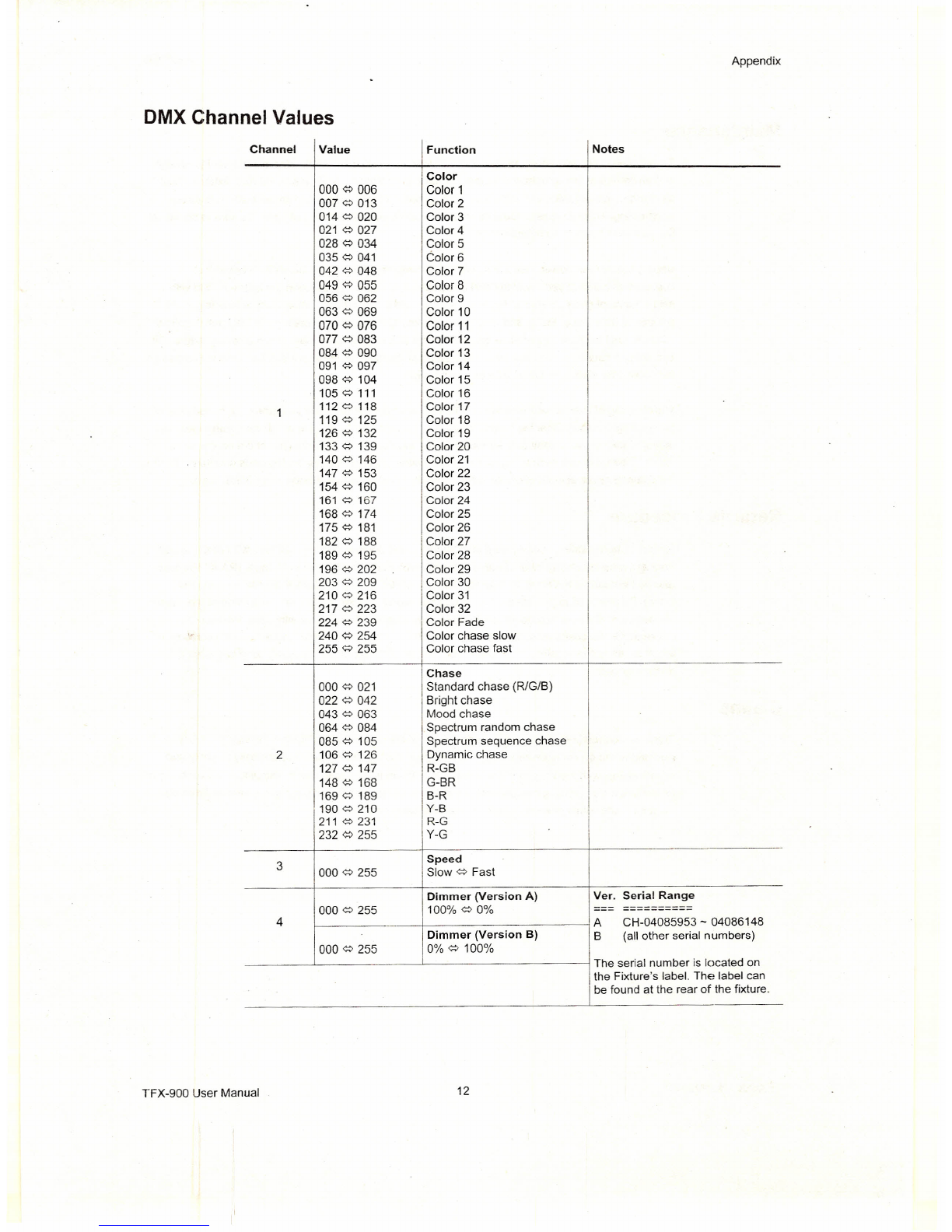

DMX Channel Summary
Channel
Color
Function
2Chase
3 Speed
4
Dimmer
Product Overview
~ Bamdoors
'----1IE=== •.• -~ [ Hanging bracket and
floor stand system
r = r. ==~==~~
'I'r OliO :[ffi )
111110 ~
I 0 I L
o I'
I 00 $
olI]o I .1
0:~::~~~~
Internal
microphone
Lamp access Voltage Select
switch
Fuse
DMX connection
y." Easy controller
connection
Microphone
sensitivity adjustment
Product Overview
TFX-900 User Manual 4
i8

SETUP
Lamp
Warning
Power
Warning
You will need to install a lamp prior to the initial operation of the fixture. Three EHM 300W halogen
lamps are included.
When replacing the lamp, please wait 15 m>inutesafter powering down to allow the
unit to cool down Always disconnect from main power prior to lamp replacement.
Do ncit touch the envelope (glass area) of the bulb with bare hands. If this happens, clean the lamp
with alcohol and wipe it with a lint free cloth before installation.
LAMP INSTALLATION
1) Remove the 2 screws as illustrated in Figure 3,
located on the front of the fixture and lift the entire
cover plate until lamp reflectors are exposed.
2) The linear lamp is held in place by tension provided by
springs inside of both ceramic socket ends. It is
important to proceed with lamp removal and
replacement very delicately.
3) Hold linear lamp with a napkin and push in the
direction of either of the two ends to relieve tension on
the opposite end. Then pull end of lamp upwards to
remove from socket.
4) To replace lamp, follow the same procedure as above
to insert lamp into the socket.
5) Lower the cover plate and replace both screws.
6) No lamp alignment is necessary for this fixture.
Your product is equipped with switch-selectable AC power
setting.
Verify that the power select switch on your unit
matches the line voltage applied. All fixtures must
be connected to circuits with a suitable Earth
Ground.
TFX-900 Lamp Installation
~
Remove these 2 screws
Lamps exposed
Slide switch up or down
depending on your line voltage.
To determine the power requirements for a particular fixture. see the label affixed to the back plate of
the fixture or refer to the fixture's specifications chart.
A fixture's listed current rating is its average current draw under normal conditions.
All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable
resistor) or dimmer circuit, even if the rheostat or dimmer channel is used sotely for a 0% to 100%
switch.
Before applying power to a fixture, check that the source voltage matches the fixture's requirement.
All fixtures must be connected to circuits with a suitable Earth Ground.
TFX-900 User Manual 5

Mounting
. '
TFX-900 User Manual
ORIENTATION
Setup
RIGGING
This fixture may be mounted in any position provided there is adequate room for ventilation.
It is important never to obstruct the fan or vents pathway. Mount the
fixture using, a suitable "C" or "0" type clamp. Adjust the angle of the
flxture by loosening both knobs and tilting the fixture. After finding
the desired position, retighten both knobs.
When selecting installation location, take into consideration lamp
replacement access and routine maintenance.
Safety cables should always be used.
Never mount in places where the fixture will be exposed to rain, high
humidity, extreme temperature changes or restricted ventilation .
6
Hanging Clamp
Note
Clamp is sold separately.

OPERATING INSTRUCTIONS
Operating Modes
The TFX-900 can be operated in three ways.
A stand-alone mode will listen to sound and run through its diverse range of built in programs. An
optional CA-8 and CA-8F wired controller provides simple remote control.
Master/Slave mode will allow the command of up to as many units you want in a synchronized light
show to the sound.
DMX control mode will provide the greatest flexibility and creativity. Each fixture trait can be controlled
individually using any universal DMX-512 controller.
Stand Alone
The Stand Alone mode is activated automatically when the fixture is absent of DMX signal or a
controller is not connected. The TFX-900 will run through its built in programs as it listens to the
sound.
Master/Slave
The Master/Slave mode will allow you to link up to as many units you want in a daisy chain fashion ..In
this mode, the first unit in the daisy chain will automatically command all other units following. The
programs are constructed based on the control of four units. An optional CA-8 or CA-8F controller
connected to the first unit in the chain will allow enhanced control functions.
MASTER/SLAVE SETTINGS
1) Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector
of the first fixture.
2) Connect the end of the cable coming from the first fixture which will have a (female) 3 pin
connector to the input connector of the next fixture consisting of a (male) 3 pin connector. Then,
proceed to connect from the output as stated above to the input of the following fixture and so on
as illustrated below in figure "Daisy Chain Connection".
3) On the first unit in the chain set dipswitch number 1 and 10 to the ON position as shown in
Figure "Dipswitch 10 ON".
Optional Controller
Figure: Oipswitch 1 & 10 ON
Note/ For additional information on linking
fixtures read under section "DMX
Primer"
o
'"
~
H
o
2S
1 2 3 4 5 6 7 8 9 10
t::
F
~i~~i~wi~~
TFX-900 User Manual 7

Operating Instructions

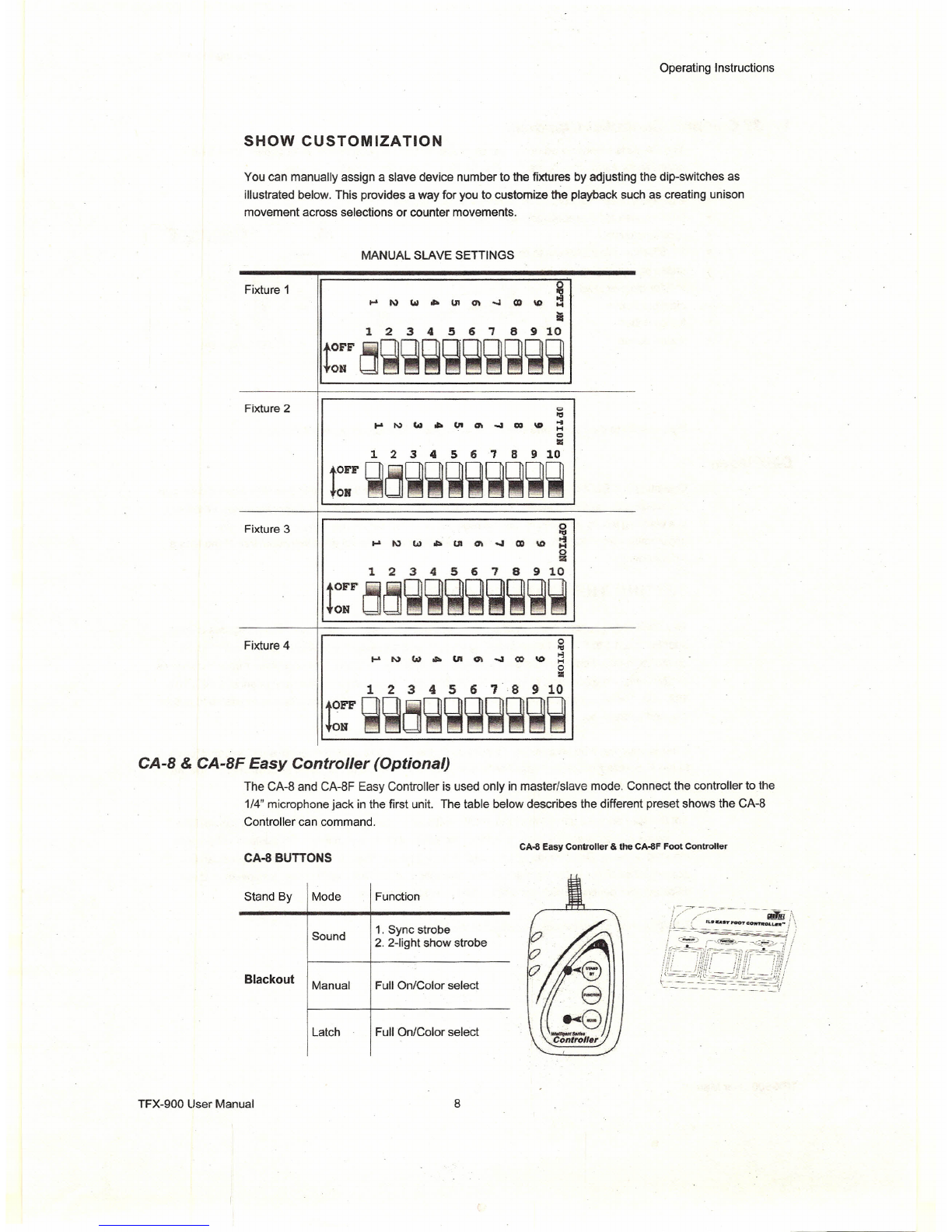

SHOW CUSTOMIZATION
You can manually assign a slave device number to the fixtures by adjusting the dip-switches as
illustrated below. This provides a way for you to customize the playback such as creating unison
movement across selections or counter movements.
Fixture 1
MANUAL SLAVE SETTINGS
~
~ N W • ~ ~ ~ ~ ~ ~
Ii
1 2 3 4 5 6 7 8 9 10
t::
F
a~~~~~~~~~
Fixture 2
.•.
."
~N~~~~~ m ~ =
o
=:
1 2 3 4 5 6 7 8 9 10
r ~a~~~~~~~~
Fixture 3 ~
~ N W m ~ ~
i
123456789 10
t::
F
aa~~~~~~~~
Fixture 4 ~
~ ~ w ~ ~ ~ ~ m ~ ~
o
=
1 2 3 4 5 6 7 8 9 10
l~:F ~~a~~~~~~g
Sound
CA-8 &CA-8F Easy Controller (Optional)
The CA-8 and CA-8F Easy Controller is used only in master/slave mode. Connect the controller to the
1/4" microphone jack in the first unit. The table below describes the different preset shows the CA-8
Controller can command.
Blackout
TFX-900 User Manual
CA-8 Easy Controller & the CA-8F Foot Controller
CA-8BUnONS
Stand By Mode Function
1. Sync strobe
2. 2-light show strobe
Manual Full On/Color select
Latch Full On/Color select
8

Operating Instructions
CA-32 Colonnix Controller (Optional)
The CA-32 Is an enhanced dedicated controller for the TFX-900 fixture. A foot controller is also
available fOr hands-free operation. TI'te CA-32 provides the following features.
• 9 different hold-color buttons for immediate color access
fader access to 32 predefined mixed colors
fade time control
, 12 different chase patterns to choose from
chase speed control
master dimmer level
blackout button
full on button
sound button
Please refer to the CA-32 and CA-32F user manuals for more in depth information.
DMXMode
Operating in a DMX Control mode environment gives the user the greatest flexibility when it comes to'
customizing or creating a show. You can tailor your programming to suit a specific event. Whether it
is a wedding where a spot light may be required or a lead singer requiring a color solo, the
opportunities are end less. In this mode you will be able to control each individual trait of the fixture
independently.
SETTING THE STARTING ADDRESS
This DMX mode enables the use of a universal DMX controller device. Each fixture requires a "start
address" from 1 to 511. A fixture requiring one or more channels for control begins to read the data
on the channel indicated by the start address. For example, a fixture that occupies or uses 6 channels
of DMX and was addressed to start on DMX channel 100, would read data from channels: 100, 101,
102,103,104, and 105. Choose start addresses so that the channels used do not overlap and notate
the start address selected for future reference.
If this is your first time addressing a fixture using the DMX-512 control protocol than I suggest jumping
to the Appendix Section and read the heading "DMX Primer". It contains very useful information that
will help you understand its use.
Set the start address using the group of DIP switches located usually on bottom of the fixture. Each
dip switch has an associated value. Adding the value of each switch In the ON position will provide
the start address. Determining which switches to toggle ON given a speciflc start address can be
accomplished In the following. manner. By subtracting the largest switch value possible from the
selected start address which does not cause a negative number.
A helpful chart with examples provided on the following page.
TFX-900 User Manual 9

Example Starting
Address
Operating Instructions
This manual is preliminaryand someof the illustrationsand functions mayhave changed
priorto final oroduction.
Address 10
Pin #4 = 8
Pin #2 = 2
Total = 10
I;
I-' ~ •• CD ;: ~ g: ~ ~ ~ ~DMX Values
::F ~aga~~~~~~
Address 24
Pin # 5 == 16
Pin #4 = 8
Total = 24
Resolving address
using simple math.
Dip Switch (DMX Value)
Address 233
TFX-900 User Manual
233 - (128) = 105, Turn ON Dip # 8
105 - (64) = 41, Turn ON Dip # 7
41 - (32) = 9, Turn ON Dip #6
9 - (8) = 1, Turn ON Dip # 4
1 - (1) = 0, Turn ON Dip # 1
You will most likely use the first available
number which maybe number 1. This
number was selected for example
purposes.
10
1 1
2 2
3 4
4 8
5 16
6 32
7 64
8 128
9 256
10

ApPENDIX
DMX Primer
There are 512 channels in a DMX-512 connection. Channels may be assigned in any manner. A
fixture capable of receiving DMX 512 will require one or a number of sequential channels. The user
must assign a starting address on the fixture that indicates the first channel reserved in the controller.
There are many different types of DMX controllable fixtures and they all may vary in the total number
of channels required. Choosing a start address should be planned in advance. Channels should
never overlap. If they db: this will result in erratic operation of the fixtures whose starting address is
set incorrectly. You can however, control multiple fixtures of the same type using the same starting
address as long as the intended result is that of unison movement or operation. In other words, the
fixtures will be slaved together and all respond exactly the same.
DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain connection is
where the DATA OUT of one fixture connects to the DATA IN of the 'next fixture. The order in which
the fixtures are connected is not important and has no effect on how a controller communicates to
each fixture. Use an order that provides for the easiest and most direct cabling. Connect fixtures
using shielded two conductor twisted pair cable with three pin XLR male to female connectors. The
shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET
carries 3-pin XLR DMX compliant cables, DMX-10 (33'), DMX-4.5 (15') and DMX-1.5 (5')
FIXTURE LINKING
COMMON
Figure 1 ~DMX connector configuration Resistance 120
ohm 1/4wbetween
pin 2 (DMX -) and
pin 3 (DMX +) of
tha Iast fixture
~
1 DMX+
INPUT 30 \--__ .=..c:.=- -j
02
DMX- Termination reduces signal errors and to
avoid signal transmission problems and
interference, ii is always advisable to connect
a DMX signa terminator.
Note If you use acontroller with a5pin DMX output connector, you will need to use a5
pin to 3 pin adapter. Chauvet Model No: DMX5M.
The chart below details a proper cable conversion:
3 Pin to 5 Pin Conversion Chart
Conductor
3 Pin Female (output) 5 Pin Male (Input)
Ground/Shield Pin
1
Pin 1
Data ( - )signal Pin 2Rin 2
Data ( + ) sign.al Pin 3
f"""
Do not use
Do not use Do not use
TFX-900 User Manual 11

DMX Channel Values
Channel Value
000 ¢:> 006
007 ¢:> 013
014 ¢:> 020
021 ¢:> 027
028 ¢:> 034
035 ¢:> 041
042 ¢:> 048
049 ¢:> 055
056 ¢:> 062
063 ¢:> 069
070 ¢:> 076
077 ¢:> 083
084 ¢:> 090
091 ¢:> 097
098 ¢:> 104
105 ¢:> 111
1112
¢:> 118
119 ¢:> 125
126 ¢:> 132
133 ¢:> 139
140 ¢:> 146
147 ¢:> 153
154 ¢:> 160
161 ~ 167
168 ¢:> 174
175 ¢:> 181
182 ¢:> 188
189 ¢:> 195
196 ¢:> 202
203 ¢:> 209
210 ¢:> 216
217 ¢:> 223
224 ~ 239
240 ¢:> 254
255 ¢:> 255
000 ¢:> 021
022 ¢:> 042
043 ~ 063
064 ¢:> 084
085 ¢:> 105
2106
¢:> 126
127 ¢:> 147
148 ¢:> 168
169 ¢:> 189
190 ¢:> 210
211 ¢:> 231
232 ¢:> 255
3000 ce 255
000 ~ 255
4
-
000 ¢:> 255
I Function
Color
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
Color 15
Color 16
Color 17
Color 18
Color 19
Color 20
Color 21
Color 22
Color 23
I
Color 24
Color 25
Color 26
I
, Color 27
Color 28
Color 29
I Color 30
I,
Color 31
Color 32
Color Fade
Color chase slow
Color chase fast
Chase
Standard chase (R/G/B)
Bright chase
Mood chase
Spectrum random chase
Spectrum sequence chase
Dynamic chase
R-GB
G-BR
B-R
Y-B
R-G
Y-G
Appendix
Notes
--1------------1 A CH-04085953 - 04086148
B (all other serial numbers)
Speed
Slow ~ Fast
Dimmer (Version A)
100% ~ 0%
Dimmer (Version B)
0% ¢:> 100%
Ver. Serial Range
____ -L -L ---I The serial number is located on
the Fixture's label. The label can
I be found at the rear of the fixture,
TFX-900 User Manual 12

Appendix

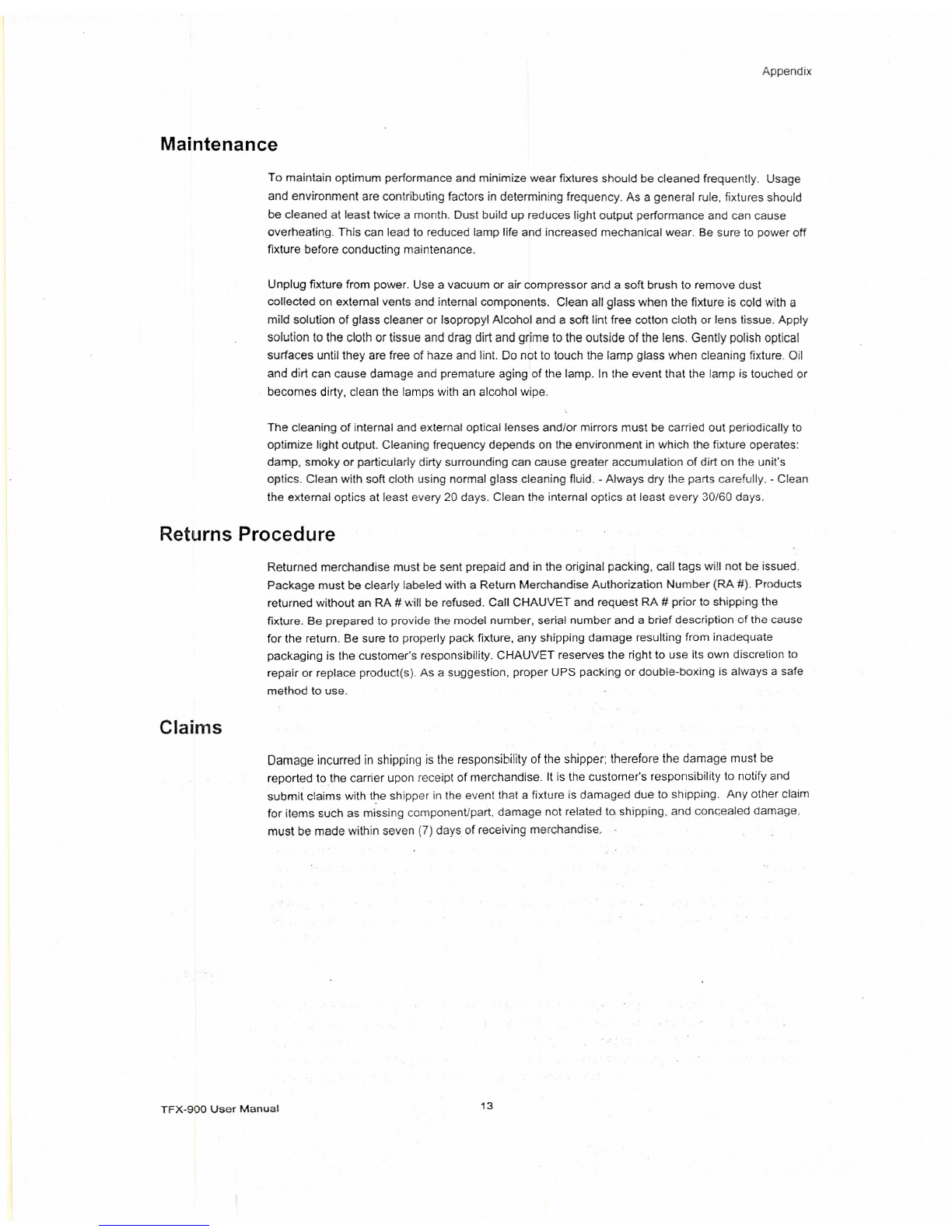

Maintenance
To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage
and environment are contributing factors in determining frequency. As a general rule, fixtures should
be cleaned at least twice a month. Dust build up reduces light output performance and can cause
overheating. This can lead to reduced lamp life and increased mechanical wear. Be sure to power off
fixture before conducting maintenance.
Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust
collected on external vents and internal components. Clean all glass when the fixture is cold with a
mild solution of glass cleaner or Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue. Apply
solution to the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish optical
surfaces until they are free of haze and lint. Do not to touch the lamp glass when cleaning fixture. Oil
and dirt can cause damage and premature aging of the lamp. In the event that the lamp is touched or
becomes dirty, clean the lamps with an alcohol wipe.
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's
optics. Clean with soft cloth using normal glass cleaning fluid. - Always dry the parts carefully. - Clean
the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
Returns Procedure
Returned merchandise must be sent prepaid and' in the original packing, call tags wi 1not be issued.
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products
returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause
for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate
packaging is the customer's responsibility. CHAUVET reserves the right to use its own discretion to
repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe
method to use.
Claims
Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and
submit claims with the shipper in the event that a fixture is damaged due to Shipping. Any other claim
for items such as missing componenUpart, damage not related to shipping, and concealed damage,
must be made within seven (7) days of receiving merchandise, .
TFX-900 User Manual
13

Appendix
General Troubleshooting
Applies to
Symptom Solution(s) Foggers Dimmers
lights
& Snow Controllers & Chaser
Auto shut off Check fan thermal switch reset
v'
Beam is very dim or not Clean optical system or replace lamp
bright
v'
Check 220/11 Ov switch for proper setting
Breaker/Fuse keeps Check total load placed on device
v'
blowing
Chase is too slow Check users manual for speed adjustment
v' v' v'
Device has no power Check for power on Mains.
v' v' v'
Check device's fuse. (internal and/or external)
Fixture is not Check DMX Dip switch settings for correct addressing
responding Check DMX cables
v'
Check polarity switch settings
Fixture is on but there Make sure you have the correct audio mode on the control
is no movement to the switches. If audio provided via
Y." jack, make sure a live
audio audio signal exists
v' v' v'
Adjust sound sensitivity knob
Lamps cuts off Possible bad lamp or fixture is overheating.
sporadically
v'
Lamp may be at end of its life.
Light will not come on Some discharge lamps require a cooling off period before
after power failure the electronics in the fixture can kick start it again, wait 5 to
v'
10 minutes before powering up
Loss of signal Use only DMX cables
Install terminator
v' v' v' v'
Note: Keep DMX cables separated from power cables or
black lights.
Moves slow Check 220/11 Ov switch for proper setting
v'
No flash Re-install bulb, may have shifted in Shipping
v'
No laser output Bounce mirror motor may have shifted during shipping, v'
readjust
No light output Check slip ring
& brushes for contact
Install bulb
./
Call service technician
Relay will not work Check r.eset switch
v'
Check cable connections
Remote does not work Make sure connector is firmly connected to device
v' v'
Stand alone mode All Chauvet lighting fixtures featuring stand-alone functions
do not require additional settings, simply power the fixture
v'
and it will automatically enter into this mode
TFX-900 User Manual
14

Appendix
Technical Specifications
WEIGHT & DIMENSIONS
Length .
Width
Height
Weight.
. 360 mm (14.2 in)
...... 225 mm (8.86 in)
....... ..... . 150 mm (5.9 in)
. 6 Kg (13.2 lbs)
POWER
Switch-selectable power settings 115V 60 Hz or 230V 50 Hz
European version. . 240V 50 Hz
AC input... , 3-prong lEC 60320 C14
LAMPS
3xEHM(115V) .
3 x EHM2 (230V) . ..... 2,000 hr, 300W 2,000 hr, 300W
THERMAL
Maximum ambient temperature 40° (104° F)
FUSE
Main
PCB ............. 30mm Glass 15A Fast Blow
..... 20mm Glass T3.15A Fast Blow
CONTROL & PROGRAMMING
Data input.
Cata output.. .
Data pin configuration , .
Protocols.
DMX Channels ~ .
...... locking 3-pin XLR male socket
. locking 3-pin XLR female socket
. pin 1 shield, pin 2 (-), pin 3 (+)
". DMX-512 USITT
. 4
ORDERING INFORMATION
Stage Wash 900....... . .
CA-8 Easy Controller . .
CA-SF Easy Foot Controller..... . .
CA-32 Colormix oontroner .. . .
CA-32F Colormix foot Conlroller . .
Fuse 3A .
Fuse 15A .
.....TFX-900
. CA-8
. CA-8F
. CA-32
..CA-32F
..P170FUSE003
....P170FUSE015
TFX-900 User Manual 15
."" illl<.-.~., "~I
