Chauvet Legend 412Z User manual

Quick Reference Guide
English EN
Español ES
Français FR

Legend™ 412Z QRG EN
2
About this
Guide
The Legend™ 412Z Quick Reference Guide (QRG) has basic product
information such as connection, mounting, menu options, and DMX values.
Download the User Manual from www.chauvetpro.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
•DO NOT open this product. It contains no user-serviceable parts.
•DO NOT look at the light source when the product is on.
•CAUTION: This product’s housing may be hot when lights are
operating.
•Mount this product in a location with adequate ventilation, at least
20 in (50 cm) from adjacent surfaces.
•DO NOT leave any flammable material within 50 cm of this product
while operating or connected to power.
•USE a safety cable when mounting this product overhead.
•DO NOT operate this product outdoors or in any location where dust,
excessive heat, water, or humidity may affect it. (IP20)
•DO NOT operate this product if the housing, lenses, or cables appear
damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•ONLY use the hanging/mounting bracket or the handles to carry this
product. Do not carry by the moving head.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate
this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, or Mexico, contact your distributor
to request support or return a product. Visit www.chauvetpro.com
for contact
information.

EN Legend™ 412Z QRG
3
What is
Included
•Legend™ 412Z
•Neutrik® powerCON® power
cord
•Omega bracket with mounting
hardware
•Warranty Card
•Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
Power Linking
You can link up to 9 Legend™ 412Z products at 120 VAC, 15 at 208 VAC, or
17
at 230 VAC. Never exceed this number. Power linking cords can be
purchased separately.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Replacing the
Fuse
1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap
from the housing.
3. Remove blown fuse and replace with a fuse of the same type and
rating.
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Legend™ 412Z will work with a DMX controller using a regular DMX
serial connection. A DMX Primer is available from www.chauvetpro.com.
DMX Connection
The Legend™ 412Z uses a regular DMX data connection for its DMX
personalities: 15chan, 27chan, 31chan, and 34chan. See the
User Manual to
connect and configure for DMX operation.

Legend™ 412Z QRG EN
4
Mounting
Product
Mounting
Diagram
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the
currently selected value into the selected function
<UP>
Navigates upwards through the menu list and
increases the numeric value when in a function
<DOWN>
Navigates downwards through the menu list and
decreases the numeric value when in a function
Secure the safety cable using
the passageway on the
bottom of the product.
Overhead Mounting
Floor Mounting
Clamp
(Model #CLP-15)
Safety Cable
(Model #CH
-05)
Omega
Bracket

EN Legend™ 412Z QRG
5
Menu Options
Main Level
Programming Levels
Description
DMX Address
001–512
Selects the DMX starting address
Channel Mode
15chan
Selects 15–channel DMX mode
27chan
Selects 27–channel DMX mode
31chan
Selects 31–channel DMX mode
34chan
Selects 34–channel DMX mode
Pan Inverse
Yes
Defines the direction of the pan function
No
Tilt Inverse
Yes
Defines the direction of the tilt function
No
Back Light
On
Display backlight always on
Off
Display backlight turns off after 1 min.
White Balance
Red
125–255 Defines the color temperature when the red,
green, and blue faders are set at 100%
Green
Blue
Manual Test
Pan
000–255
Sets Pan 0–540°
Tilt
Sets Tilt 0–270°
Red1
Sets Quadrant 1 red LED intensity
Green1
Sets Quadrant 1 green LED intensity
Blue1
Sets Quadrant 1 blue LED intensity
White1
Sets Quadrant 1 white LED intensity
Red2
Sets Quadrant 2 red LED intensity
Green2
Sets Quadrant 2 green LED intensity
Blue2
Sets Quadrant 2 blue LED intensity
White2
Sets Quadrant 2 white LED intensity
Red3
Sets Quadrant 3 red LED intensity
Green3
Sets Quadrant 3 green LED intensity
Blue3
Sets Quadrant 3 blue LED intensity
White3
Sets Quadrant 3 white LED intensity
Red4
Sets Quadrant 4 red LED intensity
Green4
Sets Quadrant 4 green LED intensity
Blue4
Sets Quadrant 4 blue LED intensity
White4
Sets Quadrant 4 white LED intensity
Zoom
Sets zoom position
Dimmer
Sets dimmer value
Strobe
Selects the strobe frequency (0–20 Hz)
Auto Test
Starts the product’s test sequence
Temp.
Shows the product’s current temperature
(°C)
Fan Mode
Low
Selects the fan’s Operation mode.
High
Auto
Fixture Time
Shows the total amount of time the product
has been used (hours)
Firmware Version
Shows the version of the software that has
been installed
Reset
Resets product to its home setting

Legend™ 412Z QRG EN
6
DMX Values
15chan
Channel
Function
Value
Percent/Setting
1
Pan
000 ó255
0–540°
2
Fine Pan
000 ó255
Fine control of panning
3
Tilt
000 ó255
0–270°
4
Fine Tilt
000 ó255
Fine control of tilting
5
P/T Speed
000 ó255
Pan/Tilt speed (fast to slow)
6
Dimmer
000 ó255
0–100%
7 Strobe
000 ó019
020 ó039
040 ó059
060 ó079
080 ó099
100 ó119
120 ó139
140 ó159
160 ó179
180 ó199
200 ó219
220 ó255
No function
0–20 Hz
Strobe Macro 1
Strobe Macro 2
Strobe Macro 3
Strobe Macro 4
Strobe Macro 5
Strobe Macro 6
Strobe Macro 7
Strobe Macro 8
Strobe Macro 9
No function
8
Red
000 ó255
0–100%
9
Green
000 ó255
0–100%
10
Blue
000 ó255
0–100%
11
White
000 ó255
0–100%

EN Legend™ 412Z QRG
7
DMX Values (cont.)
15chan
(cont.)
Channel
Function
Value
Percent/Setting
12 Color Macro
000 ó019
020 ó029
030 ó039
040 ó049
050 ó059
060 ó069
070 ó079
080 ó089
090 ó099
100 ó109
110 ó119
120 ó129
130 ó139
140 ó149
150 ó159
160 ó169
170 ó179
180 ó189
190 ó199
200 ó209
210 ó219
220 ó229
230 ó239
240 ó255
No function
Macro 1
Macro 2
Macro 3
Macro 4
Macro 5
Macro 6
Macro 7
Macro 8
Macro 9
Macro 10
Macro 11
Macro 12
Macro 13
Macro 14
Macro 15
Macro 16
Macro 17
Macro 18
Macro 19
Macro 20
Macro 21
Macro 22
Macro 23
13
Macro Speed
000 ó255
0–100%
14
Zoom
000 ó255
0–100%
15 Reset
000 ó007
008 ó069
070 ó129
130 ó190
191 ó205
206 ó255
No function
Reset pan/tilt
Reset all
Pan/tilt movement blackout
Zoom presets
No function

Legend™ 412Z QRG EN
8
DMX Values (cont.)
27chan
Channel
Function
Value
Percent/Setting
1
Pan
000 ó255
0–540°
2
Fine Pan
000 ó255
Fine control of panning
3
Tilt
000 ó255
0–270°
4
Fine Tilt
000 ó255
Fine control of tilting
5
P/T Speed
000 ó255
Pan/Tilt speed (fast to slow)
6
Dimmer
000 ó255
0–100%
7 Strobe
000 ó019
020 ó039
040 ó059
060 ó079
080 ó099
100 ó119
120 ó139
140 ó159
160 ó179
180 ó199
200 ó219
220 ó255
No function
0–20 Hz
Strobe Macro 1
Strobe Macro 2
Strobe Macro 3
Strobe Macro 4
Strobe Macro 5
Strobe Macro 6
Strobe Macro 7
Strobe Macro 8
Strobe Macro 9
No function
8
Red Quadrant 1
000 ó255
0–100%
9
Green Quadrant 1
000 ó255
0–100%
10
Blue Quadrant 1
000 ó255
0–100%
11
White Quadrant 1
000 ó255
0–100%
12
Red Quadrant 2
000 ó255
0–100%
13
Green Quadrant 2
000 ó255
0–100%
14
Blue Quadrant 2
000 ó255
0–100%
15
White Quadrant 2
000 ó255
0–100%
16
Red Quadrant 3
000 ó255
0–100%
17
Green Quadrant 3
000 ó255
0–100%
18
Blue Quadrant 3
000 ó255
0–100%
19
White Quadrant 3
000 ó255
0–100%
20
Red Quadrant 4
000 ó255
0–100%
21
Green Quadrant 4
000 ó255
0–100%
22
Blue Quadrant 4
000 ó255
0–100%
23
White Quadrant 4
000 ó255
0–100%

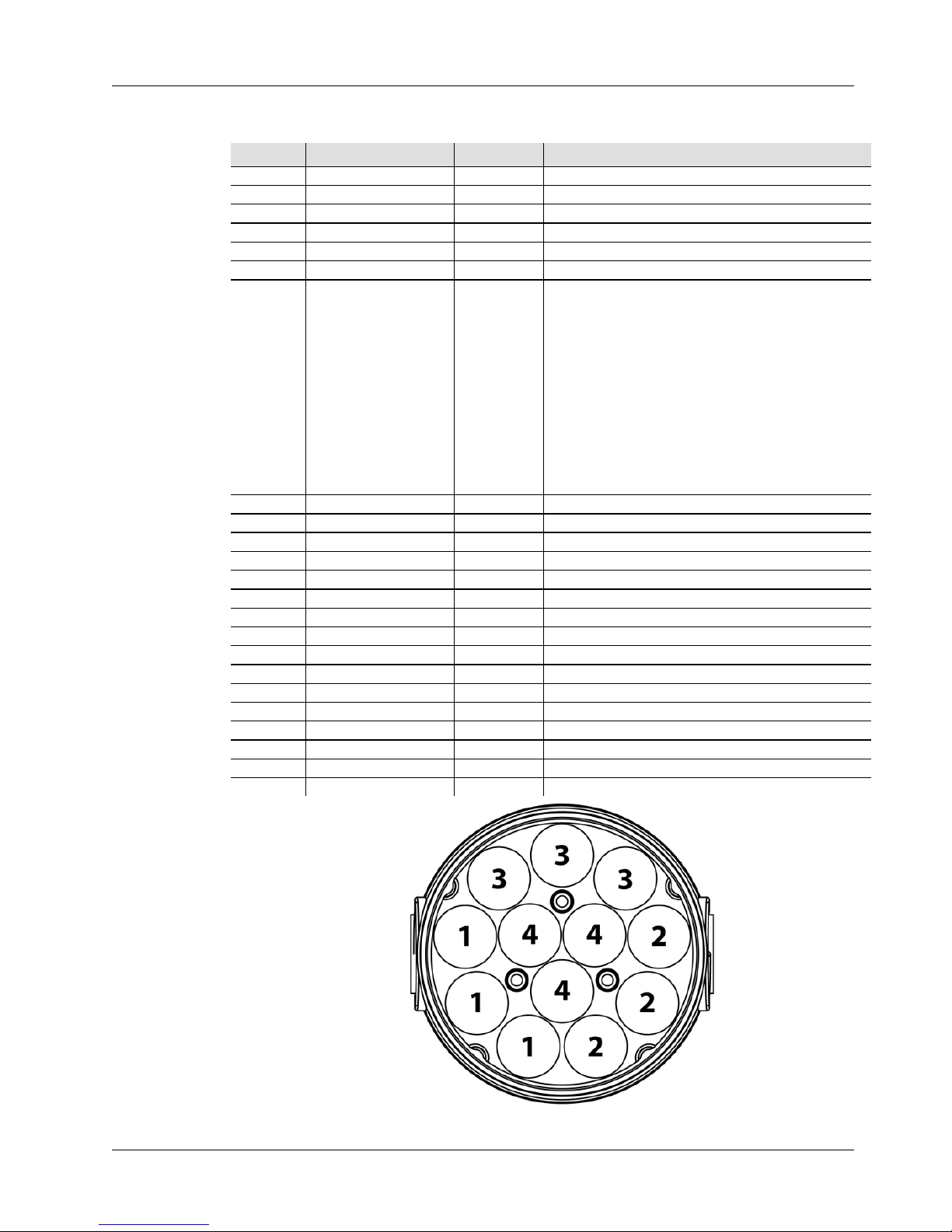

Quadrant Diagram

EN Legend™ 412Z QRG
9
DMX Values (cont.)
27chan
(cont.)
Channel
Function
Value
Percent/Setting
24 Color Macro
000 ó019
020 ó029
030 ó039
040 ó049
050 ó059
060 ó069
070 ó079
080 ó089
090 ó099
100 ó109
110 ó119
120 ó129
130 ó139
140 ó149
150 ó159
160 ó169
170 ó179
180 ó189
190 ó199
200 ó209
210 ó219
220 ó229
230 ó239
240 ó255
No function
Macro 1
Macro 2
Macro 3
Macro 4
Macro 5
Macro 6
Macro 7
Macro 8
Macro 9
Macro 10
Macro 11
Macro 12
Macro 13
Macro 14
Macro 15
Macro 16
Macro 17
Macro 18
Macro 19
Macro 20
Macro 21
Macro 22
Macro 23
25
Macro Speed
000 ó255
0–100%
26
Zoom
000 ó255
0–100%
27 Reset
000 ó007
008 ó069
070 ó129
130 ó190
191 ó205
206 ó255
No function
Reset pan/tilt
Reset all
Pan/tilt movement blackout
Zoom presets
No function

Legend™ 412Z QRG EN
10
DMX Values (cont.)
31chan
Channel
Function
Value
Percent/Setting
1
Pan
000 ó255
0–540°
2
Fine Pan
000 ó255
Fine control of panning
3
Tilt
000 ó255
0–270°
4
Fine Tilt
000 ó255
Fine control of tilting
5
P/T Speed
000 ó255
Pan/Tilt speed (fast to slow)
6
Dimmer
000 ó255
0–100%
7 Strobe
000 ó019
020 ó039
040 ó059
060 ó079
080 ó099
100 ó119
120 ó139
140 ó159
160 ó179
180 ó199
200 ó219
220 ó255
No function
0–20 Hz
Strobe Macro 1
Strobe Macro 2
Strobe Macro 3
Strobe Macro 4
Strobe Macro 5
Strobe Macro 6
Strobe Macro 7
Strobe Macro 8
Strobe Macro 9
No function
8
Red Quadrant 1
000 ó255
0–100%
9
Green Quadrant 1
000 ó255
0–100%
10
Blue Quadrant 1
000 ó255
0–100%
11
White Quadrant 1
000 ó255
0–100%
12
Dimmer Quadrant 1
000 ó255
0–100%
13
Red Quadrant 2
000 ó255
0–100%
14
Green Quadrant 2
000 ó255
0–100%
15
Blue Quadrant 2
000 ó255
0–100%
16
White Quadrant 2
000 ó255
0–100%
17
Dimmer Quadrant 2
000 ó255
0–100%
18
Red Quadrant 3
000 ó255
0–100%
19
Green Quadrant 3
000 ó255
0–100%
20
Blue Quadrant 3
000 ó255
0–100%
21
White Quadrant 3
000 ó255
0–100%
22
Dimmer Quadrant 3
000 ó255
0–100%
23
Red Quadrant 4
000 ó255
0–100%
24
Green Quadrant 4
000 ó255
0–100%
25
Blue Quadrant 4
000 ó255
0–100%
26
White Quadrant 4
000 ó255
0–100%
27
Dimmer Quadrant 4
000 ó255
0–100%
