Chauvet TFX-FS360 User manual

5200 NW 108th Ave Sunrise, FL 33351
[phone] –[phone]
FAX [phone]
www.chauvetlighting.com
2010-07-20/14:53
TFX-FS360
Followspot™400G
Ask your dealer about
the specially designed
tripod stand with
casters for the TFX-
FS360.
Model Number
CH-W28
READ FIRST!
To start using as a Followspot,
press the FUNCTION button until
the Manual LED turns on.
USER MANUAL

TFX-FS360 User Manual 2 2010-07-20/14:53
TABLE OF CONTENT
BEFORE YOU BEGIN....................................................................................................................................................... 3
WHAT IS INCLUDED ................................................................................................................................................................................ 3
UNPACKING INSTRUCTIONS .................................................................................................................................................................... 3
AC POWER........................................................................................................................................................................................... 3
SAFETY INSTRUCTIONS .......................................................................................................................................................................... 3
INTRODUCTION............................................................................................................................................................... 4
FEATURES ............................................................................................................................................................................................ 4
ADDITIONAL FEATURES .......................................................................................................................................................................... 4
OPTIONS .............................................................................................................................................................................................. 4
DMX CHANNEL SUMMARY ..................................................................................................................................................................... 4
PRODUCT OVERVIEW............................................................................................................................................................................. 4
SETUP .............................................................................................................................................................................. 5
LAMP ................................................................................................................................................................................................... 5
Lamp installation................................................................................................................................................................................................. 5
POWER ................................................................................................................................................................................................ 5
GOBO HOLDER ..................................................................................................................................................................................... 5
MOUNTING............................................................................................................................................................................................ 6
Orientation.......................................................................................................................................................................................................... 6
Static Mount........................................................................................................................................................................................................ 6
Tripod Stand with Casters CH-W28 (optional)................................................................................................................................................... 6
OPERATING INSTRUCTIONS.......................................................................................................................................... 7
OPERATING MODES............................................................................................................................................................................... 7
Followspot Mode....................................................................................................................................................... 7
DMX Mode................................................................................................................................................................ 8
Setting the starting address ............................................................................................................................................................................... 8
APPENDIX........................................................................................................................................................................ 9
DMX PRIMER ....................................................................................................................................................................................... 9
Fixture Linking .................................................................................................................................................................................................... 9
DMX CHANNEL VALUES ...................................................................................................................................................................... 10
GOBOS............................................................................................................................................................................................... 10
MAINTENANCE .................................................................................................................................................................................... 10
RETURNS PROCEDURE ........................................................................................................................................................................ 10
CLAIMS .............................................................................................................................................................................................. 11
GENERAL TROUBLESHOOTING .............................................................................................................................................................. 11
TECHNICAL SPECIFICATIONS ................................................................................................................................................................ 12

TFX-FS360 User Manual 3 2010-07-20/14:53
BEFORE YOU BEGIN
What is included
1x TFX-FS360
1x Single gobo-slot with 4 free gobos
1x Power cord with plug
1x ENX lamp (360 W, 82 V)
1x User Manual
1x Warranty Card
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box
and packing.
AC Power To determine the power requirements for a particular fixture, see the label affixed to the back plate of
the fixture or refer to the fixture’s specification. A fixture’s listed current rating is its average current
draw under normal conditions. All fixtures must be powered directly off a switched circuit and cannot
be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is
used solely for a 0% to 100% switch. Before applying power to a fixture,
check that the source voltage matches the fixture’s requirement. Check the
fixture or device carefully to make sure that if a voltage selection switch
exists that it is set to the correct line voltage you will use.
Warning! Verify that the power select switch on your unit matches the line
voltage applied. All fixtures must be connected to circuits with a
suitable Ground.
Safety Instructions
Please keep this User Guide for future consultation. If you
sell the unit to another user, be sure that they also receive
this instruction booklet.
Always make sure that you are connecting to the proper
voltage and that the line voltage you are connecting to is
not higher than that stated on decal or rear panel of the
fixture.
This product is intended for indoor use only!
To prevent risk of fire or shock, do not expose fixture to
rain or moisture. Make sure there are no flammable
materials close to the unit while operating.
The unit must be installed in a location with adequate
ventilation, at least 50 cm from adjacent surfaces. Be sure
that no ventilation slots are blocked.
Always disconnect from power source before servicing or
replacing lamp or fuse and be sure to replace with same
lamp source.
Secure fixture to fastening device using a safety chain.
Never carry the fixture solely by its head. Use its carrying
handles.
Maximum ambient temperature is Ta: 40°. Do not operate
fixture at temperatures higher than this.
In the event of serious operating problem, stop using the
unit immediately. Never try to repair the unit by yourself.
Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest
authorized technical assistance center. Always use the
same type spare parts.
Don’t connect the device to a dimmer pack.
Make sure power cord is never crimped or damaged.
Never disconnect power cord by pulling or tugging on the
cord.
Avoid direct eye exposure to lamp while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs
yourself. In the unlikely event your unit may require service, please contact CHAUVET®.
AC Voltage Switch
Please read these instructions carefully, which includes important
information about the installation, usage and maintenance?

TFX-FS360 User Manual 4 2010-07-20/14:53
INTRODUCTION
Features
2-channel DMX-512 followspot
7 dichroic colors + white: (red, blue, green, yellow, orange, magenta, UV purple)
Variable electronic dimmer (0-100%)
Variable mechanical iris
Variable mechanical focus
Additional Features
Followspot stand (CH-W28)
Options
Single gobo slot with 4 free gobos
DMX Channel Summary
CHANNEL
FUNCTION
1
Color
2
Dimmer

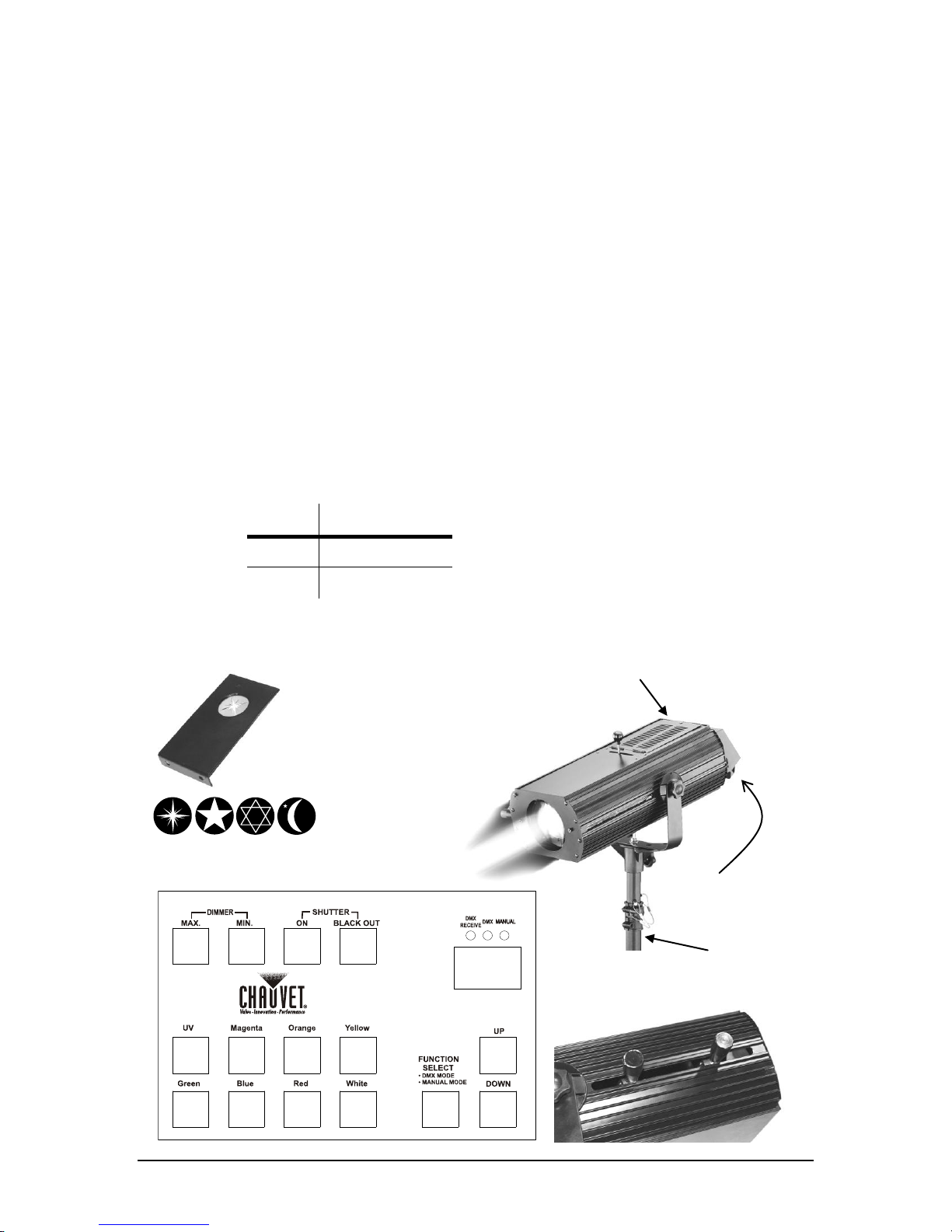

Product Overview
Gobo-holder
Located and inserted on
the bottom side of the
followspot.
Iris
Control panel
Lamp access
Focus
Focus handles
Yoke
Control panel
Gobos included
DMX
Input/Output
Optional
CH-W28 Tripod
w/casters

TFX-FS360 User Manual 5 2010-07-20/14:53
Remove screw
Lamp Installation
Lamp exposed
SETUP
Lamp You will need to install a lamp prior to the initial operation of the fixture. An ENX, 360 W halogen lamp
is included.
Warning! When replacing the lamp, please wait 15 minutes after powering down to allow the unit to cool
down! Always disconnect from main power prior to lamp replacement.
Do not touch the envelope (glass area) of the bulb with bare hands. If this happens, clean the lamp
with alcohol and wipe it with a lint free cloth before installation.

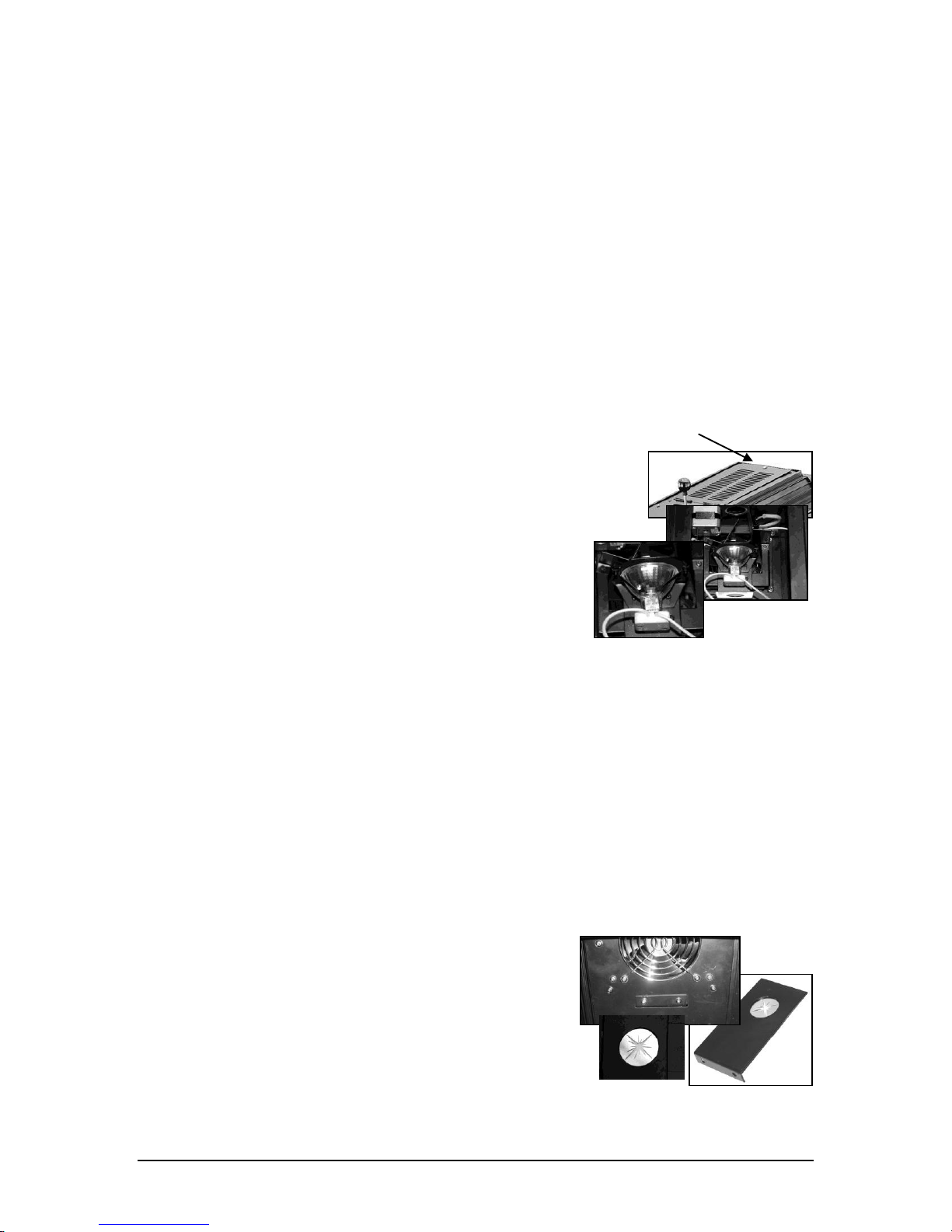

LAMP INSTALLATION
1) Remove screw located on the top and to the rear of
the followspot as pictured on the right.
2) Open lamp cover until lamp compartment is exposed.
3) If replacing the lamp, remove old lamp first.
4) Reach in and slide the lamp out of the retaining cage.
5) Detach the lamp from the lamp socket and replace.
6) Replace lamp cover, align the screw hole and fasten
the screw.
7) No lamp alignment is necessary for this fixture since
the lamp is already optimized inside the reflector.
Power
Warning! Verify that the power on your unit matches the line voltage applied. All fixtures must be
connected to circuits with a suitable Ground.
To determine the power requirements for a particular fixture, see the label affixed to the back plate of
the fixture or refer to the fixture’s specifications chart.
A fixture’s listed current rating is its average current draw under normal conditions.
All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable
resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100%
switch.
Before applying power to a fixture, check that the source voltage matches the fixture’s requirement.
All fixtures must be connected to circuits with a suitable Ground.
Gobo Holder
The TFX-FS360 can project one gobo image. A gobo-
holder is included and is located directly underneath the
followspot next to the fan as pictured here on the right.
Remove the two bottom screws from the gobo-holder
and slide it out. You can remove the gobo by sliding it
out the top and replacing it with a different one or
replace gobo-holder without a gobo for followspot only use.

TFX-FS360 User Manual 6 2010-07-20/14:53

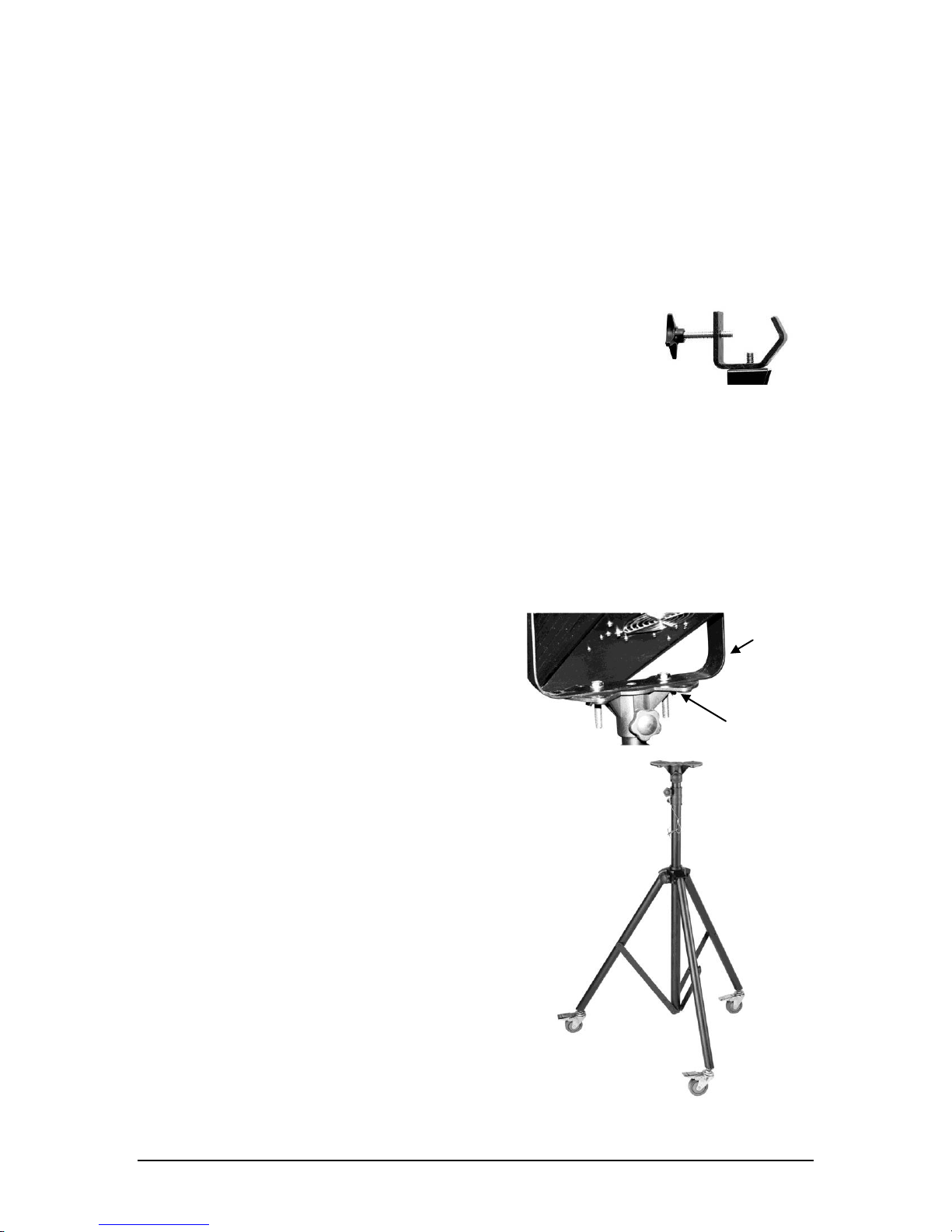

Hanging Clamp
Note!
Clamp is sold separately.
Mounting plate
Yoke
Mounting
ORIENTATION
This fixture may be mounted in any safe, position provided there is adequate room for ventilation.
STATIC MOUNT
The TFX-FS360 comes equipped with a yoke for pipe clamp
installations. The yoke will provide for a static mount or installation of
the followspot for pre-focused use. It is important never to obstruct the
fan or vents pathway. Mount the fixture using, a suitable “C” or “O”
type clamp. Adjust the angle of the fixture by loosening both knobs
and tilting the fixture. After finding the desired position, retighten both
knobs.
When selecting installation location, take into consideration lamp
replacement access and routine maintenance.
Safety cables should always be used.
Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature
changes or restricted ventilation.
TRIPOD STAND WITH CASTERS CH-W28 (OPTIONAL)
The CH-W28 is a multipurpose followspot/speaker stand with casters. Assemble tripod for use with
casters as indicated in the CH-W28 manual.
1. Mount yoke bracket so the bracket side
runs across the bottom.
2. Mount the followspot bracket onto the
tripod mounting plate
3. Align screw holes with mounting plate
openings and fasten with supplied bolts.
Please visit your participating dealer and ask
for the CH-W28 Tripod from CHAUVET®. To
locate a dealer near you contact CHAUVET®
at [phone], Toll Free [phone]

TFX-FS360 User Manual 7 2010-07-20/14:53
OPERATING INSTRUCTIONS
Operating Modes
The TFX-FS360 can be operated in the following ways;
As a manual followspot using on-board manual controls or slaved to a DMX-512 controller for cue
changes.
As a static spot controlled by a DMX-512 controller.
Followspot Mode
Enter Manual Mode by pressing the FUNCTION SELECT button until the MANUAL LED is turned
on.

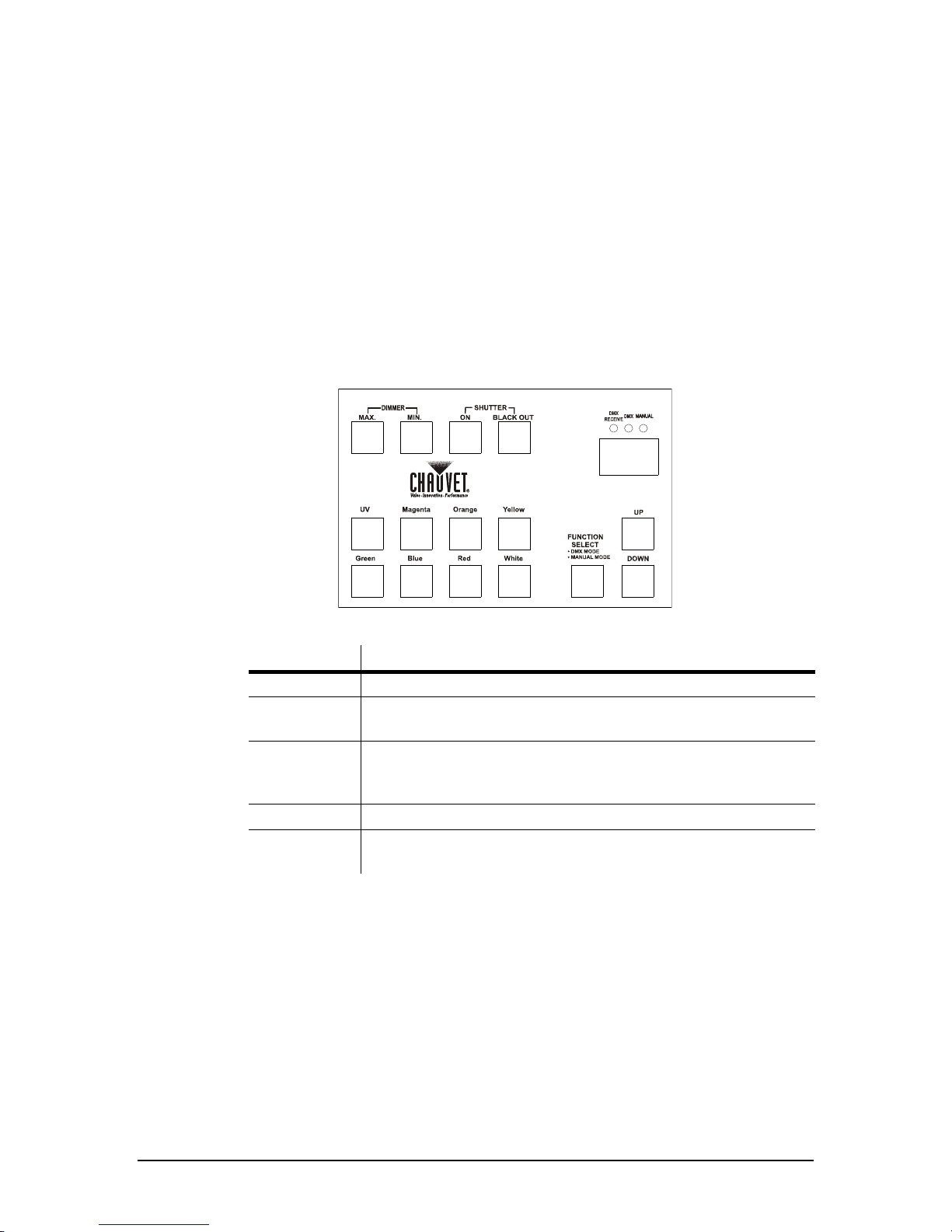

BUTTONS
FUNCTION
DIMMER
Min. and Max. buttons adjust the intensity of the light output respectively.
SHUTTER
The electronic shutter provides instant lights on or shuts all light output off for a
blackout state.
Color Buttons
The following colors can be immediately selected by pressing each individual
button:
UV, Magenta, Orange, Yellow, Green, Blue, red and White
FUNCTION
Press FUNCTION button to switch between manual and DMX control modes.
UP/DOWN
The Up/Down buttons are available when in DMX mode. Press the UP and
DOWN buttons to locate the DMX channel value desired.

Operating Instructions
TFX-FS360 User Manual 8 2010-07-20/14:53
DMX Mode
Operating in a DMX Control mode environment gives the user the greatest flexibility when it comes to
customizing or creating a show. In this mode you will be able to control each individual trait of the
fixture independently.
SETTING THE STARTING ADDRESS
This DMX mode enables the use of a universal DMX controller device. Each fixture requires a "start
address" from 1 to 511. A fixture requiring one or more channels for control begins to read the data
on the channel indicated by the start address. For example, a fixture that occupies or uses 6 channels
of DMX and was addressed to start on DMX channel 100, would read data from channels: 100, 101,
102, 103, 104, and 105. Choose start addresses so that the channels used do not overlap and notate
the start address selected for future reference.
If this is your first time addressing a fixture using the DMX-512 control protocol than I suggest jumping
to the Appendix Section and read the heading “DMX Primer”. It contains very useful information that
will help you understand its use.
The TFX-FS360 utilizes two DMX control channels.
1) Press the FUNCTION button until the DMX Mode LED turns on.
2) Press the UP or DOWN buttons until the starting channel address you desire is located on the
digital display.

TFX-FS360 User Manual 9 2010-07-20/14:53
APPENDIX
DMX Primer
There are 512 channels in a DMX-512 connection. Channels may be assigned in any manner. A
fixture capable of receiving DMX 512 will require one or a number of sequential channels. The user
must assign a starting address on the fixture that indicates the first channel reserved in the controller.
There are many different types of DMX controllable fixtures and they all may vary in the total number
of channels required. Choosing a start address should be planned in advance. Channels should
never overlap. If they do, this will result in erratic operation of the fixtures whose starting address is
set incorrectly. You can however, control multiple fixtures of the same type using the same starting
address as long as the intended result is that of unison movement or operation. In other words, the
fixtures will be slaved together and all respond exactly the same.
DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain connection is
where the DATA OUT of one fixture connects to the DATA IN of the next fixture. The order in which
the fixtures are connected is not important and has no effect on how a controller communicates to
each fixture. Use an order that provides for the easiest and most direct cabling. Connect fixtures
using shielded two conductor twisted pair cable with three pin XLR male to female connectors. The
shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+).
FIXTURE LINKING
Note! If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin
adapter.
The chart below details a proper cable conversion:
3PIN TO 5PIN CONVERSION CHART
CONDUCTOR
3 Pin Female (output)
5 Pin Male (Input)
GROUND/SHIELD
Pin 1
Pin 1
DATA (-)SIGNAL
Pin 2
Pin 2
DATA (+)SIGNAL
Pin 3
Pin 3
NOT USED
Pin 4
NOT USED
Pin 5
COMMON
DMX +
DMX -
INPUT
OUTPUT
1
3
2
1
3
2
1
3
2
Resistance 120
ohm 1/4w between
pin 2 (DMX -) and
pin 3 (DMX +) of
the last fixture.
Termination reduces signal errors and to
avoid signal transmission problems and
interference, it is always advisable to connect
a DMX signal terminator.
Figure 1 - DMX connector configuration

Appendix
TFX-FS360 User Manual 10 2010-07-20/14:53

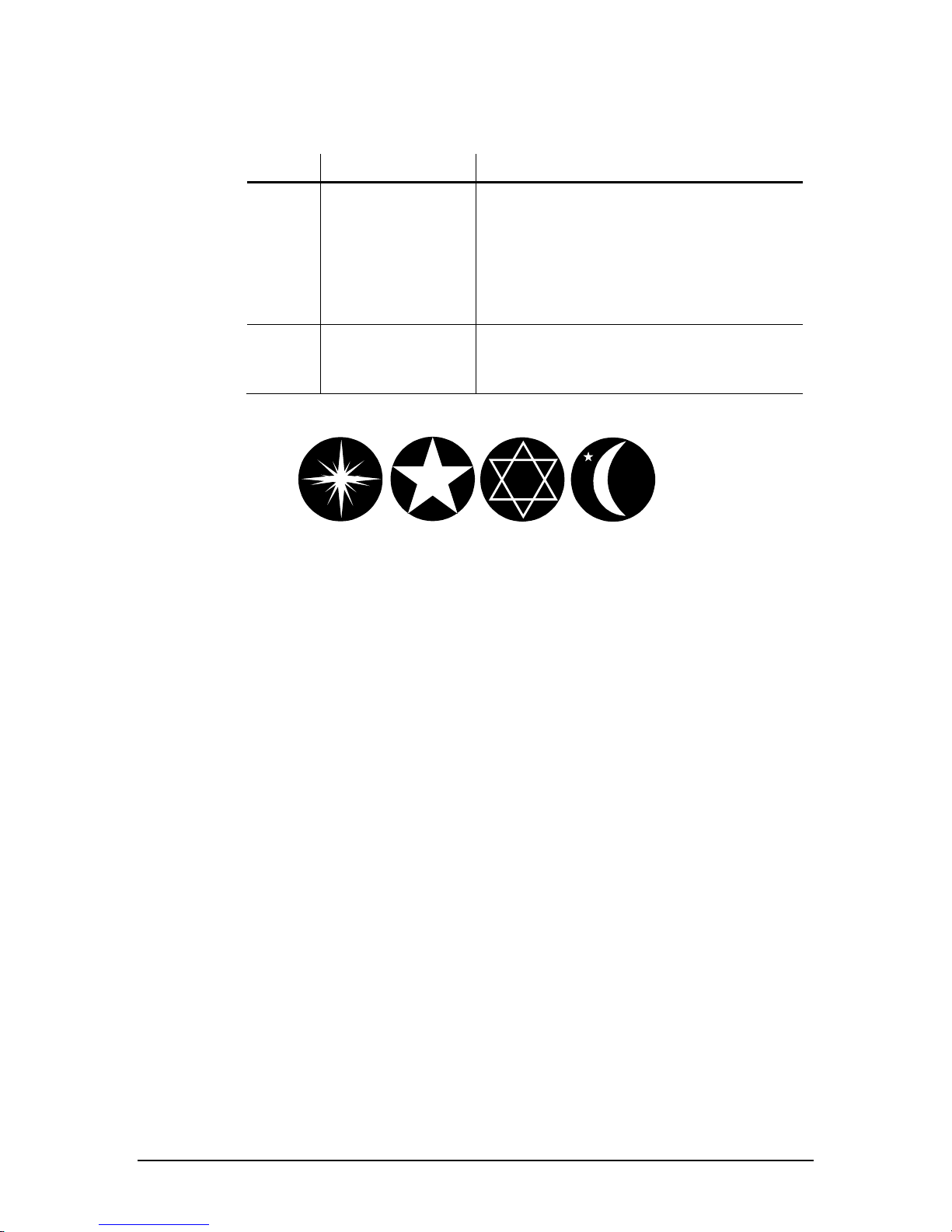

DMX Channel Values
Channel
Value
Function
1
000 031
032 063
064 095
096 127
128 159
160 191
191 223
224 255
Color Wheel
Open
Red
Blue
Green
Yellow
Orange
Magenta
UV (Purple)
2
000 004
005 249
250 255
Dimmer
No Output
Closed > Open
Full Output (100%)
Gobos
Maintenance
To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage
and environment are contributing factors in determining frequency. As a general rule, fixtures should
be cleaned at least twice a month. Dust build up reduces light output performance and can cause
overheating. This can lead to reduced lamp life and increased mechanical wear. Be sure to power off
fixture before conducting maintenance.
Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust
collected on external vents and internal components. Clean all glass when the fixture is cold with a
mild solution of glass cleaner or Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue. Apply
solution to the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish optical
surfaces until they are free of haze and lint. Do not to touch the lamp glass when cleaning fixture. Oil
and dirt can cause damage and premature aging of the lamp. In the event that the lamp is touched or
becomes dirty, clean the lamps with an alcohol wipe.
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s
optics. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean
the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
Returns Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #).
Products returned without an RMA # will be refused. Call CHAUVET® and request RMA # prior to
shipping the fixture. Be prepared to provide the model number, serial number and a brief description
of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from
inadequate packaging is the customer’s responsibility. CHAUVET® reserves the right to use its own
discretion to repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is
always a safe method to use.

Appendix
TFX-FS360 User Manual 11 2010-07-20/14:53
Claims Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and
submit claims with the shipper in the event that a fixture is damaged due to shipping. Any other claim
for items such as missing component/part, damage not related to shipping, and concealed damage,
must be made within seven (7) days of receiving merchandise.
General Troubleshooting
Symptom
Solution(s)
Applies to
Lights
Foggers
& Snow
Controllers
Dimmers
& Chaser
Auto shut off
Check fan thermal switch reset

Beam is very dim or not
bright
Clean optical system or replace lamp

Breaker/Fuse keeps
blowing
Check total load placed on device

Chase is too slow
Check users manual for speed adjustment



Device has no power
Check for power on Mains.
Check device’s fuse. (internal and/or external)



Fixture is not responding
Check DMX Dip switch settings for correct addressing
Check DMX cables
Check polarity switch settings

Lamps cuts off
sporadically
Possible bad lamp or fixture is overheating.
Lamp may be at end of its life.

Light will not come on after
power failure
Some discharge lamps require a cooling off period before the
electronics in the fixture can kick start it again, wait 5 to 10 minutes
before powering up

Loss of signal
Use only DMX cables
Install terminator
Note: Keep DMX cables separated from power cables or black lights.




Motor movements are
jerky or jumpy
Possible bad motor driver or sensors
Check polarity switch on controller


No flash
Re-install bulb, may have shifted in shipping

No light output
Check slip ring & brushes for contact
Install bulb
Call service technician


Appendix
TFX-FS360 User Manual 12 2010-07-20/14:53
Technical Specifications
WEIGHT & DIMENSIONS
Length....................................................................................................................... 572 mm (22.5 in)
Width......................................................................................................................... 292 mm (11.5 in)
Height ....................................................................................................................... 162 mm (6.38 in)
Weight........................................................................................................................ 9.3 kg (20.6 lbs)
POWER
US....................................................................................................................................120 V, 60 Hz
European Version ............................................................................................................ 230 V, 50 Hz
AC input.......................................................................................3-prong IEC 60320 C14 male socket
LIGHT SOURCE
Lamp.............................................................................................................ENX, 360 W, 82 V, 75 hr,
PHOTO OPTIC
Luminance @ 1 m................................................................................................................ 48,420 lux
Beam Angle .............................................................................................................................2° ~ 12°
THERMAL
Maximum ambient temperature......................................................................................40° C (104° F)
CIRCUIT BREAKER
Main @ 120 V................................................................................................................................. 7 A
Main @ 230 V................................................................................................................................. 5 A
CONTROL & PROGRAMMING
Data input ............................................................................................. locking 3-pin XLR male socket
Data output ........................................................................................ locking 3-pin XLR female socket
Data pin configuration ............................................................................pin 1 shield, pin 2 (-), pin 3 (+)
Protocols.....................................................................................................................DMX-512 USITT
DMX Channels....................................................................................................................................2
ORDERING INFORMATION
Followspot™400G............................................................................................................. TFX-FS360
Tripod Stand with Casters (optional)........................................................................................CH-W28
GOBO
Outside diameter.....................................................................................................................35.8 mm
Image diameter.......................................................................................................................27.9 mm
Maximum thickness...................................................................................................................0.2 mm
