Chauvin Arnoux C.A 5011 User manual

1
■■
■■
■MULTIMETRE
■■
■■
■MULTIMETER
■■
■■
■MULTIMETER
■■
■■
■MULTIMETRO
■■
■■
■MULTIMETRO
C.A 5011
FRANCAIS Noticedefonctionnement
ENGLISH User'smanual
DEUTSCH Bedienungsanleitung
ITALIANO Librettod'Istruzioni
ESPANOL ManualdeEmpleo

Meaning of the symbol
Thank you for purchasing a C.A 5011 Multimeter.
To get the best service from this instrument:
- read this user’s manual carefully
- and respect the safety precautions detailed
SAFETY PRECAUTIONS
■Neveruseonnetworksatavoltageabove1000Vinrelationtothe
earth. This multimeter of overvoltage category III, satisfies the
severe requirements of reliability and availability corresponding to
industrial and domestic permanent installations (c.f. IEC 664-1).
■Use indoors in environments of degree of pollution at most equal
to 2 (c.f. IEC 664-1), of temperature from 0 to +55°C and of relative
humidity from 20 to 90%.
■Respectthevalueandthe typeoffuses orthereis ariskof damage
to the instrument and cancellation of the warranty.
- Fuse 1 A HBC (6.3 x 32 mm - 500 V - 10 kA)
- Fuse 10 A HBC (6.3 x 32 mm - 500 V - 10 kA)
■Use accessories in conformity with safety standards (NF EN 61010-
2-031) of minimum voltage 1000 V and overvoltage category III.
■Before any measurement, check the leads and the switch are in
thecorrectposition.Whentheorderofmagnitudeofameasurement
is not known, place the selector switch on the highest range then
lower progressively, if necessary, to the appropriate range.
■Never measure resistances on a live circuit.
■For current measurements (without current clamp), switch off the
power supply of the circuit before connecting or disconnecting
your multimeter.
■Toopenthebatterycompartment,theleadsmustbedisconnected.
■Never connect to the circuit to be measured if the battery
compartment is not correctly closed.
Warning ! Please refer to the User’s Manual before using the
instrument.InthisUser’sManual,theinstructions precededby the
abovesymbol,should they not becarriedoutas shown, can result
inaphysicalaccidentordamagetheinstrumentandtheinstallations.
Meaning of the symbol
This device is protected by a double insulation or by a reinforced
insulation.Nolinking is required from theprotectionearthterminal
to ensure electrical safety.
13

14
Page
1 - Presentation....................................................... 14
2 - Description......................................................... 15
3 - True rms value .................................................. 16
4 - DC and AC voltages (V DC and AC)................ 18
5 - Decibels (dB) ..................................................... 19
6 - Currents (A DC and AC)................................... 19
7 - Resistances (Ω) ................................................ 20
8 - Continuity sound test [ ] .............................. 21
9 - Diode test ( ) ................................................ 21
10 - Frequencies (Hz) .............................................. 21
11 - General specifications....................................... 22
12 - Accessories and spares (To order)................. 22
13 - Warranty ............................................................ 22
14 - Maintenance ...................................................... 23
15 - Appendix ............................................................ 57
CONTENTS
1 - PRESENTATION
TheanalogueanddigitalC.A5011multimeter isdesigned forthedaily
needs of professionals in electricity. It gives the true rms (TRMS)
value. It has the following functions:
- Voltmeter: voltage measurements (V DC and AC)
- Ammeter: measurement of currents (A DC and AC)
- Ohmmeter: resistance measurements (Ω)
- Continuity sound test [ ]
- Diode test ( )
- Frequencymeter (Hz)
It also allows the measurement of decibel levels (dB), on the AC
voltmeter ranges. Its digital display has backlighting ( ), gives the
max (MAX) values and allows the last measurement to be held in
memory (HOLD).
The dial has a fuse test light (Fus.) and “Voltest” light to check the
absence of voltage on ohmmeter.
NB: Always use accessories suited to the voltage and the
overvoltage category of the circuit to measure (to NF EN 61010).

15
2 ANALOGUE DISPLAY
The dial comprises 3 scales:
■2 black scales, for all the quantities (0.10 and 0.50),
■1 red scale for dB (-20.+16)
NB: This multimeter can be used as a zero galvanometer, as the needle
always moves in the same direction, even for a negative value. The polarity
is shown on the digital display by the appearance of the “-” sign for negative.
So for a value fluctuating around zero, the user has a double scale length
(Scale length 80 mm).
1 TERMINALS
Ø 4 mm safety terminals
■COM : common, terminal that receives the black lead
■ V ΩΩ
ΩΩ
Ω Hz : terminal that receives the red lead for voltages,
resistances, diode test and frequencies
■10A : terminal that receives the red lead for the 10 A ranges
■
µµ
µµ
µmA : terminal that receives the red lead for the µA, mA
and 1A ranges
2 - DESCRIPTION
4 "Fus" LIGHT
Neon for testing the 1 A and 10 A fuses on current measurement.
If the “Fus.” light is lit, change the faulty fuse(s).
NB: This light requires the presence of a voltage ≥ 100 V to come on.
5 "Voltest" LIGHT
Voltage presence light on ohmmeter
If the “Voltest” light comes on: presence of a voltage
U > 10 V AC/DC. Unplug the leads and cut off the voltage
before making the resistance measurement.
3 DIGITAL DISPLAY
■4000 counts (height of digits 7.5 mm)
■AUTO : automatic DC/ AC selection
■~: AC
■ : DC
■: low battery indicator
■Overload indication: “OL” flashes
■kHz : reading of the frequency
■HOLD : memorised value
■MAX : maximum value
...
(See drawing in § 15 - APPENDIX)

16
This multimeter has automatic recognition of DC and AC.
When switched on, display of:
■■
■■
■AUTO : presence of an AC signal
■■
■■
■AUTO : presence of a DC signal
The “DC/AC” key allows access to the different components of
the signal, if there are any.
NB: If the switch is turned, the multimeter is reset to automatic mode.
6 SWITCH
Switch with 21 positions to select the functions and ranges and the
OFF position.
7 CONTROL KEYS
NB: These secondary function keys are shown on the digital display.
To switch on and off the display backlighting.
N B: Auto off after 6 minutes
To read the rms value and the possible DC or AC component
depending on the signal present, DC or AC
(see in Ch.3 - RMS value)
To read the maximum value. MAX is displayed. Minimum
acquisition time 500 ms.
When this MAX key is on, it locks the “AC/DC” function
To hold the display on the last measurement. HOLD is displayed.
When this HOLD key is on, it locks the “AC/DC” function
MAX
3 - RMS VALUE
~
HOLD
~
...

17
VDC + VAC VAC VDC
V
0t
V
0t
V
0t

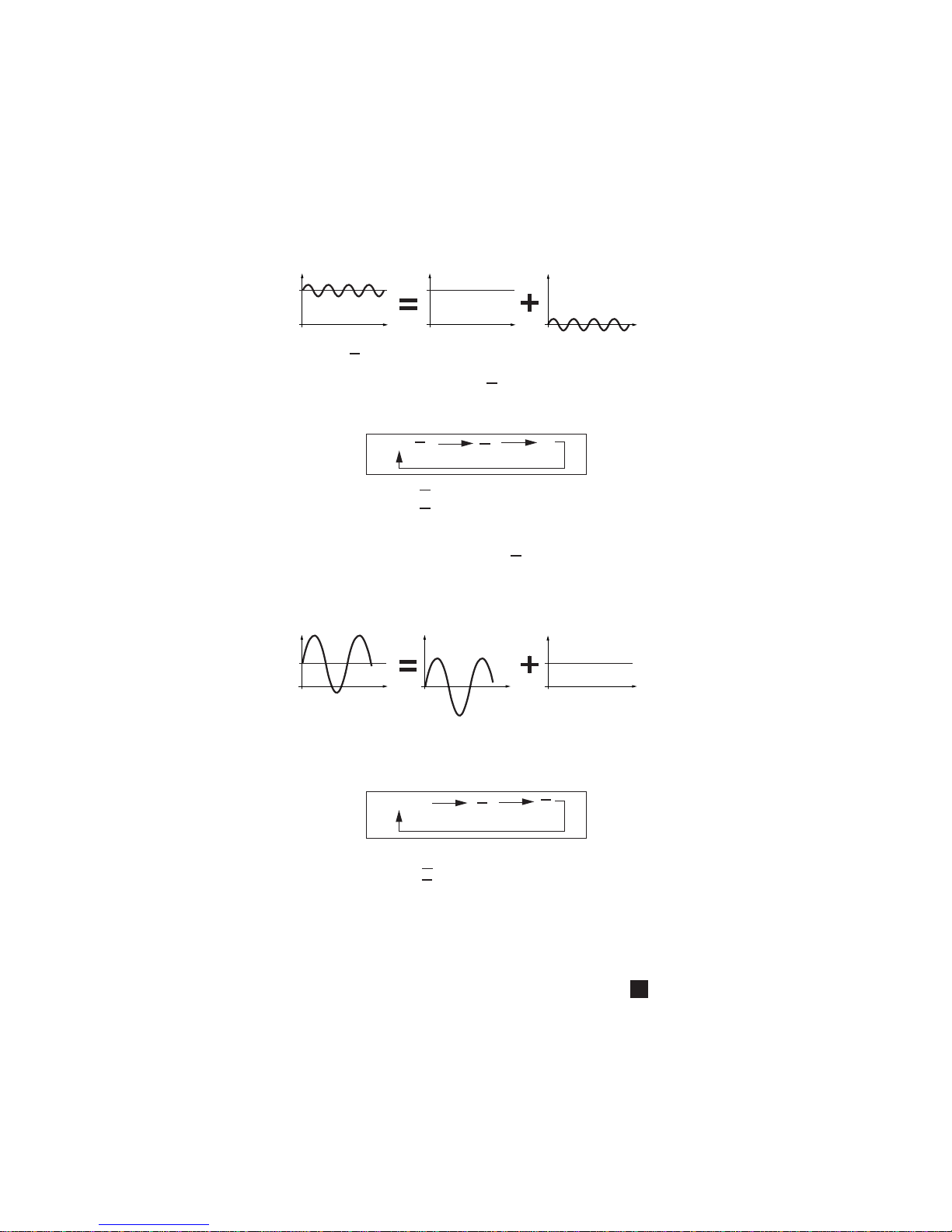

3-1 DC
In the case of a DC signal with AC component (ripple).
■■
■■
■"AUTO "isdisplayedwhentheinstrumentisswitchedon:reading
of the DC component only VDC.
■■
■■
■By successive presses on the “ ” key: reading of DC plus
the AC component, of the AC component only and return to DC
only.
AUTO : measurement of VDC
: measurement of VDC + VAC (1)
: measurement of VAC
(1) represents the rms value of the signal
NB: If V
AC
is nil, the automatic display “AUTO ” represents the true rms
value of the signal.
3-2 AC
Example of an AC signal with a DC component.
■■
■■
■"AUTO "isdisplayedwhentheinstrumentisswitchedon:reading
of the AC signal only VAC.
■■
■■
■By successive presses on the DC/AC key: reading of AC plus the
DC component, of the DC component only and return to AC only.
AUTO : measurement of VAC
: measurement of VAC + VDC (1)
: measurement of VDC
(1) represents the rms value of the signal
NB: If V
DC
is nil, the automatic display “AUTO ” represents the true rms
value of the signal.
V DC + V AC V DC
V AC
V
0t
V
0t
V
0t
AUTO ... ~
... ~
VAC + VDC
AUTO ...
~
...
~
...
...
...
~
~
...
...
~
~
...
~
~
~

18
V AC and V AC/DC 400 mV 4 V 40 V 400 V 1000 V
Impedance > 100 MΩ10MΩ
Digital Maxreading 399.9mV 3.999 V 39.99 V 399.9 V 1000V
Accuracy 1.5% rdg ± 5 counts
on AC (3)
Accuracy 4% rdg ± 5 counts
on AC/DC (3)
Maxreading 500mV 5 V 50 V 500 V 1000 V
Scale 50 10
Analogue Reading
coefficient x 10 x 0.1 x 1 x 10 x 100
Accuracy(4) 2.5%
Permitted overload 1000 V 1200 V
4-DC AND AC VOLTAGES
■Connect the leads to the multimeter and connect in parallel to the
circuit to be tested.
■When the order of magnitude is not known, place the switch on the
highest range then progressively lower to the appropriate range.
■Analogue reading: to get the voltage in V, multiply the value read
on the appropriate scale by the reading coefficient shown in the
table.
■■
■■
■Digital reading: if necessary, press the following keys:
- for the rms value (See in Ch.3)
-MAX for the maximum value
-HOLD to hold the value in memory
- for display backlighting
(1)As%ofthereading(rdg)from5to100%oftherange (2)As%oftheendofscale
V DC 400 mV 4 V 40 V 400 V 1000 V
Impedance > 100 MΩ10MΩ
Digital Maxreading 399.9mV 3.999 V 39.99 V 399.9 V 1000 V
Accuracy(1) 1% rdg ± 2 counts
Maxreading 500mV 5 V 50 V 500 V 1000 V
Scale 50 10
Analogue Reading
coefficient x 10 x 0.1 x 1 x 10 x 100
Accuracy(2) 2.5%
Permitted overload 1000 V 1200 V
NB:Accuraciesgiveninthefrequencyreferencerange35to500Hz.
(1)Usepossiblefrom20Hzto10kHzwithdigitalaccuracy:7.5%rdg±5countsandanalogue
accuracy:7.5%.Additionalerrorof 1%for acrestfactorFC ≤≤
≤≤
≤3and3%forFC ≤≤
≤≤
≤5.
(2)Usepossiblefrom20Hzto10kHzwithdigitalaccuracy:10%rdg±5countsandanalogue
accuracy:7.5%.
(3)As %of thereading (rdg)from 5to100%oftherange (4)As%ofendofscale
(1) (2)
~

19
■When the order of magnitude is not known, place the switch on the
highest range then progressively lower to the appropriate range.
■Analogue reading: to get the current in mA, mA or A, multiply the
reading on the appropriate scale by the reading coefficient shown
in the table.
■Lecture numérique : si nécessaire, appuyer sur les touches
suivantes
■Digital reading: if necessary, press the following keys
6 - DC AND AC CURRENTS
Always switch off the circuit to test before connecting the
multimeterto thecircuit. Ifthe “Fus.”light comeson, changethe
faulty fuse(s) (Reminder: minimum voltage of 100 V).
Connecttheleads tothemultimeterandconnect inseriestothe
circuit with:
- the red lead in the "µmA", terminal, up to 1 A
- the red lead in the "10 A", terminal, from 1 A to 10 A
- for the rms value (See in Ch.3)
-MAX for the maximum value
-HOLD to hold in memory
- for display backlighting
5 - DECIBELS
■Reminder. The measurement of an AC voltage can be expressed
in decibels (symbol dB). The decibel is the ratio of two quantities or
levels.LevelN,in dB,ofavoltageUhasthemathematicalexpression:
U0 is the reference voltage of 0.775 V AC for a power P0 of 1 mΩon
a load of 600 Ω.
■Use. Zero level of the red scale in dB corresponds to U0 = 0.775 for
the 4 V AC range. The reading is direct in dB for the 5 V AC range, on
analogue only, from -20 to +16 dB.
The digital display indicates the value of the voltage in volts.
For the other analogue ranges:
●500 mV : subtract -20 dB
●50 V : add +20 dB
●500 V : add +40 dB
●1000 V : unusable
()
NdB) UU(log=20 10 0
~

20
■Analogue reading: to get the resistance in Ω, multiply the reading
on the 50 scale by the reading coefficient shown in the table.
7 - RESISTANCES
Never test a resistance on a live circuit.
If the “Voltest” light comes on, presence of a voltage U > 10 V
AC/DC. Unplug the leads immediately and cut off the voltage
before making the resistance measurement.
■Connect to the terminals of the circuit or the component to test.
Do not use the A AC input on unprotected current
transformers
From 7 A to 10 A, limited to 10 minutes on, 5 minutes off up
to 40°C maximum
(1)At theterminals (2) As%ofthereading(rdg)from5to100%oftherange
(3)As%ofendofscale
A DC 400µµ
µµ
µA 4 mA 40mA 400mA 1 A 10 A
Voltage drop(1) 400 mV 450mV 650 mV 1V
Digital Maxreading 399.9µA 3.999mA 39.99mA 399.9mA 1.000A 10.00A
Accuracy(2) 1.5%rdg±2 counts
Maxreading 500µA 5 mA 50mA 500mA 1A 10A
Scale 50 10
Analogue Reading
coefficient x10 x0.1 x1 x10 x0.1 x1
Accuracy(3) 2.5%
Protection Fuse1AHPC Fuse10A
HBC
NB:Accuraciesgiveninthefrequencyreferencerange35to500Hz.
(1)and(2)Additional errorof1%for a crestfactorFC ≤3 (3)Atthe terminals
(4)As% ofthe reading(rdg)from 5to100% ofthe range (5)As% ofendof scale
VAC and V AC/DC 400µµ
µµ
µA 4 mA 40mA 400mA 1 A 10 A
Voltage drop(3) 400 mV 450mV 650 mV 1V
Maxreading 399.9µA 3.999mA 39.99mA 399.9mA 1.000A 10.00A
Accuracy 2% rdg ± 5 counts
Digital on AC (4)
Accuracy 4.5% rdg ± 5 counts
on AC/DC (4)
Maxreading 500µA 5 mA 50mA 500mA 1A 10A
Scale 50 10
Analogue Reading
coefficient x10 x0.1 x1 x10 x0.1 x1
Accuracy(5) 2.5%
Protection Fuse 1AHPC Fuse10A
HBC
(1) (2)
■Digital reading: if necessary, press the following keys,
HOLD to hold in memory and for display backlighting
From7Ato10A,limitedto10minuteson,5minutesoffupto40°C
maximum

21
9 - DIODE TEST
■Connection and specifications: idem Resistances
■Place the selector switch on the function
■Analogue reading: voltage drop up to 2000 mV for the forward
direction of the component.
50 scale, reading coefficient x 100
■Digital reading: for the forward direction of the component, voltage
drop up to 2000 mV.
■Accuracy: digital 2% rdg ± 2 counts and analogue 2.5% full scale.
NB: The positive polarity is on the V
ΩΩ
ΩΩ
Ω Hz terminal
10 - FREQUENCIES
■Connect the leads to the multimeter and connect in parallel to
the circuit to be tested.
■Set the switch to the Hz function
■Digital reading: automatic range selection, kHz is displayed,
read the measured value.
If necessary, press the following keys,
No analogue reading: the needle stays on zero.
-HOLD to hold in memory
-for display backlighting
kHz 4 kHz 40 kHz 400 kHz
Maximumreading 3.999 kHz 39.99 kHz 399.9 kHz
Accuracy 1% rdg ± 2 counts
Permitted overload 1000 V
8 - CONTINUITY SOUND TEST
■Connection and specifications: idem Resistances for 400 Ω
range
■Place the selector switch on the function
■Continuous audible beep emitted for a resistance R ≤400 Ω
Digital
Analogue
Permitted overload
Max reading
Accuracy(1)
Max reading
Scale
Accuracy(2)
Reading
coefficient
ΩΩ
ΩΩ
Ω400ΩΩ
ΩΩ
Ω4kΩΩ
ΩΩ
Ω40kΩΩ
ΩΩ
Ω400kΩΩ
ΩΩ
Ω4MΩΩ
ΩΩ
Ω40MΩΩ
ΩΩ
Ω
399.9 Ω3.999 Ω39.99 Ω399.9 kΩ3.999 MΩ39.99 MΩ
(3) 1% rdg ± 2 counts (3)
500 Ω5 kΩ50 kΩ500 kΩ5 MΩ50 MΩ
50
x10 x0.1 x1 x10 x0.1 x1
2.5%
600V
(1) As % of the reading (rdg) from 10 to 100 % of the range (2) As % of the end of scale (3) 5%rdg ± 5 counts

22
Use the designations and references below.
C.A 5011 ................................................................... P01.1963.11A
Supplied with a pair of leads with prods,
1 battery 9 V and this User’s manual
Accessories and spares
■Carrying case (270 x 200 x 65 mm) .................. P01.2980.37A
■Shoulder bag (240 x 230 x 70 mm) ....................... P01.2980.33
■Carrying holster (220 x 180 x 75 mm) .................. P01.2980.36
■Pair of leads with test prods (NF EN 61010)......... P01.2980.84
■Set of 10 fuses 1 A HBC (6.3 x 32 mm) ................ P01.2970.38
■Set of 10 fuses 10 A HBC (6.3 x 32 mm).............. P01.2970.39
Different measurement accessories widen the field of application or
confer new functions on your multimeter. Documentation on request.
NB: Always use accessories suited to the voltage and the over
voltage category of the circuit to measure (to NF EN 61010).
12 - TO ORDER
Our guarantee is applicable for three years after the date on which
the equipment is made available (extract from our General
Conditions of Sale, available on request).
13 - WARRANTY
11-1 Dimensionsandweight
■56 x 105 x 160 mm ■500 g
11-2 Power supply
■One battery 9 V (type 6F22 or 6LF22 alkaline)
■Battery life: 300 hours on permanent use
11-3 Environmental conditions
■Temperature: use: 0°C to +55°C / storage: -40°C to +70°C
■Relative humidity: use: 20 to 90% RH / storage: 10 to 95% RH
■Altitude: use < 2000 m
11-4Conformitywithinternationalstandards
11-4-1 Electrical safety (NF EN 61010-1)
■Double insulation: ■Degree of pollution: 2
■Installation category: III for rated voltage of 1000 V
■Installation category: IV for rated voltage of 600 V
11-4-2 Electromagnetic compatibility: conforms to CE
Emission and immunity (NF EN 61326, ed. 98)
11-4-3Mechanicalprotection
■Degree of watertightness (NF EN 60529, ed 92): protection index
IP 53
11 - GENERALES SPECIFICATIONS

23
14-2 Storage
If the multimeter is not put into service for a time exceeding 60 days,
remove the batteries and store them separately.
14-3 Cleaning
■The multimeter must be disconnected from any electrical source.
■Toclean thecase, usea clothslightlymoistenedwithsoapywater.
Rinse with a damp cloth. Then, dry rapidly with a cloth or in a hot
air stream.
14-4 Metrological check
Itis essentialthat allmeasuringinstruments areregularly
calibrated.
For checking and calibration of your instrument, please contact our
accredited laboratories (list on request) or the Chauvin Arnoux
subsidiary or Agent in your country.
14-5 Repair
Repairs under or out of guarantee: please return the product to
your distributor.
14 - MAINTENANCE
For maintenance, use only specified spare parts. The
manufacturerwillnotbeheldresponsibleforanyaccident
occurringfollowingarepairdoneotherthanbyitsAfter
Sales Service or approved repairers.
14-1Replacing the batteryand the fuses
For your safety the leads must be disconnected from the
multimeter before the battery cover is opened.
■To open the cover, turn the screw 1/4 turn, anti-clockwise, using
a coin or a screwdriver.
■Replace the dead battery by one 9 V battery (type 6F22 or 6LF22)
■Replace the faulty fuses respecting their value and their type:
- Fuse 1 A HBC (6.3 x 32 mm - 500 V - 10 kA)
- Fuse 10 A HBC (10 x 32 mm - 500 V - 10 kA)
■Refit the cover before using the multimeter.
