Chicago Electric 92772 Installation manual

ORBITAL JIGSAW
LASER GUIDED
Model 92772
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2005 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1‑800‑444‑3353.
Manual Revised 10i

Page 2 For technical questions, please call 1‑800‑444‑3353. SKU 92772
SAVE THIS MANUAL
Keep this manual for the safety warnings
and precautions, assembly, operating,
inspection, maintenance and cleaning
procedures. Write the product’s serial number
in the back of the manual near the assembly
diagram (or month and year of purchase if
product has no number). Keep this manual
and the receipt in a safe and dry place for
future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling, and
all other information provided with
this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that follow
this symbol to avoid possible
injury or death.
DANGER indicates a
hazardous situation
which, if not avoided, will result
in death or serious injury.
WARNING indicates a
hazardous situation
which, if not avoided, could
result in death or serious injury.
CAUTION, used with
the safety alert
symbol, indicates a hazardous
situation which, if not avoided,
could result in minor or moderate
injury.
NOTICE is used to
address practices not
related to personal injury.
CAUTION, without the
safety alert symbol, is
used to address practices not
related to personal injury.
General Power Tool Safety Warnings
WARNING Read all safety warnings
and instructions. Failure to follow the
warnings and instructions may result
in electric shock, re and/or serious
injury.
Save all warnings and instructions
for future reference.
The term ″power tool″ in the warnings
refers to your mains-operated (corded)
power tool or battery-operated
(cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate power tools in
explosive atmospheres, such as in
the presence of ammable liquids,
gases or dust. Power tools create
sparks which may ignite the dust or
fumes.
c. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose
control.
2. Electrical safety

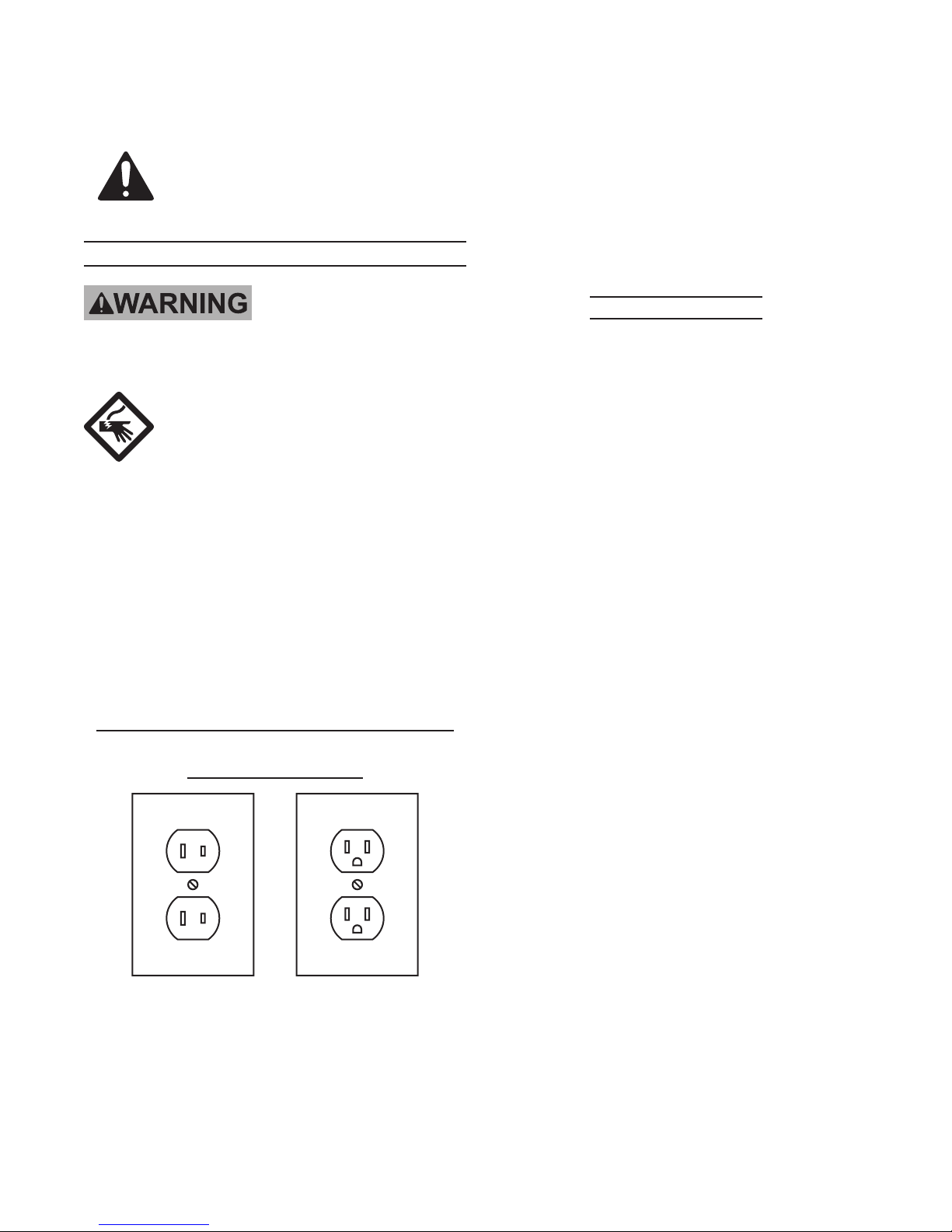

a. Power tool plugs must match the
outlet. Never modify the plug in
any way. Do not use any adapter
plugs with grounded power tools.
Unmodied plugs and matching outlets
will reduce risk of electric shock.
b. Avoid body contact with grounded
surfaces such as pipes, radiators,

Page 3For technical questions, please call 1‑800‑444‑3353.SKU 92772
ranges and refrigerators. There is an
increased risk of electric shock if your
body is grounded.
c. Do not expose power tools to rain
or wet conditions. Water entering
a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep
cord away from heat, oil, sharp
edges or moving parts. Damaged
or entangled cords increase the risk of
electric shock.
e. When operating a power tool
outdoors, use an extension cord
suitable for outdoor use. Use of a
cord suitable for outdoor use reduces
the risk of electric shock.
f. If operating a power tool in a damp
location is unavoidable, use a
Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a
GFCI reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are
doing and use common sense when
operating a power tool. Do not use
a power tool while you are tired or
under the inuence of drugs, alcohol
or medication. A moment of inattention
while operating power tools may result
in serious personal injury.
b. Use personal protective equipment.
Always wear eye protection. Safety
equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting.
Ensure the switch is in the off‑
position before connecting to power
source and/or battery pack, picking
up or carrying the tool. Carrying
power tools with your nger on the
switch or energizing power tools that
have the switch on invites accidents.
d. Remove any adjusting key or wrench
before turning the power tool on.
A wrench or a key left attached to a
rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool
in unexpected situations.
f. Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from
moving parts. Loose clothes, jewelry
or long hair can be caught in moving
parts.
g. If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
these devices can reduce dust-related
hazards.
h. Only use safety equipment that has
been approved by an appropriate
standards agency. Unapproved
safety equipment may not provide
adequate protection. Eye protection
must be ANSI-approved and breathing
protection must be NIOSH-approved for
the specic hazards in the work area.
4. Power tool use and care
a. Do not force the power tool. Use
the correct power tool for your
application. The correct power tool will
do the job better and safer at the rate
for which it was designed.
b. Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be controlled

Page 4 For technical questions, please call 1‑800‑444‑3353. SKU 92772
with the switch is dangerous and must
be repaired.
c. Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories,
or storing power tools. Such
preventive safety measures reduce
the risk of starting the power tool
accidentally.
d. Store idle power tools out of the
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to operate
the power tool. Power tools are
dangerous in the hands of untrained
users.
e. Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any
other condition that may affect the
power tool’s operation. If damaged,
have the power tool repaired before
use. Many accidents are caused by
poorly maintained power tools.
f. Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking into
account the working conditions and
the work to be performed. Use of
the power tool for operations different
from those intended could result in a
hazardous situation.
5. Service
a. Have your power tool serviced by a
qualied repair person using only
identical replacement parts. This will
ensure that the safety of the power tool
is maintained.
Jigsaw Safety Warnings
1. Hold power tool by insulated
gripping surfaces when performing
an operation where cutting tool may
contact hidden wiring or its own
cord. Contact with a ″live″ wire will make
exposed metal parts of the tool ″live″ and
shock the operator.
2. Use clamps or another practical way
to secure and support the work piece
to a stable platform. Holding the work
by hand or against your body leaves it
unstable and may lead to loss of control.
3. Maintain labels and nameplates on
the tool. These carry important safety
information. If unreadable or missing,
contact Harbor Freight Tools for a
replacement.
4. Avoid unintentional starting. Prepare to
begin work before turning on the tool.
5. Do not lay the tool down until it has come
to a complete stop. Moving parts can
grab the surface and pull the tool out of
your control.
6. When using a handheld power tool,
maintain a rm grip on the tool with both
hands to resist starting torque.
7. Do not leave the tool unattended when
it is plugged into an electrical outlet.
Turn off the tool, and unplug it from its
electrical outlet before leaving.
8. This product is not a toy. Keep it out of
reach of children.
9. People with pacemakers should
consult their physician(s) before use.
Electromagnetic elds in close proximity
to heart pacemaker could cause
pacemaker interference or pacemaker
failure. In addition, people with
pacemakers should:

Page 5For technical questions, please call 1‑800‑444‑3353.SKU 92772
• Avoid operating alone.
• Do not use with Trigger locked on.
• Properly maintain and inspect to avoid
electrical shock.
• Any power cord must be properly
grounded. Ground Fault Circuit
Interrupter (GFCI) should also be
implemented – it prevents sustained
electrical shock.
10. WARNING: Some dust created by power
sanding, sawing, grinding, drilling, and
other construction activities, contains
chemicals known [to the State of
California] to cause cancer, birth defects
or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and
cement or other masonry products
• Arsenic and chromium from chemically
treated lumber
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to
these chemicals: work in a well ventilated
area, and work with approved safety
equipment, such as those dust masks
that are specially designed to lter out
microscopic particles. (California Health
& Safety Code § 25249.5, et seq.)
11. WARNING: Handling the cord on this
product will expose you to lead, a
chemical known to the State of California
to cause cancer, and birth defects or
other reproductive harm. Wash hands
after handling. (California Health &
Safety Code § 25249.5, et seq.)
12. The warnings, precautions, and
instructions discussed in this instruction
manual cannot cover all possible
conditions and situations that may occur.
It must be understood by the operator
that common sense and caution are
factors which cannot be built into this
product, but must be supplied by the
operator.
Vibration Safety
This tool vibrates during use. Repeated
or long-term exposure to vibration may
cause temporary or permanent physical
injury, particularly to the hands, arms
and shoulders. To reduce the risk of
vibration-related injury:
1. Anyone using vibrating tools regularly
or for an extended period should rst
be examined by a doctor and then have
regular medical check-ups to ensure
medical problems are not being caused
or worsened from use. Pregnant
women or people who have impaired
blood circulation to the hand, past hand
injuries, nervous system disorders,
diabetes, or Raynaud’s Disease
should not use this tool. If you feel any
symptoms related to vibration (such as
tingling, numbness, and white or blue
ngers), seek medical advice as soon as
possible.
2. Do not smoke during use. Nicotine
reduces the blood supply to the hands
and ngers, increasing the risk of
vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration when
there is a choice.
5. Include vibration-free periods each day
of work.
6. Grip tool as lightly as possible (while still
keeping safe control of it). Let the tool
do the work.
7. To reduce vibration, maintain the tool
as explained in this manual. If any

Page 6 For technical questions, please call 1‑800‑444‑3353. SKU 92772
abnormal vibration occurs, stop use
immediately.
SAVE THESE
INSTRUCTIONS.
GROUNDING
TO PREVENT
ELECTRIC SHOCK
AND DEATH FROM INCORRECT
GROUNDING WIRE
CONNECTION:
Check with a qualied electrician
if you are in doubt as to whether
the outlet is properly grounded.
Do not modify the power cord
plug provided with the tool.
Never remove the grounding
prong from the plug. Do not use
the tool if the power cord or plug
is damaged. If damaged, have it
repaired by a service facility
before use. If the plug will not t
the outlet, have a proper outlet
installed by a qualied
electrician.
Double Insulated Tools: Tools with
Two Prong Plugs
Outlets for 2‑Prong Plug
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satises
OSHA requirements and complies with
the applicable standards of Underwriters
Laboratories, Inc., the Canadian
Standard Association, and the National
Electrical Code.
2. Double insulated tools may be used in
either of the 120 volt outlets shown in the
preceding illustration. (See Outlets for
2‑Prong Plug.)
Extension Cords
1. Grounded tools require a three wire
extension cord. Double Insulated
tools can use either a two or three wire
extension cord.
2. As the distance from the supply outlet
increases, you must use a heavier gauge
extension cord. Using extension cords
with inadequately sized wire causes a
serious drop in voltage, resulting in loss
of power and possible tool damage.
(See Table A.)
3. The smaller the gauge number of the
wire, the greater the capacity of the cord.
For example, a 14 gauge cord can carry
a higher current than a 16 gauge cord.
(See Table A.)
4. When using more than one extension
cord to make up the total length, make
sure each cord contains at least the
minimum wire size required. (See Table
A.)
5. If you are using one extension cord for
more than one tool, add the nameplate
amperes and use the sum to determine
the required minimum cord size. (See
Table A.)
6. If you are using an extension cord
outdoors, make sure it is marked with the
sufx “W-A” (“W” in Canada) to indicate it
is acceptable for outdoor use.

Page 7For technical questions, please call 1‑800‑444‑3353.SKU 92772
7. Make sure the extension cord is properly
wired and in good electrical condition.
Always replace a damaged extension
cord or have it repaired by a qualied
electrician before using it.
8. Protect the extension cords from sharp
objects, excessive heat, and damp or
wet areas.
RECOMMENDED MINIMUM WIRE GAUGE
FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25’ 50’ 75’ 100’ 150’
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 ---
TABLE A
* Based on limiting the line volt‑
age drop to ve volts at 150% of
the rated amperes.
Symbology
Double Insulated
Canadian Standards Association
Underwriters Laboratories, Inc.
V~ Volts Alternating Current
AAmperes
n0xxxx/min. No Load Revolutions per Minute
(RPM)
SPM Strokes Per Minute
SPECIFICATIONS
Electrical Input 120V~ / 60Hz / 5.5A
Laser Power 2 “AAA” Batteries
(sold separately)
Speed Rating 500 to 3,000 SPM
6 settings
Stroke Length 11/16˝with 4 orbital settings
Blade Type Universal - Clamp Type Holder
Saw Blades (2x) 4˝x 10 TPI,
(1x) 3-1/4˝x 25 TPI
Bevel Adjustment 0-45° Left / 0-45° Right
Maximum Cutting Depth 2-1/2˝ @ 90° (Wood) / 1/4˝ @ 90°
(Steel)
E194601

Page 8 For technical questions, please call 1‑800‑444‑3353. SKU 92772
REV 06b, 08j
UNPACKING
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon as
possible.
INSTRUCTIONS FOR PUTTING
INTO USE
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
Note: For additional information regarding the
parts listed in the following pages, refer
to the Assembly Diagram near the end of
this manual.
PRODUCT FEATURES
1. Speed Control Dial (20): The Speed
Control Dial is a 6-position speed dial
switch located on the top/front of the
handle. By rotating the Speed Control
Dial from 1 to 6, the Saw Blade speed
can be set from 500 to 3,000 strokes per
minute. The stroke rate should be set
depending upon the material being cut.
2. Trigger (21):
The variable speed Trigger is operated
manually simply by squeezing the
Trigger to turn on the Jigsaw and
releasing pressure on the Trigger to turn
off the Jigsaw.
3. Trigger Lock (61):
To operate the tool for extended periods
of time squeeze and hold the Trigger,
then depress the Trigger Lock.
To unlock the Trigger Lock mechanism,
squeeze and release the Trigger once.
4. Cutting Mode Selector (46):
The Cutting Mode Selector can be
adjusted to select the straight cutting
mode or orbital cutting mode. The
Cutting Mode Selector has 4 position
settings. The setting marked “0” is for
straight cutting and the settings marked
“I”, “II”, and “III” are for orbital cutting.
5. Laser Switch (4):
The Jigsaw is equipped with a battery
powered Laser Guide that is designed to
aid alignment of the Saw Blade with the
cutting line. To operate, push the Laser
Switch to its “ON” or “OFF” positions.

Page 9For technical questions, please call 1‑800‑444‑3353.SKU 92772

Page 10 For technical questions, please call 1‑800‑444‑3353. SKU 92772
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Squeeze and release the Trigger
to put it in its off position and
unplug the tool from its electrical
outlet before adjusting tool or
installing accessories.
1. SAW BLADE INSTALLATION:
a. Slide the Blade Guard (9) up to expose
the Blade Guide Assembly (38).
b. Slightly loosen the two Hex Screws (16)
on the Blade Guide Assembly (38).
c. Insert the Saw Blade (59, 60) upward
into the Blade Guide Assembly (38),
and retighten the two Hex Screws (16)
to secure the Saw Blade in place.
Make sure the teeth of the Saw Blade
face forward as shown.
d. Then, lower the Blade Guard (9) to its
original position.
2. LASER GUIDE BATTERY
INSTALLATION:
a. Remove the Battery Compartment Lid
(57) on the front of the Jigsaw to expose
the Battery Compartment.
b. Install two “AAA” size Batteries (not
included) in the Compartment, making
sure to match the polarity of contacts as
indicated in the Compartment.
c. Then, reattach the Battery Compartment
Lid.
3. BEVEL ADJUSTMENT:
The Base Plate (41) can be tilted to cut
any angle between 0 and 45° right and
left.
a. Loosen the Hex Screw (16). Rotate the
Base Plate right or left to the desired
angle of cut.
b. Then, retighten the Hex Screw (16).

Page 11For technical questions, please call 1‑800‑444‑3353.SKU 92772
Work Piece and Work Area Set Up
1. Designate a work area that is clean and
well-lit. The work area must not allow
access by children or pets to prevent
distraction and injury.
2. Route the power cord along a safe
route to reach the work area without
creating a tripping hazard or exposing
the power cord to possible damage. The
power cord must reach the work area
with enough extra length to allow free
movement while working.
3. Secure loose work pieces using a vise
or clamps (not included) to prevent
movement while working.
4. There must not be objects, such as utility
lines, nearby that will present a hazard
while working.
General Operating Instructions
1. Squeeze and release the Trigger to put
it in its off position. If necessary, make
adjustments to the Speed Control Dial
(20) and Cutting Mode Selector (46).
Also if necessary, adjust the Base Plate
(41) for the desired bevel of cut.
2. Then, plug the Power Cord (43) into the
nearest 120 volt, grounded, electrical
outlet.
3. Position the Saw Blade (59, 60) of the
Jigsaw about 1/2” from the beginning cut
line on the workpiece. Do not allow the
Saw Blade to come in contact with the
workpiece.
4. Turn the Laser Switch (4) to its “ON”
position, and align the laser beam with
the cut line on the workpiece.
5. Squeeze the Trigger to turn on the
Jigsaw. If operating the Jigsaw for an
extended period of time, you may wish to
depress the Trigger Lock (61) to lock the
Trigger in its “ON” position.
6. Allow the Saw Blade (59, 60) to stroke
at full speed before feeding it into the
workpiece.
7. Make sure to hold the Jigsaw rmly with
both hands, as torque from the Motor
will cause the tool to twist. Then, slowly
make the cut . (See Figure D.)
8. When nished, squeeze and release the
Trigger to put it in its off position and stop
the Jigsaw. Wait until the Saw Blade
(59, 60) stops completely. Turn the
Laser Switch (4) to its “OFF” position.
Then, remove the Jigsaw from the
workpiece.
9. To prevent accidents, turn off the tool
and disconnect its power supply after
use. Clean, then store the tool indoors
out of children’s reach.

Page 12 For technical questions, please call 1‑800‑444‑3353. SKU 92772
MAINTENANCE AND
SERVICING
Procedures not specically
explained in this manual must
be performed only by a qualied
technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Squeeze and release the Trigger
to put it in its off position and
unplug the tool from its electrical
outlet before performing any
inspection, maintenance, or
cleaning procedures.
TO PREVENT SERIOUS INJURY
FROM TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise or vibration
occurs, have the problem
corrected before further use.
Cleaning, Maintenance, and
Lubrication
1. BEFORE EACH USE, inspect the
general condition of the tool. Check for
loose hardware, misalignment or binding
of moving parts, cracked or broken parts,
damaged electrical wiring, and any
other condition that may affect its safe
operation.
2. AFTER USE, wipe external surfaces of
the tool with clean cloth.
3. WARNING! If the supply cord of
this power tool is damaged, it must be
replaced only by a qualied service
technician.

Page 13For technical questions, please call 1‑800‑444‑3353.SKU 92772
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker
tripped (if equipped).
4. Internal damage or wear.
(Carbon brushes or switch, for
example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker. If breaker
is tripped, make sure circuit is right capacity for
tool and circuit has no other loads.
3. Turn off tool and allow to cool. Press reset button
on tool.
4. Have technician service tool.
Tool operates slowly. Extension cord too long or wire size
too small.
Eliminate use of extension cord. If an extension
cord is needed, use shorter/heavier gauge cord.
See Extension Cords in GROUNDING section.
Performance
decreases over time.
1. Accessory dull or damaged.
2. Carbon brushes worn or
damaged.
1. Keep cutting accessories sharp. Replace as
needed.
2. Have qualied technician replace brushes.
Excessive noise or
rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Accessory misaligned.
3. Accessory dull or damaged.
4. Blocked motor housing vents.
5. Motor being strained by long or
small diameter extension cord.
1. Allow tool to work at its own rate.
2. Check and correct accessory to fence and/or
table alignment.
3. Keep cutting accessories sharp. Replace as
needed.
4. Wear ANSI-approved safety goggles and NIOSH-
approved dust mask/respirator while blowing dust
out of motor using compressed air.
5. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords in
GROUNDING section.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.

Page 14 For technical questions, please call 1‑800‑444‑3353. SKU 92772
Part Description
1Left Half Housing
2 Slip Gutter
3 Roller
4Laser Switch
5 Shell
6 Screw (ST4.2 x 19)
7 Screw (ST4.2 x 37)
8 Name Plate
9 Blade Guard
10 Ring Dowel
11 Ring
12 Washer Board (4)
13 Axle
14 Wiring Spring
15 Guide Roller
16 Hex Screw (M4 x 15)
17 Square Nut
18 Cord Guard
19 Brush Holder
20 Speed Control Dial
21 Trigger
22 Bearing (607-2Z)
23 Rotor
24 Bearing (608-2Z)
25 Stator
26 Center Support
27 Balance Patch
28 Balance Blade
29 Axle (P4 x 13.8)
30 Gear
31 Guide Case
Part Description
32 Axle Bearing
33 Washer Board (6)
34 Slide Mass
35 Support
36 Washer Board (5)
37 Slide Rod
38 Blade Guide Assembly
39 Blade Clamp
40 Washer Board
41 Base Plate
42 Screw (ST4.2 x 16)
43 Power Cord
44 Right Half Housing
45 Name Plate
46 Cutting Mode Selector
47 Top Cover
48 Cord Clip
49 Negative Pole
50 Positive Electrode
51 Screw (ST3 x 10)
52 Battery (sold separately)
53 Laser Socket
54 Screw (ST3 x 10)
55 Laser
56 Screw (M3 x 8)
57 Battery Compartment Lid
58 Cover
59 Saw Blade (Qty. 2 @ 4” x 10 TPI)
60 Saw Blade (Qty. 1 @ 3-1/4” x 25 TPI)
61 Trigger Lock
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT
PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
PARTS LIST

Page 15For technical questions, please call 1‑800‑444‑3353.SKU 92772
ASSEMBLY DIAGRAM
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts.
59: 4” x 10 TPI Saw Blades not shown.
60: 3‑1/4” x 25 TPI Saw Blade not shown.
61: Trigger Lock not shown.

Page 16 For technical questions, please call 1‑800‑444‑3353. SKU 92772
REV 08j
LIMITED 1 YEAR / 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that for a period of ninety
days from date of purchase that the engine/motor, the belts (if so equipped), and the blades
(if so equipped) are free of defects in materials and workmanship. Harbor Freight Tools also
warrants to the original purchaser, for a period of one year from date of purchase, that all other
parts and components of the product are free from defects in materials and workmanship (90
days if used by a professional contractor or if used as rental equipment). This warranty does
not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents,
repairs or alterations outside our facilities, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental,
contingent, special or consequential damages arising from the use of our product. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint
must accompany the merchandise. If our inspection veries the defect, we will either repair or
replace the product at our election or we may elect to refund the purchase price if we cannot
readily and quickly provide you with a replacement. We will return repaired products at our
expense, but if we determine there is no defect, or that the defect resulted from causes not
within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specic legal rights and you may also have other rights which
vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
