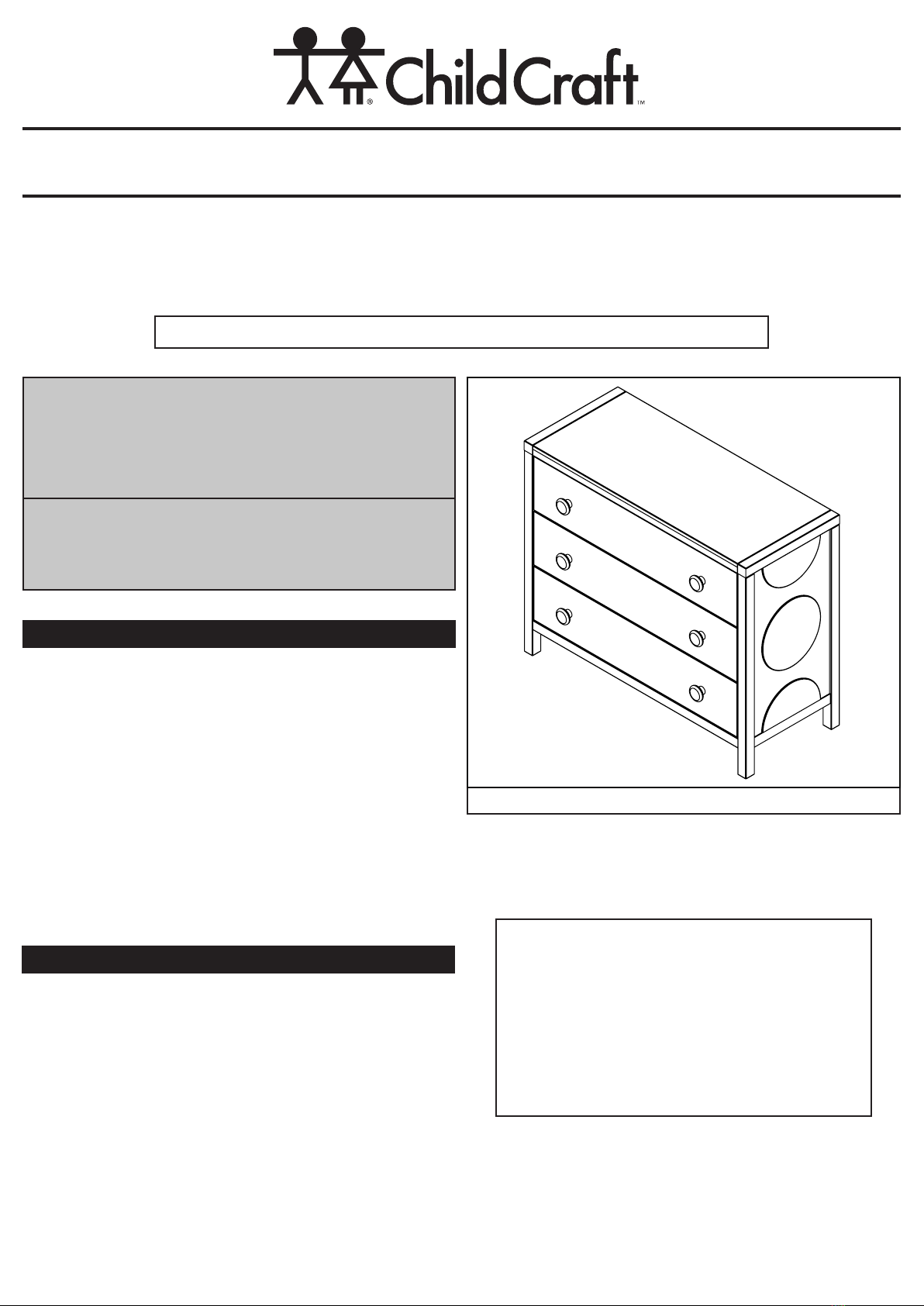

Child Craft Orbit Dresser F00209 User manual

1
KEEP INSTRUCTIONS FOR FUTURE USE .
Assembled Dresser
AB20494_G1
5216 Portside Dr., Medina, OH 44256 USA • PH: 1 330.723.0599 • FAX: [phone]
www.childcraftbaby.com
Orbit Dresser
Model Covered: F00209
AB20494B
Record the information for your product here:
Model number: ___________________
Manufacture date: ___________________
PO number: ___________________
ASSEMBLY ASSISTANCE
IMPORTANT: Retain for future reference and
read carefully.
Child Craft strives for the highest quality in our
products but occasionally a missing part or
problem can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.childcraftbaby.com or call Child Craft for
assistance at 1-330-723-0599 (Monday through
Friday, 9:00 a.m.– 4:00 p.m. Eastern Time). Please
have the model number and manufacture date
available when you call or write us at:
Child Craft, 5216 Portside Dr., Medina, OH 44256
• Adult assembly required.
• Read all instructions BEFORE assembly and USE
of product.
• Unpack carton, remove packing materials,
including polybag. Identify and check all parts.
ASSEMBLY INSTRUCTIONS
FOR CUSTOMER SERVICE CALL
330-723-0599. DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR WARRANTY AND FEDERAL SAFETY
STANDARD COMPLIANCE CERTIFICATES,
PLEASE VISIT OUR WEBSITE AT
www.childcraftbaby.com

2
PARTS LIST PREPARATION
Carefully remove and lay out all hardware and parts.
Check quantities and match the parts list.
Construct furniture on an even at oor.
Note: During the assembly process whenever using
screws or bolts, check each with the parts list by letter
and size identication. Place each screw or bolt on the
diagram of the item which is sketched actual size. Be
sure to use the proper size specied in the assembly
directions. If any parts are missing or broken or you
need assistance with assembly, DO NOT return your
product to the dealer. Please identify the furniture
by the model number identication stamped on the
assembly when you call or write to Child Craft. Make
note of all identification numbers and include this
information with your request.
DO NOT Substitute Parts!
IMPORTANT NOTE: During the assembly process,
it may be necessary to temporarily loosen fasteners
installed in an earlier step to allow adjustments in
proper alignment for other parts. Always remember
to retighten securely after this process.
SUGGESTED TOOLS
#2 Medium Straight Screwdriver
Part Description Part Number Qty.
A. Left Side 23103012 1
B. Right Side 23103013 1
C. Top 23103021 1
D. Support Rail 23103015 3
E. Front Connector Rail 23103016 1
F. Drawer Support Rail 23102994 6
G. Drawer Bottom 23102995 3
H. Drawer Back 23102996 3
I. Top Drawer - Left Side 23103031 1
J. Drawer Front 23103002 3
K. Top Drawer - Right Side 23103032 1
L. Lower Drawers - Left Side 23102998 2
M. Lower Drawers - Right Side 23102999 2
N. Back Panel 23103014 2
AA. Drawer Pull 11201500 6
BB. Dowel 11201360 20
CC. Allen Head Bolt 50mm Long 11200879 8
DD. Half Moon Connector 11201222 8
EE. Allen Head Bolt 30mm Long 11201220 4
FF. Flat Head Screw 11201385 36
GG. Pan Head Machine Screw 11201303 6
HH. Wood Screw 11201451 32
II. Allen Wrench 11201223 1
JJ. Safety Bracket Kit 11201229 1

3

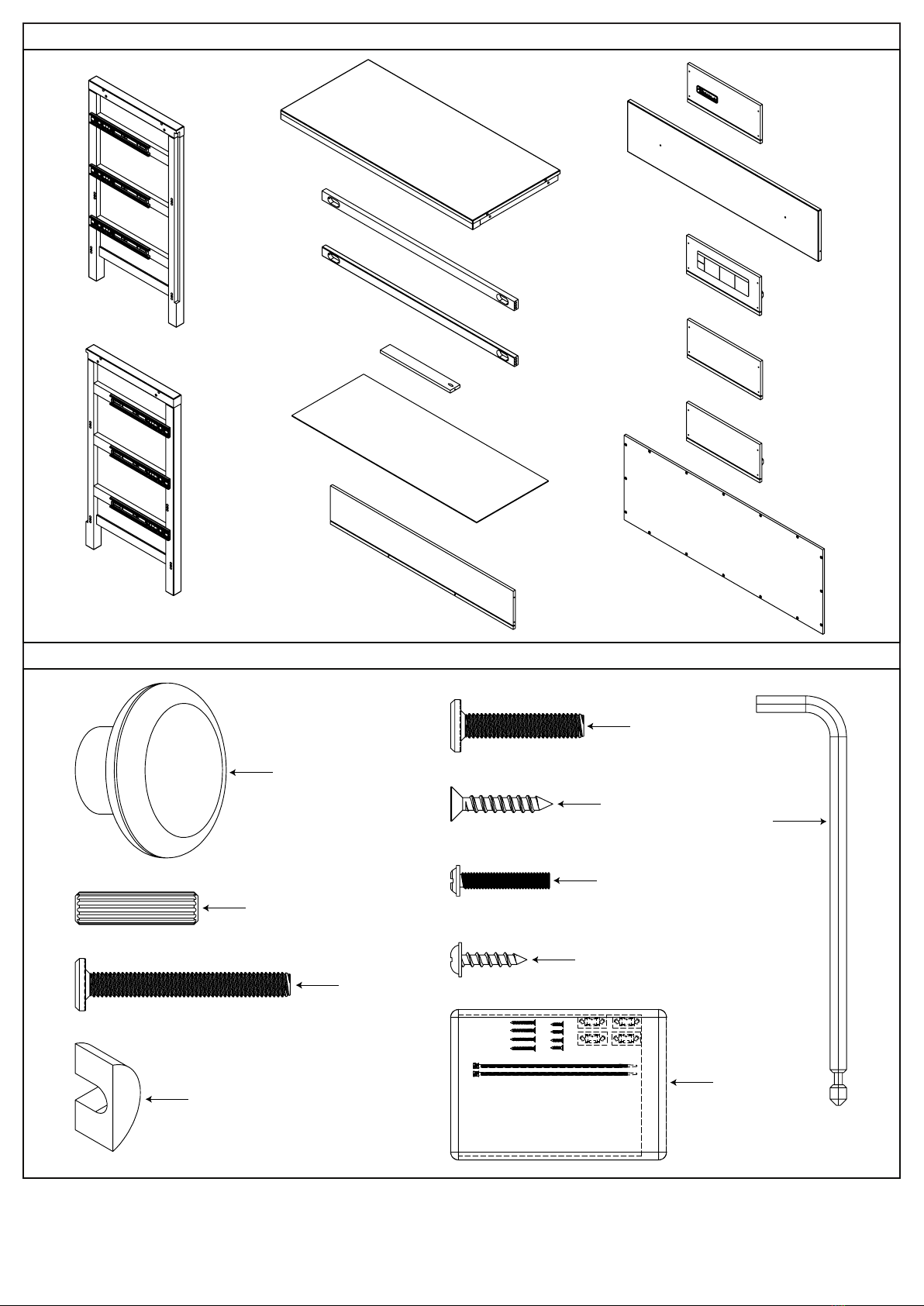

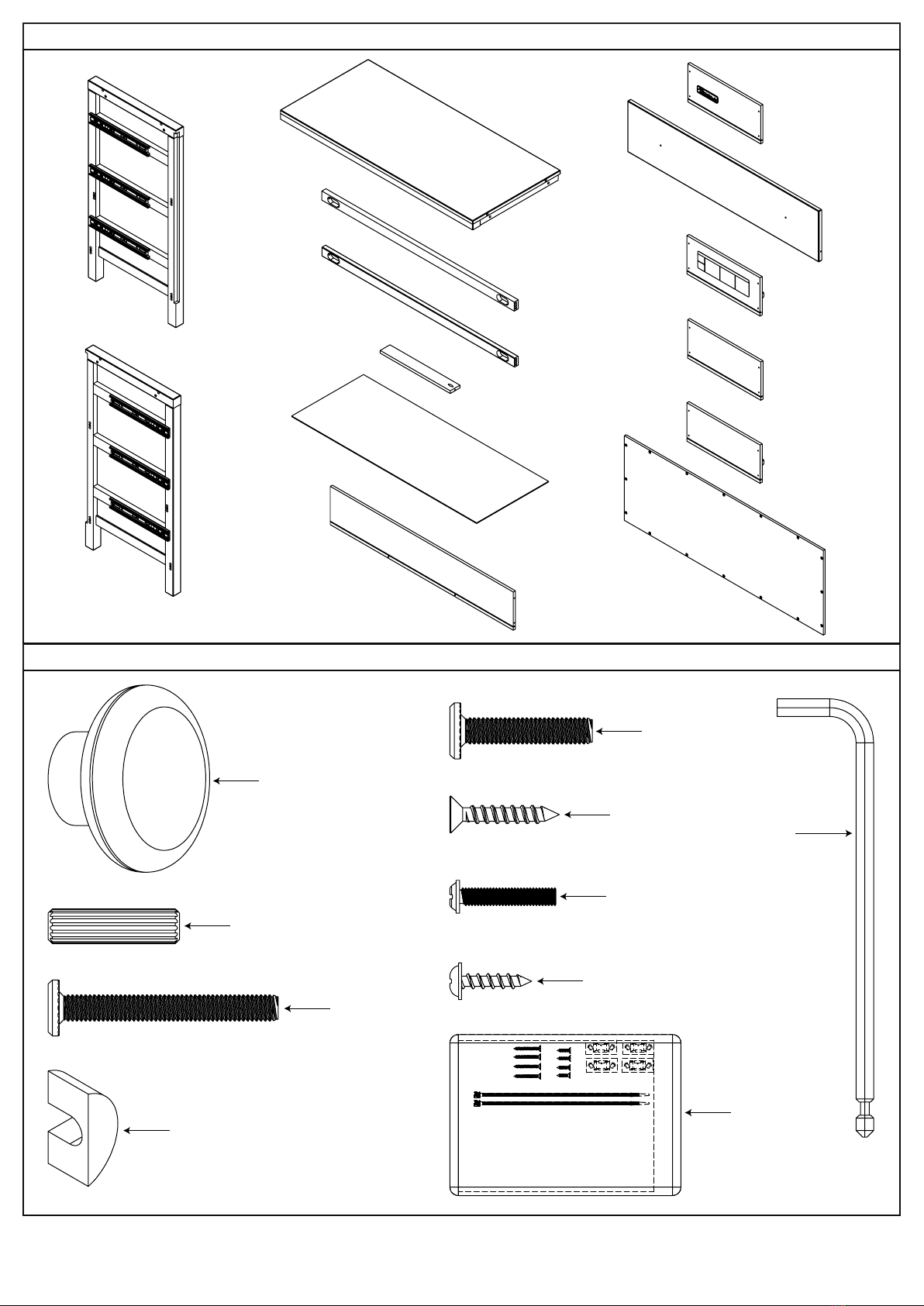

Hardware Package
Furniture Parts
AB20494_G3
CC
DD
AA
EE
II
GG
HH
JJ
FF
BB
AB20494_G2
A
C
I
B
D
G
H
J
K
M
N
L
E
F

4

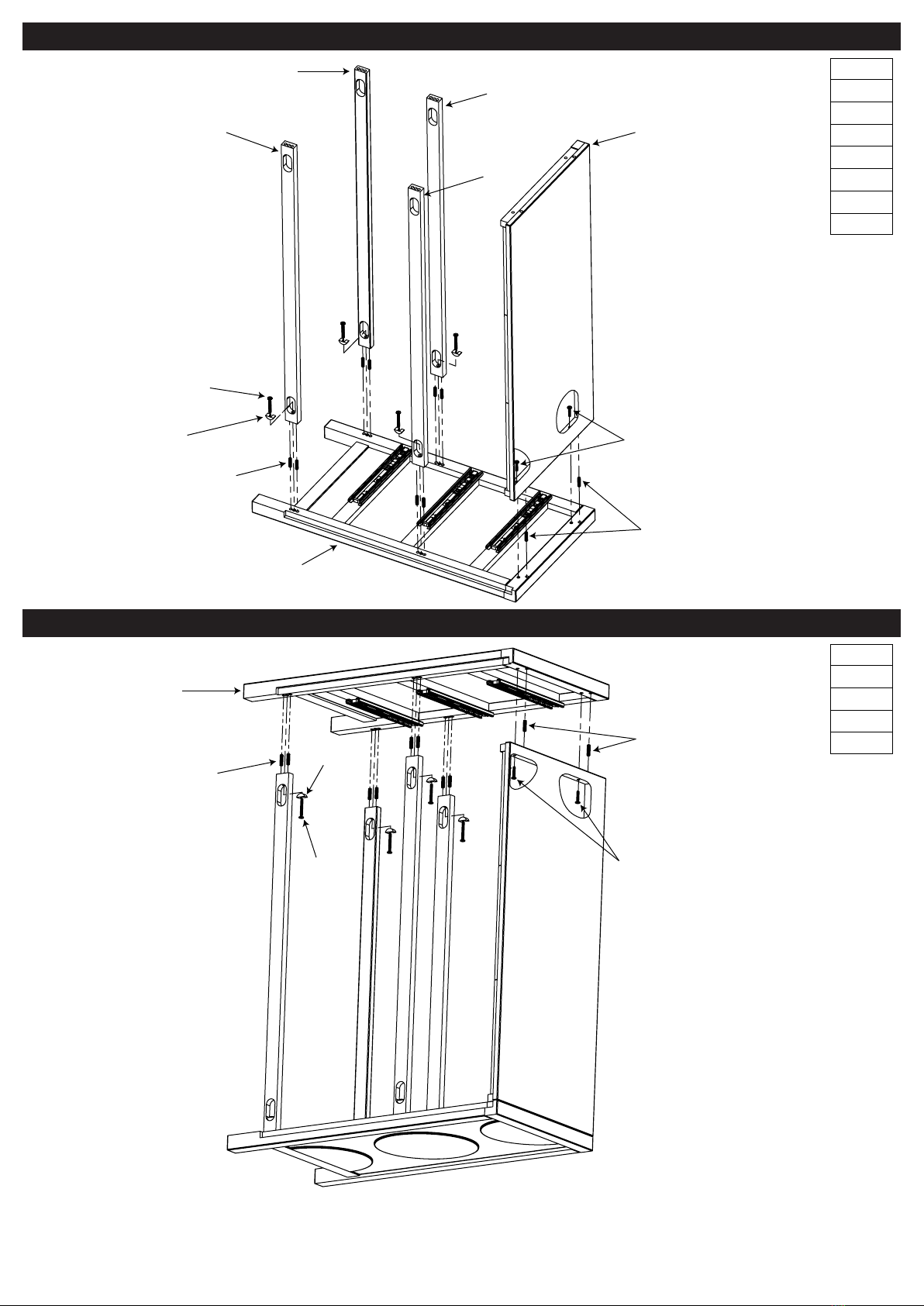

STEP 1
EE
CC x 4
D
E
C
D
D
DD x 4
BB x 8
A
BB
A x 1
C x 1
D x 3
E x 1
BB x10
CC x 4
DD x 4
EE x 2
AB20494_G4
AB20494_G5
B x 1
BB x10
CC x 4
DD x 4
EE x 2
BB
BB x 8
B
DD x 4
CC x 4 EE
STEP 2

5

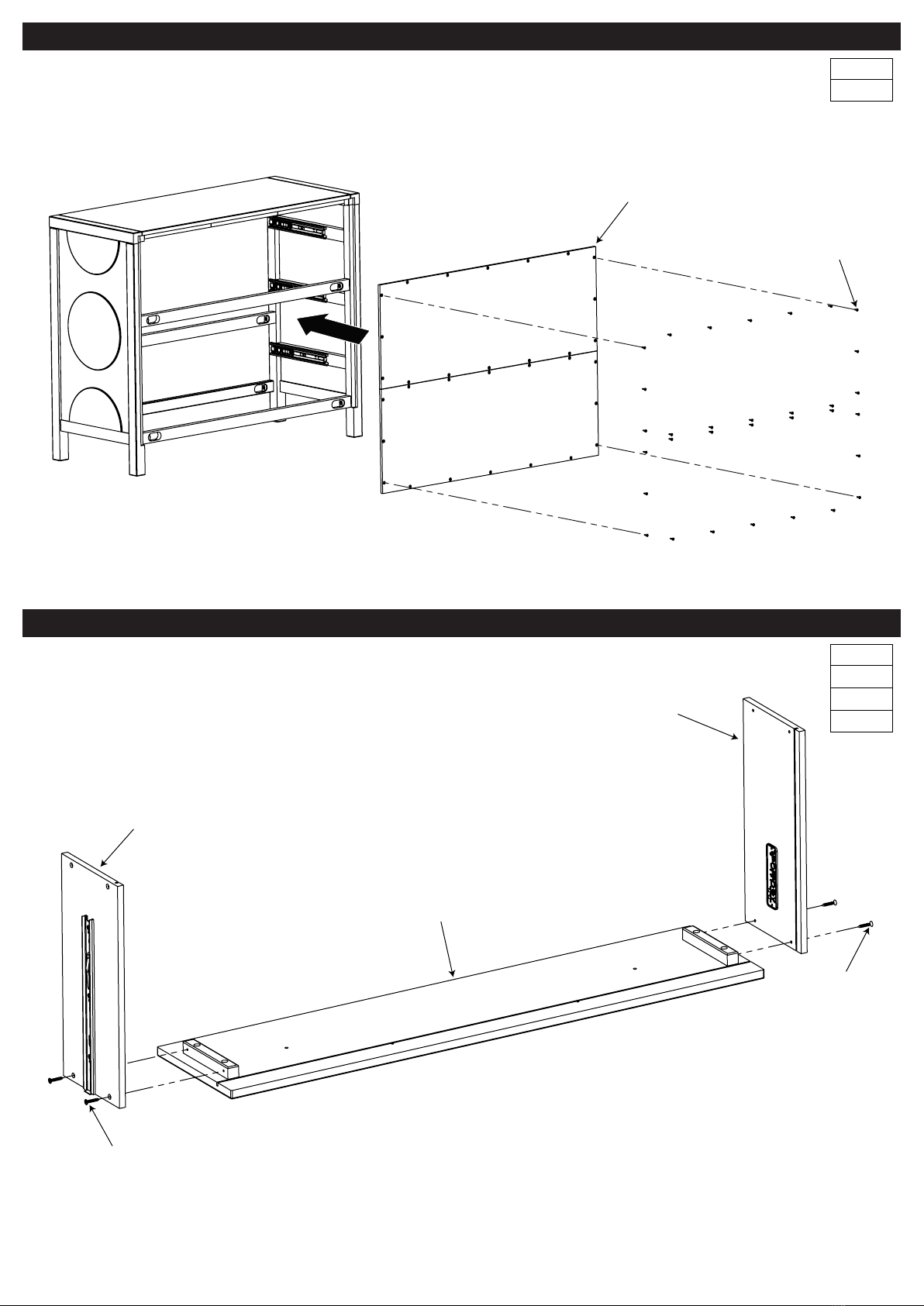

STEP 3
AB20494_G16
N x 2
HH x32
N x 2
HH x 32
AB20494_G6
I x 1
J x 1
K x 1
FF x 4
J
K
FF x 2
FF x 2
I
TOP DRAWER ASSEMBLY STEP 1

6
DRAWER ASSEMBLY STEP 2 (x 3)
AB20494_G7
F x 2
G x 1
H x 1
FF x 6
FF x 2
H
F x 2
G
FF x 2 FF x 2
AB20494_G10
J x 1
L x 1
M x 1
FF x 4
J
M
FF x 2
FF x 2
L
LOWER DRAWER ASSEMBLY STEP 1 (x 2)

7
AB20494_G8
FF x 2
FF x 2

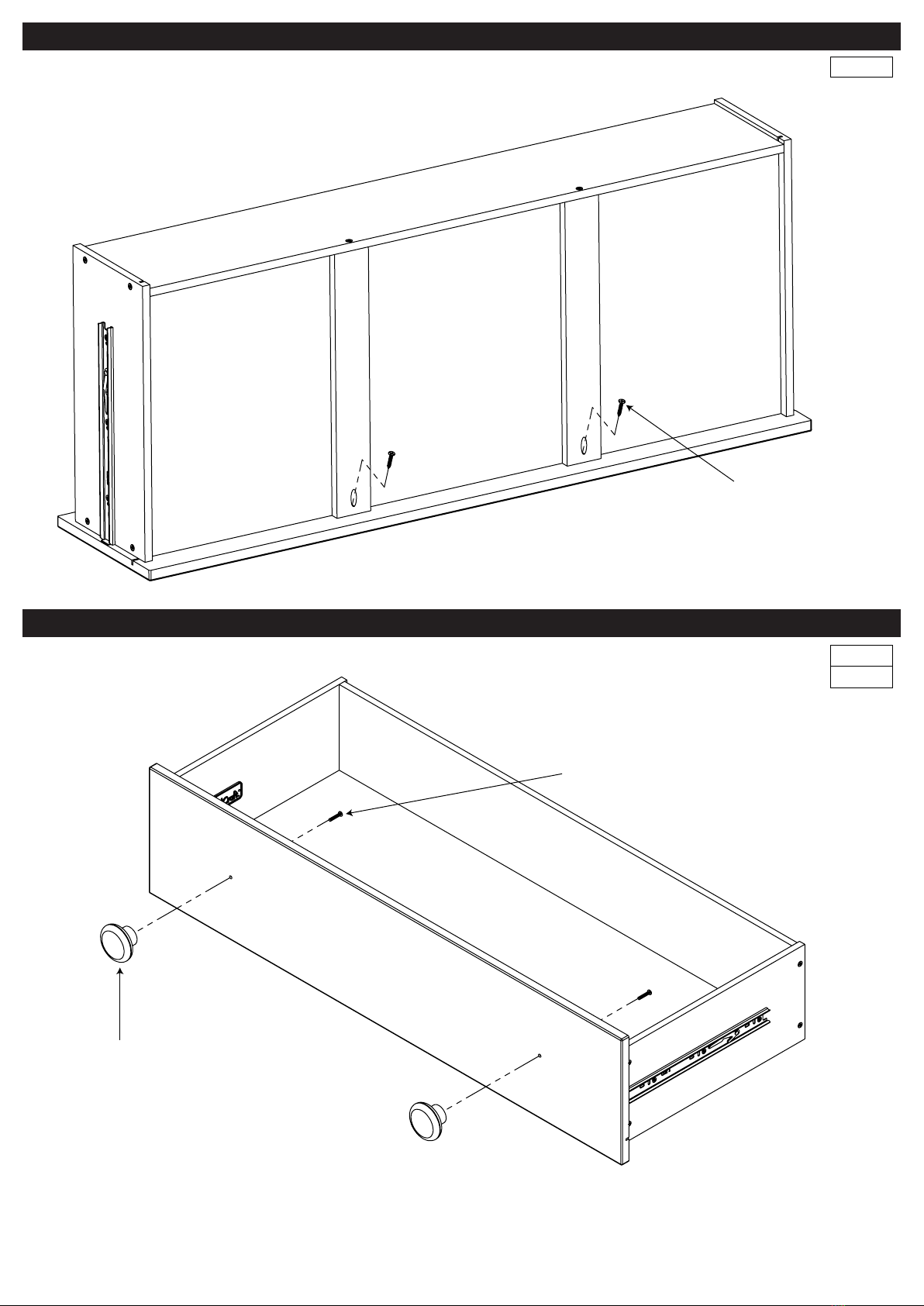

DRAWER ASSEMBLY STEP 3 (x 3)
DRAWER ASSEMBLY STEP 4 (x 3)
AB20494_G9
AA x 2
GG x 2
AA x 2
GG x 2

8
AB20494_G14

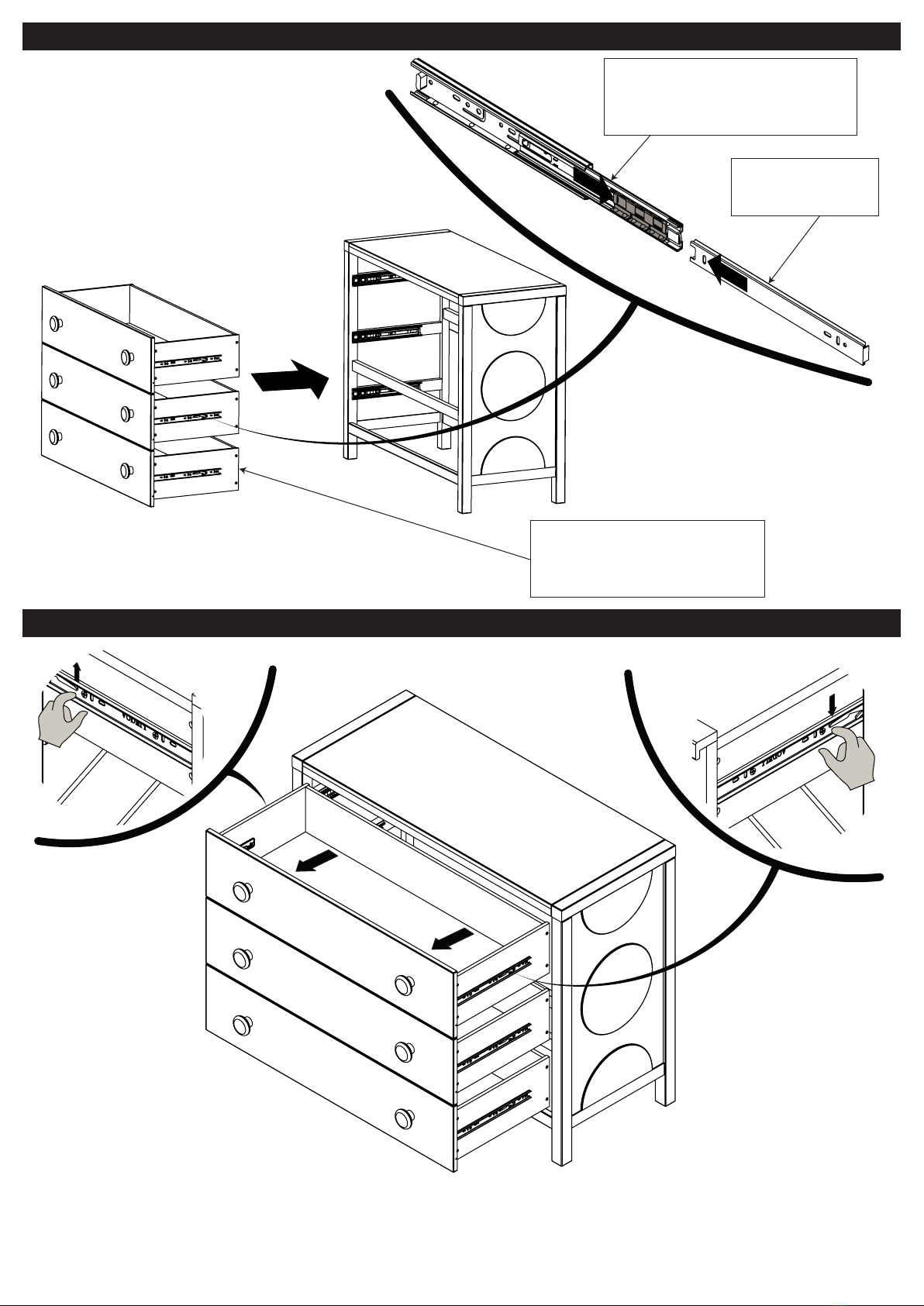

Drawers may need to be
pushed in and out to
properly set slides.
This side section
mounted to drawer.
These slide sections
mounted on inside of
dresser must be fully
extended for install.
DRAWER INSTALLATION
AB20494_G15
DRAWER REMOVAL

9

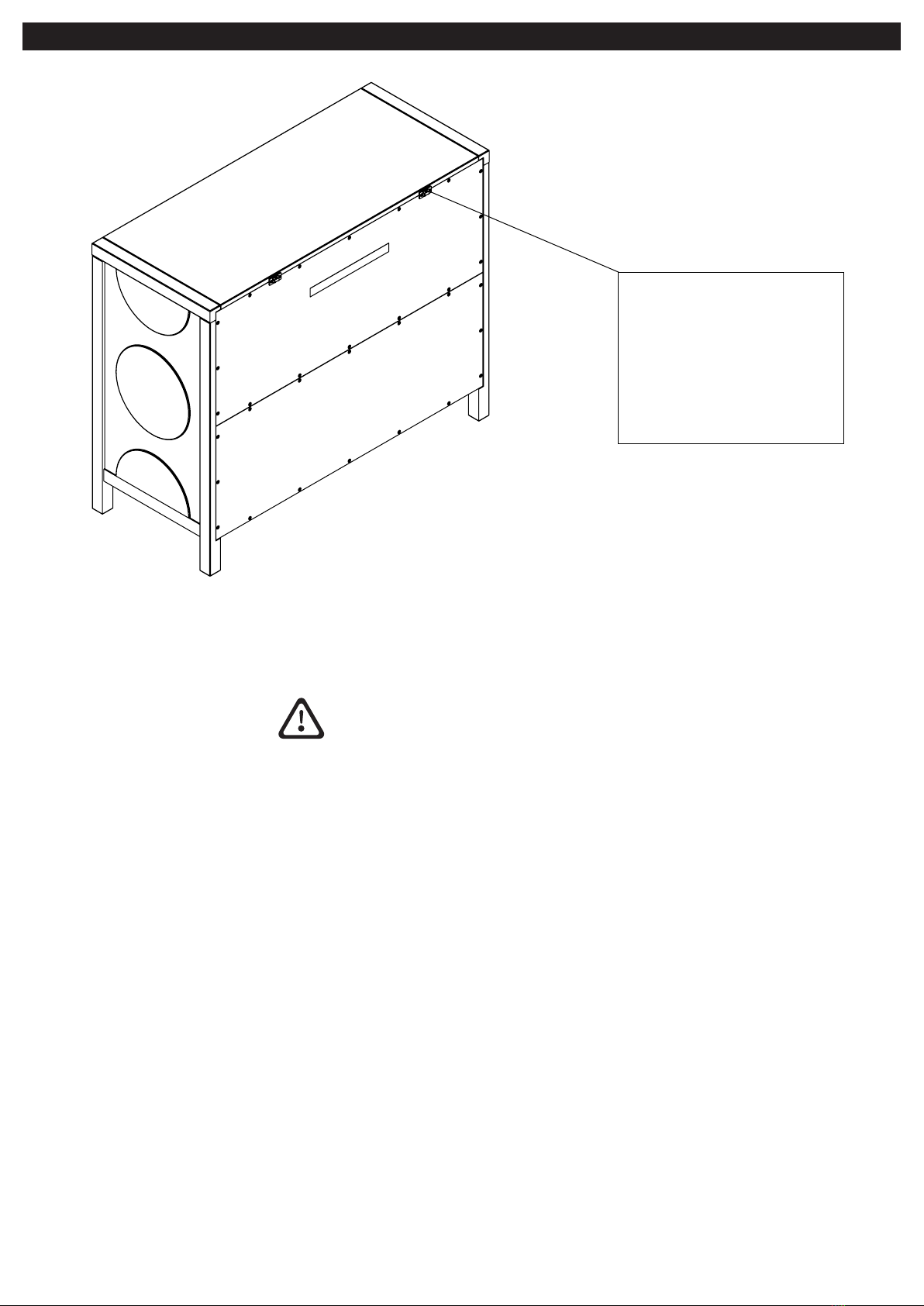

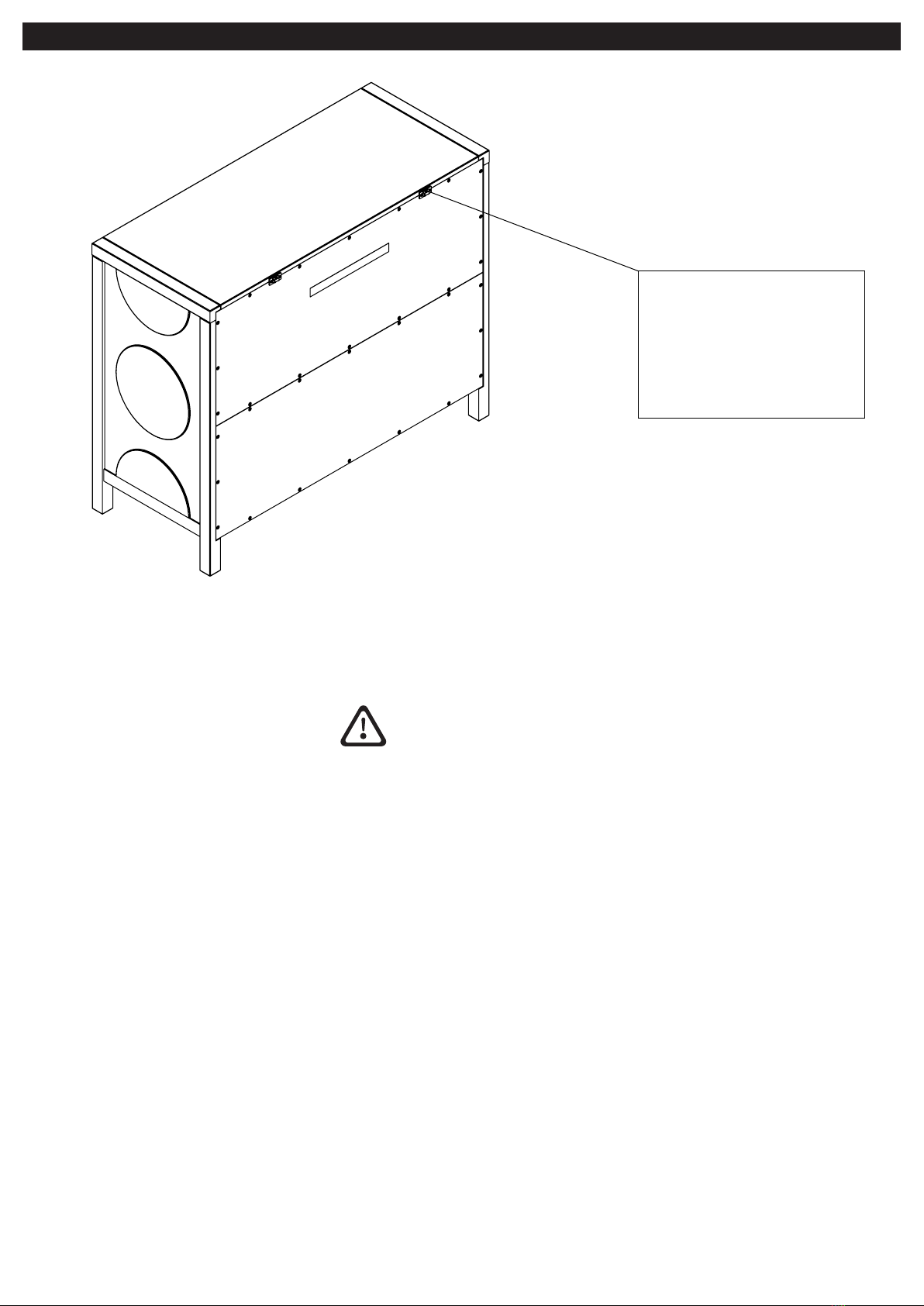

For Anti Tip Kit Installation,
top of Anti Tip Bracket
should be placed along the
top edge of the dresser.
Please refer to Anti Tip
Kit instructions for install.
AB20494_G17
ANTI TIP KIT ALIGNMENT
WARNING
WARNING
Serious or fatal crushing injuries can occur from furniture tipover. To help prevent tipover:
• Install tipover restraint provided.
• Place heaviest items in the lower drawers.
• Do not set TVs or other heavy objects on the top of this product.
• Never allow children to climb or hang on drawers, doors, or shelves.
• Never open more than one drawer at a time.
Use of tipover restraints may only reduce, but not eliminate, the risk of tipover.

10
MAINTENANCE:
Upon completion of the assembly, check to make sure all screws, bolts and connectors are tightened and secure.
Periodically check furniture for damaged hardware, loose joints, missing parts or sharp edges before and after
assembly and frequently during use.
DO NOT use furniture if any parts are missing or broken.
If any parts are missing, broken or you need assistance DO NOT return furniture to your dealer.
Call Child Craft at 330-723-0599 and include model identication numbers recorded on page 1.
DO NOT substitute parts.
CLEANING:
Mix a mild solution of gentle dishwashing soap and water, apply to surface using a clean cloth lightly dampened in
the solution. Rinse well with clear water using a soft clean cloth, then dry all surfaces with a soft dry cloth.
DO NOT use abrasive cleaners or any cleaners with harsh chemicals that would contact a child’s skin, scouring
pads, steel wool or coarse rags. This furniture should be treated the same as any ne furniture.
STORAGE:
When storing furniture use caution as extreme temperature or humidity changes could be harmful.
Use caution when a vaporizer is in use. Always aim vapor stream away from furniture as well as away from any wood
furniture item.
After completing the assembly, the user is advised to read and be aware of
ALL WARNINGS, CAUTIONS, CLEANING, STORAGE USE AND MAINTENANCE.
Please store the complete set of assembly directions for future referral.
MAINTENANCE, CLEANING, AND STORAGE
