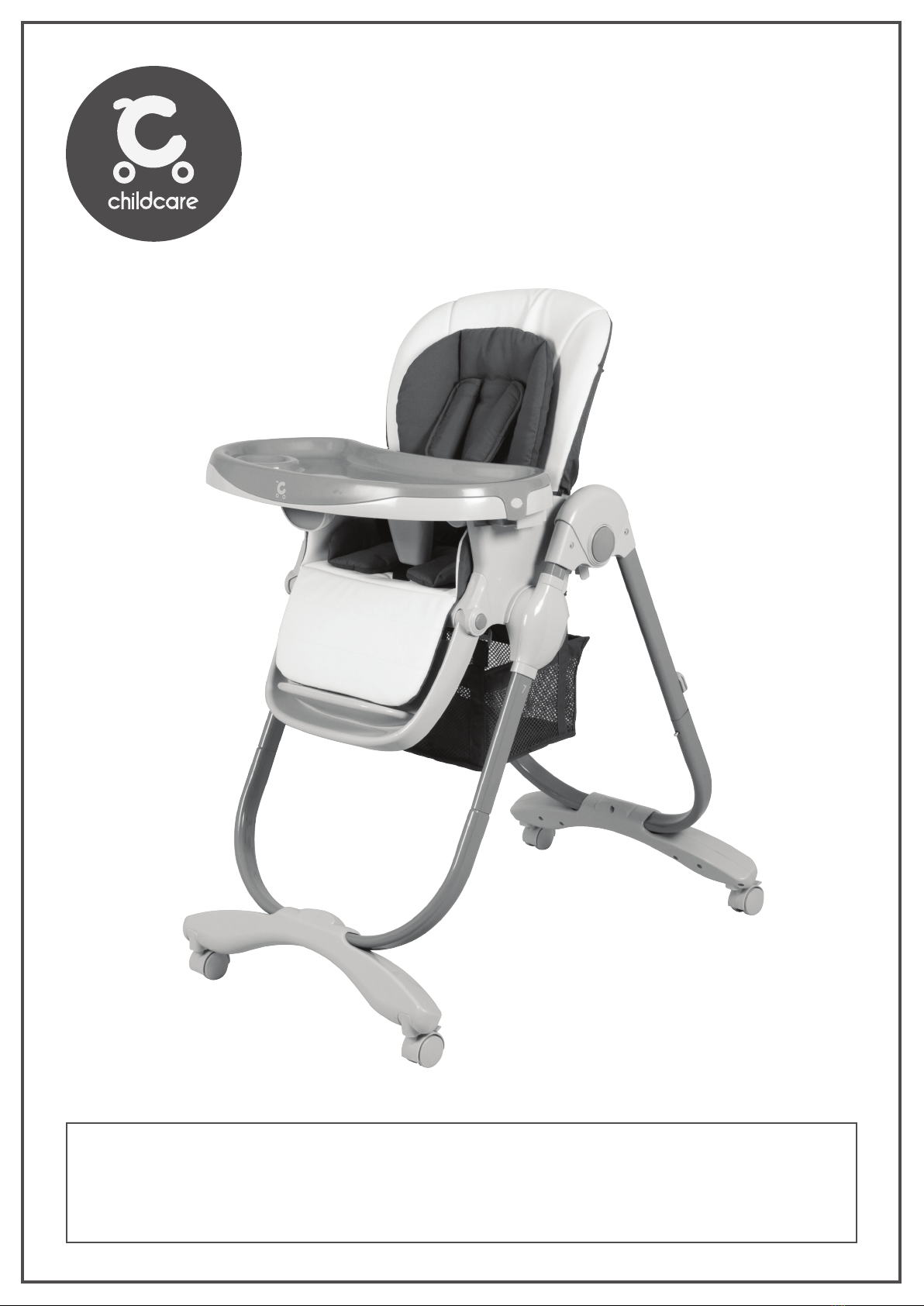

Childcare Trevi 044283 User manual

IMPORTANT:
RETAIN FOR FUTURE REFERENCE,
READ CAREFULLY
Trevi
HIGH CHAIR
#044283

Check that all safety locks are engaged before placing a child in the high chair.
Always keep child in view while in high chair.
Not recommended for a child under 6 months old.
The tray is not designed to hold the child in the high chair.
Use safety locks and brakes at all times.
Always secure your child in the restraint.Ensure that your child wears a correctly tted and adjusted harness at
all times.
The high chair should only be used in an upright position once the child is capable of reliably and consistantly
sitting upright.
Only use the high chair on a secure level surface.
DO NOT allow children to stand on the seat or footrest or climb into or out of the high chair.
When adjusting the high chair, make sure that parts of your child’s body are clear of any moving parts.
DO NOT carry the high chair with a child in it.
To reduce the risk of injury,position the high chair away from furniture,walls,hot surfaces and liquids,window
covering cords,and electrical cords.Position the high chair away from furniture when the high chair is not being
used at a table with the tray removed.
Periodically check that all parts of the high chair are in good working order.
DO NOT use the high chair if it is damaged or broken.
The weight of the child using this high chair should not exceed 17kgs.
Promptly replace worn out or broken parts.
Apply wheel lock/brakes when not moving the high chair.
Use the high chair on a at,even and horizontal oor. Do not elevate the high chair on any structure or table.
DO NOT use the high chair unless all components are correctly tted and adjusted.
Read all instructions before assembly and use of the high chair. Keep
instructions for future use.
FOLLOW THE MANUFACTURER’S INSTRUCTIONS.
DO NOT LEAVE CHILDREN UNATTENDED.
THE HARNESS MUST ALWAYS BE USED AND CORRECTLY FITTED - MOST INJURIES FROM
HIGHCHAIRS ARE CAUSED BY FALLS.
POSITION THE HIGH CHAIR AWAY FROM SOLID STRUCTURES AND BENCHES TO AVOID INJURIES
CAUSED BY FALLS AND BY ACCESSTO DANGEROUS ITEMS.
DO NOT USETHE HIGH CHAIR UNTIL THE CHILD CAN SIT UP UNAIDED.
BE AWARE OFTHE RISK OF OPEN FIRE AND OTHER SOURCES OF STRONG HEAT, SUCH AS ELECTRIC
BAR FIRES, GAS FIRES ETC. IN THE VICINITY OF THE HIGH CHAIR.
SAFETY PRECAUTIONS
WARNING
1

Due to variations in the style and design of our products, the photographs and illustrations shown in this
instruction manual are generic,therefore product fabrics,colour and design may vary from images shown.
CNP Brands reserves the right to alter product specications without notice as a result of our ongoing
policy of product improvement.
Contents
Assembly contents list
Assembly / Operating instructions
How to care for your Trevi High Chair
Congratulations on your purchase of the Trevi High
Chair.
This product has been designed and developed with safety,
comfort and functionality in mind. Please take the time to read
this manual carefully before using this product and keep it in a
safe place for future reference.
CONGRATULATIONS
2

ASSEMBLY CONTENTS
Check what you have received...
You have received 1 box. Please check the contents of the
box against the list below. If anything is missing, please contact
Customer Service.
InAustralia,contact CNP Brands on 1300 667 137,in New Zealand
contact Wainhouse Distribution on 0800 567 5000.
Supplied loose in box:
Leg Frame
(L+R)
Seat
(Includes Frame,
Cover,Reversible
Seat Pad,5
Point Harness &
Shoulder Pads pre-
assembled)
x 1 x 1
x 1
x 1
x 2
x 1 x 1
Tray
(Includes Main
& Inner Tray pre-
assembled)
Height Adjuster
(L+R)
Front & Rear Leg
Footrest Height
Extension
Seat Footrest
There are no accessories recommended for use with this Childcare Trevi High Chair.
Shopping Basket x 1
3

ASSEMBLY / OPERATING INSTRUCTIONS
To assemble High Chair...
“CLICK”
1
2
3
4
5
Line up the tubing of the height adjusters with the
holes in the seat as per image.
Ensure the orientation (L/R) corresponds to the “L/R”
marked on the inner side of the frame bracket.
Push in the two spring loaded pins on each side rmly.
You should hear an audible “click”,signalling that the
height adjusters are securely tted.
Noting the orientation (L/R),t the legs to the highchair
seat assembly by pushing the legs into the seat height
adjusters.
You may need to lay product down on a at surface
to complete this step.
Push the legs through until the pop pins click into
place.
Press the buttons on each hinge and open the rear
legs.
Push the rear legs outward until the legs lock into
position.
Push in the spring loaded pins on each side of the
front legs.
Fit the ends of the leg into the bottom of the front legs
until the spring loaded pins click into position in the
front legs.
Repeat this procedure with the rear legs.
1a.
1b.
2a.
2b.
3a.
3b.
3c.
4a.
4b.
5a.
5b.
5c.
“CLICK”
4

ASSEMBLY / OPERATING INSTRUCTIONS
To assemble High Chair continued...
6Ensure all four wheel locks are locked and secure by
pushing down on the locks to engage.
6a.
Raising and lowering the backrest...
To assemble Shopping Basket...
1
1
2
The backrest has 3 recline positions.
To change the position of the backrest, lift the lever
located at the back of the seat and raise or lower the
backrest to the desired position.
Release the lever.
The backrest should be slotted into one of the 3 sets of
slots located at the rear of the armrests.
The basket has 2 velcro straps and 2 fabric loops.
The 2 fabric loops will be at the back of the highchair,
with the 2 velcro straps at the front.
Attach the two velcro straps to the plastic buckles
located under the seat of the high chair.
Thread fabric loop upward through the hole.
Secure fabric loop over plastic tab; thread either side.
Pull down lightly to secure.
1a.
1b.
1c.
1d.
1a.
1b.
1c.
2a.
2b.
2c.
5
CAUTION! Please ensue that the basket is level and secure before use.

ASSEMBLY / OPERATING INSTRUCTIONS
To assemble Footrest...
To adjust Footrest...
1
1
2
2
Insert footrest into the slot at the front of the seat.
The footrest can be set at three positions.
Press down the levers on both sides simultaneously
then raise or lower the footrest to the desired position.
Release buttons then move the footrest slightly until it
locks in position.
Line up the two slots on the sides of the seat footrest.
Also ensure that the three slots are lined up.
Push down gently until you hear a ‘click’.
This will indicate that the seat footrest is in position.
The footrest height extension can be set at three
positions.
To insert footrest height extension,insert into desired
hole and pull down to secure in place.
To remove the footrest height extension,push up to
release and pull out.
1a.
1a.
1b.
1c.
2a.
2b.
2c.
2d.
2a.
2b.
2c.
6

ASSEMBLY / OPERATING INSTRUCTIONS
To adjust height of Seat...
To adjust Tray...
1
1
Squeeze the grey buttons on each seat height
adjuster to lower the seat.
Pull the seat height adjusters upwards to raise the seat.
The seat has 7 height positions,position 1 being the
highest.
Pull the lever underneath the tray.
Slide the tray into the channels on the sides of the
armrests.
Release the lever then move the tray slightly until it
locks in place.
1a.
1b.
1c.
1a.
1b.
1c.
PLEASE NOTE! Ensure each side of the high chair is set to the same height.
Ensure tray is pushed far enough into the high chair.
Numbers on top of the arm rests show the position of the tray.
NEVER use the tray if the symbol is visible.
Check the security of the tray before use by pulling it outwards slightly to ensure it is locked
into place.
7

ASSEMBLY / OPERATING INSTRUCTIONS
To remove Inner Tray...
To store Tray...
To assemble Harness...
d
a
c
b
1
1
1
2
To remove the inner tray pull the two side clips
outwards on both sides of the tray.
Release the rear clip of the inner tray and lift the tray
upwards.
To ret the inner tray place over the tray and push
down on the outer clips until the inner tray locks into
place.
When not in use,the tray can be clipped to the rear
legs of the highchair.
Place the tray on the legs as shown.
Line up the slots on the underside of the tray to t into
the holes on the legs.
Once tted,push the tray down to lock it into place.
To remove the tray,lift the tray upwards and pull the
tray away from the legs.
A ve point harness is provided to restrain your child.
To fasten the harness push the waist strap clips into the
buckle until they lock in place (b).
Sliding adjusters are tted on the shoulder straps and
waist straps (c).
To unfasten push the button on the buckle (a) and
pull the clips clear.
The harness should be carefully adjusted so that it ts
your child comfortably.
To adjust the shoulder strap height or to remove the
harness,remove the metal ring, atten the buttery
ends and pass through the slots in the seat (d).
To ret the straps,atten the buttery ends,pass the
ends through the slots in the seat then open the
buttery ends out (e) and ret metal ring.
1a.
1b.
1c.
1a.
1b.
1c.
1d.
1e.
1a.
1b.
1c.
1d.
2a.
2b.
2c.
e
d
CAUTION! The harness must be used at all times and be correctly adjusted. Most
injuries from high chairs are caused by falls.
8

ASSEMBLY / OPERATING INSTRUCTIONS
To store High Chair...
To remove Seat Cushion...
1
1
2
Lower the seat (See page 7).It is recommended to
lower the seat to the lowest height position for storage
purposes.
Fit the tray to the rear legs (See page 8).
Press buttons (a) on each hinge then push the rear
legs towards the front legs (b) until they lock in the
folded position.
Remove metal rings from harness ends.
Feed the harness straps through the slots in seat and
seat cushion on the back and under the seat (a) and
remove the harness.
Release the aps on either side of the arm rests by
pulling the press studs from the inner armrests (b).
Lift the cover off the seat (c).
Retting the seat cushion is a reversal of this procedure.
When retting the harness ensure the butteries on the
ends of the harness straps are opened out correctly
(d) and ret metal rings.
1a.
1b.
1c.
1a.
1b.
1c.
2a.
2b.
a
b
a
d
a
c
b
d
a
c
b
9

HOW TO CARE FOR YOUR CHILDCARE HIGH CHAIR
Cleaning
Maintenance
This product has been designed and developed with safety,comfort
and functionality in mind. Please take the time to read this manual
carefully before using this product and keep it in a safe place for
future reference.
To ensure the long-lasting use of your high chair, wipe down with a
damp cloth and use a mild soap solution if necessary. Do not use
abrasive cleaners.Always store product in a clean dry place.
Always check parts regularly for tightness of screws, nuts and other
fasteners – tighten or replace if required.To maintain the safety of your
high chair, seek prompt repairs for bent, torn, worn or broken parts.
Use only those parts and accessories approved by CNP Brands.
If you have any difculties in assembling the high chair, please
contact our Service Department.
In Australia, contact CNP Brands on 1300 667 137, in New Zealand
contact Wainhouse Distribution on 0800 567 5000.
10

Distributed in Australia by CNP Brands
20 Calarco Drive,
Derrimut,VIC, 3030
Customer Service 1300 667 137
W: www.cnpbrands.com.au
E: [e-mail]
F: www.facebook.com/CNPBrands
I: @cnp_baby
Distributed in New Zealand by Wainhouse
Distribution
2-6 Argyle St, Morningside,
PO Box 41-014,
St Lukes,Auckland, New Zealand
Customer Service: 0800 567 5000
E: [e-mail]
