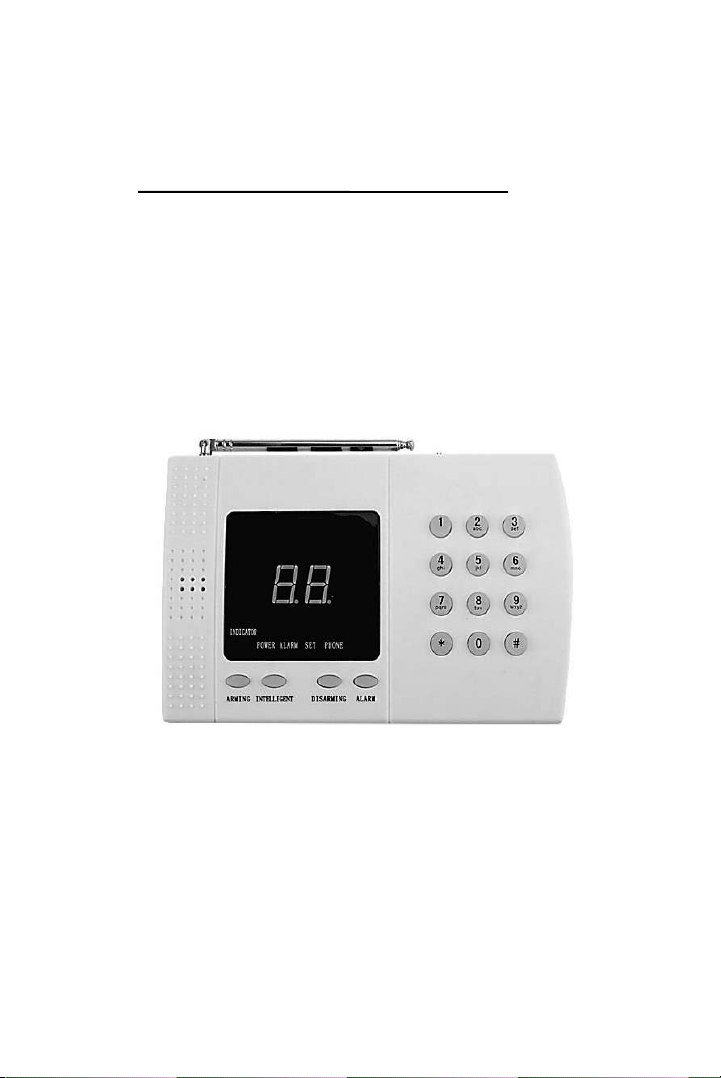

PSTN Home Alarm System
User Manual
Please read this user guide carefully before operation and installation.

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 2 -
Contents
1. Product Introduction.................................................................................................................- 3 -
2. Main Function & Features.......................................................................................................- 3 -
3. For Your Safety.........................................................................................................................- 4 -
4. Characteristics.......................................................................................................................... - 4 -
5. Getting Started..........................................................................................................................- 5 -
5.1 Standard Package List................................................................................................... - 5 -
5.2 View...................................................................................................................................- 5 -
5.3 Functional Parts.............................................................................................................. - 6 -
5.4 Connecting and Installation........................................................................................... - 7 -
6. Operation steps by keyboard setting.................................................................................. - 10 -
6.1 Open/Close password protection function, Change user’s password...........- 10 -
6.2 Adjust the volume of alarm siren......................................................................... - 10 -
6.3 Set up alarming telephone numbers...................................................................- 11 -
6.4 Delete telephone numbers................................................................................... - 11 -
6.5 Set up siren sound time when system alarming............................................... - 11 -
6.6 Set up alarm delay................................................................................................. - 11 -
6.7 Set ARMING delay.................................................................................................- 11 -
6.8 Set remote telephone ringing times....................................................................- 12 -
6.9 Set siren sound when using the remote control............................................... - 12 -
6.10 Set buzzer sound on/off......................................................................................- 12 -
6.11 Learning and delete detectors........................................................................... - 12 -
6.12 Set up mode of zones.........................................................................................- 12 -
6.13 Inquiry alarm defense area................................................................................ - 13 -
6.14 Telephone line anti-cut function.........................................................................- 13 -
7. Remote Controller (Key fob) Description..................................................................……- 13 -
7.1 Set up Arm..................................................................................................................... - 13 -
7.2 Set up Disarm................................................................................................................- 13 -
7.3 Emergency Alarm......................................................................................................... - 13 -
7.4 Intelligent Arm................................................................................................................- 13 -
8. Remote Control the system..................................................................................................- 13 -
9. Handing Incoming Alarm Phone Calls................................................................................ - 14 -
10. Reset Factory Settings....................................................................................................... - 14 -
11. Copyright and Disclaimer................................................................................................... - 14 -
12. Operation Command List................................................................................................... - 15 -

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 3 -
1. Product Introduction
The alarm system is a PSTN intelligent home alarm system. This LED display alarm system is
equipped with PSTN technologies and suitable for both home and commercial use. It uses the PSTN
landline networks with intelligent alarm system. It is a choice of stability, reliability, security, and user
friendliness. Features are very practical, cost-effective, completed configuration and ease of use.
This LED display alarm can integrate with a lot of alarm accessories including door sensor, smoke
detectors, gas detectors, emergency buttons and other accessories to build a powerful security
setup. It has been widely used in homes, factories, schools, shops, convenience stores, financial
and banking workplace, community centre and residential area to provide protection to valuable
assets.
2. Main Functions & Features
Alarm system has the following main functions and features:
99 Wireless Zones with LED display
PSTN telephone line working ways
LED indicator Arm/Disarm/Stay arm/Alarm/Setting
Password protection function
5 groups of call phone number and SMS number, 1 group of emergency phone number and
SMS number
0-99secs. delay alarm setting
0-99secs. delay arm setting
0-30mins. Siren ringing time setting
Ringing times setting
Stay intelligent arm
Multi-Zones Triggered Mode (2 or more than 2 zones)
Repeat triggered alarm function(sensor alarm after triggered twice)
Telephone line anti-cut function
Remote control the ALARM SYSTEM stop the siren sound or start the siren sound
Remote Monitoring/Arm/Disarm
Reset factory setting

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 4 -
3. For Your Safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Proper Connection
When connecting with other device, read carefully its manual
so as to carry out correct installation. Do not connect it to
other incompatible devices.
Qualified Accessories
Use original parts and peripheral equipments to avoid
damage to ALARM SYSTEM.
Water Resistance
ALARM SYSTEM is not water resistant. Keep it dry. Install it
inside the house
Confidential Phone
Number
For safety reason, do not tell other people the telephone
number of your ALARM SYSTEM without taking precautions
of security settings.
4. ALARM SYSTEM Characteristics
Items
Specification
Power Supply
DC12V / 1A
Backup Battery
Ni-Hi AAA*6 DC7.4V
Standby current
＜35 mA
Alarm current
＜450 mA
Wireless frequency
433MHz
Support wireless
sensors
EV1527/300K 2262/1.5-4.7M
Wireless distance
100m open
LED screen
display time/Arm/Disarm/Stay arm/Alarm/Setting
Operating
temperature
-10° to 50° C
Humidity
5% to 95% Non-condensing
Dimension
21.5*15*9.5cm
Weight
1Kg

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 5 -
5. Getting Started
This section will describe how to set up your ALARM SYSTEM.
5.1 Standard Package List
ALARM SYSTEM is supplied in a box which includes:
5.2 View
Front View
Side View
Back View

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 6 -
5.3 Functional Parts
LED screen display
SF
ARM
BF
INTELLIGENT ARM
CF
Disarm
99
Emergency alarm
F1
Telephone line disconnect
F3
No add sensor
1-98
Alarm zone display
LED indicator
POWER
Power LED light, power supply working normal
ALARM
Alarm LED light, alarm system alarm
SET
SET LED light, the alarm system into setting
status
PHONE
PHONE LED light, access telephone line work
normal
Microphone
Personal remote monitoring
Function keyboard
ARMING
ARMING LED light, the alarm system system into
arm status
INTELLIGENT
INTELLIGENT LED light, the alarm system
system into intelligent status
DISARMING
DISARMING LED light, the alarm system system
into disarm status

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 7 -
ALARM
ALARM LED light, the alarm system system into
alarm status
Digital Keyboard
Setting alarm system system function
Antenna
Wireless antenna
LINE1
Connect LINE1 to telephone uses telephone wire
of standard package list
LINE2
Connect LINE2 to telephone out line
POWER
Connect DC12V adapter uses power adapter of
standard package list
SIREN
Connect siren uses siren of standard package list
ON OFF
Power on battery or power off battery
5.4 Install accessories
Install the Door sensor
The door/window magnetic sensor includes two parts. The sensor will send the wireless signal to
main unit immediately when the two parts depart more than 10-30mm.
The picture of the installation is as follows,

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 8 -
In some circumstances the wired & wireless Infrared Fence detector is more appropriate than
magnetic sensors. i.e. veranda, picture window balcony, boundary wall.
wireless glass break detector can also be used for window (see below)
The sensitivity is adjustable

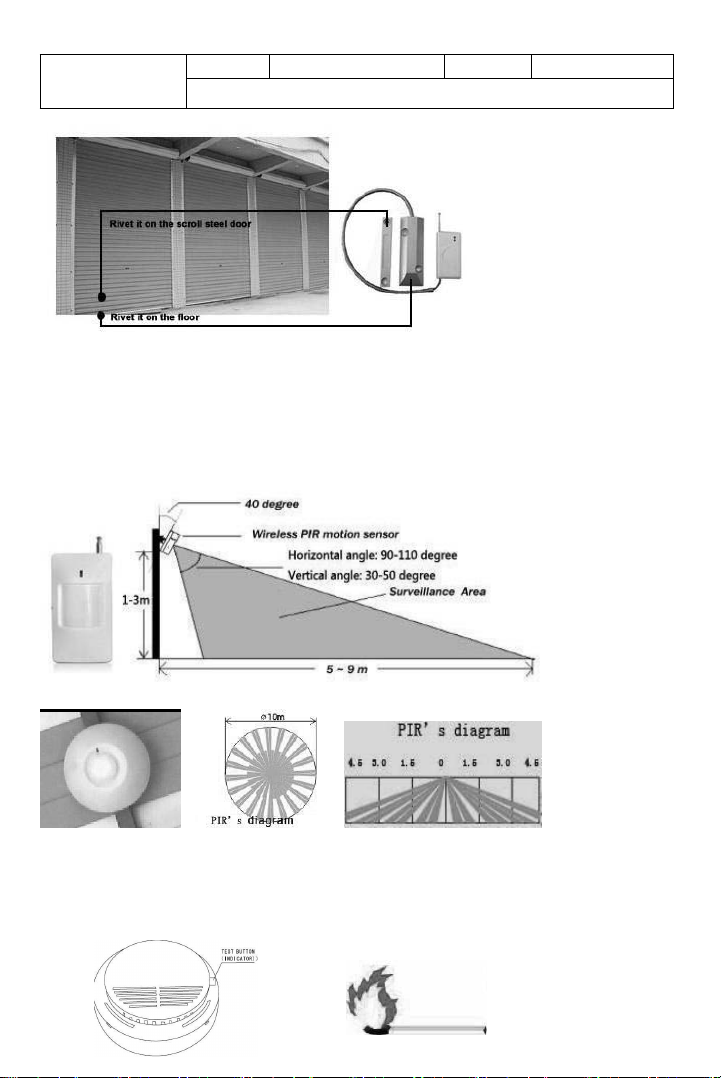

Wireless scroll steel door magnetic sensor for scrolling steel door,
Installation: Please see below picture
It is triggered when the two parts are separated to 3cm - 5cm.

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 9 -
Install PIR motion sensor
PIR refers to passive Infra-red. A Passive Infra-red Sensor is an electronic device that detects the
motion or movement of some person or animal by sensing the heat emitted from the body.
Installation:
The installation of wireless ceiling PIR sensor
Install smoke/gas detectors
a) Wireless smoke detector
This smoke detector detects smoke by a couple of infrared diodes, which is suitable for detecting the
smoke in house, shop, hotel, restaurant, office building, school, bank, library and storehouse etc.

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 10 -

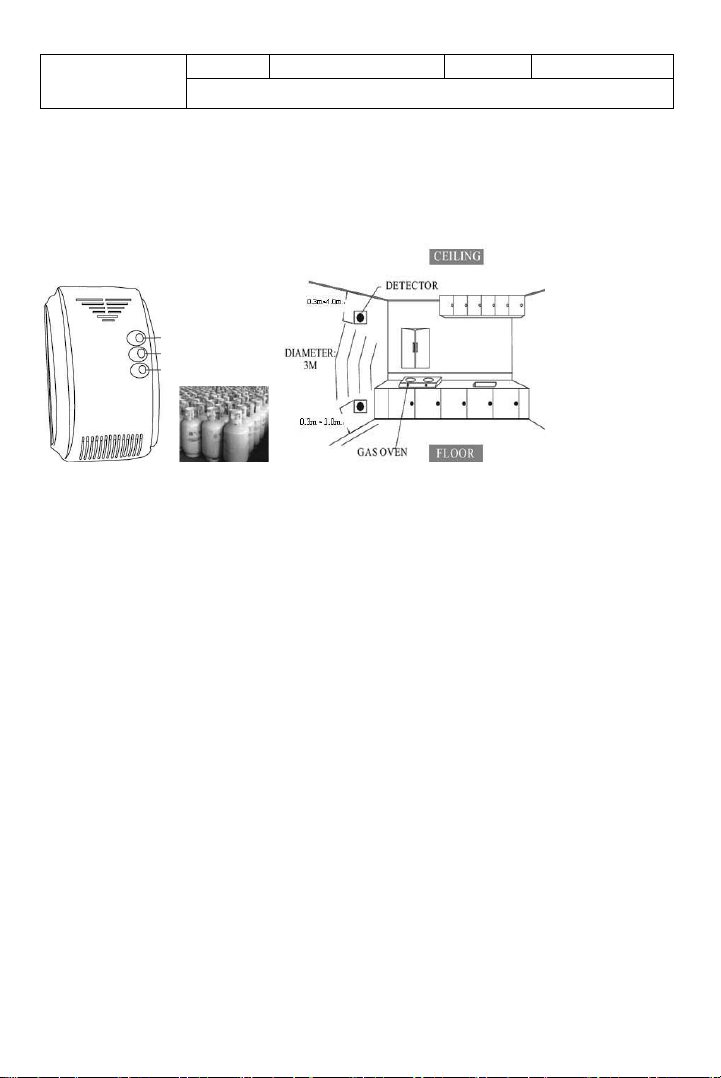

b) Wireless gas detector
The product is ceiling mounted gas detector with high stability. It is used for detecting leaking gas
and suitable for the safety of residential house, villas, hotels, boarding house etc.
Detecting the gas heavier than air: installation height from floor: 0.3m ~ 1.0m, semi-diameter to gas
sources: ＜1.5m; detecting the gas lighter than air: installation height from ceiling 0.3m ~ 1.0m,
semi-diameter to gas sources: ＜1.5m.
6. Operation steps by keyboard setting
Note: When setting by the keyboard, all the settings can be carried out under the undefended
situation with a long ring for all the proper operations while two short sounds for wrong settings.
6.1 Open/Close password protection function, Change user’s password
Command: *11*
Description: open password protection function
Note:
Open this function; you need first input password before operation keyboard, the factory password is:
0000, input password: *0000*
Command: *10*
Description: close password protection function
Note:
close this function; you no need input password before operation keyboard
Command: *7xxxx(4 numbers new password )xxxx(4 numbers new password )*
Description: modify passwords
6.2 Adjust the volume of alarm siren
Command: #00#
Description: silent alarm, the siren no sound when the system alarm
Command: #01#
Description: the siren sound when the system alarm
Open or close
manipulator
/Test button
Power LED (green)
Working LED

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 11 -
6.3 Set up alarming telephone numbers
Command: #1xxxxxxxxxxxxx(telephone number)#
Description: “1” means set the first group telephone number, you can receive call when system
alarm.
Command: #2xxxxxxxxxxxxx(telephone number)#
Description: “2” means set the second group telephone number, you can receive call when system
alarm.
Command: #3xxxxxxxxxxxxx(telephone number)#
Description: “3” means set the third group telephone number, you can receive call when system
alarm.
Command: #4xxxxxxxxxxxxx(telephone number)#
Description: “4” means set the forth group telephone number, you can receive call when system
alarm.
Command: #5xxxxxxxxxxxxx(telephone number)#
Description: “5” means set the fifth group telephone number, you can receive call when system
alarm.
Command: #6xxxxxxxxxxxxx(telephone number)#
Description: “6” means set the sixth group telephone number, you can receive call when system
alarm. This is emergency phone numbers
6.4 Delete telephone numbers
Command: #1#; Description: delete the first group telephone number.
Command: #2#; Description: delete the second group telephone number.
Command: #3#; Description: delete the third group telephone number.
Command: #4#; Description: delete the forth group telephone number.
Command: #5#; Description: delete the fifth group telephone number.
Command: #6#; Description: delete the sixth group emergency telephone number.
6.5 Set up siren sound time when system alarming
Command: #9xx(00-30minutes)#
Description: e.g: #95#, the siren will sound 5 minutes when the system alarm.
6.6 Set up alarm delay
Command: #7xx(00-99seconds)#
Description: e.g: #730#, the system will alarm after sensor is triggered 30 seconds.
6.7 Set ARMING delay
Command: *4xx(00-99seconds)*
Description: e.g: *430*, the system will auto ARMING after press ARM key 30 seconds.
6.8 Set remote telephone ringing times
Command: *6x(0-9times)*
Description: e.g: *63*, if will automatically get through after ringing 3 times,

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 12 -
*60*, means no ringing times.
6.9 Set siren sound when using the remote control
Command: *21*
Description: The siren have reminder sound when you press remote control
Command: *20*
Description: The siren off sound when you press remote control, only have buzzer sound.
on the remote control to turn on the siren sound.
6.10 Set buzzer sound on/off
Command: *99*
Description: Off the buzzer sound.
Command: *98*
Description: Open the buzzer sound.
6.11 Learning and delete detectors
Command: *0*
Description: Learning Remote controller: After you press *0* on the alarm panel keyboard, then
press any button of the remote controller within 10 seconds. A long “Bi” sound means successfully.
Command: *01*
Description: Learning detectors: After you press *01* on the alarm panel keyboard, then trigger the
detector within 10 seconds. A long “Bi” sound means successfully.
Command: *8xx(00-99zones number)*
Description: Learning detector to the designated zones number, e.g: *816*, means learning a
detector to zone 16.
Command: *02*
Description: Delete all of the remote controllers
Command: #8996#
Description: Delete all detectors.
6.12 Set up mode of zones
Command: #8xxA#
Description: “xx” means 00-99 zones; “A” means mode of zones (0-8),
0: bypass mode, the zone will not working in anytime
1: common mode, the zone will alarm when system ARMING
2: intelligent mode, the zone will not working when system INTELLIGENT ARMING
3. Emergency mode, the zone will working in anytime, it can alarm when system DISARMING
4.
Multi-Zones Triggered Mode: You must setup 2 or more than 2 zones for Multi-zones(for example, 5
th
zone and 10th zone). For multi-zones triggered mode, only all the detectors you have registered for
these zones you have setup for multi-zones are triggered within 30s. the alarm panel will alarm.
5. delay-alarm mode, the system not immediately alarm after set up delay alarm mode.

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 13 -
6. Repeat triggered mode, when the detector is triggered once, the system will not alarm
immediately, only when it is triggered again within 30s after the first trigger, the system will alarm.
7. Doorbell mode, the system will “ding dong” when detector be triggered.
6.13 Inquiry alarm defense area
Command: x(0-9)
Description: Directly press 0~9 to inquiry the latest 10 alarm events and display alarm defense area
(0 means the latest one).
6.14 Telephone line anti-cut function
Command: *51* Description: the system will alarm when telephone lines disconnect or failure
Command: *50* Description: the system will not detect telephone lines disconnection or fault.
7. Remote Controller (Key fob) Description
7.1. Set up Arm
Press “ ”button on the remote controller, and the LED display “SF”, means system “Armed”.
7.2 Set up Disarm
Press “ ” button on the remote controller, and the LED display “CF”, means system
“Disarmed”.
7.3. Emergency Alarm
Press “ ”button on the remote controller for emergency help, And the LED display “99”.
Press“ ”button on the remote controller one time is silent alarm, while press “ ”button twice or long
time the siren will sound.
7.4. Intelligent Arm
Press “” button on the remote controller and the LED display “bF”, means system “Intelligent
Armed”.
8. Remote Control the system:
You can use any telephone to dial the numbers of the system and it will put on automatically
get through after system detecting the ring times you have been setup. When you hear the
beep, input passwords (two sounds when the password is wrong, if the password input
wrongly 3 times or no any operations within 20 seconds the phone will hang up automatically)

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 14 -
and if it is correct, you can have remote control of the system, press # after accomplish all
operations, then you can implement other operations and hang up telephone.
Press “1” to monitor (Press “1” again for monitor 20 seconds more.)
Press “2” to start the siren
Press “3” to stop the siren
Press “4” to arm
Press “5” to disarm
Press “#” to affirm and hang up
9. Handing Incoming Alarm Phone Calls
When sensors are triggered or emergency help, the alarm panel will dial up the setup telephone
numbers automatically and give alarm rings based on settings. If the host’s phone is in use or not
able to connect, the system will dial next alarm phone, until it is dialed and hosts confirm. It will play
records after receiving alarm phone and the operation methods are similar to remote setup.
10. Reset Factory Settings
Command:*80000*
Description: 0000 is default password (All settings will be cleared except all the registered sensors)
11. Copyright and Disclaimer
Copyright © 2016 PST. All rights reserved.
The user manual may be changed without prior notification.
This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without
the written authorization of PST, or transmitted in any form, either electronically or mechanically,
including photocopying and recording.
In no event shall PST be liable for direct, indirect, special, incidental, or consequential damages
(including but not limited to economic loss, personal injury, and loss of asset and property) arising
out of the use or inability or illegality to use the product or documentation.
If you encounter any problems when using our products, and cannot solve them by yourself, please
contact our technical support team. We will be pleased to help you.

File Name:
User Manual
File Version:
V1308002-001
TEL Home Alarm System
- 15 -
12. Operation Command List
Add or
Delete
sensor
Learning remote controller
*0*
Delete all of the remote controller
*02*
Learning detector
*01*
Learning detector to appoint zone
*8XX*
00-99 zones
Delete all of the detector
#8996#
Set up
telehone
numbers
Set up alarm telephone numbers
#1XXXXXXXXXX#
#2XXXXXXXXXX#
#3XXXXXXXXXX#
#4XXXXXXXXXX#
#5XXXXXXXXXX#
#6XXXXXXXXXX#
XX….X
telephone
number
Delete the telephone numbers
#1# #2# #3#
#4# #5# #6#
Function
Set up alarm delay time
#7XX#
0-99seconds
Set up siren sound time
#9XX#
0-30 minutes
Set up Arm delay time
*4XX*
0-99 seconds
Set remote telephone ringing times
*6X*
0-9 times
Set up siren sound for the remote
control
*21*
*20*
21 On
20 Off
Set up the buzzer sound
*99*
*98*
99 Off
98 On
Set up volume of alarm siren
#00#
#01#
00 No sound
01 Have sound
Telephone line anti-cut function
*51*
*50*
51 On
50 Off
Mode
Set up mode of zones
#8XX0# Bypass mode
#8XX1# Common mode
#8XX2# Intelligent mode
#8XX3# Emergency mode
#8XX4# Multi-Zones Triggered Mode
#8XX5# Delay-alarm mode
#8XX7# Repeat triggered mode
XX:00-99 zones
Password
Open/Close password protection
function
*11*
*10*
11 On
10 Off
Input password
*0000*
Modify password
*+new password+new password*
Reset Factory Settings
*80000*
