Chipolino ESTELLE User manual

This stroller has been manufactured in accordance with
the Product Safety Directive 2001/95/EU of the European Parliament and The
Council and with European standard EN 1888-1 “Child care articles. Wheeled
child conveyances. Part 1: Baby strollers and carry cot”, and the regulations of
national law, including Consumer Protection Law.
IMPORTANT! READ CAREFULY AND KEEP THIS USER’S
MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR
BABY STROLLER
“ESTELLE”

1
ATTENTION! YOUR CHILD WILL BE MOST SECURE IF YOU FOLLOW
THE INSTRUCTIONS AND RECOMMENDATIONS GIVEN IN THIS USER’S MANUAL!

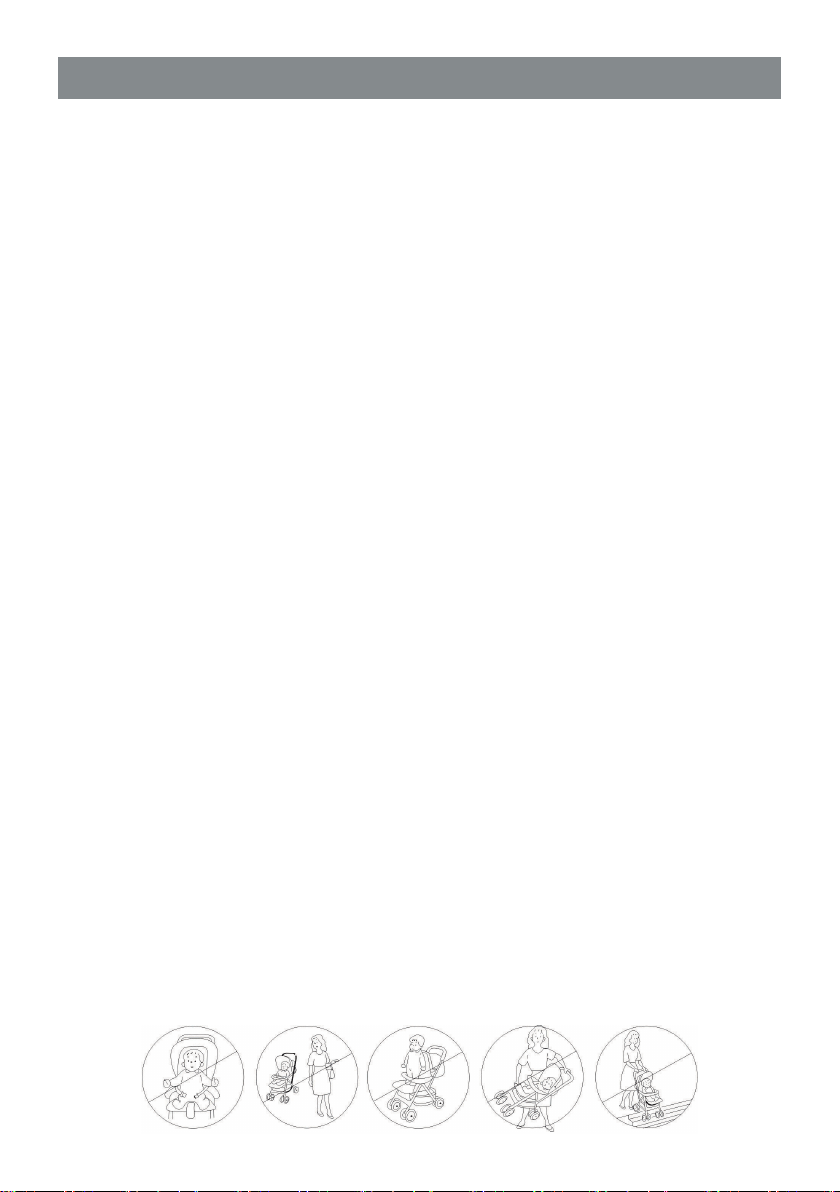

WARNING! INSTRUCTIONS AND WARNINGS FOR SAFETY
CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED!
CAUTION! ALWAYS USE SAFETY BELTS, AS SOON AS THE CHILD CAN REMAIN IN A SITTING
POSITION UNAIDED AND CAN PUSH HIMSELF WITH HANDS OR KNEES!
CAUTION! MAKE SURE THAT ALL LOCKING MECHANISMS ARE ENGAGED BEFORE
PLACING THE CHILD IN THE STROLLER.
CAUTION! MAKE SURE THE CHILD IS IN SAFE PLACE AWAY FROM THE STROLLER WHEN
YOU MAKE ADJUSTMENTS, FOLDING OR UNFOLDING OF THE STROLLER.
CAUTION! DO NOT ALLOW YOUR CHILD TO USE STROLLER AS A TOY!
CAUTION! ALWAYS CHECK IF THE ATTACHMENT DEVICES OF SEAT UNIT OR CAR SEAT ARE
PROPERLY FIXED TO THE STROLLER’S FRAME BEFORE USAGE.
CAUTION! THE STROLLER IS NOT SUITABLE FOR RUNNING OR SKATING!
THE CARRY COT IS SUITABLE ONLY FOR A CHILD, WHO CANNOT SIT UNAIDED, ROLL
OVER AND CANNOT PUSH ITSELF ON ITS HANDS AND KNEES! MAXIMUM WEIGHT OF
THE CHILD: 9 kg!
USE THE POSITION FOR SITTING AFTER YOUR CHILD TURNS 6 MONTHS!
KEEP AWAY FROM FIRE!
DO NOT LIFT THE STROLLER BY THE FRONT BAR, BECAUSE THIS CAN LEAD TO SERIOUS
INJURIES!
DO NOT ADJUST OR SET THE BACKREST POSITION WHEN SEAT UNIT IS IN CARRY COT
MODE!
Use the stroller for a child weighing not more than 15 kg.
Initial assembly, folding and unfolding to be done only by adult!
Do not put in carry cot additional mattress, thicker than 20 mm!
Always engage the parking devices when the stroller has stopped and is not moving, especially
when you place or take out your child from it!
 Makesurethesafetybeltsarefastenedandtwelltothechildbeforeusage.
The maximum load for the storage basket is 3 kg.
The maximum load for the accessories bag (in case there is one) is 2 kg.
Do not overload the stroller! Always balance your stroller in a way to keep it stable and prevent the
risk of tip-over!
This stroller is intended for use for one child at a time!
Do not use any spare parts or other components, which are not approved by the producer! The
producer does not take any responsibility for the safety of the child when you have not used the
proper and original spare parts, approved and provided by him!
 Donotapplyanychangesormodicationstothestroller’sconstruction!Contactthedealeroran
authorized repair service for advice and/or repair instead!
 Discontinuetheusage,ifyoundwornoutorloosejoints,damagedormissingparts!Thereisarisk
 ofinjuryofthechild!
Do not allow children younger than 3 years near the stroller during the assembly or disassembly, in
 ordertopreventtheriskofinjuryorswallowingofsmallparts!
 Stringscancausestrangulation!Donotplaceadditionalstringstotheproducttoavoidinjuries!
Never use the stroller on stairs or escalators! Use extra care when going up or down a
pavement or step!
The packaging of the product must be kept out of the reach of children to avoid the risk of
strangulation!

Canopy
Front bumper
Safety harness
Storage basket
Rear wheel
Front wheel
Canopy
Rear
wheels
Front
wheels
Seat unit transformable
to carry cot
Frame
Front bumper
Parking device
Lever for wheels
swiveling
Folding mechanism
Handle
2
Stroller is suitable for newborn babies and children aged 0-36 months and weighing up to 15 kg;
The seat transforms into a carry cot that can be used for children aged less than 6 months and
weighting not more than 9 kg.;
Car seat “ESTELLE”, Group 0+ (0-13 kg). It is safe and compatible with stroller’s frame;
Note: Car seat is sold separately. All instructions and recommendations for safety usage and installation
are given in separate user’s manual;
Seat unit can be installed in 2 modes – mother facing mode and motion facing mode;
5-point safety harness system;
 Adjustablebackrest;
 Adjustablehandleinheight;
 Adjustablecanopy.
MAIN FEATURES
MAIN PARTS
Please, check if all described parts are available:

3
This stroller is supplied partially assembled. In order to complete the assembly, you don’t need any tools.
ATTENTION! Follow exactly the instructions given and check the pictures.
ATTENTION! After each operation, make sure that you have followed the instructions correctly and the
xingisstable.
ATTENTION!Properlyxingisoftenaccompaniedwithclicksound.
Assemblyandfunctionsaregiveningures1-14.Usealldescriptionsbelowtogetherwithgureswith
the same number.
1. OPEN THE FRAME
2. INSERT AND REMOVE OF FRONT WHEELS
To remove the wheel, press the button and take the wheel out of the frame.
3. INSERT AND REMOVE OF REAR WHEELS
To remove the wheel, press the button and take the wheel out of the rear axis.
4. INSTALLATION OF SEAT/CARRY COT
To remove the seat, press the buttons at both sides and pull the seat out of the frame.
4-3and4-4–Installationofseatinparentfacingmode(directionreversibletomotion).
4-5and4-6-Installationofseatinmotiondirection.
5. INSERT AND REMOVE OF FRONT BUMPER BAR
To remove the front bumper bar, press the buttons and pull the bumper bar out of the frame.
6. ASSEMBLY OF CANOPY
Note: Before using the stroller, make sure that the zipper is closed.
7 - HANDLE HEIGHT ADJUSTMENT
Press the buttons and set the handle upwards or downwards until you reach the most comfortable and
required position.
8 – CANOPY ADJUSTMENT
8-1 – Folding – push with your hand;
8-2 – Unfolding – pull with your hand.
9 – PARKING DEVICES
ATTENTION! Apply the parking devices always when stroller is not in motion to avoid risk of stroller
sliding.
10 - BACKREST AND SEAT ADJUSTMENT
10–1and10-2–Pressthemechanismwithtwongersandmoveitupwardsordownwards.Release
themechanismtoxthebackrestinrequiredposition;
10-3,10-4and10-5–seatcanbesetin3positions.Pressthebuttonforseatadjustmentandrelease
when you reach the required position.
ATTENTION!
11 – RESTRAINT SYSTEM (5-POINT SAFETY HARNESSES)
Adjusttheshoulderbeltsandwaistbeltsusingtheadjusterbuckles.
Note:Theharnessmusttwellthebabyandmustnotbetwisted.
IMPORTANT!Regularlycheckifsafetyharnessesarexedtostrollerandwellfastened!Safetyhar-
nesses must not be worn out or torn and buckles must be strong, without any damages and provide
secure connection.
ASSEMBLY INSTRUCTION AND FUNCTIONS
ASSEMBLY
FUNCTIONS

4
12- FOLDING OF STROLLER
12-1 – Remove the seat unit from the frame.
12-2,12-3,12-4–Releasefoldingmechanismsatbothsidesonhandle,aspullingthemupwards.
12-5and12-6–Foldtheframeandlockitwiththexing.
ATTENTION!Lockthestrollerinfoldedpositionusingthexing(11-5)!
13 – COVERT FROM SEAT TO CARRY COT AND FROM CARRY COT TO SEAT
13-1, 13-2 – Set the backrest in upright position.
13-3,13-4–fastenthebeltsundertheseatandunderthelegrest.
To use the carry cot, set the backrest in lying position and unfasten the belts under the seat and under
the leg rest.
ATTENTION! WHEN THE SEAT IS CONVERTED INTO CARRY COT, IT MUST ALWAYS BE IN A FACE
TO FACE MODE.
ATTENTION! When the seat is converted into carry cot, always unlock shoulder and waist harnesses
fromthestroller,adjustandcoverthemwithmattressthatisnotthickerthan20mm!
13 – INSTALLATION OF CAR SEAT ON FRAME OF STROLLER
Note: For your comfort, before install the car seat on stroller’s frame, apply the parking devices.
On the frame of this stroller, you can install car seat “ESTELLE” through the adaptors. Install the adap-
tors to the car seat and then the car seat to the frame of stroller.
14-1and14-2Installationofadaptorstocarseat.
14-3and14-4–Installofcarseattostroller’sframe.
ATTENTION! Always install the car seat in face to face mode.
ATTENTION! Always remove the adaptors from the stroller before folding!
“click”
“click”
“click”
Position of handle
Button for removal of
front wheels
Removal
button
Removal button
Button for removal of
front wheels
release
the xing
“click”
“click”
1-1
2-1
4-1
4-5
1-2
2-2
4-2
4-6
1-3
3-1
4-3
5-1
1-4
3-2
4-4
5-2

5
6-1
7-1
9-1
7-2
9-2 10-1 10-2
10-3
11-1
12-1 12-2 12-3 12-4
11-2 11-3
10-4 10-5
8-1 8-2
6-2 6-3 6-4
“click”
“click”
“click”
Zipper Zipper Removal button
Adjustment
button
Not activated
Length adjusters
Folding
mechanism
Activated
Backrest adjustment
mechanism
Seat adjustment
button

6
CARE AND MAINTENANCE
The brakes and wheels wear out faster than other parts. Replace them when necessary.
Regularly oil the moving parts. Use silicone oil or silicone spray for oiling.
 Dirtcouldmakedifcultthefunctionofyourstroller.Cleanandoilalldirtymetalandplasticparts
regularly.
Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
Do not use abrasive, bleach or other aggressive detergents.
Always after cleaning leave the stroller fully dry and after that use it or store it. It may appear mold
to your stroller if you keep it moist.
Always store your stroller indoors. The effect of the environment – sea air, road covered with salt,
acid rains, etc., as well as storing in the open air lead to corrosion.
Please, contact your authorized dealer for problems connected with the use or repair of this stroller.
Fabric Composition:
Outer: 100% polyester
Filling: 100% polyester
Used materials: plastics, textile, metal.
KKES021xххх
12-5 12-6 13-1 13-2
13-3 13-4
14-1 14-2 14-3 14-4
“click”
adaptor
Press Press
“click”
Lock the xing

1 Goliamokonarsko shosse, Plovdiv, BULGARIA
www.chipolino.com
