Chipsee PPC-A55-190 User manual

Industrial PC
PPC-A55-190
PN: CS12102-RK3568-190P
Content can change at anytime, check documentation website for latest information.
www.chipsee.com

Contents
3PPC-A55-190
71. Product Overview
82. Ordering Options
82.1. Operating System
92.2. Optional Features
103. Hardware Features
124. Power Input
135. Touch Screen
146. Connectivity
146.1. RS232+RS485+CAN+GPIO Connector
176.2. USB Connectors
196.3. LAN Connectors
206.4. WiFi & BT Module
216.5. 4G/LTE Module
227. M.2 SSD Slot
238. TF Card & SIM Card Slot
249. Audio Connectors
2510. HDMI Connector
2611. PROG Button
2712. Mounting Procedure
2813. Mechanical Specications
2914. Disclaimer
2915. Technical Support
Chipsee IPC Page 2 of 29

PPC-A55-190

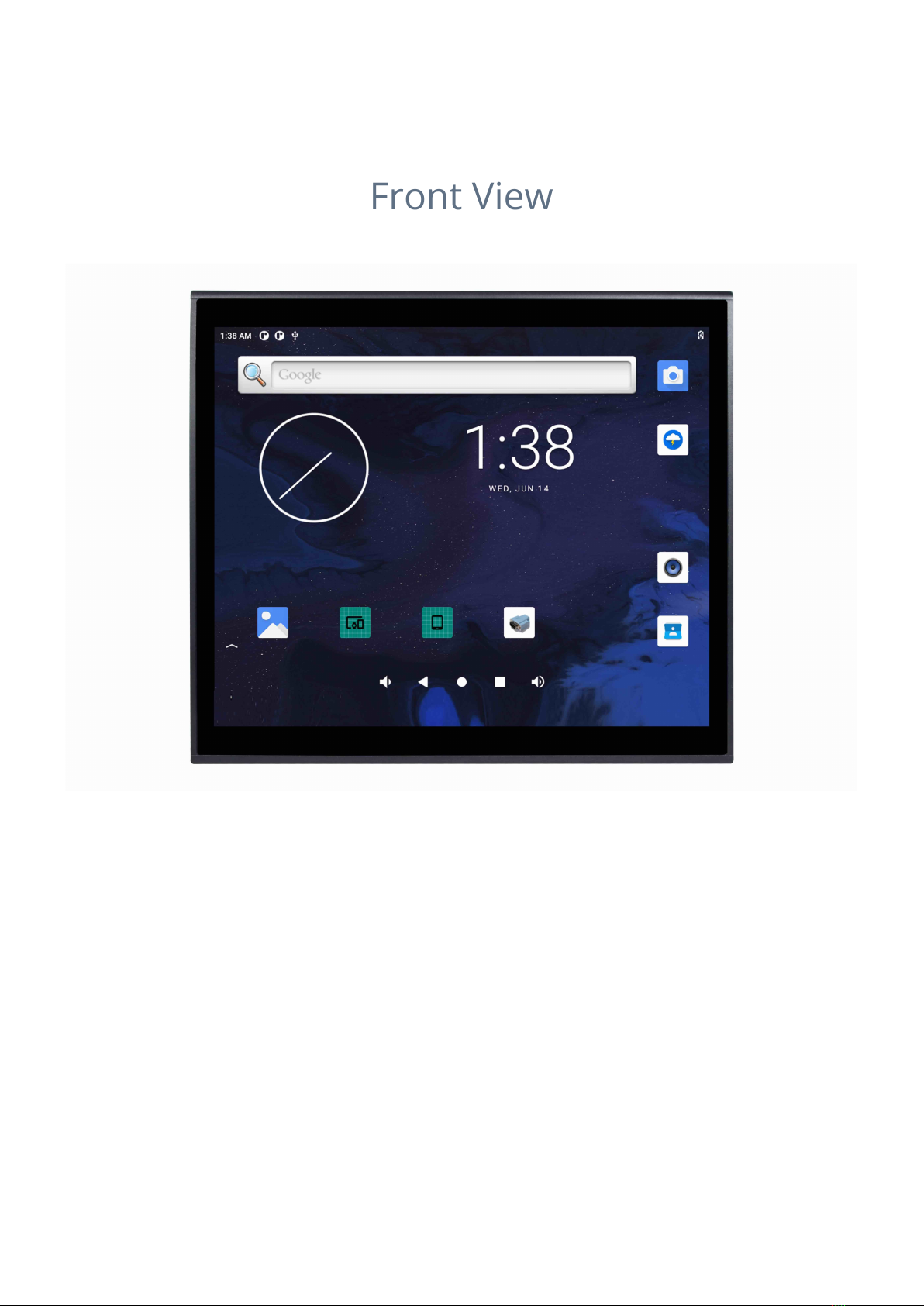

Front View
PPC-A55-190
Chipsee IPC Page 3 of 29

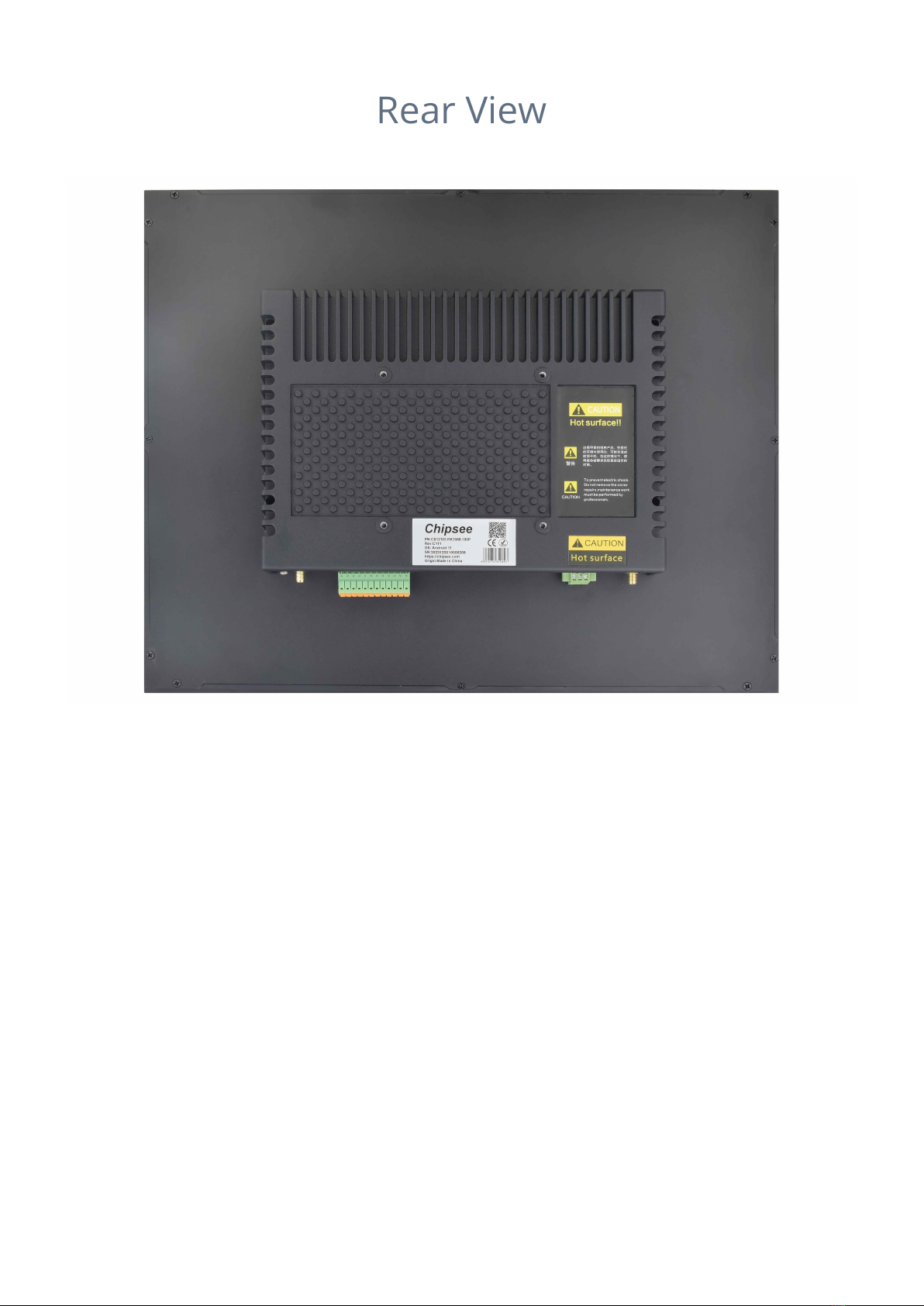

Rear View
PPC-A55-190
Chipsee IPC Page 4 of 29

Side View 1
PPC-A55-190
Chipsee IPC Page 5 of 29

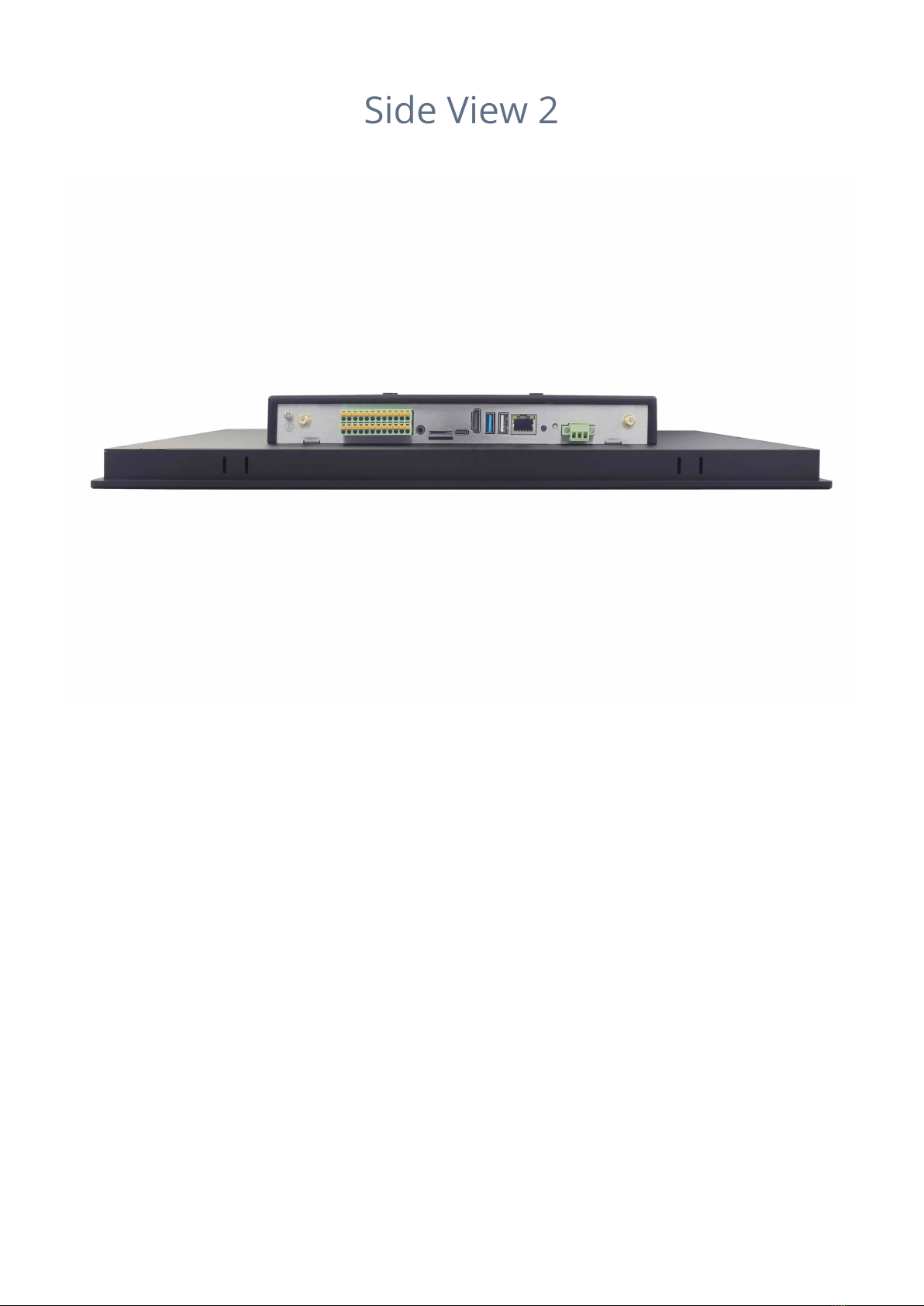

Side View 2
PPC-A55-190
Chipsee IPC Page 6 of 29

Product Overview
The Cortex -A55 series PPC-A55-190 (PN: CS12102-RK3568-190P) is a high-quality IP65-
compliant industrial panel PC. It features a 19.0” ten-point capacitive touch screen with a
resolution of 1280 x 1024 pixels and a brightness of 370 cd/m .
Key Applications
Human Machine Interface HMI
Mobile Applications
Video Processing
Machine Learning
Video Gaming
Process Control
Process Monitoring
ATM…
It is available both as an embedded solution and as a device hosed in an aluminum casing
with bezels, thus facilitating dierent installation options:
Installation on an industrial cabinet
Integration with the existing equipment
The PPC-A55-190 Industrial Panel PC is based around the powerful RK3568 System on Chip
(SoC), powered by the Rockchip RK3568 low-power processor which integrates a quad-core
Cortex -A55 processor.
The RK3568 supports multi-format video decoders and has a high-performance RAM
(LPDDR4X) capable of sustaining demanding memory bandwidths. It also provides a
complete set of peripheral interfaces.
®
2
•
•
•
•
•
•
•
•
•
•
®
PPC-A55-190 Product Overview
Chipsee IPC Page 7 of 29

Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Hardware Features section provides information about the default options
bundled with the product.
Operating System
This product comes with a pre-installed OS of your choice. Please see the list below for the
supported OSes, which can also be obtained from the Software Documentation section,
along with the detailed installation instructions.
Debian 11
Android 11
Buildroot Linux Qt 5.15
Note
You can order the PPC-A55-190 from the ocial Chipsee Store or from your nearest distributor.

•
•
•
Warning
The Software Documentation section provides a detailed instruction on how to install dierent OSes on your own.
However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick”
your device, please contact Chipsee Technical Support at [email protected] for further assistance

PPC-A55-190 Ordering Options
Chipsee IPC Page 8 of 29

Optional Features
The PPC-A55-190 Industrial Panel PC does not include 4G/LTE module by default. The
module is optional and can be selected at the Chipsee store during the ordering process.
Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear
any responsibility for damage caused by inadequate handling of the product.

PPC-A55-190 Optional Features
Chipsee IPC Page 9 of 29

Hardware Features
The PPC-A55-190 Industrial Panel PC oers a broad range of performance and connectivity
options for scalable integration, providing expandability according to future needs. Some of
the key features are listed in the table below.
PPC-A55-190
CPU Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz)
RAM Samsung 2GB LPDDR4X, 4266 Mbps
eMMC 16GB
SSD Optional, supports M.2 2280 NVME SSD (PCI-E 3.0 x 2)
Storage TF Card, Supports up to 128GB SDHC
Display 19.0” LCD, 1280 x 1024, High Brightness: 370 cd/m
HDMI 1 x HDMI OUT
Touch 10-point capacitive touch screen
USB 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C
LAN 1 x RJ45, GbE
POE N/A
Audio 3.5mm Audio In/Out Connector, 2W Internal Speaker
Buzzer Yes
RTC
High accuracy RTC with farad capacitor, can work 1 week after power o (default).
High accuracy RTC with lithium coin battery, can work 3 years after power o
(optional).
RS232 Default to 2 x RS232 (including 1 debug port). Up to 6 x RS232.1
RS485 Default to 2 x RS485. Optionally, these 2 x RS485 can be congured to RS232.1
CAN Default to 2 x CAN. Optionally, these 2 x CAN can be congured to RS232.
GPIO 8 Channels Isolated IO, 4 x Input and 4 x Output
WiFi/BT Integrated WiFi/BT Module
4G/LTE Supported, Optional
Power Input From 12V to 36V
Current 1.44A(12V, typical), 1.70A(12V, max)
Power
Consumption 20.40W(max)
Working
Temperature From 0°C to +50°C
2
PPC-A55-190 Hardware Features
Chipsee IPC Page 10 of 29

1(1,2)This product has 4 x UART by default, 6 x UART channels at most. The default conguration is 2 x RS232 and 2
x RS485, including 1 RS232 debug port. The 2 x CAN can be congured to RS232. UART can be swapped
between RS232 and RS485 modes easily, if you need a dierent RS232/RS485 conguration, please get in touch
with the Chipsee Technical Support at [email protected]
PPC-A55-190
OS Android 11, Debian11, Buildroot Linux Qt 5.15
Dimensions PPC-A55-190 (PN: CS12102-RK3568-190P): 435 x 363 x 53.5mm
Weight PPC-A55-190 (PN: CS12102-RK3568-190P): 5.4kg
Mounting PPC-A55-190 (PN: CS12102-RK3568-190P): Panel, VESA
Table 173 Key Features
PPC-A55-190 Hardware Features
Chipsee IPC Page 11 of 29

Power Input
The PPC-A55-190 Industrial Panel PC can be powered by a wide range of input voltages:
From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity
and the pinout is clearly marked on the housing of the product as shown in the gure
below.
Power Input
Note that the “+” sign represents the positive power input, it is printed at the casing and as a
silk-screen on a PCB of the embedded version. The “-” terminal is shorted to the ground.
Power Input Denition
Pin Number Denition Description
Pin 1 Positive Input DC Power Positive Terminal
Pin 2 Negative Input DC Power Negative Terminal
Pin 3 Ground Power System Ground
Table 174 Power Connector
Note
The system ground “G” is connected to power negative “-” on board.

PPC-A55-190 Power Input
Chipsee IPC Page 12 of 29

Touch Screen
The PPC-A55-190 Industrial Panel PC uses a 10-point capacitive touch screen. However, the
Debian OS supports only One-Point touch.
The gure below shows the capacitive touch screen connected to the motherboard via the
USB connector.

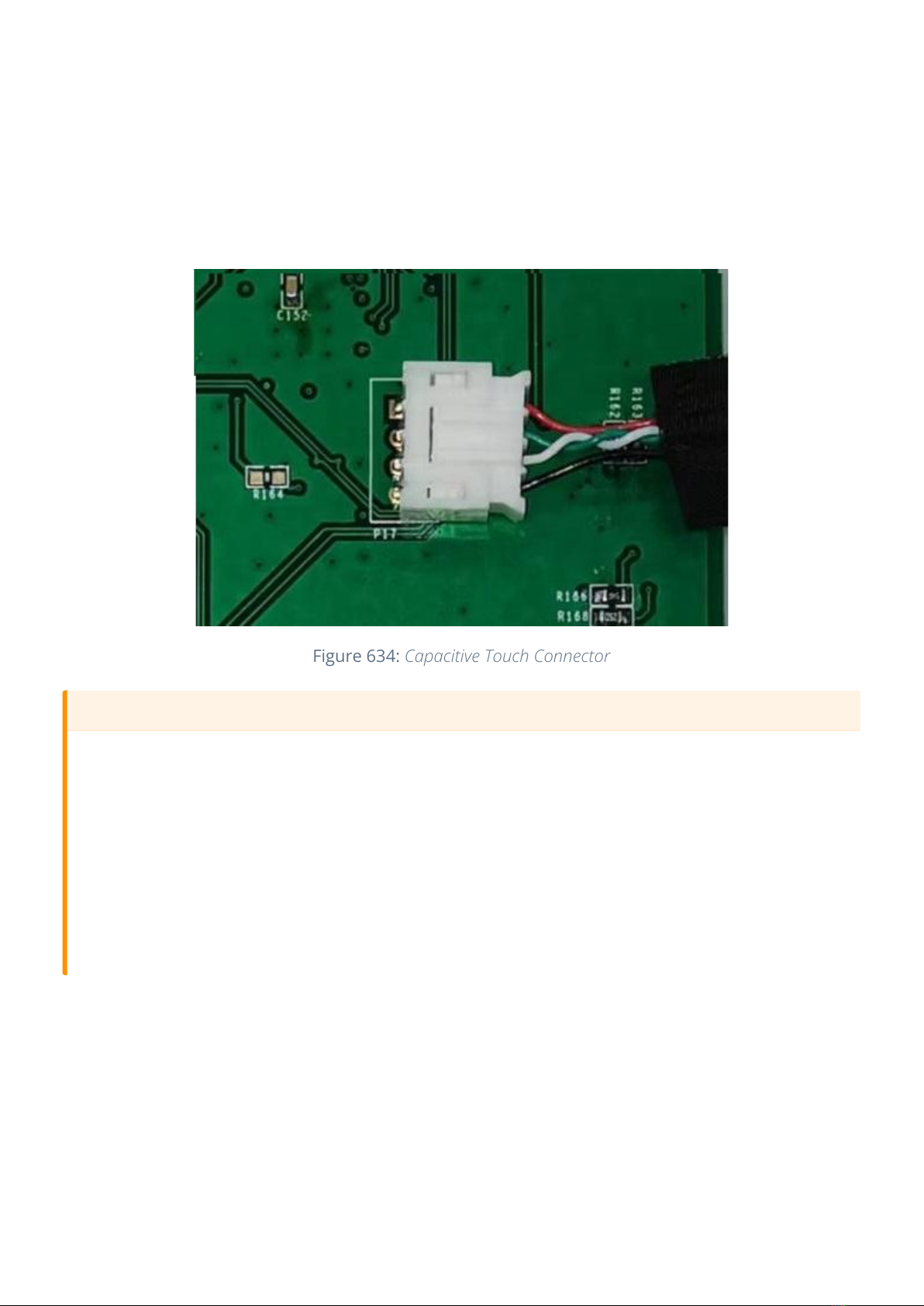

Figure 634: Capacitive Touch Connector
Attention
A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples
or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch
points oat erratically across the display. There are several solutions to this problem:
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.
Make sure that the PPC-A55-190 Power Input connector (pin 3) is properly connected to the Power System
Ground to provide sucient EMI shielding and eliminate the problem entirely.
Bad GND problem can also be conrmed by touching pin 3 of the Power Input connector with one hand while
operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power
System Ground.

1.
2.
3.
PPC-A55-190 Touch Screen
Chipsee IPC Page 13 of 29

Connectivity
There are many connectivity options available on the PPC-A55-190 industrial PC. It has 1 x
USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x network connector (RJ45) supporting
up to 1 Gbps, 8 x GPIO, 2 x CAN and 4 x UART terminals (RS232/485).
RS232+RS485+CAN+GPIO Connector
The serial communication interfaces (RS485, RS232, and CAN) are routed to a 24-pin
3.81mm terminal, as illustrated in the gure below. Serial communication on both RS485
and RS232 interfaces can reach up to 115200 kbps.
Isolated GPIO reduced schematic
PPC-A55-190 Connectivity
Chipsee IPC Page 14 of 29

The table below oers a detailed description of every pin:
RS232 / RS485 / CAN / GPIO Pin Denition:
Pin Number Denition Description
Pin 1 CAN0_H CAN H signal
Pin 2 CAN1_H CAN H signal
Pin 3 CAN0_L CAN L signal
Pin 4 CAN1_L CAN L signal
Pin 5 RS485_4- CPU UART4, RS485 -(B) signal
Pin 6 IN4 Isolated Input 4
Pin 7 RS485_4+ CPU UART4, RS485 +(A) signal
Pin 8 IN3 Isolated Input 3
Pin 9 RS485_3- CPU UART3, RS485 -(B) signal
Pin 10 IN2 Isolated Input 2
Pin 11 RS485_3+ CPU UART3, RS485 +(A) signal
Pin 12 IN1 Isolated Input 1
Pin 13 RS232_0_RXD CPU UART0, RS232 RXD signal
Pin 14 OUT4 Isolated Output 4
Pin 15 RS232_0_TXD CPU UART0, RS232 TXD signal
Pin 16 OUT3 Isolated Output 3
Pin 17 RS232_2_RXD CPU UART2, Debug RXD signal
Pin 18 OUT2 Isolated Output 2
Pin 19 RS232_2_TXD CPU UART2, Debug TXD signal
Pin 20 OUT1 Isolated Output 1
Pin 21 GND System Ground
PPC-A55-190 RS232+RS485+CAN+GPIO Connector
Chipsee IPC Page 15 of 29

RS232 / RS485 / CAN / GPIO Pin Denition:
Pin 22 GND_ISO Isolated Ground
Pin 23 VCC5V System 5V output, up to 1A
Pin 24 VDD_ISO Isolated Power Input, supports 5V~24V
Table 175 Connectivity Section
Attention
The 120Ω match resistor for CAN bus is NOT mounted by default.
The 120Ω match resistor for RS485 is already mounted by default.
This product supports changing 2 x RS485 to 2 x RS232, supports changing 2 x CAN to 2 x RS232, providing up to 6
x RS232 (including one debug port).
The GPIO has been optical isolated and it uses the 24V logic by default. You can use an external isolated power
input but the power input range should be from 5V to 24V DC.
The 4 GPIO output channels can drive at most 500mA current on each channel.

•
•
•
•
•
PPC-A55-190 RS232+RS485+CAN+GPIO Connector
Chipsee IPC Page 16 of 29

USB Connectors
There are 2 x USB HOST and 1 x USB DEVICE (for ashing OS) ports onboard: 1 x USB 2.0
HOST, 1 x USB 3.0 HOST, 1 x USB Type-C , as shown in the gures below.
USB 2.0 HOST Port (embedded / enclosed PC version)
USB 3.0 HOST Port (embedded / enclosed PC version)
PPC-A55-190 USB Connectors
Chipsee IPC Page 17 of 29

USB Type-C Port (embedded / enclosed PC version)
Warning
Be careful not to touch surrounding electronic components accidentally while plugging USB devices into the
embedded IPC version.

PPC-A55-190 USB Connectors
Chipsee IPC Page 18 of 29

LAN Connectors
LAN (RJ45) connector provides 1 x RJ45 Ethernet connectivity over standardized Ethernet
cables as shown in the gure below. The integrated Ethernet interface supports up to 1
Gbps data throughput.
RJ45 LAN Connector
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T
standard (100m).

PPC-A55-190 LAN Connectors
Chipsee IPC Page 19 of 29

WiFi & BT Module
The PPC-A55-190 Industrial Panel PC is equipped with the popular Realtek RTL8821CS
WiFi/BT module which supports BT/BLE 2.1/3.0/4.2, as well as 802.11ac/abgn 433Mbps
2.4/5.8 GHz Wireless LAN (WLAN).

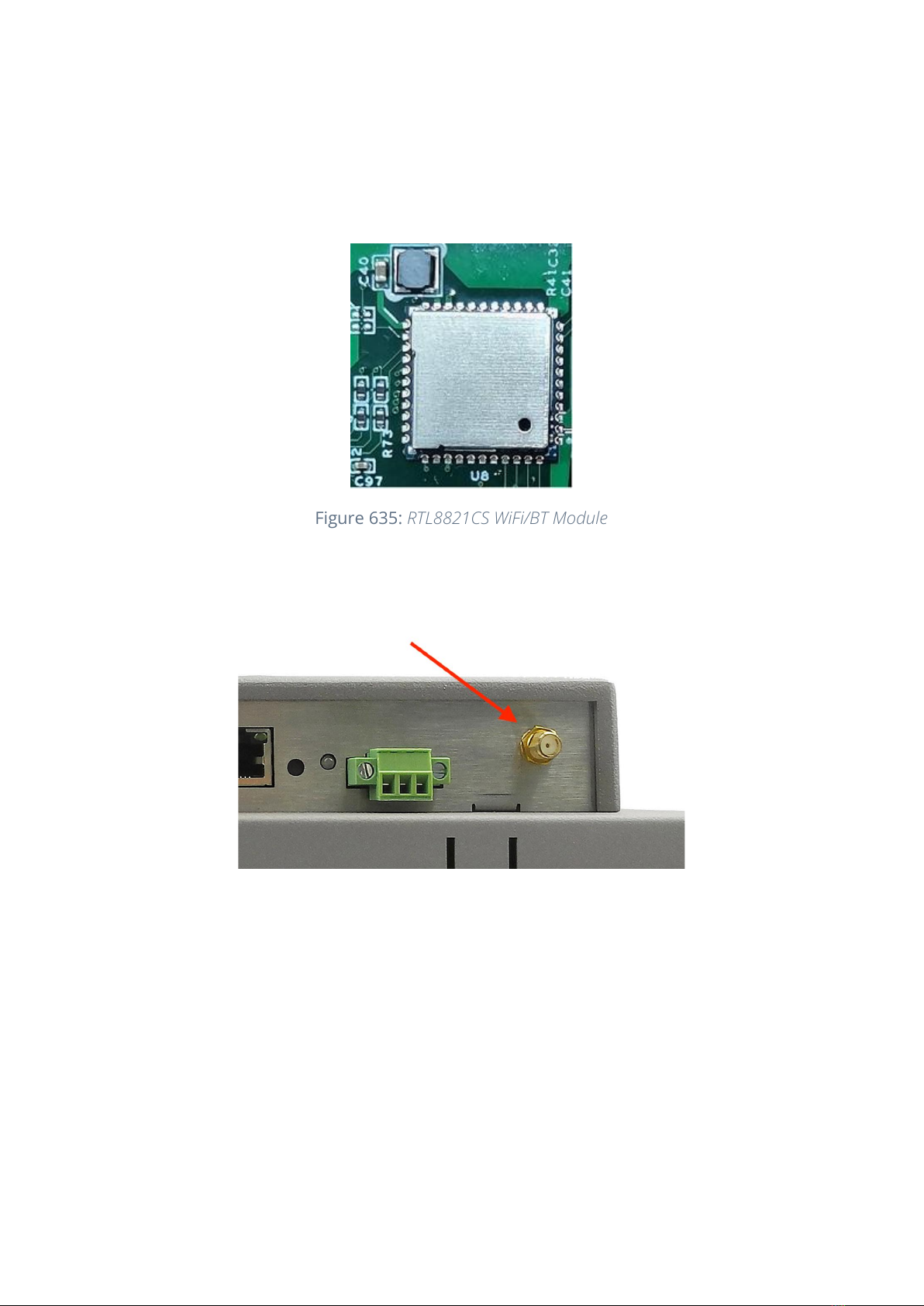

Figure 635: RTL8821CS WiFi/BT Module
The PPC-A55-190 includes an SMA connector for an external WiFi/BT antenna, as illustrated
in the gure below.
WiFi+BT Antenna SMA
PPC-A55-190 WiFi & BT Module
Chipsee IPC Page 20 of 29
