Ciar PS10BSA User manual
ENG
ITA
DESCRIPTION: -
PREPARED BY: M.CHIARAVALLOTTI
DOC.COD.: N470010186
CHECKED BY: C.UGUCCIONI APPROVED BY: A.ROSATI
REV.Nr.: 1.0 DATE: 09/01/2015
Kit PS10BSA 2,2Ah - Li-Ion
Instruction Manual / Manuale d’istruzione
PS10BSA
Power supply unit
PS05
for PS10BSA
Power supply unit
PS10 for PS10BSA
ENG
DESCRIPTION: -
PREPARED BY: M.CHIARAVALLOTTI
DOC.COD.: N470010174
CHECKED BY: C.UGUCCIONI APPROVED BY: A.ROSATI
REV.Nr.: 1.2 DATE: 06/11/2014
Kit PS10BSA 2,2Ah - Li-Ion
Instruction Manual
Thank you for having purchased one of our products.
Before using the device, read the instruction manual carefully,
paying particular attention to the Precautions for Use.
Always keep the manual close at hand.
PS10BSA
Power supply unit
PS05
for PS10BSA
Power supply unit
PS10 for PS10BSA
Contents
Precautions for use 6
General 6
Disclaimer 6
Storage and usage conditions 6
Warning 6
Recommendations for the nal user 7
Guarantee 8
PS05 power supply for charging 9
Fitting the plug 9
Removing the plug 9
Characteristics of supply unit type PS05 for PS10BSA 10
Precautions for use of the supply unit for PS10BSA 11
Precautions for use 11
Characteristics of transformer type: PS10 12
Instruction for PS10BSA recharging 13
Preamble 13
Standard charging procedure 13
Under Discharge 14
Auxiliary accessoires for the battery kit 14
Kit Power On/Off 14
Kit Power Selector 14
Assembly of Kit PS10BSA 15
PS10BSA Floor version 15
PS10BSA Surface-mounted version 15
Characteristics of battery type: PS10BSA 2.2Ah - Li-Ion 17
Procedura di ricarica standard 30
Sotto scarica 31
Accessori ausiliari per il kit batteria 31
Kit Power On/Off 31
Kit Power Selector 31
Assemblaggio Kit PS10BSA 32
PS10BSA Versione a pavimento 32
PS10BSA Versione ssabile ad una supercie 32
Caratteristiche batteria tipo: PS10BSA 2.2Ah - Li-Ion 34
ENG
Important
The purpose of the list of precautions reported below is to prevent injury and/or damage
and must be read carefully.
The following WARNING symbols are used to illustrate the degree of danger or damage/
injury.
Symbols and their meanings
DANGER — Possibility of serious injury or death.
WARNING — Possibility of damage or injury.
Damage is intended as that caused to furniture while injury refers to
persons and animals in general.
Examples of symbols
The triangular symbol indicates a “Warning”. The warning is explained by
means of a written explanation or images inside or near to the symbol. In
this specic case, the symbol on the left indicates "Danger of electrocution”.
The circle with diagonal line indicates a "Prohibition" or "No" sign. The
warning is explained by means of a written explanation or images inside
or near to the symbol. In this specic case, the symbol on the left indicates
"Do not dismantle the product”.
This symbol signies “Requirements that must be respected”. The
warning is explained by means of a written explanation
or images inside or near to the symbol.
In this specic case the symbol indicates “General requirements”.
page 6
Precautions for use
Storage and usage conditions
General
Disclaimer
Warning
The device is not suitable for use by children or disabled persons unless appropriately supervised by a
responsible adult able to use the device itself in complete safety. Children must not be allowed to play with the
device.
C.I.A.R. will not be held liable for its product if its use does not comply with the following requirements:
- The working cycle when used with Ciar actuators is 2 minutes work with 5 minutes pause.
- Only C.I.A.R. authorised personnel can dismantle the various parts of the kit.
- Do not cut or touch any wires in the kit with sharp objects.
- Do not connect the kit other than in the manner described in this manual.
- Do not use any parts of the kit with devices other than those indicated in this manual.
- Do not connect the power supply cable to a mains supply of voltage different to that indicated in
this manual and on the labels attached to the device.
- Do not wet the parts making up the kit.
- Do not place any metal objects near any parts of the kit while it is plugged into the mains.
- Do not use the device other than in a domestic environment.
- Do not open the device for any reason. Any faulty or broken parts must be returned to the
manufacturer or an authorised service centre or placed in the hands of
a person possessing similar qualications, avoiding all possible risks.
- Do not use in damp environments or in the presence of heat sources (ovens or direct sunlight).
- In the case where the power cable is not detachable from the device and has been
damaged, it can be replaced by the manufacturer, an authorised service centre or
a person possessing similar qualications, avoiding all possible risks.
STORAGE AND USAGE CONDITIONS
Working environment:
Temperature: between 0°C and 45°C
Humidity: between 20 and 70% (without condensation)
Storage environment:
Temperature: between -20°C and +45°C
Humidity: between 10 and 70% (without condensation)
- If the device is to be left unused for a long period of time, the batteries will slowly self-discharge and
the resulting over-discharge may damage the batteries themselves. It is advisable to fully charge the batteries
at least once every 3 months.
- If a new battery is not used for approximately one month after the last recharge, the remaining charge is
approximately half the nominal charge.
The constructor of the nished product in which the motor kit and eventual battery kit will be installed must
compile an instruction manual for the use of his own product.
The content and safety notes of this manual can be freely used for the nal product.
Please keep the PS10BSA disconnected from load and / or control devices during storage or transportation to
avoid undesired action or discharge.
page 7
ENG
Recommendations for the nal user
Do not separate, open or dismantle secondary cells, batteries or the device as a whole.
Do not expose the cells or batteries to heat or re. Avoid storage in direct sunlight.
Do not short-circuit the cells, batteries or the device itself.
Do not install the cells, batteries or the device itself in a closed container (boxes, metal containers, wooden
containers, etc.) without protecting the positive or negative poles of the cells or the metal connector of the
battery pack, in that these could lead to accidental short-circuits.
Do not remove the cells or batteries from the battery pack for other uses.
Do not subject the cells, batteries or the device itself to mechanical shocks (avoid dropping the battery pack,
hitting it when on the ground and do not place any objects on top).
Should any chemical substances leak from the battery pack, avoid all contact with the substance. In the case of
contact, wash the affected parts immediately in abundant quantities of water and seek medical help.
Do not use chargers or power supply units other than those specied in this manual.
Keep the battery container out of reach of children.
Only use components approved by Ciar.
Keep the battery pack clean and dry.
Avoid soiling the connections on the device. If necessary, clean using a dry cloth.
The batteries must be charged before use. To charge the batteries, follow the instructions written in this manual.
Do not leave the battery pack connected when not being used for long periods.
After a long period of storage, several charging cycles may be necessary to obtain the maximum duration
of the charge.
The batteries perform at their best between 5 and 20°C.
page 8
Guarantee
C.I.A.R. guarantees its product against manufacturing defects for a period of two years from the date of
purchase by the nal user. During the guarantee period, the company will, at its own discretion, repair or
replace the defective product.
The kit is not guaranteed against defects resulting from:
- Unsuitable or inappropriate maintenance by the customer
- Modications, improper or unauthorised use
- Use of the kit under unsuitable operating conditions
- Abuse of the specied work cycle
- Damage during shipment caused by unsuitable packaging.
Due to their nature, rechargeable batteries have a limited life-span and are characterised by a gradual loss of
power over time.
This natural degradation in performance and the progressive loss of power are not covered by any form of
guarantee.
STANDARDS
The product has been designed and manufactured in accordance with:
2004/108/EC AND SUBSEQUENT AMENDMENTS “EMC”
- CEI EN55014-1
- CEI EN 55014-2
- CEI EN 61000-3-3
- CEI EN 61000-3-2
- EN 62233
2006/95/EC AND SUBSEQUENT AMENDMENTS “LOW VOLTAGE”.
- EN 60950-1
- EN 62133
Directive 2006/66/EC of 06/09/2006 and amendment 2008/103/EC of 19/11/2008.
Battery registration number IT12090P00002923
page 9
ENG
PS05 power supply for charging
Warning
Before tting the mains plug to the device, select the plug
type appropriate to the country of use (see chapter Main
Power Supply Unit Characteristics for the PS10BSA).
1 - Fully insert the selected plug in the housing of the
power supply unit until it clicks into position (photo 1, 2
and 3).
2 - Press the plug locking tab (photo 4)
3 - Keeping the tab pressed, push the plug outwards
(photo 5) until it completely separates (photo 6).
photo 1
photo 4
photo 2
photo 5
photo 3
photo 6
Removing the plug
Fitting the plug
page 10

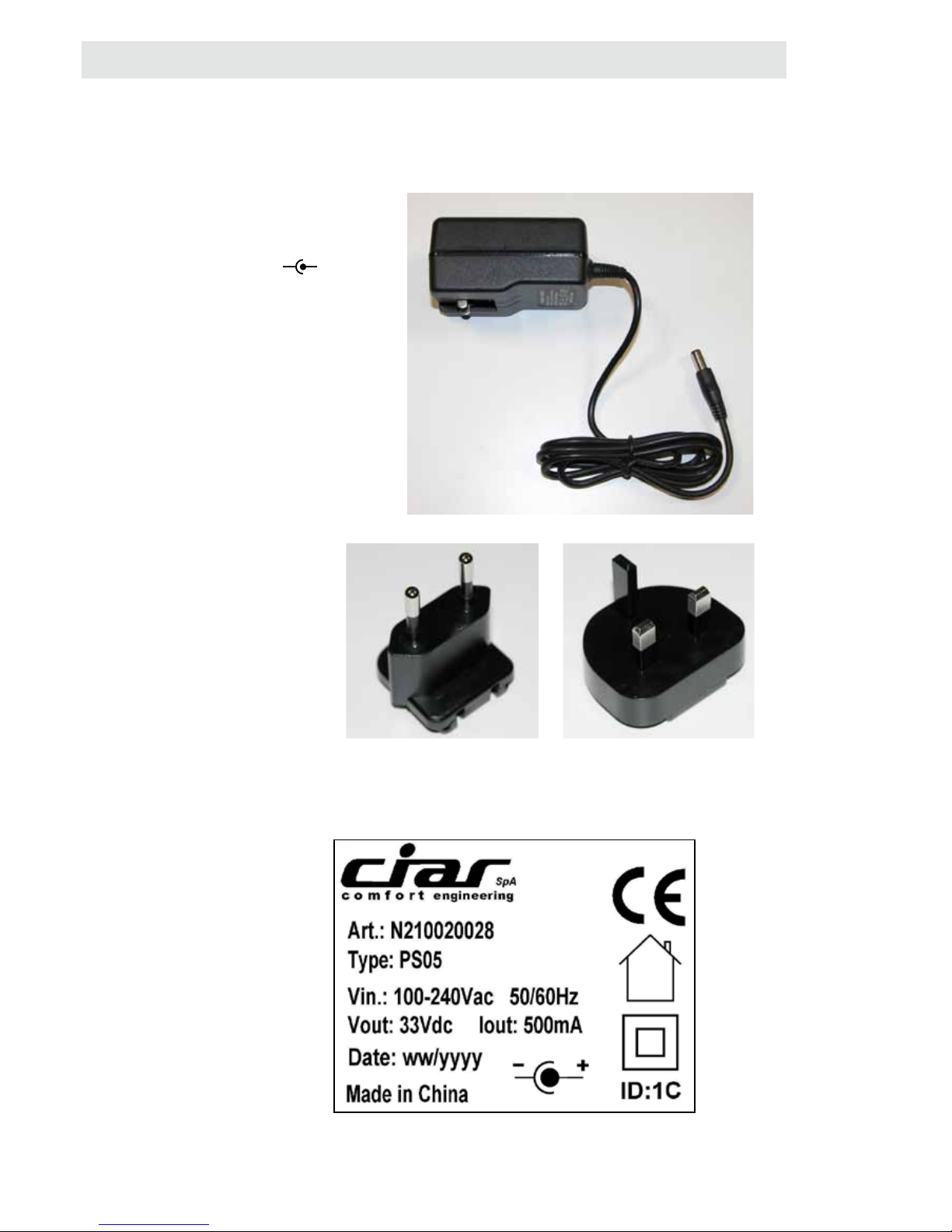

Technical characteristics:
Input voltage: 100-240 Vac
Input frequency: 50/60Hz
Output voltage: 33Vdc
Output current: 500mA
Output connection:
Output cable: 150 cm with DC plug 5.5x2.5
Power supply unit: switching type
Device dimensions: 5 x 7.7 x 4 cm
Characteristics of supply unit type PS05 for PS10BSA
European
plug
Label
English
plug
-+
page 11
ENG
Precautions for use of the supply unit for PS10BSA
Precautions for use
The device is not suitable for use by children or disabled persons unless appropriately supervised by a
responsible adult able to use the device itself in complete safety. Children must not be allowed to play with the
device.
C.I.A.R. will not be held liable for its product if its use does not comply with the following requirements:
- Only C.I.A.R. authorised personnel can dismantle the various parts of the kit.
- Do not cut or touch any wires in the kit with sharp objects.
- Do not connect the kit other than in the manner described in this manual.
- Do not use any parts of the kit with devices other than those indicated in this manual.
- Do not connect to any mains electricity supplies other than those indicated in this manual or on the
label afxed to the device.
- Do not wet the parts making up the kit.
- Do not place any metal objects near any parts of the kit while it is plugged into the mains.
- Do not use the device other than in a domestic environment.
- Do not open the device for any reason. Any faulty or broken parts must be returned to the
manufacturer or an authorised service centre or placed in the hands of
a person possessing similar qualications, avoiding all possible risks.
- Do not use in damp environments or in the presence of heat sources (ovens or direct sunlight).
- In the case where the power cable is not detachable from the device and has been
damaged, it can be replaced by the manufacturer, an authorised service centre or
a person possessing similar qualications, avoiding all possible risks.
Warning
- Plug the unit into the mains electricity supply socket vertically as shown in photo 1
Photo 1
Correct position
Photo 2
Incorrect position
page 12

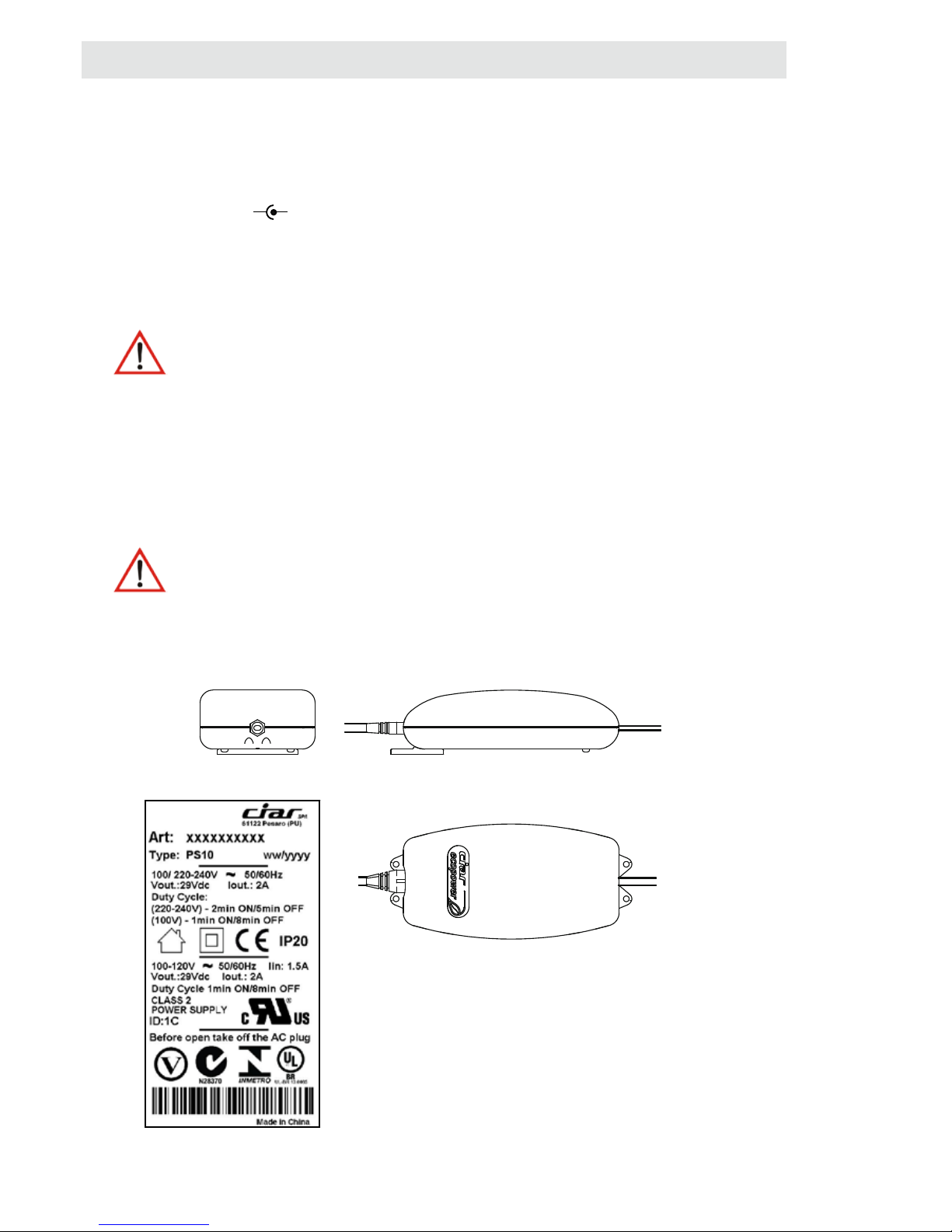

Example of a PS10 label
gure A
WARNINGS

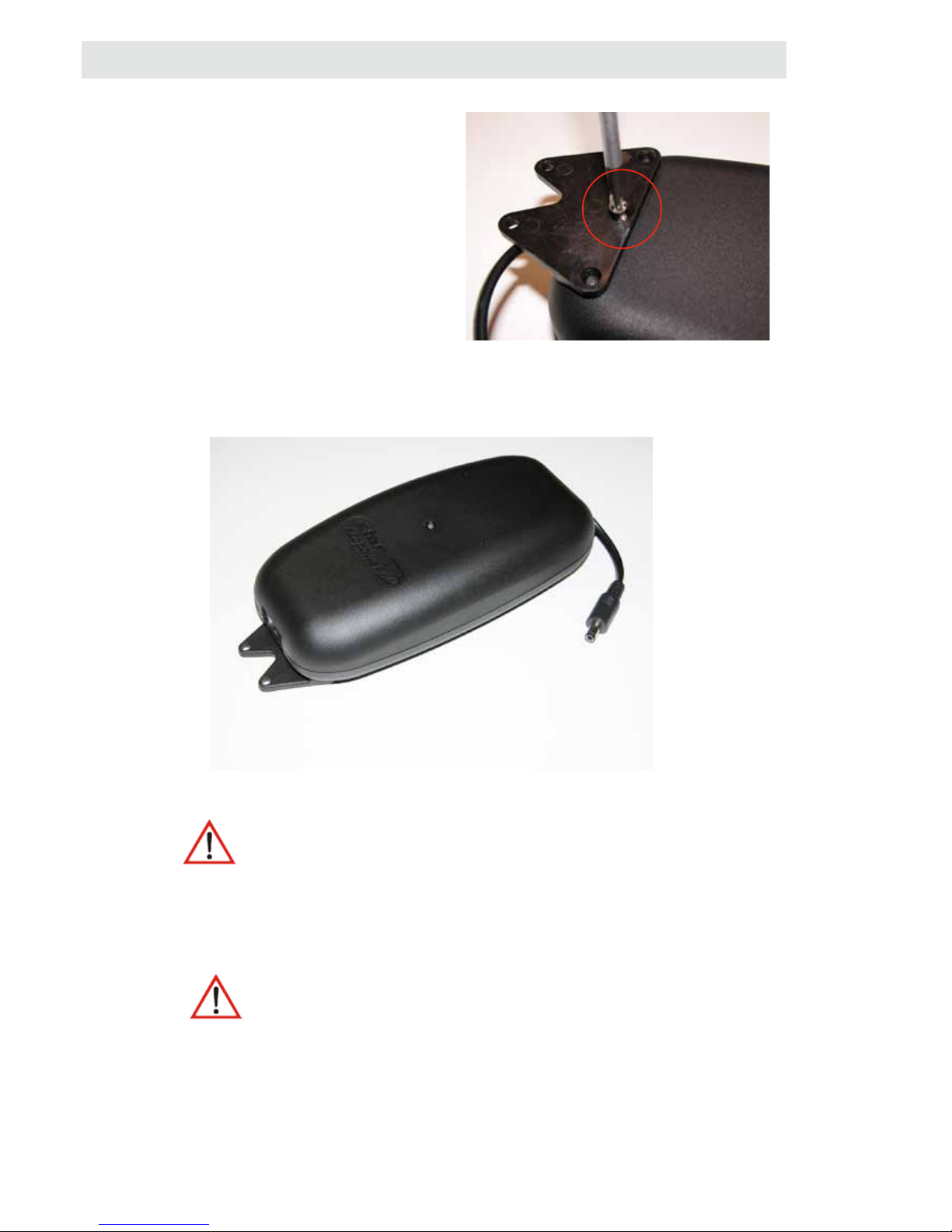

PRECAUTIONS FOR ASSEMBLY:
Fix the components using the holes formed in the box.
Replacement parts for this type of product must be identical to those being replaced.
If the power supply cable has a permanent connection to the power supply unit (see gure A) and is
damaged, in order to avoid any risks it must be replaced by the manufacturer, by its technical after-
sales service or a person with similar qualications.
IMPORTANT
Before connecting the socket to the mains supply, check that the feed voltage on the label corresponds
to that of the country of use.
Characteristics of transformer type: PS10
Technical characteristics:
Input voltage: 100-240 Vac
Input frequency: 50/60Hz
Output voltage: 29Vdc
Output current: 2A
Output connection:
Output cable: 8 cm with DC plug 5.5x2.5
Power supply unit: switching type
Device dimensions: 80 x 150 x 44.5 cm
-+
page 13
ENG
Instruction for PS10BSA recharging
Preamble
For a correct use of the battery and in order to maximize its life is necessary to keep it in its best conditions. Therefore
is highly recommendable that the battery doesn’t reach the “under discharge” condition.
Based on the typology of the devices used with the battery (mechanical switches, sensor switches, radio kit, digital
supply units, etc...) there are different power consumption while in stand-by mode that can lead to the “under discharge”
condition.
It is advisable to fully charge the batteries at least once every 3 months.
Please contact CIAR for detailed information about the autonomy and consequent denition of the charging intervals in
combination with a particular conguration and/or in conjunction with the different devices.
3
1 - Connect the DC plug of the power supply unit PS05 or PS10 to
the DC sochet of the PS10BSA (photos 1a, 1b).
2 - Connect the PS05 or the PS10 to the domestic net socket.
3 - The led positioned above the DC socket of the battery will show
2 brief ashes (if the battery pack is a PS10BSA 2.2Ah - Li-ion) or 1
ash (if the battery pack is a PS10BSA 1.2Ah - NiMH)
Then the led will light up red indicating that the battery is under
charge (photo 2)
NOTE for the PS05: The PS05 is also provided with a led that just
indicates that the device is correctly connected to the domestic net
power. It doesn’t indicates a charging status.
4 - When the led on the battery became green then the charge is
completed (photo 3). Disconnect the power supply from the domestic
net socket and subsequently disconnect the DC plug from the the DC
socket of the battery.
Standard charging procedure
2
1a
1b
page 14
In case the battery has reached the “under discharge” condition, the standard charging procedure may be not sufcient. It
is anyhow possible to try a battery recover in the two following ways:
1) If the led indicator starts to blink (red) about 5mins after the connection of the power supply (PS05 or PS10) to the
battery pack, this means that there’s been an error during the charge. Please disconnect the power, wait about 1min and
connect again the power. Repeat this sequence 3 or 4 times
2) disconnect completely the battery from the chair or sofa and try again the procedure described in point (1)
If the event of the red led blinking persist after 3 or 4 attempts, this means that the cells of the battery pack are damaged
and/or have reached the end of their life, therefore the whole PS10BSA pack must be replaced.
Using the PS10
This device allow the use of the motors of the chair or sofa also when the battery is fully discharged and is in the phase of
charging through the PS10 power supply.
Using the PS05
The PS05 can provide only a small quantity of current necessary to charge the battery but not enough to provide the
quantity of energy to a motor kit. Therefore the use of the chair/sofa is not possible during the charge. It is necessary that
after the charge of the PS10BSA is completed (green led) the PS05 is disconnected from the battery before using the chair
or sofa. Anyhow, tanks to this device, it is possible to try to perform the sequence indicated above (“Under Discharge”)
without physically disconnecting the battery from the chair or sofa.
PLEASE CONSIDER THAT CIAR S.P.A. CAN PROVIDE PS10BSA WITH THE POWER SELEC-
TOR KIT ALREADY INSTALLED INSIDE THE PS10BSA BATTERY PACK (only 2.2Ah-Li-ion bat-
tery)
CIAR SpA can provide to the customers some accessories intended to improve the performance and to increase the battery
life when they are used in combination with touch sensors, radio kit, digital supply units or whichever other device that
need a minimum, constant, energy adsorption from the battery.
This device, composed of a stylish push button, allow the end user to switch completely off the battery thus maximizing
its autonomy. For further information please refer to the specic user manual:
- “Kit Power Off - Mono light” (for PS10BSA-1.2Ah-NiMH and PS10BSA-2.2Ah-Li-Ion)
- “Kit Power Off - Dual light / Battery low indication” (for PS10BSA-2.2Ah-Li-Ion)
Furthermore, tanks to this devices it is possible to try to perform the sequence indicated above (“Under Discharge”) wi-
thout physically disconnecting the battery from the chair or sofa.
Under Discharge
Auxiliary accessoires for the battery kit
Kit Power On/Off
Kit Power Selector
page 15
ENG
Assembly of Kit PS10BSA
1 - Device PS10BSA is used on the oor as an ancillary device and does not require
any installation (photo 1).
Warning
- Do not tread on the output connector or plastic casing and do not place any heavy objects on top.
1 - If the device is still connected, disconnect it.
2 - Overturn the device and position the bracket as shown
in photos 2 and 3, making sure that the holes on the
longest side correspond to those on the underside of the
casing.
photo 1
PS10BSA Floor version
PS10BSA Surface-mounted version
photo 2
photo 3
page 16
Warning
Please keep the PS10BSA disconnected from load and / or control devices during storage or transportation to
avoid undesired action or discharge.
Warning
- Before reconnecting the device, after tting the brackets, check that the casing is
still fully intact.
3 - Insert the screw in the centre hole and tighten using a
screwdriver.
4 - Repeat the operations in points 2 and 3 to install the
second bracket on the opposite side of the device.
photo 5
photo 4
page 17
ENG
label for PS10BSA 2.2Ah
Technical characteristics:
Input voltage: 29 ÷ 33Vdc
Input current: 500mA
Output voltage 26Vdc
Battery capacity: 2.2Ah
Battery type: Li-Ion
Charge time: Approx. 6 hours
(using the PS05 or PS10 power supply unit provided)
Life cycles: 300 (minimum number of cycles)
Work cycle coupled to all Ciar actuators: 2 min. ON 5 min. OFF
Charge duration:
The number of complete work cycles depends highly on the intensity of use
and environmental conditions. Refer to Table 1 for an example of a cycle calculation.
Warning:
When using for the rst time, fully charge the batteries. A full charge is indicated by the green led near
to the charger connection (see “Chapter: Instruction for PS10BSA recharging” of this manual).
Characteristics of battery type: PS10BSA 2.2Ah - Li-Ion
46
87
175mm
Chair CF56LR03
Weight on chair: 120kg including padding
average current consumed from the Relax to the Lift position: 2A for a duration of 50 seconds
average current consumed from the Lift to the Relax position: 1.2A for a duration of 43 seconds
cycle calculation: 2.2Ah x 3600 sec. = 7920 A sec.
2A x 50 sec. = 100A sec.
1.2A x 43 sec. = 51A sec.
7920 A sec.
Table 1
(100+51)A sec. = 52 cycles
Example of calculation of autonomy mechanism CIAR
ENG
As part of the continuous improvement of its products, CIAR SpA reserves the right to modify
the content of this manual without any prior notication.
CIAR SpA will not be held responsible for any problems caused by
improper use of the information supplied in this manual.
Table of contents
Languages:
