Cineversum Blackwing Two R599741 User manual

ENGLISH

1.0 INSTALLATION
2 R599741 - Blackwing Two Quick Start guide
1.0 INSTALLATION

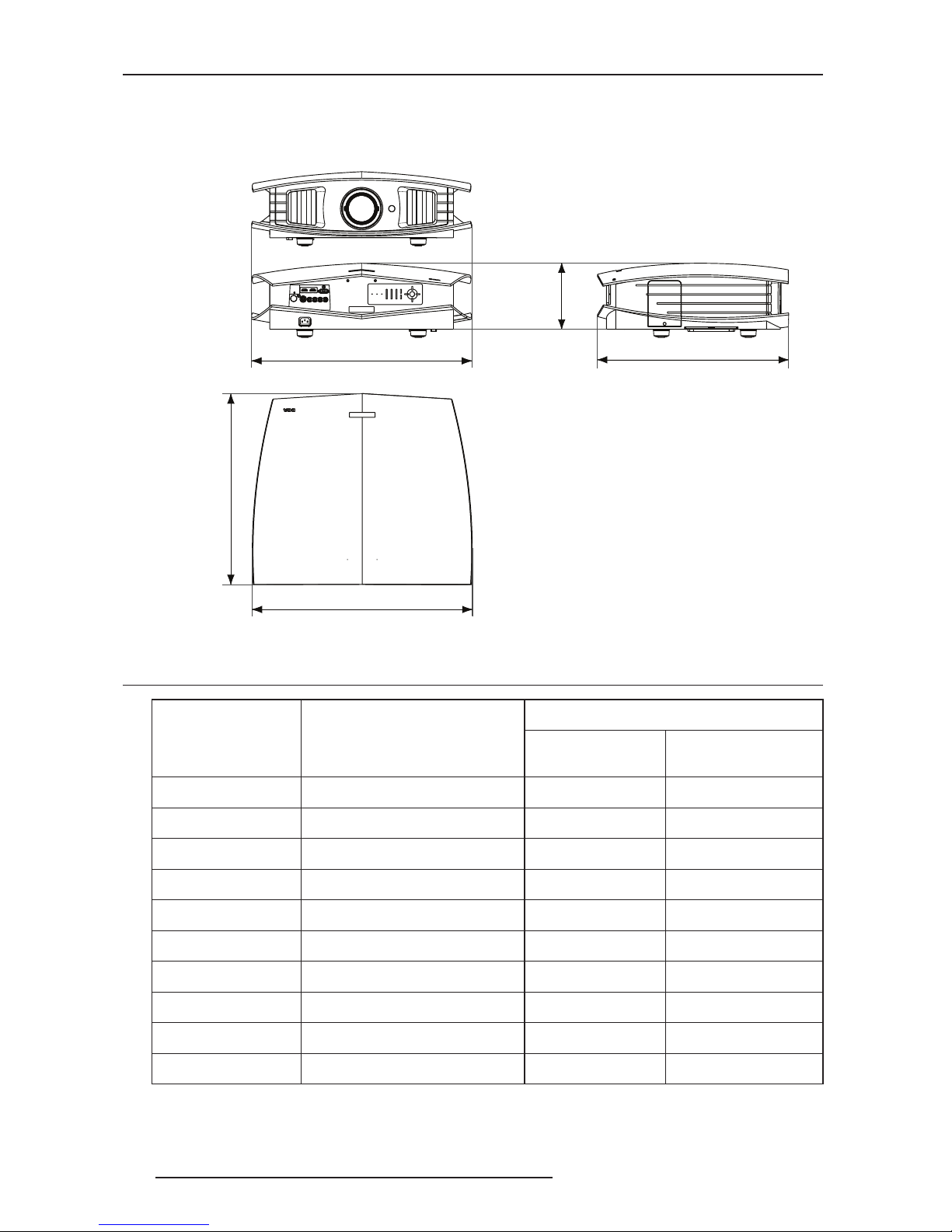

Projector Dimensions
1.1 Projection distance and offset settings
•The projection screen sizes and projecting distances in the table above are provided only as a guide. Please use
them as reference during installation.
• Use a projection image of 16:9 aspect ratio for setup adjustment.
Projection Screen Size
Diagonal size
(Aspect Ratio 16:9)
Projection Screen Size
Base xHeight
(Aspect Ratio 16:9)
Blackwing Two
Projecting Distance
minimum - maximum
Maximum Shift
up or down - left or right
50" (1270 mm) 43,6" (1107 mm) x24,5" (623 mm) 1518 mm - 3050 mm 498 mm - 376 mm
83" (2108 mm) 72,3" (1837 mm) x40,7" (1034 mm) 2519 mm - 5062 mm 827 mm - 625 mm
92" (2337 mm) 80,2" (2037 mm) x45,1" (1146 mm) 2792 mm - 5611 mm 917 mm - 692 mm
100" (2540 mm) 87,2" (2214 mm) x49,0" (1245 mm) 3035 mm - 6099 mm 996 mm - 753 mm
110" (2794 mm) 95,9" (2435 mm) x53,9" (1370 mm) 3339 mm - 6709 mm 1096 mm - 828 mm
138" (3505 mm) 120,3" (3055 mm) x67,7" (1718 mm) 4188 mm - 8417 mm 1375 mm - 1039 mm
150" (3810 mm) 130,7" (3321 mm) x73,5" (1868 mm) 4553 mm - 9149 mm 1494 mm - 1129 mm
180" (4572 mm) 156,9" (3985 mm) x88,2" (2241 mm) 5463 mm - 10978 mm 1793 mm - 1355 mm
200" (5080 mm) 174,3" (4428 mm) x98,1" (2491 mm) 6070 mm -12198 mm 1992 mm - 1505 mm
250" (6350 mm) 218" (5535 mm) x122,6" (3113 mm) 7588 mm - 15248 mm 2491 mm - 1882 mm
585 mm
23.0’’
505 mm
19.9’’
585 mm
23.0’’
175 mm 6.9’’
505 mm
19.9’’

1.0 INSTALLATION
R599741 - Blackwing Two Quick Start guide 3
• Maximum Shift setting:
The vertical and horizontal adjustments feature a vertical shift level between -80% and 80% of the screen height.
The horizontal shift level is between -34% and 34% of screen base.
By example, a 100” (2,54 meters) diagonal size screen, has a screen Base of B=87.2” (2,214 meters), and a screen
Height of H=49” (1.245 meters).
The maximum vertical shift is 0.80x49”=39.2” (0,99 meter) from the center of the screen.
The maximum horizontal shift is 0.34x87.2”=29.7” (0,75 meter) from the center of the screen.
Offset Dials
The Blackwing Two projector has two dials to align vertically and horizontally the picture to the screen. Refer to the
picture below to locate the dials.
The Vertical and Horizontal shift dials are located at the bottom of the unit.
This unit comes with a vertical and horizontal shift to suit most installations. Due to mechanical limitation,
you cannot set the projected picture to an offset of both 80% vertically and 34% horizontally.
IMPORTANT
Modifying the vertical and horizontal position should slightly modify the color alignment. The color alignement is not
visible from standard viewing distance. To perfectly align the primary colors, browse into the projector menu to
”Image Menu“ ⇒⇒
⇒⇒ ”Pixel Adjust“ and adjust the color alignment to obtain the best picture.
Vertical Shift Dial
(-80% to +80%)
Horizontal Shift Dial
(-34% to +34%)

2.0 POWER ON AND STANDBY MODE
4 R599741 - Blackwing Two Quick Start guide
2.0 POWER ON AND STANDBY MODE
The projector is in Standby Mode when plugging the Main Power cord, the Standby/ON Led is light red.
2.1 Connecting the Power Cord
• Before plugging in the Power Cord, ensure that all devices have been
connected.
• Connect the power cord to the Main Power input terminal of the projector.
2.2 Optical Lens Cushions
The projector comes with a buffer material that cushions the optical lens to
protect it during transport. Before the first startup, remove the buffer
material. Do not throw away the material, retain for future use. When
transporting this unit for repair or during house moving, attach and fix the
buffer material on the top and bottom of the lens as described in the picture
below.
2.3 Focus and Zoom Adjust
Adjust the Focus and Zoom
The focus and zoom can be set manually directly to the lens. Refer to the projection distance table to make sure that
you can focus correctly the picture at the screen from a given projection distance.
Focus Adjust Zoom Adjust
Operating LEDs
Operating buttons
Navigation buttons
Input Panel
Main Power
Remove the optical lens Cushions
Zoom In
Zoom Ou
t

3.0 REMOTE CONTROL UNIT (RCU)
R599741 - Blackwing Two Quick Start guide 5

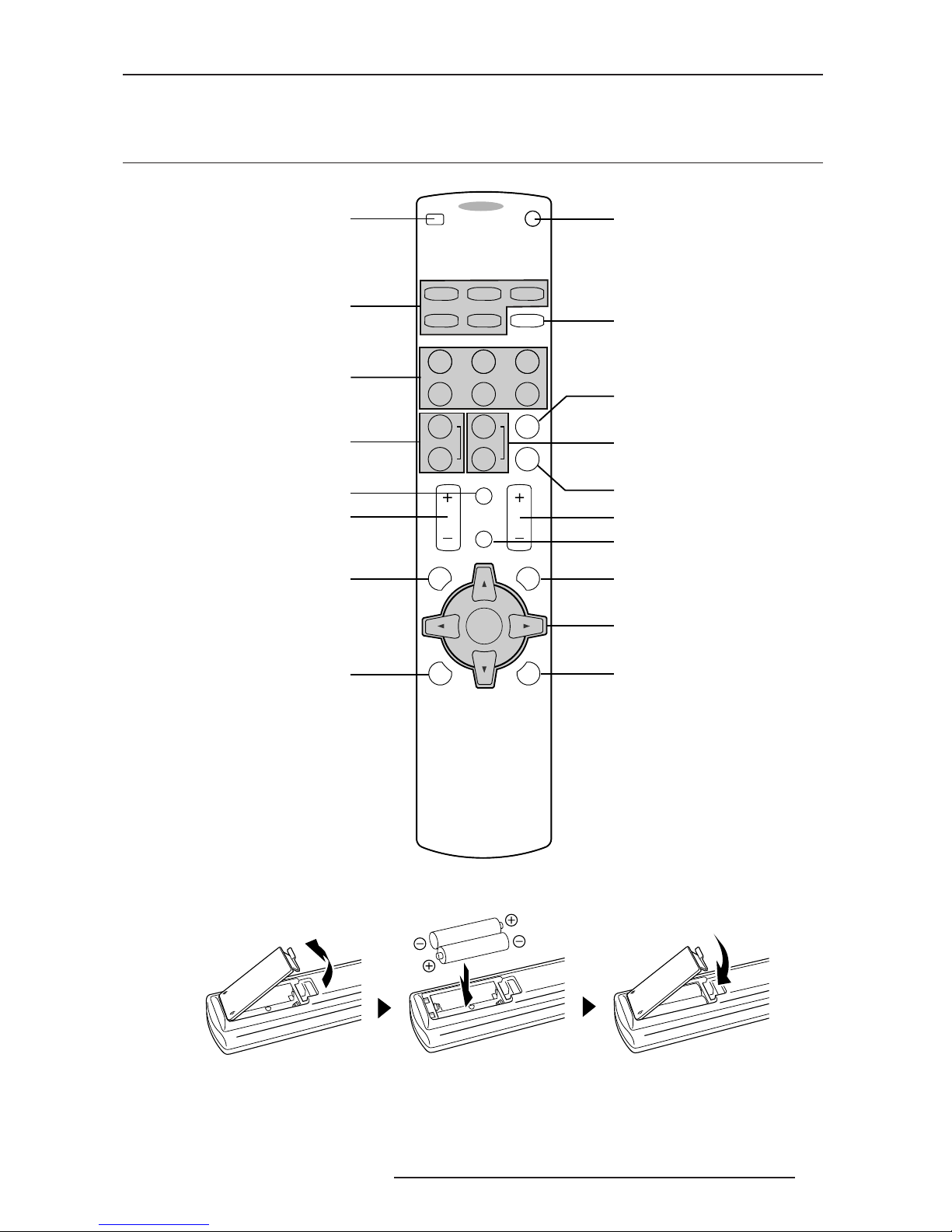

3.0 REMOTE CONTROL UNIT (RCU)
3.1 General view
Loading batteries
• Refer to the Blackwing Two User Manual for details (R599740).
LIGHTTEST
EXIT
SHARP
-
SHARP
+
USER
2
N
COLOR
TEMP
GAMMA
USER
3
D
COLOR
-
COLOR
+
USER
1
C
CONTRAST BRIGHT
HIDE
INFO
MENU
ENTER
CINEMA NATURAL DYNAMIC
HDMI 1 HDMI 2
S-VIDEO
COMP
VIDEO ASPECT
OFF ........ OPERATE ......... ON
Power OFF button
Select Active Input
Image profile switch
Color Adjust buttons
Display Information
Contrast Adjust buttons
Display Menu
Test Pattern button
Power ON button
Screen Aspect Ratio
Gamma setting button
Sharpness Adjust buttons
Color Temperature button
Brightness Adjust buttons
Hide Display
Exit to previous menu
Navigation buttons
Backlight button

3.0 REMOTE CONTROL UNIT (RCU)
6 R599741 - Blackwing Two Quick Start guide
3.2 Special features
The Remote Control Unit (RCU) features in addition to the navigation buttons (Display button, Exit to previous menu
and Up/Down/Left/Right buttons), special function buttons that give quick access to the most frequently used
functions. They are also accessible in the On Screen Display Menu (OSD Menu)
•Screen Aspect Ratio: changes the aspect ratio of the picture to the screen. Select the Aspect Ratio to your
convenience, depending on the format of the signal.
Screen Aspect Ratio
•Hide Display: Upon pressing this button, the picture is temporarily hidden and the Standby/ON LED blinks
Green on the projector. Press again the Hide Display button to display the picture.
• Backlight button: illuminates the RCU buttons.
The Screen Aspect Ratio cannot be changed for High-definition signals (fixed to HDTV 16:9).
When the picture is hidden, the projector cannot be switch to Standby Mode. Press the Hide Display button
again for normal operation.
SDTV 4:3
(full frame) 4:3 16:9 Zoom
SDTV 4:3
(with black bands) 4:3 16:9 Zoom
VIDEO SOURCE ASPECT RATIO
SDTV 4:3
compatible 16:9
(stretched picture)
4:3 16:9 Zoom

4.0 CONNECTIONS AND SUPPORTED FORMATS
R599741 - Blackwing Two Quick Start guide 7
4.0 CONNECTIONS AND SUPPORTED FORMATS
The Blackwing Two can be connected to any compatible devices. The available inputs are:
• 2x HDMI revision 1.2 with HDCP
• 1x S-Video (or Composite)
•1x Video
• 1x Component (YCbCr, YPbPr or RGB or SCART)
The RS-232C terminal can be used for automation or software updates.
During the connection, make sure that the unit is powered OFF. (Disconnect the projector from the main power).
For audio output, connect your audio video source to an amplifier.

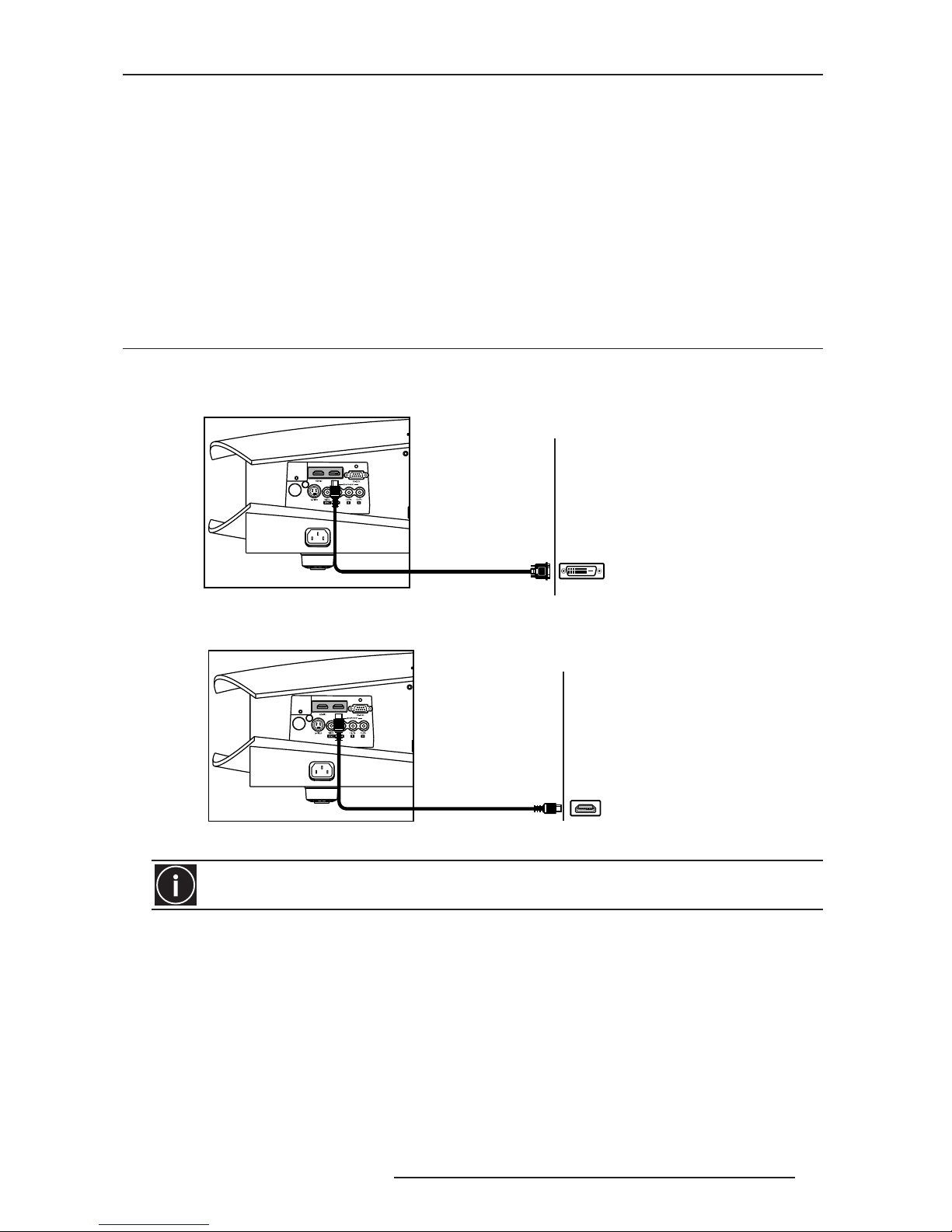

4.1 Connecting a device with Digital Output
The two HDMI inputs fully support HDMI 1.2 revision and are compatible with HDCP protection. You can connect
this unit to a HDMI 1.3 video source configured to output a signal coded up to 24 color bits per pixel.
Connecting a device with DVI-D Output
Supported Formats: 480i/p, 576i/p, 720p50/60, 1080i50/60, 1080p24/50/60.
Connecting to a device with HDMI Output
Supported Formats: 480i/p, 576i/p, 720p50/60, 1080i50/60, 1080p24/50/60.
Make sure to use a good quality cable, especially when the distance between the different devices are
longer than 5 meters. If it is the case, the use of a split system or optical fiber cable is highly recommended.
DVI-D to HDMI cable
DVI-D output
Audio Video Source:
DVD-Player
HD-DVD Player
HDTV receiver
Computer with DVI output
Digital Game Console
HDMI to HDMI cable HDMI output
Audio Video Source:
DVD-Player
HD-DVD Player
HDTV receiver
HD-Multimedia Box
Computer with HDMI output
Game Console

4.0 CONNECTIONS AND SUPPORTED FORMATS
8 R599741 - Blackwing Two Quick Start guide
4.2 Connecting a device with S-Video Output
Supported Formats: PAL, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43.
4.3 Connecting a device with Video Output
Supported Formats: PAL, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43.
4.4 Connecting a device with Component Output
Supported Formats: 480i/p, 576i/p, 720p50/60, 1080i50/60. (1080p is not available for Component)
4.5 Connecting a device with SCART Output (European market)
Supported Formats: PAL, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43.
Audio Video Source:
DVD-Player
Multimedia Box
DVB-T Television receiver
Game Console (SD output)
Video Camera
S-Video output
Digital Camera
Audio Video Source:
DVD-Player
Multimedia Box
DVB-T Television receiver
Game Console (SD output)
Video Camera
Video output
Digital Camera
Audio Video Source:
DVD-Player
HDTV receiver
Game Console (SD or HD)
DVB-T Television receiver
Multimedia Box
Cr/Pr - Red
Cb/Pb - Blue
Y - Green
Analog Camera
SCART output
Audio Video Source:
European DVD-Player
DVB-T Television recevier
Game Console
Multimedia Box

4.0 CONNECTIONS AND SUPPORTED FORMATS
R599741 - Blackwing Two Quick Start guide 9

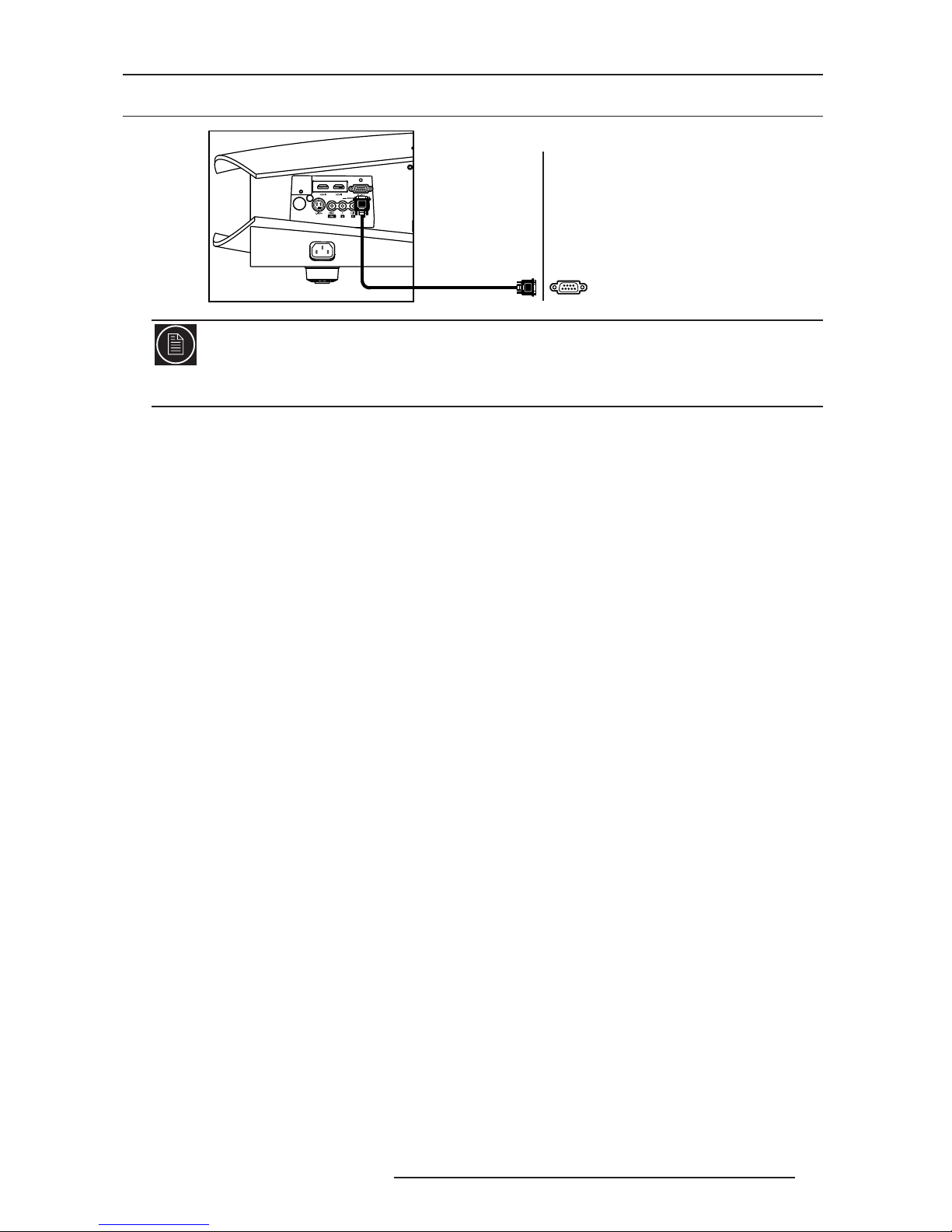

4.6 Automation and control port: RS-232 Input.
*USING RS-232C WITH ACOMPUTER
The RS-232 Control and Automation may require specific software and tools. See “RS-232C input”, page 38 of the
User Manual (R599740) for more details on RS-232C cabling and protocol.
Automation Device
Control Device
Computer with RS-232*
RS-232 output

5.0 PICTURE SETTING
10 R599741 - Blackwing Two Quick Start guide

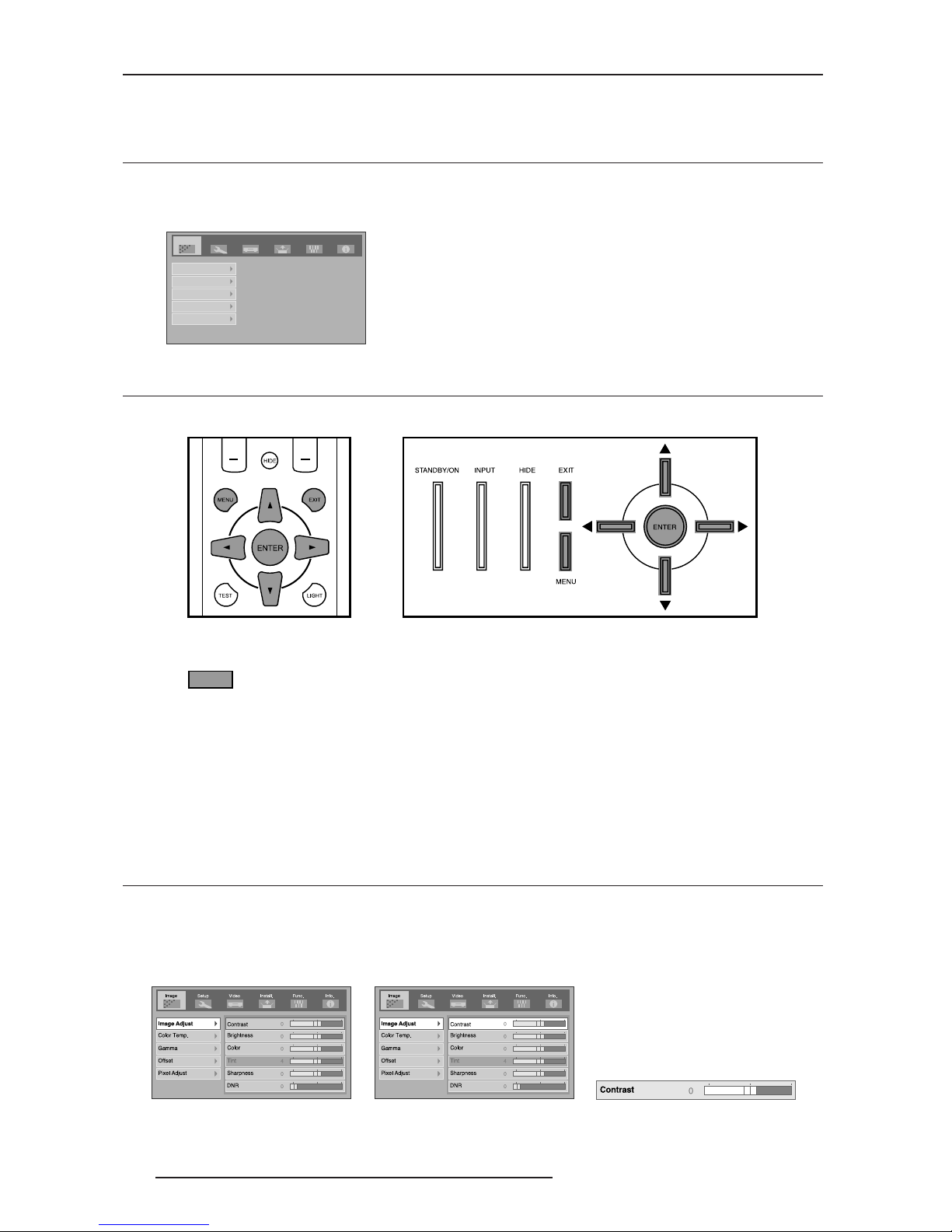

5.0 PICTURE SETTING
5.1 How to activate the Menu Structure
• Press the [MENU] on the RCU or Digital Control Panel located at the rear side of the projector.
• The main menu will be displayed, then select the desired tab using the navigation keys.
5.2 How to select an Item and make an Adjustment
• Use the [UP] or [DOWN] keys to highlight the desired Menu
• Press [ENTER] to select
If the selected item has adjustment values, use the [LEFT] and [RIGHT] to change the value.
If the selected item has a sub menu, this sub menu will open. (Input Adjust, Offset, etc.)
•Use the [EXIT] key to return to the previous menu, or to clear the menu screen when the main menu is
displayed.
5.3 Image Menu
Contrast
The contrast function is used to adjust the contrast between the light and dark areas of the displayed image. A
correct contrast setting is important for good image reproduction. Adjust the Contrast value between -30 and +30.
Setup
Image Video Install.Func. Info.
Image Adjust
Color Temp.
Gamma
Offset
Pixel Adjust
Navigation Keys
Remote Control Unit Digital Control Panel
Enter Image Adjust Menu Select Contrast tab Set a Value between -30 and +30

5.0 PICTURE SETTING
R599741 - Blackwing Two Quick Start guide 11
Brightness
The brightness function is used to adjust the overall light output. Adjust the Brightness value between -30 and +30.
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ Image Adjust ⇒⇒ ⇒⇒ Brightness
Color
The Color function (or Saturation) is used to adjust the color saturation levels. Adjust the Color value between -30
and +30.
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ Image Adjust ⇒⇒ ⇒⇒ Color
Tint
The Tint function is used to adjust the color hue to obtain true color reproduction and is only active for NTSC
sources on Video and S-Video inputs. Adjust the Tint value between -30 (more red) and +30 (more green).
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ Image Adjust ⇒⇒ ⇒⇒ Tint
Sharpness
The Sharpness function is used to adjust the image sharpness of the picture. Adjust the Sharpness value between
-30 (soft) and +30 (sharp).
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ Image Adjust ⇒⇒ ⇒⇒ Sharpness
DNR
The DNR function (Digital Noise Reduction) is used to reduce digital noise on the picture. Adjust the DNR value
between 0 (low) and +30 (high).
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ Image Adjust ⇒⇒ ⇒⇒ DNR
Color Temp.
Color temperature can be set to Low, Middle, High, User 1 or User 2. (User 1 and 2 allows a fine adjustment of the
values for red, green, and blue channels).
Color temperature stands for the spectral properties of a light source. Low color temperature implies warmer (more
yellow/red) light while high color temperature implies a colder (more blue) light.
The User settings allow a manual configuration of each primary color Red, Green and Blue from -255 to 0.
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ ColorTemp ⇒⇒ ⇒⇒ User1 ⇒⇒ ⇒⇒ red / blue / green
Gamma
Gamma is the relationship between the color values of the data and the color values displayed. The Gamma
coefficient makes it possible to adjust the brightness of the midtones only without affecting the very bright and very
dark areas. If gamma is set too high, middle tones appear too dark. If it's set too low, middle tones appear too light.
The Gamma correction factor can be set to Normal, A, B or C.
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ Gamma
Offset
The Offset function is used to adjust the black level. Adjust the Offset values for each color channel between -30
and +30 (red, blue and green).
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ Offset ⇒⇒ ⇒⇒ red / blue / green
Pixel Adjust
The pixel adjust can fine-tune the overall image position and the panel alignments up to +/- 3 pixels horizontally and
+/- 2 pixels vertically. Modifying the optical lens shift may require a pixel adjustment.
MENU ⇒⇒
⇒⇒ Image ⇒⇒ ⇒⇒ Pixel Adjust
Accurate picture calibrations may require professional tools such as dedicated software and colormeter.

5.0 PICTURE SETTING
12 R599741 - Blackwing Two Quick Start guide
5.4 Setup Menu
Image Profile
An Image Profile defines a set of values that customize a picture setting. These values are stored into memory in
Cinema, Natural Dynamic, User 1, User 2 and User 3 Image Profiles. The following parameters can be adjusted and
memorized:
• Contrast
•Brightness
• Color
• Sharpness
• DNR
•Color Temp.
• Gamma
• Offset
5.5 Troubleshooting
On Screen Warnings
MESSAGE CAUSE DETAIL
No device is connected to the Input terminal. The terminal is
connected but there is no signal.
Input a video signal.
A video signal that cannot be used with this unit has been input.
Input a compatible video signal.
The message is displayed when the accumulated lamp time reaches
1900 hours. The message can be cleared by pressing the [EXIT]
button.
Get ready a new lamp in advance or replace as soon as
possible.
The message will be displayed with the Warning word when the
accumulated lamp time exceeds 2000 hours. The message can be
cleared by pressing the [EXIT] button.
Install a new lamp and reset the lamp time.

5.0 PICTURE SETTING
R599741 - Blackwing Two Quick Start guide 13
5.6 Specifications
Overview
The Blackwing Two uses the latest technology developed for professional projectors. The D-ILA is the abbreviation
for Direct drive Image Light Amplifier. D-ILA devices are manufactured using extremely high-precision technology.
• Design and specifications are subject to change without prior notice.
•Please note that some of the pictures and illustrations may have been abridged, enlarged or contextualized in
order to aid comprehension. Images may differ from the actual product.
• (*) The picture Contrast Ratio may vary with viewing conditions and environment.
•(**) When the Component Input is configured in SCART mode (RGsB mode), only PAL, SECAM and NTSC
formats are supported.
Emission Method D-ILA (Reflective Active Matrix Principle)
Display Panel/Size 0.7" D-ILA
Native Resolution 3x 1920 x 1080 pixels
Native Contrast Ratio 20,000:1
Projection Lens Throw Ratio 1.4:1 - 2.8:1
2.0x Lens: manual zoom and focus
Brightness 1000 ANSI Lumens
Contrast Ratio 15,000:1 *
Light-source Lamp 200 W Ultra-high pressure mercury lamp
Screen Size 50" to 250" (Aspect ratio 16:9)
Distance range from1,52 m to 12 m
Input Signals
Video Input NTSC, PAL, SECAM
S-Video Input NTSC, PAL, SECAM
Component Input (YPbPr, RGB and RGsB) 480i/p, 576i/p, 720p50/60, 1080i50/60 **
HDMI 1 Input 480i/p, 576i/p, 720p50/60, 1080i50/60, 1080p24/50/60
HDMI 2 Input 480i/p, 576i/p, 720p50/60, 1080i50/60, 1080p24/50/60
Color System NTSC, NTSC4.43, PAL, PAL-N, PAL-M, SECAM
Input Sync Frequency
Analog Inputs 74.5 Mhz
Digital Inputs 148,5 Mhz
Power Requirements AC 100 V - 240 V AC, 50 Hz/60 Hz
Power Consumption 280W (2.7W in standby mode)
Operation Environment Te mperature: +5°C to +35°C
Storage Temperature: -10°C to +60°C
Humidity: 20 % to 80 % (No condensation)
Dimensions
(Width x Height x Depth)
585 x 175 x 505 mm - 23.0" x 6.9" x19.9"
(Excluding lens and protrusion portion)
Net Weight 11,0 Kg - 24.5 lbs
