CHAPTER
2-1
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
2
Installation
This chapter provides procedures for installing the Cisco 1711 and Cisco 1712
Security Access routers and includes the following sections:
•Before Installing the Router
•Connecting the Router to Your Local Network
•Connecting the Router to Your Service Provider’s Equipment
•Connecting Networked Devices to the Router’s Switch Ports
•Connecting Power to the Router
•Verifying Your Installation
•Optional Installation Steps
Before Installing the Router
The Cisco 1711 and Cisco 1712 Security Access routers are shipped ready for
desktop mounting. Before making the power and network connections, simply set
the router on a desktop, shelf, or other flat surface.
Note For instructions on wall-mounting the router, see the “Wall-Mounting” section on
page 2-14.
Be sure to read the safety information in the Regulatory Compliance and Safety
Information for Cisco 1700 Routers document that came with your router.

Chapter 2 Installation
Connecting the Router to Your Local Network
2-2
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Warning Read the installation instructions before you connect the system to its power
source.
Warning Do not work on the system or connect or disconnect cables during periods of
lightning activity.
Caution Do not place anything on top of the router that weighs more than 10 pounds
(4.5 kg). Excessive weight on top of the router could damage the chassis.
Connecting the Router to Your Local Network
The Cisco 1711 and Cisco 1712 Security Access routers are connected to your
local Ethernet network through the yellow 10/100 Ethernet port. You must
provide the following items for this connection:
•A straight-through, RJ-45-to-RJ-45, Ethernet cable
•A 10/100-Mbps Ethernet hub or switch
Warning The ports labeled 10/100 ETHERNET and CONSOLE are safety extra-low voltage
(SELV) circuits. SELV circuits should only be connected to other SELV circuits.
Because BRI circuits are treated like telephone-network voltage, avoid
connecting the SELV circuits to the telephone network voltage (TNV) circuits.
(To see translated versions of this warning, refer to the Regulatory Compliance
and Safety Information for Cisco 1700 Routers document that came with the
router.)
Caution Always connect the Ethernet cable to the yellow ports on the router. Do not
connect the cable to an ISDN S/T or U port (on a WIC) or to an NT-1 that is
connected to a WIC. Accidentally connecting the cable to the wrong port can
damage your router.

2-3
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Connecting the Router to Your Local Network
The Cisco 1711 Security Access router is a fixed configuration router that
includes a 1-port analog modem card (WIC-1-AM) that is installed in the WAN
interface card (WIC) slot 1.
The Cisco 1712 Security Access router is a fixed configuration router that
includes a 1-port Integrated Services Digital Network Basic Rate Interface
(ISDN-BRI) S/T interface card (WIC-1B-S/T) that is installed in WIC slot 1.
Both the Cisco 1711 and Cisco 1712 Security Access routers also include an
integrated 4-port 10/100-Mbps Ethernet switch in WIC slot 0, which is supported
only on secure Cisco IOS images.
Note For additional information and technical specifications about the 1-port analog
modem interface, WIC-1-AM card, refer to the V.90 Modem WAN Interface Cards
on the Cisco 1700 Series Routers.
For additional information and technical specifications about the 1-port ISDN
BRI (S/T interface), WIC-1B-S/T card, refer to the Cisco 3600/2600 Series ISDN
BRI Connectivity Options.
Note The WIC-1-AM, WIC-1B-S/T and the Ethernet switch WIC are not field
replaceable.
To connect the Cisco 1711 Security Access router or the Cisco 1712 Security
Access router to the local network, follow these steps:
Step 1 Connect one end of the cable to the yellow Ethernet port (labeled
10/100 ETHERNET), as shown in Figure 2-1 on page 2-4.

Chapter 2 Installation
Connecting the Router to Your Local Network
2-4
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Figure 2-1 Connecting the Router to the Local Network
Step 2 Connect the other end of the cable to a network port on the hub or switch.
91650
SEEMANUALBEFOREINSTALLATION
BRI
S/T
CD
B2
B1
AUX
FDX
WIC0OK LINK100 WIC1OK
MODOK
10/100 ETHERNET
Cisco 1712
+5, +12, -12 VDC
10/100
Ethernet port
Straight-through
Ethernet cable Ethernet hub or switch
(10, 100, or 10/100 Mbps)
AUI
87654321
CONSOLE
ACT LNKACT LNK ACT LNK
4x 3x 2x 1x
WIC
4ESW
ACT LNK
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
SEE
MANUAL
BEFORE
INSTALLATION
SP
CN
OH
LINE 0PHONE
WIC-1AM
Modem
or
WIC-1-AM
WIC-1B-S/T

2-5
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Connecting the Router to Your Service Provider’s Equipment
Connecting the Router to Your Service Provider’s
Equipment
You can also connect the Cisco 1711 or Cisco 1712 Security Access router to
your service provider’s broadband (xDSL or cable) modem equipment by
following these steps:
Step 1 Connect one end of the cable to the yellow Ethernet port (labeled
10/100 ETHERNET). See Figure 2-2 for an illustration of this connection.

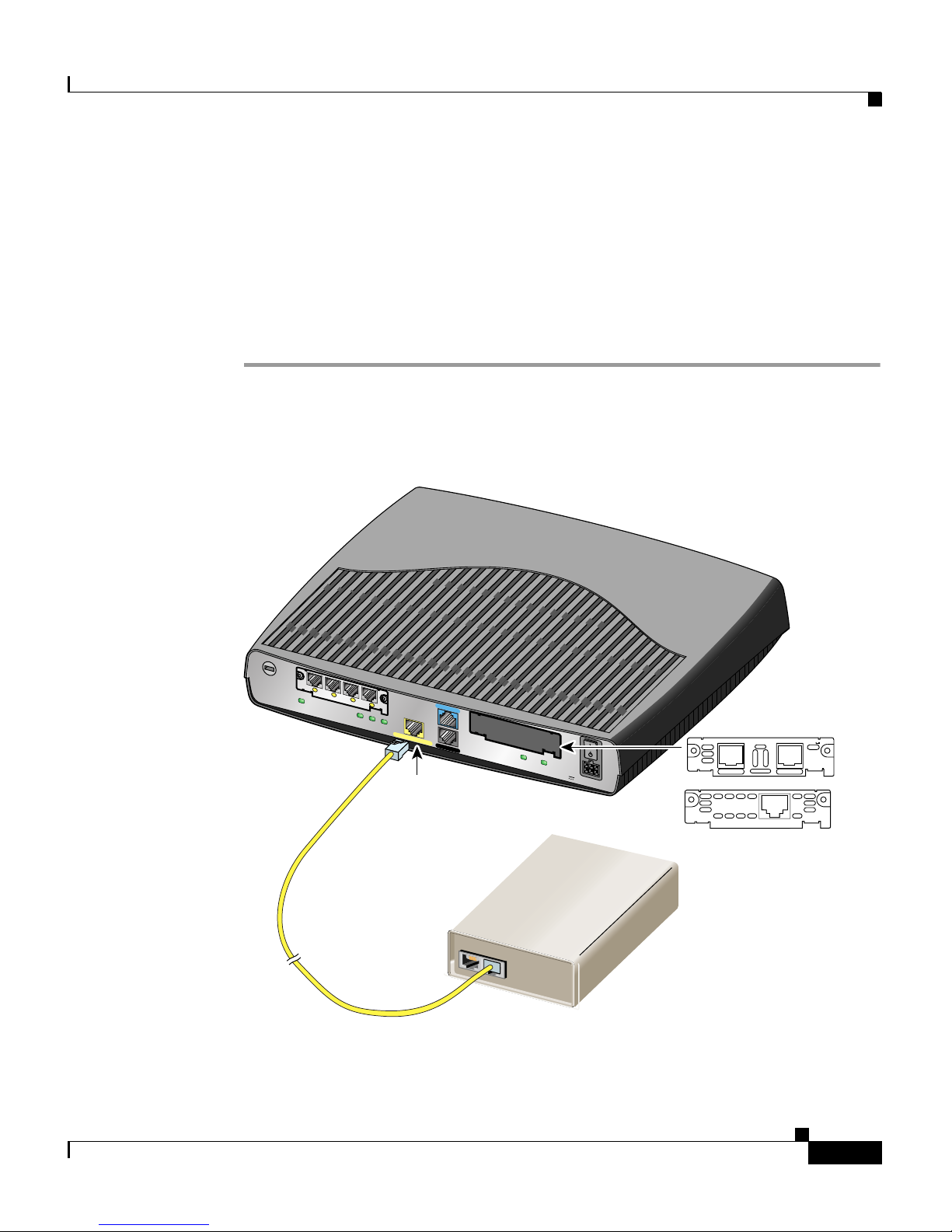

Figure 2-2 Connecting the Router to Your Service Provider’s Equipment
SEEMANUALBEFOREINSTALLATION
BRI
S/T
CD
B2
B1
AUX
FDX
WIC0OKLINK
100 WIC1OK
MODOK
10/100 ETHERNET
Cisco 1712
+5, +12, -12 VDC
CONSOLE
ACTLNK
ACTLNKACTLNK
4x 3x2x 1x
WIC
4ESW
ACTLNK
91718
10/100
Ethernet port
Straight-through
Ethernet cable
Cable modem/DSL hub
12
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
SEE
MANUAL
BEFORE
INSTALLATION
SP
CN
OH
LINE 0PHONE
WIC-1AM
Modem
or
WIC-1-AM
WIC-1B-S/T

Chapter 2 Installation
Connecting Networked Devices to the Router’s Switch Ports
2-6
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Step 2 Connect the other end of the cable to a network port on your service provider’s
broadband (xDSL or cable) modem equipment.
Connecting Networked Devices to the Router’s
Switch Ports
The Cisco 1711 and Cisco 1712 Security Access routers support connections from
a computer with a NIC or other networked device (such as hubs or switches) to
the router’s integrated 4-port 10/100 Mbps Ethernet switch.
Follow these steps to connect other networked devices to the router’s switch ports:
Step 1 Connect one end of an Ethernet cable to the Ethernet Port (RJ-45) as shown in
Figure 2-3.
Figure 2-3 Connecting Networked Devices to the Router’s Switch Ports
91622
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
AUX
FDX
WIC0OKLINK
100WIC1OK
MODOK
Cisco 1712
+5, +12, -12 VDC
Straight-through
Ethernet cable Ethernet hub
123456
CONSOLE
ACTLNK
ACTLNKACTLNK
4x 3x 2x 1x
WIC
4ESW
ACTLNK
SEEMANUAL BEFOREINSTALLATION
BRI
S/T
CD
B2
B1
SEE
MANUAL
BEFORE
INSTALLATION
SP
CN
OH
LINE 0PHONE
WIC-1AM
Modem
or
Ethernet port
(RJ-45)
WIC-1-AM
WIC-1B-S/T

2-7
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Connecting Power to the Router
Step 2 Connect the other end of the cable to a port on the hub, switch, or the Ethernet
port on your computer.
Note The example provided in Figure 2-3 on page 2-6 shows connectivity to
a hub. The router’s Ethernet switch port can be connected to other
networked devices, such as a switch or computer with a NIC. If you are
connecting the router’s switch port to another switch, use a crossover
cable.
Note If you are connecting a computer to the router’s switch port, it will take about
30 seconds for connectivity to be established due to the Spanning-Tree Protocol
(STP) disabling the ports until a loop-free topology is determined. When you use
this type of connection, you must configure the spanning-tree portfast command
on the router’s switch port. The spanning-tree portfast command causes a
spanning tree port to enter the forwarding state immediately, bypassing the
listening and learning states.
Caution You can use the portfast feature on switch ports that are connected to a single
workstation or PC only to allow those devices to connect to the network
immediately, rather than waiting for spanning tree to converge. Do not use the
portfast feature on ports that are connected to networking devices such as hubs,
routers, switches, bridges, or concentrators.
Connecting Power to the Router
Read the following warnings before connecting the router to power.
Warning The power supply is designed to work with TN power systems.

Chapter 2 Installation
Connecting Power to the Router
2-8
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Warning This product relies on the building’s installation for short-circuit (overcurrent)
protection. Ensure that a fuse or circuit breaker no larger than 120VAC, 15AU.S.
(240VAC, 16A international) is used on the phase conductors (all
current-carrying conductors).
Warning This equipment is intended to be grounded. Ensure that the host is connected to
earth ground during normal use.
Follow these steps to connect power to the router and to turn the router on:
Step 1 Connect the attached power-supply cord to the power socket (labeled +5, +12,
-12 VDC) on the router rear panel, as shown in Figure 2-4 on page 2-9.

2-9
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Connecting Power to the Router
Figure 2-4 Connecting the Power Supply
Step 2 Connect one end of the separate power cord to the socket on the power supply.
Step 3 Connect the other end of the separate power cord to a power outlet.
Step 4 Press the router power switch to ON ( | ).
Step 5 Confirm that the router has power by checking that the PWR LED on the front
panel is on.
Cisco 1701
CONSOLE
AUX
FDX LINK
100
WIC0OK WIC 1OK
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
ACT LNK
ACT LNK ACT LNK
4x 3x 2x 1x
WIC
4ESW
ACT LNK
MODOK
Power socket
WIC-1-AM
WIC-1B-S/T
91651
Power supply
Separate
power cord
Attached
power supply cord
10/100 ETHERNET
+5, +12, -12 VDC
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
SEE
MANUAL
BEFORE
INSTALLATION
SP
CN
OH
LINE 0PHONE
WIC-1AM
Modem
or

Chapter 2 Installation
Verifying Your Installation
2-10
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Verifying Your Installation
You can verify that you have correctly installed the router by checking the
following LEDs:
•PWR (front panel)—On when power is being supplied to the router.
•OK (front panel)—On when the router software is loaded and functional.
Blinking means that the router is performing a power-on self-test (POST).
•WIC0/WIC1 OK (back panel)—On when a WIC is correctly installed in the
corresponding WIC slot.
•ETH ACT (front panel)—Blinking when there is network traffic on the local
10/100 Ethernet LAN.
•WIC0ACT or WIC1 ACT (front panel)—See Table 1-3.
•LINK (back panel)—On when the router is correctly connected to the local
Ethernet LAN through the 10/100 ETHERNET port.
•MOD OK (back panel)—On when the VPN hardware encryption module is
installed and recognized by IOS.
Optional Installation Steps
This section describes some installation steps that you might or might not use,
depending on your site and on how you are configuring the router. This section
describes the following procedures:
•Connecting a PC to the Router’s Console Port
•Connecting a Modem on the AUX Port
•Wall-Mounting
•Stacking the Router
•Unstacking the Router

2-11
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Optional Installation Steps
Connecting a PC to the Router’s Console Port
If you want to configure the router by using the Cisco IOS command-line
interface, you must connect the router console port to a terminal or PC. The cable
and adapter required for this connection are included with the router.
To configure the router by using a PC, the PC must have some type of terminal
emulation software installed. The software should be configured with the
following parameters:
•9600 baud
•8 data bits
•No parity bits
•1 stop bit
Note Refer to the Cisco 1700 Router Software Configuration Guide for detailed
information about configuring the router using Cisco IOS software.
To connect the Cisco 1711 or Cisco 1712 Security Access router to a terminal or
PC, follow these steps:
Step 1 Connect the blue console cable to the blue console port on the back of the router,
as shown in Figure 2-5 on page 2-12.

Chapter 2 Installation
Optional Installation Steps
2-12
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Figure 2-5 Connecting the Console Cable to the Router
Step 2 Connect the DB-9 end of the console cable to the console port (also called the
serial port) on your PC. If this adapter does not fit your PC console port, you
must provide an adapter that fits.
Connecting a Modem on the AUX Port
When a modem is connected to the auxiliary port, a remote user can dial into the
router and configure it. You can use the blue console cable that came in the
accessory kit.
91652
Blue console cable
To PC or terminal
CONSOLE
AUX
FDX
WIC0OK LINK
100 WIC1OK
MODOK
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
10/100 ETHERNET
Console port
Cisco 1701
+5, +12, -12 VDC
ACT LNK
ACT LNK ACT LNK
4x 3x 2x 1x
WIC
4ESW
ACT LNK
WIC-1-AM
WIC-1B-S/T
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
SEE
MANUAL
BEFORE
INSTALLATION
SP
CN
OH
LINE 0PHONE
WIC-1AM
Modem
or

2-13
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Optional Installation Steps
Note An external modem is not required for use on the Cisco 1711 Security Access
router WIC-1-AM card.
Follow these steps to connect a modem to the router, using the console cable:
Step 1 Connect the RJ-45 end of the cable to the black AUX port on the back of the
router, as shown in Figure 2-6.
Figure 2-6 Connecting a Modem to the Router’s AUX Port
CONSOLE
AUX
FDX
WIC0OK LINK
100 WIC1OK
MODOK
SEEMANUALBEFOREINSTALLATION
BRI
S/T
CD
B2
B1
10/100 ETHERNET
Cisco 17xx
+5, +12, -12 VDC
ACT LNK
ACT LNK ACT LNK
4x 3x 2x 1x
WIC
4ESW
ACT LNK
Console cable
Modem
91653
DB-9-to-DB-25 adapter
AUX port (RJ-45)
WIC-1-AM
WIC-1B-S/T
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
SEE
MANUAL
BEFORE
INSTALLATION
SP
CN
OH
LINE 0PHONE
WIC-1AM
Modem
or

Chapter 2 Installation
Optional Installation Steps
2-14
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Step 2 Connect the DB-9 end of the cable to the DB-9 end of the DB-9-to-DB-25 adapter.
Step 3 Connect the DB-25 end of the adapter to the modem.
Wall-Mounting
The Cisco 1711 and Cisco 1712 Security Access routers can be wall-mounted
using two number six, 3/4-inch screws and the molded mounting brackets on the
bottom of the hub, as shown in Figure 2-7. You must provide the screws. We
recommend using pan-head or round-head screws.
Figure 2-7 Wall-Mount Brackets—Bottom of Router
To mount the router on a wall or other surface:
Step 1 Install the two screws 3.75 inches (9.52 centimeters) horizontally apart on a wall
or other vertical surface.
The screws should protrude 0.25 inch (0.64 centimeter) from the surface of the
wall.
Front panel of router
12016
3.75"
(9.52 cm)
Mounting
bracket
Mounting
bracket
Mounting
bracket
Bottom
of router
Mounting
bracket

2-15
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Optional Installation Steps
Step 2 Hang the router on the screws with either the left side or right side mounting
brackets so that
•The LEDs are visible to the user—Because the LEDs indicate the router
operating status, they need to be easily visible.
•The power supply does not hang from its cable—If the power supply is not
supported, it might disconnect from the cable that connects it to the router.
Caution If you install the screws in drywall, use hollow-wall anchors (1/8 inch
by 5/16 inch) to secure the screws. If the screws are not properly anchored, the
strain of the cables connected to the router rear-panel connectors could pull the
router from the wall.
Stacking the Router
You can stack one Cisco 1711 Security Access router and/or one Cisco 1712
Security Access router in a four-device stack, along with other Cisco products
designed to be stacked with the router. You can stack each device directly on top
of another device.
Note The Cisco 1711 and Cisco 1712 Security Access routers are not shipped with the
stacking equipment described in this section; however, the equipment is included
with all other Cisco products that are designed to be stacked.
Each Cisco product designed to be stacked with the router comes with a stacking
clip and a fastener for keeping the multiple devices together in a stack. Before you
stack the devices, assemble the clip and fastener as shown in Figure 2-8 on
page 2-16.

Chapter 2 Installation
Optional Installation Steps
2-16
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Figure 2-8 Assembling Stacking Clip and Fastener
After assembling the clip and fastener, follow these steps to stack the router with
another device:
Step 1 Place the clip on top of the lower device, as shown in Figure 2-9 on page 2-17.
Slide the clip forward so that the front tabs slide into the vent slots. Make sure that
the rear hooks fit over the edge of the lower device.
H11542
Push plastic fastener
through small hole
at the end of the
stacking clip.

2-17
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Optional Installation Steps
Figure 2-9 Stacking the Router
Step 2 Position the router onto the clips so that the rear hooks fit over the edge of the
router.
Step 3 Snap the router to the clip by pushing it down. Make sure that the plastic fastener
fits into the bottom of the router.
MDI MDI-X
5X 6X 7X 8X
1
SPEED
100BaseTX
10BaseT
LED
SOLID
BLINK
234
5678
91654
Front
tabs
Back panel of
lower hub
Plastic
fastener
Rear
hooks
Rear
hooks
FDX LINK
100
WIC0OK WIC 1OK
MOD OK
ACT LNK
ACT LNK ACT LNK
4x 3x 2x 1x
WIC
4ESW
ACT LNK
CONSOLE
AUX
Cisco 17xx
10/100 ETHERNET
+5, +12, -12 VDC
Bottom of router
WIC-1-AM
WIC-1B-S/T
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
SEE
MANUAL
BEFORE
INSTALLATION
SP
CN
OH
LINE 0PHONE
WIC-1AM
Modem
or

Chapter 2 Installation
Optional Installation Steps
2-18
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Unstacking the Router
Follow these steps to unstack the router from another device:
Step 1 Press up on the tab over the center of the lower device to release the clip from the
vent, as shown in Figure 2-10.
Figure 2-10 Unstacking the Router
MDI MDI-X
5X 6X 7X 8X
1
SPEED
100BaseTX
10BaseT
LED
SOLID
BLINK
234
5678
FDX LINK100
WIC0OK WIC1OK
MOD OK
ACT LNK
ACT LNKACT LNK
4x 3x 2x 1x
WIC
4ESW
ACT LNK
CONSOLE
AUX
Cisco 17xx
10/100 ETHERNET
+5, +12,-12VDC
91655
3
2
10/100 ETHERNET
1
WIC-1-AM
WIC-1B-S/T
SEE MANUAL BEFORE INSTALLATION
BRI
S/T
CD
B2
B1
SEE
MANUAL
BEFORE
INSTALLATION
SP
CN
OH
LINE 0PHONE
WIC-1AM
Modem
or

2-19
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Optional Installation Steps
Step 2 Slide the clip and router toward you.
Step 3 Use both hands to lift the router and the stacking clip off the lower device.
Afterward, remove the clip from the bottom of the router.

Chapter 2 Installation
Optional Installation Steps
2-20
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
