Cisco Video Surveillance 3520 IP Camera
Installation Guide
Text Part Number: OL-28645-01

NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1005R)
Cisco Video Surveillance 3520 IP Camera Installation Guide
Copyright © 2013 Cisco Systems, Inc. All rights reserved.

iii
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
CONTENTS
Preface v
Overview v
Organization v
Obtaining Documentation, Obtaining Support, and Security Guidelines v
CHAPTER 1Overview 1-1
Introduction 1-1
Package Contents 1-2
IP Camera Physical Details 1-3
General Purpose I/O Terminal Block 1-5
CHAPTER 2Camera Installation 2-1
Installation Guidelines 2-1
Warnings Before Installation 2-1
IP Camera Installation 2-4
Mounting the IP Camera Directly to a Surface 2-4
Mounting the IP Camera Flush with a Surface 2-7
Mounting the IP camera with a Vandal Resistant Enclosure 2-11
CHAPTER 3Performing the Initial Setup of the IP Camera 3-1
CHAPTER 4Camera Management 4-1
Understanding the IP Camera User Interface 4-1
IP Camera Window Links 4-1
IP Camera Windows 4-2
Powering the IP Camera On or Off 4-3
Resetting the IP Camera 4-3
Viewing Live Video 4-4
I NDEX

Contents
iv
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01

v
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Preface
Overview
This document, Cisco Video Surveillance 3520 IP Camera Installation Guide, provides information
about installing and deploying the Cisco Video Surveillance 3520 IP Camera.
Organization
This manual is organized as follows:
Obtaining Documentation, Obtaining Support, and Security
Guidelines
For information about obtaining documentation, submitting a service request, and gathering additional
information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and
revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed
and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free
service and Cisco currently supports RSS version 2.0.
Chapter 1, “Overview” Provides an overview of the IP camera and its features.
Chapter 2, “Camera Installation” Provides instructions for physically installing the IP camera.
Chapter 3, “Performing the Initial
Setup of the IP Camera”
Provides instructions for performing the initial network setup of
the IP camera.
Chapter 4, “Camera Management” Provides instructions for accessing and understanding the
IP camera user interface, adjusting its focus and, powering the IP
camera on and off, and resetting the IP camera.

vi
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Preface

CHAPTER
1-1
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
1
Overview
This chapter describes the Cisco Video Surveillance 3520 IP Camera, and includes the following topics:
• Introduction, page 1-1
• Package Contents, page 1-2
• IP Camera Physical Details, page 1-3
Introduction
The Cisco Video Surveillance 3520 IP camera is an indoor, high definition, professional fixed dome
IP camera with industry-leading image quality and processing power. The 1 megapixel (MP) IP camera
offers 720p full HD resolution (1280 X 800) with superb image quality up to 30 frames per second (FPS)
while optimizing network usage with either H.264 or MJPEG compression. It can capture a much more
comprehensive area than a standard VGA model, significantly reducing the number of units required. It
is especially suitable for monitoring indoor spaces such as building entrances, retail spaces or
applications requiring accurate identification.
For complete installation and tampering prevention, the 3520 IP camera also allows for different
mounting options such as surface, vandal-resistant, and flush mount. Additionally, the metal
vandal-resistant housing option effectively provides robust protection against vandalism.
With other advanced features such as 802.3af compliant PoE, micro SD/SDHC card for local storage,
and e-PTZ functionality, the 3520 IP camera provides the most robust solution suitable for any
demanding indoor environment.

1-2
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 1 Overview
Package Contents
Package Contents
The Cisco Video Surveillance 3520 IP Camera package includes the following items:
• Cisco Video Surveillance 3520 IP Camera (1)
• Installation template and alignment sticker (1)
• Wall anchors (3)
• Screws (3)
• Black cover (1)
• Ethernet cable (1)
• RJ45 coupler (1)
• Extra set of labels (3)
• Cisco documentation pointer card (1)
• Cisco RoHS document (1)

1-3
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 1 Overview
IP Camera Physical Details
IP Camera Physical Details
Figure 1-1 and the table that follows describe the physical features of the 3520 IP camera.
Figure 1-1 IP Camera Details
1Light sensor Senses the level of ambient light to determine when to switch
day/night mode.
2Varifoc a l l e ns IP camera lens that changes focus as the focal length changes.
3Black cover A dark cover with a cutout for the camera lens that makes it
difficult to see where the IP camera is pointed.
Note You must temporarily remove the black cover when
adjusting the camera field of view, focal length, or
zoom factor.
3
2
1
5
67 8 9
4
10 11

1-4
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 1 Overview
IP Camera Physical Details
4Tilt adjustment screw Used when tilting the camera to set the field of view.
5Recessed reset button Recessed button that reboots the IP camera or resets it to a
default state. You can use a pin or paper clip to depress it. It can
be used any time that the IP camera is on and can have various
effects, as described in the “Resetting the IP Camera” section
on page 2-11.
6External microphone and
video output switches
External microphone
• Off (up)—disables an external microphone connected to
the IP camera.
• On (down)—enables an external microphone connected to
the IP camera.
Video output
• NTSC 60Hz (up)—switches camera operation to the
National Television System Committee (NTSC) standard.
• PAL 50Hz (down)—switches camera operation to the
Phase Alternating Line (PAL) standard.
7SD/SDHC card slot Support for the SD/SDHC card slot will be available in future
releases.
8Audio/video out (green) Allows the connection of an optional Y cable or mini cable with
BNC connector. You can connect a video monitor to the mini
cable with BNC connector. Both cables are included in the
optional audio/video cables accessory kit can be purchased
from Cisco (Cisco part number CIVS-AVCABLE).
Note Support for audio will be in future releases.
9Microphone in (pink) Connection for an external microphone.
10 Ethernet 10/100 RJ45 socket Accepts a standard LAN cable to connect the IP camera to a
10/100BaseT router or switch.
11 GPIO terminal block General purpose input/output (GPIO) terminal block that is
used to connect external input and output devices. For more
information, see Figure 1-2.

1-5
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 1 Overview
IP Camera Physical Details
General Purpose I/O Terminal Block
Figure 1-2 shows the GPIO terminal block pin locations and descriptions.
Figure 1-2 GPIO Terminal Block Pin Locations and Descriptions
Note The maximum output load from pins 7 and 8 is 400mA.
Pin Description
1DC 12V-
2DC 12V+
3AC 24V_2
4AC 24V_1
5DI- (GND)
6DI+
7DO-
8DO+ (+12V)
87654321

1-6
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 1 Overview
IP Camera Physical Details

CHAPTER
2-1
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
2
Camera Installation
This chapter provides information and instructions for installing the Cisco Video Surveillance 3520
IP Camera, and includes the following topics:
• Installation Guidelines, page 2-1
• Warnings Before Installation, page 2-1
• IP Camera Installation, page 2-4
Installation Guidelines
This section describes how to install the IP camera. Before installing, review these guidelines:
• The IP camera requires a network cable and a connection to a standard 10/100BaseT router or
switch. To power the IP camera with Power over Ethernet (PoE), a switch must be 802.3af
compliant.
• If you are using the IP camera on a network connection that does not provide PoE, you must use a
Cisco 12 VDC power adapter (Cisco part number CIVS-PWRPAC-12V) or a third-party 24 VAC
power adapter.
• If you are using an external speaker, microphone, input device, output device, or pan/tilt control
device, you must configure additional settings after installing and performing the initial set up of the
IP camera before the external device can fully operate. For detailed information about these settings,
see the Cisco Video Surveillance 3000 Series IP Camera Configuration Guide.
• If you do not connect an external device (speaker, microphone, input, output, or pan/tilt control)
when you perform the following installation procedure, you can install any of these devices later.
Warnings Before Installation
• Power off the IP Camera as soon as smoke
or unusual odors are detected.
Contact your distributor in the event of this
happening.
• Keep the IP Camera away from water. If
the IP Camera becomes wet, power off
immediately.
Contact your distributor in the event of this
happening.

2-2
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 2 Camera Installation
Warnings Before Installation

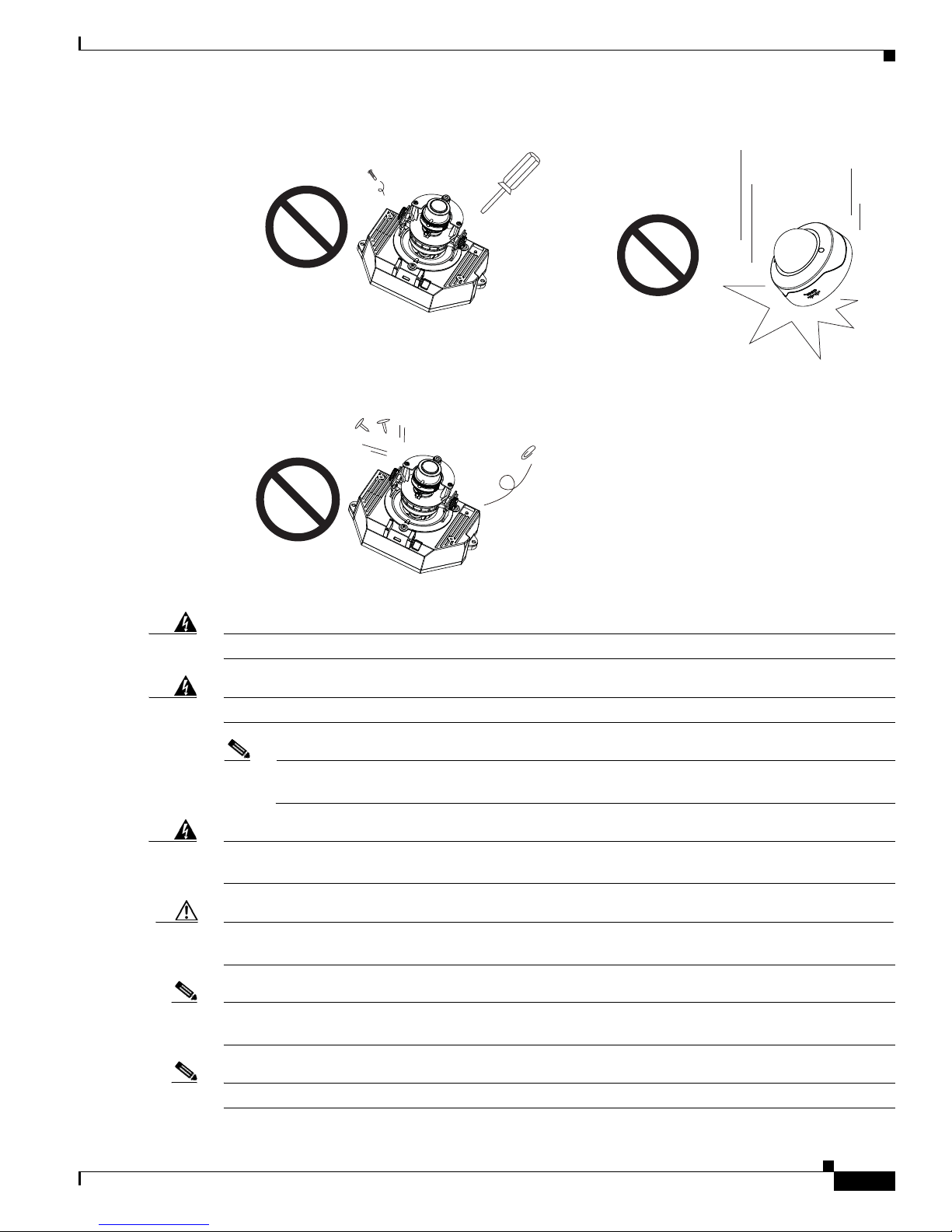

• Do not place the IP Camera around heat
sources, such as a television or oven.
• Refer to your user’s manual for the
operating temperature.
• Keep the IP Camera away from direct
sunlight.
• Do not place the IP Camera in high
humidity environments.
• Do not place the IP Camera on unsteady
surfaces.
• Do not touch the IP Camera during a
lightning storm.

2-3
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 2 Camera Installation
Warnings Before Installation
Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074
Warning The power supply must be placed indoors. Statement 331
Note If you use the IP camera outdoors, place the camera and the power supply in a suitable NEMA
enclosure.
Warning This product must be connected to a power-over-ethernet (PoE) IEEE 802.3af compliant power source
or an IEC60950 compliant limited power source. Statement 353
Caution Inline power circuits provide current through the communication cable. Use the Cisco provided cable or
a minimum 24AWG communication cable.
Note The power adapter that you use with the IP camera must provide power that is within +/–10% of the
required power.
Note The equipment is to be connected to a Listed class 2, limited power source.
• Do not disassemble the IP Camera. • Do not drop the IP Camera.
• Do not insert sharp or tiny objects into the
IP Camera.

2-4
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 2 Camera Installation
IP Camera Installation
IP Camera Installation
Install the 3520 IP camera using one of the following procedures:
• Mounting the IP Camera Directly to a Surface, page 2-4
• Mounting the IP Camera Flush with a Surface, page 2-7
• Mounting the IP camera with a Vandal Resistant Enclosure, page 2-11
Mounting the IP Camera Directly to a Surface
To directly mount the 3520 IP camera to a surface, complete the following steps:
Procedure
Step 1 Attach the included alignment sticker to the ceiling or wall.
Step 2 Using the circle marks on the sticker, drill 2 pilot holes symmetrically on each side into the ceiling or
wall. Then hammer the included wall anchors into the holes.
Step 3 Secure the IP camera to the ceiling or wall with the included screws.
Step 4 Connect an STP (shielded twisted pair) Category 5 or higher network cable to the LAN port on the back
of the camera. Connect the other end of the network cable to a 10/100/BaseT router or switch.
If your network provides PoE, the IP camera powers on.
Step 5 (Optional) Connect the following cables to the GPIO terminal block:
• External power cable if Power over Ethernet (PoE) is not available.
• I/O cables for external input or out put devices, such as sensors or alarms.

2-5
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 2 Camera Installation
IP Camera Installation
The GPIO terminal block pin locations and descriptions are as follows:
Step 6 (Optional) Use a mini cable with BNC connector to temporarily attach an NTSC or PAL compliant
analog video display device to the analog video out port on the IP camera.
Note The mini cable with BNC adapter is included in the audio/video cables accessory kit, which you can
purchase from Cisco (Cisco part number CIVS-AVCABLE).
Analog video is enabled by default to allow you to adjust the camera field of view during installation.
However, it is not supported as a normal camera feed and is automatically disabled when any of the
following camera settings are made:
• The primary video stream frame rate must be set higher than 15 fps.
• The secondary video stream must is enabled.
Note We recommend that you disable analog video after installation. To disable analog video, see the Cisco
Video Surveillance 3000 Series IP Camera Configuration Guide.
Step 7 Remove the black cover.
Step 8 While viewing video from the IP camera, perform the following steps to adjust the 3-axis field of view:
a. Grip the two tilt adjustment screws and pan the IP camera left or right.
b. Loosen the two thumb screws, tilt the IP camera, then tighten the thumb screws.
c. Rotate the IP camera to adjust the image horizontal orientation.
Pin Description
112 VDC-
212 VDC+
324 VAC
424 VAC
5DI-
6DI+
7DO-
8DO+
87654321
abc

2-6
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 2 Camera Installation
IP Camera Installation
Step 9 While viewing video from the IP camera, perform the following steps to adjust the focal length and zoom
factor.
a. Loosen the locking screw on the focus ring, adjust the focal length (from near to infinity [∞]) to
achieve a sharp image, then tighten the locking screw.
b. Loosen the locking screw on the zoom ring, adjust the zoom factor (from telephoto to wide angle)
to achieve the desired field of view, then tighten the locking screw. If the focus is no longer sharp
after adjusting the zoom, repeat Step 7a to achieve a sharp image.
Step 10 Install the black cover.
Step 11 Attach the dome cover to the IP camera base by aligning it with the mounting holes.
Step 12 Use the included screwdriver to tighten the four dome cover screws to secure the dome cover to the
IP camera. Make sure all parts of the IP camera are securely installed.
What to do next
After you install the IP camera, follow the instructions in the “Performing the Initial Setup of the IP
Camera” section on page 3-1 to access the IP camera through your network.
Zoom
Focus

2-7
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 2 Camera Installation
IP Camera Installation
Mounting the IP Camera Flush with a Surface
To mount the 3520 IP camera flush with a surface, complete the following steps:
Procedure
Step 1 Secure the IP camera inside the camera housing using the two included screws.
Step 2 Remove the ceiling tile from the location at which you want to mount the IP dome and cut a 7-3/4 inch
(19.68 cm) diameter hole in the center of the tile.
Step 3 Place the camera housing through the hole that you cut in the ceiling tile.
Step 4 (Optional) Place a ceiling tile mount over the camera housing.
Orient the ceiling tile mount so that it is flush with the back surface of the ceiling tile.
Step 5 Use a Phillips-head screwdriver to turn the anchor screws clockwise and spin the anchor clips outward
into the locking position and to secure the anchor clips.

2-8
Cisco Video Surveillance 3520 IP Camera Installation Guide
OL-28645-01
Chapter 2 Camera Installation
IP Camera Installation
The anchor clips twist over the ceiling tile. Turn the anchor clip screws until the camera housing is snug
against the ceiling tile. Do not over tighten the screws.
Step 6 Connect a shielded twisted pair (STP) Category 5 or higher network cable to the LAN port on the back
of the camera through the cutout in the camera housing. Connect the other end of the network cable to
a 10/100/BaseT router or switch.
If your network provides PoE, the IP camera powers on.
Step 7 (Optional) Connect the following cables to the GPIO terminal block on the IP camera through the cutout
in the camera housing:
• External power cable to the GPIO terminal block if PoE is not available.
• (Optional) I/O cables for external input or out put devices, such as sensors or alarms, to the GPIO
terminal block
The GPIO terminal block pin locations and descriptions are as follows:
Step 8 Replace the ceiling tile with the camera installed.
Step 9 (Optional) Use a mini cable with BNC connector to temporarily attach an NTSC or PAL compliant
analog video display device to the analog video out port on the IP camera.
You may need to temporarily remove and adjacent ceiling tile to access the analog video out port.
Pin Description
112 VDC-
212 VDC+
324 VAC
424 VAC
5DI-
6DI+
7DO-
8DO+
87654321
