Cisco Small Business VC240 User manual

Quick Start Guide
Cisco Small Business
VC240 Outdoor WDR Day/Night PoE Network
Camera
Package Contents
•Cisco VC240 Outdoor Network Camera
•Mounting and Installation Accessories
•Open-end Wrench and Allen Wrench
•Female-to-Female Ethernet Adapter
•Setup and Documentation CD
•I/O and RS-485 Connectors
•Quick Start Guide
•Camera Stand
•Sun Shield
Versión en Español para México en el CD
Version en français sur CD
Versione italiana sul CD
Deutsch Version auf CD

2 Cisco VC 240 Network Camera Quick Start Guide
Welcome
Thank you for choosing the Cisco VC240 Outdoor Wide Dynamic Range
(WDR) Day/Night PoE Network Camera. This camera is a
high-performance, web-ready camera and can be part of a flexible
surveillance system.
This guide describes how to physically install your VC240 camera and
how to install and launch the Setup Wizard.
Before You Begin
Before you begin the installation, make sure that you have the following
equipment and services:
•Power over Ethernet (PoE)-enabled Ethernet network switch or an
802.3af-compliant PoE power injector
•Tools for installing the camera (drill, 1/4” drill bits, Phillips screwdriver,
stud finder if attaching the camera to a dry wall)
•All the connections must be long enough to connect to the camera’s
6-foot cable
•PC with Microsoft Internet Explorer 6.0 or later for accessing the
camera’s web-based configuration utility
•One or more Ethernet network switches
VC240 Features
Default Settings
Parameter Default Value
Username cisco
Password cisco
LAN IP DHCP
DHCP Range Depends on router settings
Netmask 255.255.255.0
1
2

Cisco VC 240 Network Camera Quick Start Guide 3
Front Panel
Light Sensor Detects the amount of ambient light and switches the
camera from day to night mode. If light is too low, the
light sensor triggers the IR LEDs to turn on.
Lens •Computar varifocal board lens 3.3–12mm F/1.4
•Viewing angle 23.9–89.8° (horizontal)
•Removable IR-cut filter with focus compensation
•Manual zoom (3.5x)
IR LED Enables operation in complete darkness.
The ring of 12 infrared (IR) LEDs are built-in with a
working range of 50 feet (about 15 meters).
Reset Button Allows you to perform two functions:
•Reset—Press and hold the Reset button for less than
5 seconds to reset the camera.
•RestoreFactoryDefaults—Press and hold the
Reset button for 5 seconds until Status LED is
flashing red every 0.2 seconds.
IR LED
Lens
Reset Button
Status LED
Light Sensor
198299

4 Cisco VC 240 Network Camera Quick Start Guide
Status LED •Lightoff—Power is off or Status LED is off.
• Flashing red every second—Camera and network
are functioning (heartbeat).
• Steady red—Network failure.
• Flashing red every 2 seconds—Audio is disabled.
• Flashing red every 0.2 seconds—Restoring default
settings.
• Flashing red every 0.5 seconds—Upgrading
firmware.

Cisco VC 240 Network Camera Quick Start Guide 5
Back Panel
Ethernet LEDs The green and amber Ethernet LEDs indicate status.
If powered using PoE:
• Green steady, amber steady—Power on.
• Green blinking, amber steady—Power on with
Ethernet data activity.
If powered using an external power adapter:
• Green steady, amber off—Power on.
• Green blinking, amber off—Power on with Ethernet
data activity.
General
Purpose Input/
Output (GPIO)
Allows you to connect the camera to external input/
output devices that can provide additional controlling
functions.
For more information, see the Cisco VC240 Outdoor
WDR Day/Night PoE Network Camera Administration
Guide found at:
http://www.cisco.com/en/US/products/ps9944/
prod_maintenance_guides_list.html
5-Port
Connector
Connects the camera to 24 VAC power (0.5 A) or serves
as an RS-485 port.
Ethernet 10/100 RJ45 Plug
Audio Out (green)
Microphone In (pink)
Power Cord Socket (black)
GPIO
5-Port Connector
Ground
Ethernet LEDs
198300
N.C.
485B
485A
AC24V
AC24V
GND
DI
DO
+12V
GND:
DI:
DO:
+12V:
GPIO 5-Port Connector
Ground
Digital Input
Digital Output
Power (12VDC)
NC:
485B:
485A:
AC24V:
AC24V:
No Connector
RS485-
RS485+
Power (24VAC)
Power (24VAC)

6 Cisco VC 240 Network Camera Quick Start Guide
Ethernet
10/100 RJ45
Plug
Connects the Cisco VC240 camera to a PoE switch or
router, or to a PoE power injector (not provided) for
connection to a non-PoE switch or router.
Audio Out
(green)
Connects the Cisco VC240 camera through the 3.5 mm
input jack to an external speaker or computer.
Microphone In
(pink)
Connects the Cisco VC240 camera through the 3.5 mm
input jack to an external microphone.
Power Cord
Socket (black)
Connects the Cisco VC240 camera to 12 VDC (1 A)
power when not using PoE or 24 VAC.
Ground Connects the Cisco VC240 camera to ground.

Cisco VC 240 Network Camera Quick Start Guide 7
Mounting the VC240
This section describes how to mount the camera. This does not include
connecting the camera and adjusting the zoom and focus, which is
covered later in this guide.
WARNING The power line of either 24 VAC or PoE is prohibited being
exposed outdoor and bridged over buildings for surge
protection by lightning strike.
WARNING Make sure the camera’s Ground cable is connected to ground.
WARNING Make sure that all the camera’s cables, including I/O and power,
are connected to other devices in an indoor environment.
NOTE Install the VC240 camera with a UL-listed and marked outdoor
conduit for the cable exposed in an outdoor environment.
NOTE You should reliably connect the VC240 camera to the main
protective earthing terminal.
NOTE The VC240 camera uses a UL-listed AC/DC power adapter with a
marked output rating of 12 VDC, 600 mA.
NOTE The VC240 camera uses a UL-listed AC/DC power adapter with a
marked output rating of 24 VAC, 700 mA.
Placement Tips
• Ambient Temperature—To prevent the camera from overheating, do
not operate it in an area that exceeds an ambient temperature of 122°F
(50°C).
•AirFlow—Be sure that there is adequate air flow around the device to
prevent the camera from overheating.
• Mechanical Loading—To avoid accidents or hazardous conditions,
make sure the device is level, stable, and securely mounted.
3

8 Cisco VC 240 Network Camera Quick Start Guide

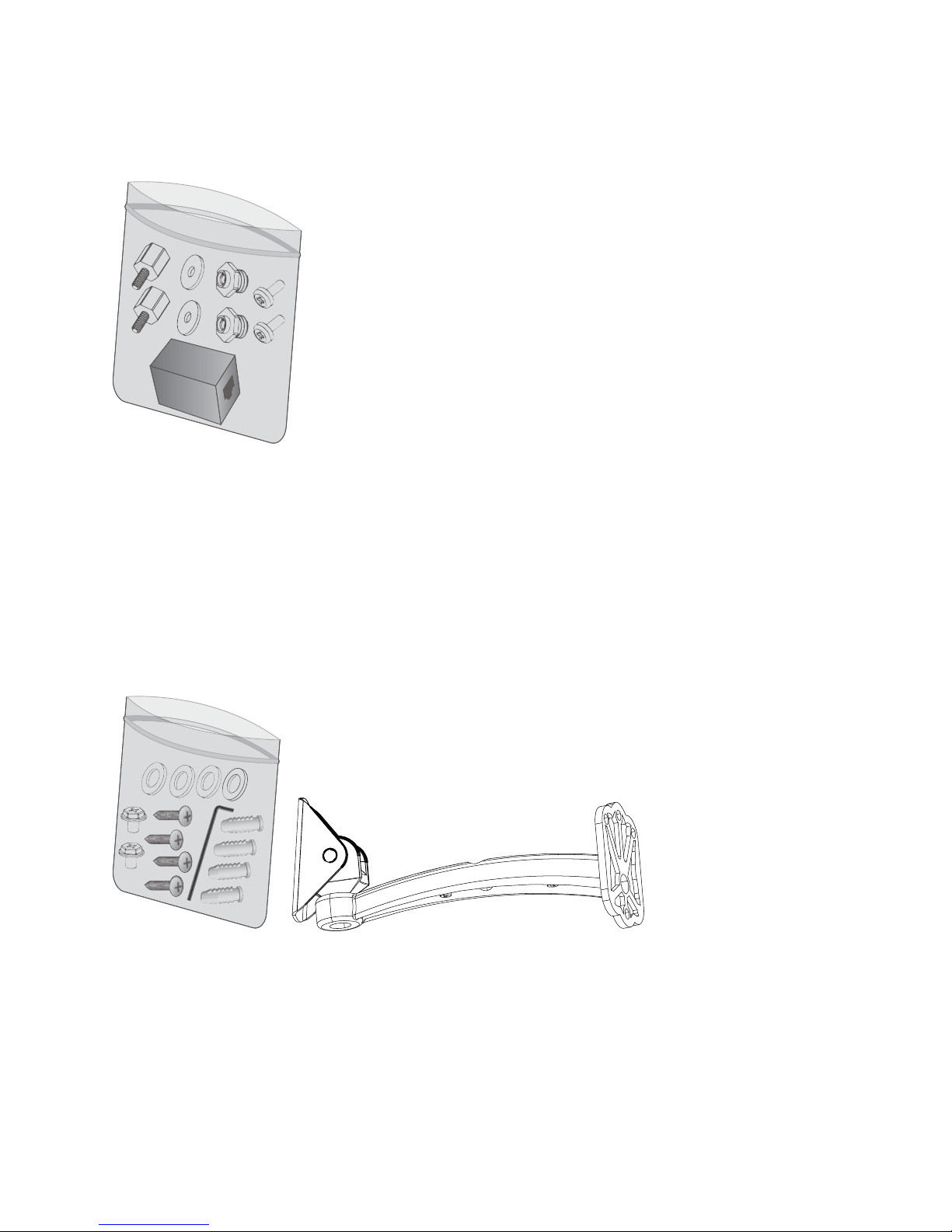

Mounting and Installation Accessories
The camera ships with mounting and installation accessories.
Screws and RJ45 Ethernet Female/Female Coupler
•1 Ethernet female/female coupler
•2 screws (M3 x 8 mm)
•2 M3 washers
•2 M6-to-M3 male-to-female adapter
•2 M3-to-M6 male-to-female adapter
Camera Stand Installation Accessories
•4 #6M anchors
•1 Allen wrench (5 mm)
•4 washers (6 mm)
•2 hex-head bolts (6 mm x 8 mm)
•4 self-tapping screws (M4 x 32 mm)
236340
236341

Cisco VC 240 Network Camera Quick Start Guide 9
Mounting the Camera to a Wall or Ceiling
You can mount the Cisco VC240 camera on the flat surface of a wall or a
ceiling. The flat surface must be smooth, dry, and sturdy.
NOTE Provided with the camera is a kit that includes anchors (#8–#10
US) and screws (#8 US) to help you secure the camera to the wall or
ceiling.
CAUTION Before drilling holes into the wall or ceiling when mounting
the camera, make sure there are no electrical wires, water
pipes, or other objects that might get damaged by the
drilling.
NOTE If you plan on using the supplied sun shield with the camera, review
the steps in the “Attaching the Sun Shield” section on page 18 before
mounting the camera.
NOTE To adjust the camera’s zoom and focus settings, wait until you can
view live video from the camera. After mounting the camera as
described in this section, follow the steps in the “Connecting the
Equipment” section on page 12, the “Verifying the Hardware
Installation” section on page 15, and the “Getting Started with the
Configuration” section on page 15. After you get live feed from the
camera, follow the instructions in the “Adjusting the Lens” section on
page 17 to adjust the zoom and focus settings.
WARNING Installation of the equipment must comply with local and
national electrical codes. Statement 1074

10 Cisco VC 240 Network Camera Quick Start Guide

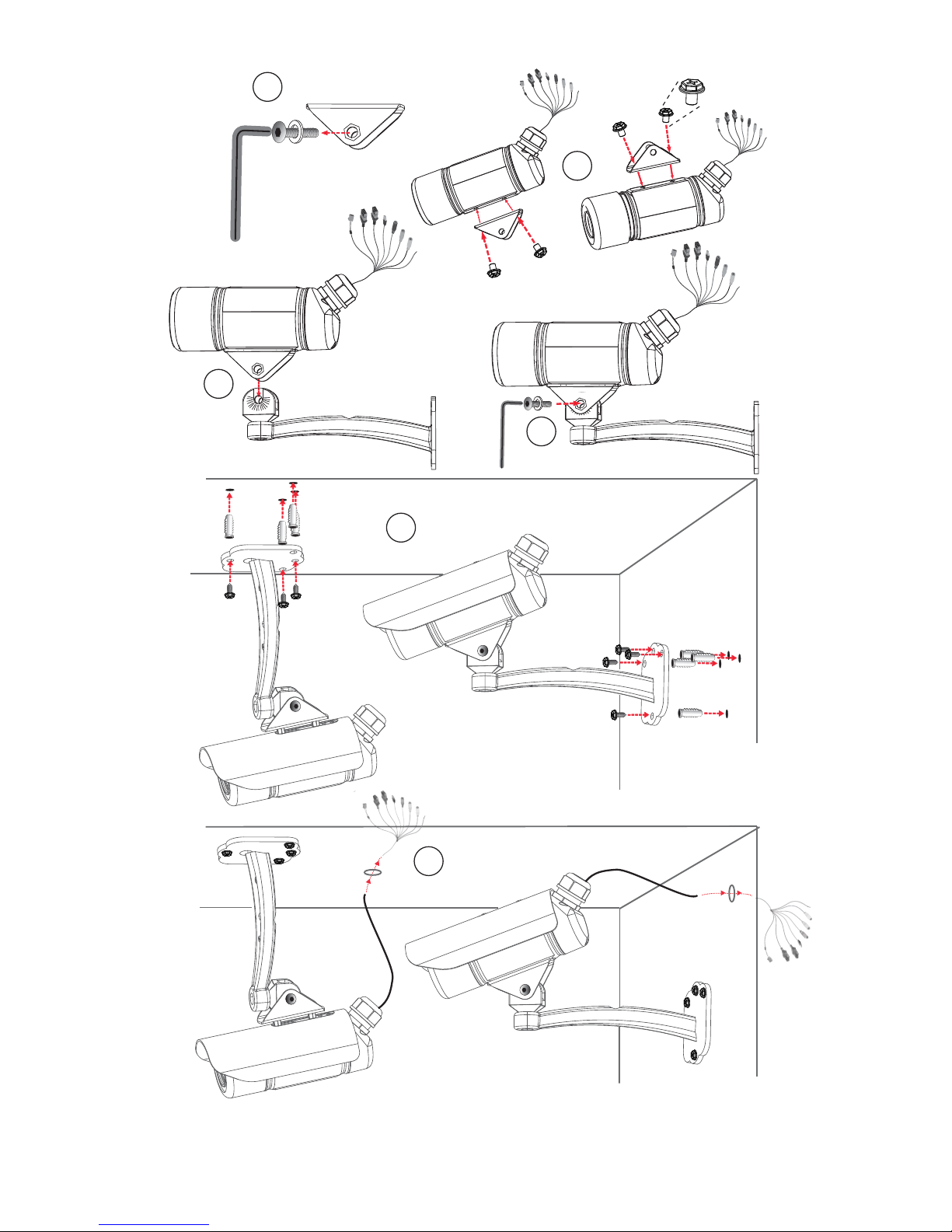

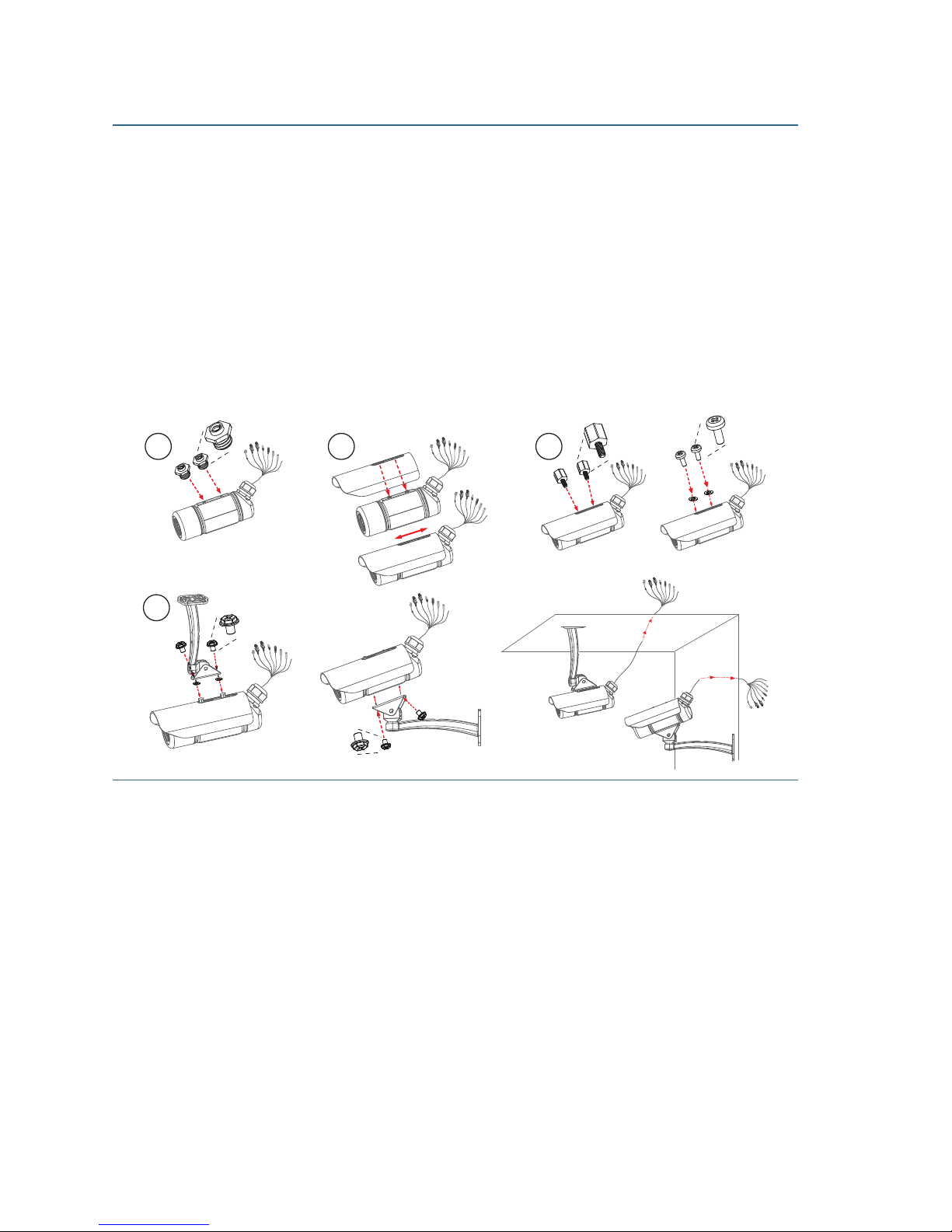

Installing the Stand
To install the camera’s stand, follow these steps:
STEP 1Unscrew the Allen-head bolt from the bracket mount using the
supplied Allen wrench.
STEP 2Attach the bracket mount to the camera using the two supplied
hex-head bolts (6 mm x 8 mm).
STEP 3Place the bracket mount, with the camera attached to it, over the
pivot of the camera stand.
STEP 4Attach the bracket mount to the pivot using the supplied M6 Allen-
head bolt and its M6 lock washer. Use the Allen wrench to tighten
the screw.
STEP 5Attach the base of the camera stand to the wall or ceiling:
a. Use the base of the camera stand to mark the location of the
four holes that you are going to drill in the next step.
b. Using a 1/4-inch drill bit, drill four holes into the surface.
c. Insert the provided four wall-mounting screw anchors into the
holes.
d. Attach the base of the camera stand to the wall or ceiling using
the four self-tapping screws (#10x1.5”) and the corresponding
M6 flat washers.
STEP 6If you plan to connect the camera’s cables from behind the wall or
above the ceiling, drill a 1-inch diameter hole in the wall or ceiling
and thread the cables through the hole.
In an outdoor installation, make sure that only the portion of the
connector cables covered in black is exposed to the elements
because it is weather proof. The individual cables should be
behind the ceiling or wall.

Cisco VC 240 Network Camera Quick Start Guide 11
1
2
3
4
5
6
236362

12 Cisco VC 240 Network Camera Quick Start Guide
Connecting the Equipment
You can provide power to the camera over Ethernet using a PoE-enabled
network switch or a PoE power injector. You can also use an external
power adapter (not supplied).

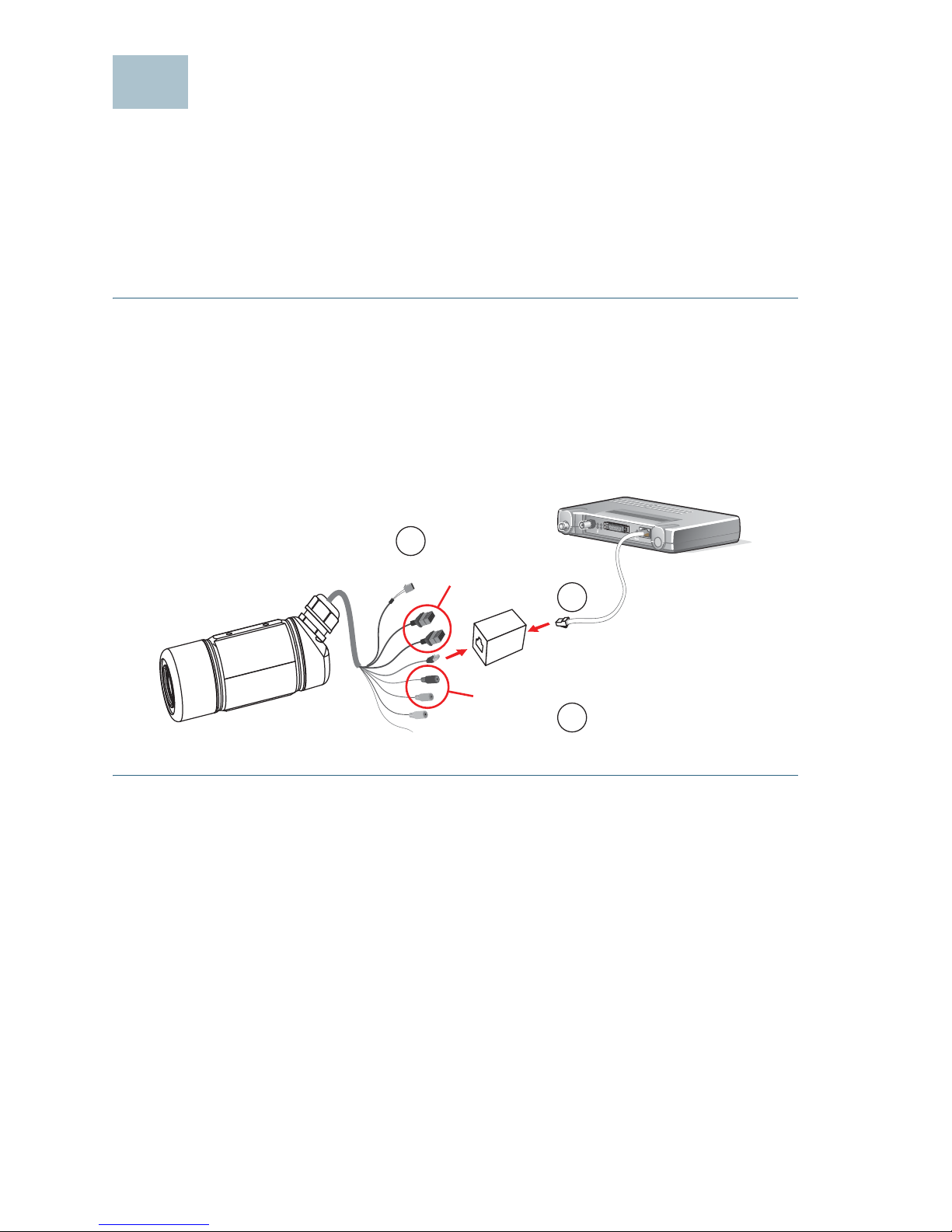

Connecting the Camera to a PoE-Enabled Switch
To connect your camera to a PoE-enabled switch, follow these steps.
STEP 1Connect the camera’s cables as needed to I/O port devices, an
audio speaker, and a microphone.
STEP 2Use the supplied RJ45 female-to-female Ethernet adapter to
connect the camera to a PoE-enabled switch.
NOTE Use a Category 5 crossover cable to directly connect the
camera to a computer.
4
10Base T
10Base 5
10Base 2
198302
2
1
1
External
devices
External
devices

Cisco VC 240 Network Camera Quick Start Guide 13

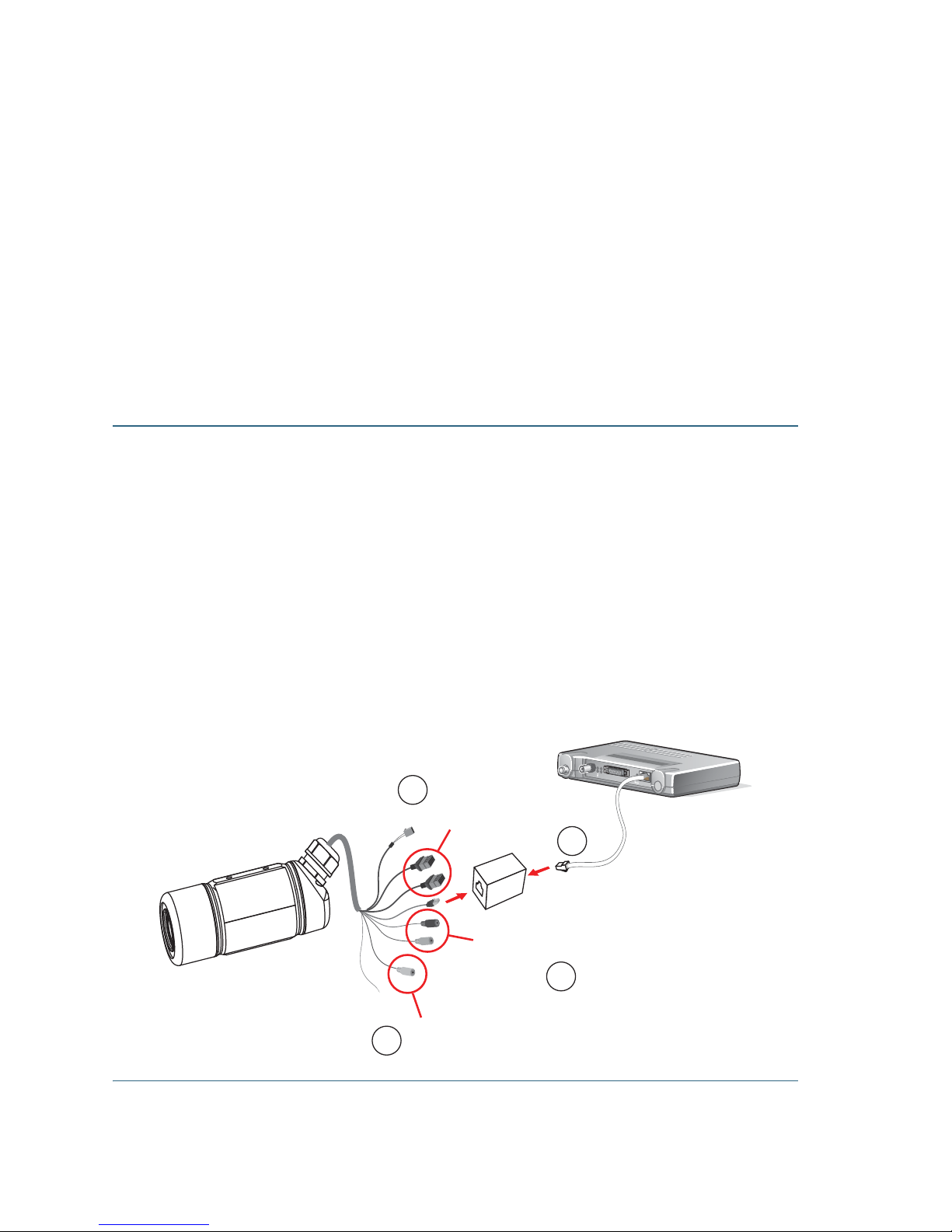

Connecting the Camera to a PoE Power Injector
To connect the camera to a non-PoE-enabled switch using an
802.3af-compliant PoE power injector, follow these steps:
STEP 1Connect the camera’s cables as needed to I/O port devices, an
audio speaker, and a microphone.
STEP 2Use the supplied RJ45 female-to-female Ethernet adapter to
connect the camera to a PoE power injector.
STEP 3Connect the switch to the PoE power injector.
STEP 4Connect the PoE power injector to a power outlet.
198304
10Base T
10Base 5
10Base 2
External
devices
External
devices
1
1
2
43

14 Cisco VC 240 Network Camera Quick Start Guide
Connecting the Camera to an External Power Adapter
To connect the camera to an external power adapter (not supplied) through
the camera’s power cord socket, you’ll need an adapter with the following
specifications:
•12-VDC (1 A) power adapter with an output barrel connector
•Diameter of the outer barrel is 5.5 mm
•Diameter of the inner barrel is 2.1 mm
•Length of the barrel connector is 9.5 mm
You can also connect the camera to power through the 5-port connector
(24 VAC, 0.5 A).
To connect the camera to your network and provide power using an
external power adapter (not supplied), follow these steps:
STEP 1Connect the camera’s cables as needed to I/O port devices, an
audio speaker, and a microphone.
STEP 2Use the supplied RJ45 female-to-female Ethernet adapter to
connect the camera to a switch.
NOTE Use a Category 5 cross cable to directly connect the camera
to a computer.
STEP 3Connect the power supply to the camera’s power cord socket
(black connector).
Alternatively, you can use the 5-port connector to connect the
camera to power.
10Base T
10Base 5
10Base 2
199729
2
1
1
3
External
devices
External
devices
Power
adapter

Cisco VC 240 Network Camera Quick Start Guide 15
Verifying the Hardware Installation
To verify the hardware installation, complete the following tasks:
•Check the cable connections.
•Verify that the Status LED is flashing green as described in the “Front
Panel” section on page 3.
NOTE If you need help resolving a problem, visit the Cisco Small Business
Support Community at www.cisco.com/go/smallbizsupport. For
technical documentation and other links, see the “Where to Go From
Here” section on page 19.
Getting Started with the Configuration
Before you begin to use the Configuration Utility, make sure that you have a
computer that meets the following requirements:
•Windows XP, Windows Vista, or Windows 7.
•Internet Explorer (version 6 or higher)
NOTE You get limited functionality if you use Firefox or Safari.
To locate and access the camera, follow these steps:
STEP 1Make sure your computer is on the same network as the camera.
If there is no DHCP server present in the network, the camera
defaults to the 192.168.1.99 IP address. In this case, make sure that
your computer is on the 192.168.1 network.
STEP 2Insert the Cisco VC240 Setup CD into your computer’s CD-ROM
drive. If the CD doesn’t run automatically, go to My Computer and
double-click the CD-ROM drive to launch the application.
STEP 3Choose a language from the drop-down menu then click Next.
STEP 4When the Setup screen appears, click Start.
STEP 5Follow the Setup Wizard instructions to locate the Cisco VC240
camera on your network.
After the Setup Wizard locates the camera, the Device Selector
window appears.
STEP 6Select the entry with the same MAC address or serial number as
your camera.
5
6

16 Cisco VC 240 Network Camera Quick Start Guide
NOTE A MAC address is the unique identifier in camera discovery.
The Setup Wizard lists the IP addresses and MAC addresses of all
the cameras discovered. If you have more than one camera, make a
note of the MAC address found on the side of the camera. Knowing
the MAC address makes it easier to identify multiple cameras.
STEP 7Record the IP address of the camera.
NOTE The camera uses DHCP for setting an IP address, with an
address being obtained from a DHCP server or a DHCP router. If no
DHCP server is present in the network, after 90 seconds, the
camera defaults to a static address of 192.168.1.99.
STEP 8Exit the Setup Wizard.
When you exit the Setup Wizard, it should open the home page of
the camera’s configuration utility in a web browser window. If after
90 seconds the home page does not appear, open a web browser
window and enter 192.168.1.99 in the address field to open the
camera’s home page.
STEP 9When the login page appears, enter the user name and password.
The default user name is cisco. The default password is cisco.
Passwords are case sensitive.
NOTE To protect your camera from unauthorized use, change the
default password.
STEP10 Click Login.
After you log in, an ActiveX request may appear. Click OK and live
video from the camera appears.
NOTE If you use Safari or Firefox, you can view MJPEG video from
the camera without any additional installation. However, to view
MPEG-4 video, install the QuickTime plug-in.
For more information about configuring the camera, see Cisco VC240
Outdoor WDR Day/Night PoE Network Camera Administration Guide.

Cisco VC 240 Network Camera Quick Start Guide 17
Suggested Next Steps
Congratulations, you are now ready to start using your Cisco VC240
camera. You may wish to consider taking some of the following steps:

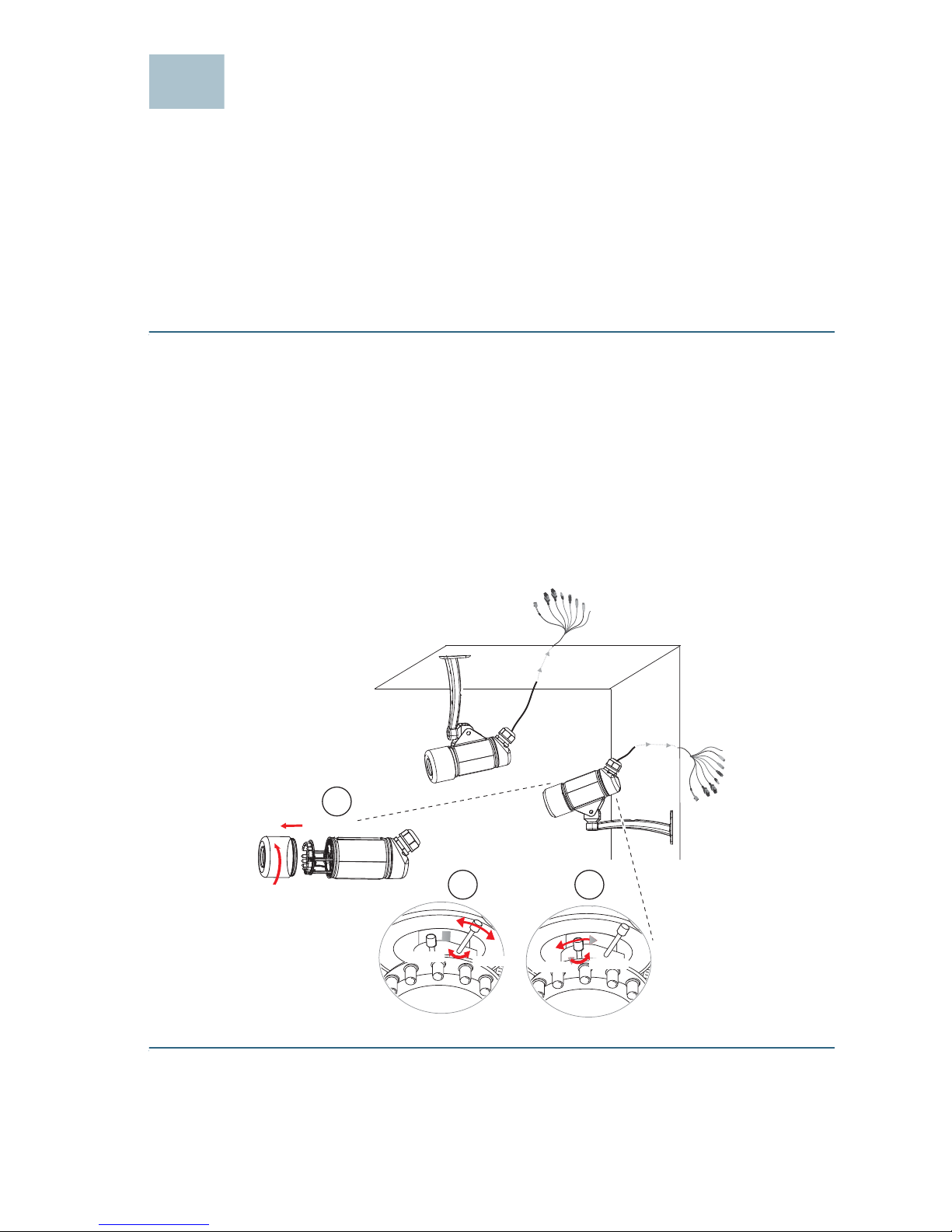

Adjusting the Lens
While viewing live video from your camera, you can now adjust the zoom
factor and focus range as needed.
To adjust the zoom factor and focus range, follow these steps:
STEP 1Remove the lens cover.
STEP 2Gently loosen the zoom controller (back adjustment) and adjust the
zoom factor from Wide (W) to Telephoto (T). Upon completion,
gently tighten the zoom controller.
STEP 3Gently loosen the focus controller (front adjustment) to adjust the
focus range from Near to Infinity. Upon completion, gently tighten
the focus controller.
STEP 4Reattach the lens cover.
7
T
W
W
∞
NT
198305
T
W
W
∞
NT
1
2 3
Loosen
Loosen Tighten
Tighten
Or

18 Cisco VC 240 Network Camera Quick Start Guide
Attaching the Sun Shield
To use the supplied sun shield in outdoor environments, follow these steps.
STEP 1Insert the supplied screws in the corresponding hole on top of the
camera as shown below. Then, tighten the screws using the
supplied open-end wrench.
STEP 2Attach the supplied sun shield to the camera and slide it to the
desired position.
STEP 3Secure the sun shield with the appropriate screws.
If you are mounting the camera on a ceiling, insert the screws as
shown below.
STEP 4Attach the camera to the camera stand.
Placing Silica Gel Desiccant Bags Inside the Camera
The VC240 camera comes with silica gel desiccant bags. One is placed
inside the camera using two-sided adhesive tape and the other is a
replacement bag provided in a sealed aluminum bag.
If you decide to remove the lens cover after more than six months of
camera use, remove the used silica bag and place the replacement bag
inside the camera before reattaching the lens cover.
While the camera is 100% waterproof, the silica gel desiccant bags help
protect the camera by absorbing the small amount of moisture that might
form during the initial startup when components go from cold to hot in a
matter of few seconds. This prevents moisture from condensing on the
lens or its glass cover.
123
4
Wall MountCeiling Mount
Wall Mount
Ceiling Mount
1 2 3
4
198307

Cisco VC 240 Network Camera Quick Start Guide 19
Where to Go From Here
Support
Cisco Small Business
Support Community
www.cisco.com/go/smallbizsupport
Cisco Small Business
Support and Resources
www.cisco.com/go/smallbizhelp
Phone Support Contacts www.cisco.com/en/US/support/
tsd_cisco_small_business
_support_center_contacts.html
Cisco Small Business
Firmware Downloads
www.cisco.com/go/smallbizfirmware
Select a link to download firmware for Cisco
Small Business Products. No login is
required.
Downloads for all other Cisco Small Business
products, including Network Storage
Systems, are available in the Download area
on Cisco.com at www.cisco.com/go/
software (registration/login required).
Product Documentation
Cisco VC240 Outdoor
WDR Day/Night PoE
Network Camera
Administration Guide
www.cisco.com/en/US/products/ps9944/
tsd_products_support_series_home.html
Cisco Small Business
Cisco Partner Central
for Small Business
(Partner Login Required)
www.cisco.com/web/partners/sell/smb
Cisco Small Business
Home
www.cisco.com/smb
8

Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
www.cisco.com
Small Business Support US: 1-866-606-1866 (Toll Free, 24/7)
Small Business Support, Global: www.cisco.com/go/sbsc
Cisco, Cisco Systems, the Cisco logo, and the Cisco Systems logo are registered trademarks
or trademarks of Cisco and/or its affiliates in the United States and certain other countries. All
other trademarks mentioned in this document or website are the property of their respective
owners. The use of the word partner does not imply a partnership relationship between Cisco
and any other company. (1002R)
© 2010 Cisco Systems, Inc. All rights reserved.
78-19572-01
