Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch
Getting Started Guide
• About This Guide, page 1
• Taking Out What You Need, page 2
• Connecting Expansion Modules, page 3
• Running Express Setup, page 5
• Managing the Switch, page 9
• Installing the Switch, page 11
• Connecting to the Switch Ports, page 21
• In Case of Difficulty, page 25
• Obtaining Documentation and Submitting a Service Request, page 28
• Cisco One-Year Limited Hardware Warranty Terms, page 28
About This Guide
This guide provides instructions on how to use Express Setup to initially
configure your Cisco IE 3000 switch. Also covered are switch management
options, module connection procedures, basic mounting procedures, and
troubleshooting help.

Cisco IE 3000 Switch Getting Started Guide
2
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
For additional installation and configuration information for Cisco IE 3000
switches, see the Cisco IE 3000 documentation on Cisco.com. For system
requirements, important notes, limitations, open and resolved bugs, and
last-minute documentation updates, see the release notes, also on Cisco.com.
When you use the online publications, refer to the documents that match the Cisco
IOS software version running on the switch. The software version is on the Cisco
IOS label on the switch rear panel.
For translations of the warnings that appear in this publication, see the Regulatory
Compliance and Safety Information for the Cisco IE 3000 Switch that
accompanies this guide.
Taking Out What You Need
Follow these steps:
1. Unpack and remove the switch and the accessory kit from the shipping box.
2. Verify that you have received the items shown on page 3. If any item is
missing or damaged, contact your Cisco representative or reseller for
instructions.
3. Unpack and remove any optional expansion modules from their shipping
boxes.
4. Return the packing material to the shipping containers, and save it for future
use.
Note For information about using the switch with the optional PWR-IE3000-AC power
converter module, see the hardware installation guide on Cisco.com.
To rack-mount your switch, order the rack-mount adapter
(STK-RACKMNT-2955=). This is not part of the switch accessory kit.

3
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide

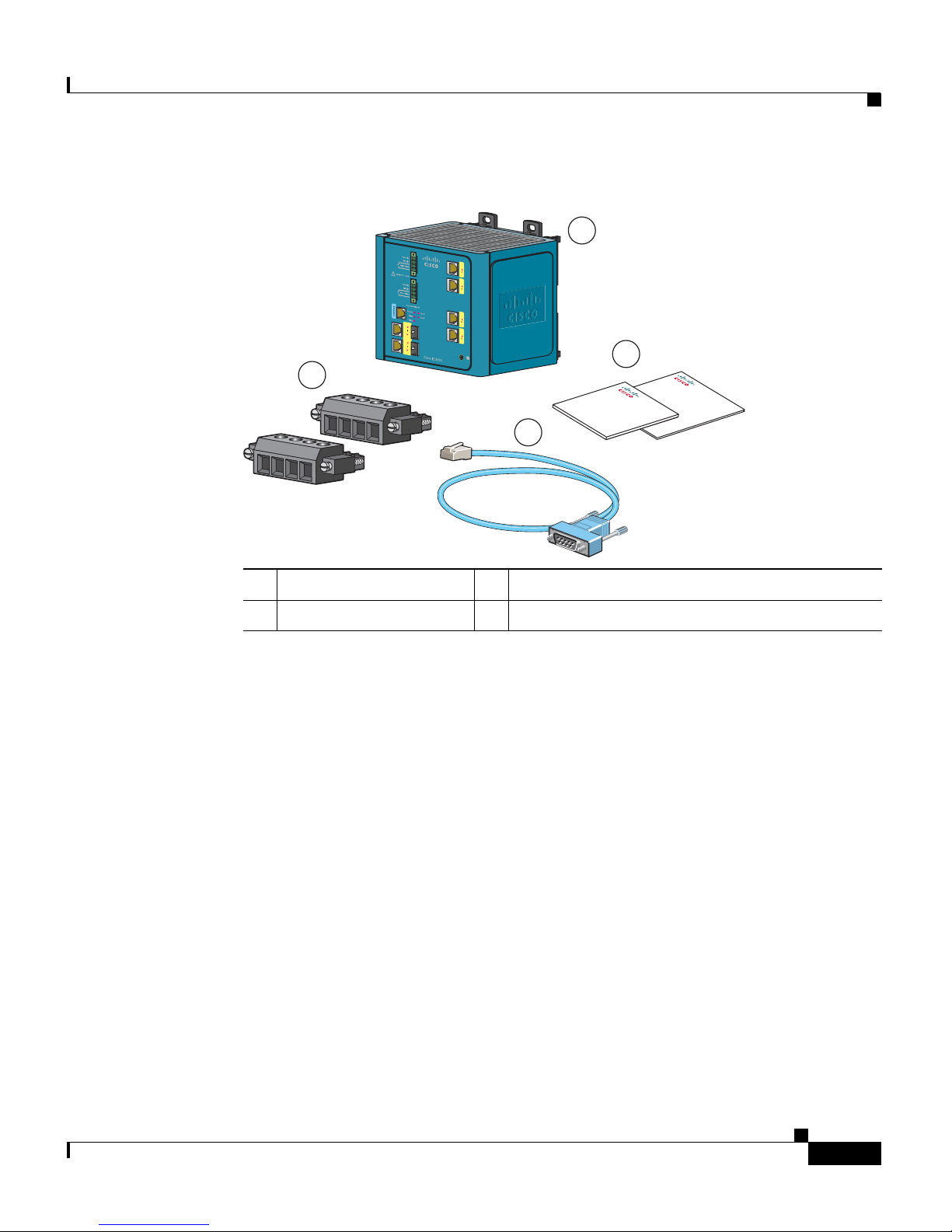

Figure 1 Cisco IE 3000 Shipping Box Contents
Connecting Expansion Modules
The switch can operate as a standalone device with Fast Ethernet ports. You can
increase the number of Fast Ethernet ports by connecting the Cisco
IEM-3000-8TM or the Cisco IEM-3000-8FM expansion module. You can also
install two expansion modules. Depending on the mix of switches and expansion
modules, you can have up to 24 Fast Ethernet ports. For more information about
the different combinations of the switch and expansion modules, see the
Cisco IE 3000 Switch Hardware Installation Guide on Cisco.com.
The switch expansion modules are optional and do not ship with the switch. You
need to order these separately.
1Cisco IE 3000 switch1
1. The Cisco IE-3000-4TC is shown as an example. Your switch model might look different.
3Power and relay connectors
2Documentation 4Console cable (RJ-45-to-DB-9 adapter cable)
CiscoIE3000 Switch
Documentation
Documentation
CD
1
2
3
4
201876
RT A
VA
RT A
VA

Cisco IE 3000 Switch Getting Started Guide
4
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Follow these steps to connect the expansion modules to the switch.
Step 1 Remove the right side panel by firmly
grasping both sides in the middle and pulling
it outward. If necessary, use a flat-blade
screwdriver to pry open the side panel.
Step 2 Remove the EMI protective cover from the
connector.
Step 3 Push the upper module latches up and the
lower module latches down, and then slide the
switch and module together.
Note If you are installing a Cisco
IEM-3000-8TM module and a Cisco
IEM-3000-8FM module, install the
Cisco IEM-3000-8TM first.
202334
203759
202335

5
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide
Running Express Setup
When you first set up the switch, you should use Express Setup to enter the initial
IP information. Doing this enables the switch to connect to local routers and the
Internet. You can then access the switch through the IP address for additional
configuration.
You need this equipment to set up the switch:
• A PC with Windows 2000, Windows Vista, Windows 2003 or XP installed.
• A web browser (Internet Explorer 6.0, Internet Explorer 7.0, or Firefox 2.0)
with JavaScript enabled.
• A straight-through Category 5 Ethernet cable to connect your PC to the
switch.
Disable any pop-up blockers or proxy settings in your browser software and any
wireless client running on your PC.
Step 4 Push in the upper and lower module latches to
secure the module to the switch.
Step 5 If you are installing a second module, repeat Step 2 to Step 3, but secure the second module
to the right side of the first module.
202336

Cisco IE 3000 Switch Getting Started Guide
6
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
To run Express Setup:
Step 1 Make sure that nothing is connected to the
switch.
During Express Setup, the switch acts as a
DHCP server. If your PC has a static IP
address, change your PC settings before you
begin to temporarily use DHCP.
Step 2 Connect power to the switch.
See the wiring instructions in the “Grounding the Switch” section on page 17 and the “Wiring
the DC Power Source” section on page 18.
Step 3 When the switch powers on, it begins the power-on self-test (POST). During POST, the
System LED blinks while a series of tests verify that the switch functions properly. Wait for
the switch to complete POST, which takes approximately 1 minute.
Step 4 Make sure that POST has completed by verifying that the System LED is solid green. If the
switch has not been configured, the Setup LED blinks green. If the Setup LED stops blinking,
you can still continue with the next step.
If the switch fails POST, the System LED turns red. See the “In Case of Difficulty” section
on page 25 if your switch fails POST.
Step 5 Press the Express Setup button. This button is
recessed behind the front panel, so you can
use a simple tool, such as a paper clip.
When you press the Express Setup button, a
switch port LED begins blinking green.
201873
201877
2
Express Setup
System
Alarm
Setup
Pwr A
Pwr B

7
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide
Step 6 Connect a Category 5 Ethernet cable (not
provided) from the blinking switch port to the
Ethernet port on your PC.
The port LEDs on your PC and the switch
blink green while the switch configures the
connection.
Step 7 When the Setup LED turns solid green, start a browser session on the PC.
Step 8 The Express Setup window automatically appears. If the window does not appear, verify that
any proxy settings or pop-up blockers are disabled on your browser and that any wireless
client is disabled on your PC. You might also need to enter a URL in your browser, such as
Cisco.com or another well-known website. If you need help, see the “In Case of Difficulty”
section on page 25.
Note If the switch has been previously configured, the device manager page appears. You
can use it to change the switch IP address.
201879
1

Cisco IE 3000 Switch Getting Started Guide
8
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Step 9 Enter the network settings. All entries must be in English letters and Arabic numbers.
• Management Interface (VLAN): We recommend using the default, VLAN 1. The
management VLAN establishes an IP connection to the switch.
• IP Assignment Mode: We recommend using the default, Static, which means that the
switch always has the IP address that you assign. Use the DHCP setting when you want
the switch to automatically obtain an IP address from a DHCP server.
• IP Address: Enter the IP address for the switch. Later, you can use the IP address to
access the switch through the device manager.
• Subnet Mask: Select a mask from the drop-down list.
• Default Gateway: Enter the IP address of the router.
• Password: Enter a password. The password can be from 1 to 25 alphanumeric characters,
can start with a number, is case sensitive, allows embedded spaces, but does not allow
spaces at the beginning or end. In the Confirm Password field, enter the password again.
For more information about the network settings, click Help on the toolbar.
Step 10 Enter the Optional Settings now, or enter them later by using the device manager interface:
• Enter a Host Name for the switch.
• Select Enable or Disable for Telnet access. If enabled, enter and confirm the Telnet
password in the Password fields.
• The date and time fields are populated from your PC.
• Click Enable to use Daylight Saving Time.
For more information about the optional settings, click Help on the toolbar.
Step 11 Click Submit to save the information that you entered and to finish the basic configuration.
You have completed the initial switch setup. If you click Cancel, the fields are cleared, and
you can start over.
Step 12 Turn off DC power at the source, disconnect all cables to the switch, and install the switch in
your network. See the “Managing the Switch” section on page 9 for information about
configuring and managing the switch.

9
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide
Refreshing the PC IP Address
After you complete Express Setup, you should refresh the PC IP address:
• For a dynamically assigned IP address, disconnect the PC from the switch,
and reconnect the PC to the network. The network DHCP server assigns a new
IP address to the PC.
• For a statically assigned IP address, change it to the previously configured
IP address.
Managing the Switch
After you complete Express Setup and install the switch in your network, use the
device manager or other management options described in these sections for
additional configuration:
• Using the Device Manager, page 9
• Downloading Cisco Network Assistant, page 10
• Command-Line Interface, page 10
• Other Management Options, page 11
Using the Device Manager
The simplest way to manage the switch is by using the device manager that is in
the Cisco IOS image. The device manager has a web interface that simplifies
configuration and monitoring of the switch. You can access the device manager
from anywhere in your network through a web browser.
Follow these steps:
1. Launch a web browser on your PC or workstation.
2. Enter the switch IP address in the web browser, and press Enter. The device
manager page appears.

Cisco IE 3000 Switch Getting Started Guide
10
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
3. Use the device manager to perform basic switch configuration and
monitoring. See the device manager online help for more information.
4. For more advanced configuration, download and run the Cisco Network
Assistant, which is described in the next section.
Downloading Cisco Network Assistant
Cisco Network Assistant is a software program that you download from
Cisco.com and run on your PC. It offers advanced options for configuring and
monitoring multiple devices, including switches, switch clusters, switch stacks,
routers, and access points. Network Assistant is free—there is no charge to
download, install, or use it.
Follow these steps:
1. Go to this Web address: http://www.cisco.com/go/NetworkAssistant.
You must be a registered Cisco.com user, but you need no other access
privileges.
2. Find the Network Assistant installer.
3. Download the Network Assistant installer, and run it. (You can run it directly
from the Web if your browser offers this choice.)
4. When you run the installer, follow the displayed instructions. In the final
panel, click Finish to complete the Network Assistant installation.
See the Network Assistant online help and the getting started guide for more
information.
Command-Line Interface
You can manage the switch from the command-line interface (CLI) by connecting
your PC directly to the switch console port or to an Ethernet port. This procedure
explains how to access the CLI through the console port.

11
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide
Using the Switch Console Port:
Follow these steps:
1. Connect the supplied RJ-45-to-DB-9 adapter cable (console cable) to the
standard 9-pin serial port on the PC. Connect the other end of the cable to the
console port on the switch.
2. Start a terminal-emulation program on the PC.
3. Configure the PC terminal emulation software for 9600 bits per second, 8 data
bits, no parity, 1 stop bit, and no flow control.
Use the CLI to enter commands to configure the switch. See the software
configuration guide and the command reference for more information.
Other Management Options
You can use Simple Network Management Protocol (SNMP) management
applications such as CiscoWorks Small Network Management Solution (SNMS)
and HP OpenView to configure and manage the switch. You also can manage it
from an SNMP-compatible workstation that is running platforms such as HP
OpenView or SunNet Manager.
See the “Accessing Online Help” section on page 27 for a list of supporting
documents.
Installing the Switch
These sections explain how to install the switch on a DIN rail or in a rack. Refer
to the switch hardware guide for instructions on mounting the switch on a wall:
• Equipment That You Supply, page 12
• Before You Begin, page 12
• Installation Warning Statements, page 13
• Mounting the Switch to a DIN Rail or to the Rack Adapter, page 16
• Grounding the Switch, page 17
• Wiring the DC Power Source, page 18

Cisco IE 3000 Switch Getting Started Guide
12
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
• Attaching the Power and Relay Connector, page 20
• Optional Procedures, page 21
Equipment That You Supply
Obtain these necessary tools and equipment:
• Ratcheting torque flathead screwdriver that exerts up to 15-inch pound (in-lb)
of pressure
• Ring terminal lug (such as Thomas & Bett part number 10RC6 or equivalent)
• Crimping tool (such as Thomas & Bett part number WT2000, ERG-2001, or
equivalent)
• 10- to 12-gauge copper ground wire (such as Belden part number 9912 or
equivalent)
• For DC power connections, use UL- and CSA-rated style 1007 or 1569
twisted-pair copper appliance wiring material (AWM) wire (such as Belden
part number 9318)
• Wire-stripping tools for stripping 10-, 12-, and 18-gauge wires
• For rack-mounting, a number-2 Phillips screwdriver
• A flat-blade screwdriver
Before You Begin
When you determine where to install the switch, verify that these guidelines
are met:
• Operating environment is within the range in the switch hardware installation
guide.
• Clearance to front and rear panels meets these conditions:
– Front-panel LEDs can be easily read.
– Access to ports is sufficient for unrestricted cabling.
– Front-panel direct current (DC) power and relay connector is within
reach of the connection to the DC power source.

13
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide
• Airflow around the switch and through the vents is unrestricted. To prevent
the switch from overheating, these must be the minimum clearances:
– Top and bottom: 4.13 in. (105 mm)
– Left and right: 3.54 in. (90 mm)
– Front: 2.56 in. (65 mm)
• Temperature surrounding the unit does not exceed 140°F (60°C), the
maximum ambient temperature of the switch.
Note When the switch is installed in an industrial enclosure, the temperature within the
enclosure is greater than normal room temperature outside the enclosure.
• Cabling is away from sources of electrical noise, such as radios, power lines,
and fluorescent lighting fixtures.
• This product is grounded to a bare metal surface, such as a ground bus, a
grounded DIN rail, or a grounded bare rack. Use a zinc-plated,
yellow-chromate steel DIN rail to assure proper grounding. The use of other
materials (such as aluminum, plastic, and so on) that can corrode, oxidize, or
are poor conductors can result in improper or intermittent grounding. When
grounding to a DIN rail, secure the DIN rail to the mounting surface
approximately every 7.8 in. (200 mm), and use appropriate end-anchors.
Installation Warning Statements
Warning Before performing any of the following procedures, ensure that power is
removed from the DC circuit. Statement 1003
Warning This product relies on the building’s installation for short-circuit (overcurrent)
protection. Ensure that the protective device is rated not greater than: 5A.
Statement 1005

Cisco IE 3000 Switch Getting Started Guide
14
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Warning This unit is intended for installation in restricted access areas. A restricted
access area can be accessed only through the use of a special tool, lock and
key, or other means of security. Statement 1017
Warning This equipment must be grounded. Never defeat the ground conductor or
operate the equipment in the absence of a suitably installed ground conductor.
Contact the appropriate electrical inspection authority or an electrician if you
are uncertain that suitable grounding is available. Statement 1024
Warning Only trained and qualified personnel should be allowed to install, replace, or
service this equipment. Statement 1030
Warning To prevent the system from overheating, do not operate it in an area that
exceeds the maximum recommended ambient temperature of:
140°F (60°C) Statement 1047
Warning This equipment is supplied as “open type” equipment. It must be mounted
within an enclosure that is suitably designed for those specific environmental
conditions that will be present and appropriately designed to prevent personal
injury resulting from accessibility to live parts. The interior of the enclosure
must be accessible only by the use of a tool.
The enclosure must meet IP 54 or NEMA type 4 minimum enclosure rating
standards. Statement 1063
Warning This equipment is intended to be grounded to comply with emission and
immunity requirements. Ensure that the switch functional ground lug is
connected to earth ground during normal use. Statement 1064

15
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide
Warning When used in a Class I, Division 2, hazardous location, this equipment must be
mounted in a suitable enclosure with proper wiring method, for all power, input
and output wiring, that complies with the governing electrical codes and in
accordance with the authority having jurisdiction over Class I, Division 2
installations. Statement 1066
Warning To prevent airflow restriction, allow clearance around the ventilation openings
to be at least: 4.13 in. (10.5 cm) Statement 1076
Caution This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D, or
only nonhazardous locations.
Caution Connect the unit only to a Class 2 DC power source.

Cisco IE 3000 Switch Getting Started Guide
16
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Mounting the Switch to a DIN Rail or to the Rack Adapter
Follow these steps to mount the switch on a DIN rail or in a rack.
Step 1 If you are mounting the switch in a rack,
first secure the Cisco IE 3000 rack adapter
to the rack.
If mounting on a DIN rail, omit this step.
Step 2 Insert a flat-head screwdriver in the space
next to the tab, and turn the screw driver to
release the latch and push it out.
Step 3 If you are using a 15 mm DIN rail, rotate all
feet to the extended positions. Otherwise,
rotate the feet to the recessed positions.
202337
202937
202338
Latch
Foot

17
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide
Grounding the Switch
Follow these steps to connect the switch to a protective ground.
Warning This equipment must be grounded. Never defeat the ground conductor or
operate the equipment in the absence of a suitably installed ground conductor.
Contact the appropriate electrical inspection authority or an electrician if you
are uncertain that suitable grounding is available. Statement 1024
Step 4 Position the rear panel of the switch directly
in front of the DIN rail, making sure that the
DIN rail fits in the space between the two
latches.
Step 5 Push the DIN rail latches in after the switch is over the DIN rail to secure the switch to the
rail. You hear a click when the latches are completely locked.
Step 6 Connect power to the switch.
See the wiring instructions in the “Grounding the Switch” section on page 17 and the
“Wiring the DC Power Source” section on page 18.
202339
DIN rail
Step 1 Use a standard Phillips screwdriver or a ratcheting torque screwdriver with a Phillips head to
remove the ground screw from the front panel of the switch. Store the ground screw for later
use.

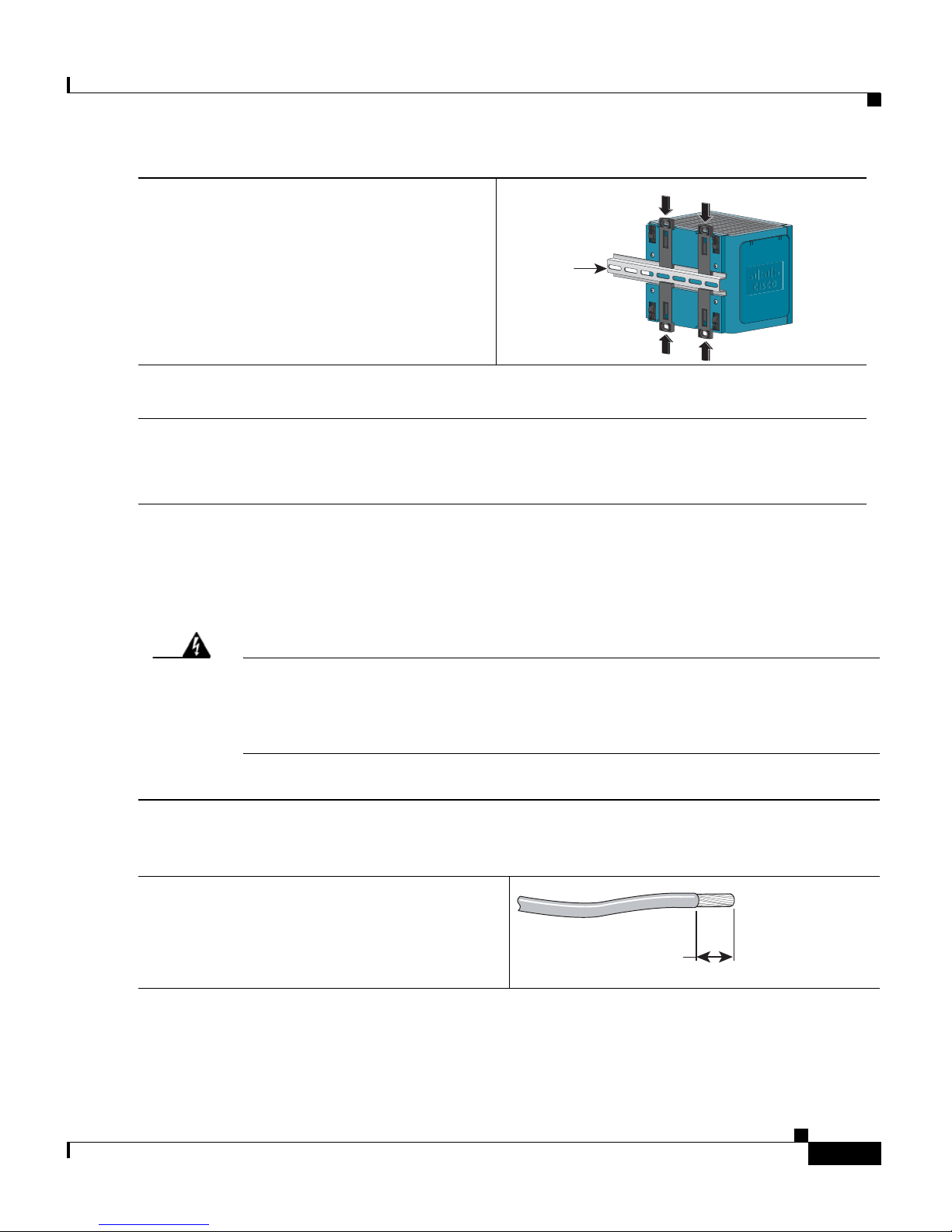

Step 2 Use a wire stripping tool to strip the 10- to
12-gauge ground wire to 0.5 inch (12.7 mm)
± 0.02 inch (0.5 mm).
0.5 inch (12.7 mm)
119516

Cisco IE 3000 Switch Getting Started Guide
18
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Wiring the DC Power Source
Follow these steps to prepare the DC power cable.
Warning Before performing any of the following procedures, ensure that power is
removed from the DC circuit. Statement 1003

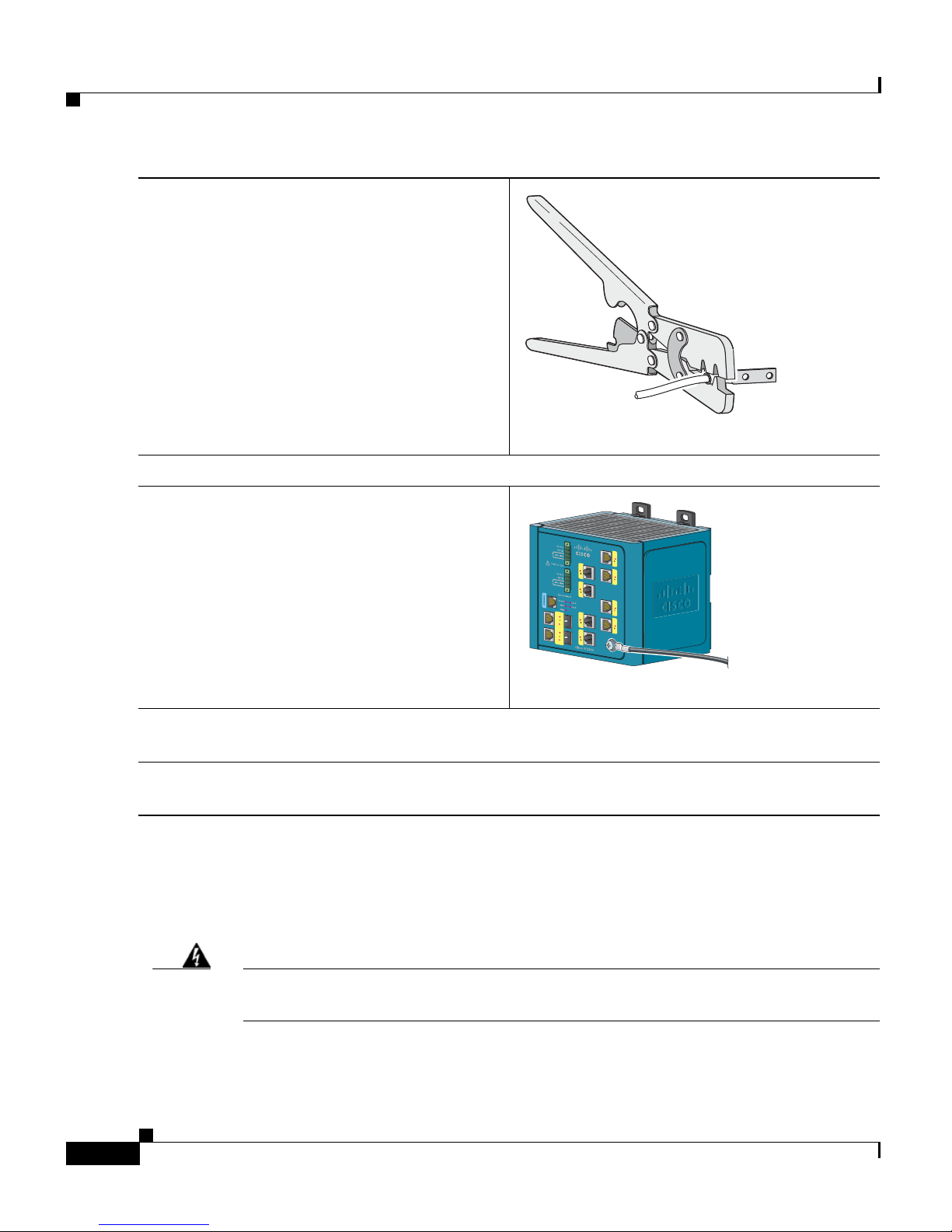

Step 3 Insert the ground wire into the ring terminal
lug, and using a crimping tool, crimp the ring
terminal to the wire.
Step 4 Slide the ground screw from Step 1 through the ring terminal.
Step 5 Insert the ground screw into the ground-screw
opening on the front panel.
Step 6 Use a ratcheting torque screwdriver to tighten the ground screw and ring terminal lug to the
switch front panel to 8.5 in-lb, the maximum recommended torque.
Step 7 Attach the other end of the ground wire to a grounded bare metal surface, such as a ground
bus, a grounded DIN rail, or a grounded bare rack.
119626
202329

19
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Cisco IE 3000 Switch Getting Started Guide
Warning This product relies on the building’s installation for short-circuit (overcurrent)
protection. Ensure that the protective device is rated not greater than: 5A.
Statement 1005
Warning Only trained and qualified personnel should be allowed to install, replace, or
service this equipment. Statement 1030
Step 1 Locate the power and relay connector.
Step 2 Identify the positive and return DC power connections on the connector. The positive DC
power connection is labeled V, and the return is the adjacent connection labeled RT.
Step 3 Measure a strand of twisted-pair copper wire (18- to 20-AWG) long enough to connect to the
DC power source.
Step 4 Using an 18-gauge wire-stripping tool, strip
each of the two wires to 0.25 inch (6.3 mm) ±
0.02 inch (0.5 mm). Do not strip more than
0.27 inch (6.8 mm) of insulation from the
wire. Stripping more than the recommended
amount of wire can leave exposed wire from
the connector after installation.
Step 5 Insert the exposed part of the positive wire
into the connection labeled V and the exposed
part of the return wire into the connection
labeled RT. Make sure that you cannot see any
wire lead. Only wire with insulation should
extend from the connector.
Step 6 Use a ratcheting torque flathead screwdriver to torque the power and relay connector captive
screws (above the installed wire leads) to 2 in-lb, the maximum recommended torque.
201815
RT A
VA
0
.27 inch (6.6 mm)
119591
VRTA A
202330
RT
V

Cisco IE 3000 Switch Getting Started Guide
20
Cisco IE 3000 Switch Getting Started Guide
OL-16234-01
Attaching the Power and Relay Connector
Follow these steps to connect the DC power and relay connector to the switch:
Caution The input voltage source of the alarm circuits must be an isolated source and
limited to less than or equal to 30 VDC, 1 A.
Step 7 Connect the other end of the positive wire (the one connected to V) to the positive terminal
on the DC power source, and connect the other end of the return wire (the one connected to
RT) to the return terminal on the DC power source.
Step 8 When you are testing the switch, one power connection is sufficient. If you are installing the
switch and are using a second power source, repeat Step 3 through Step 7 using a second
power and relay connector.
Step 1 Insert the power and relay connector into the
Pwr A receptacle on the switch front panel.
Step 2 Use a flathead screwdriver to tighten the captive screws on the sides of the power and relay
connector.
VRTA A
202332
