Introduction
ank you very much for purchasing e Citizen.
For the safe usage of this product, be sure to read this instruction
manual before use.

2
This manual may contain certain safety advisories. Your watch should be used in
accordance with these advisories at all times to ensure optimal enjoyment of your
watch and to prevent injury to yourself, other persons and/or damage to property.
Understand the meaning of the following symbols and read pages from 36 to
47.
■ Safety advisories are categorized and depicted in this manual as follows:
DANGER Highly likely to cause death or serious injury
WARNING Can cause serious injury or death
CAUTION Can or will cause minor or moderate injury or damage
Safety precautions — IMPORTANT

3
■ Important instructions are categorized and depicted in this manual as follows:
Warning (caution) symbol followed by instructions that should be
followed or precautions that should be observed.
Warning (caution) symbol followed by prohibited matters.

4
Before using this watch
Band adjustment
We recommend seeking the assistance of an experienced watch technician
for sizing of your watch. If adjustment is not done correctly, the bracelet may
unexpectedly become detached leading to loss of your watch or injury.
Consult Citizen Owners’ Help Desk.
Protective stickers
Be sure to remove any stickers covering the metal parts (back cover, band, clasp)
or glass of the watch before use. Otherwise, perspiration or moisture may enter the
gaps between the protective stickers and the parts, which may result in a skin rash
and/or corrosion of the metal parts.
How to use a specially designed crown/push button
Some models are equipped with a specially designed crown and/or push button to
prevent accidental operation.

5
Screw down crown and screw down push button
Unlock the crown prior to operate your watch.
Unlock Lock
Screw down
crown
Rotate the crown
counterclockwise until
it releases from the case.
Push the crown in to the
case. With gentle pressure
towards the case, rotate the
crown clockwise to secure it
to the case. Be sure to tighten
firmly.
Screw down
push button
Rotate the locking
screw counterclockwise,
and loosen until it
stops.
Rotate the locking screw
clockwise, and tighten firmly.
Recessed buttons
Press the button with a narrow-tipped object such
as a wooden toothpick.
• Metal objects may cause marring or scratching of
the button.
Before using this watch

6
Table of contents
Features.......................................................................................................8
Component identification .....................................................................10
Recharging your watch ..........................................................................12
Crown position and operation..............................................................18
Adjusting the time...................................................................................19
Adjusting the calendar...........................................................................21
Month and leap year indications..........................................................24
Adjusting the time difference ...............................................................26
Checking the reference position ..........................................................28
Performing the “all reset” procedure...................................................31

7
Table of contents
Handling the Watch.................................................................................34
Timekeeping accuracy............................................................................35
Eco-Drive watch handling precautions...............................................36
Water resistance ......................................................................................40
Precautionary items and usage limitations........................................42
Specifications ...........................................................................................48
Contact us .............................................................................................50

8
Features
Eco-drive
• Eco-drive is a unique technology of Citizen that uses light to generate power,
thus eliminating the need for periodic battery replacement.
12 o'clock midnight sharp calendar update function
• The calendar updates as the clock strikes midnight (0:00:00).
Annual time accuracy: ±5 seconds
• This high-precision watch realized an annual time difference of about ±5
seconds max.
Time difference correction function
• When you travel overseas, you can easily adjust your watch to the local time
without having to stop the watch.
Perpetual calendar
• No need for date correction at the end of each month.
The leap year is also updated automatically. (until February 28th, 2100)

9
JIS1 antimagnetic performance
• The functionality of the watch will be maintained even when the watch is
brought as close as up to 5 cm of the devices that emit magnetic fields in daily
life.
For details, see our website support information.
Shock detection function
• This function prevents the second, minute, and hour hands from becoming
misaligned should the watch be subjected to shock.
Automatic hand position adjustment function
• The hand positions are checked at regular intervals. Any misalignment detected
will be corrected immediately to keep accurate time.
Power reserve indication function
-
The hand shows the current charge level.
• A010: This watch is equipped with a hand to indicate the charge level. Use the
hand to check the current charge level.
• A060: By pressing the button, the second hand indicates the current charge
level.
Features

10
Component identification

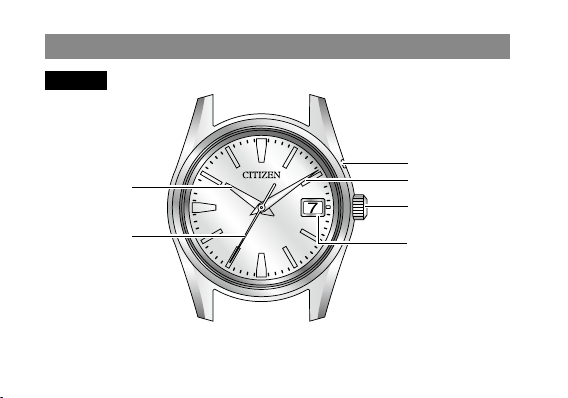

◆A060
Button
Crown
Minute hand
Hour hand
Second hand Date indicator

11
Component identification

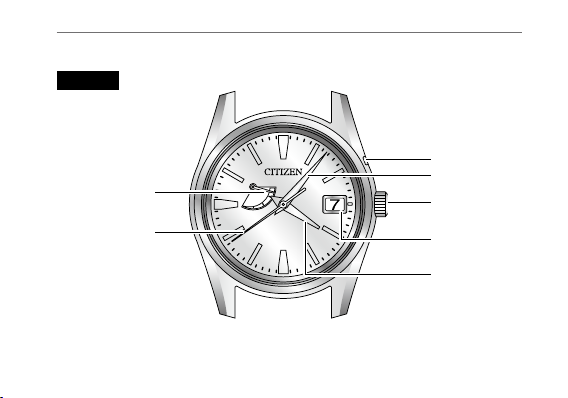

◆A010
Button
Crown
Minute hand
Hour hand
Second hand
Power reserve
indicator
Date indicator
* The illustrations may dier from the actual watch you have purchased.

12
2-
second
How to check the power reserve indicator (For a 3-hand model)
Pressing the button shows the current charge level as illustrated below.
Recharging your watch
◆A060
This watch has a rechargeable cell which is charged by exposing the dial to light such
as direct sunlight or fluorescent lamps.

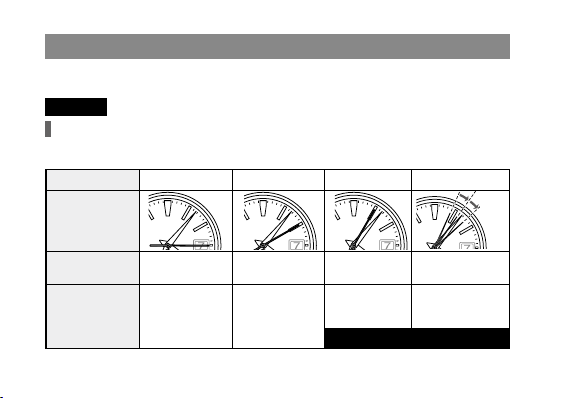

Charge level Level 3 Level 2 Level 1 Level 0
Second hand
position when
pressing the button
Estimated remaining
time to stop
Approx.
210 to 160 days
Approx.
160 to 100 days
Approx.
100 to 3 days Approx.3 days
Remark
The watch is fully
charged. Use the
watch without
worrying about
the charge level.
The charge level
is good. Use the
watch without
worrying about
the charge level.
The charge level
is not sufficient.
The charge level
is insufficient.(see
page 16)
The watch must be charged immediately.

13
Recharging your watch
◆A010
How to check the power reserve indicator (For a model with a power reserve
indicator)
The hand position of the power reserve indicator shows the power reserve amount, as
illustrated below.
Charge level Level 3 Level 2 Level 1 Level 0
Power reserve
indicator position
Estimated remaining
time to stop
Approx.
210 to 160 days
Approx.
160 to 100 days
Approx.
100 to 3 days Approx.3 days
Remark
The watch is fully
charged. Use the
watch without
worrying about
the charge level.
The charge level
is good. Use the
watch without
worrying about
the charge level.
The charge level
is not sufficient.
The charge level
is insufficient.(see
page 16)
The watch must be charged immediately.

14
Recharging your watch
Charging time by environment
Below are the approximate times needed for charging when exposing the watch dial to
light continuously. Please use this table as a reference only.
Environment Illuminance (lx)
Charging time (approx.)
To work for one
day
To start working normally
when the cell is discharged
To become fully charged
when the cell is discharged
Outdoors (sunny) 100,000 4 minutes 1.5 hours 30 hours
Outdoors (cloudy) 10,000 12
minutes 2 hours 40 hours
20 cm (7-7/8 inches)
away from a fluorescent
lamp (30W)
3,000 40
minutes 3.5 hours 150 hours
Interior lighting 500 4 hours 19 hours -

15
Recharging your watch
• When the battery is fully charged, the overcharge protection function stops the
charging so that the watch performance and rechargeable cell are not adversely
affected by overcharge.
Your watch will run for approximately 7 months from a full charge or up to 1.5 years
with the power save feature engaged (based on a full charge).
After the second hand starts moving once every two seconds, it will last for
approximately 3 days.

16
For optimal performance
For optimal performance, make sure to observe the following precautions:
•
Place the watch under direct sunlight and charge it for 5 to 6 hours at least once a month.
• After taking off the watch, place it in a well-lighted place or by the window where
sunlight shines in.
• Avoid leaving the watch in a dark place for long periods of time.
If the watch is hidden under clothes and not exposed to light, it cannot be charged
sufficiently.
Do not charge the watch at a high temperature (about 60°C or higher).
When the watch reaches a low charge state (insufficient charge warning function)
2-second
2-second
When the watch reaches a low charge state, the insufficient
charge warning function kicks in, and the second hand
begins to move in two-second increments (two-second
mode). Charge the watch by exposing its dial to light.
• After some time of charging, the second hand will begin to
move in one-second increments (normal mode).
• If the watch is left in two-second mode for three days or
longer, the watch will run out of power and stop working.
•
The time and date are indicated even during two-second mode.
Recharging your watch

17
• Make sure that the watch is charged and moving in one-second increments (normal
mode) before setting or adjusting the watch.
• While the insufficient charge warning function is active, the compensation
mechanism to ensure timekeeping accuracy remains disabled. Promptly charge
the watch.
Power save feature
If you store the watch inside the case or other dark places where no light can reach
the dial of the watch for a long period of time, the watch will automatically stop at the
12 o’clock position to save battery power. In the meantime, the time is kept internally,
whereas the date and power reserve indicators continue to work normally.
• The power save feature does not work while the crown is at Position or Position .
• The power save feature cannot be activated manually.
To cancel the power save feature
Once the dial of the watch is exposed to light and the battery begins to charge, power
save mode will be cancelled, and the hands will move to point to the current time. Do
not pull the crown out while the power save mode is being cancelled and the hour,
minute, and second hands are moving to point to the current time.
Pulling the crown out causes the hands to stop moving at that moment, preventing
them from pointing correctly to the current time.
Recharging your watch

18
Crown position and operation

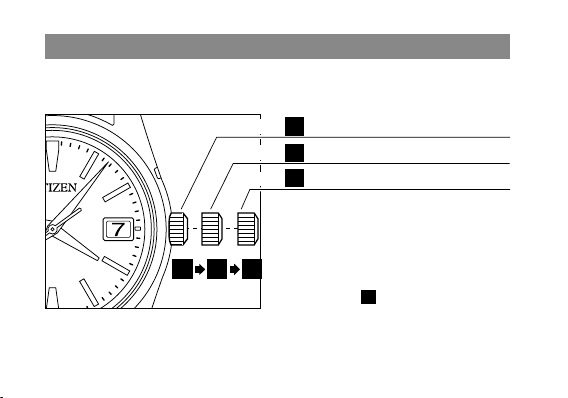

012Pull the crown out to make necessary adjustments, as illustrated below.
Position : For adjusting time difference and calendar
Position : For adjusting time
21Position (default position): No adjustment can be performed.
0* The screw down lock returns to
position 0when unlocked.

19
Adjusting the time
Adjust the time with the crown set in Position 2.
* If the second hand is moving in two-second increments (insufficient charge warning),
charge the watch first (see page16).

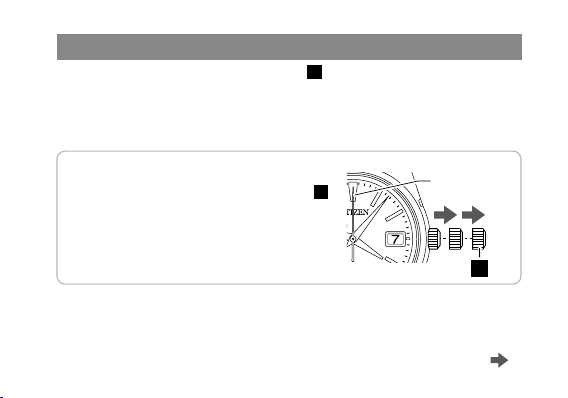

Pull out the crown
when the second
hand is at the 12
o’clock position.
Position 2
1. With the second hand at the 12 o’clock
position, pull the crown out to Position 2.
• The second hand stops as the crown is
pulled out.
Continue to the next page
