Clarion CJ7100E User manual

Clarion Co., Ltd.
All Rights Reserved. Copyright 2012: Clarion Co., Ltd.
Printed in Korea / Gedruckt in Korea / Stampato in Corea /
Imprimé en Corée / Impreso en Corea CJ-7100E
2012/11

2
English
1. Before Use................................................... 3
2. Features ...................................................... 4
3. Names of the Monitor Buttons..................... 4
4. Operations of Monitor.................................. 4
5. Names of the Remote Controller Buttons.... 8
6. Operations of Remote Controller................. 8
7. Connections............................................... 12
8. Installation ................................................. 13
9. Troubleshooting......................................... 14
10. Specifications .......................................... 14
Contents
This unit has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This unit generates, uses, and can
radiate radio frequency energy, and, if not
installed and used in accordance with the
instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation.
If this unit does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to consult the dealer or an
experienced radio/TV technician for help.
INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.
CJ-7100E-A.book 2 ページ ２０１２年９月１８日 火曜日 午後１時５５分

3
English
Warning
Do Not Back Up Vehicle While Relying Only on the Monitor Image
Use Slow Speeds When Backing Up
The rear-view monitor image has the same right-left inversion as your vehicle’s
rearview mirrors. Depending on the vehicle, the field and angle of view may differ.
Precautions (when you use the monitor)
Do not touch the LCD panel.
Use the product at the temperature range of -10°C ~ 60°C.
Screen may be a little dark when the product is operated in low temperature areas.
Screen will show normal luminosity after a few minutes.
Do not disassemble and modify the product in any way.
This may cause fire and/or electric shock.
When you install the product in a car and watch monitor, the car engine should be
running as there might occur excessive discharge of the car battery.
Any liquid leaking into product may cause malfunction.
If alternator noise from the speaker becomes objectionable when listening in AV
MODE, install a ground loop isolator between the AUDIO INPUT and the
connected AV component.
Precautions (when you use the product in a car)
The driver should not use the product while he/she is driving.
Be cautious of humidity and shock when you use the product in a car.
Cover the product when exposed to direct rays of the sun for a long period of
time.
(You should keep the product at a temperature range of -20°C ~ 70°C.)
1. Before Use
CJ-7100E-A.book 3 ページ ２０１２年９月１８日 火曜日 午後１時５５分

4
English
Application of 7.0" WIDE TFT LCD with high resolution and low reflection
All functions are displayed on screen (OSD function)
7 Language Display Selection
(ENGLISH-DEUTSCH-ITALIANO-FRANÇAIS-ESPAñON- - )
Picture quality control (PWM control)
Free voltage (From DC12V to DC24V)
Dimmer selection function
Camera input (2 system) /Work together with back gear/turn signal
Video input jack (video/mono audio)
Wireless remote controller is included
POWER
2. Features
3. Names of the Monitor Buttons
4. Operations of Monitor
[DIMMER]
[MODE]
[MENU]
STAND BY LED
SENSOR
[UP]
[DOWN]
[POWER]
1
ON OFF
(1) Press [POWER] button to on the power.
(STAND BY state is OFF)
(2) Press [POWER] button again to off the
power.
(STAND BY state is ON)
CJ-7100E-A.book 4 ページ ２０１２年９月１８日 火曜日 午後１時５５分

5
English

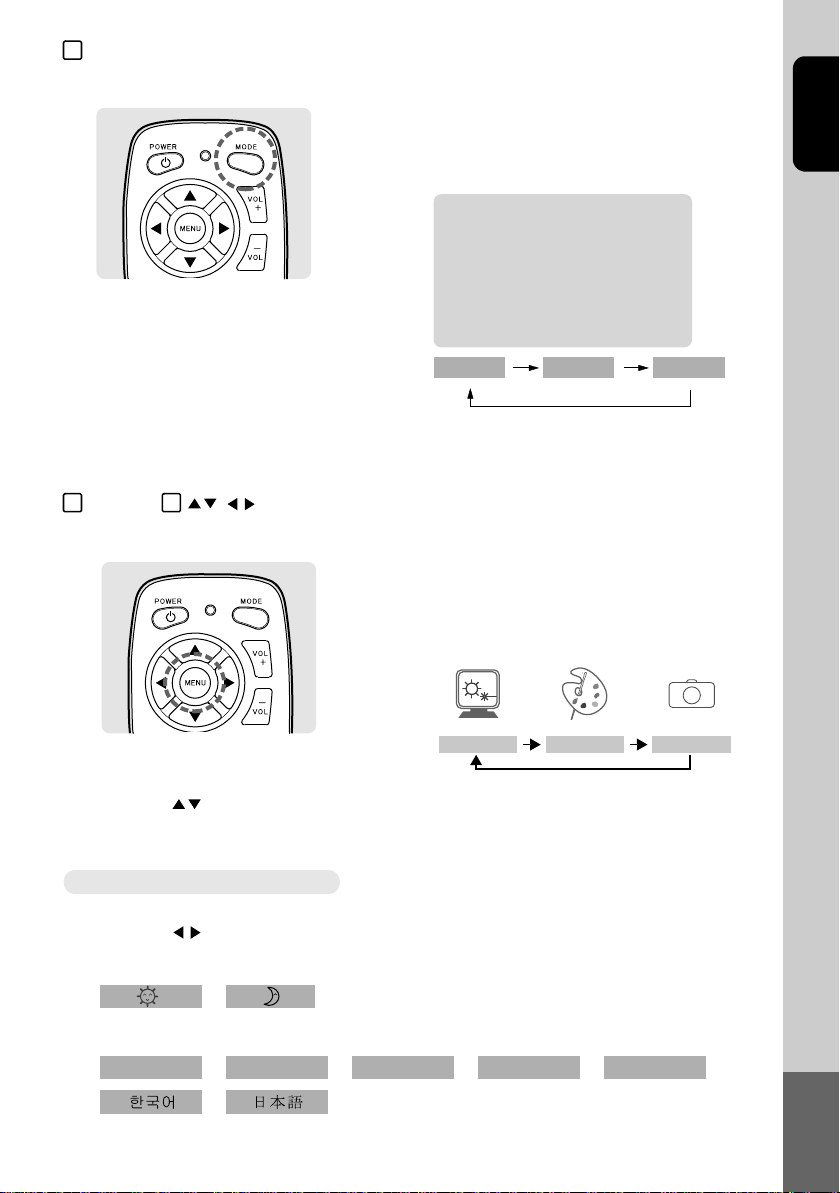

MODE (Camera/AV Selection)
It is a function to change CAMERA (CAM1/CAM2/AV).
MENU
It is a function to select MAIN MENU (SETUP, PICTURE, CAMERA)
(1) Press [MENU] button to select MAIN MENU, changed color in red when it is selected.
• Every time the button is pressed, the setting changes.
(2) Press [MODE] button to select SUB MENU, changed color in red when it is selected.
• Every time the button is pressed, the setting changes.
2
CAM1 CAM2 AV
(1) Press [MODE] button.
• The characters of CAM1, CAM2 or AV
appear on the screen and they disappear
after 5 seconds.
CAM1
Note:In the mirror mode, the character is
inverted.
3
SETUP
PICTURE CAMERA
DIMMER
LANGUAGE
DIRECTION
DISPLAY
RESET
ENGLISH
WIDE
0
CONTRAST
BRIGHTNESS
COLOR
TINT
50
50
50
70
SUB MENU
CAM1
CAM2 NORMAL
NORMAL
SETUP PICTURE
CAMERA
CJ-7100E-A.book 5 ページ ２０１２年９月１８日 火曜日 午後１時５５分

6
English
SET UP (SUB MENU)
(3) Press [UP]/[DOWN] button to change Settings.
DIMMER
–
• This setting can also be changed by pressing [DIMMER] ( ) button.
LANGUAGE
– – – – –
–

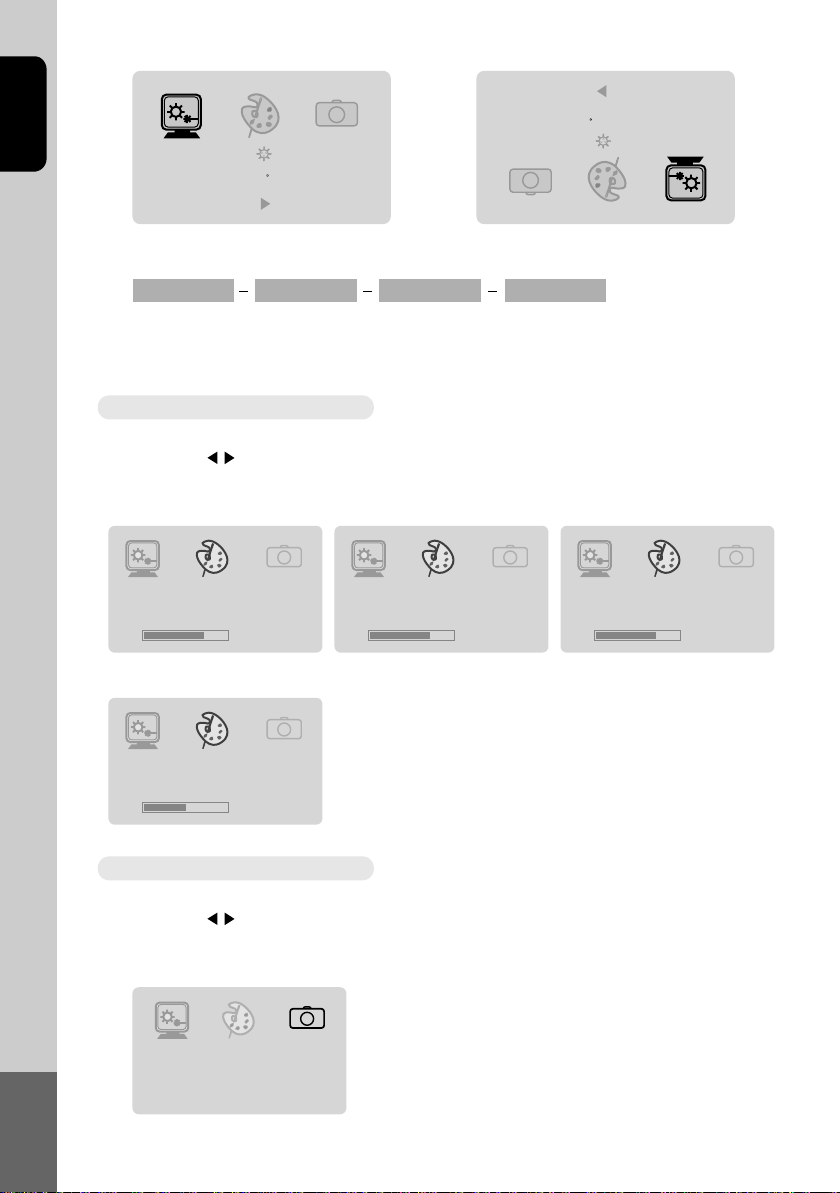

DIRECTION (Inverted upside down)
DISPLAY (Screen size)
RESET 
A factory default reset will clear all of OSD information
ENGLISH
DEUTSCH ITALIANO FRANÇAIS ESPAñON
DIMMER
LANGUAGE
DIRECTION
DISPLAY
RESET
ENGLISH
WIDE
0
DIMMER
LANGUAGE
DIRECTION
DISPLAY
RESET
ENGLISH
WIDE
180
FULL WIDE NORMAL CINEMA
CJ-7100E-A.book 6 ページ ２０１２年９月１８日 火曜日 午後１時５５分

7
English
PICTURE (SUB MENU)
(3) Press [UP]/[DOWN] button to change Settings.
CAMERA (SUB MENU)
(3) Press [UP]/[DOWN] button to change Settings.
In the mirror mode, the screen is inverted laterally.
CONTRAST
BRIGHTNESS
COLOR
TINT
70
40
40
40
CONTRAST
BRIGHTNESS
COLOR
TINT
40
40
70
40
CONTRAST
BRIGHTNESS
COLOR
TINT
40
70
40
40
CONTRAST BRIGHTNESS COLOR
CONTRAST
BRIGHTNESS
COLOR
TINT
40
40
40
50
TINT
CAM1
CAM2 NORMAL
NORMAL
CJ-7100E-A.book 7 ページ ２０１２年９月１８日 火曜日 午後１時５５分

8
English
POWER

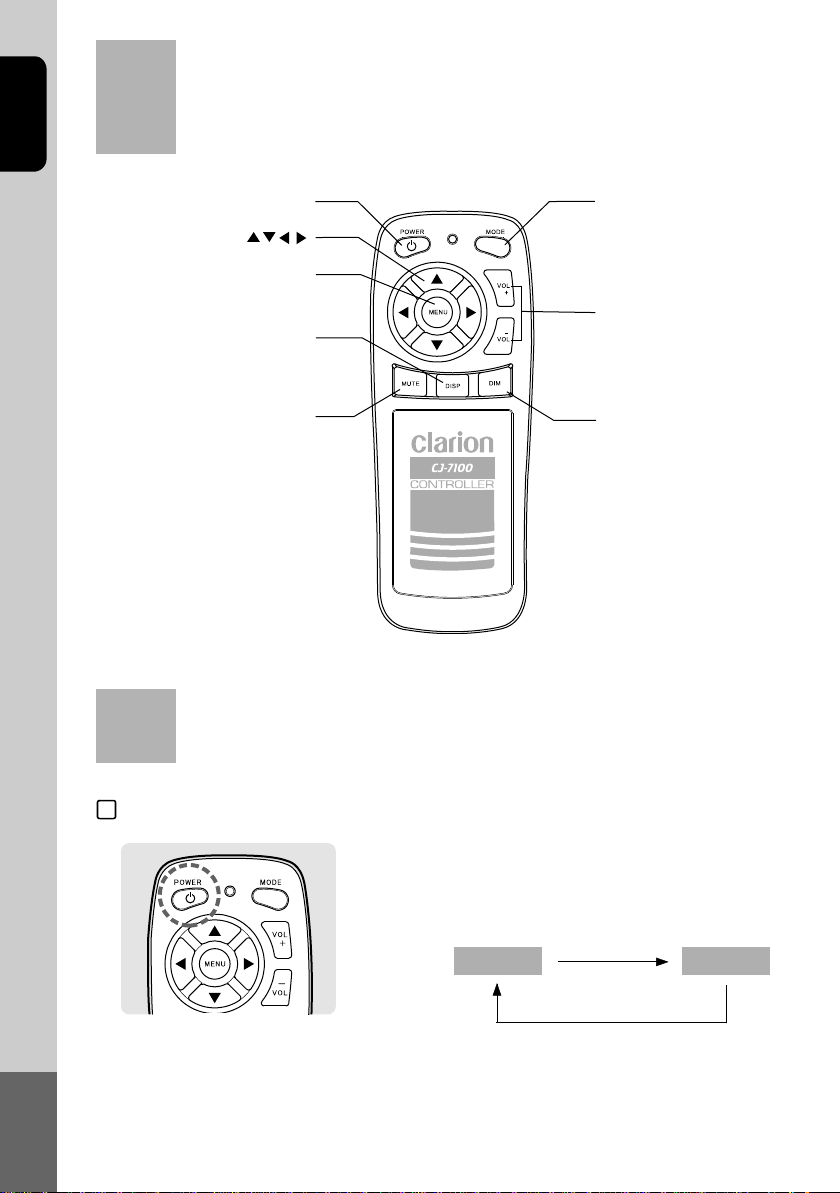

5. Names of the Remote Controller
Buttons
6. Operations of Remote Controller
[POWER]
[DIM]
[DISP]
[MUTE]
[MODE]
[MENU]
[VOL+-]
[]
1
(1) Press [POWER] button to on the power.
(STAND BY state is OFF)
(2) Press [POWER] button again to off the
power.
(STAND BY state is ON)
ON OFF
CJ-7100E-A.book 8 ページ ２０１２年９月１８日 火曜日 午後１時５５分

9
English
MODE (Camera/AV Selection)
It is a function to change CAMERA (CAM1/CAM2/AV).
MENU/
It is a function to select MAIN MENU (SETUP, PICTURE, CAMERA)
(2) Press []button to select SUB MENU, changed color in red when it is selected.
• Every time the button is pressed, the setting changes.
SET UP (SUB MENU)
(3) Press []button to change Settings.
DIMMER
–
LANGUAGE
– – – – –
–
2
CAM1 CAM2 AV
Note: In the mirror mode, the character is
inverted.
(1) Press [MODE] button.
• The characters of CAM1, CAM2 or AV
appear on the screen and they disappear
after 5 seconds.
CAM1
3
4
SETUP PICTURE
CAMERA
(1) Press [MENU] button to select MAIN
MENU, changed color in red when it is
selected.
• Every time the button is pressed, the
setting changes.
ENGLISH DEUTSCH ITALIANO FRANÇAIS ESPAñON
CJ-7100E-A.book 9 ページ ２０１２年９月１８日 火曜日 午後１時５５分

10
English
DIRECTION (Inverted upside down)
DISPLAY (Screen size)
RESET 
A factory default reset will clear all of OSD information
PICTURE (SUB MENU)
(3) Press []button to change Settings.
CAMERA (SUB MENU)
(3) Press []button to change Settings.
In the mirror mode, the screen is inverted laterally.
DIMMER
LANGUAGE
DIRECTION
DISPLAY
RESET
ENGLISH
WIDE
0
DIMMER
LANGUAGE
DIRECTION
DISPLAY
RESET
ENGLISH
WIDE
180
FULL WIDE NORMAL CINEMA
CONTRAST
BRIGHTNESS
COLOR
TINT
70
40
40
40
CONTRAST
BRIGHTNESS
COLOR
TINT
40
40
70
40
CONTRAST
BRIGHTNESS
COLOR
TINT
40
70
40
40
CONTRAST BRIGHTNESS COLOR
CONTRAST
BRIGHTNESS
COLOR
TINT
40
40
40
50
TINT
CAM1
CAM2 NORMAL
NORMAL
CJ-7100E-A.book 10 ページ ２０１２年９月１８日 火曜日 午後１時５５分

11
English

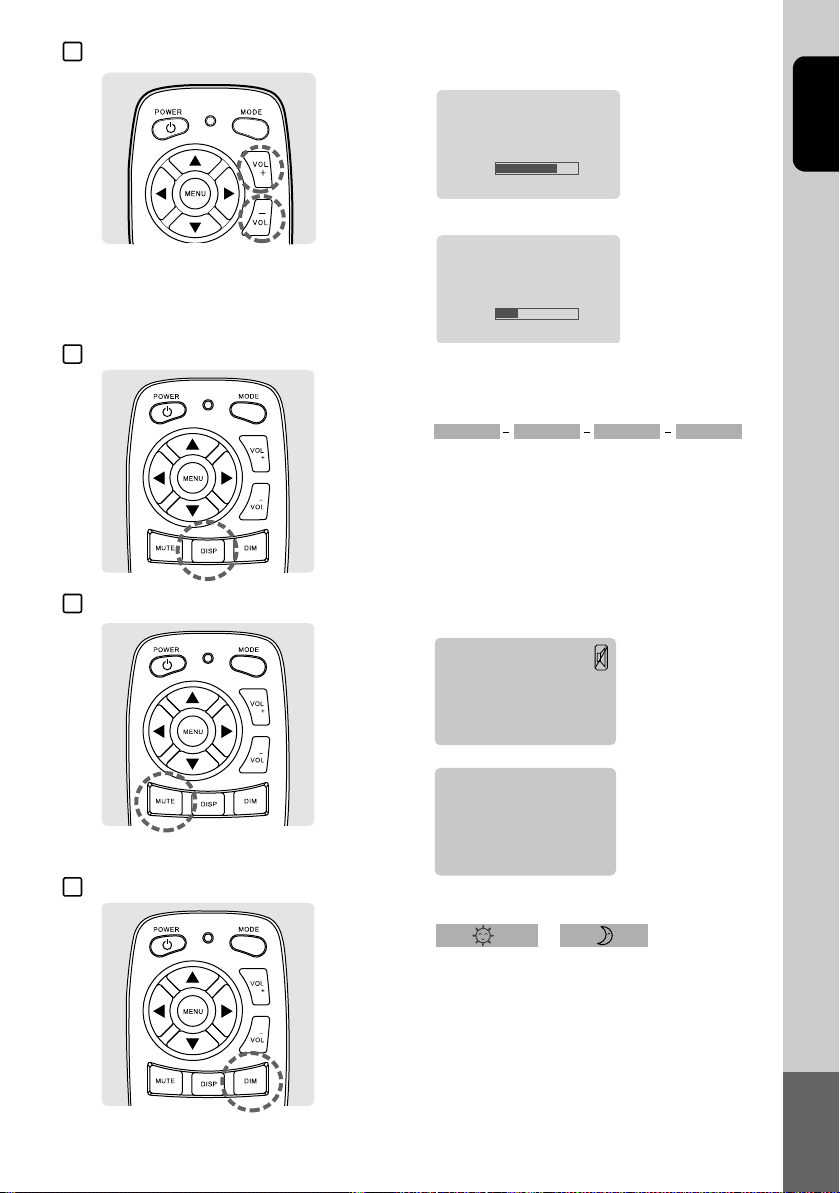

VOL +-
DISP
MUTE
DIM
5
(1) Press [VOL+] button to turn up the volume.
(2) Press [VOL-] button to turn down the
volume.
VOLUME
70
VOLUME
30
6
(1) Press [DISP] button to select the screen
size.
FULL WIDE NORMAL CINEMA
7
(1) Press [MUTE] button to mute the sound.
(2) Press [MUTE] button again to cancel.
8
(1) Press [DIM] button to change setting.
–
CJ-7100E-A.book 11 ページ ２０１２年９月１８日 火曜日 午後１時５５分

12
English

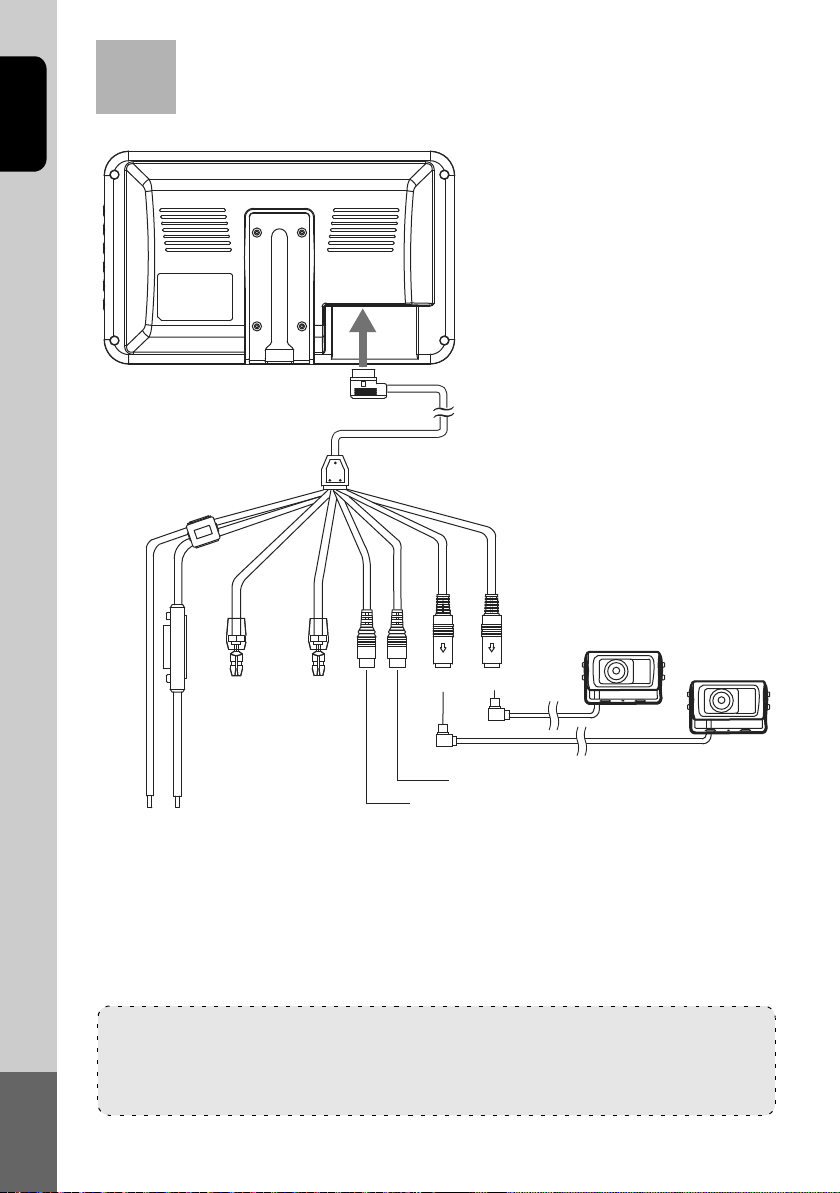

7. Connections
*3 *3
*2
*2
*1
*1
GREEN
(CAMERA2) ORANGE (CAMERA1)
BLACK
GROUND RED ACCESSORY(ACC)
DC12V/24V
CAMERA1
CAMERA1
(Sold Separately) CAMERA2
(Sold Separately)
*1 Use a Clarion camera.
*2 A relay cable, sold separately, is required
for connecting the camera.
*3 Use tape to keep the connection between
the monitor cable and the camera relay
cable secure.
MONITOR CABLE
CAMERA2
RELAY CABLE
YELLOW
VIDEO INPUT
WHITE
AUDIO INPUT
Please be sure to connect when you connect the camera.
ORANGE (CAMERA-1, priority) Standby + (for rear-view)
Connect this cable to “+” of back gear lamp.
GREEN (CAMERA-2) Standby + (for side-view)
Connect this cable to “+” of turn signal lamp.
CJ-7100E-A.book 12 ページ ２０１２年９月１８日 火曜日 午後１時５５分

13
English
1. Choose a location where you install the Monitor. Clean the place for the Stand with cleanser
and remove the Protective Tape. And then attach it exactly where you want.
2. Fasten the Monitor with Tapping Screw.
3. Adjust angle of Stand and install Monitor.
4. Connect each connecting cable as in the product installation reference.
8. Installation
Fix Knob
(Bracket)
Safeguard tape
Control Knob
(Angle)
Stand Base
CJ-7100E-A.book 13 ページ ２０１２年９月１８日 火曜日 午後１時５５分

14
English
Caution: The design and specifications of this product in order to improve its quality may be changed without notice.
9. Troubleshooting
Problem Cause Measure
No image is displayed. Is camera connected
properly? Check the wiring to the camera and the camera connection.
Power does not turn on. Is power cable
connected properly? Check the wiring.
Is a fuse blown out?
Replace with a fuse of the same amperage (3A).
Color is washed-out. Operating environment is
inappropriate.
Temperature in the car is below 0°C or over
60°C. Check to see that the temperature in
the car is appropriate (around 25°C).
10. Specifications
ITEM SPECIFICATION
NTSC PAL
LCD PANEL
SCREEN SIZE 7 INCH (178.8 mm)
NUMBER OF PIXELS 800(W) x 3(RGB) x 480(H)
DOT PITCH 0.0642(W) x 0.1790(H) mm
BRIGHTNESS 400 cd/m2
DISPLAY AREA 154.08(W) x 85.92(H) mm
CONTRAST RATIO 1:500
VIEW ANGLE (L/R/U/D) 70°/70°/50°/70°
POWER SUPPLY VOLTAGE DC 12V - 24V
CURRENT 450mA (DC 12V, MONITOR SET ONLY)
INPUT SYSTEM AUTO (NTSC/PAL)
FREQUENCY HORIZONTAL 15.734 KHz 15.625 KHz
VERTICAL 60Hz 50Hz
INPUT SIGNAL VIDEO SIGNAL COMPOSITE VIDEO SIGNAL
AUDIO SIGNAL MONO SIGNAL 400mVrms
SPEAKER 0.5W MAX
LANGUAGE DISPLAY SELECTION 7 LANGUAGE
USER CONTROLS POWER, MODE, MENU, UP, DOWN, DIMMER
OPERATING TEMPERATURE -10°C ~ + 60°C
STORAGE TEMPERATURE -20°C ~ + 70°C
DIMENSION (W x H x D) 187(W) x 113.5(H) x 26.5(D)
WEIGHT 461g
ACCESSORIES MONITOR CABLE ASS’Y·······························1 STAND ASS’Y ·············································1
REMOTE CONTROLLER (included with battery)·····1
CJ-7100E-A.book 14 ページ ２０１２年９月１８日 火曜日 午後１時５５分

15
English
MEMO
CJ-7100E-A.book 15 ページ ２０１２年９月１８日 火曜日 午後１時５５分

Clarion Co., Ltd.
All Rights Reserved. Copyright 2012: Clarion Co., Ltd.
Printed in Korea / Gedruckt in Korea / Stampato in Corea /
Imprimé en Corée / Impreso en Corea CJ-7100E
2012/11
