Clarion VX709 Repair manual

Owner's manual & Installation manual
Mode
d'emploi et manuel d'installation
Manual de instrucciones y de instalacion
VX709
2-DIN DVD MULTIMEDIA STATION WITH 7-inch
TOUCH PANEL CONTROL
STATION MULTIMEDIA
DVD 2DIN AVEC COMMANDE
PAR ECRAN TACTILE 7 pouces
EQUIPO DVD MULTIMEDIA 2-DIN CON PANEL DE
CONTROL TAcTIL DE 7 pulgadas

/--'~-~._-"-~-~~. ._-~~--~-=~~-_. "-~----_ ... _-_._='~~ .. ~,.
ICLARION PRODUCTREGISTRATION INFORMATION 1
I FO~~~~c~;~o~~~~~a only Jl.i ... :~.
'1
1
Dear Customer:
Congratulations on
your purchase of aClarion mobile electronic product. We are I
confident that you'll enjoy
your Clarion experience. I
jThere are many benefits to registering your product. We invite you to visit our website at I
Iwww.clarion.com to register your Clarion product. I
I We have made product registration simple with our easy to use website. The registration I
I!orm rt
iS
Sh
tort
adndt~afsy to Ct?mPlete. Once you're registered, we can keep you informed of l .. ~ .. :,:
I
I,. Impo an pro uc In orma Ion.
Register at www.clarion.com -it's easy to keep your Clarion product up to date. J
~~·"" •• ,,,,,, ......... ..._......... ~ ... -:::rn::>'''''''',,,",,'':''''''''''_--'!'!ll!''''ih ~nr.!'''''~=I_''""'. __ ........ >M':l';<m.~=:J"Mt_."..."" ... ~._ ....... __ ·ISW~::;O$;;I. __ .. "':'-lu."""c.'.'" .'"-:t~ •• """',...... ~;"'.~ .. """.,""'"."",., .... ,........, .. -...,,,·"'"'
INFORMATIONS DE L'ENREGISTREMENT DE PRODUITS CLARION
Pour les Etas Unis et Ie Canada seulement
www.clarion.com
Cher client:
Nous vous remercions d'avoir achete ce produit electronique mobile Clarion. Nous sommes
confiants que vous apprecierez votre experience Clarion.
II yabeaucoup d'avantage aenregistrer votre produits. Nous vous invitons avisiter notre site
Web www.clarion.com pour enregistrer votre produit Clarion.
Nous avons facilite la tache d'enregistrement de produit simple et facile grace anotre site Web.
Le formulaire d'enregistrement est court et facile acompleter. Lorsque vous etes enregistrer,
nous pouvons vous tenir informe des informations important de produits.
Enregistrer awww.clarion.com .. c'est facile de mettre ajour votre produit Clarion.
INFORMACION DEL REGISTRO DE PRODUCTO DE CLARION
Para USA yCanada nomas
www.clarion.com
Querido Cliente:
Felicitaciones por
su compra de producto electronico movil de Clarion. Estamos seguros que
usted gozara
de su experiencia con el producto de Clarion.
Hay muchas ventajas
al registrar su producto. Le invitamos aque visite nuestro sitio en internet
www.clarion.com para registrar su producto de Clarion.
Hemos hecho
el registro de producto facil en nuestro sitio. La forma de registro es corta yfacil
de completar. Una vez que 10 registre, podremos proporcionarle la informacion de su producto.
Registrese
en www.clarion.com - es facil mantener su producto de Clarion actualizado.

Thank you for purchasing the Clarion VX709 .
•' Please read this owner's manual thoroughly before operating this equipment.
•. After reading this manual, be sure to keep it in ahandy place (e.g., glove compartment).
'0 Check the contents of the enclosed warranty card and keep it carefully with this manual.
IConten ts
'1. FEATURES 2
Expanding Systems 2
Playable discs 3
DVD video features 4
:2. PRECAUTIONS 5
Operation panel/Generalities 6
Cleaning 6
About the registered marks, etc 7
:3. CONTROLS 8
Functions of Buttons 8
Outline of Button and Touchkey Operation 10
Remote Control Unit 16
4.
BASIC OPERATIONS 18
Turning On and Off the Power 18
Adjusting the Volume 18
Opening the operation panel and adjusting the angle 18
Turning the Audio OFF 19
Turning the Monitor OFF 19
Setting/Ejecting aDisc 20
Connecting/Disconnecting an USB Media Device 22
Selecting aMedia Source 24
2Zone Function 25
S. SOURCE OPERATIONS 26
Radio Operations 26
DVD Video Operations 28
Audio CD Operations 34
MP3IWMAlAAC Operations 36
DivX Operations 39
15. SOURCE OPERATIONS (ACCESSORIES) 41
XM Satellite Radio Operations 41
iPod Operations 44
USB MHmory Operations 48
Bluetooth Audio Player Operations 49
Bluetooth Telephone Operations
51
Navigati:on System Operations 55
AUX Operations 56
'7. SYSTEM SETTINGS 57
Audio Settings 57
General Settings 60
Adjusting the Monitor 63
,B. TROUBLESHOOTING 64
'9. ERROR DISPLA YS 66
10. SPECIFICATIONS 68
INSTALLATION AND WIRE CONNECTION MANUAL 69
VX709 1

:: >1~: ','~F'E}AiuRI9· " ,.', ",', '," ,'" ,.,,",' ~ .'~" .. y,,-~
, '." ~ ~ , 'J' ," '" .,
,,--~----~~ :._---=----_. --_ ... --~"'-~,
r ~NET DVD rn DOLBY ~m~~ "'''3 I AAC I!
C) ,DIGITAL I IDIGI~~xA~clli I03 TAG .. l
IE I VIDEO I
~ i §I~ IusBI I0 Bluetooth'l «( ~ ))), !
a \' .. __ .. ~_ .~~'o= .... ,."....pn..,.~~ ...... _ •• ~a......"", u.==&:;o:~ "",~"" __ ~" __ "'_._--.nt~_.-._._.;=,",,,",_ .... ~_ .. -'!.,.._~_~.-"_>U_n"'<'"'_~;
I»
:I
:; • Built in Bluetooth® Handsfree (HFP &OPP) and Audio Streaming (A2DP &AVRCP)
•USB Direct
Connection for iPod
•NAX980HD (CeNET HOD Navigation) and NP509 (Hide-away Navigation) Control with Touch
Panel
Expanding Systems
Expanding audio features
Expanding visual features
XM Mini-Tuner Rear
Vision Camera
(CC20111CAA185) Rear
Monitor
[J
o ~D
NP509
IOC -000- ~
~VTReIC.
r;::;::=:::::=:~. / ~
~ IRI BJueloolh
iQIiTelephone
b
iPod
D
@)
~/H"".'--
': Blueloolh
~ Audio Player
4-Channel
Amplifier
Note:
The items listed outside of the frames are
the commercial products generally sold,
~_QC J3 _.:m
NAX980HD/NAX970HD
Exp"anding navigation features
2VX709

This DVD player can play the following discs:
1~/ayable discs
~
VI DE 0
DVD video discs
Playable discs
~DO~~
DIGITAL AUDIO
Audio CDs
[illDO~~
DIGITAL AUDIO
I TEXT I
CD TEXT
In addition, the DVD player can play CD-R/RW, DVD-R/RW, and DVD+R/RW discs on which the
following media files have been recorded:
Playable media files
'""3
ID3TAG
MP31D3 TAG [
-.=1'3"
Windows
-.;M Media'"
WMA IAACI
AAC DivX
For detailed information, see the sections entitled "MP3/WMAlAAC Operations" (page 36) and "DivX
Operations" (page 39).
J'bout CD Extra discs
ACD Extra disc is adisc in which atotal of two
sessions haVE! been recorded. Thefirst session is
P,udio session and the second session is Data
session.
Your personally-created CDs with more than
second data sessions recorded cannot be played
on this DVD player.
Note:
•When you
playa CD Extra disc, only the first
session will be recognized.
J'bout playing aCD-R/RWdisc
This player can play CD-R/RW discs previously
recorded in Audio CD format or format with MP31
WMAlAAC/DivX files.
J'bout playing aDVD-R/RW or
OVD+RlRW disc
Thisplayercan play DVD-R/RW and DVD+R/RW
discs previously recorded in DVD video format or
format with MP3/wMAlAAC/DivX files.
Discs that cannot be played back
This player cannot play DVD Audio, DVD-RAM,
Video CDs, Photo CDs, etc.
Note:
•It
may not be possible to play back discs recorded
on some CDIDVD drive units. (Cause: disc
characteristics, cracks, dust/dirt, dust/dirt on
player's lens, etc.)
•
If aCD-R1RW, DVD-R1RW, or DVD+RlRW disc
that has not been finalized is played, it will take a
long time to start playing. Also, it may not be
possible to
play depending on its recording
conditions.
•You cannot play Super Audio CDs. Playback of the
CD
player is not supported even if it is ahybrid
disc.
Note on region numbers of DVD
video discs
The DVD video system assigns aregion number
to DVD players and DVD discs by sales area.
The DVD video region number playable in this
system is marked on the disc jacket as shown
below.
VX709 3

DVD video features
This unit provides the following functions in
addition to the high image quality and sound
quality of DVD video.
Note:
• The functions described in this section differ
depending on the 0
VD video disc. Refer to the
instructions provided with the DVD video.
•Some disc functions may operate differently from
described
in this manual.
Multi-sound function
DVD video can store up to 8languages for one
film; select the language of your preference.
•The languages stored on the disc are indicated
by the icon shown below.
0))
Multi-angle function
ADVD video that is filmed from multiple angles
allows you to select the angle of choice.
•The number of recorded angles is indicated by
the icon shown below.
Subpicture (subtitles) function
ADVD video can record subtitles for up to 32
languages and you can select the language of
the subtitles you wish to see.
•The number of recorded subtitle languages is
indicated by the icon shown below.
4 VX709
Multi-story function
When aDVD video contains more than one story
for afilm, you can select the story you wish to
enjoy. The operation procedures vary with the
disc; observe the instructionsfor selecting astory
provided during playback.
DVDmenu
DVD Menus can be called up during DVD video
playback to perform menu setting.
•Example showing DVD menu

For your safety, the driver should not watch the DVD video/movie data or operate the controls
while driving. Please note that watching and operating the DVD video/movie data while driving
are prohibited by law in some countries. Also, while driving, keep the volume to alevel at which
external sounds can be heard.
INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED
BY THE
MANUFACTURER
WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.

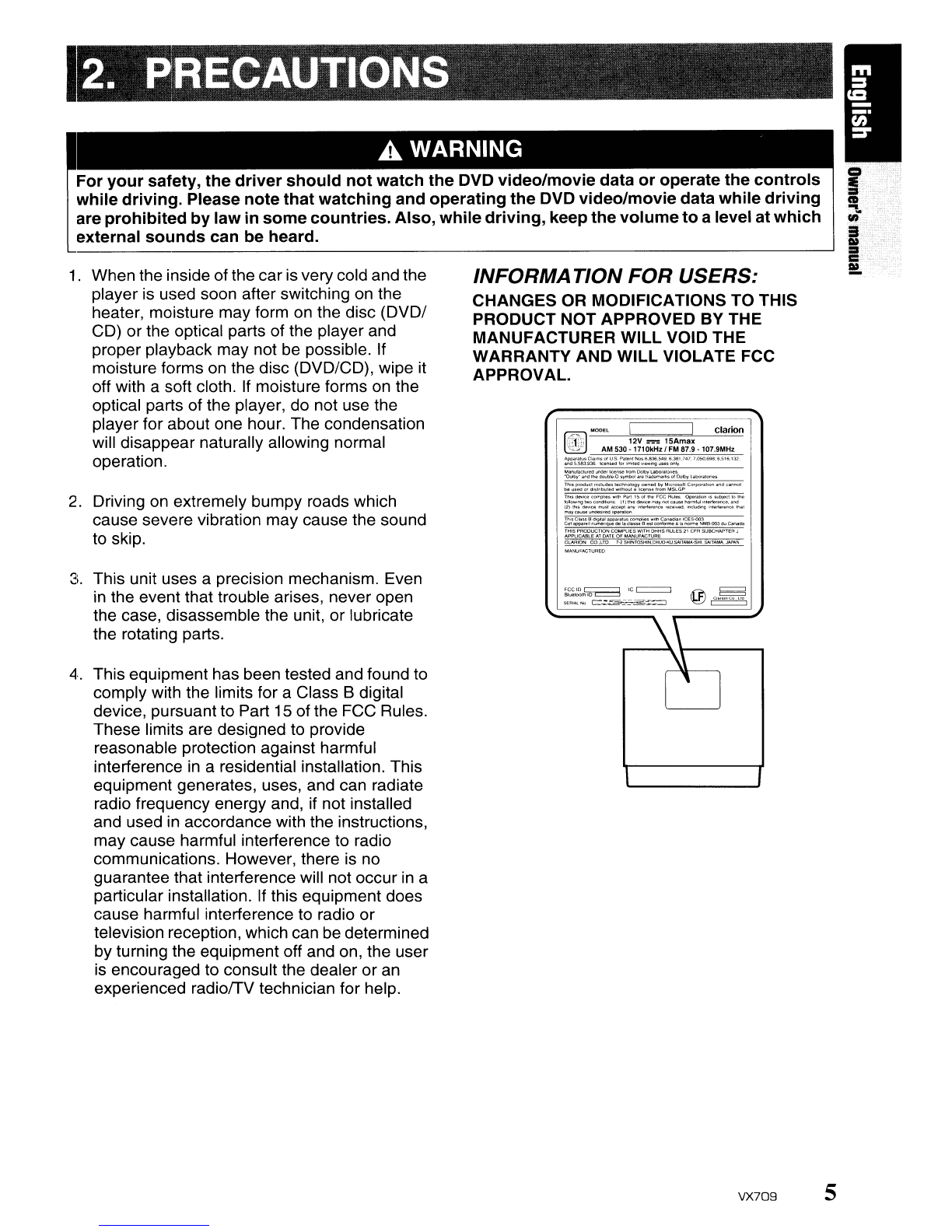

2. PRECAUTIONS
nlll ClaSS BC1goUIAPPllr.'useOtllPllU_ea...-'CES-«13
~lllRYr.'1 ...... ""tlId1oSH8_c;ontoo ........ __ N"ltll)gJ~e.-
~~~,~~U~~~o::SrlUl[S2' CFIiSUOCttAPr[AJ
Cl.AAlON CO.L1D 7·1Sl*lrOSl4N.CHJO-~U.SAI',t,W,.SHI.~INM.JA1",. ...
LIA.NlJf....cruR[O
Moon I I Clarion
~ 12V 15Amax
~ AM 530 -1710kHz' FM 87.9 ·107.9MHz
~_MuI;CIo ..... o!US r>~I~MNoo;6.8:ll1.SA~ 6.381,7.7, 7 05(1.&98. 6,Slll.1J2
Irw:lS.S3J.9361oC_'0<~1IC"""onoUq.oNy.
M""",,".:tltredUl'de<lIoens.e'rornOolby~,oe.
·~·a<'Cllh._Osyml>Ol ... ~~~~.oIl'Jo1:¥L .. t><>< .. t_
~~~~':~,:":C~T=,:z.."'~s:.~ COl.,....I~_.t>dC.""'"
T_~OOI">.OI-.s-'P .. : 'SoIltMIfCCRu ... 0pe<"""" .. 1UtI,IIc':1O'''''
1oI""""9:WO=--. (1)lI'"OSdev.,.....,.nolca,..""'...ruI_,WM:e.11'd
iZI""<leVa!"""",,aca!PlaR'l'~'K_.IfW::Iuoloor>g""'ote<er'Cerwt ft'\iIy __ ecl~_.
AWARNING
2. Driving on extremely bumpy roads which
cause severe vibration may cause the sound
to skip.
1. When the inside of the car is very cold andthe
player is used soon after switching
on the
heater, moisture may form on the disc (DVDI
CD) or the optical parts of the player and
proper playback may not be possible. If
moisture forms on the disc (DVD/CD), wipe it
off with asoft cloth. If moisture forms on the
optical parts of the player, do not use the
player for about one hour. The condensation
will disappear naturally allowing normal
operation.
I
3. This unit uses aprecision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.
4. This equipment has been tested and found to
comply with the limits for aClass Bdigital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference
in aresidential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used
in accordance with the instructions,
may cause harmful interierence to radio
communications. However, there is no
guarantee that interierence will not occur
in a
particular installation. If this equipment does
cause harmful interierence to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to consult the dealer or an
experienced radiofTV technician for help.
.-------\\ \\-------,
\\
l' I
,
VX709 5

For alonger service life, be sure to read the following cautions.
Operation panel/Generalities
•The operation panel will operate properly in a
temperature range of 0to 60°C.
Of • Do not allow any liquids on the set from drinks,
:I umbrellas etc. Doing so may damage the
>g:
~ internal circuitry.
In
it • Do not disassemble or modify the set in any
:I way. Doing so may result in damage.
i. ·Subjecting the operation panel to shocks may
result
in breakage, deformation or other
damage.
•Do not let cigarettes burn the display. Doing so
may damage or deform the cabinet.
•If aproblem should occur, have the set
inspected at your store of purchase.
•
Do not insert objects or poke in the space
between the operation panel and the main unit
when the panel is tilted.
Cleaning
•Cleaning the cabinet
Use asoft and dry cloth and gently wipe off the
dirt. For tough dirt, apply some neutral
detergent diluted
in water to asoft cloth, wipe
off the dirt gently, then wipe again with adry
cloth.
Do not use benzene, thinner, car cleaner, etc.,
as these substances may damage the cabinet
or cause the paint to peel. Also, leaving rubber
or plastic products in contact with the cabinet
for long periods of time may cause stains.
•Cleaning the liquid crystal panel
The liquid crystal panel tends to collect dust, so
wipe
it off occasionally with asoft cloth. The
surface is easily scratched, so do not rub
it with
hard objects.
6 VX709
•The remote control unit may not work if the
remote control sensor is exposed to direct
sunlight.
•
In extremely cold weather, the display
movement may slow down and the display may
darken, but this is not amalfunction. The
display will work normally when the
temperature increases.
•Small black and shiny spots inside the liquid
crystal panel are normal for LCD products.
•The touchkeys on the display operate when
slightly touched.
Do not press the touchkey
screen with much force.
•
Do not push the case surrounding the touchkey
panel with much force. This may cause
malfunctioning of the touchkeys.

About the registered marks, etc.
O' This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only
unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is
prohibited.
•Manufactured under license from Dolby
Laboratories.
"Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.
•Windows Media
TM, and the Windows@ logo are
trademarks, or registered trademarks
of
Microsoft Corporation in the United States and/
or other countries.
•"DivX", "DivX Certified", and associated logos
are trademarks of DivX, Inc., and are used
under license.
•XM and the XM logos are trademarks of XM
Satellite Radio Inc.
•"Made for iPod" means that an electronic
accessory has been designed to connect
specifically to iPod and has been certified by
the developer to meet Apple performance
standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPod is atrademark of Apple Inc., registered
in
the U.S. and other countries.
VX709
7

•Operation panel
3. CONTROLS
_.- Blink LED
-[D.]
(OPEN/CLOSE)
----[ISR]
_ Microphone
e--- Sensor
-[MAP]
[
ElH<ilJ' [~l
[SRC]
OBluetooth
VX709
C~
O~N, II
~
all
.. , II
Q II
G
~~
"ND II
8
f--
~
p===1 -0 r.J 0+1 III MENU Iclarion T
SRc]1 1'- 0r.J0 ....,1=
[-], [+IJ J
[MENU]
•With the
operation panel open
c
ri§§[~§l ~IJ Reset button
o
Functions of Buttons
Note:
•Be sure to read this section while referring to the front diagram.
Sensor [SRC] button
•Receiver for the remote control unit (operating •Press this button to display the Source screen
range: 30° in all directions). to switch the source mode.
[~] (EJECT) button •Keep pressing this button more than 1second
•Use this button to eject the disc set in this unit. to turn off the audio feature (AUDIO OFF).
Press this button to turn on the audio feature.
[-], [+] (Volume) buttons
•Use these buttons to increase/decrease the
volume.
8 VX709

Functions of Buttons
[...... ], [~] buttons
•Use these buttons to change to the previous/
next preset station
in the TUNER and XM
modes.
•
In the OVO Video mode, use these buttons to
select achapter to be played.
Keep pressing abutton during playback
performs the fast backward or fast forward
playback.
Keep pressing the
[~] button during pausing
performs the slow playback.
•
In the CODA, MP3IWMAlAAC/OivX, and iPod/
USB Memory/Bluetooth (Audio) modes, use
these buttons to select atrack to be played.
Keep pressing abutton during playback
performs the fast backward or fast forward
playback.
[MENU] button
•Press this button to display the Menu screen.
You can change the system settings from this
screen.
•When displaying the General Settings screen,
keep pressing this button more than 2seconds
to display ascreen for entering your personal
code of the anti-theft function.
[MAP] button *1
•Pressing this button in the audio/visual modes
changes to the Navigation mode.
[r] (SEND/END) button*2
•When acall comes in, press this button to
answer the call.
•During acall, press this button to end the call.
[ISR] button
•Keep pressing this button more than 2seconds
in the TUNER mode stores the current station
into ISR (Instant Station Recall) memory.
•Press this button in any mode to enter/exit the
ISR mode.
[Il] (OPEN/CLOSE) button
•Use this button to open/close the operation
panel.
•Keep pressing this button to adjust the angle of
the operation panel. The angle of the operation
panel is adjustable in the range of 0° to 30°.
Blink LED
•When the Blink LED function is setto "ON" from
the System tab menu on the General Settings
screen, blinks when the ACC power is turned
off.
Note:
*1 This button is available only when anavigation
system is connected.
*2 This button is available only when the connection
with aBluetooth telephone is established.
VX709 9

Turning the power on
Outline of Button and Touchkey Operation
I--
'" III 1,-000- 1=
clarion
:==-=,1 -ODD +IMUN
o
B
G
I (7"""o ... ~,."",,, ~~~==~~~==~===d,'~""~1 0
o
B
•
•
•
System check
The CeNET format utilized on this unit is provided
with asystem check function. When the system
check function is performed under the following
conditions, the power is automatically turned off.
Press the [SRC] button again.
•When power is first turned on after initial
installation.
•When an external device is connected or
disconnected.
•When Reset button is pressed.
* In addition to the above conditions, the system
check function can be performed from the System
tab menu on the General settings screen.
Note:
*1 These images indicate the buttons to press or
keys to touch.
or I SRC I *1
You can change the media
sources.
10 VX709

Outline of Button and Touchkey Operation
TUNER mode operation
(Source screen)
Switches the radio band.
Selects HomefTravel modes.
Manual tuning
Seek tuning
(Preset List screen)
•Select desired station after
selecting radio band.
VX709 11

Outline of Button and Touchkey Operation
Set up
(DVD Setup screen)
(DVD Video mode screen) *2
_
1""i<j;Hi"""!"S;"iS~
~ "" ..
(Source screen) &::5~~~1t>
*Screen during DVD Video mode
when automobile moving.
DVD Video mode operation
Note:
*2 When playing aDVD video movie, touching the screen surface will cause
the DVD Video mode screen to be displayed.
12 VX709

Outline of Button and Touchkey Operation
Bluetooth telephone operation
(Menu screen)
(Telephone screen)
(Cellular Select screen)
(1 OKey screen)
•To make acall, enter the
telephone number using 10-Key
Pad, then touch the [:;J (Send)
key.
" - Register your Bluetooth
cellular phone beforehand.
•Touch your desired Telephone
key to selectthe telephone to be
used.
VX709
13

(Clock tab screen)
It f A';'o tJloni Off
.±-
I o7v ' NI
,
Source BT Phone ' Navigation
AIldlo General Monitor
_ _ __ ~ ~ _ l~_
(General Settings screen)
(Menu screen)
Outline of Button and Touchkey Operation
Adjusting the General settings
cf~
.-
d·
',r .••. :
c
-;"
(Display tab screen)
11 ,,\
;t'
14 VX709

Outline of Button and Touchkey Operation
Adjusting the Audio settings
c!§§J
(Menu screen)
-
f.~
(OTHERS tab screen)
(SAL/FAD tab screen)
(TONE tab screen)
-/"':;'<"", ,
(DZE tab screen)
!!!!I.!!~~!!!!!!i!IIII!!!!!!!!i!!!~
(Audio Settings screen)
VX709 15

.... \t" ~
II
qoq
clarion
[ ..... ],[~]
[-], [+]
I~+-- [A], [T], [ ..... ], [~]
'--~- [ANGLE]
:--~- [RETURN]
:--~- [MENU]
r---~- [SUBTITLE]
.---- Signal transmitter
Operating range: 30° in all directions
[AUDIO] -~'--
[SOURCE] --+-~
'-="""---'
[BAND] ---+-+--
[~ II]
[TOP MENU] -~'--
[ENT] --:-.!....-....'~~
Remote Control Unit
Names of buttons
Inserting the Battery
1. Slide the rear cover in the direction of the
arrow, and remove
it.
2. Insert the CR2025 battery bundled with the
remote control unit
in the directions shown in
the figure, then close the rear cover.
Note:
Using battery improperly can cause it to explode.
Take note of the following points:
•Do not short-circuit, disassemble or heat battery.
•Do not dispose of battery into fire or flames.
•Dispose of spent battery properly. Rear cover
16 VX709

Remote Control Unit
Functions of Remote Control Unit Buttons
You can use the remote control unit to control the VX709. When the 2Zone function is ON, the controls
work upon the Sub zone only.
Note:
'. The steering wheel remote control operations work upon the Main zone even when the 2Zone function is ON.
[VOL -], [VOL +] buttons
•Decreases or increases the volume. (in any
mode; disabled when 2Zone ON)
[~ II] button
•Press to play or pause video and audio media.
(in DVD, USB, and Bluetooth modes; disabled
in USB/Bluetooth modes when 2Zone ON)
•Keep pressing more than 1second to stop
video playback. (in DVD Video mode)
[~], [~I] buttons
•Press to select the next lower or higher preset
station. (in TUNER and XM modes; disabled
when 2Zone ON)
•Press to select the next lowerorhigherchapter
number. (in DVD Video mode)
•Press to select the next lower or higher track.
(in CDDA, MP3IWMAlAAC/DivX, USB, and
Bluetooth modes)
•Keep pressing to perform fast backward or fast
forward playback. (in DVD, USB, and Bluetooth
modes)
[AUDIO]
button
.. Press to set the Audio language. (in DVD Video
mode)
[SUB TITLE]
button
'. Press to display subtitles. (in DVD Video mode)
[ANGLE] button
'. Press to set the Angle function of the DVD
video when the Angle mark is displayed. (in
DVD Video mode)
*Available only when the Angle function in the
DVD Setup screen is set to "ON".
ITOP MENU] button
.• Press to display the DVD top menu stored on
the DVD video disc. Some discs are not
displayed the DVD top menu. (in DVD Video
mode)
I[MENU]
button
.• Press to display the DVD menu stored on the
DVD video disc. (in DVD Video mode)
[ENn button
.• Press to fix the selected menu item on the DVD
menu. (in DVD Video mode)
Il .. ], ['], [ ..... ], [~] buttons
It Pressto selectdesired menu item displayed on
the DVD menu. (in DVD Video mode)
[SOURCE]
button
It Press to switch the source modes such as
TUNER mode, DVD mode, etc. (in any mode)
*Only DVD, USB, and AUX modes are selectable
when 2Zone
ON .
.. Keep pressing more than 1second to turn the
2Zone function ON/OFF. (in any mode)
[RETURN]
button
"Press to return to the previous screen while the
DVD menu is being displayed. However, it may
occur that this button operation dose not work
on some discs. (in DVD Video mode)
[BAND] button
.. Switches reception bands. (in TUNER and XM
modes; disabled when 2Zone ON)
.. Keep pressing more than 1second to switch
the HomefTravel modes. (in TUNER mode;
disabled when 2Zone ON)
•• Press to select the next higher folder. (in MP3/
WMNAAC/DivX and USB memory modes)
VX709 17

Note:
•Be sure to read this chapter referring to the chapter "3. CONTROLS" (page 8).
4. BASIC OPERATIONS
1. Start the engine. The power is supplied to this
unit.
ACAUTION
'r .
'-i..:~'!- Turning On and Offthe Power
~!~";i
When the unit is turned on, starting and
stopping the engine with its volume raised to
the maximum level may harm your hearings.
Be careful about adjusting the volume.
Note:
•Start the engine before using this unit.
•Be careful about using this unit for along time
without running the engine.
If you drain the car's
battery too far, you may not be able
to start the
engine and this can reduce the service life
of the
battery.
2. Press the [SRC] button. The unit
automatically memorizes its last operation
mode and will automatically switch to display
that mode.
3. To turn off the power, press and hold the
[SRC] button for more than 1second.
Adjusting the Volume
1. Press the [-]/[+] buttons to adjust the volume.
[-]: Decreases the volume.
[+]: Increases the volume.
•The volume level indicated in the display is
in arange from 0(min.) to 33 (max.).
ACAUTION
While driving, keep the volume level at which
external sounds can be heard.
Opening the operation panel and adjusting the angle
Open the operation panel when inserting/ejecting
adisc.
The angle of the operation panel can be adjusted
depending on the mounting angle of the unit or
light coming into the car.
ACAUTION
• Do not move the operation panel forcibly or
do not apply strong force to the operation
panel.
• When the operation panel is operating, be
careful not to get your hand or finger caught
between the operation panel and main unit
or its mechanical parts.
• The driver should not operate the operation
panel while driving.
Opening/closing the operation panel
1. Press the [Il] (OPEN/CLOSE) button.
The operation panel will be opened or closed.
Note:
• The operation panel will close automatically when
leaving it open for awhile.
•When the operation panelis open, the touch panel
cannot be operated.
18 VX709
