Form No. 78155C 1/03
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your Clarke
American Sanders machine could result in injury to you or to other personnel; damage to the machine
or to other property could occur as well. You must have training in the operation of this machine
before using it. If you cannot read English, have this manual explained fully before attempting to
operate this machine.
Si Ud. no pueden leer el Inglés, se hagan explicar este manual completamente antes de tratar el
manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
Operator's
Manual
Super 7R
Edger
Division of

Page 2 Clarke®American Sanders Super 7R Operator's Manual
Operator's Manual - Section I
Operator Safety Instructions ......................................................... 3
Machine Specifications ................................................................ 5
Sanding Cuts and Sandpaper .................................................... 6
Machine Set-Up ........................................................................... 7
Operating Instructions ................................................................... 7
Adjustment Procedures ................................................................ 8
Routine Maintenance.................................................................... 8
Carbon Brushes...................................................................... 8
Dust Bag ................................................................................ 8
Bearings ................................................................................. 8
Parts and Service Manual - Section II
Maintenance .............................................................................. 10
Wiring Diagram.......................................................................... 11
Assembly Drawing ..................................................................... 12
Assembly Parts List ................................................................... 13
Contents of this Book

Clarke®American Sanders Super 7R Operator's Manual Page 3
DANGER means: Severe bodily injury or death can occur to you or other personnel if the DAN-
GER statements found on this machine or in this Owner's Manual are ignored
or are not adhered to. Read and observe all DANGER statements found in this
Owner's Manual and on your machine.
WARNING means: Injury can occur to you or to other personnel if the WARNING statements
found on your machine or in this Owner's Manual are ignored or are not
adhered to. Read and observe all WARNING statements found in this Owner's
Manual and on your machine.
CAUTION means: Damage can occur to the machine or to other property if the CAUTION state-
ments found on your machine or in this Owner's Manual are ignored or are not
adhered to. Read and observe all CAUTION statements found in this Owner's
Manual and on your machine.
DANGER: Failure to read the Owner's Manual prior to operating or attempting any service or mainte-
nance procedure to your Clarke American Sanders machine could result in injury to you or
to other personnel; damage to the machine or to other property could occur as well. You
must have training in the operation of this machine before using it. If you cannot read
English, have this manual explained fully before attempting to operate this ma-
chine.
DANGER: Sanding/finishing wood floors can create an environment that can be explosive. The
following safety procedures must be adhered to:
• Cigarette lighters, pilot lights and any other source of ignition can create an explosion
when active during a sanding session. All sources of ignition should be extinguished or
removed entirely if possible from the work area.
• Work areas that are poorly ventilated can create an explosive environment when certain
combustible materials are in the atmosphere, i.e., solvents, thinners, alcohol, fuels,
certain finishes, wood dust and other combustible materials. Floor sanding machines
can cause flammable material and vapors to burn. Read the manufacturer's label on all
chemicals used to determine combustibility. Keep the work area well ventilated.
• Spontaneous combustion or an explosion can occur when working with sanding dust.
The sanding dust can ignite and cause injury or damage. Sanding dust should be
disposed of properly. Always empty the sanding dust into a metal container that is
located outside of any building(s).
• Remove the contents of the dust bag when the bag is 1/3 full. Remove the contents of
the dust bag each time you finish using the machine. Never leave a dust bag unattended
with sanding dust in it.
• Do not empty the contents of the dust bag into a fire.
• Hitting a nail while sanding can cause sparks and create an explosion or fire. Always
use a hammer and punch to countersink all nails before sanding floors.
DANGER: Operating a machine that is not completely or fully assembled could result in injury or
property damage. Do not operate this machine until it is completely assembled. Keep
all fasteners tight. Keep adjustments according to machine specifications.
WARNING AVERTISSEMENT ADVERTENCIA
OPERATOR SAFETYINSTRUCTIONS

Page 4 Clarke®American Sanders Super 7R Operator's Manual
DANGER: Electrocution could occur if the machine is used on a power circuit that repeatedly trips or is
undersized. Have a licensed electrician check the fuse, circuit breaker or power supply.
DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not
properly disconnected from the power source. Disconnect the power supply before attempting
any maintenance or service.
DANGER: Electrocution could occur if machine is used on ungrounded electrical circuit. Never remove
or disable the grounding supply conductor on the electrical cord. Consult an electrician if the
grounding conductor is missing or if you suspect your circuit is not grounded properly.
DANGER: Use of this machine with a damaged power cord could result in an electrical shock. Do not
use the machine if the power cord is damaged. Do not use the electrical cord to move the
machine.
DANGER: Electrocution or injury could occur if the power cord is run over or damaged by the sander.
Keep the cord free from under the machine to avoid contact with the sandpaper. Always lift
the power cord over the machine.
DANGER: Moving parts of this machine can cause serious injury and/or damage. Keep hands, feet and
loose clothing away from all moving parts of the sander. Disconnect machine from the power
source before changing the abrasive, emptying the dust bag, or performing any maintenance.
Do not operate unless all covers and guards are in place. Never leave machine unattended
while motor is running or connected to power source.
WARNING: Failure to read and observe all safety statements found on your machine or in this Owner's
Manual can result in serious injury or damage. Read and observe all safety statements. Make
sure that all labels, decals, warnings, cautions, and instructions are fastened to the machine.
Get new labels from your authorized Clarke American Sanders distributor.
WARNING: Sanding dust can be airborne and can be breathed in while operating a sander. Always wear
a dust mask while operating sanding equipment.
WARNING: Injury to the eyes and/or body can occur if protective clothing and/or equipment is not worn
while sanding. Always wear safety goggles, protective clothing, and a dust mask while
performing any sanding operation.
WARNING: Bodily injury could occur if power is applied to the machine with the power switch already in
the "ON" position. Always check to assure that the power switch is in the "OFF" position
before applying power to the power cable.
WARNING: Any alterations or modifications of this machine could result in damage to the machine or injury
to the operator or other bystanders. Alterations or modifications not authorized by the
manufacturer voids any and all warranties and liabilities.
CAUTION: Maintenance and repairs performed by unauthorized personnel could result in damage or
injury. Maintenance and repairs performed by unauthorized personnel will void your warranty.
Servicing of this unit must always be referred to an authorized American SandersTechnology
distributor.
CAUTION: Use of this machine to climb on could result in injury or damage. Do not use this machine
as a step or furniture.
CAUTION: Damage could occur to the machine if not properly kept in a dry building for storage. Store
the machine in a dry building.
CAUTION: Serious damage to the floor can occur if the machine is left running in one spot while the
sanding disc is in contact with the floor. To avoid damage to the floor, do not dwell while
lowering or raising the sanding disc. Always sand with a constant motion and pressure.
CAUTION: Do not rest machine on sanding disc. To do so may cause a flat spot and reduce the quality
of performance. Tip machine back or rest on side when not in use.

Clarke®American Sanders Super 7R Operator's Manual Page 5
Specifications
Model 07011A 07075A 07054A 07098A
Electrical Rating 115V, 12.0 A, 60 Hz 115V, 12.0 A, 60 Hz 230V, 6.0A, 50 Hz 230V, 6.0 A, 50 Hz
Storage Case Optional Standard Standard Standard
Motor 1hp 1hp 1hp 1hp
Abrasive Size 7" x 7/8" Dia. Disc 7" x 7/8" Dia. Disc 7" x 7/8" Dia. Disc 7" x 7/8" Dia. Disc
Disc Rate 2800 RPM 2800 RPM 2800 RPM 2800 RPM
Disc Driver System GearDriven GearDriven GearDriven GearDriven
Power Cable 14-3 Gray Rubber 14-3 Gray Rubber 14-3 Gray Rubber 14-3 Gray Rubber
Dust Collection Standard Standard Standard Standard
Dust Control Rate 110 CFM 110 CFM 110 CFM 110 CFM
Model Super 7R
Specifications
Dust Collection Bag
Control Switch
Work Light
Wall Guard
Steel Reinforced
Molded Rubber
Sanding Pad
Operating Handles
Abrasive Wrench

Page 6 Clarke®American Sanders Super 7R Operator's Manual
12 grit For removing gross imperfections and
16 grit restore evenness to old flooring. To remove
20 grit build-up of paints and varnishes.
24 grit
30 grit For first sanding of new flooring (maple, oak).
36 grit For removing minor imperfections and finishes
from old flooring.
40 grit For initial cut on new flooring (oak, walnut).
For removing minor imperfections and finishes
from old flooring.
50 grit For first sanding of new flooring (cedar, pine,
fir) For clean-up of 16 grit.
60 grit For clean-up from initial cut 36 grit.
80 grit For final sanding of certain hardwoods. For
clean-up of initial cuts (50 grit).
100 grit For final sanding of certain hardwoods and
conifers where a smooth surface is desired.
120 grit For final sanding of certain conifers.
150 grit For final sanding of certain conifers where a
smooth surface is desired for surface
roughening between coats of finish.
SANDING CUTS AND SANDPAPER
Initial Cut
The purpose of the initial cut is to remove old finish and gross imperfections on the floor surface. A coarse
abrasive should be used.
If glazing, loading, or burning takes place immediately into an initial cut, select a coarser abrasive. If this
should occur during an initial cut, the abrasive has dulled and must be replaced.
Final Cuts
The purpose of a finishing cut is to remove the scratches produced during the initial cut. Use a fine (60 - 80
grit) grain abrasive.
If the surface remains rough after a finishing cut, it may be necessary to use an even finer grain of abrasive (80
- 100 grit). Care should be taken in selecting the grit size of the abrasive. A very fine grain will close the
pores on a wood floor making admission of a stain difficult.
Grain Use Standard Grade
Part #/Qty
Professional Grade
Part #/Qty
7" Diameter 7" Diameter
945594/200
945595/200
945596/200
945597/300
945598/300
945599/300
945600/300
945601/300
945602/300
945603/300
945604/300
945605/500
945606/300
945300/50
945301/50
945302/50
945305/100
945307/100
945308/100
945309/100
945310/100

Clarke®American Sanders Super 7R Operator's Manual Page 7
MACHINE SET-UP
1. Familiarize yourself with the machine. Read all danger,
warning, and caution statements and the Owner's Manual
before operating this machine. If you or your operator
cannot read English, have this manual explained fully
before attempting to operate this machine.

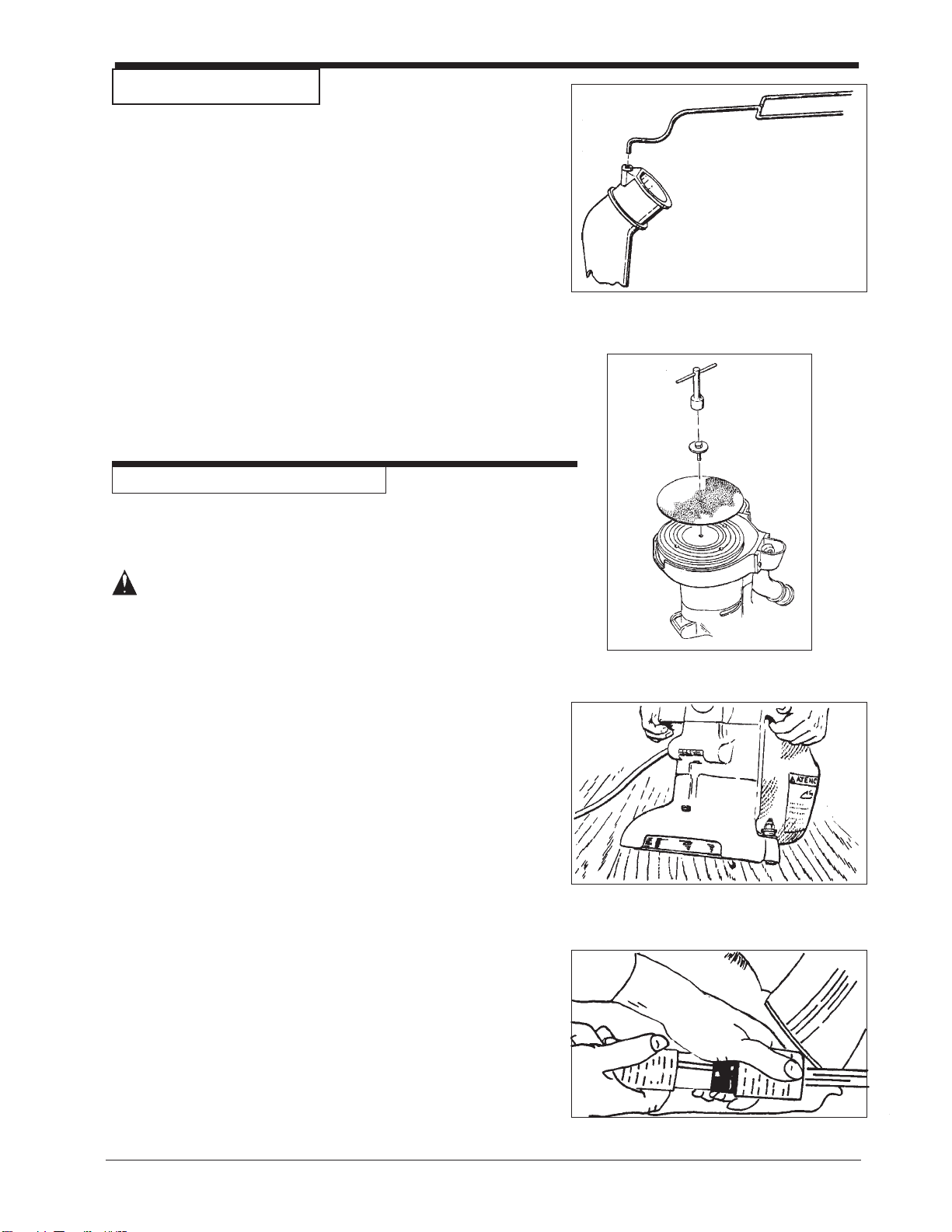

2. Install dust bag support to the exhaust bracket (figure 1).
Place opening of dust bag over dust bag support and
exhaust bracket; cinch and tie securely to exhaust bracket.
3. Remove screw and abrasive retainer. Center abrasive on
pad and secure with abrasive retainer and screw. (Figure
2)
4. Return machine to upright position and tilt machine back on
casters until it comes to rest on the exhaust bracket.
Machine will be in a reclined position. Do not allow ma-
chine to rest on pad especially after use, or compression
set may take place within elastomer on pad. This will
create a flat spot and bounce during use. (Figure 3)
OPERATING INSTRUCTIONS
1. Move machine to the location of your work. Set any
exposed nails with hammer and punch to avoid encounter
with abrasive.
WARNING: Bodily injury could occur if power is applied to the
machine with the power switch already in the "ON"
position. Always check to assure that the power
switch is in the "OFF" position before applying
power to the power cable.
2. Make sure the control switch is in the "Off" position then
connect the supply cable to an appropriately grounded
fused circuit. Connect the supply cable to the motor pigtail.
(Figure 4)
3. With the machine in the reclined position firmly grasp both
handles and flip the control switch to the "ON" position.
(Figure 3.)
4. Gradually lower pad to surface intended for sanding.
Make sure the machine is in motion while the pad is
engaged with the surface to be sanded. You may use
broad circular motion as you sand along the length of
the surface or your may use a combination of forward
and sideward motions. In time you will develop your
own technique to optimize coverage and dust recovery. It
is advisable to not add effort to the pad as this may lead
to "nosing in" or "tipping" which produces grooves or
lines on the surface.
5. When replacing abrasive, emptying the contents of the
dust bag, or sanding operation is completed, return
machine to reclined position, flip control switch to "Off"
then disconnect the motor pigtail from the supply cable.
6. Empty dust bag whenever it becomes 1/3 full.
Figure 1
Figure 2
Figure 3
Figure 4

Page 8 Clarke®American Sanders Super 7R Operator's Manual
Bearings
To insure reliable performance, have armature and
pad driver bearings inspected for wear or damage
after every 1500 hours. If used heavily, have the
bearings replaced seasonally.
Lubrication
The machine comes fully lubricated. The gears in
the gear box have enough lubrication for approxi-
mately six months of normal operation. Have the
lubricant changed at least every 6 months or more
frequently under heavy use.
OPERATING INSTRUCTIONS cont.
DANGER: Failure to disconnect the supply cable
from machine whenever servicing,
replacing abrasive, or emptying the
dust bag could result in electrocution
or severe injury. Never leave machine
unattended while the supply cable is
connected.
DANGER: Never leave dust bag unattended with
sanding dust in it. Sanding dust can
spontaneously ignite and cause a fire
or explosion. Empty dust bag into a
metal container, clear of any combus
tibles. Do not empty content into a fire.
Do not overfill dust bag.

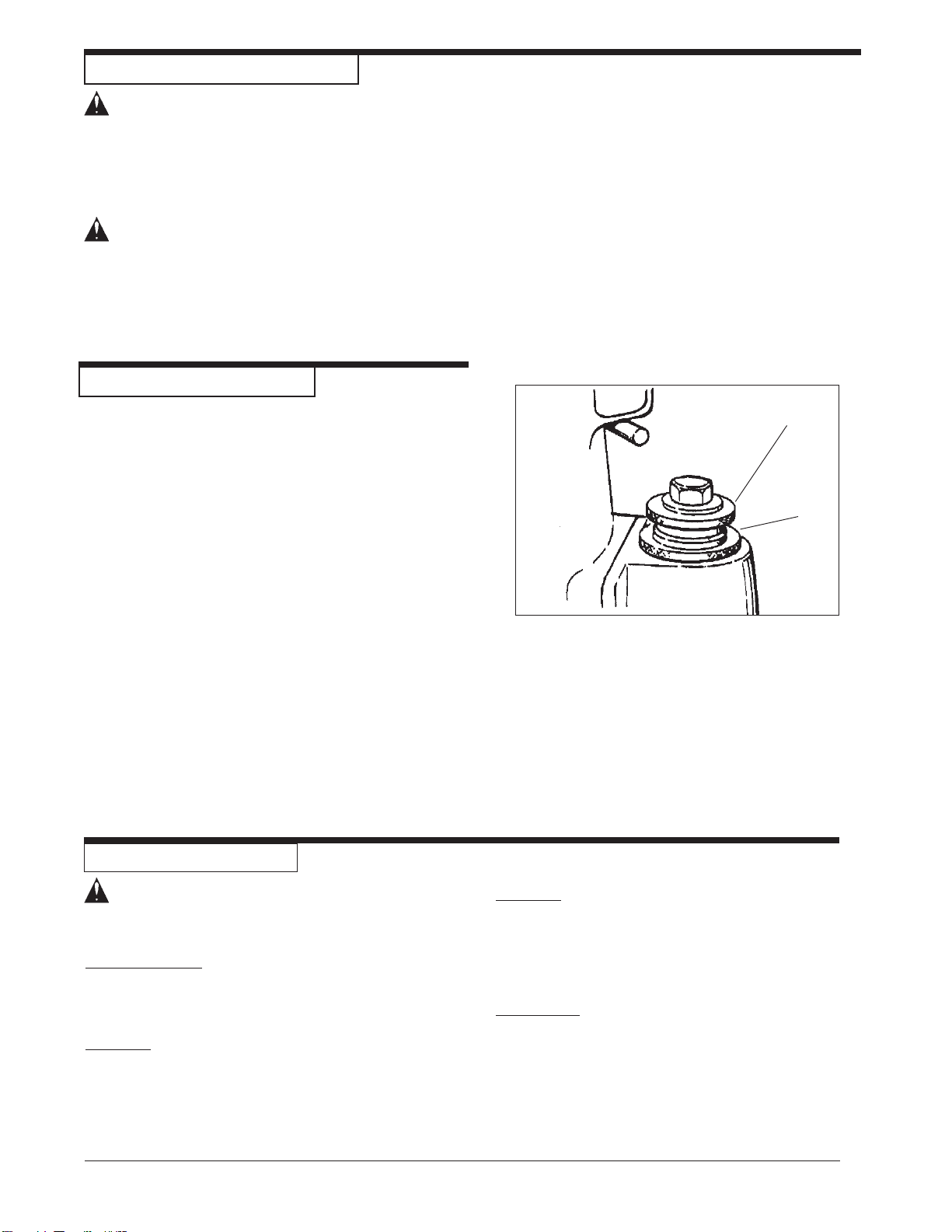

ADJUSTMENT PROCEDURES
Leveling
To level machine: Grasp caster adjusting screw "A" with an
appropriate tool (pliers ect.). Using a similar tool, loosen
locknut "B" with a counter clockwise motion. (Figure 5).
Condition - Pad creates ridges on both edges or a "hop" is
experienced: Rotate both adjusting screws equal amounts
clockwise. Tighten locknuts and test on a piece of ply-
wood. Repeat procedure until condition is corrected. We
recommend you not exceed 1/8" rotation for each attempt.
Condition - Pad creates a ridge on the tip of the pad:
Rotate both adjusting screws counter clockwise, tighten
locknuts and test. Repeat procedure until condition is
corrected. Use only 1/8 rotation for each attempt.
Condition - Pad creates a ridge on only one side of the pad:
Either rotate the adjusting screw of the side effected
clockwise or rotate theadjusting screw opposite counter-
clockwise, depending on whether the ridge terminates
beyond the tip of the pad or prior to it. If it is prior to the
tip, adjust the side effected, otherwise adjust the opposite
side.
ROUTINE MAINTENANCE
CAUTION: Failure to perform maintenance at
recommended intervals may void
warranty.
Carbon Brushes
Have the carbon brushes replaced at least every 500
hours and more frequently under heavy use.
Dust Bag
Periodically the dust bag should be turned inside out,
shaken vigorously and machine washed in cold water
to prevent pore blockage and loss of dust control.
Figure 5
A
B

Clarke®American Sanders Super 7R Operator's Manual Page 9
Division of
Super 7R
Edger
Section II
Parts and Service Manual
(78155C)

Page 10 Clarke®American Sanders Super 7R Operator's Manual

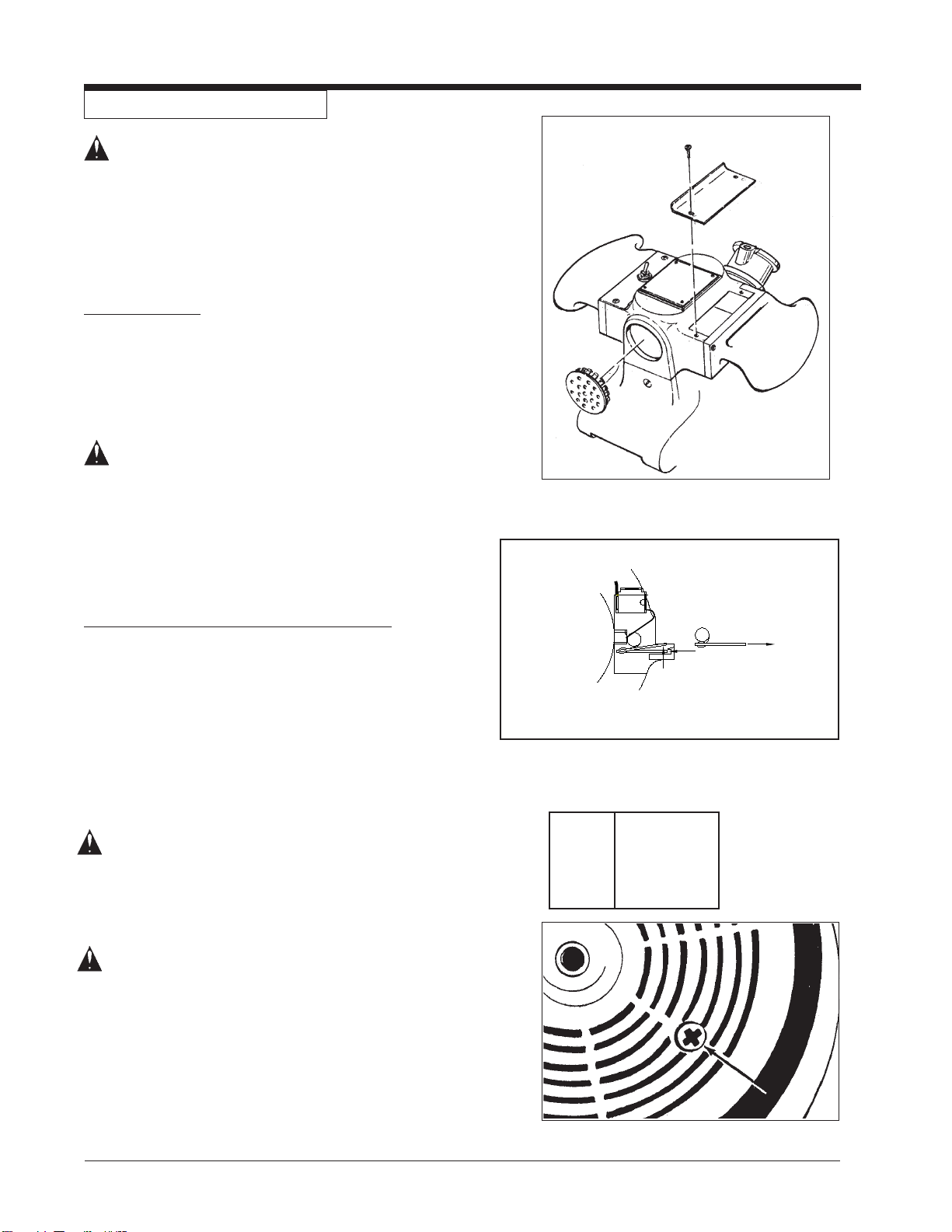

MAINTENANCE
CAUTION: Maintenance and repairs performed by
unauthorized personnel could result in
damage or injury. Maintenance and
repairs performed by unauthorized
personnel will void your warranty.
Failure to perform maintenance at
recommended intervals may void
warranty.
Carbon Brushes
Inspect all four brushes every 6 months or 250 hours.
Access to the brushes is gained through the front and
back motor vent plugs and under both motor covers (figure
6). Press tab on spring clip assembly in, rotate, then
remove (figure 7).Use needlenose pliers to disconnect the
shunt wire. If any brush has worn to 3/8" in length or
shorter, replace the entire set.
CAUTION: Use only motor brush PN 40818A or
PN 40055A with shunt wire or motor
failure will occur.
When replacing the brushes make sure that the brush
seats against the commutator, the spring rest in the
recess of the brush, and the brush is free to travel. When
returning the switch cover, keep any wires clear of the
commutator and any pinch site.
To Change The Lubricant In The Gearbox
To change the lubricant in the gearbox, follow this proce-
dure:
1.Put the machine upside down on a bench.
2.Align one of the two holes in the rubber pad with one
of the three holes in the rotating wall guard.
3.Align both holes with one of the three screws in the
gear housing cover. Remove the screw from the gear
housing cover. (Figure 8)
4.Align the holes with each of the other two screws,
then remove screws.
CAUTION: Make sure no dust enters the gear box.
Damage will occur to the gear box.
5.Remove the cover from the gear housing.
6.Remove the old lubricant from the gearbox.
7.Add six ounces of American SandersTechnology
lubricant to the gear box.
CAUTION: To prevent damage to the motor, do not
add more than six ounces of lubricant to
the gearbox.
8.Using the three screws removed above, install the
cover on the gear housing.
9.Start the machine and let it run for 15 minutes. A
small amount of excess lubricant should flow out the
vent hole. If none appears it may be necessary to
add additional lubricant.
10. Wipe off excess lubricant and clear vent hole. Figure 8
Qty Part No.
1Qt. 16610A
1Gal. 16611A
Lubricants
Figure 6
Figure 7

Clarke®American Sanders Super 7R Operator's Manual Page 11
Model Super 7R Edger
Wiring Diagram 1/03

Page 12 Clarke®American Sanders Super 7R Operator's Manual
54
1
2
3
5
14
14
4
37
12
634
35
36
7
7
8
46
49
9
89
38
10
50
11
39
47
18
15
16
17
51
52
20
33
21
22
23
24
25
26
27 28
29
30
82
94
83
84
81
92
91
78
90
77 75
76
75
33
74
73
53
57
56
58
50
62
61
64
65
66
67
68
87
100
69
70
65 7165 72
47
60
79
63
80
32
31
29
19
93
48
Super 7R Edger
Drawing - 1/03
38
98
85
99
97
96
95
65

Clarke®American Sanders Super 7R Operator's Manual Page 13
Super 7R Edger
Parts List - 1/03
Ref# Part No. Description Qty
1 962404 Screw - #10-24 x 3 ¼ Ft. St. Mach. 4
2 70487A Plate - Name 1
3 646302 Plate - Dial 1
4 47394A Switch - Toggle 1
5 302310 Cover, Motor Brush R.H. 1
6 302309 Cover, Motor Brush L.H. 1
7 306802 Plug - Vent 2
8 43201A Holder Assembly Brush 1
9 40818A Carbon Brush 115V 4
40055A Carbon Brush 240V 4
10 962727 Screw - #8-32 x ½ Pan Head 4
11 962988 Screw - ¼ -20 x 1¼ Pan St. Mach. 1
12 980662 Washer - SH #1224-00 Lock 1
13
14 962545 Screw - #6-32 x 3/8Ft. St. Type 23 4
15 85393A Screw - #10-24 x ¼ Pn. St. Mach. 1
16 962310 Screw - #10-24 x ½ OV 1
17 303602 Guard - Lamp 1
18 46902A Socket -Assembly 1
19 911113 Light Bulb 115V 1
911116 Light Bulb 240V 1
20 10101B Armature Assembly 115V 1
10110A Armature Assembly 240V 1
21 303004 Fan - Motor 1
22 293403 Gasket - Fan Baffle 1
23 306102 Plate - Exhaust Fan Baffle 1
24 303002 Fan - Vacuum 1
25 307302 Ring - Retaining 1
26 308202 Spacer - Bearing 1
27 297604 Seal - Oil 1
28 407302 Ring - Retaining 1
29 902567 Bearing 2
30 293514 Pinion - Armature 1
31 316804 Plug - Pipe 1/81
32 304204 Housing - Gear 1
33 915028 Key 1/8x 5/8Woodruff 3
34 980621 Washer, #1108 1
35 962550 Screw, 8-32 x 5/16 1
36 302312 Cover, Motor 1
37 56475A Strain Relief 1
38 50932A Spring brush Holder 4
39 73285A Label, Warning 1
46 962211 Screw - #10-24 x 2½ Pn. St. Mach. 2
47 980603 Washer - #1110 Shakeproof 7
48 980643 Washer - #10 7/16 Plain 2
49 42820A Field 115 Volt 1
42819A Field 240 Volt 1
50 962454 Screw - ¼-20 x 1 Sc. Cap 2
51 304208 Housing and Guard Assembly 1
20013A Housing, Motor Super7R 1
52 298306 Spring Load 1
NOTE: Assembly 12208A includes parts 64, 65, 70, 71,
& 72.
NI = Not illustrated
Ref# Part No. Description Qty
53 42234A Cord Supply 115V 1
42182A Cord Supply 240V 1
40007A Cord Supply w/AUI-10P 1
54 50952A Bag, Dust 1
56 50732A Bearing 1
57 69621A Support, Bag 1
58 21108A Bracket - Exhaust 1
59 293406 Gasket - Exhaust Bracket 1
60 302101 Clamp - Wrench 1
61 962987 Screw - 10-24 x 3/8Pn. St. Typ. 1
62 987300 Wrench 1
63 962289 Screw - ¼-20 x 3/4Soc. St. Cap 4
64 85702A Screw - ¼-20 x 1¾ 2
65 50740A Bearing 8
66 960130 Screw - Caster Adjusting 2
67 920670 Nut - Lock Adjust 2
68 310803 Bracket - Caster Support 2
69 298215 Spacer - Collar 2
70 29404A Yoke, Edger, Caster 2
71 299704 Roller - Caster 2
72 925592 Pin - ¼ x 1 Spirol 2
73 318303 Spring - Load 1
74 307702 Shaft - Drive Gear 1
75 902550 Bearing 2
76 303502 Gear - Drive 1
77 067304 Ring - Retaining 1
78 302306 Cover - Assembly Gear Housing 1
79 317204 Retainer - Disc Guard 1
80 293616 Guard - Disc 1
81 980088 Washer 2
82 13203A Assembly - Sanding Pad 1
83 980132 Washer - Disc, Retaining 1
84 960140 Screw - Paper Lock 1
85 925004 Pin - Cotter 1/16 x ½ 1
87 962109 Screw - #10-24 x 5/8 Pn SS 4
90 34232A Gasket - Gear Case Cover 4
91 87609A Washer Seal 3
92 84808A Screw, 10-24 x 3/43
93 962974 Screw, 6-32 x ½ 4
94 960125 Assembly Screw Lock 1
95 41960A Motor Pigtail 115V 1
41947A Motor Pigtail 240V 1
96 912169 Plug L5-15P (115V) 1
45602A Plug L6-15P (240V) 1
97 911461 Connector L5-15R (115V) 1
41708A Connector L6-15R (240V) 1
98 70175A Tag, Warning 1
99 911248 Plug 5-15P (115V) 1
45603A Plug 6-15P (240V) 1
40023A Plug AUI-10P 1
100 12208A Caster, Assembly 1
NI 31407A Case, Super 7R Edger 1
Accesories Available
312404 Cutter Disc Assembly 1
a 311306 Blade - Disc Cutter 1
b 312904 Eject Disc Cutter 1
c 315604 Mallet 1
d 317004 Punch Center 1
e 317304 Ring Disc Cutter 1
f 762005 Clamp 1
g 920208 Nut - ¼-20 Hex 1
h 962013 Screw ¼-20 x 1¼ R 1
i 962233 Screw ¼-20 x 5/16 S1

Page 14 Clarke®American Sanders Super 7R Operator's Manual
NOTES

A Nilfisk-Advance Brand
14600 21st Avenue North
Plymouth, MN 55447-3408
www.clarkeus.com
Phone: [phone]
Fax: [phone]
©2010 Nilfisk-Advance, Inc.
