Clarke FKE16 Instruction Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
GC0514
INSECT KILLER
MODEL NO: FKE12,FKE16 & FKE45
PART NO: 3230695, 3230700 & 3230705

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION & USE
Thank you for purchasing this CLARKE Insect Killer.
The CLARKE range of insect killers incorporate a pair of ultraviolet tubes which
are easy to replace and use little power. The units are suitable for any indoor
location and are easy to clean. Installation is by hanging from the chain
supplied or by two screws into a suitable wall or partition. The appliance is
switched on & off using the rocker switch on the front panel.
Flying insects are attracted to the ultraviolet tube, which is covered by a high
voltage electric net which kills the insects on contact.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
When unpacking, check for damage and /or shortages etc. Any found should
be reported to your CLARKE dealer where the appliance was originally
purchased.
• 1 x Insect killer
• 1 x power cable
• 1 x supporting chain
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPECIFICATIONS
Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.
GENERAL SAFETY RULES
ELECTRICAL SAFETY
1. Electrical appliances must match the power outlet. Never modify the plug
in any way. Do not use adaptor plugs with earthed (grounded) power
tools. Correct plugs and outlets will reduce the risk of electric shock.
2. This appliance is for INDOOR USE ONLY. Do not expose to rain or wet
conditions. Any water entering the unit will increase the risk of electric
shock.
3. Do not abuse the electrical cable. Never use the cord for pulling or
unplugging the appliance. Keep the cable away from sources of heat, oil,
sharp edges or moving parts. Damaged or tangled cables increase the risk
of electric shock.
4. Always ensure the electrical connections are in accordance with the
Electrical Connection Instructions.
5. Inspect the mains cable regularly for signs of damage and DO NOT use if it
is damaged.
6. Never immerse this appliance in water for cleaning purposes.
Model FKE12 FKE16 FKE45
Part Number 3230695 3230700 3230705
Wattage 12 W 16 W 40 W
Operating Voltage 230 V/50Hz 230 V/50Hz 230 V/50Hz
Discharging Voltage 2200 V 2200 V 2200 V
Operating Current 0.15 amp 0.17 amp 0.36 amp
Insulation Class 1 1 1
Lamp Quantity/Size 2 x 6W 2 x 8W 2 x 20W
Dimensions (LxWxH) 270 x 90 x 260 344 x 90 x 265 640 x 90 x 360
Weight 2.2 kg 2.6 kg 4.0 kg

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
7. Always disconnect from the mains supply before moving or performing any
maintenance.
8. Never switch ON the heater with the guard removed.
9. Never touch the appliance with wet hands.
10. Do not allow children to tamper or play with this appliance in any way.
11. Do not locate this appliance in a potentially explosive atmosphere.
12. Never push items such as screwdrivers, knives, sticks etc, through the guard
which could then come into contact with the electric net. Contact with
the live electric net will cause electric shock.
13. Always disconnect from the power supply when not in use.
14. Please note that as this appliance utilises Ultra Violet lamps, care must be
taken to ensure that installation is at least 1 metre from a position where
people are likely to be located.
SERVICE
When necessary, have your appliance serviced or repaired by a qualified
person using identical replacement parts. This will ensure that the safety of the
appliance is maintained.
WARNINGS
The following warning symbol is affixed to the product indicating
“Dangerous Voltage”.
ENVIRONMENTAL PROTECTION
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ELECTRICAL CONNECTIONS
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked Nor coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is
marked Lor coloured Red.
• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.
We strongly recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
Blue = Neutral Brown = Live Yellow and Green = Earth
Plug must be BS1363/A approved.
Always fit a 3 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
MAINTENANCE
1. Unclip the tray from the frame and lift out for cleaning whenever required
with soap and water. Avoid using solvents when cleaning plastic parts.
Remove dust from other parts with a vacuum cleaner.
2. Check the power cable to ensure it is sound and free from cracks, bare
wires etc.
REPLACING THE ULTRAVIOLET TUBES AND STARTERS
1. Release the wire guard by removing the two securing screws/retainers and
swing open.
2. Carefully turn the ultraviolet tube one quarter of a turn anti-clockwise and
lift it upwards from its holder.
3. Replace by carefully engaging the legs into the holder at each end and
rotating clockwise.
4. The starters are removed from their sockets in the top section by turning
through 90 degrees (with suitable pliers if needed) and pulling out. Ensure
the replacements are of the correct specification (see below).
SPARE PARTS LIST
FKE12 FKE16 FKE45
Lamp ZSFKE120101 ZSFKE160101 ZSFKE450101
Starter ZSFKE120102 ZSFKE160102 ZSFKE450102
Ballast ZSFKE120103 ZSFKE160103 ZSFKE450103
Transformer ZSFKE120104 ZSFKE160104 ZSFKE450104
ON/OFF Switch ZSFKE120105 ZSFKE160105 ZSFKE450105

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

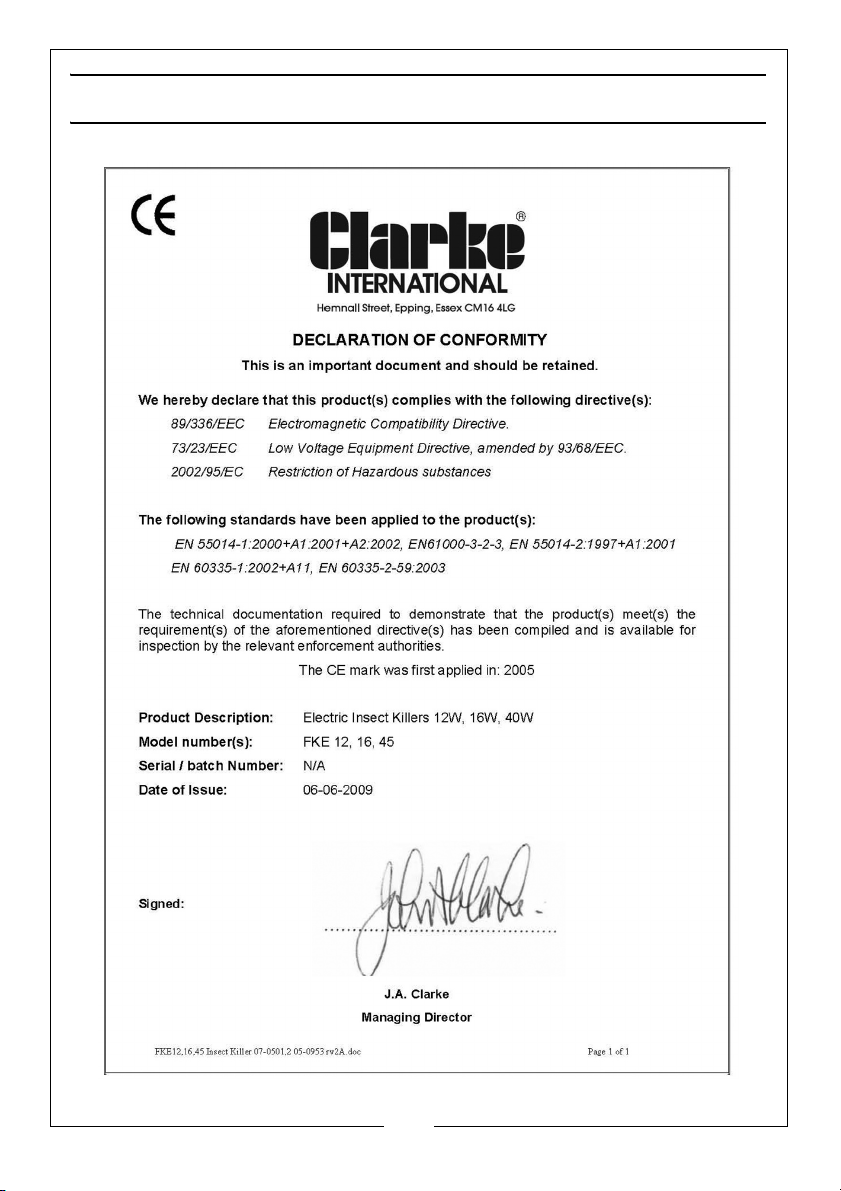

DECLARATION OF CONFORMITY
