Clarke KSP16 Installation and operation manual

OPERATING & MAINTENANCE
INSTRUCTIONS GC10/13
BACKPACK SPRAYERS
Model Nos: KSP16 & KSP20
Part Nos: 3402270 & 3402275

2
INTRODUCTION
Thank you for purchasing this CLARKE Backpack Sprayer, which is designed
for use only with insecticides or other water-based products.
Before attempting to operate the product, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect
your statutory rights.

3
SPECIFICATION
Container Capacity 16 (KSP16)
20 litres (KSP20)
Material Polyethylene
Lance Length 550mm
Hose Length 1280mm
Max Working Pressure 6kgf/cm
Pump type Piston (brass construction)
Net Weight 4.1(KSP16)
4.2kg (KSP20)
GENERAL SAFETY PRECAUTIONS
1. Never use this sprayer to store or spray flammable solvents.
2. If pesticide is being sprayed, always wear a protective mask and gloves to
protect the skin and face. Never spray pesticide facing into the wind.
3. Never spray pesticide in the direction of other people, animals or food
products.
4. Never use the sprayer for handling hot liquids and avoid operating in
excessively hot environments.
5. Always comply with any applicable chemical product safety instructions/
directives when using pesticides.
6. Always wash off any chemical product coming into contact with the skin.
7. Always store chemical products in a secure place away from children.
8. Stop using the sprayer if the container or hose is found to be damaged.
9. Never pump the operating arm continuously prior to use due to the risk of
damaging the pump components with excess pressure.
10 Always take care not to allow the escape of chemicals into the
environment, especially when cleaning the equipment.

4

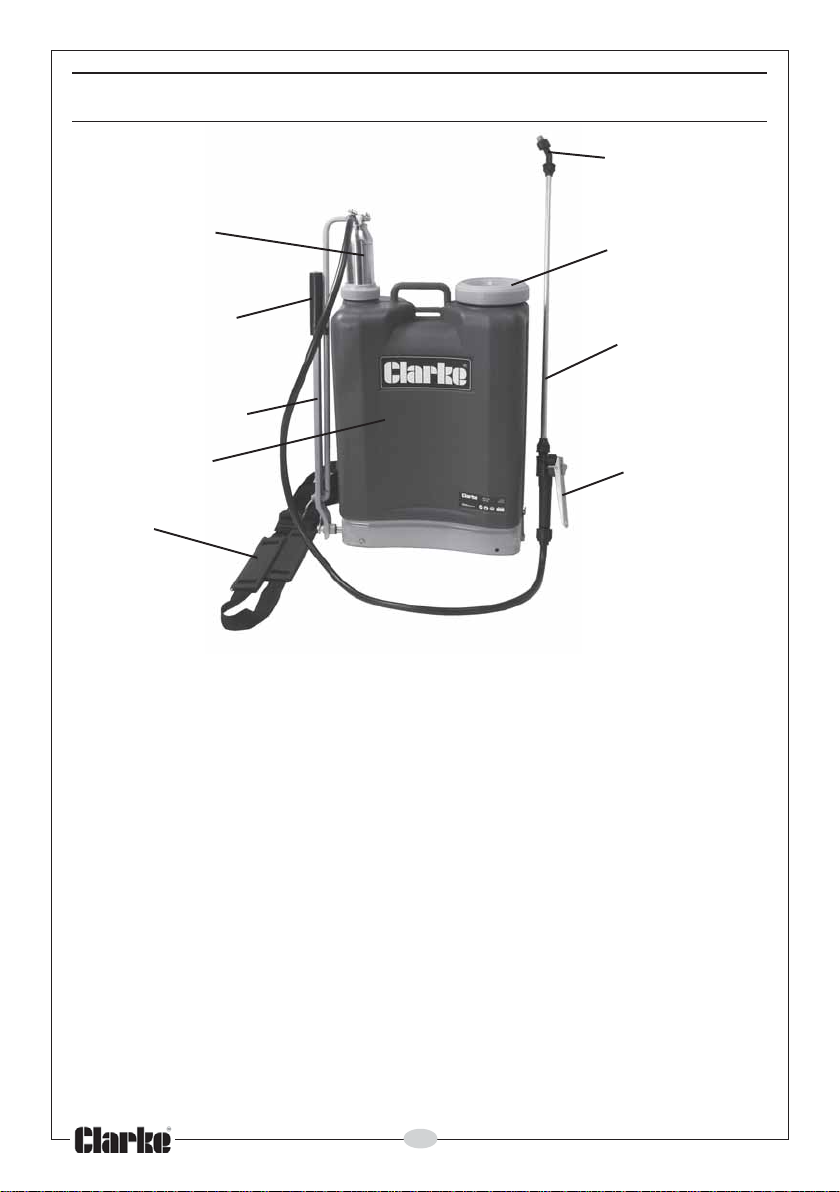

OVERVIEW
MAJOR COMPONENTS
Container with pump assembly & agitator Trigger Assembly
Lance Shoulder Strap Assembly
Filter Basket
ACCESSORIES & SPARES PACK CONTAINING:
1 x Stainless Steel Ball 1 x ‘O’ Ring (14mm)
1 x ‘O’ Ring (33mm) 2 x Connecting Collet Seals
2 x Hose Clips 2 x Strap Retaining Clips
2 x Spray Nozzles (Conical and Flat Fan) 2 x Base Connecting Clips
2 x Piston Cups
Upon receipt of the sprayer, unpack all components and lay them out to
check for any missing parts as listed above. Any deficiencies should be
reported to your Clarke dealer.
Pump Assembly
Shoulder
Strap
Operating Rod
Filler cap with
Filter Basket
Trigger
Assembly
Operating Arm
Container
Lance
Nozzle

5
ASSEMBLY
1. Push the lance into the trigger
assembly and secure with the
screw cap.
2. Attach one of the nozzles
provided to the other end of the
lance and secure with the screw
cap.
• A telescopic brass lance is also
available with a choice of
nozzles as listed on page 7.
3. Connect the hose to the pump
outlet securing it with a screw
connector.
4. Attach the shoulder strap by
engaging the hooks into the
keyholes in the base of the
container.
5. Pass the strap through the slot in
the top of the container and lock
in position with a strap retaining
clip.
6. The straps can be adjusted so as
to correctly position the sprayer
on the operators back, taking
care that the straps are not
twisted.
7. To tighten, hold the strap buckle
with one hand and pull the
handle downward with the other
hand.
8. To loosen, tilt the buckle up with
one hand and pull the strap
downward with the other hand.
Strap Retaining Clip
Buckle
Handle
Screw Cap
Connect Collet Seal
Trigger
Assembly
Lance
Hose Clip
Hose

6
OPERATION
1. Unscrew the filler cap and ensure the filter is in place.
2. Fill the container with the required liquid up to the desired graduation on
the side and replace the filler cap.
3. Pump the operating arm a few
times to pressurise the container
until the action of the pump
stiffens

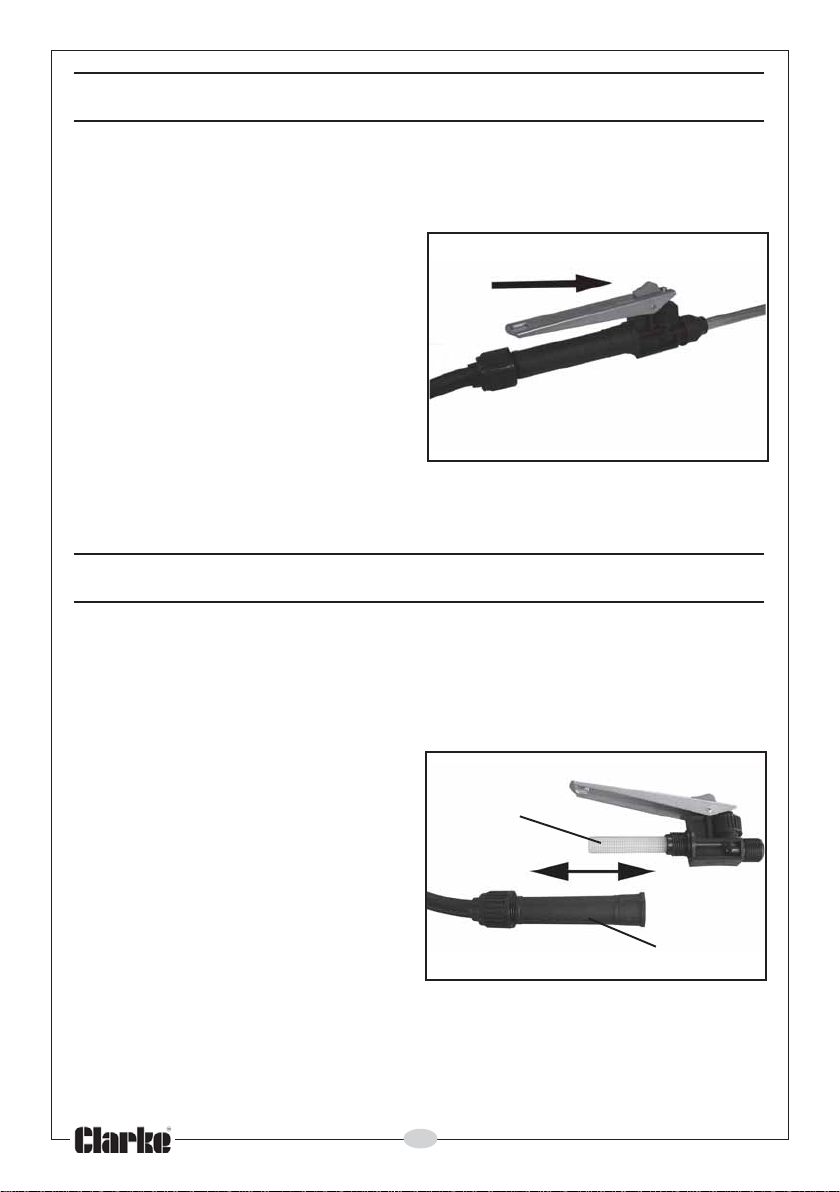

4. Squeeze the trigger of the spray
gun to start spraying. If spraying
continuously, squeeze the trigger
and engage the trigger lock by
pushing it forward.
5. Pump the operating arm to
maintain pressure.
6. Secure the operating arm in its retaining clip when not in use. Likewise
attach the lance to the clip on the operating arm.
MAINTENANCE
AFTER USE
After use, the sprayer should be flushed thoroughly with clean water until the
discharge runs clear, to avoid the possibility of blockages from product
residue, or any cross-contamination between different products.
After extensive use, unscrew the
trigger body and remove and clean
the filter fitted inside the trigger
assembly.
If not used for long periods or used
continuously for several days, add a
light smear of vaseline to the piston
cups and other moving parts to
reduce wear and assist free
movement. Store in a cool place out
of reach of children.
Trigger Lock
Trigger Body
Filter

7
REMOVING THE PUMP COMPONENTS
In order to lubricate or replace the piston cups with those supplied, the pump
assembly can be removed as follows:
1. Unscrew the retaining ring with
fibre gasket and withdraw the
upper section, (together with the
agitator). Reach inside the
container and slide the agitator
off the upper pump section.2.
Release the lower pump section
by removing the nut holding it to
the base fitting bracket and
unscrewing the pump section
from the container.
• Both the O-rings fitted to the
intake valve are supplied as
replacements as listed on page 4.
2. To replace the 33mm O-ring, the
inlet valve must be pushed out of
the lower pump cylinder from
below.
3. Once removed, the O-rings can
be replaced. Always re-pack with
a smear of vaseline prior to re-
assembly.
• The lower cylinder has a pressed
groove close to the base, which
the valve body must align with.
• The steel balls in both the intake
valve and the upper section, can
only be replaced by prising open
their respective housings.
ACCESSORIES
The following brass spray attachments are available from your Clarke dealer.
Telescopic Brass Lance: Part No 3402280
Jet Spray Brass Nozzle: Part No 3402285
Twin Spray Brass Nozzle: Part No 3402290
Upper section
Cylinder
Piston Cups
Lower
Section Nut
Intake Valve
33mm O-ring
14mm O-
ring
Agitator
Retaining
Ring Gasket

8
motpmyS esuaC ydemeR
reppuehthguohtegakaeL .rednilyc dnadeirdronroW .spucnotsipdehsirep ecalperroetacirbuL .spucnotsipeht
ottinuehtgnipmupretfA ,rebmahcehtezirusserp noossatsolylkciuqsierusserp .detareposirevelehtsa tonsievlavekatniehT oteudyltcerrocgnitaes lairetamngierofroraew .tneserp ehtecalperronaelC .evlav
ottinuehtgnipmupretf
Aeht,rebmahcehtezirusserp nehwylwolssesirrevel .desaeler tonsievlavrebmahcehT oteudyltcerrocgnitaes lairet
amngierofroraew .tneserp
ehtecalperronaelC .evlav
gnikaeldnayreviledrooP .ecnal rosnoitcennocesooL gnitcenno
cdegamad sgnir-o/stelloc
fonoitidnoctcepsnI stellocgnitcennoc ecalper&sgnir-odna .yrassecenfi
tlefecnatsise
rronoitarbiV .mragnitarepoehtmorf gniggolcnoitanimatnoC roylbmessareggirteht .elzzon edisniretliftuonaelC dnaylbmesareggirt .elzzonehtnaelc
TROUBLESHOOTING

9
oN noitpircseD oN noipircseD
1teSpilC-R&rehsaW43pilChtiwpirgdnaH
2pilCesoHwercS53mrAgnitarepO
3rotcennoCwercScitsalP63)14-73smeti(e
saBreniatnoC
4ylbmessAecnaLyarpS73pilCgnitcennoCesaB
5gniRgniniateR83esaBtilpS
6teksaGerbiF93pilcriC
7woblEelzzoN04tf
ahstovipw/ctekcarBgnittiFesaB
8rebmahCpmuPreppU14a/N
9puCnotsiP24reniatnoC
01recapSpuCnotsiP34reniartS
11evlaVrebma
hCpmuPreppU44marhpaiDdiL
21ylbmessAecnaL54marhpaiDhtiwdiL
31ylbmessAreggirT64eldnaHreggirT
410531x"61/5esoH7408xaid
21retliF
51doRgnitarepO84reggirT
61a/N94a/N
71)26-16&22-81smeti(ylbmessApartS05a/N
81rotcetorPredluohS15ydoBelzzoN
91mm
059partS25wercS
02retsujdA35)eulb(paCelzzoN
12kooHpartS45paCevalVreggirT
22kcoLpartS55ylbmessAeldeeNevlaVreggirT
32ro
tatigA65gniR-O
42)33-52smeti(ylbmessArednilyC75ydoBevlaVreggirT
52rednilyCpmuPrewoL85rekcaPtelloC
62llaBleetS95paCw
ercS
72mm41laeSgniR-O06ebuTecnaL
82)mm43(gniR-O16retsujdApartS
92reniateRllaB26retsujdAhtiwpartS
03a/N36yssAelzzoNeno
CelbatsujdAeulB
13a/N46paCelzzoN
23)dutshtiw(ydoBevlaVekatnI
33tuNdegnalF
COMPONENT PARTS

10
When requesting spare parts, quote Product Reference AH, followed by the
model number KSP16 or KSP20 and part numbers 1-64.
COMPONENT PARTS

11
