Clarke Strong-Arm AP500B User manual

Thank you for purchasing this CLARKE Arbor Press, which is designed for trade use.
Please read this instruction leaflet thoroughly and follow the instructions carefully. In doing so you will ensure the safety
of yourself and that of others around you, this will also ensure that the Arbor Press will give you long and satisfactory
service.
Please keep these instructions in a safe place for future reference.
Please note that details and specifications herein, are correct at time of going to print.
However CLARKE International reserve the right to change specifications at any time without prior notice.
Copyright CLARKE International All rights Reserved
ARBOR PRESS
ARBOR PRESS
Model No’s: AP500B • AP1000 • AP2000 • AP3000
GC 0210
CLARKE GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase.
Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for
the purpose for which is was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

SAFETY PRECAUTIONS
•BEFORE use, secure the press to a suitable work bench.
•ALWAYS keep fingers clear of moving parts.
•ALWAYS wear safety goggles, manufactured to the latest European Safety Standards. Everyday glasses do not have
impact resistant lenses, they are NOT safety glasses.
•ALWAYS keep work area clean. Cluttered areas and benches invite accidents.
•ALWAYS ensure that adequate lighting is available. A minimum intensity of 300 lux should be provided. Ensure the
lighting is positioned where you will not be working in your own shadow.
•ALWAYS concentrate on the job at hand, no matter how trivial it may seem. Be aware that accidents are caused by
carelessness due to familiarity.
•ALWAYS wear proper apparel. Loose clothing or jewellery may get caught in moving parts. Wear protective hair
covering to contain long hair.
•NEVER operate the machine when under the influence of drugs, alcohol or any medication.
•NEVER force the machine, it will do a better and safer job at the rate for which it was designed. Do not attempt to apply
more leverage by extending the length of the handle.

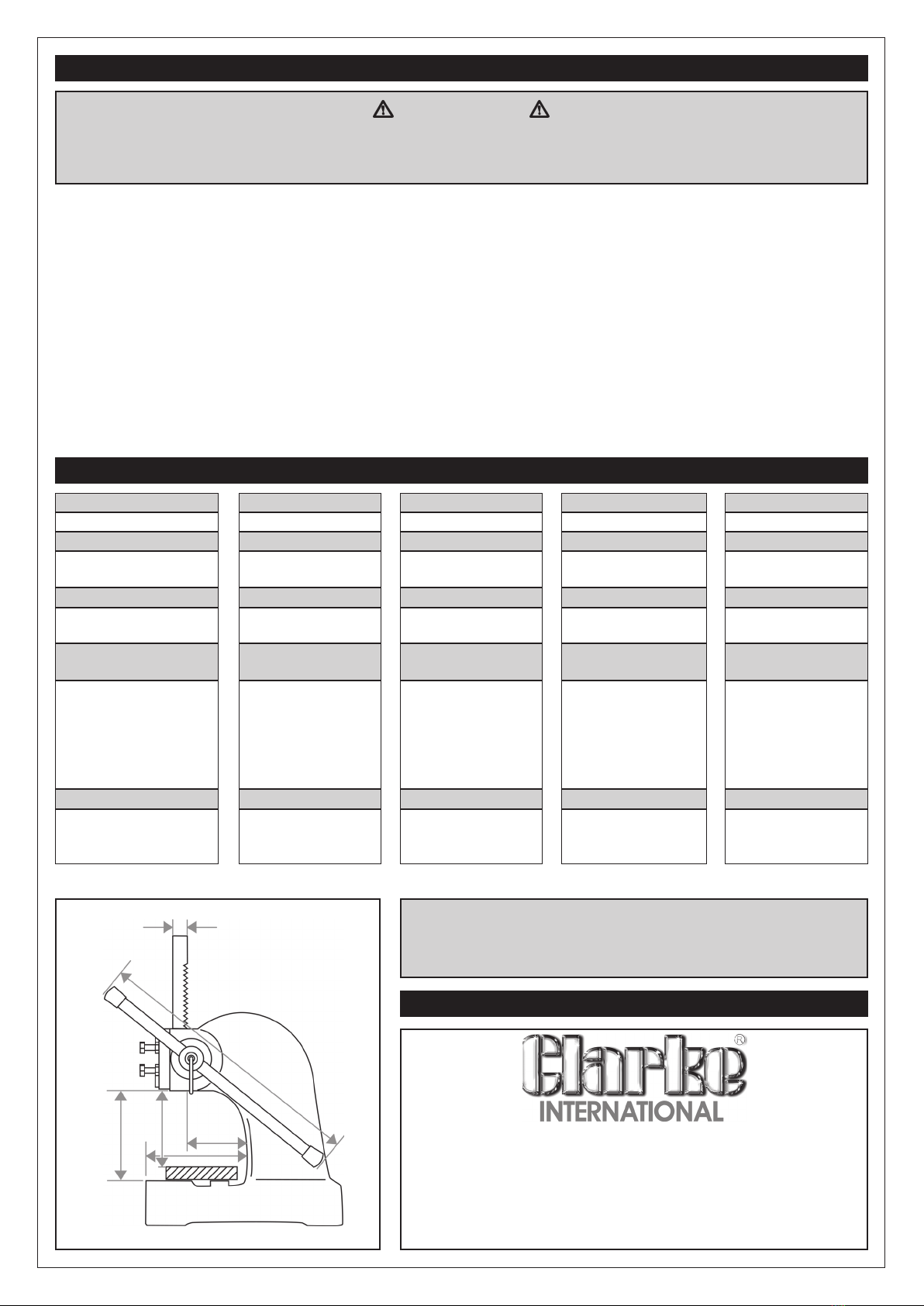

TECHNICAL SPECIFICATIONS & PARTS LIST
A
BC
D
E
F
Fig.1
PARTS & SERVICE
For spare parts and servicing, please contact your nearest dealer, or
CLARKE International on:
020 8988 7400
or email:
[email protected]
[email protected]
CLARKE International, Hemnall Street, Epping, Essex, CM16 4LG
WARNING: The use of spare parts or accessories, other than those
supplied by CLARKE international or one of its recognised
dealers, may be hazardous and could invalidate the guarantee.
WARNING
As with all machinery, there are certain hazards involved with its operation and use. Exercising respect and cau-
tion will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator or damage to property, may result.
*Rated force dependant on exerted load.
Model No: AP500B AP1000 AP2000 AP3000
Part No: 7615172 7615175 7615180 7615185
General:
Description: 1/2 Ton Arbor Press 1 Ton Arbor Press 2 Ton Arbor Press 3 Ton Arbor Press
Rated Force: 0.5 Tons 1.0 Tons 2.0 Tons 3.0 Tons
Dimensions & Weights:
L x W x H 255x120x280mm 270x129x439mm 428x170x662mm 455x271x887mm
Weight: 9.3kg 15.0kg 37.5kg 53.5kg
Detailed Dimensions:
(Fig.1 refers)
‘A’ Ram Rear to Column: 75mm 90mm 117mm 135
‘B’ Max. Working Height: 112mm 138mm 206mm 328mm
‘C’ Throat Depth: 117mm 140mm 198mm 240mm
‘D’ Ram Size 17mm x 17mm 23.6mm x 23.6mm 31.35mm x 31.35mm 35mm x 35 mm
‘E’ Working Height: 95mm 118mm 180mm 296mm
‘F’ Handle Length: 295mm 349mm 462mm 592mm
Parts List:
Pinion Shaft: SMAP5001 SMAP1001 SMAP2001 SMAP3001
Ram: SMAP5002 SMAP1002 SMAP2002 SMAP3002
Table: SMAP5003 SMAP1003 SMAP2003 SMAP3003
