Clas Ohlson M1E-7.2LD-170M/G-1 Series User manual

EnglishSvenskaNorskSuomiDeutsch
Shrub and Grass Shears
Multitrimmer
Multitrimmeri
Art.no Model
18-4806 M1E-7.2LD-170M/G-1
31-8764 M1E-7.2LD-170M/G-1 Ver. 20181130

2

3
English
Shrub and Grass Shears
Art.no 18-4806 Model M1E-7.2LD-170M/G-1
31-8764 M1E-7.2LD-170M/G-1
Please read theentire instruction manual before using theproduct and then save it for future reference.
We reserve theright for any errors in text or images and any necessary changes made to technical
data. In theevent of technical problems or other queries, please contact our Customer Services
(see address details on theback).
Safety
General safety instructions for power tools
Warning: Read all theinstructions. Failure to comply with thefollowing instructions can lead
to electric shocks, fires or serious injury.
SAVE THESE INSTRUCTIONS.
Theterm “power tool” in thefollowing text refers to your handheld mains operated or battery
operated tool.
1) Work area
a) Keep thework area clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use power tools in explosive environments, e.g. near to flammable liquids,
gases or dust. Power tools generate sparks that can easily ignite dust and fumes.
c) Keep children and bystanders away from thearea where you are using thepower tool.
Distractions can cause you to lose concentration and control of thetool.
2) Electrical safety
a) Theplug of thepower tool must fit correctly into thewall socket. Never modify
theplug in any way. Never use anadaptor plug together with earthed power tools.
There is less risk of receiving anelectric shock if plugs and sockets which have not been
modified are used.
b) Avoid physical contact with earthed objects such as pipes, radiators, ovens and refrigerators.
There is anincreased risk of receiving anelectric shock if your body is earthed.
c) Do not expose thepower tool to rain or other wet conditions. Water entering apower
tool will increase therisk of electric shock.
d) Do not abuse themains lead. Never use thelead to carry or drag thepower tool or to
jerk theplug from awall socket. Keep thelead away from heat, oil, sharp edges and
moving parts. Damaged or tangled leads increase therisk of electric shock.
e) When using power tools outdoors, use anextension lead that is suitable for this purpose.
Theuse of anextension lead designed for outdoor use decreases therisk of electric shocks.
f) If theuse of thepower tool in awet environment is unavoidable, awall socket
equipped with aportable residual current device (RCD) should be used.
Use of anRCD significantly reduces therisk of electric shock.

4
English
3) Personal safety
a) Pay attention to what you are doing and use common sense when using power tools.
Never use power tools if you are tired or under theinfluence of drugs, alcohol or
medication. One moment of inattention while using apower tool may result in serious injury.
b) Wear protective clothing. Always wear safety glasses. Using protective clothing such as
dust masks, non-slip safety shoes, helmets and ear defenders reduces therisk of injury.
c) Avoid accidental starts. Make sure that thepower switch is set to OFF before plugging
thepower tool into awall socket, fitting thebattery or picking up/carrying thepower
tool. Never carry apower tool with your finger on thetrigger and never connect thepower
tool to awall socket when theswitch is set to ON, since it may result in injury.
d) Remove all service tools/keys before switching on thepower tool. Aservice tool left on
arotating part of thepower tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of thepower tool in unexpected situations.
f) Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep hair,
clothes and gloves away from moving parts. Loose-fitting clothes, jewellery or long hair
could become caught in moving parts.
g) If equipment for theextraction and collection of dust is available, make sure it is
connected and used properly. Theuse of such equipment can significantly reduce dust-
related hazards.
4) Use and maintenance of thepower tool
a) Do not force thepower tool. Use thecorrect power tool for your application.
Thecorrect power tool will do thejob better and safer if used at therate for which it was designed.
b) Never use thepower tool if thepower switch does not switch thetool on and off.
Any power tool that cannot be controlled by thepower switch is dangerous and must be repaired.
c) Unplug thelead from thewall socket before making any adjustments, changing accessories
or storing thepower tool. These precautions reduce therisk of thepower tool starting unexpectedly.
d) Store power tools that are not being used out of children’s reach. Do not allow people
who are unfamiliar with thetool or its functions to operate it. Power tools can be dangerous
if they fall into thehands of inexperienced users.
e) Maintain power tools. Check for misalignment or binding of moving parts, broken parts
or anything else which might affect theoperation of thepower tool. If something is
damaged, have thepower tool repaired before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use thepower tool and any accessories in accordance with these instructions, taking
into account theworking conditions and thework to be performed. Using thepower tool
for apurpose other than that for which it is intended could result in adangerous situation.

5
English
5) Use and maintenance of cordless power tools
a) Charge thebattery using acharger recommended by themanufacturer.
b) Thetool is supplied with abattery provided by themanufacturer. Do not use any other battery.
c) If handled incorrectly, battery fluid can leak from thebattery. If this fluid should come
into contact with skin; rinse thearea thoroughly with water. Always contact adoctor if
this fluid comes into contact with your eyes.
6) Service
a) Repairs and service should only be performed by qualified tradesmen, and only with
original spare parts. This guarantees that thesafety of thepower tool is maintained.
Specific safety instructions for electric grass shears
• Thegrass shears must not be used by children and by persons with reduced physical,
sensory or mental capability or lack of experience and knowledge which could jeopardise
their safety. This product should not be used by anyone that has not read theinstruction
manual unless they have been instructed in its use by someone who will take responsibility
for their safety.
• Read through themanual and familiarise yourself with thecontrols for thecorrect operation of
thegrass shears.
• Never use thegrass shears very close to anyone, especially children or animals.
• Make sure that you know how to switch thegrass shears off.
• Familiarise yourself with your surroundings and be prepared for any dangers should they arise.
• Always inspect thegrass shears before use. Thecutter should be repaired if it has struck
aforeign object and there are signs of wear or damage.
• Only use thegrass shears when there is sufficient daylight or artificial light for good vision.
• Keep hands and feet away out of thecutting zone.
• Make sure to always stand in asafe position when using thegrass shears.
• Thegrass shears must not be left unattended where children can access them, they have
abuilt-in battery which enables them to be switched on if both buttons are pressed in.
• Thegrass shears have abuilt-in battery, think carefully about how to hold theshears safely
when cleaning them, inspecting them or removing clogged material from theblades.
• Switch thegrass shears off immediately if thecutter has come into contact with aforeign
object or if theshears begin to vibrate abnormally.
• Consider thedamage theblades could do to your hands and feet if they were to come into contact.
• Always ensure that theventilation openings are kept clear from debris.

6
English
Specific safety instructions for hedge trimmers
• Thehedge trimmer must not be used by children or by persons with reduced physical,
sensory or mental capability or lack of experience and knowledge which could jeopardise
their safety.
• Keep all parts of your body away from thecutting blades. Do not remove cut material or hold
material to be cut when theblades are moving.
• One moment of carelessness can result in serious personal injury.
• Never allow children to play with theproduct.
• Turn off thehedge trimmer and carry it by thehandle when moving it short distances. Always
have theblade guard in place when storing or transporting thehedge trimmer. Correct use of
thehedge trimmer will reduce thelikelihood of personal injury caused by thecutting blades.
• Make sure that there are no foreign objects like fencing wire, etc. in thehedge/bush that you
wish to trim.
• Theblades will continue to move for afew seconds after thepower has been turned off.
• Note: Do not touch thecutting blades while they are moving.
• Always switch off thehedge trimmer and have theblade guard mounted in place whenever
moving or transporting it.
General safety instructions for batteries and chargers
a) Prevent unintentional starting of theshrub and grass shears by handling it carefully. Make sure
that thesafety lock button and thepower switch are not both pressed in whilst carrying it.
b) Only use theincluded battery charger or acharger recommended by themanufacturer.
Thebattery charger is only designed to charge certain types of batteries. If acharger designed
for another type of battery is used therisk for fire or explosion is significantly increased.
c) Battery fluid can leak from thebattery if it is damaged. Avoid physical contact with this fluid.
If this fluid comes into contact with skin; rinse thearea thoroughly withwater. If thefluid
contacts eyes, seek medical attention immediately. Fluidwhich has leaked from abattery
pack can cause skin irritation or burns.
• Never store abattery in direct sunlight or at temperatures above 40°C.
• Only charge thebattery when theambient temperature is between 10°C and 40°C.
• Never expose thebattery or its charger to water.
• Keep thecharger and batteries out of thereach of children.
• Never use thebattery charger or batteries in environments where flammable liquids or gases
are stored.
• Always transport batteries in asafe manner ensuring that they do not come into contact with
each other and never in ametal container.
• Check that thebattery charger and mains lead are intact and undamaged before use.
• Charge thebattery completely if it is not to be used for anextended period.
• Thebattery must only be charged with acharger that conforms to EN60335-2-29 standards.

7
English
Key to thesafety symbols on theshrub and grass shears
Read theentire instruction
manual before using theshrub
and grass shears.
Theshrub and grass shears
must not be exposed to rain
or wet conditions.
Warning: Thecutting blades
will continue to move for ashort
while after themotor has been
switched off.
Operation of theshears can
result in theejection of foreign
objects which could cause
personal injury or material
damage. Wear suitable clothing
and shoes.
Theoperational noise level
conforms to EC Directive 97/98EC
and 2004/26EC, Annex IV
Wear eye and hearing protection.
Warning: Theshear’s blades are
sharp. Wear protective gloves.
Theproduct contains Lithium-ion
batteries and shall be deposited at
anappropriate recycling facility so
that thematerial can be disposed
of in aresponsible manner. Contact
your local waste management
facility or theplace of purchase.
The shrub shears must
not be used together with
the telescopic handle.

8
English

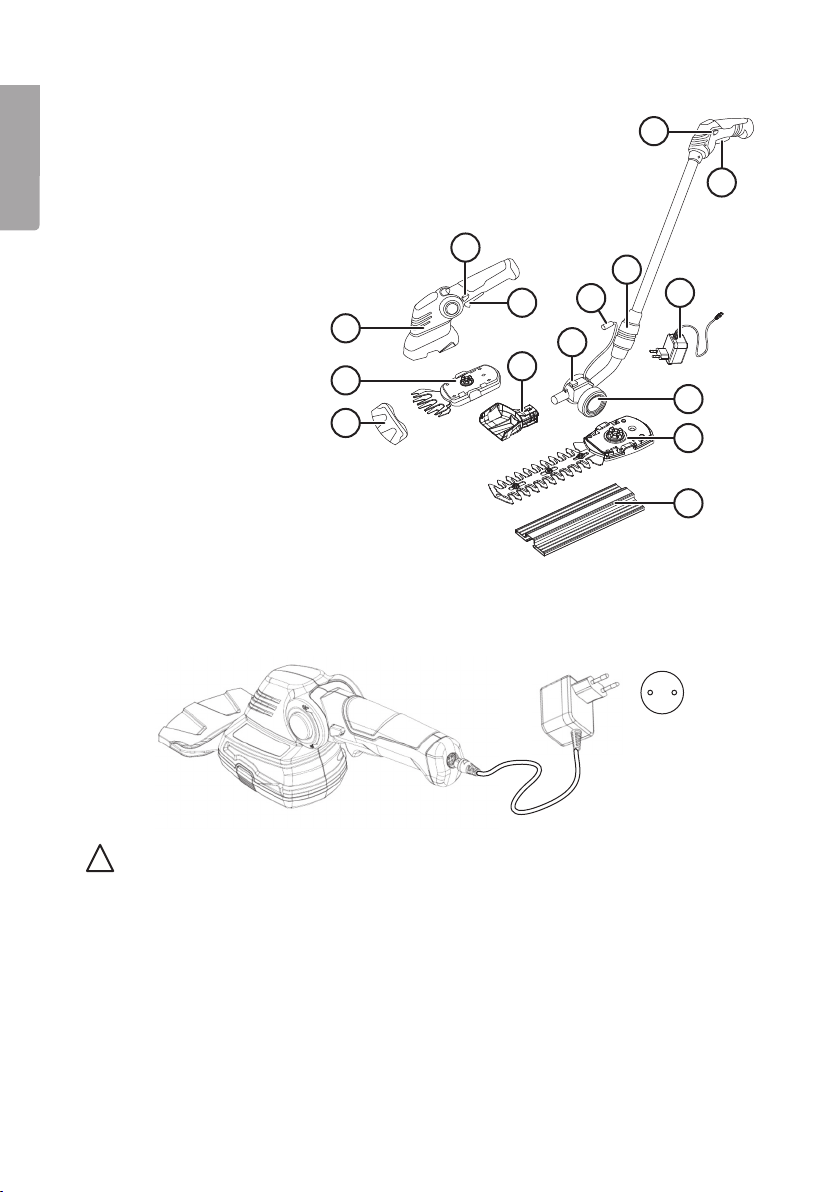

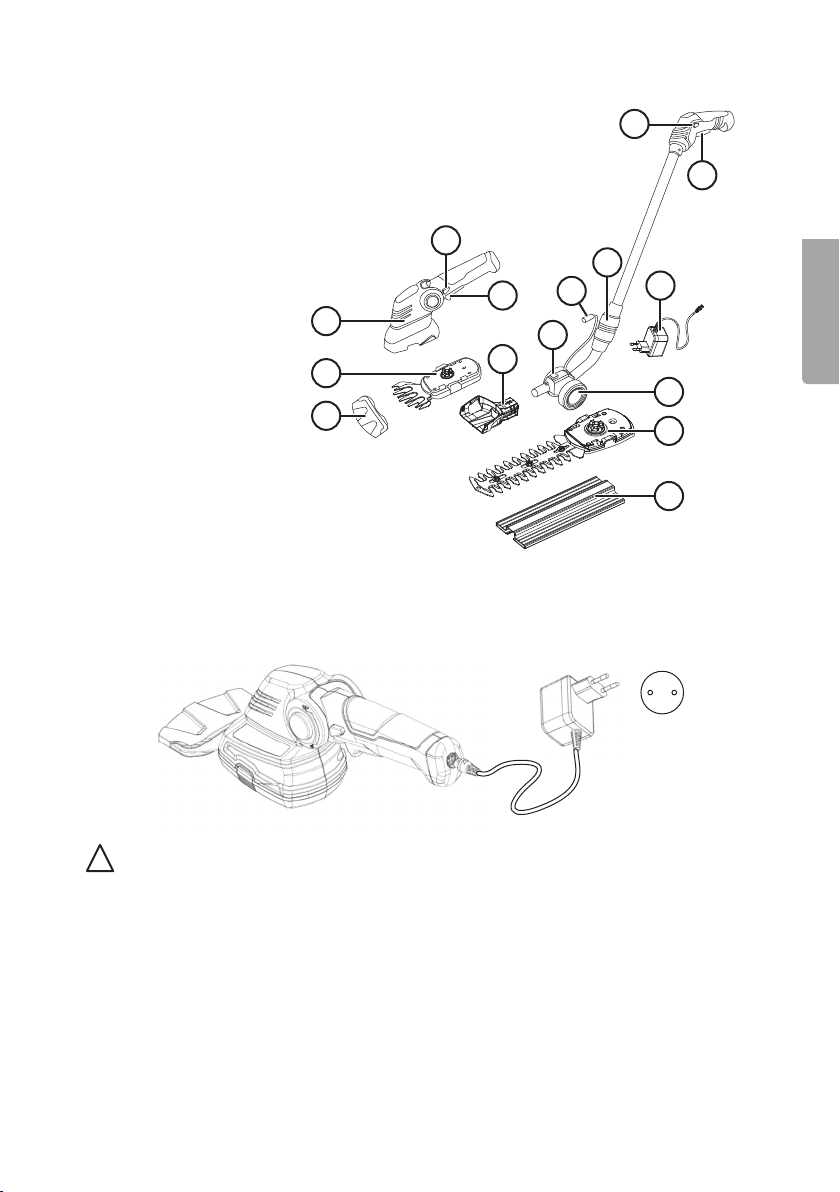

Product description
1. Grass shear blade guard
2. Grass shears
3. Motor unit
4. Safety lock button
5. Power trigger
6. Shoe
7. Release button
8. Power cable
(transfers control to
thetelescopic handle).
9. Telescopic handle
10. Handle safety lock button
11. Handle power trigger
12. Charger
13. Wheels
14. Shrub shears
15. Shrub shear blade guard
Installation/Getting started/Assembly
Charging thebattery
Thepower cable is fitted with a4-pin DIN connector. Make sure to connected it in accordance
with themarkings to avoid damaging thepins.
• Connect theincluded charger to theshears and then to awall socket.
• Anindicator light will come on after awhile to show that charging is in progress.
• Thecharging indicator will extinguish when thebattery is fully charged (approx. 3–5 hours).
• Thebattery might get hot while it is being charged. This is normal.
• Never let thebattery discharge completely. Recharge thebattery regularly and whenever
theshears begin to lose power.
1
2
3
4
5
6
7
9
8
10
11
13
14
15
12

9
English

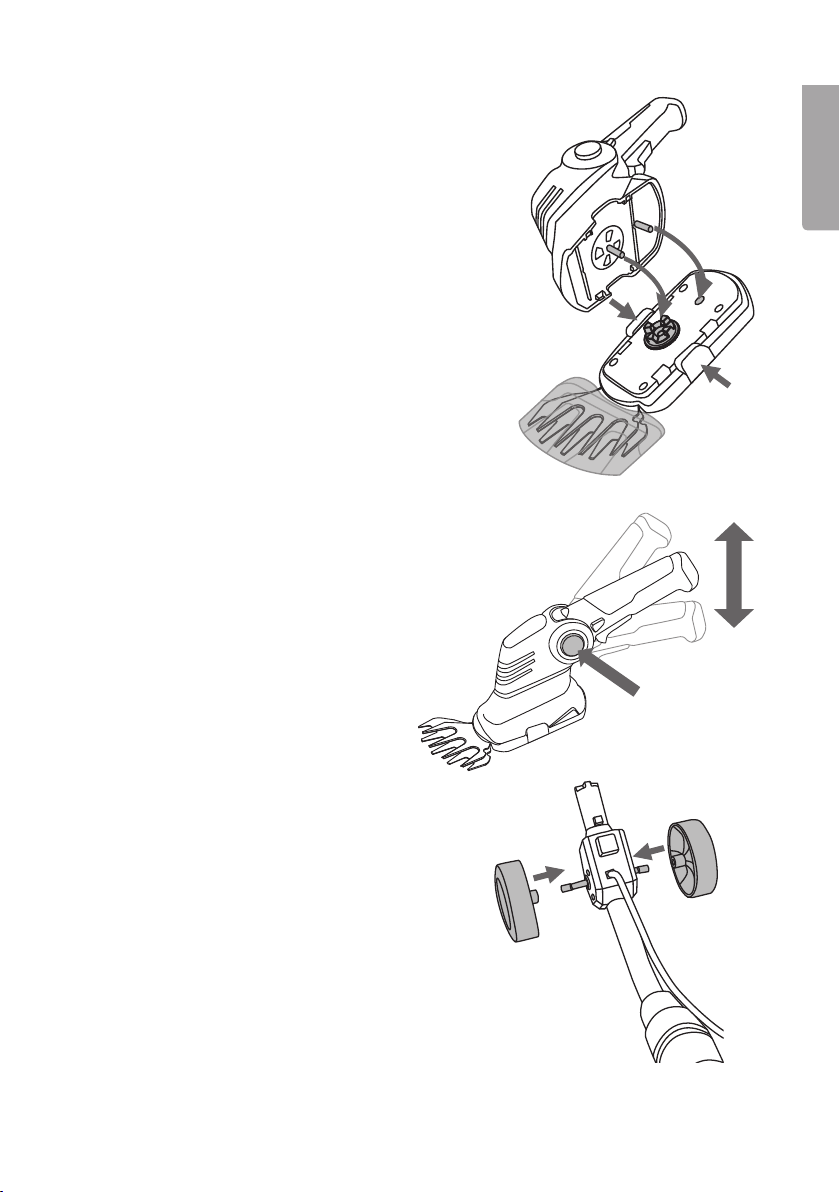

Assembly
1. Make sure that theguide pin is directly over theguide
hole in theshears and that thedrive gears are aligned.
2. Make sure that no grass or debris becomes caught
between themotor unit and theshears.
3. Carefully push themotor unit and shears together until
aclick is heard.
4. Press in thecatches on thesides of theshears to release.
Adjusting theangle of thehandle
Press in thepivot button and adjust
theangle of grip to thedesired
position. There are three set
positions.
Telescopic handle
Insert thewheel axle into thehole
at thebottom of thehandle and fit
awheel onto each end.

10
English
1. Slide themotor unit into theshoe until it clicks into place.
2. Carefully push themotor unit and shoe assembly onto theend of thetelescopic handle until aclick
is heard. Connect thepower cable to transfer control from theshears to thetelescopic handle.
3. Pressing in therelease button on thewheel carriage will release theshears from
thetelescopic handle.
Instructions for use
Warning:
• Always keep thework area tidy so you can move freely without therisk of tripping over obstacles.
• Make sure that there are no foreign objects or loose branches which could become caught in
theblades of theshears.
• Make sure that you are wearing all required safety gear before starting.
• Make sure that all parts of theshears are intact, accounted for and undamaged.
• Make sure that theblades are sharp and lubricated.
• Make sure that thesafety lock button (4) and power trigger (5) are easily depressed and do
not stick or function abnormally in any way.
• Ensure that thehandle is clean and easily gripped.
Take thefollowing points into consideration when using
theshears
• Make sure that there are no hidden obstacles (metal poles/wire fences) in thearea to be trimmed.
• Max branch diam: 8mm.
• Hold theshears firmly; maintain asteady stance and do not lean out too far. Be extra careful
when using aladder.
• Move theshears along in aslow and steady motion.
• Thedouble-sided blade enables cutting in both directions or in apendulum action from side
to side.
• For even trimming on thesides it is better to cut in thedirection of growth, from thebottom up.
