Operating Instructions RESQUE 100
Room air purifier with patented Smart E-Filter
Clean Air Enterprise AG
St. Wendelin 1
CH-6343 Holzhäusern ZG
Service Hotline [phone]
E-mail [e-mail]
Version 6.2.2021

Page 2
Table of contents
1 General information ...................................................................................................................... 3
1.1 Warnings ............................................................................................................................... 3
1.2 Notes on operation ................................................................................................................ 4
2 Structure of the unit ...................................................................................................................... 5
3 Operating the unit ......................................................................................................................... 6
4 Service Plan .................................................................................................................................. 7
4.1 Pre-filter exchange ................................................................................................................ 7
4.2 Service interval electrostatic filter and activated carbon filter ............................................. 8
5 Guarantee ...................................................................................................................................... 8
6 Technical data ............................................................................................................................... 8
7 Declaration of conformity ............................................................................................................ 9

Page 3
1 General information
The operating instructions must be read by all persons who use or maintain the unit.
The operating instructions contain important information to ensure safe operation. In addition,
maintenance, cleaning and the characteristics of the appliance are described in detail. Compliance
with the instructions will ensure a long service life and optimum management of the unit at all
times.
Clean Air Enterprise AG accepts no liability for damage or malfunctions resulting from failure to
observe the operating instructions.
If safety devices of the unit are changed or removed, or if the unit is changed without authorisation
or used improperly, clean air enterprise AG assumes no liability.
1.1 Warnings
The warning signs attached to the unit must be observed and must not be removed. The following
warning labels are on the unit:
Warning electrical voltage
Before carrying out any maintenance on the unit, it is
must be unplugged.
Warning of hand injuries
Avoid area.
After opening the service door, wait at least one
wait at least one minute until the fan stops rotating.

Page 4
1.2 Notes on operation
Hazards
All in-house health and safety regulations must be observed.
Attention, under no circumstances may the unit be used in areas where there is a risk
of dust (Directive 1999/92/EC).
Liquids or objects of any kind that can pass through the upper grille of the air inlet
must be kept away, must be kept away.
Never operate the appliance without one of the three filters (pre-filter, electro-filter, activated
carbon filter).
The appliance must never be operated near combustible materials.
In case of replacement, only suitable original parts from the manufacturer may be used.
In case of damage to the unit, stop operation immediately and contact the manufacturer.
Installation
The air inlet in the upper area must remain free.
The two air outlets on the side need a minimum distance of 15 cm from the nearest object. For
optimum performance and room circulation, the unit should be placed as centrally as possible and
free-standing.
The unit may only be used in closed, dry rooms.
Operation
The unit may only be operated by persons who have read and understood the operating instructions.
The permissible operating conditions must be observed.
Children must not be allowed access to the unit.
All maintenance tasks and spare parts must be carried out in a timely and professional manner.
The unit may only be operated from an earthed (3-pole) mains socket.
Function
The RESQUE 100 is designed to improve the breathing air in closed rooms. It works in the
recirculation mode. This means that the room air is cleaned several times over time and the room is
recirculated.

Page 5
2 Structure of the unit
Housing
The housing is made of powder-coated steel. Warm soapy water is recommended for cleaning.
Fan
A highly efficient EC radial fan with a maximum power of 180W is used. The fan is maintenance-
free.
Pre-filter
The G5 pre-filter fleece, cleans the air from the larger particles.
Smart E-Filter
The patented electrostatic filter works particularly efficiently with a separation efficiency of over
99%. In contrast to conventional fabric filters, the effect is maintained even with the smallest
particles. In addition, there is practically no pressure loss, which enables a high volume flow with
low power consumption and quiet operation.
Activated carbon filter
Especially on hot summer days with little wind, ozone levels regularly exceed the permissible limits
(source: www. ozon-info.ch). The activated carbon filter reduces the ozone content in the room to a
comfortable level. In addition, it reliably removes unpleasant odours from various sources (e.g.
smoke, agriculture, kitchen, etc.).
1 Air inlet
2 prefilter
3 Frame prefilter
4 Service door pre-filter (open)
5 Operation Display
6 Activated carbon filter
7 Service door activated carbon (open)
8 Air outlet
9 Rollers
10 Mains cable connection (rear)
11 Mains switch (rear)
1
2
3
4
5
6
7
8
9
1
0
1
1

Page 6
3 Operating the unit

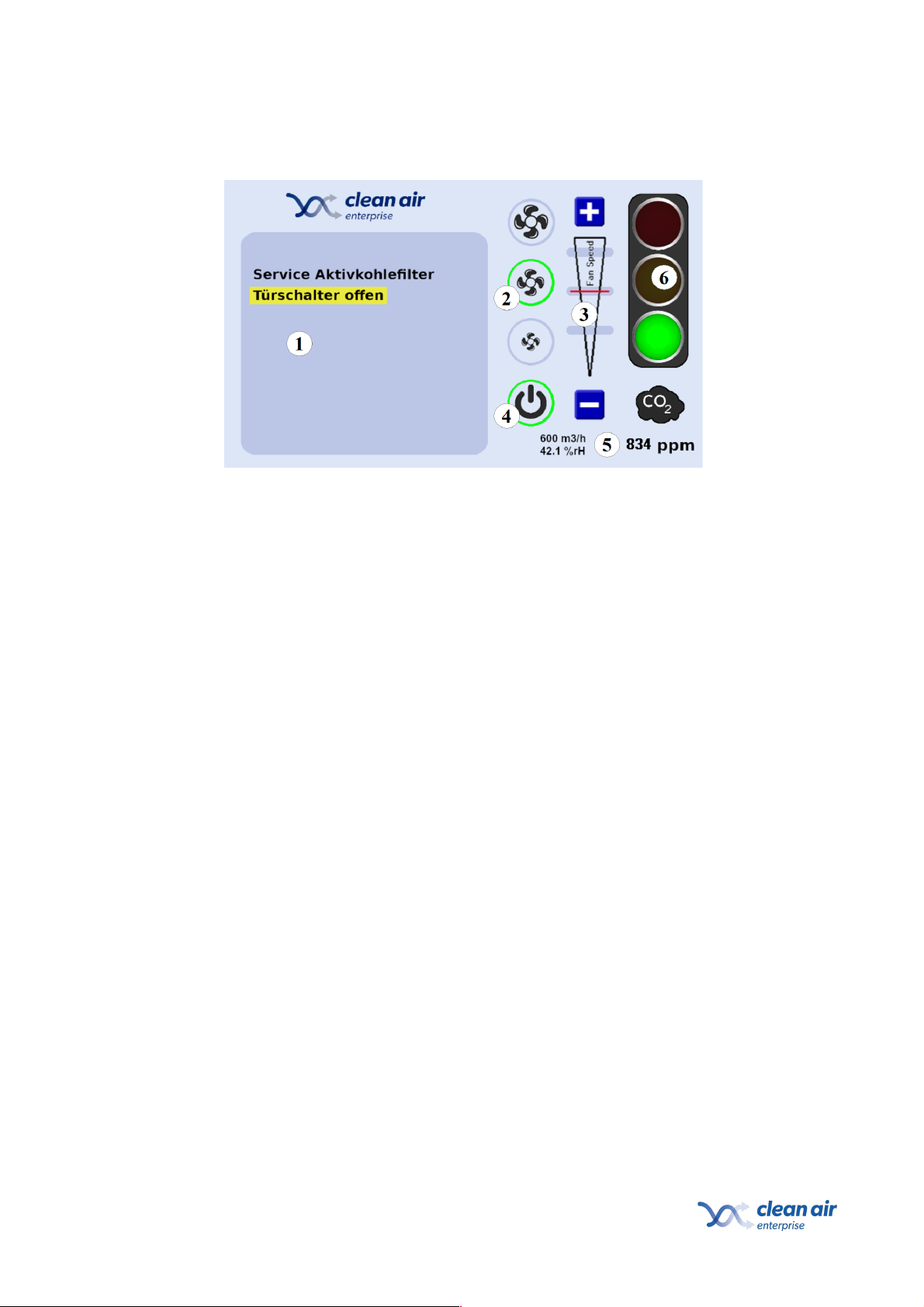

Operating the Touch Display
1
Messages window
Operation messages are displayed here:
-door prefilter or activated carbon open
-Service interval pre-filter *
-Service interval electrostatic filter and activated charcoal filter*
-Unit error, call service hotline [phone]
* see chapter 4 Service plan
2
Fan level 1 to 3
Preselection of the three fixed fan speeds:
-slow, 300m3/h
-medium, 600m3/h
-fast, 1200m3/h
3
Fan speed infinitely
variable
Freely selectable fan speed
4
On /Off
Switching the appliance on and off.
The unit will run for about 60 seconds after it is switched off.
Tip: If the unit is not used for a longer period of time, it is
recommended to use the main switch on the back as the unit
consumes standby power.
5
Operating data
m3/h Current volume flow
%rH Relative humidity
ppm CO2 concentration (CO2 parts per million)
Fresh air has about 400ppm
6
CO2 traffic light
with warning tone
Three-colour traffic light indicating the CO2 content in the room.
Red + warning tone CO2 content is greater than 1250ppm
Orange CO2 content is between 1000 and 1250ppm
Green CO2 content is less than 1000ppm

Page 7
Main switch on the back
4 Service Plan
Only the pre-filter is changed by the customer, the interval is three months. To determine when the
filter needs to be changed, the unit has an internal timer. When the pre-filter needs to be changed, a
message appears on the display.

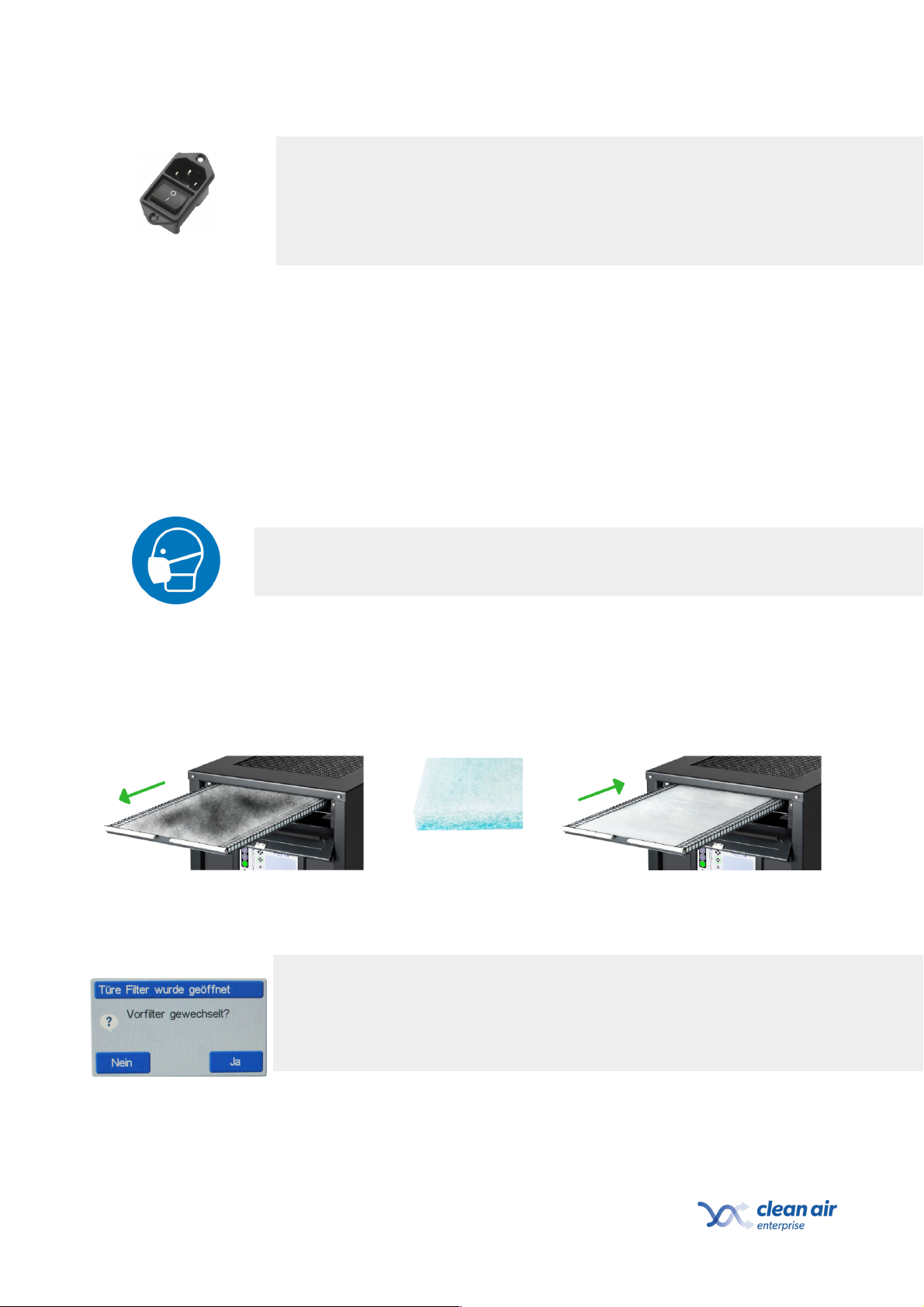

4.1 Pre-filter exchange
The door for the prefilter is opened and the frame is pulled out together with the old prefilter. The
dirty pre-filter is packed in a plastic bag and disposed of in the trash. The new pre-filter is placed in
the frame with the blue side down. Then push the frame back into the unit and close the door.
Caution: Dirt has collected in the pre-filter during operation.
collected in the prefilter. Wear respiratory protection when changing the
prefilter. Do not shake the prefilter and wash your hands thoroughly afterwards.
1
2
3
blue side
The unit is connected to the mains at the rear.
The unit can be switched on and off with the main switch.
When switched off, the unit does not need any power.
When it is switched on, the unit always requires a small
standby current.
When the pre-filter has been replaced, the corresponding message
message can be confirmed in the display. The internal timer is reset.
The unit can be operated for a few days even though the pre-filter
due for a pre-filter change. For the optimum service life of the unit and
hygiene, the Interwall must be maintained.

Page 8
4.2 Service interval electrostatic filter and activated carbon filter
The interval for the Smart E-Filter and the activated carbon filter is two years. After that, a service
message appears in the display. Contact the Clean Air Enterprise AG Hotline
[phone] Your dirty Smart E-Filter and the used activated charcoal filter will be replaced by
a specialist. In addition, the unit will be cleaned and all intervals reset.
5 Guarantee
Clean Air Enterprise AG provides a manufacturer's warranty of two years. Consequences of normal
wear and tear, negligent operation, incorrect use or third-party intervention are not covered by the
warranty. The warranty also expires if non-original spare parts are used.
6 Technical data
Voltage
230V / 50..60 Hz
Power consumption
220W
Power consumption
1,6 A
Weight
70kg
Dimensions LxWxH
66 x 37 x 90cm
Material housing
Steel
Filter steps
Pre-filter G5, Smart E-Filter E10, Activated carbon filter
Pre-filter change
Customer side, with built-in timer 3 months
Activated carbon & E-filter
change
Manufacturer-side, with built-in timer 24 months
Nominal volume flow stages
300, 600, 1200 m3/h
EC fan
Backward curved d=250mm, soft start, speed control
Fault message
On the display, hotline: [phone]

Page 9
7 Declaration of conformity
EC Declaration of Conformity
Manufacturer:
Clean Air Enterprise AG
ST. Wendelin 1
CH-6343 Holzhäusern
Switzerland
Authorised person,
for the compilation of the technical
documentation
Christoph Vonplon
Product:
Product designation
Serial number
RESQUE 100
Room air purifier
with patented Smart E-Filter
Improves the breathing air quality in closed
rooms according to the recirculation method.
R-100 / 00001 FF-FF
We hereby declare that the machine described above complies with all relevant provisions
of the Machinery Directive 2006/42/EC.
The above-mentioned machine fulfils the requirements of the following directives and
standards:
- - Directive 2006/42/EC Machinery Directives
-
- - Directive 2014/30/EU on electromagnetic compatibility
Harmonised standards applied:
- DIN EN ISO 12100 Safety of machinery
- DIN EN 60204-1:2019-06;VDE 0113-1:2019-06 VDE 0113-1:2019-06 Safety of
machinery - Electrical equipment of machines
- DIN EN ISO 13849-1:2016-06 Safety of machinery - Safety-related parts of control
systems
- ISO 14120:2015-11 Safety of machinery - Guards - General requirements for the
design and construction of fixed and movable guards
Holzhäusern, 06.12.2020
Christoph Vonplon
