Clearline Powerline Series User manual

Electric fence Protection Kit
the powerline series
12-00851
Specifications
Power Surge Protection
- Built in surge suppression
- High surge capability
- Compact design
- Effective filtration
- Fire hazard protection
- Power indication
Electric Fence Protection Kit
This protection kit provides and integrated approach to the protection of
electric fences. It provides surge and filtered protection for the incoming
mains supply with an additional protector for earth potential equalization. A
high voltage unit is supplied for the energizer output terminals.
rev0
Features
230VAC 50Hz
10A
8kA L-N, L-E, N-E (8/20us)
<900V
<25ns
16A 3Pin Plug
16A 3Pin Socket
Nom. Input Voltage
Max. Continuous Current
Max. Discharge Current
Residual Voltage
Response Time
Input Connectors
Output Connectors
Filtration
Filtration Performance
Earth Leakage Current
See graph on page2
<1.5mA
Other
Indication
Temperature Range
Standard Compliance
Lead Length
Dimensions
Weight
LED
-20°C to +70°C
IEC 164-1, 61643-1
1.5 meters
190x140x70mm
1.105kg
*Specifications subject to change without prior notice due to continuous
improvements
Turn page for
more information
Filter characteristics
100
80
60
40
20
Attenuation
dB
10K 100K 1M
10M Hz
Frequency
Common mode
Differential mode
1
1
2
2
Dimensions
190
140
70
High Voltage Surge Protection
15kVDC
6500A (8/20us)
<25ns
Max. High Voltage Output
Max. High Voltage Surge Current
Response Time

Installation

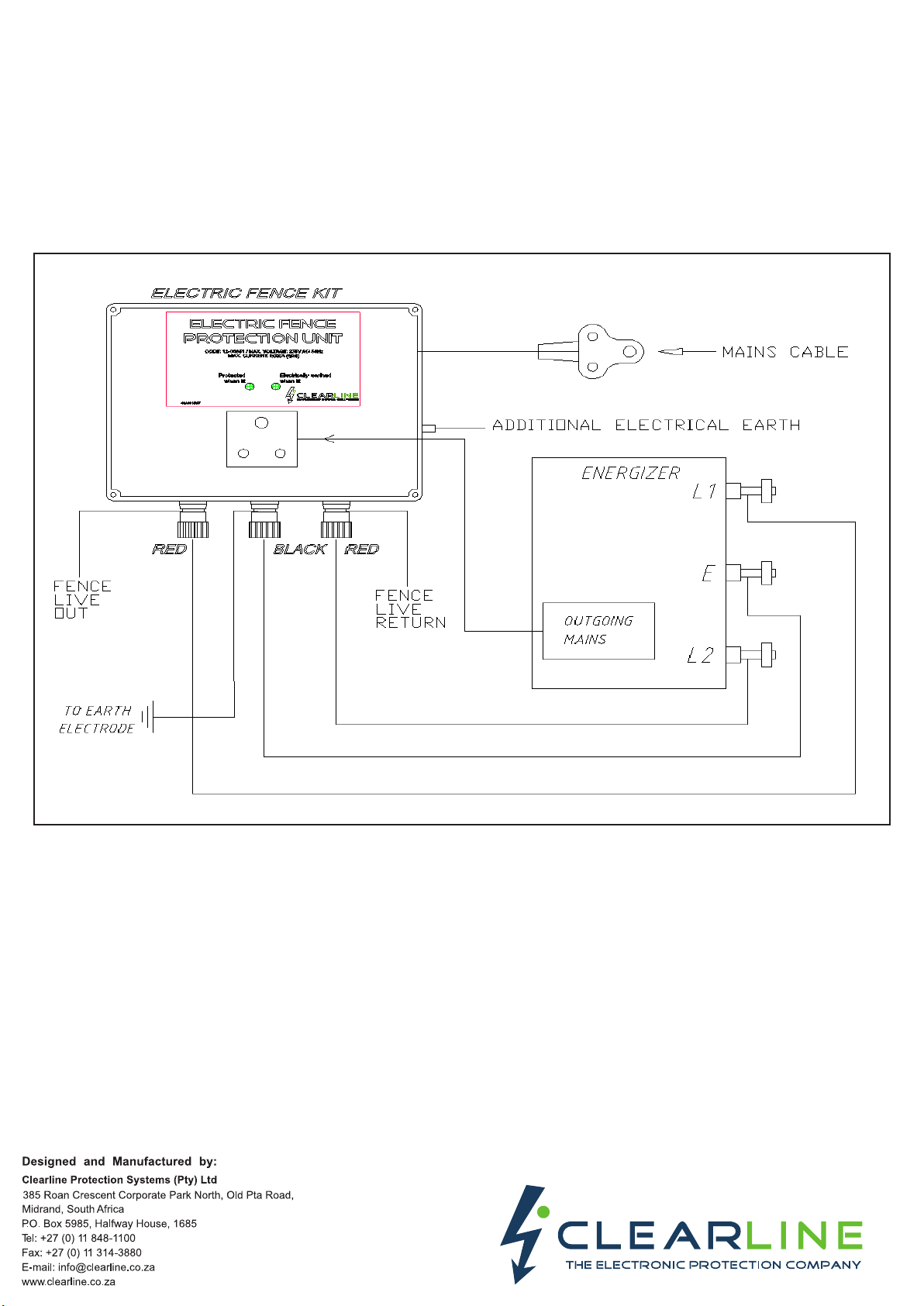

1. Connect the two outer sockets (red) to the L1(Fence Live Out) and L2 (Fence Live Return) respectively to the energizer and to the fence as per drawing.
2. Connect the inner socket (black) to the Earth of the energizer and to the Fence Earth as per drawing.
3. Plug the mains cable from the Electric Fence Protection Kit to a 3pin 16Amp wall socket.
4. Plug the Energizer ( outgoing mains) to the 3pin 16Amp socket on the Electric Fence Protection Kit as shown on drawing.
Warranty
All Clearline protection products carry a warranty for a period of two years
from the date of purchase, provided that they are installed in accordance with
the manufacturer’s recommendations. Defective devices should be returned
prepaid to Clearline Head Office or to the registered agent in the various
areas. The Manufacturer’s liability is limited to the repair or replacement of the
product (at the manufacturer’s discretion) which in it’s judgement has not
been misused ro operated under conditions exceeding the manufacturer’s
specifications. The warranty is void if the devices in question have been
opened or serviced by anyone other than authorised Clearline personnel.
Clearline will not be held responsible for consequential or implied damages.
