Clemas & Co I115SS User manual

I115SS
SWEEPER/SCRUBBER
OPERATOR MANUAL
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: [phone] Fax: [phone]
Email: [email protected] Web: www.clemas.co.uk

INDEX
1.
GENERAL INFORMATION
1.1. Symbols………………………………….…….........................……......…………..page
1.2. Notes…….................................................…………...…………..............…...….........
1.3. Manual consulting…………......…………………………....….........………….…………
1.4. Warranty..............................................................…………...…………...….…...........
1.5. Conformity declaration…….........................................…...........………….…...………
2.
MACHINE FEATURES AND TECHNICAL DATA
2.1. Identifying the machine……......…...............................….…………….….……...........
2.2. Description and components.……………...……………………………….…….…........
2.3. Technical data………...................................…........……………………….....…..........
3.
SAFETY
3.1. Right use of the machine……....……………....…....……………….....…………........
3.2. Wrong use of the machine .…………………………………………………..…………..
3.3. Suggested equipment……………………………………………………………
3.4. Operator qualify..............……………….......……………...…………...............
3.5. Safety and warning devices ……………..................…...…………............
3.6. Safety systems...............................................…………..….…....…………........
3.7. Safety diagnostic signaling ………………………………………………….
3.8. Other dangers………………………………………………………………………………
3.9. Security signals…………………………………………………………………...
4.
STARTING AND USE INSTRUCTIONS
4.1. Trasport and handling……...................….....................…....………….….….…........
4.2. Storage……………..............................................…………….…………....................
4.3. How to unpack the machine...........................……………………........….....
4.4. How to handle the unpacked machine.….…..........………………………..……..........
4.5. Installation…...............................................................………………..…….............
4.5.1. Batteries installation……..........……..….......……………….…...….….........…......
4.5.2. Battery charger installation……………………………………………………………
4.6. Control devices………………………………………………………..
4.6.1. Dashboard…………………………………………………………………………
4.7. Functioning……………………………………………………………………………..
4.7.1. Preparing and starting the machine……………………………………………….
4.7.2. Choosing the right detergent…………………………………………………………..
4.7.3. Regulate the driving position …………………………………………………
4.7.4. Rudder bar functioning……………………………………………………………..
4.7.5. Detergent control…………………..……………………………………………………
4.7.6. Squeegee adjustment…………………………………………………………………
4.7.7. Water discharge, recovery tank discharge and maintenance ………………
4.7.9. Brushes replacement…………………………………………………………………..
4.7.10. Squeegee blades replacement……………………………………………………….
4.7.11 Driving wheel tire replacement …………………………………..
5.
MAINTENANCE
5.1. Periodic maintenance……………..……………..................….....…..…………...........
Congratulations for your choice!
FIORENTINI S.p.A. thanking you for the preference to our product, would like to remind you that
FIORENTINI’s S.p.A. production covers manufacture and marketing of industrial cleaning machines
and is currently a leading company in this sector.
Our tradition and competence guarantee technical quality of your choice; actually all our products are
being built first quality materials through criteria that can give reliability, solidity and functionality
satisfying every kind of customers. FIORENTINI has recently obtained the quality system certificate
conforming to the requirements of UNI EN ISO 9001:2000.
We wish therefore inviting you to contact us, unhesitatingly, for every kind of request, as technical or
commercial; we’ll be pleased to be at your disposal for any information you may need.

5.2. Batteries maintenance……………………………………………………………………..
5.2.1. Hydrometry ……………………………………………………………………………….
5.2.2. Water filling up …………………………………………………………………………...
5.2.3. Charge limits………………………………………………………………………………
5.2.4. Off duty or inactive batteries …………………………………………………………...
5.2.5. Battery charger technical features……………………………………………………
5.2.6. Batteries disposal……………………………………………………………..
5.3. Suction motor maintenance………………………………………………..
5.4. Electrict equipment control……………………………………………………………….
5.5. Tests to be carried out……………………………………………
5.6. Maintenance register………………………………………………………………….
6.
SERVICE
6.1. Service adresses............…………..................……………..................
6.2. Claim report……………………………..…………...………………….…............

GENERAL INFORMATION
I115SS
Rev. 001 del 07/10/14
4/49
1. GENERAL INFORMATION
1.1. SYMBOLS
This symbol is used to get the operator’s attention on procedures or precautions to be
followed in order toavoiddamagesto usersor tothesupport
This symbol is used to get the operator’s attention on general information.
1.2. PREMISE
1.3. MANUAL CONSULTING
This manual deals exhaustively with all arguments that are necessari for an easy and safe use of the
machine as it is recommended by European Directives on product safety.
Therefore we suggest to all authorized operators to read carefully this manual contacting FIORENTINI S.r.l.
for any explanation. The manual has to be used every time the operator forgets a procedure or when new
operators have to be trained.
For publishing reasons, pictures and drawings can look different from the reality but without arising doubts.
Special symbols and bold type and/or sloping get the attention of the reader on remarkable information in
particularl for safety.
The revision index is written on the left at the bottom of every page. The list of those pages that have been
updated has to be found at the end of the manual.
1.4. WARRANTY
Warranty conditions are stated as below when not differently specified in the order confirmation.
WARRANTY OBJECT
The machine has been designed and built for a long-lasting use without relevant problems. Anyway, if
problems arise during the warranty period, FIORENTINI S.r.l. is engaged to repair or substitute for free those
parts that are broken or damaged by defective materials, working defects or imperfect assembly.
Warranty is not given for parts whose early breaking or wear and tear are due to:
FIORENTINI S. p. A. is the only owner of this manual.
The reproduction of all or part of the manual or the transmission to third parties with
mechanic or electronic devices are vorbidden without a written manufacturer’s
authorization. This manual is supplied to the customers in one original copy when
differently specified during the order.
This manual is supplied to the customer with the machine and it must be kept with it even when the machine
has to be transferred.
Please, keep the manual in a safe place and for all the machine lifetime. Purchaser is responsible for showing
the manual to qualified people. Incaseoflossaskfora duplicateto FIORENTINI Co..
FIORENTINI S.r.l. is not responsible for any kind of damages caused by people or things due to the non-
observance of the instructions of this manual.
FIORENTINI reserves the right to add at any time and without notice all the technical and commercial
changes considered useful for the customer. Therefore data and information in this manual can be updated.

GENERAL INFORMATION
I115SS
Rev. 001
07/10/14
5/49
Non-respect of instructions included in this manual;
Breaking and/or changes made up without FIORENTINI’s approval;
Not-use of genuine spare parts;
Interventions made up by unauthorised personnel;
Missing maintenance;
Natural calamities.
FIORENTINI S.r.l., its purchasers and its suppliers have the same warranty for the electric and expendable
materials that are sold by external suppliers.
WARRANTY CONDITIONS
The warranty is granted for 24 months since the machine delivery date. This is a single warranty term and it
cannot be extended.
EXCEPTIONS
Expandable materials like brushes, squeegee blades and materials whose lifetime cannot be predetermined
are not under warranty.
APPLICATION MODALITY
Defective components must be sent back to FIORENTINI S.r.l. in order to establish the anomalies causes
and apply therefore the warranty. Repair and replacement under warranty will be done in FIORENTINI’s
workshop, by third parties or in loco. In case of repair or replacement in loco, energy sources and the use of
particular equipment have to be paid by the customer himself.
INTERVENTION DEMANDS
Intervention demands must be sent to FIORENTINI Service Dpt. only after a careful analysis of the problem
and its causes. Following information have to be given to FIORENTINI’s agent:
Serial number you get it from the silver label sticked on the machine (§ 2.1.);
Code and position of the component taken from the spare parts list (§ 7.2.);
A detailed description of the problem and its causes.
The components considered under warranty are delivered ex works; those ones being substituted belong to
FIORENTINI Co..
GOODS TO BE RETURNED
In case of goods to be returned for warranty replacement, it is necessary to have a written acceptance from
FIORENTINI technical department before sending them.
All defective parts must be carefully packed in order to avoid further damages during transport.
Goods must be shipped ex-warehouse and followed by :
serial number of the equipment where they were installed on;
item code of the defective part;
detailed description of the defect and of the condictions where it happened.
In case of defective electric or electronic goods,
please return them separately from other materials,
in order to help us in dividing dangerous wastegoods
and recicle the (RAEE) as DER 2002/96/CEE LOW.
The machine warranty is no more available in case of the loss of the silver label.
1.5. CONFORMITY DECLARATION
The conformity declaration is released with the machine and the user manual.

GENERAL INFORMATION
I115SS
Rev. 001
07/10/14
6/49

MACHINE FEATURES AND TECHNICAL DATA
I115SS
Rev. 001
07/10/14
7/49
2. MACHINE FEATURES AND TECHNICAL DATA
2.1. IDENTIFYING THE MACHINE
A silver label is sticked on the protection case of the steering column and clearly shows the data referring to
the “CE” marking.
The label has never to be removed and should always be kept readable. In case of
damage t is necessary to ask for a duplicate. The autoscrubber machine cannot be sold
without the label.
2.2. DESCRIPTION AND COMPONENTS
This machine has been designed to clean the floor in three steps: floor sweeping, floor washing and water
suction. It is available in four versions: battery, gasoil, petrol or GPL.
The battery version is built with the following components:
a electric engine, which is connected to two hydraulic pumps: one variable delivery pump and one
fixed delivery pump;
a hydraulic rear driving wheel which is connected to the hydraulic system and to the variable delivery
pump. The pump is operated by the gas pedal;
two side brushes;
one central brush;
a dust suction system;
a recovery tank;
three washing brushes behind the central brush;
one squeegee;
one solution tank made of ABS plastic;
one recovery tank made of ABS plastic with flexible pipes for water suction and discharge;
PICTURE Nr. 2.1

MACHINE FEATURES AND TECHNICAL DATA
I115SS
Rev. 001
07/10/14
8/49
a series of batteries (for the battery version), a gasoil or petrol or GPL engine (for the version with
engine);
steering wheel group;
operator’s seat.
The two sweeping brushes collect the dust and the central brush, that rotates in the opposite direction of the
machine, put it into the recovery tank. A suction system has to put fine dust, that the sweeping brushes
cannot collect, into the recovery tank. Both the sweeping brushes and the washing ones can operate at the
same time, while the squeegee –in deep contact with the floor - intake water into the recovery tank.
Please do not forget to start the filter shaker motor for the dust filter cleaning. This operation
has to be done with open bucket and close to the discharge area.
Thanks to the dashboard the operator can control all the machine functions, which are listed below:
operate the side brushes and the central one of the sweeping group;
operate the suction of the sweeping group;
lift or lower the recovery tank;
open or close the flap;
operate the filter shaker;
operate the parking brake lever;
lift or lower the washing brushes plate;
move on side the washing brushes plate;
operate the washing brushes;
control the detergent quantity;
start the suction motor;
lift or lower the squeegee;
select forward or riverse gear;
start or stop the machine;
switch the flashing light on or off;
switch the lights on or off.

MACHINE FEATURES AND TECHNICAL DATA
I115SS
Rev. 001
07/10/14
9/49
The machine frame is made of zinc-plated or stainless steel in order to avoid oxidation which could
compromise the machine reliability.
FIORENTINI Co., taking the new CE safety rules into consideration, manufactures the machine following the
CE directives about safety and health. The materials high quality, the high technology and FIORENTINI’s
experience guarantee the performance and the reliability of this machine .
Each machine is tested during the manufacturing process and the final check is done before the machine is
shipped out.

MACHINE FEATURES AND TECHNICAL DATA
I115SS
Rev. 001
07/10/14
10/49
2.3. TECHNICAL DESCRIPTION
DATI TECNICI –SPECIFICATIONS –CARACTERISTIQUES TECHNIQUES
Alimentazione –Voltage –Alimentation
Batteria a cassone 36 V (630 Amp/h)
Sistema di trazione –Drive system - Systeme de traction
Hydraulic rear
Larghezza di lavaggio –Scrubbing width –Largeur de
nettoyage
1150 mm
Larghezza squeegee –squeegee width –Largeur suceur
1350 mm
N° spazzole –Brushes no. –Nr. des brosses
3 x Ø 380 mm
Pressione spazzole –Brush pressure –pression des brosses
180 Kg.
Area pulita per ora –Working capacity up to –Rendement
jusqu’à
6900 mq/h
Autonomia –Autonomy - Autonomie
3 h (Combined operating)
Serbatoio soluzione –Solution tank –Cuve solution
220 litri
Serbatoio di recupero –Recovery tank –Cuve recuperation
210 litri
Depressione –Water lift –Depression
1800 mm H2O / 17 Kpa
Spazzola centrale- Main broom –Brosse centrale
850 mm x Ø 300 mm
Spazzole laterali anteriori –Front side brushes –brosses
laterales devant
2 x Ø 400 mm
Pista spazzante con spazzole laterali –Side brushes sweep
width –piste brosses lat.
1450 mm
Superficie filtrante- filtering surface –surface filtrant
6 mq
Capacità contenitori rifiuti- dirty container capacity –capacité
conteneur dechets
210 lt
Ruota posteriore –rear wheel –roue arriere
16x6x8 Antimark
Ruote anteriori –front wheels –roue avant
4008 Antimark
Freni –brakes –Freins
Idraulici –hydraulic - hydrauliques
Velocità di marcia avanti –Forward speed - Vitesse en marche
avant
0 –6 Km/h
CARATTERISTICHE TECNICHE MOTORI –TECNICAL CHARACTERISTICS –CARACTERISTIQUES
TECHNIQUE
Motore trazione –Traction motor –Moteur des tracion
Hydraulic
Motore aspirazione squeegee –Suction motor –Moteur
d’aspiration
2 x 36 V 500 W
Motore spazzole –Brush motor –Moteur des brosses
3 x 36 V 900 W
Motore aspirazione –Suction motor –Moteur d’aspiration
1 x 36 V 350 W 3500 rpm
DIMENSIONI –DIMENSIONS
Dimensioni corpo macchina –Machine dimensions –dimensions de la machine
Lunghezza –Length –Longueur
2100 mm
Larghezza senza carter spazzole- Width without brushes
carters –Largeur sans carter brosses
1200 mm
Larghezza con carter spazzola - Width with brushes carters
Largeur avec carter brosses
1230 mm
Altezza con roll bar –Height with roll bar –Hauteur avec roll
bar
1850 mm
Altezza senza roll bar–Height without roll bar –Hauteur sans
roll bar
1420 mm
Guida –Drive - Conduite
Man on board
Pendenza max. superabile –Max. gradient at full load –Pente
superable
10 %
Rumorosità. –Noise level –Bruit
< 78 dB(A)

MACHINE FEATURES AND TECHNICAL DATA
I115SS
Rev. 001
07/10/14
11/49
The above mentioned characteristics are not binding for the manufacturer; they can be
changed without any notice . ING.O.FIORENTINI Co. is always at disposal for any
information (par.7.1.).
MEASUREMENT UNITS CONVERSION
Lenght
1 inch = 1” = 25,4 mm
Power
1 kW = 1,36 CV = 1,34 BHP
Temperature
T (K) = t (°C) + 273 / t (°F) = 1,8 t (°C) + 32
Pressure
1 bar =100 kPa = 14,5 psi

SAFETY
I115SS
Rev. 001
07/10/14
12/49
3. SAFETY
3.1. RIGHT USE OF THE MACHINE
This machine can sweep and wash at the same time. It has been designed both for
the industrial and outside cleaning. The engine version can be used on slopes not
higher than 15% while the battery version on slopes not higher than 10%. The
machine can reverse on sloping surfaces not higher than 5% for the engine version
(3 km/h speed) and 3% for the battery version (2km/h speed).
3.2. WRONG USE OF THE MACHINE
The machine cannot be driven by non-authorized personnel;
The machine cannot wash sloping surfaces whose gradient is higher than 15%
for the engine version and 10% for the battery version or surfaces with holes;
The machine cannot be driven on sloping surfaces higher than 5% for the engine
version (3 km/h speed) and higher than 3% for the battery version (2 km/h
speed).
The machine cannot be used in places with dangerous substances and in
particular with explosive atmospheres or with a bad microclimate;
The machine cannot clean surfaces with inflammable products;
The machine cannot be used as a means of transport for people or other means
of transport;
The protection devices of the machine cannot be modified or tampered;
Batteries must be recharged in a fanned room;
The operator have always to respect safety rules;
The engine version of the machine with internal combustion cannot be driven in
not authorized places;
The operator cannot use equipments or devices that can create problems to the
machine working;
The machine components cannot be modified without FIORENTINI’s
authorization;
The operator cannot use acids that can damage the machine;
The operator has always to respect the rules written in the user manual.
Using the machine with the solenoid valve off or bypassed.
Please read carefully and do not cover the labels sticked on the machine. FIORENTINI
S.r.l. is not responsible for a wrong use of the machine (see § 3.2.)
3.3. SUGGESTED EQUIPMENT
In order to use the machine in a proper way, we suggest to use the FIORENTINI’s equipment and original
spare parts.
FIORENTINI S.r.l. Technical Dept. is always at your disposal to design components or parts for a particular
use of machine as requested by the customer.

SAFETY
I115SS
Rev. 001
07/10/14
13/49
3.4. OPERATOR’S QUALIFY
The scheme below sumarizes the operator qualify requested for each kind of operation.
OPERATION
OPERATOR’S QUALIFY
Driving/control of the machine
Trained operator
Installation/ disinstallation
Fiorentini technician
Mechanical parts maintenance
Fiorentini technician
Electric parts maintenance
Fiorentini technician
Cleaning maintenance
Trained operator
Dismantling and demolition
Fiorentini technician
FIORENTINI S.r.l. suggests to train the operator before using the machine. The operator also must be
trained about safety rules and carefully read this manual.
FIORENTINI S.r.l. is not responsible for any possible damage to people and/or things caused by
the non-observance of the instructions dealt within this manual.
3.5. SAFETY AND WARNING DEVICES
It is absolutely forbidden to tamper or disconnect safety and warning devices while
the machine is working;
It is important to check periodically safety and warning devices (see § 5.1.).
Side brushes protection
I115SS is equipped with three nylon brushes that rotate while the machine is
working. A steel case on each side brush avoid to reach dangerous areas.
These cases can be only willingly removed.
Central brush protection
I115SS is equipped with a central brush that rotates while the machine is
working. A steel case avoid to reach dangerous areas. These cases can be
only willingly removed.
Warning device
I115SS is equipped with several warning devices:
One acustic warning device like a claxon. It has to warn people who are
near the machine while its operating;
One intermittent bleeper to warn people while the machine is reversing;
Two flashing yellow lights to signal the machine operating.con luci gialle
lampeggianti per la segnalazione di macchina in funzione.
Headlights to work in places with few light.

SAFETY
I115SS
Rev. 001
07/10/14
14/49
3.6 SAFETY DEVICES
This machine is provided of the following safety systems.
.
Socket (picture 4.5), the same socket used for the battery charger. In case of emergency, this
socket must be taken away from the plug by means of its handle.
The operator must be trained about safety rules. Do never restore this safety system before the
problem has been sorted out. If it is necessary ask for the technician help.
Insufficient battery charge: the electronic card, that controls all the machine functions except for
the traction, disconnect all these functions when the battery charge is lower than 20%. In this way
the batteries’ lifetime can be longer.
Emergency switch (battery version): the machine is equipped with an emergency button under the
driver’s seat. If the operator is not aboard, the machine does not start. Moreover, the machine stops
automatically if the operator forgets to switch the machine off. In this way the operator must seats
again on the machine, switch the machine off, wait for a few seconds and start the machine again.
Ammeter: the machine is equipped with an ammeter on the dashboard, which controls the washing
brushes pressure. The operator has not to overcome the yellow line for a slight cleaning; the green
line for a normal cleaning; the red line for a brief cleaning.
Safety stopper: the machine is equipped with red safety stopper under the recovery tank. The
operator must use it every time he/she needs to maintain the recovery tank.
Attention: the operator has not to work with the machine with leds always on the red line of
the ammeter.

SAFETY
I115SS
Rev. 001
07/10/14
15/49
3.8. OTHER DANGERS
FIORENTINI S.r.l. analyzes –starting from the design of the machine - all the dangers that can occur while
the machine is operating in order to prevent or at least low the operator’s accidents. Thanks to a series of
signals on the machine the operator can avoid many risks that can occur.
CRUSHING DANGERS
This kind of danger can occur:
during the side brushes regulation;
during the batteries recharge because of the batteries cover fall (battery version);
during the hydraulic oil filling because of the cover batteries fall (battery version);
while checking the filter of the waste tank;
during the squeegee regulation;
while replacing the central brush or the washing brushes;
while emptying the waste tank.
Whilst regulating the side brushes, the central brush and the central washing brushes the ignition
key must be kept away from the dashboard in order to avoid the casual starting of the machine.
Whilst the batteries recharge, the operator must pay attention that any parts of his/her body enter the
batteries room.
Special labels sticked on the cartes of the brushes or on the recovery tank prevent dangers
to the operator (see § 3.7.).
SQUASHING AND SHEARING
This kind of danger can occur:
while emptying the waste tank;
while installing or replacing the batteries.
While the operator is emptying the waste tank, nobody must be near the machine in order to avoid
accidents.
Squashing and shearing danger is highlighted by special labels sticked on the case of the steering
column (see § 3.7.).

SAFETY
I115SS
Rev. 001
07/10/14
16/49
TURNOVER
This kind of ranger can occur:
during the normal operating of the machine when you exceed sloping limits as specified in
the manual and you use the machine to clean disconnected surfaces or with holes and high
depressions (photo 3.2)
Do not use the machine to wash sloping surfaces higher than 10% or surfaces
with holes or depressions which might compromise the stability of the machine.
FIORENTINI is not responsible for accidents occurred to people or things provoked by a
wrong use of the machine, i.e. using the machine on surfaces which can compromise its
stability.
The purchaser must stick proper labels on the machine to show the operator its right use.
OVERHEATING DANGER
This kind of ranger occurs when:
the oil reaches high temperature during the normal use of the machine. In order to avoid this
kind of danger, a solenoid valve has been set on the machine up, which keeps the internal
temperature of the machine lower (see § 3.2).
The operator ha sto pay attention when he/she gets in contact with internal
components of the machine. Moreover the operator has to take the solenoid valve
under control.
FIORENTINI S.r.l. is not responsible for accidents occured to people or things if the operator
uses the machine without the solenoid valve or uses the machine not in the correct way..

SAFETY
I115SS
Rev. 001
07/10/14
17/49
3.9. SAFETY SIGNALS
DANGERS
Dangers’ signals are triangular with black
pictures on a yellow background
PROHIBITIONS
Prohibitions’ signals are round with black
pictures and a red stripe
What is it?
Crushing danger: it can be due to parts in movement of the machine.
What to do
During the installation or the maintenance make sure that the ignition
key is not in the dashboard before removing the mobile protections.
What is it?
This signal forbids to remove the protection of pieces in movement.
What to do
During the installation or the maintenance make sure that the ignition
key is not in the dashboard before removing the mobile protections.
While the machine is operating make sure that all covers are well
fixed.

SAFETY
I115SS
Rev. 001
07/10/14
18/49
What is it?
Crushing danger: it can be due to parts in movement of the machine.
What to do
During the installation or the maintenance make sure that the ignition
key is not in the dashboard before removing the mobile protections.
What is it?
Crushing danger: it can be due to parts in movement of the machine.
What to do
During the installation or the maintenance make sure that the ignition
key is not in the dashboard before removing the mobile protections.
What is it?
This signal forbids to remove the protection of pieces in movement.
What to do
During the installation or the maintenance make sure that the ignition
key is not in the dashboard before removing the mobile protections.
While the machine is operating make sure that all covers are well
fixed.

SAFETY
I115SS
Rev. 001
07/10/14
19/49
The purchaser must replace danger signals on the machine if they are damaged. It is
absolutely forbidden to remove or temper danger signals.
What is it?
Crushing danger: it can be due to parts in movement of the machine.
What to do
During the installation or the maintenance make sure that the ignition
key is not in the dashboard before removing the mobile protections.
What is it?
Explosion danger: it may occur while recharging the batteries because
of hydrogen spread.
What to do
During the batteries recharge, please place the machine under a
suction chemney or in a ventilated area and keep it away from heat
and corrosive substances.

STARTING AND USE INSTRUCTIONS
I115SS
Rev. 001
07/10/14
20/49
4. STARTING AND USE INSTRUCTIONS
4.1. TRANSPORT AND HANDLING
The machine is delivered to the purchaser in a proper package (see picture 4.1 below). A black arrow on the
package indicates the barycentre. This arrow must be in the middle of the elevator or transpallet forks. The
package must be carefully handled. Do not place one package on another one. If agrred with the purchaser,
the machine can be delivered without package, placed on a pallet and fixed by means of straps.
The purchaser must make sure that the machine has not been damaged during the
transport and that all papers are on the machine. Otherwise, the purchaser must
immediately contact FIORENTINI in order to sort out the problem.
The purchaser is responsible for the transport of the machine if not differently agreed with
FIORENTINI.
The machine must be handled with proper devices as stated in the scheme below.
PACKAGE
HANDLING EQUIPMENT
Pallet
Fork elevator
Nr. 4.2
None
Fork elevator or crane truck with a two-band-sling and equalizer
Nr. 4.3
The bands used for lifting the machine up must have the same loading capacity as
the machine load. Handling operations must be done without causing a loss of
stability of the machine. Otherwise, the machine can be damaged or the operator
can de in danger.
FIORENTINI suggest to use authorized personnel (see § 2.3.) to handle the machine.

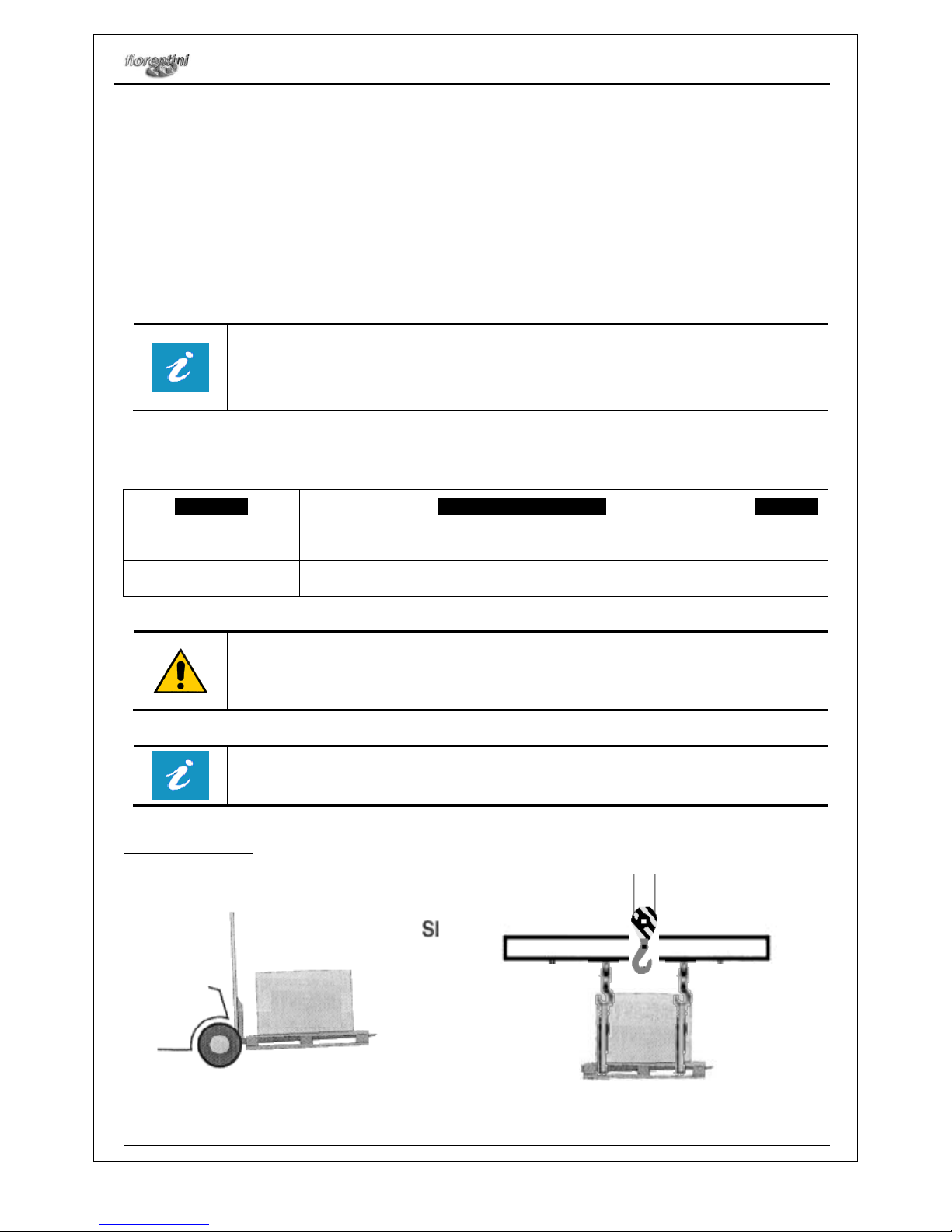

LOADING SYSTEM
PICTURE NR. 4.2
PICTURE NR. 4.3
