Clemas & Co TENNANT T581 MICRO RIDER User manual

TENNANT T581 MICRO RIDER
SCRUBBER DRYER
OPERATOR MANUAL
Clemas & Co. Unit 16 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: [phone] Fax: [phone]
Email: [email protected] Web: www.clemas.co.uk

Only use TENNANT Company supplied or equivalent
parts. Parts and supplies may be ordered online, by
phone or from any Tennant Authorized Service Center
or Distributor.
Before Ordering any parts or supplies, be sure to have
the machine model number and serial number available.

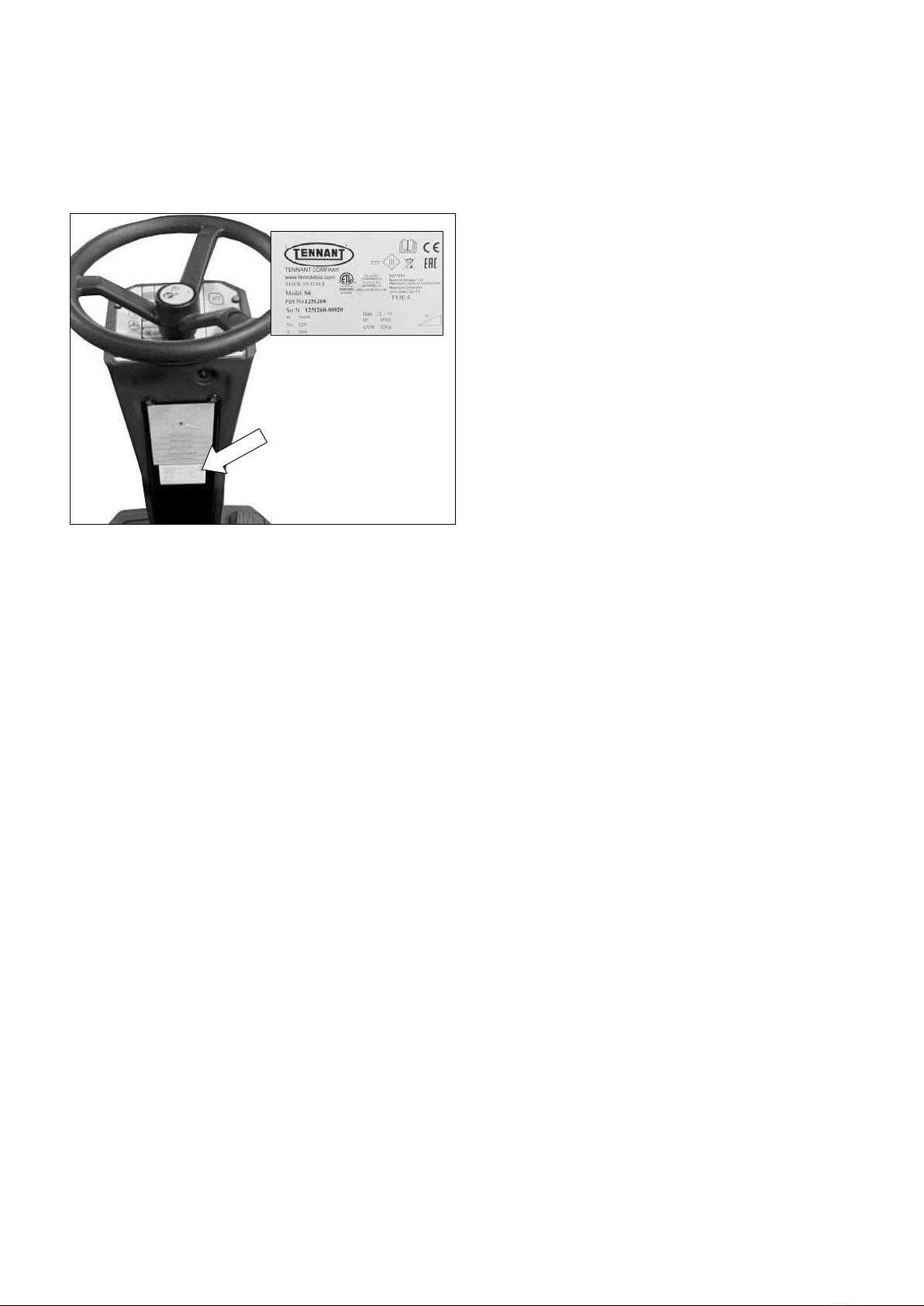

Serial Number Location
TABLE OF CONTENTS
RECOMMENDED SPARE PARTS LIST ..........................3
BRUSHES / PAD DRIVER AND PADS ............................5
RECOVERY TANK GROUP
SOLUTION TANK GROUP .................... 6
..................... 8
SOLUTION TANK DRAIN HOSE GROUP.......................9

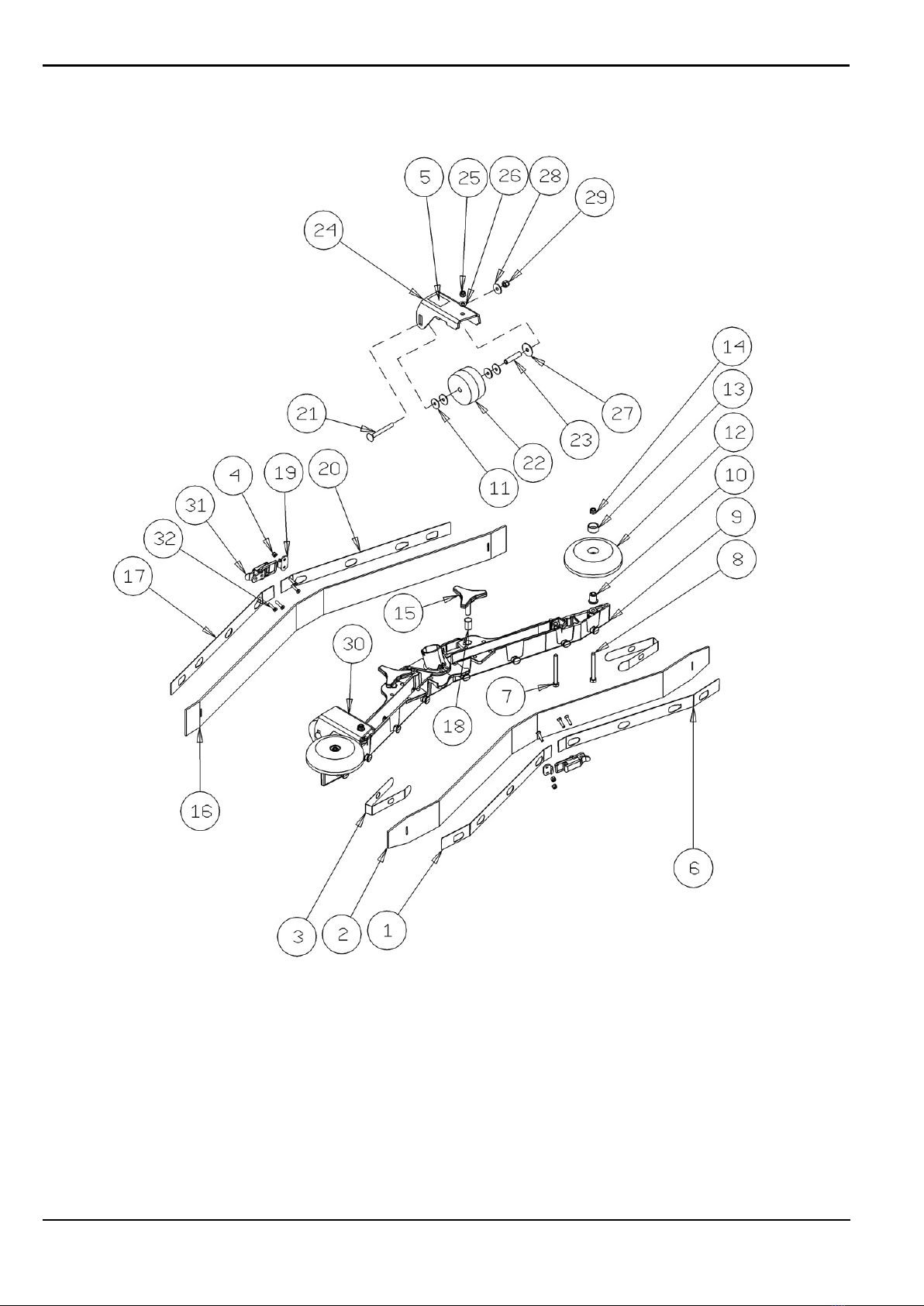

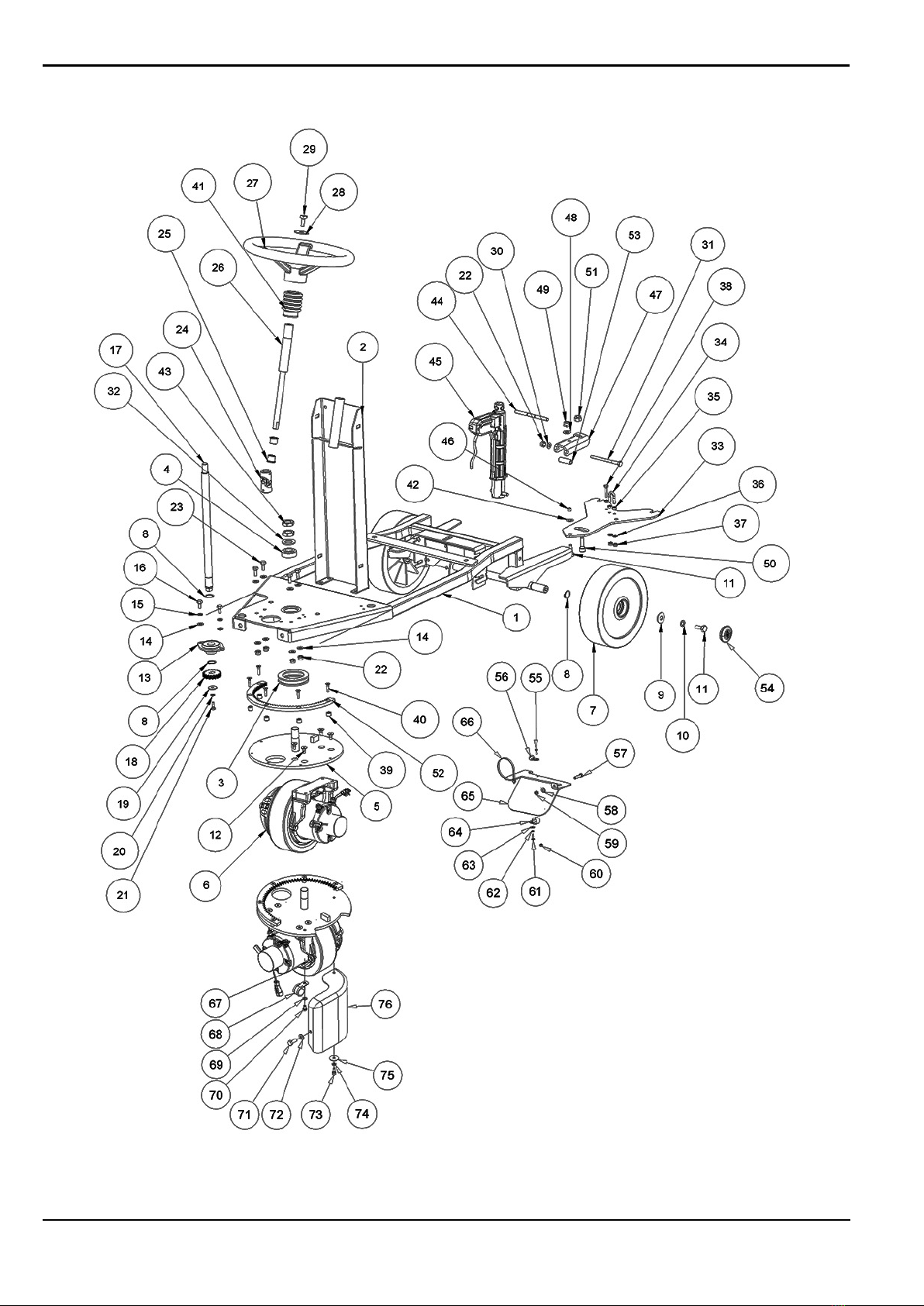

FRAME AND DRIVE WHEEL GROUP...........................10

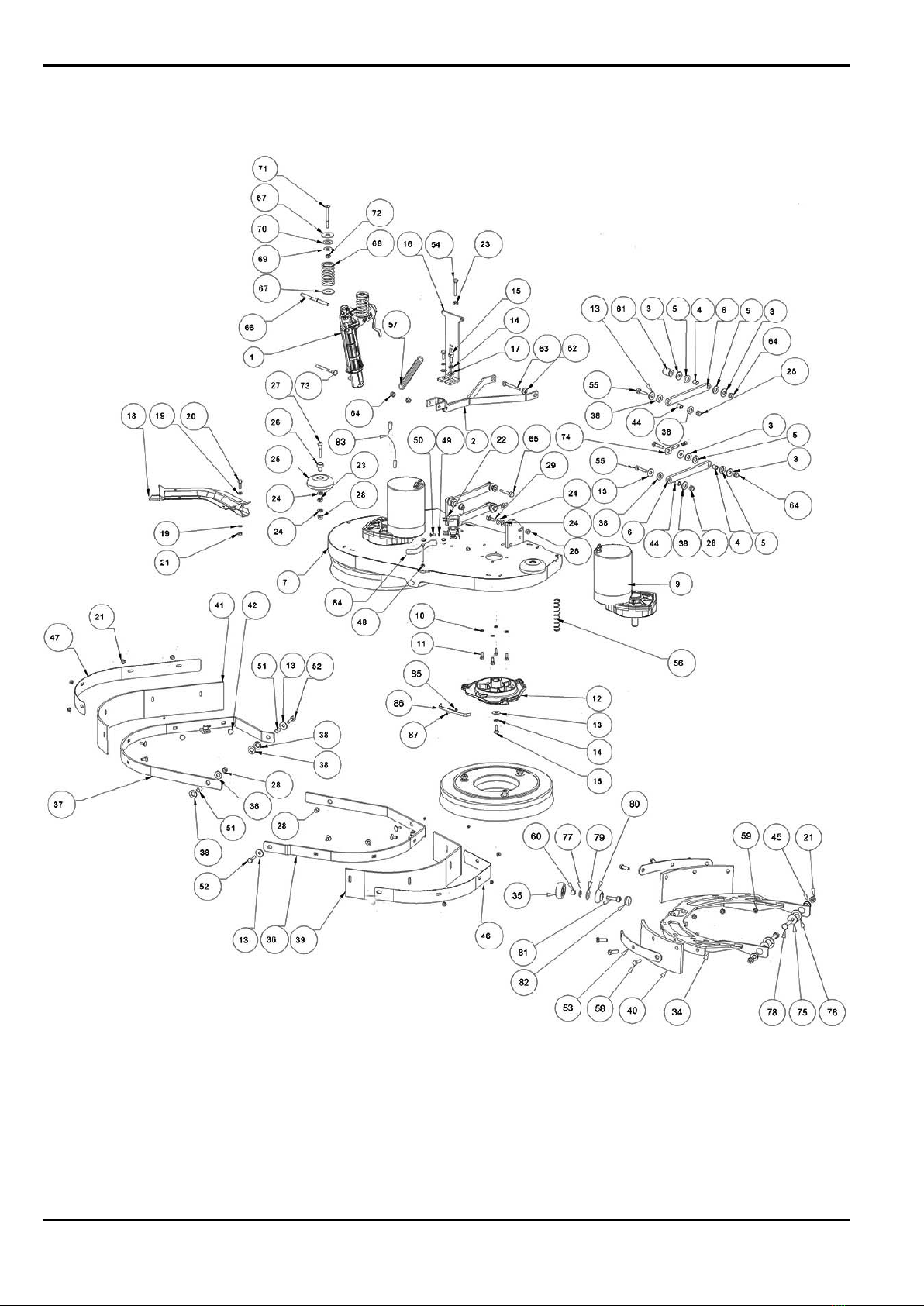

SCRUB HEAD GROUP (Single Disk 55cm Model) . 14
SCRUB HEAD GROUP (Dual Disk 70cm Model) .. 16
SQUEEGEE GROUP (55cm Single Disk Model) ... 20
SQUEEGEE GROUP (70cm Dual Disk Model)
ELECTRICAL COMPONENT GROUP .... 22
(55cm Single Disk Model)................................................24
ELECTRICAL COMPONENT GROUP
(70cm Dual Disk Model)...................................................28
CONTROL CONSOLE GROUP.......................................32
CHEM DOSE GROUP...................................................... 34
DRIVE MOTOR BREAKDOWN .......................................35
ELECTRICAL DIAGRAM (55cm Single Disk Model) 36
ELECTRICAL DIAGRAM (70cm Dual Disk Model) . 37
Tennant Company N.V.
Industrielaan 6 5405 AB
P.O. Box 6 5400 AA
Uden- The Netherlands
[email protected]m
Specifications and parts aresubject to change without notice.
Copyright © 2021 TENNANT Company

3
Tennant T290 (03- 2021)
RECOMMENDED SPARE PARTS LIST
WEAR PARTS (55cm Model)
PART NO.
DESCRIPTION
9017759
BLADE, SQGE, FRONT, 815L, LINATEX [STANDARD]
9017760
BLADE, SQGE, REAR, 815L, LINATEX [STANDARD]
9017755
BLADE, SQGE, FRONT, 815L, LATEX
9017756
BLADE, SQGE, REAR, 815L, LATEX
9017757
BLADE, SQGE, FRONT, 815L, PYU
9017758
BLADE, SQGE, REAR, 815L, PYU
9017761
BRUSH ASSY, DISK, SCB, 55CM, 3- LUG, PYP [STANDARD]
SPPV01351
BRUSH ASSY, DISK, SCB, 55CM, 3- LUG, PYP, SOFT
9017762
BRUSH ASSY, DISK, ABR, 55CM, 3- LUG, 120 GRIT
9017763
DRIVER ASSY, PAD, 55CM, 3- LUG [OPTION]
SPPV01460
PAD, STRIP, 21.6/550, BROWN[5PC]
SPPV01442
PAD, SCB, 21.6/550, BLU [5PC]
SPPV01433
PAD, BUFF, 21.6/550, RED [5PC]
SPPV01415
PAD, POLISH, 21.6/550, WHITE [5PC]
WEAR PARTS (70cm Model)
PART NO.
DESCRIPTION
9017813
BLADE, SQGE, FRONT, 1020L, LINATEX [STANDARD]
9017814
BLADE, SQGE, REAR, 1020L, LINATEX [STANDARD]
9017801
BLADE, SQGE, FRONT, 1020L, LATEX
9017804
BLADE, SQGE, REAR, 1020L, LATEX
9017806
BLADE, SQGE, FRONT, 1020L, PYU
9017811
BLADE, SQGE, REAR, 1020L, PYU
9017816
BRUSH ASSY, DISK, SCB, 35CM, 3- LUG, PYP [STANDARD]
9017730
BRUSH ASSY, DISK, SCB, 35CM, 3- LUG, PYP, SOFT
9017818
BRUSH ASSY, DISK, ABR, 35CM, 3- LUG, 120 GRIT
SPPV02664
DRIVER ASSY, PAD, 35CM [OPTION]
994520
PAD, STRIPPING, BROWN [5 PC]
994519
PAD, SCRUBBING, BLUE [5 PC]
994518
PAD, BUFFING, RED [5 PC]
994754
PAD, POLISHING, WHITE [5 PC]
SERVICE PARTS (55cm Model)
PART NO.
DESCRIPTION
897383
FLAP, BRUSH
994201
BATTERY, GEL, 12VDC 105AH [GEL]
9017716
MOTOR, VACUUM, 24VDC, 2- STAGES
9017764
BRUSH, CARBON, VAC FAN
9017765
MOTOR, BRUSH, 24VDC
897500
CIRCUITBOARD, DRIVE
SERVICE PARTS (70cm Model)
PART NO.
DESCRIPTION
9017838
FLAP, SIDE, BRUSH
9017841
FLAP, CENTER, BRUSH
994203
BATTERY, 6VDC 180AH [GEL]
9018509
MOTOR, VACUUM, 24VDC
9017687
BRUSH, CARBON, VAC FAN
9017799
ISOLATOR, VAC FAN
9017843
MOTOR, BRUSH, 24VDC
9017822
CIRCUITBOARD, DRIVE
Continued

4
Tennant T581 (03- 2021)
RECOMMENDED SPARE PARTS LIST
SERVICE PARTS (55cm & 70cm Models)
PART NO.
DESCRIPTION
9017686
BRUSH KIT, CARBON, BRUSH MOTOR [4 PC]
9017784
BRUSH, CARBON, TRANSAXLE MOTOR
9018401
GASKET, MOTOR, VACUUM
9017785
FILTER, MOTOR, VAC FAN
9017786
HOSE ASSY, RECOVERY
897466
SCREEN, FILTER
9017790
SENSOR, LEVEL, LIQ
9017793
HOSE ASSY, DRAIN
9017794
CAP KIT, DRAIN HOSE, RECVY
9017795
SENSOR, POSITION, DRIVE
9017718
VALVE, WATER, SOLENOID, 24VDC
9017800
TIRE, SOLID, PYU
9017802
CAP KIT, DRAIN PLUG W/GASKET
9017805
ACTUATOR, BRUSH HEAD, 24VDC
9017803
ACTUATOR, SQGE, 24VDC
9017807
DRIVE ASSY, WHEEL
9017808
BRAKE ASSY, W/LEVER, COMPLT
9017809
WHEEL, SCRBR, 250MM X 60MM
9017815
FUSE 30A
9017817
FUSE 5A
9017819
FUSE 100A
MEVR00584
FUSE 3 A
9017821
CIRCUITBOARD, MAIN
9017823
CIRCUITBOARD, DISPLAY PANEL
897441
COVER, TANK, RECVY
897656
HOSE, DRAIN, SOLTN
1017696
KEY SET, REPLACEMENT
1069836
CORD, POWER, CHARGER [EU]
1032820
CORD, POWER, CHARGER [UK]

PARTS LIST
5
Tennant T581 (03- 2021)
BRUSHES / PAD DRIVER AND PADS
55cm Single Disk Model
Ref.
Part No.
Serial Number
Description
Qty.
1
9017761
(9021379- 00001-
) BRUSH ASSY, DISK, SCB, 55CM, PYP (STANDARD)
1
1
SPPV01351
(9021379- 00001-
) BRUSH ASSY, DISK, SCB, 55CM, PYP, SOFT
1
1
9017762
(9021379- 00001-
) BRUSH ASSY, DISK, ABR, 55CM, 3- LUG, 120 GRIT
1
2
9017763
(9021379- 00001-
) DRIVER ASSY, PAD, 55CM, 3- LUG
1
3
SPPV01415
(9021379- 00001-
) PAD, POLISH, 55CM, WHITE [QTY 5]
1
3
SPPV01433
(9021379- 00001-
) PAD, BUFF, 55CM, RED [QTY 5]
1
3
SPPV01442
(9021379- 00001-
) PAD, SCRUB, 55CM, BLUE [QTY 5]
1
3
SPPV01460
(9021379- 00001-
) PAD, STRIP, 55CM, BROWN [QTY 5]
1
70cm Dual Disk Model
Ref.
Part No.
Serial Number
Description
Qty.
1
9017816
(9021380- 00001-
) BRUSH ASSY, DISK, SCB, 35CM, PYP (STANDARD)
1
1
9017730
(9021380- 00001-
) BRUSH ASSY, DISK, SCB, 35CM, PYP, SOFT
1
1
9017818
(9021380- 00001-
) BRUSH ASSY, DISK, ABR, 35CM, 3- LUG, 120 GRIT
1
2
SPPV02664
(9021380- 00001-
) DRIVER ASSY, PAD, 35CM, 3- LUG
1
3
994754
(9021380- 00001-
) PAD, POLISH, 35CM, WHITE [QTY 5]
1
3
994518
(9021380- 00001-
) PAD, BUFF, 35CM, RED [QTY 5]
1
3
994519
(9021380- 00001-
) PAD, SCRUB, 35CM, BLUE [QTY 5]
1
3
994520
(9021380- 00001-
) PAD, STRIP, 35CM, BROWN [QTY 5]
1
1
2
3

PARTS LIST
6
Tennant T581 (03- 2021)

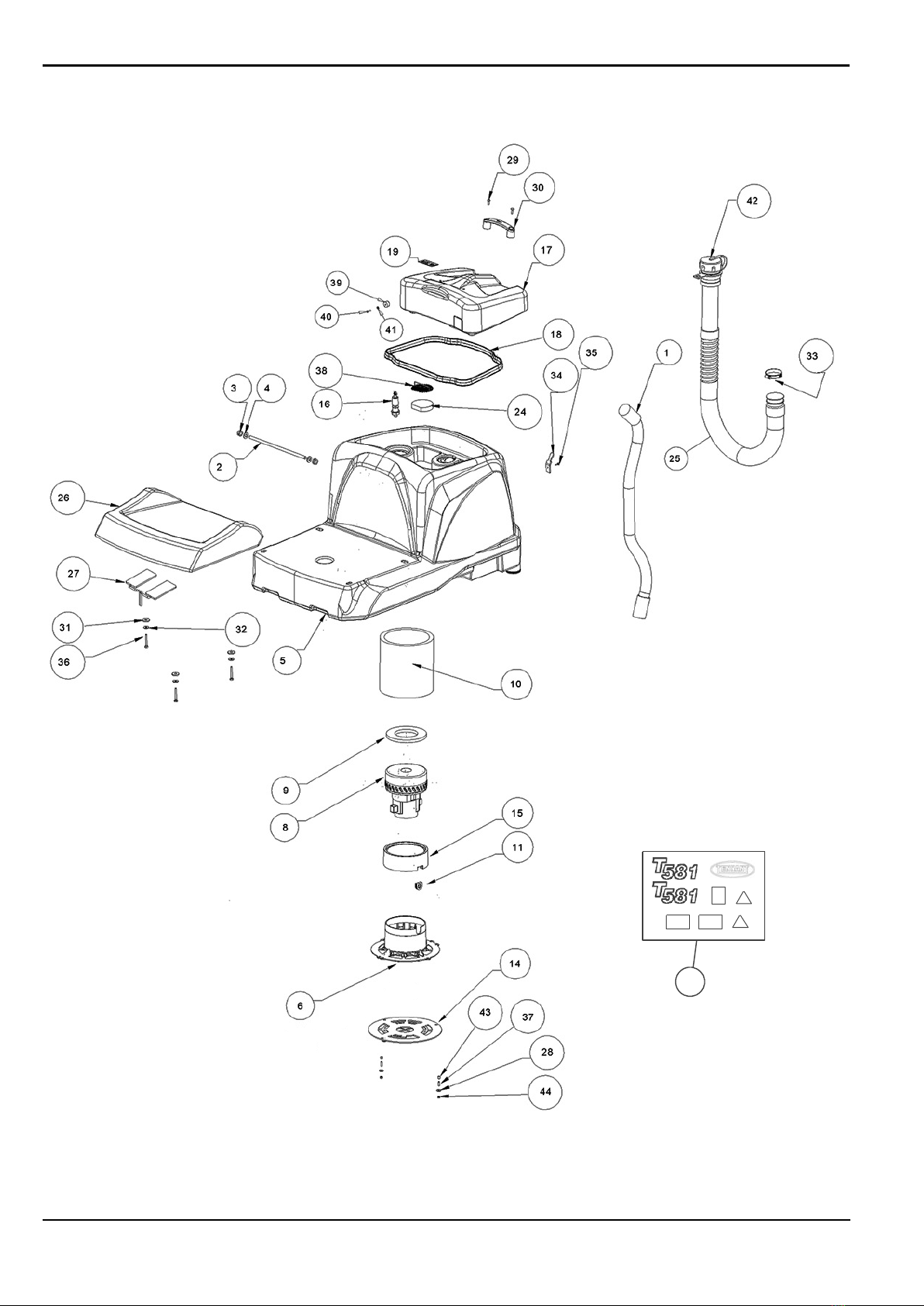

RECOVERY TANK GROUP
45

PARTS LIST
7
Tennant T581 (03- 2021)
RECOVERY TANK GROUP
Ref.
Part No.
Serial Number
Description
Qty.
1
9017786
(90213xx- 00001
) HOSE ASSY, RECVY
1
2
897430
(90213xx- 00001
) PIN, 10D X 275L
1
3
897431
(90213xx- 00001
) NUT AUTOBL.M10 INOX DIN 985
2
4
897432
(90213xx- 00001
) WASHER, D. 10X21, UNI6592, INOX
2
5
MPVR12901
(90213xx- 00001
) TANK RECOVERY PT80 BLUE
1
6
897434
(9021379- 00001
) BRACKET, HSGN, FAN (55cm Model)
1
6
897552
(9021380- 00001
) BRACKET, HSGN, FAN (70cm Model)
1
8
9017716
(9021379- 00001
) FAN, VACUUM, 24VDC, 2- STAGE (55cm Model)
1
9017764
(9021379- 00001
) CARBON BRUSH, MOTOR, VAC (Motor 9017716)
1
8
9018509
(9021380- 00001
) FAN, VACUUM, 24VDC, 3- STAGE (70cm Model)
1
9017687
(9021380- 00001
) CARBON BRUSH, MOTOR, VAC (Motor 9018509)
1
9
9018401
(90213xx- 00001
) GASKET, MOTOR, VACUUM
1
10
897437
(90213xx- 00001
) INSULATION, FAN
1
11
897438
(90213xx- 00001
) FAIRLEAD, 13,5D
1
14
897439
(90213xx- 00001
) COVER, FAN
1
15
897440
(90213xx- 00001
) GASKET, RBR, FAN
1
16
9017790
(90213xx- 00001
) SENSOR, LEVEL, LIQ
1
17
897441
(90213xx- 00001
) COVER, TANK, RECVY [2180]
1
18
897657
(90213xx- 00001
) GASKET PT80 TANK LID
1
19
897443
(90213xx- 00001
) LABEL [FILTER]
1
24
9017785
(90213xx- 00001
) FILTER, MOTOR, VACFAN
1
25
9017793
(90213xx- 00001
) HOSE ASSY, DRAIN
1
26
897444
(90213xx- 00001
) SEAT [2180SR]
1
27
897445
(90213xx- 00001
) SWITCH, SENSOR, SEAT
1
28
897384
(90213xx- 00001
) WASHER D. 5X14 INX
3
29
897446
(90213xx- 00001
) SCREW TBEI M 6- 16
2
30
897447
(90213xx- 00001
) HANDLE, COVER
1
31
897315
(90213xx- 00001
) RUBBER LAV.
4
32
897112
(90213xx- 00001
) WASHER D. 6X18 INX UNI 6593
4
33
897448
(90213xx- 00001
) CLAMP, HOSE, WORMDRIVE, 45 - 60D
1
34
897449
(90213xx- 00001
) HANGER, HOSE
1
35
897151
(90213xx- 00001
) SCREW TE M 4X 10 INX
1
36
897450
(90213xx- 00001
) SCREW TE M 6x45 INOX
4
37
VTVT00916
(90213xx- 00001
) SCREW
3
38
897451
(90213xx- 00001
) NET
1
39
897452
(90213xx- 00001
) CAP
1
40
897453
(90213xx- 00001
) SCREW TE M4x12 UNI 5739 INOX
1
41
897156
(90213xx- 00001
) WASHER D. 4 INX
1
42
9017794
(90213xx- 00001
) CAP KIT, DRAIN HOSE, RECVY
1
43
897146
(90213xx- 00001
) SPACER
3
44
VTDD01693
(90213xx- 00001
) NUT, M5, INOX
3
45
KTRI06354
(90213xx- 00001
) LABEL KIT, T581
1

PARTS LIST
8
Tennant T581 (03- 2021)
SOLUTION TANK GROUP
Ref.
Part No.
Serial Number
Description
Qty.
1
897454
(90213xx- 00001
) TANK, SOLTN
1
2
9017787
(90213xx- 00001
) SCREEN, SOLTN
1
3
9018454
(90213xx- 00001
) WATER, VALVE, SOLTN
1
4
897455
(90213xx- 00001
) CONNECTOR 1/2 M RESCA 15
1
5
897456
(90213xx- 00001
) CONNECTOR 1/2” M/F
1
6
897457
(90213xx- 00001
) BRACKET, WATER, FTLR
1
7
897458
(90213xx- 00001
) WASHER 1/2
2
8
897384
(90213xx- 00001
) WASHER D. 5X14 INX
1
9
897459
(90213xx- 00001
) SCREW, M5X12, TE, INOX
1
10
9017802
(90213xx- 00001
) CAP KIT, DRAIN PLUG W/GASKET
1
11
897460
(90213xx- 00001
) TRAY, BATTERY, D.490X394X30
1
12
897461
(90213xx- 00001
) ROD, SPPT, TANK
1
13
897462
(90213xx- 00001
) SEAL, SOLTN, TANK
1
19
897463
(90213xx- 00001
) CAP, SOLTN, TANK
1
22
897120
(90213xx- 00001
) WASHER, D.8X24, UNI6593, INOX
2
23
897243
(90213xx- 00001
) SCREW TE M8x35 UNI5739 INOX
2
25
9017790
(90213xx- 00001
) SENSOR, LEVEL, LIQ
1
26
897464
(90213xx- 00001
) BRACKET, ROD
1
27
897658
(90213xx- 00001
) SCREW M 5X 12 TSPEI UNI 5933
1
28
897465
(90213xx- 00001
) SEAL, ORG, 15,08D X 2,62 TH
1
29
897466
(90213xx- 00001
) SCREEN, FILTER
1

PARTS LIST
9
Tennant T581 (03- 2021)
SOLUTION TANK DRAIN HOSE GROUP
Ref.
Part No.
Serial Number
Description
Qty.
1
897358
(90213xx- 00001
) BRACKET, DRAIN, VALVE
1
2
897266
(90213xx- 00001
) CLIP, M25
1
3
897271
(90213xx- 00001
) CONNECTOR 1/2 M RESCA 15
1
4
897656
(90213xx- 00001
) HOSE, DRAIN, SOLTN
1
5
897270
(90213xx- 00001
) GASKET D.21 SP.3 GOMMA
1
6
897269
(90213xx- 00001
) CAP 1/2”G X ELETTROV. ACL
1
7
897156
(90213xx- 00001
) WASHER D. 4 INX
1
8
897359
(90213xx- 00001
) SCREW, TCTC, M4X16, ACCIAIO, INOX
1
9
897160
(90213xx- 00001
) NUT, M4, INOX, ZN
1
10
897360
(90213xx- 00001
) FITTING, PLASTIC, 3/4
1
11
897361
(90213xx- 00001
) CRANKCASE FRONTALE 705 GRIGIO
1
12
897362
(90213xx- 00001
) CLAMP, HOSE, WORMDRIVE, 12- 20D
2
13
897363
(90213xx- 00001
) FAIR, LEAD
1
14
897364
(90213xx- 00001
) CLAMP, STL, 16D, INSULATED
1
15
897112
(90213xx- 00001
) WASHER D. 6X18 INX UNI 6593
4
16
897287
(90213xx- 00001
) SCREW TE 6X20 UNI5739 INX
1
17
897138
(90213xx- 00001
) NUT M6 INOX
1
18
897329
(90213xx- 00001
) SCREW, TBEI, M5x16, INOX
2

PARTS LIST
10
Tennant T581 (03- 2021)
FRAME AND DRIVE WHEEL GROUP

PARTS LIST
11
Tennant T581 (03- 2021)
FRAME AND DRIVE WHEEL GROUP
Ref.
Part No.
Serial Number
Description
Qty.
1
897386
(90213xx- 00001
) FRAME [2180SR]
1
2
897387
(90213xx- 00001
) SUPPORT, WDLT, STEERING
1
3
897388
(90213xx- 00001
) BEARING 51112
1
4
897389
(90213xx- 00001
) BEARING 32004 TIPO SKF
1
5
897390
(90213xx- 00001
) PLATE, RND, STEERING, CONTROL
1
6
9017807
(90213xx- 00001
) DRIVE ASSY, WHEEL
1
7
9017809
(90213xx- 00001
) WHEEL, SCRBR, 250MM X 60MM
2
8
897280
(90213xx- 00001
) CIRCLIP, D. 20, UNI7435
2
9
897391
(90213xx- 00001
) WASHER D.10
2
10
897392
(90213xx- 00001
) WASHER D.10
2
11
897393
(90213xx- 00001
) SCREW, TE, M10X25, UNI5740
2
12
897394
(90213xx- 00001
) SCREW, TSPEI, M8X16
4
13
897283
(90213xx- 00001
) SUPPORT
1
14
897152
(90213xx- 00001
) WASHER, D.8, UNI6592, INOX
2
15
897216
(90213xx- 00001
) WASHER, D. 8, GRW, UNI1751, INOX
2
16
897184
(90213xx- 00001
) SCREW, TE, M8X16, UNI5739, A2
2
17
897395
(90213xx- 00001
) SHAFT, STEERING
1
18
897396
(90213xx- 00001
) SPROCKET, STEERING
1
19
897305
(90213xx- 00001
) WASHER, M6X24, UNI6593, INOX
1
20
897129
(90213xx- 00001
) WASHER D. 6 INX GRW UNI 1751
1
21
897128
(90213xx- 00001
) SCREW TE 6X16 UNI5739
1
22
897124
(90213xx- 00001
) NUT, M8, INOX
4
23
897316
(90213xx- 00001
) SCREW, TE, M8X20, UNI5739, INOX
4
24
897397
(90213xx- 00001
) JOINT, STEERING
1
25
897398
(90213xx- 00001
) BUSHING, 15B 24D 17.5
2
26
897399
(90213xx- 00001
) SHAFT, STEERING, WHEEL
1
27
897400
(90213xx- 00001
) WHEEL, STEERING 320MM
1
28
897401
(90213xx- 00001
) WASHER, M10X40X2,5, UNI6593, ZB
1
29
897402
(90213xx- 00001
) SCREW, TE, M10X20, UNI5739
1
30
897157
(90213xx- 00001
) WASHER NYLON 66 D. 84X17X2
2
31
897403
(90213xx- 00001
) SCREW, TE, M8X100
1
32
897288
(90213xx- 00001
) WASHER, UNI6592, FORO 20, INOX
1
33
897404
(90213xx- 00001
) CHANNEL, ARM, SQGE
1
34
897251
(90213xx- 00001
) BRACKET, M6X11X29
1
35
897405
(90213xx- 00001
) NUT M 6 A2 UNI 5588 INX
2
36
897106
(90213xx- 00001
) WASHER D.6 UNI 6592 INOX
2
37
897138
(90213xx- 00001
) NUT M6 INOX
2
38
897287
(90213xx- 00001
) SCREW TE 6X20 UNI5739 INX
1
39
897406
(90213xx- 00001
) SPACER, RND, 6,5B 12D 10
5
40
897407
(90213xx- 00001
) SCREW M6X25 TSPEI UNI5933
5
41
897408
(90213xx- 00001
) BELLOWS, SHAFT, STEERING
1
42
897409
(90213xx- 00001
) SPRING D.10.2 X20
1
43
897410
(90213xx- 00001
) NUT, HEX, M20 X 1,5
2
44
897380
(90213xx- 00001
) PIN, ACTUATOR, 8D X 115L
1
45
9017803
(90213xx- 00001
) ACTUATOR, SQGE, 24VDC
1
46
897411
(90213xx- 00001
) SPACER, RND, 8B 10D 5,9
1
47
897412
(90213xx- 00001
) SUPPORT
1
48
897152
(90213xx- 00001
) WASHER, D.8, UNI6592, INOX
1
49
897124
(90213xx- 00001
) NUT, M8, INOX
1
50
897413
(90213xx- 00001
) SCREW, TCEI, M10X30
1

PARTS LIST
12
Tennant T581 (03- 2021)
FRAME AND DRIVE WHEEL GROUP - Continued

PARTS LIST
13
Tennant T581 (03- 2021)
FRAME AND DRIVE WHEEL GROUP - Continued
Ref.
Part No.
Serial Number
Description
Qty.
51
897414
(90213xx- 00001
) NUT M10 INOX
1
52
897415
(90213xx- 00001
) BRAKE
1
53
897416
(90213xx- 00001
) SPACER
1
54
897417
(90213xx- 00001
) CAP, WHEEL, PYP
2
55
897453
(90213xx- 00001
) SCREW TE M4x12 UNI 5739 INOX
1
56
897334
(90213xx- 00001
) DUCT LOCK D.9,5
1
57
897532
(90213xx- 00001
) SCREW TE M 6X 25 UNI 5739 INX
1
58
897106
(90213xx- 00001
) WASHER D.6 UNI 6592 INOX
1
59
897105
(90213xx- 00001
) NUT M6 INOX+ZIN.
1
60
897276
(90213xx- 00001
) NUT M 4 ATB A2
1
61
897262
(90213xx- 00001
) SCREW, M4X16
1
62
897204
(90213xx- 00001
) WASHER D. 4 GROVER A2 UNI1751
1
63
VTRS00017
(90213xx- 00001
) WASHER STEEL INOX 4X12
1
64
897137
(90213xx- 00001
) CLAMP FERMATUBO
1
65
MPVR12940
(90213xx- 00001
) GUIDE
1
66
FSVR00049
(90213xx- 00001
) CLAMP 4,5x200 black
1
67
897556
(90213xx- 00001
) FAIR, LEAD DIAMETER 15.5
1
68
897363
(90213xx- 00001
) FAIR, LEAD
1
69
897129
(90213xx- 00001
) WASHER D. 6 INX GRW UNI 1751
1
70
897130
(90213xx- 00001
) SCREW, TE, M6X12, UNI5739, A2
1
71
897316
(90213xx- 00001
) SCREW, TE, M8X20, UNI5739, INOX
1
72
897152
(90213xx- 00001
) WASHER, D.8, UNI6592, INOX
1
73
897352
(90213xx- 00001
) SCREW, TCEI, M.6X16
1
74
897129
(90213xx- 00001
) WASHER D. 6 INX GRW UNI 1751
1
75
897305
(90213xx- 00001
) WASHER, M6X24, UNI6593, INOX
1
76
MPVR12936
(90213xx- 00001
) CRANKCASE .
1

PARTS LIST
14
Tennant T581 (03- 2021)
SCRUB HEAD GROUP (Single Disk 55cm Model)

PARTS LIST
15
Tennant T581 (03- 2021)
SCRUB HEAD GROUP (Single Disk 55cm Model)
Ref.
Part No.
Serial Number
Description
Qty.
2
897120
(9021379- 00001
) WASHER, D.8X24, UNI6593, INOX
4
3
897370
(9021379- 00001
) BUSHING, 8B 12D 14
2
4
897371
(9021379- 00001
) WASHER, 13B 24D 2,5, NYL
2
5
897372
(9021379- 00001
) PLAT, ARM, SCB HEAD
4
6
897373
(9021379- 00001
) HEAD, SCB, 500MM
1
8
9017765
(9021379- 00001
) MOTOR, BRUSH, 24VDC
1
9017686
(9021379- 00001
) CARBON BRUSH KIT, MOTOR, BRUSH [4 PC]
1
Y
MOCC00480
(9021379- 00001
) MOTOR, BRUSH
1
Y
RDGR00052
(9021379- 00001
) REDUCTION UNIT, BRUSH MOTOR
1
9
897129
(9021379- 00001
) WASHER D. 6 INX GRW UNI 1751
4
10
897287
(9021379- 00001
) SCREW TE 6X20 UNI5739 INX
4
11
VTVR16617
(9021379- 00001
) WEDGE 6X 6X30 UNI 6604
1
12
MFVR00242
(9021379- 00001
) DRIVE DISK CONICAL ALUMINIUM
1
13
897375
(9021379- 00001
) WASHER, D. 8 X32, UNI6593, INOX
1
14
897216
(9021379- 00001
) WASHER, D. 8, GRW, UNI1751, INOX
1
15
897316
(9021379- 00001
) SCREW, TE, M8X20, UNI5739, INOX
1
16
9017718
(9021379- 00001
) VALVE, WATER, SOLENOID, 24VDC
1
17
897156
(9021379- 00001
) WASHER D. 4 INX
2
18
897262
(9021379- 00001
) SCREW, M4X16
3
19
897152
(9021379- 00001
) WASHER, D.8, UNI6592, INOX
6
20
897124
(9021379- 00001
) NUT, M8, INOX
5
21
897229
(9021379- 00001
) NUT, M8, UNI5588, INOX, A2
1
22
897376
(9021379- 00001
) WHEEL, BPMR, 80D X 22W
1
23
897121
(9021379- 00001
) BUSHING NUOVO RUOTINO STRONG
1
24
897311
(9021379- 00001
) SCREW, M8X40
1
25
897256
(9021379- 00001
) TUBE FLEX D.12X3 ARMORV.PVC TR
1
26
897137
(9021379- 00001
) CLAMP FERMATUBO
1
27
9017761
(9021379- 00001
) BRUSH ASSY, DISK, SCB, 55CM, 3- LUG, PYP
1
29
897377
(9021379- 00001
) SCREW TCEI M8X20 UNI5931 INOX
2
31
897371
(9021379- 00001
) WASHER, 13B 24D 2,5, NYL
8
32
897370
(9021379- 00001
) BUSHING, 8B 12D 14
4
33
897120
(9021379- 00001
) WASHER, D.8X24, UNI6593, INOX
4
34
897243
(9021379- 00001
) SCREW TE M8x35 UNI5739 INOX
4
35
897378
(9021379- 00001
) BUSHING, 8B 12D 4,3
4
36
897379
(9021379- 00001
) SCREW, TE, M8X80
1
37
897124
(9021379- 00001
) NUT, M8, INOX
4
38
9017805
(9021379- 00001
) ACTUATOR, BRUSH HEAD, 24VDC
1
39
897380
(9021379- 00001
) PIN, ACTUATOR, 8D X 115L
1
40
LAFN47168
(9021379- 00001
) BELT- STRETCHER ALTERNATOR TK1400
2
41
897145
(9021379- 00001
) SCREW TE 5X16 UNI5739 INX
3
42
897382
(9021379- 00001
) BRACKET
1
43
897383
(9021379- 00001
) FLAP
1
44
VTDD01693
(9021379- 00001
) NUT, M5, INOX
3
45
897384
(9021379- 00001
) WASHER D. 5X14 INX
3
46
897385
(9021379- 00001
) DRIVE DISK TESTATA
2
47
897204
(9021379- 00001
) WASHER D. 4 GROVER A2 UNI1751
1
48
MLML00350
(9021379- 00001
) SPRING ALUM. CONICAL DRIVER
1
49
897313
(9021379- 00001
) SCREW, TCB, TC, M4X10
1
ASSEMBLY
Y INCLUDED IN ASSEMBLY

PARTS LIST
16
Tennant T581 (03- 2021)
SCRUB HEAD GROUP (Dual Disk 70cm Model)

PARTS LIST
17
Tennant T581 (03- 2021)
SCRUB HEAD GROUP (Dual Disk 70cm Model)
Ref.
Part No.
Serial Number
Description
Qty.
1
9017805
(9021380- 00001
) ACTUATOR, BRUSH HEAD, 24VDC
1
2
897517
(9021380- 00001
) ARM, ACTUATOR
1
3
897120
(9021380- 00001
) WASHER, D.8X24, UNI6593, INOX
8
4
897370
(9021380- 00001
) BUSHING, 8B 12D 14
4
5
897371
(9021380- 00001
) WASHER, 13B 24D 2,5, NYL
4
6
897372
(9021380- 00001
) PLAT, ARM, SCB HEAD
4
7
LAFN09311
(9021380- 00001
) HEAD, SCB, 700MM
1
9
9017843
(9021380- 00001
) MOTOR, BRUSH, 24VDC
2
9017686
(9021380- 00001
) CARBON BRUSH KIT, BRUSH MOTOR [4 PC]
1
Y
NA
(9021380- 00001
) ROTOR, MOTOR, BRUSH
1
Y
RDGR00043
(9021380- 00001
) REDUCTION UNIT, BRUSH MOTOR
1
10
897129
(9021380- 00001
) WASHER D. 6 INX GRW UNI 1751
8
11
897128
(9021380- 00001
) SCREW TE 6X16 UNI5739
8
12
MFVR00242
(9021380- 00001
) HUB, DRIVE, BRUSH, DISK
2
13
897375
(9021380- 00001
) WASHER, D. 8 X32, UNI6593, INOX
2
14
897216
(9021380- 00001
) WASHER, D. 8, GRW, UNI1751, INOX
2
15
897316
(9021380- 00001
) SCREW, TE, M8X20, UNI5739, INOX
2
16
897520
(9021380- 00001
) BRACKET
1
17
897112
(9021380- 00001
) WASHER D. 6X18 INX UNI 6593
4
18
MPVR07147
(9021380- 00001
) CONVEYOR
1
19
897106
(9021380- 00001
) WASHER D.6 UNI 6592 INOX
12
20
897287
(9021380- 00001
) SCREW TE 6X20 UNI5739 INX
4
21
897138
(9021380- 00001
) NUT M6 INOX
6
22
9017718
(9021380- 00001
) VALVE, WATER, SOLENOID, 24VDC
1
23
897229
(9021380- 00001
) NUT, M8, UNI5588, INOX, A2
2
24
897152
(9021380- 00001
) WASHER, D.8, UNI6592, INOX
2
25
897376
(9021380- 00001
) WHEEL, BPMR, 80D X 22W
2
26
897121
(9021380- 00001
) BUSHING NUOVO RUOTINO STRONG
2
27
897311
(9021380- 00001
) SCREW, M8X40
2
28
897124
(9021380- 00001
) NUT, M8, INOX
2
34
897523
(9021380- 00001
) BRACKET
2
35
897524
(9021380- 00001
) BEARING, BALL, 8B 30D 11W [2SEAL]
2
36
LAFN09313
(9021380- 00001
) BRACKET SX LEFT
1
37
LAFN09312
(9021380- 00001
) BRACKET DX
1
38
897371
(9021380- 00001
) WASHER, 13B 24D 2,5, NYL
4
39
9017838
(9021380- 00001
) FLAP, BRUSH
1
40
9017841
(9021380- 00001
) FLAP, BRUSH, INSIDE
4
41
9017838
(9021380- 00001
) FLAP, BRUSH
1
42
897525
(9021380- 00001
) SCREW, TBEI, M5X35
8
44
897370
(9021380- 00001
) BUSHING, 8B 12D 14
4
45
897545
(9021380- 00001
) BUSHING
4
46
LAFN09394
(9021380- 00001
) BRACKET LEFT
1
47
LAFN09395
(9021380- 00001
) BRACKET RIGHT
1
48
897250
(9021380- 00001
) NUT, M6, UNI5589, INOX
2
49
897156
(9021380- 00001
) WASHER D. 4 INX
2
50
897262
(9021380- 00001
) SCREW, M4X16
2
51
897526
(9021380- 00001
) BUSHING, SLEEVE, 8B 12D 15L
2
52
897530
(9021380- 00001
) SCREW, TE, M8X30, UNI5737, INOX
2
53
897527
(9021380- 00001
) STRAP, SQGE, INSIDE
4
54
897244
(9021380- 00001
) SCREW, TE, M8X45, INOX, A2
1
55
897243
(9021380- 00001
) SCREW TE M8x35 UNI5739 INOX
2
ASSEMBLY
Y INCLUDED IN ASSEMBLY

PARTS LIST
18
Tennant T581 (03- 2021)
SCRUB HEAD GROUP (Dual Disk 70cm Model) - Continued

PARTS LIST
19
Tennant T581 (03- 2021)
SCRUB HEAD GROUP (Dual Disk 70cm Model) - Continued
Ref.
Part No.
Serial Number
Description
Qty.
56
897531
(9021380- 00001
) SPRING
2
57
897533
(9021380- 00001
) SPRING
1
58
897145
(9021380- 00001
) SCREW TE 5X16 UNI5739 INX
12
59
VTDD01693
(9021380- 00001
) NUT, M5, INOX
12
60
897231
(9021380- 00001
) BUSHING
2
61
897534
(9021380- 00001
) SPACER
1
62
897218
(9021380- 00001
) BUSHING BRUSH DECK SUPPORT
2
63
897535
(9021380- 00001
) SCREW
1
64
897229
(9021380- 00001
) NUT, M8, UNI5588, INOX, A2
2
65
897536
(9021380- 00001
) SCREW, TE, M.8X40
1
66
897380
(9021380- 00001
) PIN, ACTUATOR, 8D X 115L
1
67
897247
(9021380- 00001
) WASHER, D. 12X36X2.5, UNI6593
2
68
897537
(9021380- 00001
) SPRING
2
69
897120
(9021380- 00001
) WASHER, D.8X24, UNI6593, INOX
2
70
897538
(9021380- 00001
) WASHER D.14
2
71
897539
(9021380- 00001
) SCREW, TSPEI, M8x70, UNI5933
2
72
897229
(9021380- 00001
) NUT, M8, UNI5588, INOX, A2
2
73
897243
(9021380- 00001
) SCREW TE M8x35 UNI5739 INOX
1
74
LAFN47168
(9021380- 00001
) BELT- STRETCHER ALTERNATOR
2
75
897112
(9021380- 00001
) WASHER D. 6X18 INX UNI 6593
4
76
897544
(9021380- 00001
) WASHER, D.12, GROVER, UNI1751, INOX
4
77
897106
(9021380- 00001
) WASHER D.6 UNI 6592 INOX
2
78
897532
(9021380- 00001
) SCREW TE M 6X 25 UNI 5739 INX
4
79
897112
(9021380- 00001
) WASHER D. 6X18 INX UNI 6593
2
80
897541
(9021380- 00001
) COVER
2
81
897542
(9021380- 00001
) SCREW TCEI M6X20 UNI5931 INOX
2
82
897543
(9021380- 00001
) COVER
2
83
MECB01373
(9021380- 00001
) EXTENSION
1
84
897256
(9021380- 00001
) TUBE FLEX D.12X3 ARMORV.PVC TR
0,60
85
897204
(9021380- 00001
) WASHER D. 4 GROVER A2 UNI1751
2
86
MLML00350
(9021380- 00001
) SPRING ALUM. CONICAL DRIVER
2
87
897313
(9021380- 00001
) SCREW, TCB, TC, M4X10
2

PARTS LIST
20
Tennant T581 (03- 2021)
SQUEEGEE GROUP (55cm Single Disk Model)
