Preface
I
Preface
Notebook Computer
D500E/D510E/D520E/D530E
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
March 2004
Trademarks
Intel®and Pentium®are registered trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the computer.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to up-
grade elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Installing Optional Module

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, elec-
tric shock and injury to persons, including the following:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (DC Output 20V, 6.0A).
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD

Preface
V
Preface

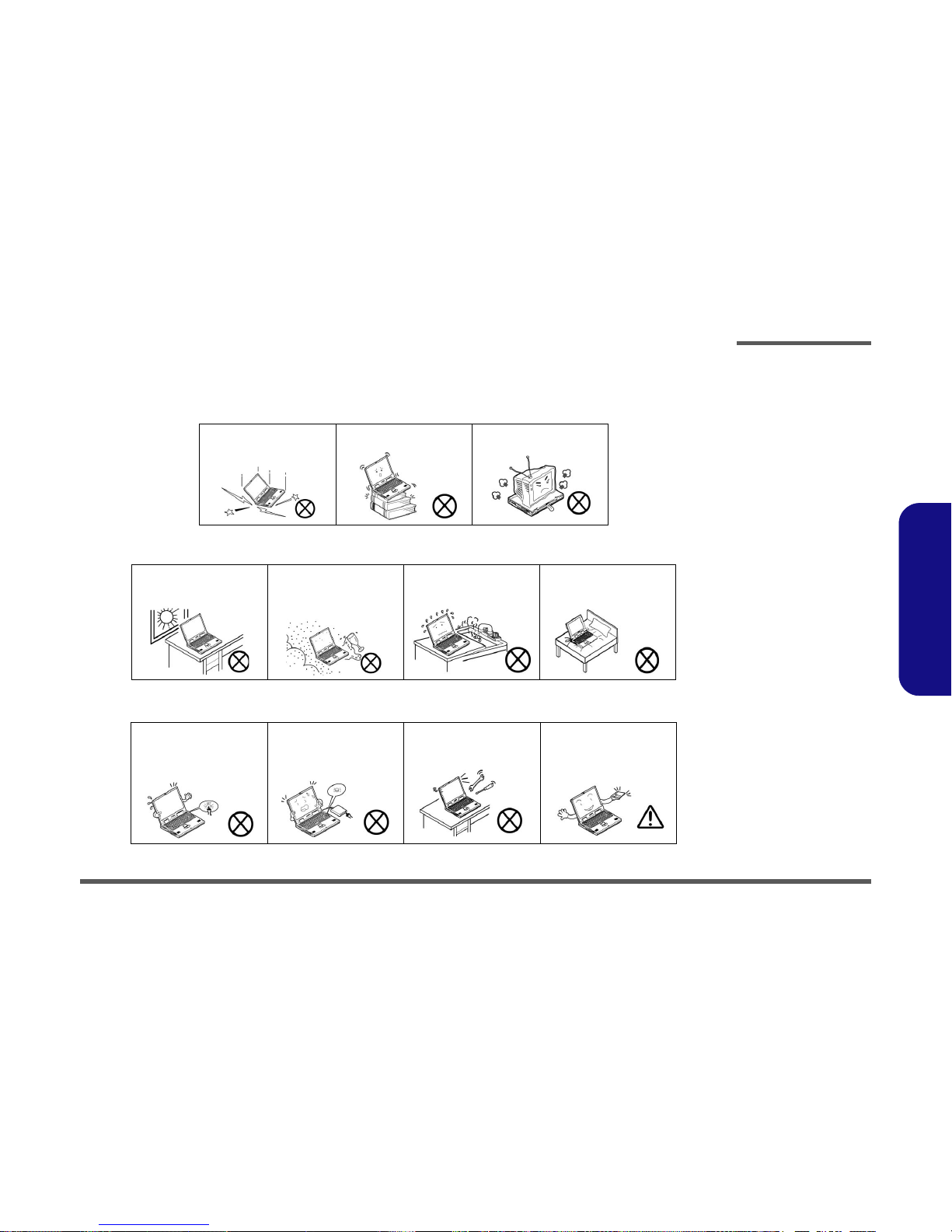

Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.

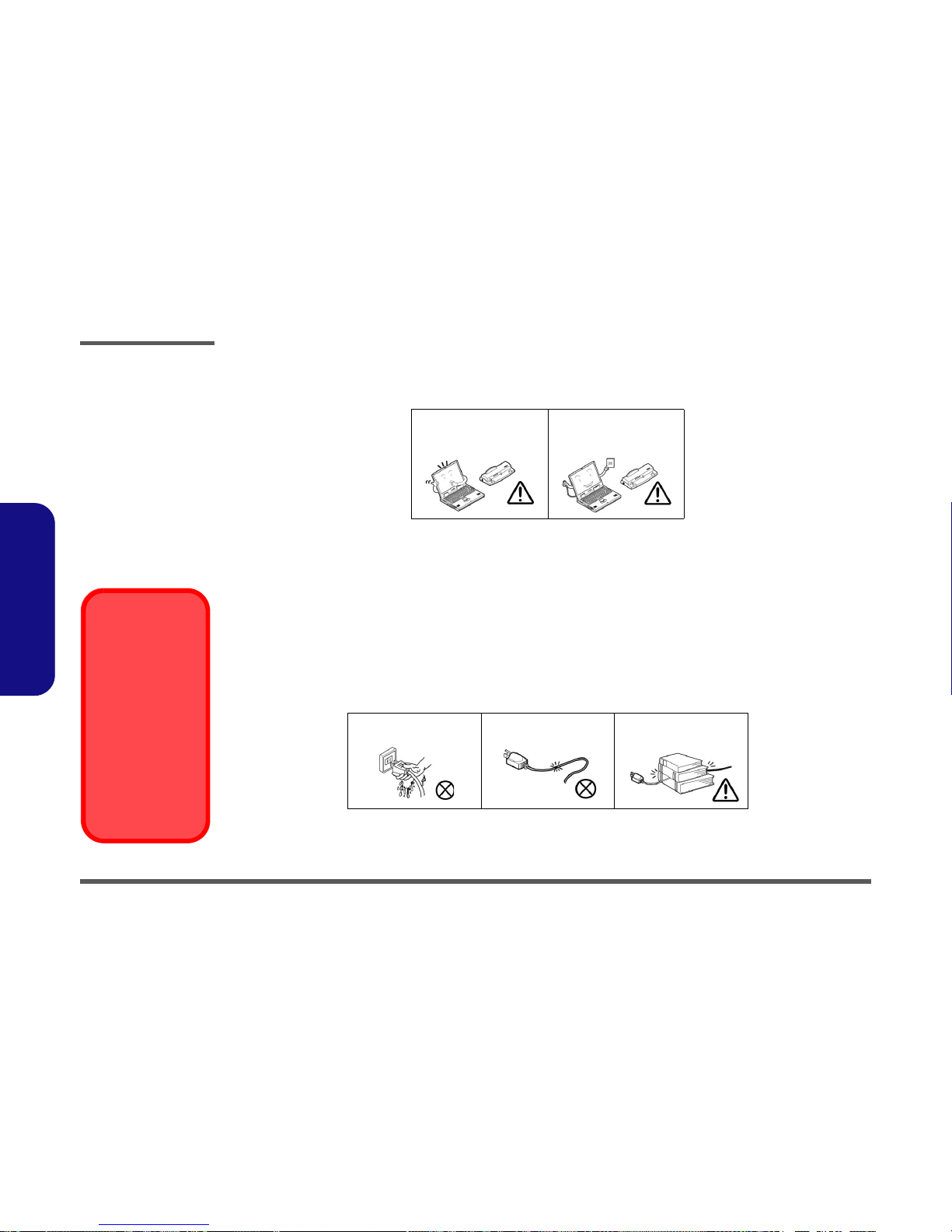

Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of
its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your area for recycling options or proper
disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommend-
ed by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the computer’s features and the procedures for operating the computer and its ROM-based setup program.
It also describes the installation and operation of the utility programs provided with the computer.

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications ................................. 1-2
Processor Types ...............................................................................1-2
Core Logic .......................................................................................1-2
Structure ..........................................................................................1-2
Security ............................................................................................1-2
Memory ...........................................................................................1-2
BIOS ................................................................................................1-2
LCD (Options) .................................................................................1-2
Display ............................................................................................1-2
Device Bay Options ........................................................................1-3
Hard Disk ........................................................................................1-3
PC Card ...........................................................................................1-3
Keyboard .........................................................................................1-3
Pointing Device ...............................................................................1-3
Audio ...............................................................................................1-3
Interface ...........................................................................................1-3
Communication ...............................................................................1-3
Power Management .........................................................................1-4
Power ...............................................................................................1-4
Indicator ..........................................................................................1-4
Environmental Spec ........................................................................1-4
Physical Dimensions .......................................................................1-4
Weight .............................................................................................1-4
Optional ...........................................................................................1-4

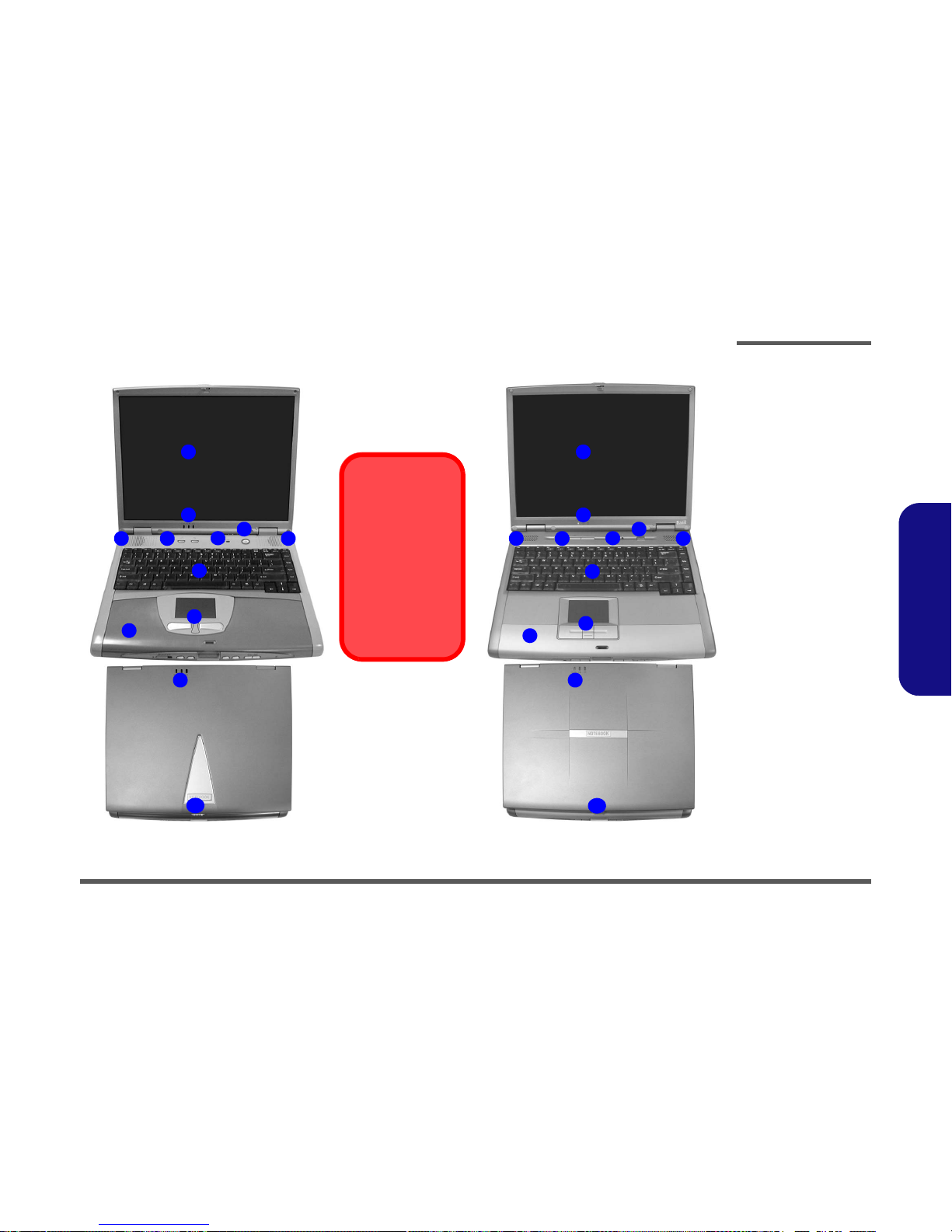

External Locator - Top Views .........................................................1-5

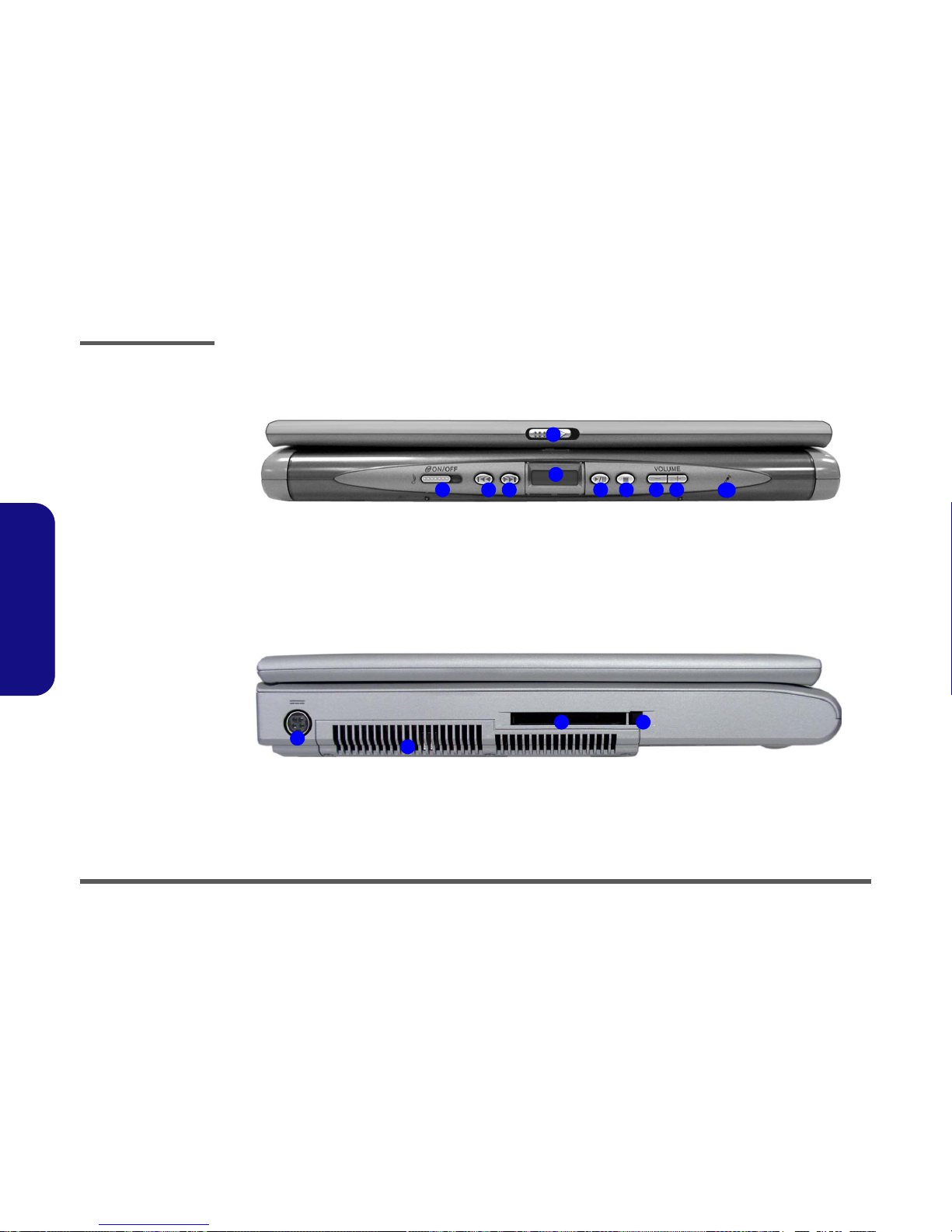

External Locator - Front & Left Side View ....................................1-6
External Locator - Right Side & Rear Views ..................................1-7
External Locator - Bottom View .................................................... 1-8
Mainboard Overview - Top (Key Parts) ......................................... 1-9
Mainboard Overview - Bottom (Key Parts) ................................. 1-10
Mainboard Overview - Top (Cable Connectors) .......................... 1-11
Mainboard Overview - Bottom (Cable Connectors) ..................... 1-12
Disassembly ...............................................2-1
Overview ......................................................................................... 2-1
Maintenance Tools .......................................................................... 2-2
Connections .................................................................................... 2-2
Maintenance Precautions ................................................................ 2-3
Disassembly Steps .......................................................................... 2-4
Removing the Battery ..................................................................... 2-7
Removing the Bay One Device ...................................................... 2-8
Removing the Hard Disk Drive Assembly ..................................... 2-9
Removing the Bay Two Device .................................................... 2-10
Removing the Keyboard ............................................................... 2-11
Removing the System Memory .................................................... 2-12
Removing the CPU ....................................................................... 2-13
Removing the Modem .................................................................. 2-15
Removing the Wireless LAN ........................................................ 2-16
Removing the Palm Rest .............................................................. 2-17
Removing the Bottom Case .......................................................... 2-18
Removing the Audio "DJ" Module ............................................... 2-20
Removing the HDD Converter Board .......................................... 2-21
Removing the Mainboard ............................................................. 2-22
Removing the DC/DC Board ........................................................ 2-24
Removing the Click Board ........................................................... 2-25
Removing the TouchPad ............................................................... 2-25
Removing the LED Board ............................................................ 2-26

Preface
X
Preface
Removing the Speakers .................................................................2-26
Removing the Inverter ...................................................................2-27
Removing the LCD Panel .............................................................2-28
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top (D500E) .................................................................................. A-3
Bottom (D500E) ............................................................................. A-4
LCD 15” (D500E) ..........................................................................A-5
Card Reader (D500E) .....................................................................A-6
SAMSUNG CD-ROM Drive (D500E) ..........................................A-7
KME CD-RW Drive (D500E) ........................................................ A-8
Combo Drive (D500E) ................................................................... A-9
DVD-ROM Drive (D500E) .......................................................... A-10
Audio DJ (D500E) .......................................................................A-11
HDD (D500E) ..............................................................................A-12
Floppy Disk Drive (D500E) ......................................................... A-13
Top (D510E) ................................................................................A-14
Bottom (D510E) ........................................................................... A-15
LCD 15” (D510E) ........................................................................A-16
Card Reader (D510E) ...................................................................A-17
SAMSUNG CD-ROM Drive (D510E) ........................................A-18
KME CD-RW Drive (D510E) ...................................................... A-19
Combo Drive (D510E) .................................................................A-20
DVD-ROM Drive (D510E) .......................................................... A-21
Audio DJ (D510E) .......................................................................A-22
HDD (D510E) ..............................................................................A-23
Floppy Disk Drive (D510E) ......................................................... A-24
Top (D520E) ................................................................................A-25
Bottom (D520E) ........................................................................... A-26
LCD 15” (D520E) ........................................................................A-27
Card Reader (D520E) ...................................................................A-28
TEAC CD-ROM Drive (D520E) ................................................. A-29
KME CD-RW Drive (D520E) ..................................................... A-30
Combo Drive (D520E) ................................................................ A-31
DVD-ROM Drive (D520E) ......................................................... A-32
Audio DJ (D520E) ....................................................................... A-33
HDD (D520E) .............................................................................. A-34
Floppy Disk Drive (D520E) ........................................................ A-35
Top (D530E) ................................................................................ A-36
Bottom (D530E) .......................................................................... A-37
LCD 15” (D530E) ........................................................................ A-38
Card Reader (D530E) .................................................................. A-39
TEAC CD-ROM Drive (D530E) ................................................. A-40
KME CD-RW Drive (D530E) ..................................................... A-41
Combo Drive (D530E) ................................................................ A-42
DVD-ROM Drive (D530E) ......................................................... A-43
Audio DJ (D530E) ....................................................................... A-44
HDD (D530E) .............................................................................. A-45
Floppy Disk Drive (D530E) ........................................................ A-46
Schematic Diagrams................................. B-1
System Block Diagram ...................................................................B-2
CPU 1 of 2 ......................................................................................B-3
CPU 2 of 2 ......................................................................................B-4
Clock Generator ..............................................................................B-5
GMCH-1 .........................................................................................B-6
GMCH-2 Power ..............................................................................B-7
GMCH-3 DDR ...............................................................................B-8
DIMMA ..........................................................................................B-9
DIMMB ........................................................................................B-10
AGP/ POWER ..............................................................................B-11
GMC-1 ..........................................................................................B-12
GMC-2 ..........................................................................................B-13

Preface
XI
Preface
VGA Connector ............................................................................ B-14
ICH5 (1 of 3) ................................................................................ B-15
ICH5 (2 of 3) ................................................................................ B-16
ICH5 (3 of 3) ................................................................................ B-17
HDD/CD-ROM/FDD ................................................................... B-18
PCI 1410 ....................................................................................... B-19
PCI1394 TSB43AB21 .................................................................. B-20
PCI RTL8100C / RTL8110S ........................................................ B-21
LPC Super I/O .............................................................................. B-22
LPC H8 ......................................................................................... B-23
AC'97 Codec ................................................................................ B-24
FAN/MBC/Mini PCI .................................................................... B-25
ACIN; PWR Button ..................................................................... B-26
D/D Conn ..................................................................................... B-27
VCORE ........................................................................................ B-28
System Power 1 ............................................................................ B-29
System Power 2 ............................................................................ B-30
Installing Optional Module .................... C-1
Overview ........................................................................................ C-1
Installing a Bluetooth Modem ........................................................ C-2
Installing the 802.11b+g Wireless LAN ........................................ C-3
Installing the 802.11a+b+g Wireless LAN .................................... C-4

Preface
XII
Preface

Introduction
Overview 1 - 1
1.Introduction
1: Introduction
Overview
This manual covers the information you need to service or upgrade the D500E/D510E/D520E/D530E notebook comput-
er. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Infor-
mation about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have
their own manuals as do application software (e.g. word processing and database programs). If you have questions about
those programs, you should consult those manuals.
The D500E/D510E/D520E/D530E notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a de-
tailed description of the upgrade procedures for each specific component. Please note the warning and safety information
indicated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Feature Specification
Processor Types Intel Pentium® 4 Processor (478-pin) m-PGA package
(µ0.13) 0.13 Micron Process Technology, 512KB On-die L2 Cache & 533MHz Front Side Bus - 2.8/ 3.06 GHz
Intel Pentium® 4 Processor (478-pin) m-PGA package
(µ0.13) 0.13 Micron Process Technology, 512KB On-die L2 Cache & 800MHz Front Side Bus - 2.4/ 2.6/ 2.8/ 3.0/
3.2 GHz
Intel Prescott® Processor (478-pin) m-PGA package
(µ0.09) 0.09 Micron Process Technology, 1MB On-die L2 Cache & 800MHz Front Side Bus
- 3.2/ 3.4 GHz
Core Logic Intel® 865PE
Structure PC 2001 Compliant
PCI 2.2 Compliant
ACPI 2.0 Compliant
Security Security (Kensington® Type) Lock Slot, BIOS Password
Memory Two 200 Pins SODIMM Sockets, supporting DDR 266/ 333/ 400 MHz Modules
Expandable up to 1 GB (128/ 256/ 512MB DDR Modules)
BIOS One 512KB Flash ROM, Phoenix BIOS
LCD (Options) 15.0" - XGA TFT (1024x768)
15.0" - SXGA+ TFT (1400x1050)
15.0" - UXGA TFT (1600x1200)
15.0" - QXGA TFT (2048x1536)
Display ATI Mobility Radeon 9700 (M11)
AGP™ 8X
128-bit Memory Interface
2D/3D Graphics Engine
Fully DirectX 9 Compliant Notebook GPU
External Memory up to 128MB DDR SGRAM On Board
TV Encoder

Introduction
System Specifications 1 - 3
1.Introduction
Device Bay Options Bay One
for one of the following interchangeable devices:
3.5" 3-mode FDD
Secondary Battery
Secondary CD Device
Secondary Hard Disk Drive
7-in-1 Card Reader
Bay Two
for one of the following interchangeable devices:
CD-ROM
DVD-ROM
Combination DVD-ROM/CD-RW
CD-RW
DVD-RW
Hard Disk Easy changeable 2.5" 9.5/12.7 mm (h) Hard Disk Drive
Supports Master mode IDE, PIO mode 4, ATA-33/ 66/ 100/ 133, Ultra ATA Port
PC Card One Type II PCMCIA 3.3V/5V socket supporting CardBus
Keyboard “Win-Key” keyboard
Pointing Device Built-in TouchPad (scrolling key functionality integrated)
Audio AC'97 compliant interface
3D stereo enhanced sound system
Compatible Sound-Blaster PRO™
S/PDIF Digital output (5.1 CH)
Built-in microphone
2 Built-In Speakers
Audio DJ
Interface Four USB 2.0 ports
One Mini-IEEE 1394 port
One S-Video out port
One parallel port (LPT1)
One infrared transceiver supporting IrDA 1.1/ FIR/SIR/
ASKIR
One external monitor (VGA) port
One PS/2 port
One headphone-out jack
One microphone-in jack
One RJ-11 jack for modem
One RJ-45 jack for LAN
One DC-In jack
One S/PDIF out port
3 Built-in hot-key buttons: WWW, E-Mail, & application
Communication 56K Plug & Play Modem (V.90 & V.92 Compliant)
Infrared transfer: 115.2K bps SIR/ 4M bps FIR, IrDA 1.1 compliant
Built-In 10/ 100/ 1000M Fast Ethernet LAN
802.11b or 802.11g or 802.11a+b+g Wireless LAN Module with Mini-PCI Interface (optional)
Bluetooth 1.1 with MDC Interface (optional)
Feature Specification

Introduction
1 - 4 System Specifications
1.Introduction
Power Management Supports ACPI v2.0
Supports Standby mode
Supports Hibernate mode
Supports Battery low suspend
Supports resume from alarm time
Supports resume from modem ring
Supports resume from LAN ring
Power Full Range AC adapter
AC Input: 100~240V, 50~60Hz
DC Output: 20V, 6.0A
Primary Battery Smart Li-Ion 14.8v, 4400mAh
(removable)
Second Battery Smart Li-Ion 14.8v, 3400mAh
(removable)
Indicator LED indicators (Power On/ AC-In/ Suspend, Battery Charging/Battery Full, E-Mail, HDD, Num Lock, Caps Lock,
Scroll Lock)
Environmental Spec Temperature
Operating: 5°C ~ 35°C
Non-Operating: -20°C ~ 60°C
Relative Humidity
20% ~ 80%
10% ~ 90%
Physical Dimensions 329 (w) x 290 (d) x 44 (h) mm
Weight Around 3.7 kg (depend on optional modules included) without battery
Optional Secondary Battery Pack
Secondary Hard Disk Drive
Secondary CD-ROM Drive Module
Secondary DVD-ROM Drive Module
Secondary DVD-ROM and CD-RW Combo Drive
Module
Secondary CD-RW Drive Module
Secondary DVD-RW Drive Module
Software DVD Player
802.11b Wireless LAN Module
802.11g Wireless LAN Module
802.11a+b+g Wireless LAN Module
7-in-1 Card Reader
Feature Specification

Introduction
External Locator - Top Views 1 - 5
1.Introduction
External Locator - Top Views
3 4 56
8
9
10
1
2

Model Differences
This manual refers to
the two notebook mod-
els pictured on this
page.
The models vary
slightly in external de-
sign. Photographs
used throughout this
manual are of Model A.
Model A Model B
3
2
3 4 56
8
9
10
1
2
3
2
7
7
Figure 1 - 1
Top Views with
LCD Panel Open
1. LCD
2. LED Power &
E-Mail Indicators
3. Speakers
4. Hot-Key buttons
5. LED Status
Indicators
6. Power Button
7. Keyboard
8. TouchPad and
Buttons
9. Palm Rest
(Removable)
10. LCD Latch

Introduction
1 - 6 External Locator - Front & Left Side View
1.Introduction
External Locator - Front & Left Side View
Figure 1 - 2
Front View
1. LCD Latch
2. Audio “DJ” CD
Player Control
Panel On/Off
Switch
3. Previous Track
4. Next Track
5. LCD
6. Play Pause
7. Stop/Eject
8. Volume Down
9. Volume Up
10. Built-In
Microphone
Figure 1 - 3
Left Side View
1. DC-In Jack
2. Vent
3. PC Card Slot
4. PC Card Eject
Button
43
1
2 876
5
910
43
12
