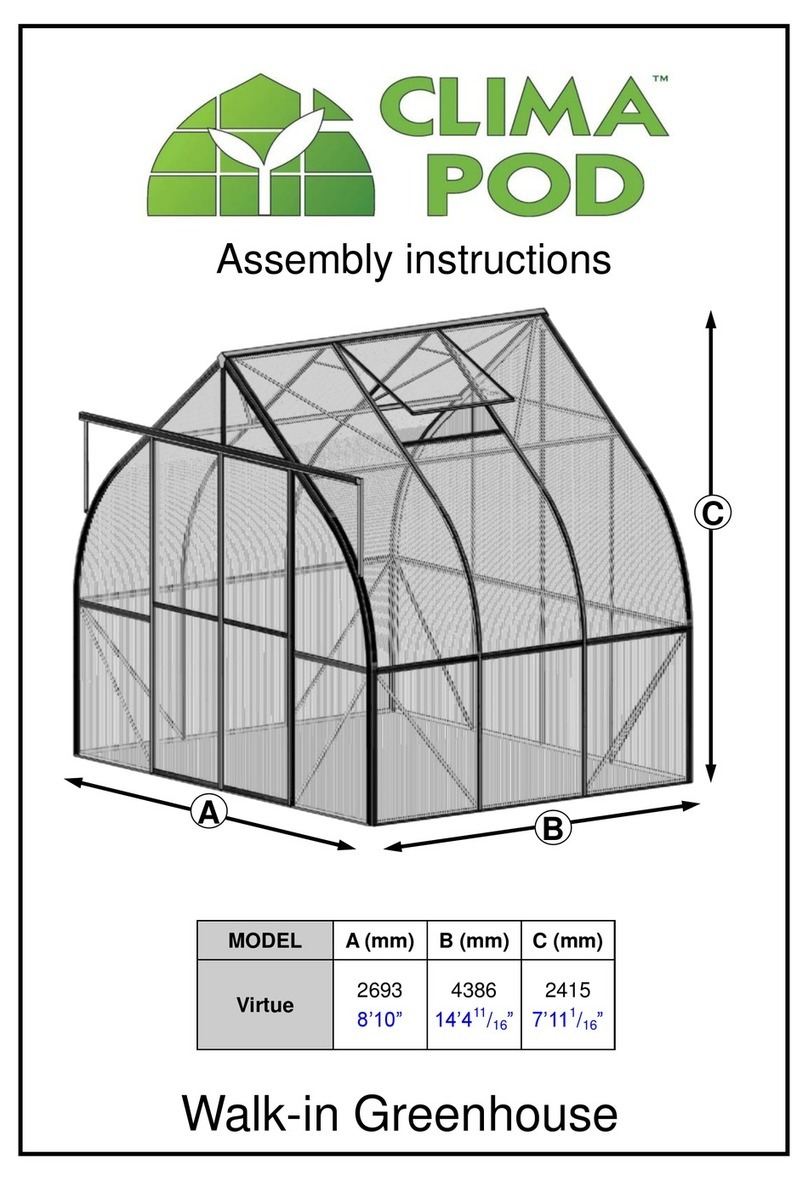

CLIMA POD VIRTUE V9 Series User manual

Contact Information:
MODULAR ORGANICS LLC
EMAIL: [email protected]
Phone: [phone]
Website: www.climapod.com
VIRTUE Greenhouse
ASSEMBLY INSTRUCTIONS
TO BE USED IN CONJUNCTION WITH
VIRTUE V9 SERIES GREENHOUSE

2
Statement
Dear Customer!
We would like to congratulate you on your new Greenhouse purchase.
We hope that by following the detailed assembly instructions you will find as much pleasure in assembly process
same as the time you will spend in your greenhouse in the future.
The assembly instructions mainly consist of detailed illustrations and no specific technical knowledge is required
for the assembly of the greenhouse.
Depending on the model & accessories package you purchased you may have received multiple packages. The
main ClimaPod house (not counting in accessories or extended models) has three main master packages:
- Straight Frame & Base
- Panels
- Curved Frame
7’ Extension Set also come in three different packages.
The aluminum base, straight frame profiles, as well as supporting hardware are packed in one carton. The
greenhouse curved frames or “arches”are packed in a curved shape package.
All the polycarbonate panels are packed in one carton.
All of the aluminum profiles are marked with a part number corresponding to the numbers given on the draw-
ings and listed on the parts list. Nuts, bolts, and fittings will be found in the relevant package.
All of the rear gable section straight frames are in package No.1
All of the front gable section straight frames are in package No.2
All of the roof/side wall section straight frames are in package No.3
All of the frames and components for the window are in package No.4
All of the frames and components for the door are in package No.5
Each of the polycarbonate panels have are labeled with item number corresponding to the instructions. You
may also differentiate them by their size and shape. Note: once you get to insert the polycarbonate panels,
make sure to have the side with opal white film facing outside.
Accessories
Modular Organics LCC (ClimaPod) offers a wide range of accessories which contribute to a better yield and
make life easier for the gardener. A selection of the range is shown in the supplements to these instructions. Upon
the request, your local dealer mayprovide you with more information about available accessories. You mayalso
refer to our main website www.ClimaPod.com for more information.
Winter Protection
In areas where snow might be expected we recommend the following in order to protect your green- house:
1. Support the ridge at the center of the greenhouse.
2. Remove larger snow loads by sliding them down the sides.
3. Take precautions against snow falling down.
Complaints
Weput severe demands on quality to secure that you get a faultless product. However, should a problem occur,
we kindly ask you to contact the dealer from whom you have bought the greenhouse. For a quick service, you
should specify the extent of the defect by means of the parts list in the assembly instructions. Please
also note to mention the model number which is marked on the front page of these instructions.
Guarantee
Wegrant a 10 year comprehensive guarantee which covers replacement or repairs of defective parts due to ma-
terial or manufacturing defect. The guarantee does not cover polycarbonate, transport, erection. The guarantee
is invalid if the greenhouse is not assembled according to these instructions.
Insurance
Not all insurance companies automatically cover greenhouses.We strongly recommend you contact your insur-
ance agent to ensure that your greenhouse is added to the coverage once assembled.

3
Statement
Tips
1. The base has to be fastened in a non-freezing depth(80cm).
2. The greenhouse is to be fastened to the base.
3. The base has to be 100% level and square. The easiest way to ensure this is to make sure that the
two diagonal measurements are identical.
4. We recommend that you grease screws for doors and windows for easier assembly.
5. Erection of the greenhouse should only take place in calm and dry weather.
6. All frames are to be assembled around the polycarbonate as shown on the drawings. We recom-
mend that you start with the back gable.
7. IMPORTANT Before assembling aluminum base, the end trough centers of four legs should match
both end trough centers of side sills and front & rear sills at the same time.
Remove approximately 2
inches of film from all
sheet edges before in-
stalling. Remove all film
immediately after the con-
structions is completed.
The UV-protected side of
the sheet is covered with
opal white film/text and
must face towards the
sun.
Please put on gloves
avoid slitting your hands.
Handle with care! Drop-
ping can bend the frame,
and it won’t fit properly.
Keep sharp instruments
away from the polycar-
bonate sheets.
Cautions
Foundation
The base is maintenance free and, of course all fittings are included. If you plan to use concrete foundation, re-
member to order concrete pipes and concrete at your local supply stores as they are not included with your or-
der.
Please match four corner
troughs together at the
same time
side sills
front & rear sills

4
ClimaPod Assembly Tips and Tricks
Tools required:
●10mm nut driver
●10mm open-end wrench
●Phillips head and flat head screwdriver
●Level
●Ladder
●Needle nose pliers
Misc. Items required:
●WD-40 lubricant
●Silicone Caulking Sealant
Henry 212 All Purpose Crystal Clear Sealant (recommended)
Caulking Increases the structural integrity of the greenhouse and prevents water from going into
the panels. Caulking the top of the middle seam will prevent algae and water buildup.
●The base has to be 100% level and square.
The easiest way to ensure this is to make surethat the two diagonal measurements are identical.
●Erection of the greenhouse should only take place in calm and dry weather.
●Pre-assemble and caulk windows and doors before you erect the greenhouse
●Pre-thread aluminum profiles for window and door pieces to make assembly
easier
●Keep bolts loose during assembly and avoid securely attaching side
supporting aluminum strips (ref. #012 and/or #056 strips on the parts page) before
the first panel arch has been inserted
●It is far easier to assemble if you have an elevated surface such as two 4’×8’
pieces of plywood on sawhorses.

5
Basic Steps for Assembly
1. Prepare Foundation
2. Attach and secure Base and side sills
3. Assemble and Caulk Windows and Doors
4. Assemble Gables
5. Attach Gables to base and side sills and connect with top ridge beam
6. Connect Hanging basket bar, horizontal rails, and partially connect #012
strips
7. On one side begin by inserting B panel, then crossbar, then I1 Panel
8. Secure into place with curved aluminum profile.
9. Continue the process while alternating sides.
10. When fitting final polycarbonate panels, loosen bolts to partially disconnect
front gable. It will allow you to get extra space needed for fit the last panel.
11. Slide in the windows, if necessary trim upper corners of the arches
12. Install doors and additional accessories
13. Silicone caulk panel edges on the outside all around greenhouse

6
Supplementary Instructions
Gather all parts
necessary for as-
sembling the top of
the gable.
Make sure to in-
sert Polycarbonate
pieces into Alumi-
num profiles be-
fore inserting bolts
into channels
Once bolts are in-
serted slightly
tighten nuts, at the
top, working down-
ward to position
and bolt the rest of
the gable.

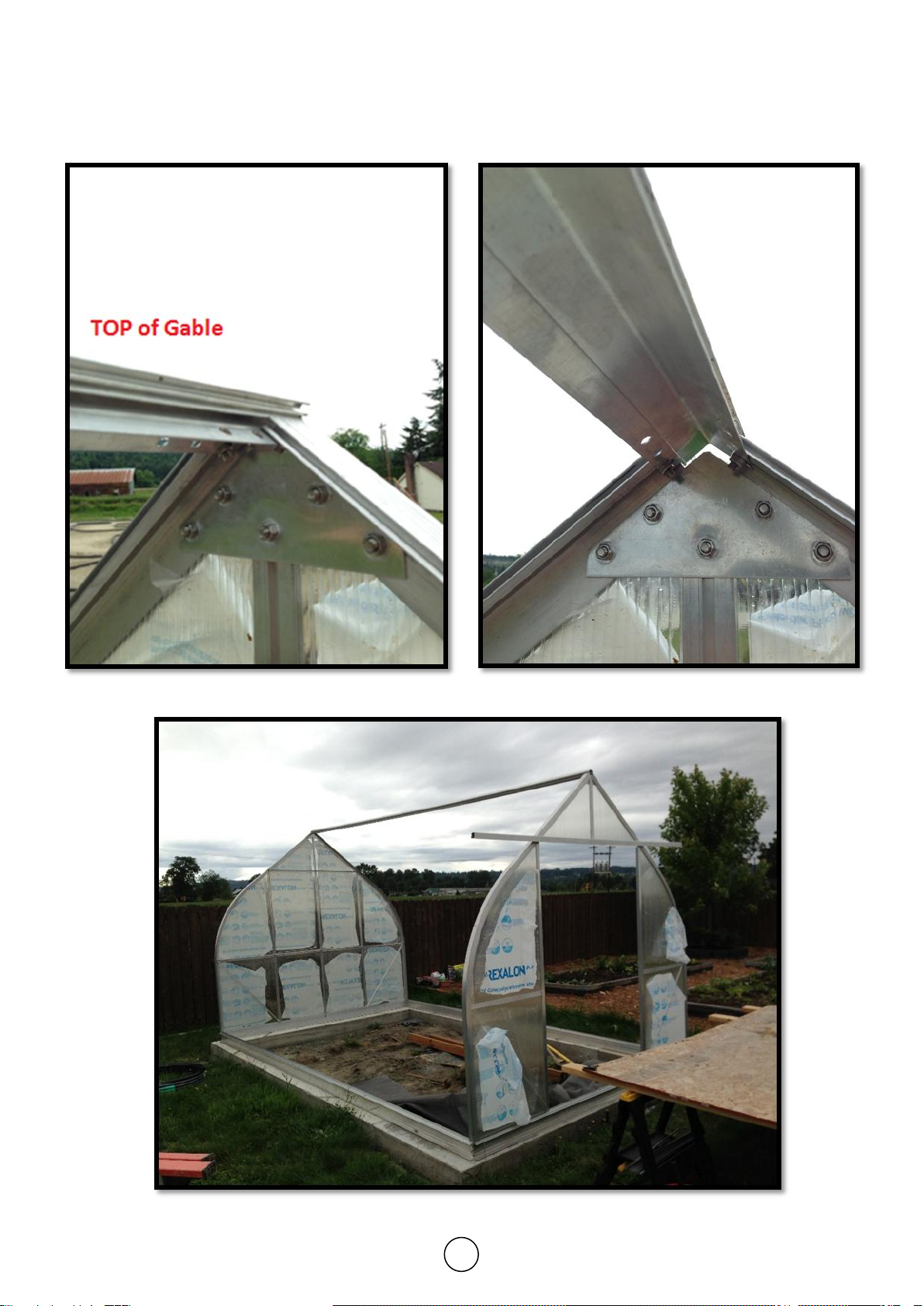

The completed top of the gable should look like the image on the above.
For additional questions or concerns please email [email protected]
or call 360.674.2642

7
Repeat the steps on the rear gable and continue inserting the rest of the polycarbonate
pieces and aluminum support pieces.

8
Once both gables are completed, insert them into the aluminum base and connect to the
main roof beam ridge pole (ref. #V021)

9
ClimaPod VIRTUE Series
9x42 (V942) = one V907 Main set + five V9 7’ Extension sets
9x35 (V935) = one V907 Main set + four V9 7’ Extension sets
9x28 (V928) = one V907 Main set + three V9 7’ Extension sets
9x21 (V921) = one V907 Main set + two V9 7’ Extension sets
9x14 (V914) = one V907 Main set + one V9 7’ Extension set

10
Virtue 9x7(V907) Parts list This list includes parts count for the main
house 9’ x 7’ which includes parts for front and
back gables. Please see page 29 for 9’ x 7’ ex-
tension set parts list.
Section Part
No. Profile Size Virtue V907
V
E
N
T
V042 683 (2’27/8”) 2
V044 698 (2’31/2”) 2
V045 698 (2’31/2”) 2
V946 750 (2’51/2”) 4
047 300 (1113/16”) 2
048 200 (77/8”) 2
D
O
O
R
V049 586 (1’111/16”) 2
V050 586 (1’111/16”) 4
V051 1864 (6’13/8”) 2
V952 1864 (6’13/8”) 1
V953 1864 (6’13/8”) 1
054 558 (1’915/16”) 2
a1 M6x10 103
a2 M6 113
a3 M6x18 3
a4 Φ4.2x9.5 4
a5 Φ3.5x19 8
a6 Φ3.5x35 12
a7 Φ4x8 4
a8 M6x15 6
a9 M6x15
crop 4
a10 Φ3x10 4
a11 M3 4
m1 -2
m3 -3
m6 -2
n1 -4
p1 -2
p3 -4
p4 -4
p5 -2
p6 592 (1’115/16”) 2
p7 682 (2’27/8”) 6
p8 660 (2’2”) 4
m11 -1
FLUFF 3.8m 1
Section Part
No. Profile Size Virtue V907
R
E
A
R
V903 2960 (9’89/16”) 1
V904 2960 (9’89/16”) 1
V005 1912 (6’31/4”) 1
V006 1912 (6’31/4”) 1
V907 2377 (7’99/16”) 1
908 1268 (4’115/16”) 1
V009 683 (2’27/8”) 2
V010 594 (1’113/8”) 2
911 2662 (8’813/16”) 1
012 1100 (3’75/16”) 2
V913 2662 (8’813/16”) 1
F
R
O
N
T
V903 2960 (9’89/16”) 1
V904 2960 (9’89/16”) 1
V009 683 (2’27/8”) 2
012 1100 (3’75/16”) 2
V014 1912 (6’31/4”) 1
V015 1912 (6’31/4”) 1
V916 2662 (8’813/16”) 1
V917 460 (1’61/8”) 1
V918 1220 (4’1/16”) 1
V919 2484 (8’113/16”) 1
056 707 (2’313/16”) 2
R
O
O
F
/
S
I
D
E
V021 2197 (7’21/2”) 1
V026 2176 (7’111/16”) 2
031 2163 (7’13/16”) 2
036 2163 (7’13/16”) 2
012 1100 (3’75/16”) 8
V042
683 (2’27/8”) 6
V943
2954 (9’85/16”) 4
955 400 (1’33/4”) 2

11
Polycarbonate sheet
I1 G1 AA
A
A
D
D
B
B
BB
E1
F
H1
C1
p6p8 p8
p8
p8
p7
p6/p7/p8
p6/p7/p8
BBB
E1
F
p6
C1
D
D
I1
p7 p7
Frame Panel
Bracing bar
Note: If panel edge can’t enter into alumi-
num Frame channel, please use a
bracing bar to squeeze panel edge
into channel.
This page shows the positioning of the polycarbonate panels for the front and rear gable as
well as the roof and the sides. It also indicates where the gray plastic parts #P6, #P7 and #P8
are used. When fitting parts #P6/P7/P8 on the ends of the panels, try using a narrow piece of
bar soap through the part first. It will allow them to slide on the panel’s edges much easier.
#P6/P7/P8 must be fitted on one end of polycarbonate in advance before polycarbonate is in-
serted into aluminum frame. The square illustration on the page shows the placement of the
gray plastic U shape strips.
# Size Virtue V907
A700x1049 (2’39/16” x 3’55/16”) 4
B700x842 (2’39/16” x 2’91/8”) 10
C1 602x487/16 (1’1111/16” x 1’73/16” / 5/8”) 2
D599x913 (1’119/16” x 2’1115/16”) 4
E1 610x1534/1057 (2’ x 5’3/8” / 3’55/8”) 2
F610x842 (2’ x 2’91/8”) 2
G1 700x1330 (2’39/16” x 4’43/8”) 2
H1 696x731 (2’33/8” x 2’43/4”) 2
I1 700x2110 (2’39/16” x 6’111/16”) 4
p6 592 (1’115/16”) 2
p7 682 (2’27/8”) 6
p8 660 (2’2”) 4

12

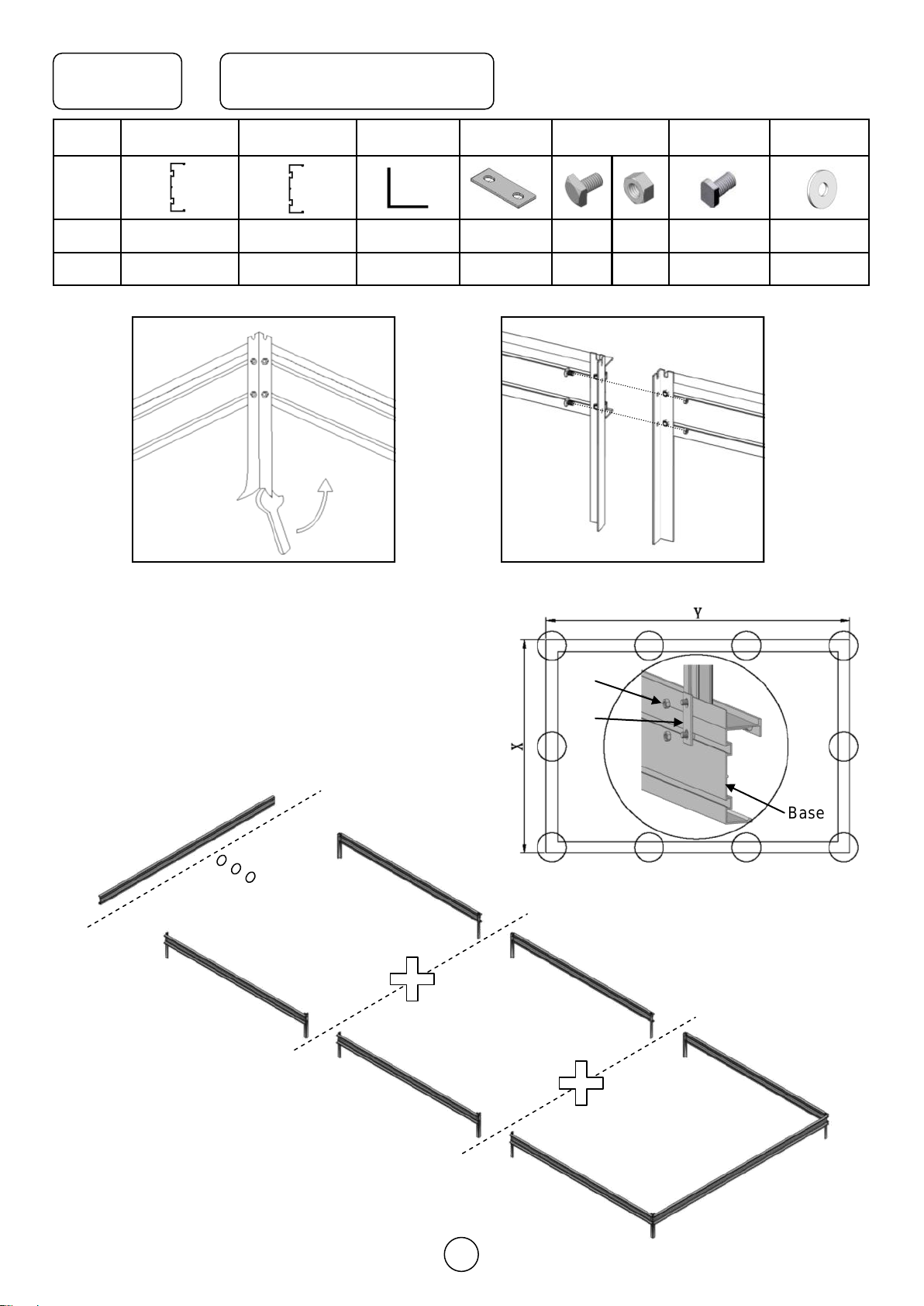

Step 1
a2
m7
Base
crop bolts/a2
Model Side profiles Anchor leg Fixing tab Crop boltsBolts/nuts WasherGable profiles
V907 2x2174(7’19/16”) 4916 25 982x2664(8’87/8”)
EXT-3 2x2148(7’9/16”) 4416 20 48-
Aluminum Base
V907 BASE
EXT-3 BASE
EXT-3 BASE
V907 BASE
Note：
For 7’ main house (9x7), 16 pcs square bolts and nuts
used for 4 legs, you need to insert into base channel in
advance. 9 pcs cropped head bolts and nuts used for
base fixing connector #m7. (no need to insert in advance)
For each 7’ Extension set that would build the size you
ordered, 16 pcs square bolts and nuts used for 4 legs,
you need to insert into base channel in advance. 4 pcs
cropped head bolts and nuts used for base fixing connec-
tor #m7. (no need to insert in advance)

13
# m5
A907 13
EXT-3 6
a2
m5
Concrete
Base

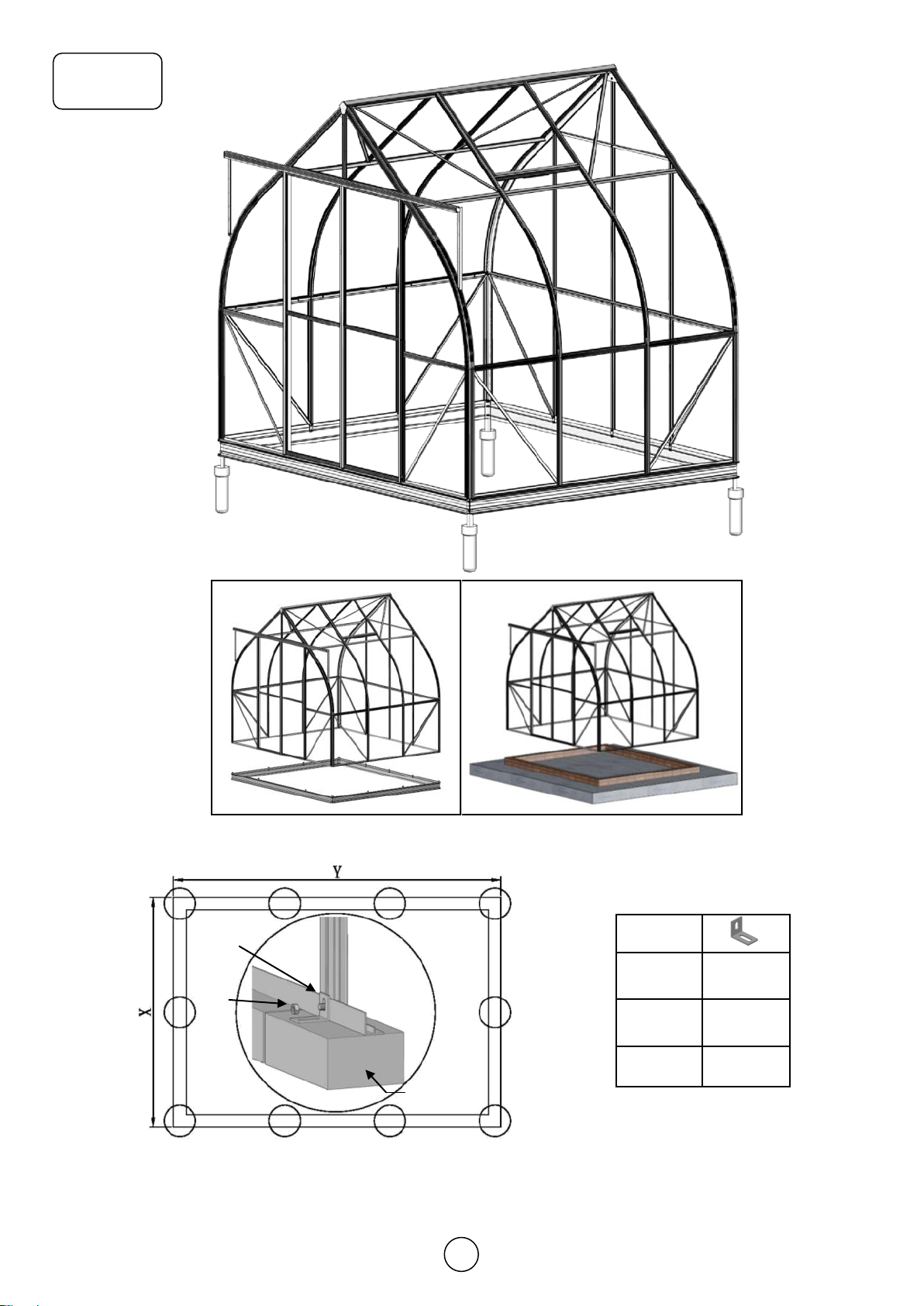

Part No. m5 shows a bracket used to secure the inside base when not using the original supplier’s foundation.
Prior to the assembly of the greenhouse, you should have a 10 mm nut driver, 10 mm open-end wrench, Philips
head and slotted screw driver, level, and WD-40 lubricant.
Assembly without base (on concrete slab or wooden deck)

14
1
V005 V006 V907 908 V009 911 012 V913 m1 a1 a2V903 V904
Part
No. p6 p8V010 p1a9
1912
6’31/4”
1912
6’31/4”
2377
7’99/16”
1268
4’115/16”
683
2’27/8”
2662
8’813/16”
1100
3’75/16”
2662
8’813/16”-M6x10 M6
2960
9’89/16”
2960
9’89/16”
Size 592
1’115/16”
660
2’2”
594
1’113/8”-M6x15
11112121124 2611Qty 22212
908
AA
E1
BB
F
2
34
5
Rear Gable
With this page, you will assemble the rear gable (back). It is far easier if you have an elevated surface
such as two 4’×8’ pieces of plywood on a sawhorses. If not, lay the aluminum profiles out on a hard sur-
face as shown in the main illustration. Remember you are building from the inside with the outside facing
down. Start with one of the “E1” panels and build the aluminum around the polycarbonate panel. the
polycarbonate side with the opal film/text must facing down.
Package No.1
V005 V006
V903 V904
V009 V010 V009
911
012012
V913
6
E1
V907
F
V010
Step 2

15
2
1Square No.1 This
the Ridge. The
square headed bolt
slides into the chan-
nel in part #V903 &
#V904, and connect
them with part #m1,
Our bolts and nuts
were made of
stainless steel.
Square No.2 Insert part #V005 into
Part #V903 channel, contact with part
#908 together, Please insert extra bolt
#a1 into the channel of Part #V005 for
attaching part #911 use later. Do the
same for the opposite end.
V904V903
m1
908
V005
V903
V907
Note: Please connect Part #911 with Part #V903, #V904, #V005, #V006,#V907
firstly before you are inserting PC panel #A &#E1 into profiles’ channel.
3A
Square No.3 After PC
panels in position, then
dismantle part #911 and
adjust the distance same
between PC panel and
keyway edge.
V903
911
V009
012
911
V903
A
V009
V903 V904
908
911
V006V005
AA
V009 V009V010
AA E1
V907
E1 E1
E1
V010
a9 Section View
V009
a9 a9 is a
cropped
head
bolt

16
4
BBF
5
Square No. 5
Inserting PC panel
#B,#F in profiles’
channel. With PVC
anti-dust strip #p6
& #p8 on bottom.
Square No.6
Connect Part
#V913.
Please note: 4 Bolts will need to be slid into each Part #V903 and #V904 for ridge, hanging basket bar or horizontal rail
and side sill beam in advance, Finger tightens the nuts for later use.(Bolts and nuts in Package No.3 of Roof/Side wall)
When finished with the back gable, position and securing away from the wind so it does not blow over and cause damage.
Square No. 4 Assembly part #V009, #V010 in place, then connect with part #911 again.
911 V010
911
V009
p8
V913
p8 p6 p8
V913
p6
F
Please Note: Don’t let this bolt block polycarbonate panel to
insert into part #V903&V904 alu. frame channel. Insert PC panel
first, then slide this bolt in part #V903&V904 profile’s trough.
V903 V904 V903
6
p6
V913
p8
012

17
Front Gable Package No.2
Square No.1
this step is
very much like
the rear gable.
``
V009 012 V014 V015 V916 V917 V918 V919 m1 m3 a1V903 V904
Part
No. a2 a3 p8p1a9056
683
2’27/8”
1100
3’75/16”
1912
6’31/4”
1912
6’31/4”
2662
8’813/16”
460
1’61/8”
1220
4’1/16”
2484
8’113/16”--
M6x10
2960
9’89/16”
2960
9’89/16”
Size M6 M6x18
660
2’2”
- M6x15
707
2’313/16”
22111111111811Qty 23 32122
1
V904V903
m1
V917
AA
BB
V009 V009
V903 V904
012 012
V916
V014 V015
V918
V919
C1
1
4
6
7
5
3
C1
V917
2
056 056
Step 3

18
Square No.3
Assemble
polycarbonate
panel #C1 on
part
#V903,#V917,
#V904, use
part #V918 to
fix it.
C1
V918
3
V918
V904
V015
a3
C1
2
V918
V917
a3
m3
V903 V904
V903 V904
AA
V009 V009
4V904
V009
Square No.4 Af-
ter PC panels in
position, then adjust
the distance to same
between PC panel
and keyway edge. a9
Section View
V009
a9 is a
cropped
head
bolt
a9
5V014 V009 Square No.5 Use
the part #056 to con-
nect the part #V009
& #V014.
056
056
012
a9
V904

19
Please note: 4 Bolts will need to be slid into each Part #V903 and #V904 for Ridge, hanging basket bar or horizontal rail
and Side sill beam in advance, Finger tightens the nuts for later use.(Bolts and nuts in Package No.3 of Roof/Side wall)
Square No.8 The bolt #a3 to fix #V918 is an extra
long stainless bolt. The bolt slides into part #V919 and
extends through parts #V903 & #V904.
B
p8
B
p8
6V904
V916
p8
Square No. 6
Inserting PC panel
#B in profiles’
channel. With PVC
anti-dust strip #p8
on bottom.
Square No.7
Connect Part
#V916.
Please Note: Don’t let this bolt block polycarbonate panel to in-
sert into part #V903&V904 alu. frame channel. Insert PC panel
first, then slide this bolt in part #V903&V904 profile’s trough.
V903 V904
V916
7
p8
V916
012
V014
V919
a3
8
V918
V919
a3
Section view

20
Step 4 Virtue 7’ Extension (V9 EXT A-Frame)
Part No. V943 961 962 m1 a1 a2 a8
Size 2954
(9’85/16”) 2921 (9’7”) 850 (2’97/16”) -M6x10 M6 M6x15
Qty 2211614 8
V943 V943961 961
962
1
2
3
4
5
123
45
V943
961
a8/a2
15mm
V943
961
a8/a2 V943
961
a8/a2
961
V943
962
a1/a2 V943 V943
961 961
a1/a2
a8/a2
Please connect V943 glazing bar first
(on both sides), then have T-shape 961
connection bar go over the V943 (on
the inside).
Please Note: The bottom end part of
T-shape 961 bar is not connected to
the base and should be secured
15mm (~5/8 inch) shorter (see image
1). This is very important.
