ClimateMaster iGate2.0 User manual

Table of Contents
iGate2.0
User Manual
Getting Started............................... 2
iGate Connect Thermostat Basics............... 2
Home Screen ................................ 2
Swiping ..................................... 3
IDLE Screen ................................. 3
About Your iGate Connect Thermostat ......... 3
Connecting to the Internet ..................... 3
Creating a myUplink Portal Account ........... 3
Accept Cookies ........................... 3
Language Selection ....................... 3
Log in .................................... 4
Setting up Wi-Fi and Connecting to
Your myUplink Account ....................... 4
Congure Wi-Fi from Your Mobile Device .... 4
Congure Wi-Fi from the Thermostat ....... 5
Add Thermostat to myUplink Account....... 5
Using Your iGate Connect Thermostat. . . . . . . . . . . 5
MODE Screen................................ 5
SETPOINT Screen............................ 6
FAN Screen.................................. 6
PROGRAM .................................. 7
VACATION .................................. 8
SETTINGS Screen ............................ 8
HOT WATER Screen. . . . . . . . . . . . . . . . . . . . . . . 8
WEATHER Screen ........................ 8
HUMIDITY Screen ......................... 8
BANNER Screen .......................... 9
SOFTWARE Screen ....................... 9
BACKLIGHT Screen ......................10
ALERTS & REMINDERS Settings ..........10
ADVANCED SETTINGS...................10
FILTER Screen ...........................10
LOCKOUT/PIN Screen ....................11
CLEANING the iGate Connect Thermostat ..11
LOG Screen..............................11
SERVICE Screen .........................12
What To Do if You Move...................... 12
Disconnect Wi-Fi ...........................12
Removing Thermostat from myUplink Account. 12

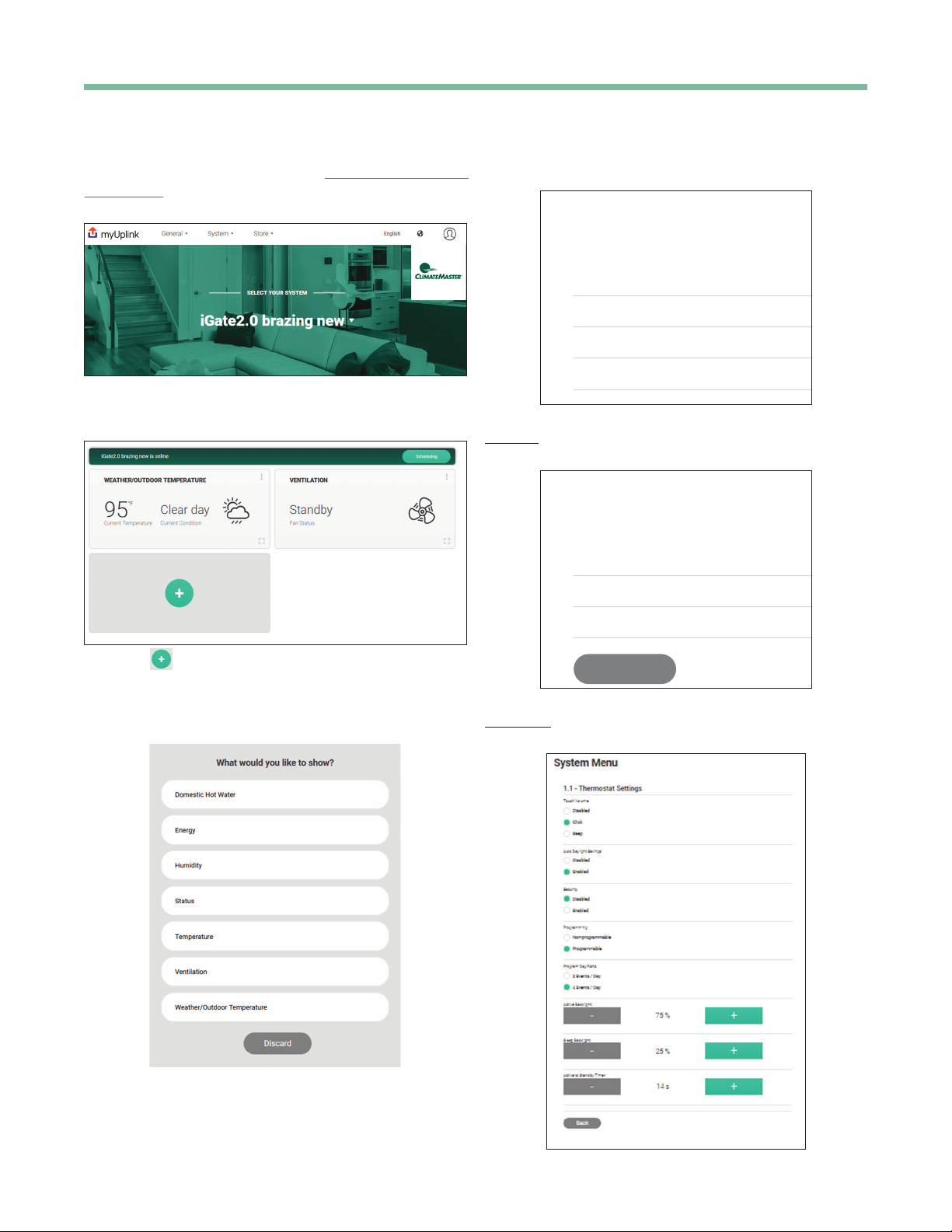

Using myUplink ............................. 13
System Menu ...............................13

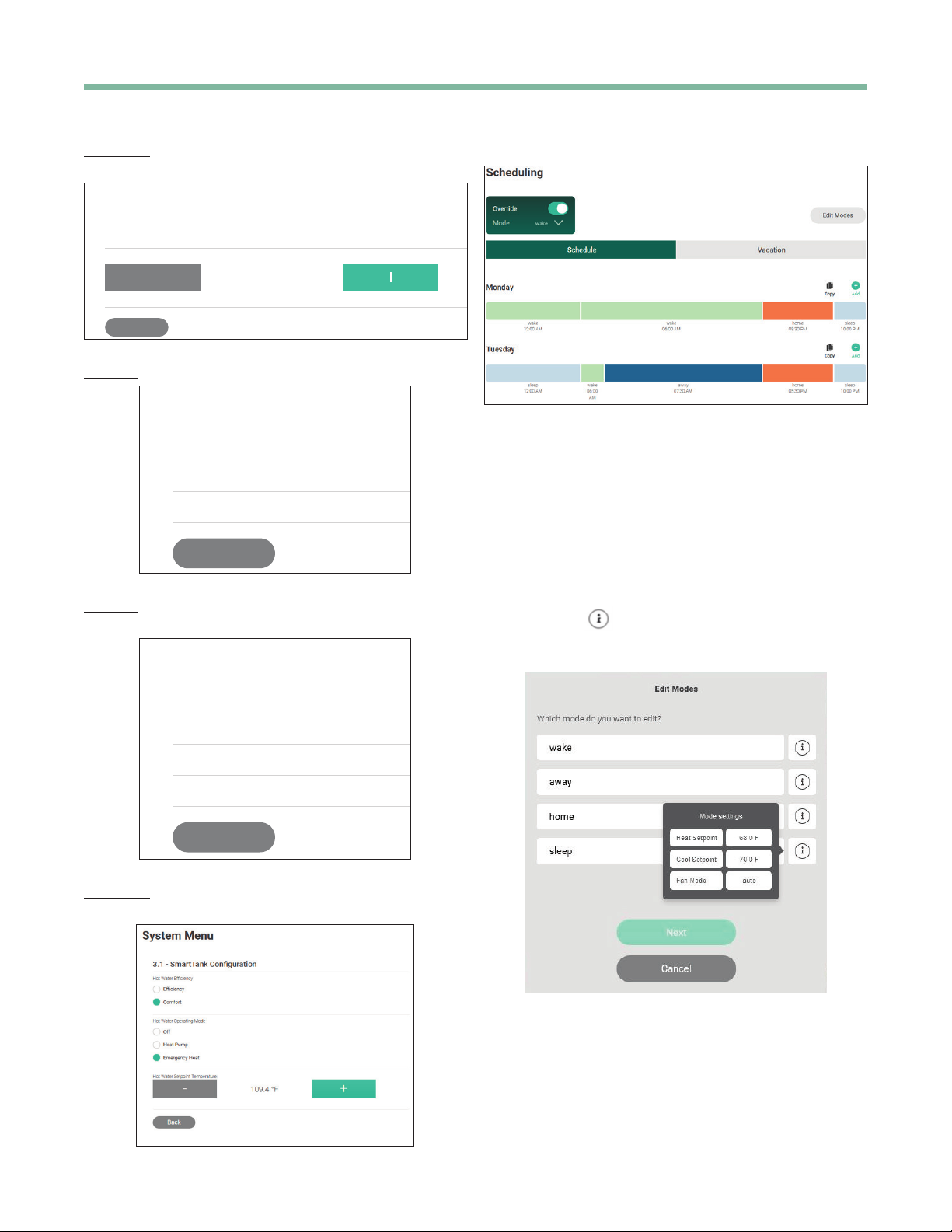

Schedule ...................................14
Creating Your Weekly Schedule............14
Using the Weekly Schedule Editor .........15
Scheduling a Vacation ....................16
Faults/Conditions ............................17
Advanced System Settings ...................18
Revision History ............................. 20
97B0133N01
Created: December 3, 2021

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
2
Getting Started
iGate Connect Thermostat Basics
72º
COOL 75ºEquipment Status
Banner
Wi-Fi Signal
Space Temperature
Page Indicator
Home Screen
Page Indicator — Either swipe left or right or tap the dots to navigate between HOME screen, SETPOINT screen,
MODE screen, FAN screen or SETTINGS screen. The white dot indicates the page you are on.
• Pressing anywhere on the screen, other than the active icons described below, will activate an animated SWIPE
indicator on the screen.
Space Temperature — The center portion of the screen displays the sensed space temperature, in whole numbers
only. Default temperature units is Fahrenheit. Navigate to the SETTINGS screen to change to Celsius.
Banner — Press the center of the scrolling Banner to switch to the screen indicated by the displayed text. The Banner
scrolls through the screen options every 3 seconds. The Banner may also be swiped left or right to navigate through
the options.
NOTE: On the thermostat itself, you can select those screen options on the SYSTEM SETTINGS > BANNER screen.
Wi-Fi Signal
• The number of green bars indicate the signal strength.
• Red indicates it is not connected to a router.
• Pressing the Wi-Fi icon displays a screen with connectivity details.
Equipment Status — The equipment status icon ashes when there is a call for heating or cooling.
• Tapping the Fan mode/operation icon will display the FAN screen.
• Tapping the Heat or Cool icons displays the MODE screen.

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 3
Swiping
Swipe left or right to navigate from screen to screen.
IDLE Screen
OUTDOOR 81º
72º
This screen displays temperature when the thermostat
is idle. To reach the HOME Screen, tap anywhere on
the screen.
About Your iGate Connect Thermostat
Power
Requirements 24 VAC +/- 10% @ 3 VA
Network
Requirements
Wi-Fi connectivity supports Wi-Fi 802.11 a/b/g/n
standards on 2.4 GHz networks
Environmental
Operating Range
32° to 104°F (0° to 40°C), 10 to 95% relative
humidity, non-condensing
Mounting Standard 4x2-in. electrical box using the 6-32 x 1/2”
mounting screws provided
Overall
Dimensions
Width:
Height:
Depth:
3.52 in. (90 mm)
2.52 in. (64 mm)
0.83 in. (21 mm)
Listed By FCC Part 15, Subpart J compliant
Connecting to the Internet
Creating a myUplink Portal Account
Visit https://myuplink.com/login to begin or download
myUplink mobile app from your app store.
Accept Cookies
When rst opening the page, the message on use of
cookies will appear. Press the “Accept Cookies” button
to clear the message.
Language Selection
Provides a drop-down list of available web interface
languages.

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
4
Select “Create Your Account” to begin.
Enter your email and password. Read and accept the
Terms of Service and Privacy Policy.
Passwords must be 8-128 characters long with upper-
and lower-case letters, numbers and symbols.
• at least 1 uppercase character (A-Z)
• at least 1 lowercase character (a-z)
• at least 1 digit (0-9)
• symbols are allowed, but not required
• not more than 2 identical characters in a row
(e.g., 111 not allowed)
Enter the required information
then press “Next”
You will receive a conrmation
email at the address provided.
Press the "Log In" button to
return to the myUplink –
HOME screen.
After Conrming your email
address, you will be able to log
in to myUplink.
Log In
Enter the email address and password then press the
"Log In" button to open your myUplink account.
Setting Up Wi-Fi and Connecting to your
myUplink account
Supports 802.11 a/b/g/n standards.
Congure Wi-Fi from Your Mobile Device
If connecting your rst device to
myUplink, tap the orange “Add System”
button on the myUplink app. If this is not
your rst device, tap the green banner
at the top of the screen and tap “Add
System” in the drop-down menu.
If your device is already connected
to Wi-Fi, press “Yes, scan for device”
button and skip to the section Add
Thermostat to myUplink Account
(page 5).
If your device is not connected to Wi-Fi,
press “No, setup the device” button.
Press the red Wi-Fi button on the top
left of the thermostat display.
Scan the QR code shown on the
thermostat display using the myUplink
app on your mobile device.
The mobile app will scan for all available
Wi-Fi networks. Tap the name of the
network you wish the thermostat to join.
Enter the network password and tap
“Connect”.

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 5
Congure Wi-Fi from the Thermostat
• In the top-left corner of the thermostat display,
press the red Wi-Fi icon
• Press the SETUP button.
• From the list of discovered Wi-Fi routers, select the
desired router for conguration
• Enter the wireless credentials for the Wi-Fi router.
Add Thermostat to myUplink Account
From the SELECT YOUR SYSTEM drop down in the
middle of the page, select "Add System".
The Serial Number and Connection Token can be
accessed from the thermostat display by pressing the
Wi-Fi Status icon (top-left of the banner).
Using your iGate Connect Thermostat
MODE Screen
E
COOL
OFF HEAT AUTO E-HEAT
MODE
Use this screen to view and change the current MODE,
choices are:
• OFF
• HEAT
• COOL
• AUTO
• E- HEAT
NOTE: The horizontal yellow bar always appears
above the current mode. The thermostat does not
change until the newly selected MODE has been on
for at least 10 seconds.
EXAMPLE:
There may be a delay switching modes from HEAT to
COOL as the minimum on and off timers are fullled.
Going from any HEAT or COOL to OFF shuts off any
active equipment after the 10 second delay.

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
6
SETPOINT Screen
Use this screen to view, adjust, or hold heat and cool
setpoints. Use the wheels to adjust setpoints. Drag a
wheel up or down or tap the top or bottom of the wheel
to increase or decrease by 1 increment.
There are two different buttons that can appear in
the center of this screen. Press to switch buttons and
functions.
• OCCUPIED/UNOCCUPIED button (commercial
applications only).
• PLAY/PAUSE button allows you to either play
(use as is) or alter the program schedule.
(residential applications only)
• Text above the button is the current state.
• Text beneath the button is what will happen when
the button is pressed.
If the schedule is running, the Occupancy button and
the text will display whether the schedule is currently
running OCCUPIED or UNOCCUPIED setpoints. Press
the button to switch heat and/or cool setpoints between
Occupied and Unoccupied settings and then the
Occupancy button changes to the PLAY button.
When the schedule is not running, the text above
the Play button says OCCUPIED if the heat and cool
setpoints are the same as the OCCUPIED setpoints
or UNOCCUPIED if the heat and cool setpoints match
the UNOCCUPIED setpoints. If neither is true, HOLD
displays. When the schedule is paused, the remaining
hold time shows in the lower right corner.
Commercial Screen has a Schedule pause button.
FAN Screen
Congure the supply fan for ON or AUTO, in either
occupied or unoccupied mode.
• ON – Fan runs continuously regardless of demand.
Options are to run the fan for: 15 min, 30 min, 45
min, per hour or always.
• AUTO – Fan cycles with heat or cool demand
or if there is a demand for humidication or
dehumidication.
Use this screen to adjust fan operation. The default
setting for fan operation is AUTO for both OCCUPIED
and UNOCCUPIED periods. When operating in AUTO
MODE, the fan only runs when there is an active heating
or cooling demand. When you select ON, the fan runs
continuously, except during the BLOWER ON DELAY
when a heat cycle is starting. There is a 30-second
minimum on/off timer when changing the FAN MODE.
These selections are not available if the thermostat has
been congured for non-programmable operation. To
enter Programmable mode, press and hold the FAN
screen for 5 seconds.

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 7
PROGRAM
If programmable mode is enabled, you can only view the program schedule on this screen on the thermostat.
To view the Program Schedule, Select the “Program”
PROGRAM
button from the Settings Screen.
You cannot adjust the schedule or setpoints. Permanent program schedule changes require the myUplink app. Making
temporary changes or pausing the program schedule are outlined in Schedule Section (page 14).
The top center of the screen displays the program schedule day of the week. Swipe up or down to move from one day
to the next on the program schedule. The vertical yellow Row Indicator moves up and down at the same time.
• The cool setpoints are shown above the blue horizontal lines, for each of the 4 programmable periods of the
day (up to 3 occupied periods and 1 unoccupied period, if congured).
• The heating setpoints are shown below the horizontal red lines, for each of the 4 programmable periods of
the day.
• Occupied and Unoccupied icons appear at the top of each period.
• The vertical dashed lines separate the program time changes throughout the day.
• The times at the bottom of the dashed lines show the schedule.
• The vertical yellow dashed line displays the current time of day.
• A short horizontal yellow dashed line depicts the current measured space temperature.
• Thermostat only: yellow vertical line shows current time of day.
• The yellow lines show up only when viewing the current day of the week.

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
8
VACATION
This screen displays the current year’s holiday schedule.
On a holiday, the setpoints for the rst UNOCCUPIED
time range are used for the entire day. Scroll the vertical
yellow Row Indicator to see more holidays.
SETTINGS Screen
SETTINGS
WEATHER
HOT WATER HUMIDITY
BANNER SOFTWARE BACKLIGHT
SETTINGS
FILTER
ADVANCED LOCKOUT
CLEAN LOG SERVICE
The yellow Row Indicator at the right side of the screen
indicates the current location in the list of advanced
settings options. Swipe up or down to navigate through
options and then tap to select one.
Swipe on any of the SYSTEM SETTINGS sub-screens to
return to the SYSTEM SETTINGS main screen.
HOT WATER Screen
HOT WATER SETTINGS
TEMPERATURE
SETPOINT
OPERATING MODE
EFFICIENCY
121ºF
120ºF
OFF
COMFORT
Tap the value to adjust the hot water setting shown.
WEATHER Screen
Displays the 24-hour or 4-day weather forecast for the
registered location of the thermostat.
HUMIDITY Screen
HUMIDITY
H
U
M
%
D
E
H
U
M
%
26
24
25
64
65
When enabled, scroll the wheels to set the Humidication
percentage for heating and the dehumidication setting
for cooling. Use the wheels to adjust setpoints. Drag a
wheel up or down or tap the top or bottom of the wheel to
increase or decrease by 1 increment.

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 9
BANNER Screen
BANNER
DATE &
TIME
FAN
STATUS
OUTDOOR
TEMP
COOL
SETPOINT
The Banner Screen allows the user to choose which
options are in the list that scrolls through the banner
location. Use the Yellow Scroll Bar on the right to access
more options.
Press the center of the scrolling Banner to switch to the
screen indicated by the text. You can swipe the banner
to change options, or, every 3 seconds a different screen
name scrolls across the top that you can navigate to.
On the thermostat itself, you can select which screens
you want on the Banner by pressing the buttons to
check the ones you want and then uncheck the ones
you do not want.
The default screens are:
• DATE & TIME
• FAN STATUS
• OUTDOOR TEMP
• COOL SETPOINT
• HUMIDITY
• HEAT SETPOINT
DATE and TIME
On this screen, scroll or tap the Orange Hour wheel or
Blue Minute wheel to adjust the date and time on the
thermostat.
Switch to the Date Adjust screen and the Time Adjust
screen using the green icon button at the right side of
the screen. Scroll or tap the Orange Month wheel or Blue
Day wheel.
Drag a wheel up or down or tap the top or bottom of the
wheel to increase or decrease by 1 increment.
When the thermostat is rst registered and connected to
a Wi-Fi router, both the date and time are synced with
the server (based on the location of the phone/tablet
used to connect the thermostat to a router or based on
the ISP location if a computer is used to connect the
thermostat to a router). The time and date are synced
at the top of each hour automatically, unless the Sync
Time To Server option in the SETTINGS > ADVANCED
screen is set to NO.
BANNER
HUMIDITY HEAT
SETPOINT
OPERATING
MODE
SOFTWARE Screen
SOFTWARE
Thermostat: Version 01.00nz (CLM)
Wi-Fi Chip: Non-Release Version
Boot: Version 01.00bt (CLM)
EXM U1: v2.08
EXM U2: v2.08
WXM: v1.01
ZXM: v1.03
Serial #:
This screen Displays the Software version installed on the
thermostat and serial number of the thermostat.
• Thermostats connected to Wi-Fi will receive the
software notication and update automatically.

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
10

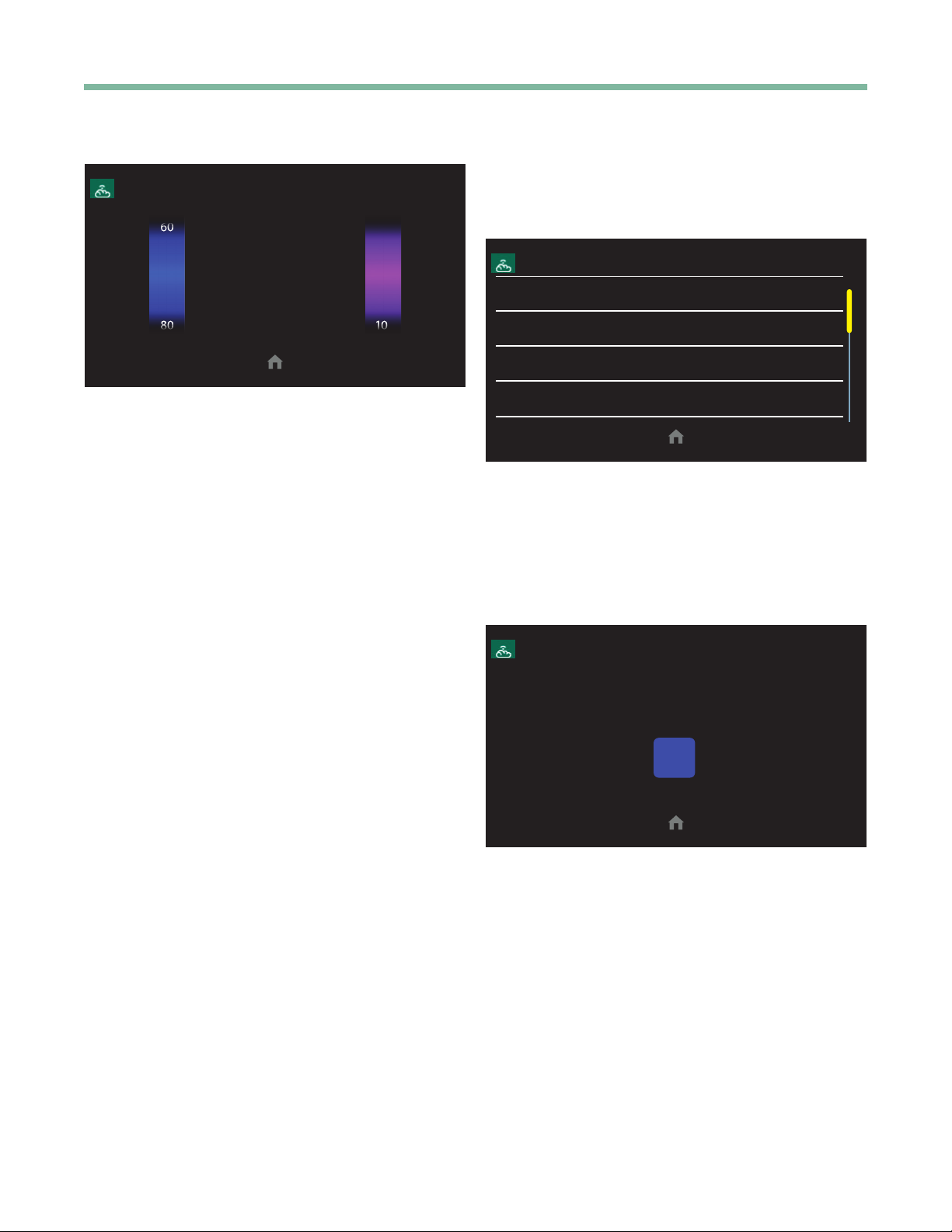

BACKLIGHT Screen
BACKLIGHT
A
C
T
I
V
E
D
O
R
M
A
N
T
75
65
70
5
0
Scroll the wheels to set the screen brightness when
active and when dormant.
BACKLIGHT — Use to change the backlight intensity in
Active and Dormant modes.
• The blue Active Backlight wheel adjusts the
backlight intensity from 10% to 100%, (75% is the
default and recommended) when the thermostat is
in an active state (being accessed or viewed by the
end user).
• The purple Dormant Backlight wheel adjusts
backlight intensity from 0% to 25%, (25% is the
default and recommended) when the thermostat
is in a dormant state (not being viewed or adjusted
by the end user).
Drag a wheel up or down or tap the top or bottom of the
wheel to increase or decrease by 1 increment.
ADVANCED SETTINGS
Use the advanced options on the Advanced Settings
screens to congure and setup your system, change,
and view options.
ADVANCED
SYNCH TIME TO SERVER
TIME ZONE
SCREEN TIMEOUT
PROXIMITY
YES
CENTRAL
15 SEC
YES
Some of the Advanced Settings are only available from
the thermostat. Press a button or scroll the vertical yellow
Row Indicator to see more buttons. When a button is
pressed, the corresponding screen appears where you
can view status and make adjustments. Use the Yellow
Scroll Bar on the right to access more options.
FILTER Screen
FILTER
FILTER REMINDER
HOURS REMAINING: 5475
RESET
This screen displays the remaining time before a lter
change is required. When lters are changed, press the
“Reset” button to restart the timer.
FILTER STATUS is based on the supply fan runtime,
which can be congured from 500 to 15,000 hours. A
lter status alert displays when the lter timer exceeds
the congured number of hours. Press the alert to see
the message.
Use to reset the FILTER ALERT and see the FILTER
RESET REMINDER timer information. Press the RESET
button to reset the timer to its congured value in the
Advanced Settings.

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 11
LOCKOUT/PIN Screen
LOCKOUT
LOCKOUT IS DISABLED
ENABLE CHANGE PIN
If desired, the user can require a pin to make the changes
to the settings of the thermostat. Use the “Change Pin”
button to set the access code. Use the enable button to
lock the settings.
NOTE: Some of the Advanced Settings are only
available from the thermostat itself, not the app
or web.
If applicable, enter the 4-digit security PIN code to open
the Advanced Settings screen.
This feature locks out unauthorized changes made on the
touchscreen. All touch interaction is locked out without the
unlock code. After 5 failed attempts, a notication (fault) is
sent to the registered owner of the thermostat through Wi-
Fi. More unlock attempts are blocked for 15 minutes.
To set up a new PIN or change the current PIN, select
the ENABLE button or the CHANGE PIN button, which
displays on the SET PIN screen. If the thermostat does
not already have a PIN, the CHANGE PIN button cannot
be used.
On the SET PIN screen, use the 4 blue-digit PIN
wheels to set the PIN. Set the 4-digit PIN and press the
orange Save button to save the PIN and return to the
Lockout Screen. Press the DISABLE button to cancel
the LOCKOUT function and reset the PIN to 0000. The
default is 0000 and the range is 0001 to 9999.
CLEANING the iGate Connect Thermostat
CLEAN
8
Stops touchscreen interaction for 10 seconds to allow
cleaning the screen with a dry nonabrasive cloth. A
10-second countdown shows on the CLEAN screen and
then the thermostat resumes normal operation.
LOG Screen
LOG
ECM CONFIGURATION
LOW LOOP PRESSURE
LOSS OF ZONE DAMPER POWER
STARTUP
The Log Screen tracks faults to be used by service
personnel when repairing the unit.
This screen can be used to view software update history,
fault history, and system events. Swipe up or down on
the vertical yellow Row Indicator to scroll through logged
events.
The log includes:
• STARTUP
• SOFTWARE UPDATE EVENTS
• POWER CYCLE EVENTS
• PARAMETER OUT-OF-RANGE EVENTS
• SERVER CONNECTIVITY EVENTS
• NON-VOLATILE MEMORY FAULTS
• TEMPERATURE FAULTS
The list displays the 5 most recent logged events, with
the most recent at the top. The last line in the list includes
the RESET LOG command to clear the list.

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
12
SERVICE Screen
SERVICE
El Conquistador HVAC
[phone]
www.ElConquistadorHVAC.com
[email protected]om
The Service Screen displays the contact information of
the service company associated with the unit.
Displays the dealer/installer service contact information.
This information is editable using the mobile app, LAN
mode transfer and Wi-Fi transfer.
What To Do if You Move
Disconnect Wi-Fi
The Disconnect Wi-Fi option provides a means to
disconnect the thermostat from the Wi-Fi network until
it is setup again.
1. On the thermostat, not a mobile device, swipe the
HOME screen twice to the left to navigate to the
MODE screen and ensure the MODE is OFF.
NOTE: The yellow line above a button indicates
it is the current MODE.
2. Swipe to go to the FAN screen and then press and
hold the Fan Button for 5 seconds to get to the
SYSTEM SETTINGS screen.
NOTE: The SYSTEM SETTINGS screen can ONLY
be accessed from the thermostat itself, not the
app or web.
3. Scroll down to DISCONNECT Wi-Fi.
CAUTION: Disconnecting the Wi-Fi requires
setting up the Connect Thermostat using the
Connect mobile application.
4. Select YES.
6. See the section of this guide titled Setting Up
Wi-Fi and Connecting to your myUplink Account
(page 4). Follow the instructions within the app.
YES
DISCONNECT WIFI
CANCEL
If the thermostat is disconnected from a router, the
thermostat will automatically enable soft access point
mode (SSID - CLM-tstat-XXXX, where XXXX represents
the last 4 digits of the thermostat serial number) for 10
minutes.
Pressing the YES button will disconnect the thermostat
from the Wi-Fi network.
Pressing the CANCEL button will navigate back to the
System Settings screen.
Removing Thermostat from
myUplink Account
1. Log in to your myUplink
account from either the web
portal or mobile app.
2. Access the System Prole
from the System menu (web)
or 3-bar menu (mobile).
3. Select Delete (web) or
Disconnect System (mobile).
4. Select the red Disconnect
button

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 13
Using myUplink
Access the myUplink site by visiting https://myuplinkweb.
nibejpi.com and logging in with your username
and password.
Select your system from the drop-down list. The home
page will display the Thermostat Dashboard.
Press the button to add additional tiles to the
dashboard. Click on the tile you would like to display.
Congure any options for that tile and press Submit to
add to the dashboard.
System Menu
From the Top Menu Select System > Main menu.
System Menu
Main Menu
1 - iGate 2.0 Thermostat
2 - Trilogy Unit
3 - Smart Tank Water Heater
Select 1 – iGate 2.0 Thermostat to view thermostat
settings and alerts.
System Menu
1 - iGate 2.0 Thermostat
1.1 - Thermostat Settings
1.2 - Alert Configuration
Back
Select 1.1 – Thermostat Settings to Enable/Disable or
adjust settings for the thermostat.

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
14
Select 1.2 – Alert Conguration to Adjust the lter
reminder.
System Menu
1.2 - Alert Configuration
Air Filter Reminder:
Back
3000 hr
Select 2 – Trilogy Unit to access unit settings.
System Menu
2 - Trilogy Unit
Back
Serial Number 192411599
Select 3 – Smart Tank Water Heater to adjust Water
Heater Settings.
System Menu
3 - Smart Tank Water Heate
r
3.1 - SmartTank Configuration
Back
Serial Number 192411600
Select 3.1 – SmartTank Conguration to change settings
and setpoints.
Schedule
From the Dashboard, select “Schedule” to view and
adjust Schedule.
Creating Your Weekly Schedule
Select Edit Modes to adjust setpoint and timing of the
schedule modes.
- Occupied/Unoccupied for Commercial settings.
- Wake/Away/Home/Sleep for Residential settings.
Hover over the symbol to view the current setpoints
for the mode. Select the items in the mode you would like
to edit and Press “Next”.

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 15
Adjust the settings as needed and Save.
Using the Weekly Schedule Editor
To Add a schedule mode to a day, Click “Add”. Select the
Mode and Start Time and Save.
To copy a day’s program to a different day, select
“Copy”. Choose the days to apply the schedule to,
and press “Copy”.

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
16
Scheduling a Vacation
Select “Vacation” to view and edit the scheduled
vacations. Click the button to add vacation days.
Select the dates you will be away and Select “Next”.
Choose the mode to be used during the vacation
and click “Create”.
Set the Time to begin and end the vacation. Click “Next”.
Select the mode to be used and select “Create”.

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 17
FAULTS
The following Fault messages are displayed
and logged in the banner during the fault
condition and then sent to the Cloud Server.
CONDITION
ID TEMP SENSOR HIGH Temperature reading > 122°F
ID TEMP SENSOR LOW • Temperature reading = 0
• Reading not available
REMOTE SENSOR HIGH Remote temperature > 122°F
NOTE Displayed only if REMOTE SENSOR is set to INDOOR or AVERAGE
REMOTE SENSOR LOW Remote temperature = 0
NOTE Displayed only if REMOTE SENSOR is set to INDOOR or AVERAGE
HUM TEMP SENSOR HIGH
Humidity sensor temperature > 122°F
NOTE Displayed only if using humidity temperature as a backup source during a fault condition with
the primary temperature sensor.
HUM TEMP SENSOR LOW
Humidity sensor temperature = 0
NOTE Displayed only if using humidity temperature as a backup source during a fault condition with
the primary temperature sensor.
ID TEMP RANGE HIGH Indoor temperature is > 99.0°F
ID TEMP RANGE LOW Indoor temperature is < 40.0°F
HUM SENSOR FAILURE
Any of the following:
• Humidity sensor timed out
• Humidity reading is > 99%
• Humidity reading is 0
HUMIDITY RANGE HIGH Humidity reading is > 90%
HUMIDITY RANGE LOW Humidity reading is < 10%
OUTDOOR SENSOR FAILURE OD temp > 127 or < -60
Wi-Fi HARDWARE FAULT Communications error occurred with Wi-Fi module (resets after valid message received)

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
18
Advanced System Settings
The following may only be adjusted in the SYSTEM SETTINGS screens and parameters on the thermostat itself. They
are not accessible on a mobile device.
Select FACTORY DEFAULTS to restore all default settings to the original values.
Advanced Setting Option Default Screen Options
Sync Time to Server Yes
Time Zone 4 – CENTRAL HAWAII, ALASKA, PACIFIC, MOUNTAIN, CENTRAL, EASTERN, ATLANTIC, NEWFOUNDLAND,
PIERRE & MIQUELON, W. GREENLAND, E. GREENLAND, GREENWICH
Screen Timeout 15 SEC 5 – 30 SEC
Proximity YES YES, NO
Prox Sensitivity MEDIUM LOW, MEDIUM, HIGH
# Program Day Parts 4 2, 4
DST Enabled Disabled, Enabled
Wireless Enabled Disabled, Enabled
Sound CLICK Disabled, Click, Beep

iGate2.0 User Manual
Created: December 3, 2021
climatemaster.com 19
This page intentionally left blank.

iGate2.0 User Manual
Created: December 3, 2021
Geothermal Heating and Cooling
20
Revision History
© ClimateMaster, Inc. All rights reserved 2021
ClimateMaster works continually to improve its products. As a result, the design and specications of each product at the time for order may be
changed without notice and may not be as described herein. Please contact ClimateMaster’s Customer Service Department at 1-405-745-6000
for specic information on the current design and specications. Statements and other information contained herein are not express warranties
and do not form the basis of any bargain between the parties, but are merely ClimateMaster’s opinion or commendation of its products.
7300 S.W. 44th Street
Oklahoma City, OK 73179
Phone: [phone]
Fax: [phone]
climatemaster.com
97B0133N01
Date: Item: Action:
12/03/21 Created
