ClimateMaster AVB32V02R Original instructions

7 Day Programmable •Up to 3-heat & 2-cool
with
Wi-Fi
and
Local API
Programmable Digital Thermostat
Residential
Owner’s Manual &
Installation Instructions
AVB32V02R
CM300 series

i
Follow the Installation Instructions before proceeding. Set the
thermostat mode to “OFF” prior to changing settings in setup
or restoring Factory Defaults.
CAUTIO
N
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
of the receiver.
• Consult the dealer or an experienced radio orTV technician for help.
Notice: Only peripherals complying with FCC limits may be attached to this
equipment. Operation with noncompliant peripherals or peripherals not
recommended by Venstar, is likely to result in interference to radio and TV
reception. Changes or modifications to the product, not expressly approved by
Venstar could void the user’s authority to operate the equipment.
FCC - INDOOR Mobile Radio Information:
To comply with FCC/IC RF exposure limits for general population / uncontrolled
exposure, the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.
This Device complies with Industry Canada License-exempt RSS standard(s).
Operation is subject to the following two conditions: 1) this device may not
cause interference, and 2) this device must accept any interference, including
interference that may cause undesired operation of the device.

ii
This Mini thermostat has the ability to receive updates to its firmware.
Periodically firmware updates are released by the manufacturer to add features
and/or performance enhancements.This manual was produced reflecting the
most current firmware/feature set at the time of publication, firmware rev. 1.0.
Firmware releases after rev. 1.0 may not be adequately depicted in this manual.
Please refer to the appropriate website or contact your place of purchase to learn
about changes to the thermostat after firmware release 1.0.
Under Industry Canada regulations, this radio transmitter may only operate using
an antenna of a type and maximum (or lesser) gain approved for the transmitter
by Industry Canada.To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Cet appareil est conforme avec Industrie Canada, exempts de licence standard
RSS(s). Son fonctionnement est soumis aux deux conditions suivantes: 1) ce
dispositif ne doit pas causer d’interférences, et 2) ce dispositif doit accepter
toute interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement de l’appareil.
En vertu des règlements d’Industrie Canada, cet émetteur de radio ne peut
fonctionner en utilisant une antenne d’un type et maximale (ou moins) Gain
approuvé pour l’émetteur par Industrie Canada. Pour réduire les interférences
radio potentielles aux autres utilisateurs, le type d’antenne et son gain doivent
être choisis afin que la puissance isotrope rayonnée équivalente (PIRE) ne est pas
plus de ce qui est nécessaire pour une communication réussie.
We, Climate Master, declare under our sole responsibility that the device to
which this declaration relates: Complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC ID: MUH-SKYPORT10
IC: 12547A-SKYPORT10
Innovation, Science and Economic Development Canada
ICES-003 Compliance Label: CAN ICES-3 (B)/NM8-3(B)

Table of Contents
Installation Instructions..................................................................................................1
Wire Connections ............................................................................................................2
Thermostat Backplate.....................................................................................................3
Dip Switch Settings and Wiring.....................................................................................4
Connect to Wi-Fi...............................................................................................................9
Front Panel & Display....................................................................................................12
Basic Operation..............................................................................................................15
User Setup
Clock...................................................................................................................18
Enable programmability...................................................................................19
Backlight/Nighttime dimmer...........................................................................19
Installer Setup
Display Units F/C...............................................................................................20
Deadbands, timers .....................................................................................20, 22
Setpoint Limiting...............................................................................................21
Available Modes...............................................................................................21
Fan Off Delay.....................................................................................................23
Filter Runtimes, Alerts......................................................................................24
Comfort Recovery.............................................................................................25
Dry Contact........................................................................................................26
Remote Sensor..................................................................................................27
Dehumidify/Humidify............................................................................27, 28, 29
Skyport Enable..................................................................................................30
API Enable .........................................................................................................30
Locking/Unlocking the Keypad....................................................................................31
Programming a Daily Schedule...................................................................................32
About Advanced Features & Operation.....................................................................34
Advanced Setup Table ..................................................................................................39
Follow Installation Instructions carefully. Disconnect
Power to the Heater/Air Conditioner before removing
the old thermostat and installing the new thermostat.
CAUTION
IMPORTANT
© Copyright 2019, All Rights Reserved
iii

Auto-Changeover: A mode in which the thermostat will turn on the
heating or cooling based on room temperature demand.
Cool Setpoint: The warmest temperature that the space should rise
to before cooling is turned on (without regard to deadband).
Deadband: The number of degrees the thermostat will wait, once a
setpoint has been reached, before energizing heating or cooling.
Differential: The forced temperature difference between the heat
setpoint and the cool setpoint.
Heat Setpoint:The coolest temperature that the space should drop
to before heating is turned on (without regard to deadband).
Icon: The word or symbol that appears on the thermostat display.
Mode: The current operating condition of the thermostat (i.e. Off,
Heat, Cool, Auto, Program On).
Non-Programmable Thermostat: A thermostat that does not have the
capability of runningTime Period Programming.
Programmable Thermostat: A thermostat that has the capability of
runningTime Period Programming.
Pre-Occupancy Purge: Fan operation prior to Occupied 1.
Temperature Swing: Same as Deadband.
Time Period Programming: A program that allows the thermostat
to automatically adjust the heat setpoint and/or the cool setpoint
based on the time of the day.
iv
Glossary of Terms

Installation Instructions
1
Remove and Replace the old thermostat
To install the thermostat properly, please follow these step by step
instructions. If you are unsure about any of these steps, call a qualified
technician for assistance.
• Installation tools: Small flat blade screwdriver, Phillips screwdriver,
wire cutters and wire strippers.
• Make sure your Heater/Air Conditioner is working properly before
beginning installation of the thermostat.
• Carefully unpack the thermostat. Save the screws, any brackets,
and instructions.
• Turn off the power to the Heating/Air Conditioning system at the main
fuse panel. Most residential systems have a separate breaker or
switch for disconnecting power to the furnace.
• Remove the cover of the old thermostat. If it does not come off easily,
check for screws.
• Loosen the screws holding the thermostat base or subbase to the
wall and lift away.
• If you have a smart phone handy, take a photo of the wiring for
future reference.
• Disconnect the wires from the old thermostat. Tape the ends of the
wires as you disconnect them, and mark them with the letter of the
terminal for easy reconnection to the new thermostat.
• Keep the old thermostat for reference purposes, until your new
thermostat is functioning properly.

G,F Fan Fan G
Y,Y1 1st stage 1st stage cooling Y1
heating/cooling
Y2 2nd stage 2nd stage cooling Y2
heating/cooling
W,W1 1st stage heating O
W2 2nd stage heating W
W (on CLM products) 3rd stage heating W
O reversing valve O
W (on CLM products) emergency heat W
humidifier humidifier D/H (note 1)
DH (on CLM products) ClimaDry D/H (note 2)
dehumidifier dehumidifier D/H (note 2)
dry contact dry contact CK1 (note 3)
R,Rh,M,Vr,A power power R
C common common C
Installation Instructions
2
Wire Connections
If the terminal designations on your old thermostat do not match those on the
new thermostat, refer to the chart below or the wiring diagrams that follow.
Note 1 : set the AUX USE (setup step #29) to humidifier. Also, set the HUM WITH HEAT ONLY
(setup step #34) as required
Note 2 : set the AUX USE (setup step #29) to dehumidifier. Also, set the DEHUM WITH COOL ONLY
(setup step #34) as required
Note 3 : external device should switch CK1 to R to enable the function specified in DRY CONTACT USE
(setup step #26), default = FDD
Wire from the old
thermostat terminal
possibly marked
Function
(Heatpump)
Function
(Gas/Electric)
Install on
the new
thermostat
connector
marked

SCALE 1 : 1
Installation Instructions
3
The Thermostat Backplate
IMPORTANT: This thermostat requires both R (24 VAC Return) and C (24 VAC
Common) wires be connected to the backplate terminals to operate properly.
To remove the thermostat backplate:
Gently separate the display from the
base by pulling from the center.
D / H RS R G Y1 W O Y2 C CK1

Installation Instructions
4
GAS/EL
HP
OR
GAS/EL HP
ON
123
ON
123
OR
OBBO
ON
12 3
ON
12 3
GAS ELEC
OR
GAS ELEC
ON
12 3
ON
12 3
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23

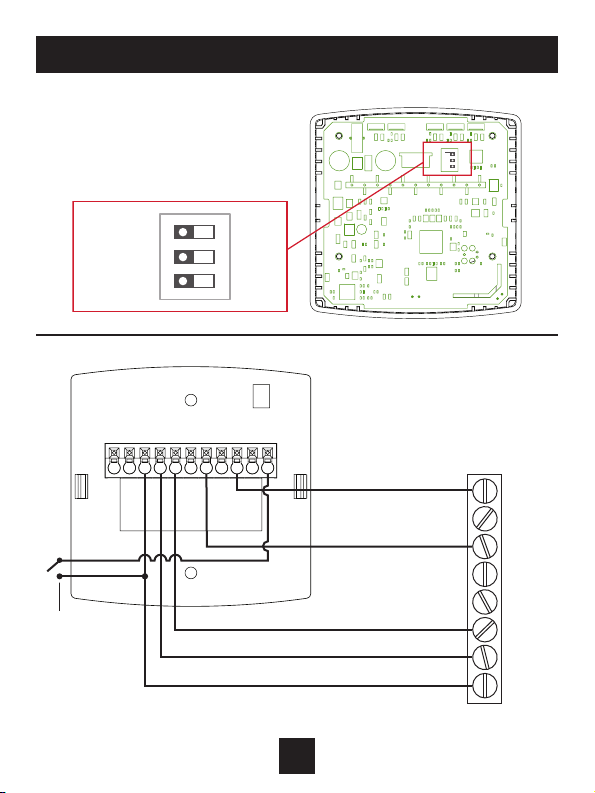

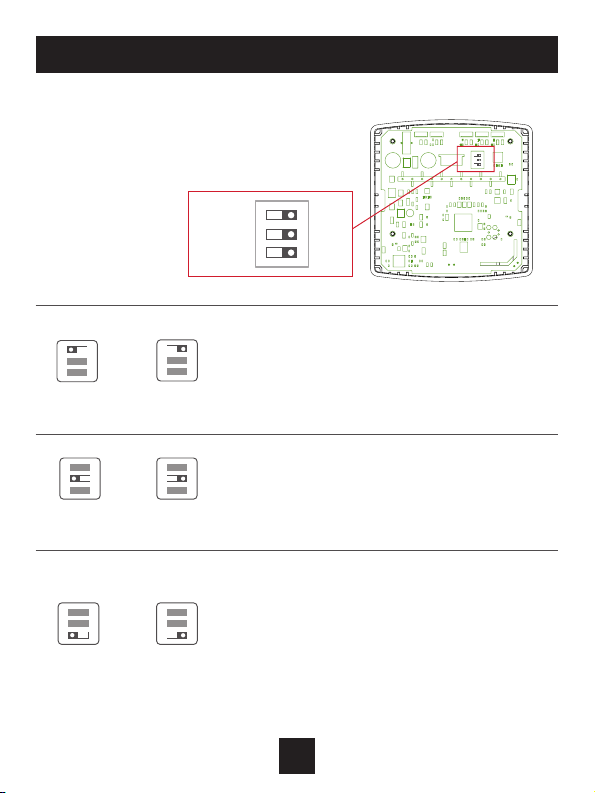

Check Dip Switch
Ensure which switch is correct for your
system. Dip switches are located on the
back of the thermostat.
This switch (GAS/ELEC or HP) configures the
thermostat to control a conventional gas/electric
system or a heat pump.
This switch (O or B) is not used in this thermostat.
The thermostat only controls a type O reversing
valve (power to cool).
This switch (GAS or ELEC) controls how the
thermostat will control the Fan (G) terminal in
heating mode. When GAS is chosen, the thermostat
will not energize the Fan (G) terminal in heating.
When ELEC is chosen the thermostat will energize
the fan in heating.

SCALE 1 : 1
5
Installation Instructions
1 Stage Heat, 1 stage Cool
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
C
W2
W1
O
Y2
Y1
G
R
Thermostat
HVAC
Equipment
Condensate
Switch
(optional)
D / H RS R G Y1 W O Y2 C CK1
Note: Set DRY CONTACT USE (setup step #26) to CONDENSATE

SCALE 1 : 1
6
Installation Instructions
2 Stage Heat, 2 Stage Cool
with wired remote sensor
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
C
Y2
W1
O
W2
Y1
G
R
Thermostat
HVAC
Equipment
10KNTC
Remote
Sensor
(optional)
D / H RS R G Y1 W O Y2 C CK1

SCALE 1 : 1
7
Installation Instructions
Single Stage Heat Pump with AUX Heat
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
Thermostat
Single Stage Unit, CXM
Y
W
O
G
R
C
AL1
AL2
A
D / H RS R G Y1 W O Y2 C CK1
Note: Do not clip jumper JW1 on CXM board

8
Installation Instructions
Dual Stage Heat Pump with AUX Heat and ClimaDry
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
Note: If using the integral condensate overflow sensing in the heatpump,
an overflow condition generates a FAULT signal which halts equipment
operation. Bringing that signal into CK1 and setting DRY CONTACT USE
(setup step #26) to FDD will show EQUIP FAULT on the display.
SCALE 1 : 1
D / H RS R G Y1 W O Y2 C CK1
Thermostat
Two Stage Unit, DXM2
H
Y1
Y2
W1
O/W2
G
R
C
AL1

9
Connect to Wi-Fi Overview
At minimum the first 3 tasks below must be completed to access your
thermostat remotely from a browser. The 4th step is optional (highly
recommended) and only is needed to access your thermostat(s) from a
mobile device.
These steps are:
1. Successful connection to a local Wi-Fi Access Point with internet
access.
2. Confirm receipt of a Skyport generated verification email (this only
occurs once during the Skyport account setup).
3. A 6-digit code obtained from the thermostat is successfully entered
into a Skyport account.
4. Successfully download and install the ClimateMaster Skyport app on
your mobile device(s).
Your thermostat operates on the 2.4 Ghz, Wi-Fi b/g/n band.
Wi-Fi Symbol Legend
When the only the ‘dot’ of the Wi-Fi symbol appears = not
connected to an access point.
When the full Wi-Fi symbol appears = connected to an
access point.
When the full Wi-Fi symbol appears and the ‘dot’ of the symbol
is flashing = connected to Skyport.

10
Connect to Wi-Fi Overview
Wi-Fi Setup
The ClimateMaster Configurator App is needed to configure the Wi-Fi
Settings of this thermostat
• Download the ClimateMaster Configurator App
from your mobile device’s App Store.
• Open the ClimateMaster Configurator App
- Choose the Mini thermostat picture.
- Press and hold the FAN button of the thermostat for
approximately 5 seconds to enter Wi-Fi setup screens.
- Press the cooler button to setup Wi-Fi.
- Follow the instructions that appear on the ClimateMaster
Configurator App.
Connect to Skyport
Although there is more than one way to create a Skyport account, the
steps below illustrate account creation from a browser. To create a
Skyport account a thermostat must be joined to the account.
If the thermostat is connected to the local Wi-Fi Access Point, but you
do not have a Skyport account, you may create an account and join the
thermostat to the account by doing the following:
1. Open your browser to: http://CLM.skyportcloud.com
2. Locate “If you do not have an account, create an account here.”
Click on “here”
3. Follow on screen instructions to create an account and add a
thermostat to the Skyport account.

11
Connect to Wi-Fi Overview
Join a Thermostat to Skyport
If the thermostat is connected to the local Wi-Fi access point but not yet
joined to an existing Skyport account, you may join the thermostat to the
account by doing the following:
1. Log in to your Skyport account.
2. Select the “Location” you want to add a thermostat into or select the
“Add a Location” link in the upper left-hand corner.
3. Select the “Add a New Thermostat” box. A screen will ‘pop-up’
asking for a six digit code.
4. Press the FAN button on the thermostat for 5 seconds.
5. Press the Warmer button on the thermostat.
6. A six digit code will appear on the thermostat’s display.
7. Enter the six digit code into your Skyport account.
Wi-Fi Status Screens
Press and hold the FAN button on the thermostat for 5 seconds. When
“Wi-Fi Setup” appears on the display, press the MODE button. Pressing
the up or down button will display the following information:
• AP Name
• AP Signal Strength
• IP Address
• Skyport Status
• API Status

12
Front Panel
1Backlit Display
2Up/Warmer, Down/Cooler Buttons
3MODE Button
4FAN Button
5Heat or Cool Indicator
Heat = Red, Cool = Green
1
3
2
4 5

13

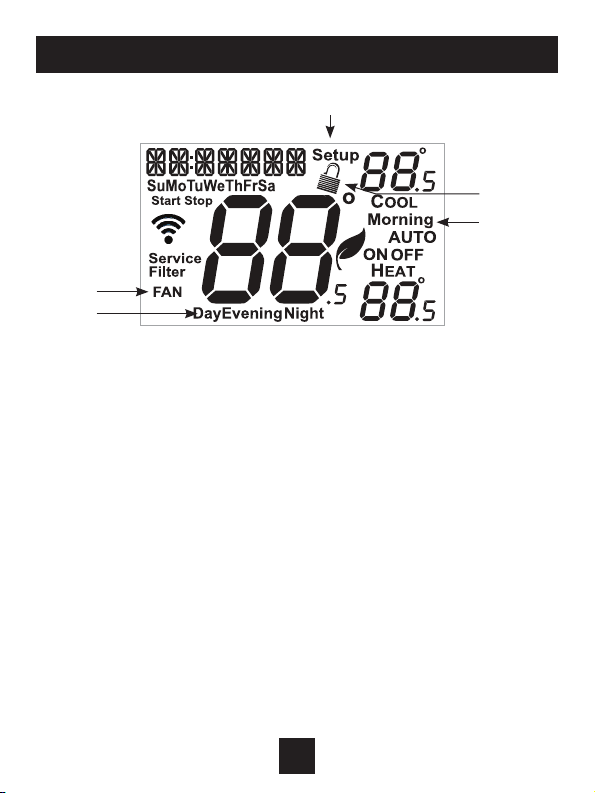

Display
1Mode Indicators
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the cooling mode.
AUTO - Indicates the system will automatically changeover
between heat and cool modes as the temperature
varies.
OFF - Indicates heating and cooling are turned off.
2 Clock with Day of the Week
Indicates the current time and day. This clock is also used to
program the time period schedules.
3Room Temperature Display
Indicates current room temperature.
4Desired Set Temperature
Indicates desired room temperature(s).
2
3
4
1
1
1
4

14
Display
5 Morning, Day, Evening & Night icons
Indicates the part of the time period program.
6 Setup icon
Indicates the thermostat is in the setup mode.
7 Fan icon
When only the FAN icon is displayed, the fan is always
on. If the FAN is not on the display, then the FAN is in
Auto mode and will run only when necessary to heat
or cool.
8 Locked icon
Indicates the thermostat’s control buttons have
been locked.
6
5
5
8
7

15
Basic Operation

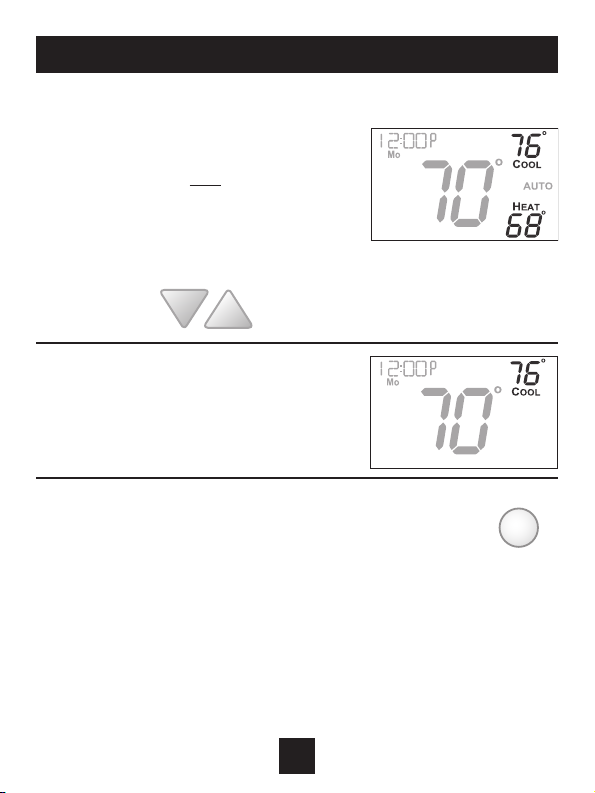

Selecting Your Desired Temperature (adjusting the setpoints)
Heat or Cool Mode
Auto-Changeover Mode
Pressing the WARMER or COOLER buttons in
Auto mode will adjust both the heat and cool
setpoints simultaneously. To adjust the heat
and cool setpoints individually, choose HEAT
mode to adjust the heat setpoint, and COOL
mode to adjust the cool setpoint, then return
to AUTO mode.
Pressing the UP or DOWN buttons in
Heat or Cool mode will adjust only the
heat or cool set temperature.
Adjust the desired set
temperature with these buttons
FAN
Using the Fan Button
Fan indicates constant fan operation. You may turn the fan on
even if the thermostat is in the OFF mode. Pressing the FAN button
toggles this feature on or off.
