Clinton 6361 User manual

USER MANUAL
POWER SERIES, BARIATRIC,
BLOOD DRAWING CHAIRS
Combine Load and Force Capacity: 850 lbs. (385.55 kg)
Model Numbers: 6361, 6362, 6361-665 & 6363-665
Limited Warranty
ON FRAME &
ELECTRICAL
COMPONENTS
Limited
Warranty
3
.
75

Important Information................................................................................................................................ 2
Motor Specifications ................................................................................................................................... 2
Safety ......................................................................................................................................................... 3
Parts .......................................................................................................................................................... 3
General Specifications................................................................................................................................. 4
Important Electrical Warnings ..................................................................................................................... 4
Unpacking & Setup .................................................................................................................................... 4
Leveling...................................................................................................................................................... 5
Operation................................................................................................................................................... 5
Cleaning..................................................................................................................................................... 6
Trouble Shooting ........................................................................................................................................ 6
Limited Warranty ........................................................................................................................................ 7
IMPORTANT INFORMATION:
CONTENTS
Clinton Power Series, Bariatric, Blood Drawing Chairs, models 6361, 6362, 6361-665 & 6362-665 are designed
to be used to accommodate patients for the purpose of phlebotomy procedures and select procedures where
the load capacity or load and force is not greater than 850 pounds (385.55 kg).
It is extremely important for medical professionals to read and become familiar with all the chair’s features,
functions, controls and electrical warnings BEFORE putting the chair into service.
Patients should not be left in the chair unattended. Chair should be operated only by a trained medical
attendant. Patients should not operate the chair while in the chair.
SERVICE
If your Clinton Power Series, Bariatric, Blood Drawing Chairs, models 6361, 6362, 6361-665 & 6362-665, should
fail operating for any reason, Please call Clinton Industries for assistance in diagnosing the problem and having
your equipment serviced, if necessary.
Please provide the following information before calling Clinton regarding any in or out of warranty problem.
Date of Purchase:
Serial Number:
Model Number:
Dealer/Distributor:
Dealer/Distributor Phone:
Dealer/Distributor Address:
2
Model Number and
Serial Number are
located on the
back side of the power
column
MOTOR SPECIFICATIONS
Clinton Industries Power Series, Bariatric, Blood Drawing Chairs use motors and power supplies that meet
UL 60601-1 and CAN/CSA C22.2 601.1.
120VAC 50-60hz 2000N push Duty cycle 10 % 1 min. of constant use out of every 9 minutes

It is extremely important that all precautions regarding safe use of Clinton Power Series, Bariatric, Blood Drawing
Chairs, models 6361, 6362, 6361-665 & 6362-665, be strictly observed to insure the safety of both patient and
healthcare professional.
Identifying the part of the Power Series, Bariatric, Blood Drawing Chairs, models 6361, 6362, 6361-665 & 6362-665,
can be very important when operating the chair or when reporting a problem.
Power Series, Bariatric, Blood Drawing Chairs, Models 6361-665 & 6362-665, are the same except they
have ClintonClean™flip arms instead of padded flip arms.
Pay particular attention to Cautions and Warnings throughout this manual.
Potentially hazardous and harmful situations to users, patients and property can
occur if these cautions and warnings are ignored.
PARTS
SAFETY
Premium,
Upholstery
Premium,
Upholstery
Seat Seat
Padded
Backrest Padded
Backrest
Seat
Flip Arm One-Piece Plastic
Drawer with
ClintonClean™
Top
Flip Arm Flip Arm
Levelers Levelers
Base Base
Foot Control Foot Control
Power Columns Power Columns
3
,

IMPORTANT ELECTRICAL WARNINGS
GENERAL SPECIFICATIONS
UNPACKING & SETUP
Models 6361 & 6361-665
Total Load Capacity (including force).......... 850 lbs.
Overall Width .................................................... 45"
Overall Depth .................................................... 32"
Seat Height Range ..........................211/2" to 291/2"
Arms Height Range.............................................. 8"
Models 6362 & 6362-665
Total Load Capacity (including force).......... 850 lbs.
Overall Width .................................................... 52"
Overall Depth .................................................... 32"
Seat Height Range ..........................211/2" to 291/2"
Arms Height Range.............................................. 8"
Storage & Transportation
Temperature................................. 20º F to 150º F
Humidity .........................................-10% to 90%
Operation
Temperature................................. 50º F to 100º F
Humidity .......................................... 30% to 75%
All Clinton Power Series, Bariatric, Blood Drawing Chairs ship fully assembled. However, care should be taken
when unpacking the chair so as not to damage the equipment.
BEFORE STARTING TO UNPACK THE EQUIPMENT inspect the boxes for damage that may have occurred during
the shipping process. Clinton uses every packaging option available to insure that equipment arrives at its
destination in factory condition, however, Clinton Industries has no control over third party handling once it
leaves our facilities. Report any visible damage to Clinton and the shipping carrier immediately.
After the package is inspected for visible damage, follow the unpacking steps below.
CAUTION: Do not use a knife or other sharp object that may puncture or damage the upholstery
during the unpacking process.
CAUTION: Clinton Power Series, Bariatric, Blood Drawing Chairs are heavy. Clinton Industries
recommends two reasonably strong individuals using proper lifting techniques to lift or move
the chair. Not using the recommended number of movers may result in injury to the persons
attempting to lift or move the equipment.
CAUTION: Always lift the chair by the metal frame to avoid damage to the equipment.
WARNING: When performing any procedure that requires use of electrical instruments or equipment,
the patient must be insulated from the metal portions of the chair with non conductive material.
Failure to do so mat result in electrical shock or injury to the patient or attendant.
WARNING: Always use 110v, 60hz alternating current. Failure to use the proper electrical connection
may result in electric shock to patient and attendant and will result in damage to the equipment.
WARNING: Never use this chair in oxygen rich or other explosive environment. Failure to do so
could result in flash fire or explosion which could result in serious injury or death.
4

5
LEVELING
OPERATION
FOOT CONTROLLER
Clinton Power Series, Bariatric, Blood Drawing Chairs are
controlled with a foot-operated, wired controller.
1. Press the minus (–) side of the controller with slight foot
pressure for Down motion.
2. Press the plus (+) side of the controller with slight foot
pressure for Up motion.
The chair may be stopped and used at any position.
CLEAN BEFORE USING
It is important to thoroughly clean the chair according to facility standards before it is put into service.
See cleaning suggestions on page 6.
PLEASE READ
IMPORTANT OPERATING INSTRUCTIONS
The dual columns on Clinton Power Series, Bariatric, Blood Drawing Chairs are designed to
self-adjust to level the load. It is important to return the chair to its lowest position after
each use to reset the relationship between the columns. Failure to do so could result in the chair
being unresponsive to a lift command. If this happens, lower the chair to its lowest position to reset
the column relationship.
For optimum performance and patient safety, all Clinton Power
Series, Bariatric, Blood Drawing Chairs should be on a clean,
level non-slip surface. Once the chair is in the desired location,

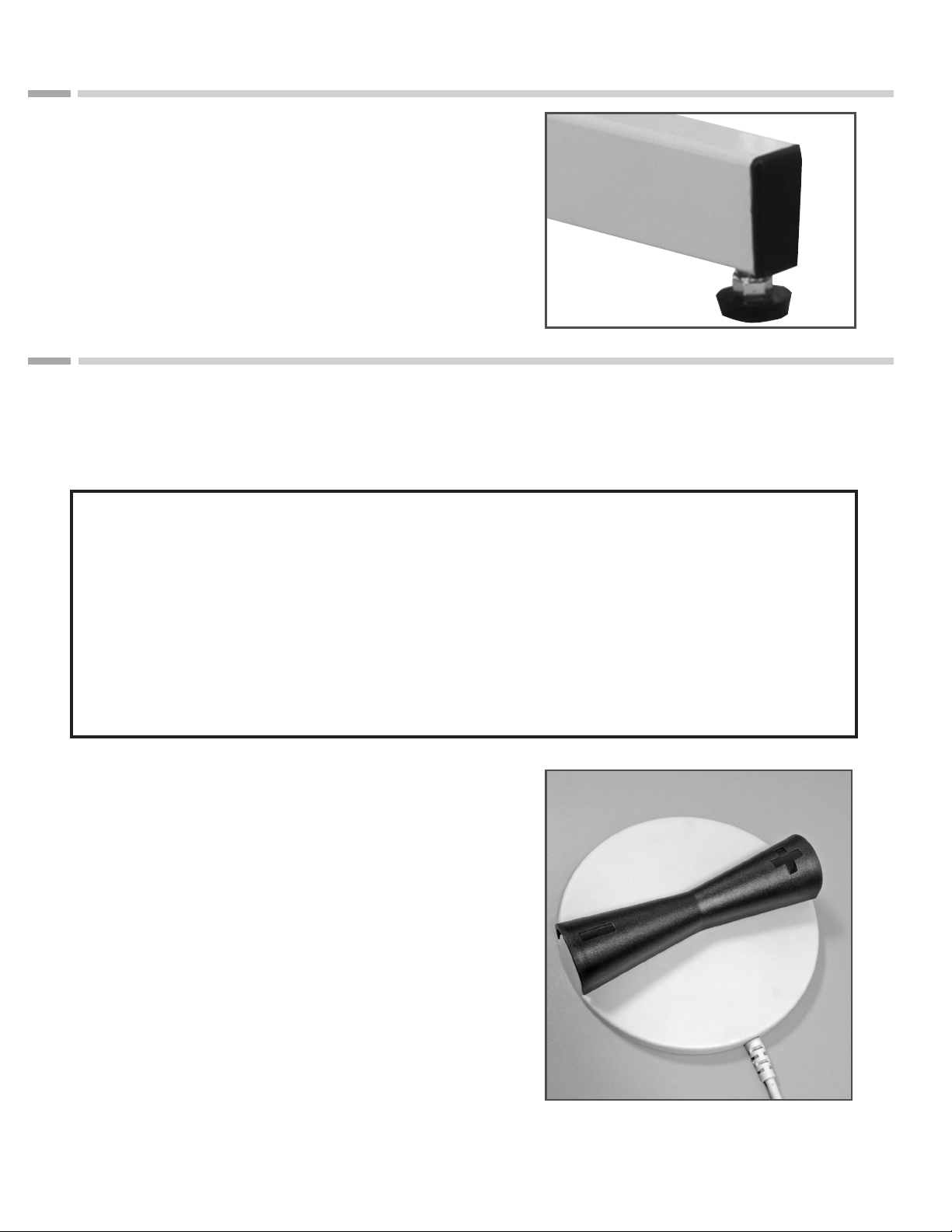

level it by adjusting the four leveling feet on the base. Turn the
feet counter clockwise to decrease the height and clockwise to
increase the height of the leg. Make certain that the chair is level
in all directions and that it does not wobble or rock.

6
PROBLEM: Chair stopped, won't respond to controller.
SOLUTION: Reset the lift power sources.
TROUBLE SHOOTING

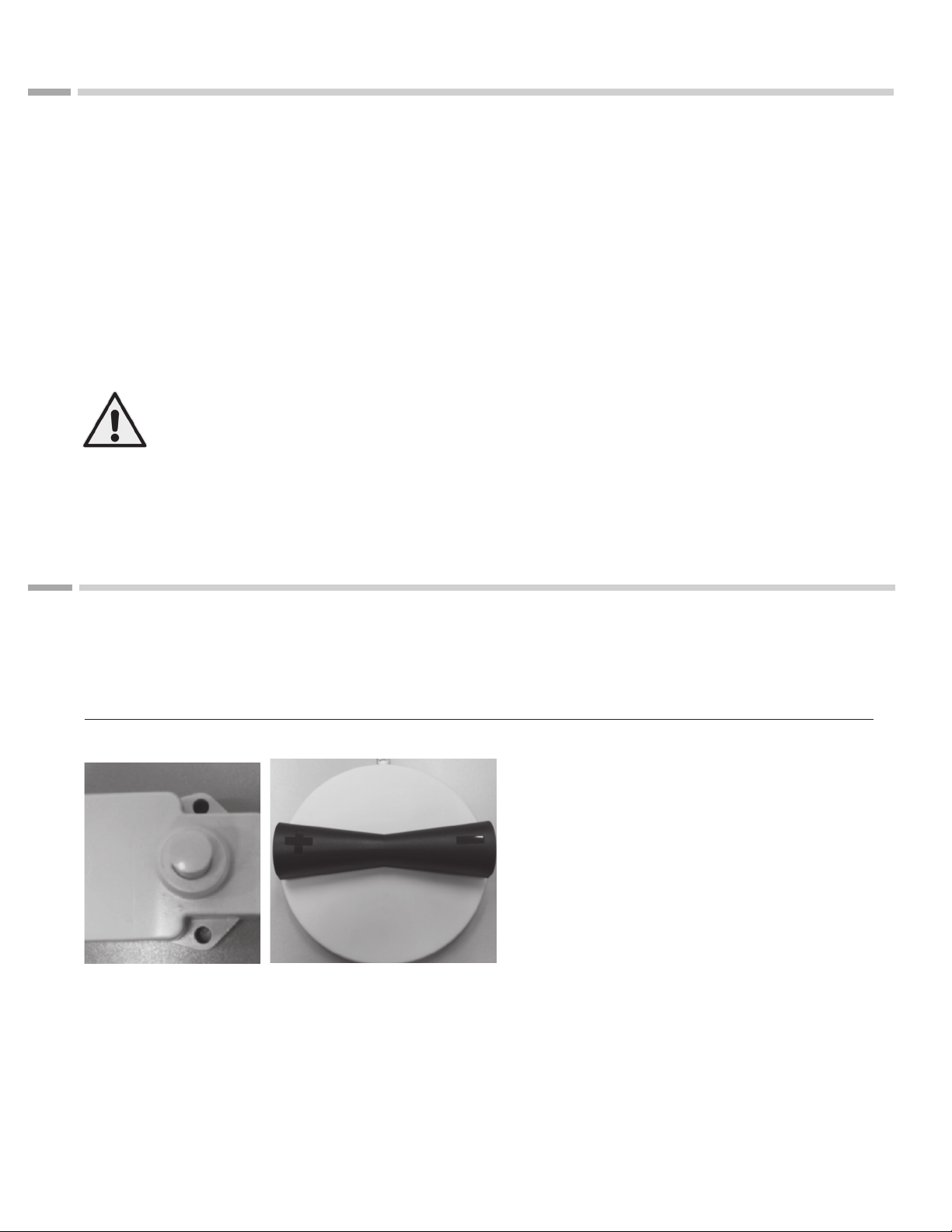

a.) Locate Reset button, usually in the left front of
the chair underneath the seat, See reset button
photo.
b.) Push and hold the reset button, you will hear a
fast pace beeping.
c.) When the pace of the beeping slows down,
release the reset button.
d.) Alternate pressing the PLUS and MINUS
buttons, on the foot control, for about
1 second each. This will drive each column
down individually, so as to not bind the chair/
columns. When the columns are all the way
down the beeping will stop. See controller
photo.
e.) Your chair should be reset and operate correctly
Resetting the Power Source
Foot Controlled Dual Column Chairs
Reset Button Controller
METAL
Metal frame should be cleaned according to facility antimicrobial standards and dried with a clean soft cloth.
Never use abrasive cleaners or scrubbing implements on painted surfaces.
UPHOLSTERY
Clinton uses only premium vinyl for upholstery, however, care should be taken when cleaning to ensure that the
upholstery or color is not affected by the cleaning agent. Use only mild cleaning agents on upholstery. Clinton
recommends using a 1 to 1 mix of ammonia and water or a 1 to 4 mix of bleach and water. Rinse thoroughly
with clean water and pat surface dry. This is not a guarantee and does not relieve the user from responsibility of
the proper and safe use of all cleaning agents. Test on inconspicuous area prior to using any cleaning agent on
upholstery's visible surface. Certain cleaning agents can be harmful to the surface.
WARNING: Always clean surfaces that come in contact with pathogens or infectious materials
according to standard procedures of your particular healthcare or therapy facility. Although Clinton
recommends a cleaning solution it is not a guarantee that it will meet with your facility’s standards
or state, federal and local standards for treatment and cleaning of areas and equipment that may be
exposed to pathogens and infectious materials.
CLEANING

7
LIMITED WARRANTY
To the original purchaser only, Clinton Industries warrants manufactured products to be free of
defects in materials, workmanship or design under normal use and service conditions for five
years on all mechanical products, all electric equipment and support items, from the date of
purchase. Original purchaser MUST REGISTER THIS WARRANTY by mail or online at
www.clinton-ind.com/warranty within 30 days of purchase to claim benefits offered by this warranty. Failure to
register your product with in the allotted time voids all offers and benefits of this warranty.
If the product and/or equipment should become defective within the first year of the warranty period, Clinton
Industries will repair or replace it (at our discretion) free of charge, including return transportation to you provided
you deliver the equipment or product prepaid to Clinton Industries located at 1140 Edison St, York, PA, 17403. If
replacement parts are deemed necessary by Clinton Industries within (1) one year of the purchase date, all new
parts and shipping will be covered by Clinton Industries. Thereafter in warranted years (2) two through (5) five, all
shipping charges of replacement parts or replacement product (at our discretion) covered under this warranty will
be the responsibility of the purchaser.
Please receive authorization before returning product to the factory, as Clinton Industries will not accept collect
shipments. Clinton Industries reserves the right to repair or replace component parts without return of the entire
unit. Service can be conducted on Clinton power equipment by a trained, fully self-insured, professional service
technician.
This warranty does not include damage resulting from accident, abuse or misuse of the product and expressly
excludes normal wearing of parts (including but not limited to vinyl) or defect caused by transportation, accident,
fire, flood, improper assembly, alteration, or negligence. In addition all representations and warranties made by any
person or entity other than Clinton Industries main office is excluded from this warranty.
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to five years
from purchase and all implied warranties are expressly excluded to the extent permitted by law and are otherwise
limited to the terms of express warranties as set forth above. This is the exclusive remedy, and law for consequential
or incidental damages under any and all warranties is excluded to the extent exclusion permits liability.
This warranty does not cover or compensate for any loss of use damages that may occur as a result of failure of
equipment covered under this warranty.
Clinton industries reserves the right to alter or change equipment without prior notice and to repair or replace
warranted equipment with new parts or new products.
Note: Exceeding the recommended weight capacity of any Clinton product with stationary weight or a total
combined weight consisting of stationary weight and applied force under normal intended or unintended use voids
this and all implied or stated warranties.
Limited Warranty
ON FRAME &
ELECTRICAL
COMPONENTS
Limited
Warranty

© Copyright 2015, Clinton Industries, Inc.
800-441-9131 • 717-848-3519
Toll-Free Fax 866-522-1233
Fax 717-843-5871
www.clinton-ind.com
676099-10000 REV A
