CM LODESTAR User manual

UNIVERSAL
TROLLEY
Follow all instructions and warnings for inspecting,
maintaining and operating this trolley.
The use of any trolley presents some risk of personal injury
or property damage. That risk is greatly increased if proper
instructions and warnings are not followed. Before using this
trolley, each operator should become thoroughly familiar
with all warnings, instructions and recommendations in this
manual. Retain this manual for future reference and use.
Forward this manual to the trolley operator. Failure to
operate the equipment as directed in this manual may cause
injury. Should you have any questions regarding this
product, please call Columbus McKinnon.
The hoisting equipment described in this manual is
intended for industrial use only and should not be used
to lift, support or otherwise transport people.
GENERAL INFORMATION:
ANSI B30.11 compliant. The UT series trolleys are designed
to be used with several Columbus McKinnon hoists up to
a capacity of 3 metric tons. Safety lugs, machined wheels
and sealed bearings are included with each trolley.
Rubber bumpers are available as an option.
LOAD RATINGS:
Before installing, make certain the capacity of the hoist does not
exceed the capacity of the trolley and the supporting structure is
capable of supporting the load, hoist and trolley.
INSTALLATION:
Adjustable ange width ranges are 2.3" to 8.6" and may be
mounted on either American Standard Beams or Wide-Flange
Beams. Proper adjustment is obtained by positioning the washers
and spacers to achieve a beam to wheel ange spacing of
approximately 1/16". See pages 4 and 5 of this manual for
recommended guidelines.
MAINTENANCE / INSPECTION:
The trolley should be inspected periodically for evidence of excess
wear or overload and its continued ability to support the load.
The frequency of inspection will depend on the severity of use.
It is recommended that the user begin with a monthly inspection
and extend periods to quarterly, semi-annually or annually based
on monthly experience. Any worn parts should be replaced
immediately. The trolley should be visually inspected for the
following conditions: loose hardware, sideplate damage or bending,
cracks or distortion, wheel wear or cracks and worn bearings.
OPERATING, MAINTENANCE
& PARTS MANUAL
Available in 1t, 2t & 3t capacities •Plain or Geared-Type
P/N 33339401 Rev AB August 2018

CM HOIST PARTS AND SERVICES ARE AVAILABLE IN
THE UNITED STATES AND IN CANADA
As a CM Hoist and Trolley user you are assured of reliable repair and parts services through a network of
Master Parts Depots and Service Centers that are strategically located in the United States and Canada.
These facilities have been selected on the basis of their demonstrated ability to handle all parts and repair
requirements promptly and efciently. To quickly obtain the name of the Master Parts Depot or Service Center
located nearest you, call (800) 888-0985, Fax: (716) 689-5644, visit HYPERLINK "http://www.cmworks.com"
www.cmworks.com.
LAS PIEZAS Y REPARACIONES DE LOS POLIPASTOS DE CM ESTÁN
ASEGURADAS EN ESTADOS UNIDOS Y CANADÁ
Como usuario de un polipasto y carro de CM le aseguramos cualquier reparación o la disponibilidad de
cualquier pieza de repuesto a través de una red de almacenes de piezas de repuesto y centros de servicio
situados estratégicamente en Estados Unidos y Canadá. Estas instalaciones se han seleccionado en base
a su capacidad demostrada en la reparación de equipos y suminstro de piezas de repuesto de forma rápida
y ecaz. Para obtener la dirección del almacén de piezas de repuesto o del centro de servicio más cercano,
llame al teléfono (800) 888-0985. Fax: (716) 689-5644, visita HYPERLINK "http://www.cmworks.com"
www.cmworks.com (sólo en Estados Unidos y Canadá).
LE SERVICE DE RÉPARATION ET DE PIÈCES POUR PALANS CM
EST DISPONIBLE AUX ÉTATS-UNIS ET AU CANADA
Soyez assurés qu'en temps d'utilisateur de palan et treuil CM, d'un service de réparation et de pièces able
par l'entremise d'un réseau de Centres de service et de Dépôts de pièces maîtresses qui sont stratégiquement
situés aux États-Unis et au Canada. Ces établissements ont été sélectionnés sur une base de leur habileté
démontrée à s'occuper promptement et efcacement des besoins de réparation de pièces. Appelez le (800)
888-0985, Fax: (716) 689-5644, visite HYPERLINK "http://www.cmworks.com" www.cmworks.com pour
obtenir rapidement le nom du dépôt de pièces maîtresses ou du centre de service situé le plus près.
P/N 33339401 Rev AB August 2018

3
UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018
General Information ................................................................ 1
Load Ratings ............................................................................ 1
Installation ................................................................................ 1
Maintenance / Inspection ....................................................... 1
Electric/Air Hoist Suspension Kits ......................................... 3
UT Washer & Spacer Placement ........................................ 4-5
UTG Geared Hand Drive Installation ...................................... 6
UT Parts List ............................................................................ 7
Declaration of Conformity ...................................................... 8
TABLE OF CONTENTS

4
UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018

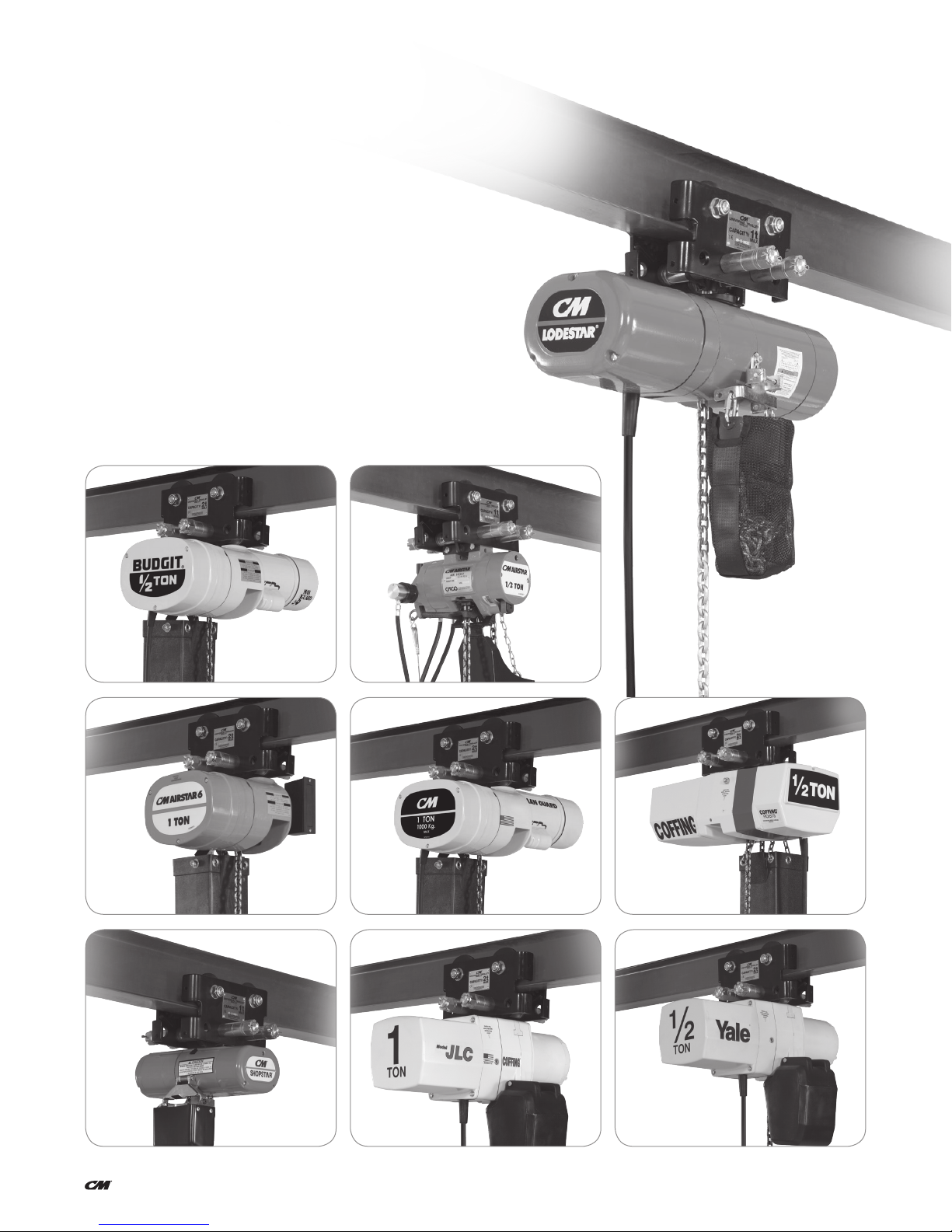

ELECTRIC/AIR HOIST SUSPENSION KITS
HOIST REEVING MOUNTING POSITION TROLLEY SUSPENSION KIT
CM SHOPSTAR / CM SHOPAIR / COFFING SLC / COFFING SLA /
LITTLE MULE SLM / BUDGIT SHOPHOIST / BUDGIT SERIES 600 1 & 2 CROSS UT1 20655K
CM LODESTAR (CLASSIC) (V1) (Small Frame) 1 PARALLEL UT1 2992UT
CM LODESTAR (CLASSIC) (V1) (Small Frame) 1 CROSS UT1 2992UTC
CM LODESTAR (CLASSIC) (V1) (Small Frame) 2 CROSS OR PARALLEL UT1 2993UT
CM LODESTAR (CLASSIC) (V2) (Large Frame) 1 CROSS OR PARALLEL UT2 3677UT
CM LODESTAR (CLASSIC) (V2) (Large Frame) 2 CROSS OR PARALLEL UT2 3668UT
CM LODESTAR (CLASSIC) (V2) (Large Frame) 3 CROSS OR PARALLEL UT3 9561UT
CM LODESTAR (NH) (V1) (Small Frame) 1 PARALLEL UT1 2992NHUT
CM LODESTAR (NH) (V1) (Small Frame) 1 CROSS UT1 2992NHUTC
CM LODESTAR (NH) (V1) (Small Frame) 2 CROSS OR PARALLEL UT1 2993NHUT
CM LODESTAR (NH) (V2) (Large Frame) 1 CROSS OR PARALLEL UT2 3677NHUT
CM LODESTAR (NH) (V2) (Large Frame) 2 CROSS OR PARALLEL UT2 3668NHUT
CM LODESTAR (NH) (V2) (Large Frame) 3 CROSS OR PARALLEL UT3 9561NHUT
CM LODESTAR (RRS) 1 PARALLEL UT2 33337951
CM LODESTAR (RRS) 1 CROSS UT2 33337951
CM MAN GUARD / BUDGIT BEHC / YALE KELC 1 CROSS OR PARALLEL UT2 23456925
CM MAN GUARD / BUDGIT BEHC / YALE KELC 2 CROSS UT2 32560625
CM MAN GUARD / BUDGIT BEHC / YALE KELC 2 PARALLEL UT2 32560626
CM MAN GUARD / BUDGIT BEHC / YALE KELC 3 CROSS OR PARALLEL UT3 50796125
CM AIRSTAR 6 / BUDGIT 6000 / YALE KALC / COFFING CAH (Large Frame) 1 CROSS OR PARALLEL UT2 23456925
CM AIRSTAR 6 / BUDGIT 6000 / YALE KALC / COFFING CAH (Large Frame) 2 CROSS UT2 32560625
CM AIRSTAR 6 / BUDGIT 6000 / YALE KALC / COFFING CAH (Large Frame) 2 PARALLEL UT2 32560626
CM AIRSTAR 6 / BUDGIT 6000 / YALE KALC / COFFING CAH (Large Frame) 3 CROSS OR PARALLEL UT3 50796125
BUDGIT 2200 / COFFING CAH (Small Frame) / CM AIRSTAR / YALE YAL 1 CROSS UT1 23561201
BUDGIT 2200 / COFFING CAH (Small Frame) / CM AIRSTAR / YALE YAL 1 PARALLEL UT1 23561202
BUDGIT 2200 / COFFING CAH (Small Frame) / CM AIRSTAR / YALE YAL 2 CROSS UT1 23561203
BUDGIT 2200 / COFFING CAH (Small Frame) / CM AIRSTAR / YALE YAL 2 PARALLEL UT1 23561204
COFFING JLC / LITTLE MULE FLC / YALE YJL 1 & 2 PARALLEL UT2 33337901
COFFING JLC / LITTLE MULE FLC / YALE YJL 1 & 2 CROSS UT2 33337901C
COFFING EC1 1 & 2 CROSS OR PARALLEL UT2 33337902
COFFING EC1 3 CROSS OR PARALLEL UT3 33337903
COFFING EC3 (3t Max.) (Plain Only) 1 & 2 CROSS OR PARALLEL UT3 33337904
The CM Universal Trolley is designed to suspend several electric and air chain hoist models that are part
of the CMCO family of brands. Select the appropriate Suspension Kit for your specic hoist listed below.

5
UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018

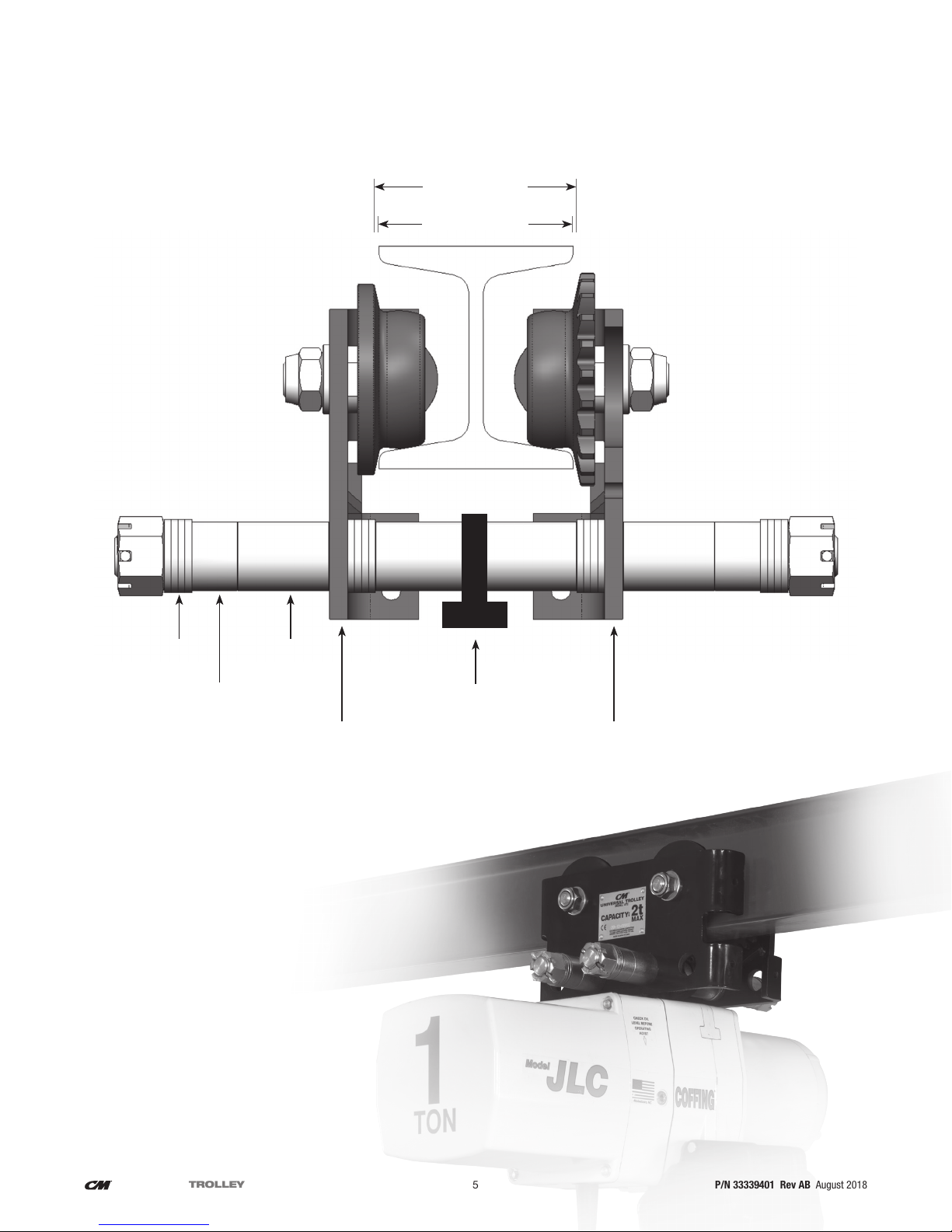

UT WASHER & SPACER PLACEMENT
WASHER
(W)
LONG SPACER
(LS)
LUG ADAPTER
SHORT SPACER
(SS)
Due to the variations in beam ange widths,
it is suggested that the beam ange width be
measured to determine the exact distribution
of washers and spacers. The distance
between trackwheel anges should be 1/8 to
3/16 inch greater than the beam ange width
for straight runway beams and 3/16 to 1/4 inch
greater than the beam ange width if runway
system includes sharp curves. Also, the use of
other than CM supplied washers and spacers
may result in trackwheel to beam ange
variations and thus the recommendations in
the following tables will not apply.
BEAM
FLANGE WIDTH
TRACKWHEEL
FLANGE WIDTH
SIDEPLATE SIDEPLATE

6
UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018
Each washer/spacer chart shows the available trackwheel ange width setting from minimum to maximum. To center
the hoist under the beam, use the same amount of washers and spacers between the lug adapter and sideplates.
The amount of washers and spacers on the outside of the sideplates does not have to be the same.
Note: For triple-line Man Guard, omit one long spacer per side of the lug adapter.
Example using a UT1 model:
Measure your beam ange width
- 4.94".
In the trackwheel ange width
column, the measured beam size is
between 4.89" and 5.12". Always
use the larger setting – 5.12".
The 5.12" setting requires 1-LS
(long spacer), 1-SS (short spacer)
and 4-W (washers) between the lug
adapter and sideplates.
The total clearance distance will
be 5.12" - 4.94" = 0.18". If the
application requires more clearance,
move to the next larger setting-
5.36".
CAUTION: The installer must
conrm that the trolley will remain
on straight sections of beam at
increased clearance settings.
UT WASHER & SPACER PLACEMENT (CONTINUED)
TRACKWHEEL
FLANGE WIDTH
(in.)
NUMBER OF WASHERS & SPACERS
W SS LS
SIDEPLATE
W SS LS
LUG ADAPTER
LS SS W
SIDEPLATE
LS SS W
2.45 711 001 100 117
2.68 611 101 101 116
2.92 511 201 102 115
3.16 411 301 103 114
3.39 311 401 104 113
3.63 211 501 105 112
3.86 111 601 106 111
4.18 701 011 110 107
4.42 601 111 111 106
4.65 501 211 112 105
4.89 401 311 113 104
5.12 301 411 114 103
5.36 201 511 115 102
5.60 710 002 200 017
5.83 610 102 201 016
6.07 510 202 202 015
6.31 410 302 203 014
6.54 310 402 204 013
6.78 210 502 205 012
7.01 110 602 206 011
7.33 700 012 210 007
7.57 600 112 211 006
7.80 500 212 212 005
8.04 400 312 213 004
8.27 300 412 214 003
8.51 200 512 215 002
8.75 100 612 216 001
UT1 MODEL
TRACKWHEEL
FLANGE WIDTH
(in.)
NUMBER OF WASHERS & SPACERS
UT2 UT3 W SS LS
SIDEPLATE
W SS LS
LUG ADAPTER
LS SS W
SIDEPLATE
LS SS W
2.45 2.46 611 001 100 116
2.76 2.78 511 101 101 115
3.08 3.09 411 201 102 114
3.39 3.41 311 301 103 113
3.71 3.72 211 401 104 112
4.02 4.04 601 011 110 106
4.34 4.35 501 111 111 105
4.65 4.67 401 211 112 104
4.97 4.98 301 311 113 103
5.28 5.30 201 411 114 102
5.60 5.61 610 002 200 016
5.91 5.93 510 102 201 015
6.23 6.24 410 202 202 014
6.54 6.56 310 302 203 013
6.86 6.87 210 402 204 012
7.17 7.19 600 012 210 006
7.49 7.50 500 112 211 005
7.80 7.82 400 212 212 004
8.12 8.13 300 312 213 003
8.43 8.45 200 412 214 002
8.75 8.76 100 512 215 001
UT2 & UT3 MODELS

7
UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018
UTG GEARED HAND DRIVE IN-
STALLATION
The CM Universal Trolley is available in both plain and geared trolley
models. The CM UT is designed to be easily converted from plain to
geared in the eld. Simply attach the appropriate geared hand drive
assembly to the geared sideplate as shown.
Note: All hoists, except Shopstar / Shopair / SLC / SLA / SLM / Shophoist / Series 600, are to be parallel mounted when
using geared hand drive assembly.
UNIVERSAL TROLLEY GEARED HAND DRIVE
ASSEMBLY
GEARED HAND DRIVE
ASSEMBLY
INSTRUCTIONS:
1) Position hand drive assembly onto trolley as shown
2) Install (3) lock washers and (3) hex bolts
3) Tighten each hex bolt to 19-24 Nm [14-18 ft./lb.]
For UT1G & UT2G, use Geared Hand Drive Assembly 11843110
For UT3G, use Geared Hand Drive Assembly 33336310
For Motorized Universal Trolley, contact factory
KIT PART NUMBER DESCRIPTION
UT1 UT2 UT3
11843110 11843110 33336310 GEARED HAND DRIVE ASSEMBLY
* Hand chain and connector link are included with this kit (not shown).
Hand chain part number: 04307654.
Connecting link part number: 00404733.
GEARED HAND DRIVE ASSEMBLY KITS*
KIT PART NUMBER DESCRIPTION
51703230 for 30 ft. lift hoist
51703240 for 40 ft. lift hoist
51703250 for 50 ft. lift hoist
CHAIN EXTENSION KITS**
** This kit extends the standard hand chain furnished
with trolley, which is in proportion to a 20' lift hoist.

8

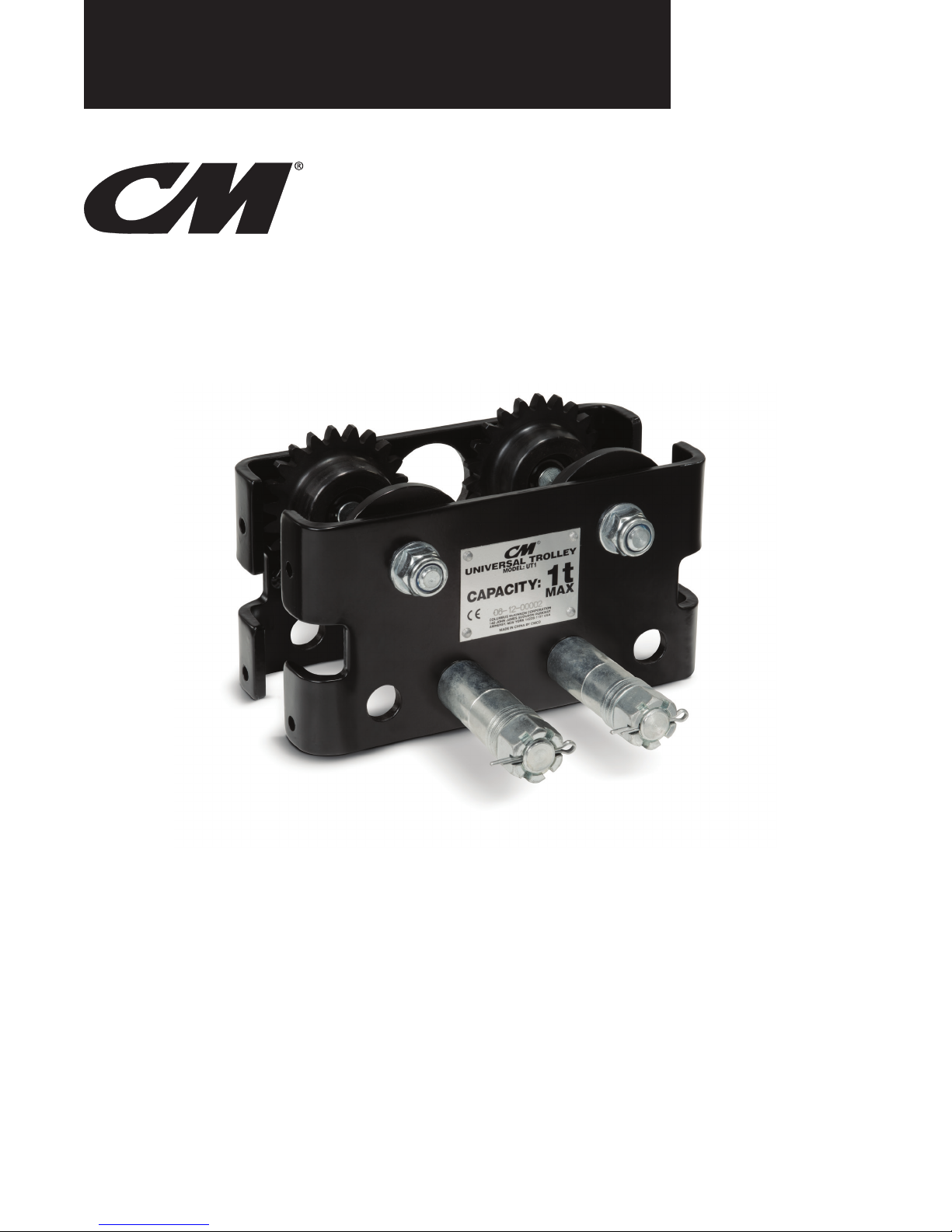

UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018
UT PARTS LIST
ITEM
NUMBER
PART NUMBER DESCRIPTION KIT CONTENTS
UT1 UT2 UT3
111843108 23554608 33336308 SIDEPLATE KIT, GEARED 2 - geared wheels, 1 - geared sideplate, 2 (UT1 & UT2) or 4 (UT3) - bearings,
4 - retaining rings, 2 - axles, 2 - nuts and 2 - washers
20508211A 0508212A 0508213A WHEEL ASSEMBLY, GEARED 1 - geared wheel, 2 - retaining rings, 1 (UT1 & UT2) or 2 (UT3) - bearings,
1 - axle, 1 - washer and 1 - nut
311842001 11842003 11842007 SPACER KIT, LONG 8 - long spacers
411843101 23554601 33336301 SUSPENSION PIN KIT 2 - suspension pins
511842002 11842004 11842008 SPACER KIT, SHORT 4 - short spacers
60508207A 0508208A 0508209A WHEEL ASSEMBLY, PLAIN 1 - plain wheel, 2 - retaining rings, 1 (UT1 & UT2) or 2 (UT3) - bearings,
1 - axle, 1 - washer and 1 - nut
711843107 23554607 33336307 SIDEPLATE KIT, PLAIN 2 - plain wheels, 1 - plain sideplate, 2 (UT1 & UT2) or 4 (UT3) - bearings,
4 - retaining rings, 2 - axles, 2 - nuts and 2 - washers
811843102 23554602 33336302 NAMEPLATE KIT 1 - nameplate and 4 - drive screws
911843104 23554604 33336304 HARDWARE KIT 28 (UT1) or 24 (UT2 & UT3) - suspension pin washers,
4 - slotted nuts and 4 - cotter pins
1
2
3
4
5
6
7
BEAM
1/16"
8
9
Optional rubber bumper shown
Kit Number: 33337905
9
See page 3 for hoist
top suspension kit

9
UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018
NOTES

10
UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018
NOTES

11
UNIVERSAL TROLLEY P/N 33339401 Rev AB August 2018
INDEMNIFICATION AND SAFE OPERATION
Buyer shall comply with and require its employees to comply with direc-
tions set forth in instructions and manuals furnished by Seller and shall
use and require its employees to follow such instructions and manuals and
to use reasonable care in the use and maintenance of the goods and any
replacement parts. Buyer shall not remove or permit anyone to remove any
warning or instruction signs on the goods or replacement parts. In the event
of personal injury or damage to property or business arising from the use of
the goods or replacement parts, Buyer shall within 48 hours thereafter give
Seller written notice of such injury or damage. Buyer shall cooperate with
Seller in investigating any such injury or damage and in the defense of any
claims arising therefrom.
If Buyer fails to comply with this section or if any injury or damage is
caused, in whole or in part, by Buyer’s failure to comply with applicable
federal or state laws, rules or regulations safety requirements, Buyer shall
indemnify and hold Seller harmless against any claims, loss or expense
for injury or damage arising from the use of the goods and/or replacement
parts.
CMCO Warranty (HOISTS)
A. Columbus McKinnon Corporation (“Seller”) warrants to the original end
user (“Buyer”) that, for a period of one (1) year from the date of Seller’s
delivery of the goods (collectively, the “Goods”) to the carrier, the Goods
will be free from defects in workmanship and materials. (b) for a period
of three (3) years from the date of Seller’s delivery of the Goods to the
carrier, the brake discs on the Goods will be free from defects in work-
manship and materials; and (c) for the life of the Goods, the mechanical
components including, without limitation, the sidewinder hoist lever, of
the Goods (other than the brake discs on the Goods) will be free from
defects in workmanship and materials. . In addition, Seller warrants to
Buyer that, for a period of one (1) year from the date of their delivery by
Seller to the carrier, any aftermarket or replacement parts, accessories or
components purchased by Buyer with respect to any Goods (collectively,
“Replacement Parts”) will be free from defects in workmanship and
materials.
B. IN THE EVENT OF ANY BREACH OF ANY SUCH WARRANTY, SELLER’S
SOLE OBLIGATION SHALL BE EXCLUSIVELY LIMITED TO, AT THE OPTION
OF SELLER, REPAIR OR REPLACEMENT, F.O.B. SELLER’S POINT OF
SHIPMENT, OF ANY GOODS OR REPLACEMENT PARTS THAT SELLER
DETERMINES TO HAVE BEEN DEFECTIVE OR, IF SELLER DETERMINES
THAT SUCH REPAIR OR REPLACEMENT IS NOT FEASIBLE, TO A RE-
FUND OF THE PURCHASE PRICE UPON RETURN OF THE GOODS OR
REPLACEMENT PARTS TO SELLER. NO CLAIM AGAINST SELLER FOR
ANY BREACH OF (i) SUCH WARRANTY WITH RESPECT TO THE ELECTRI-
CAL COMPONENTS OF ANY GOOD OR REPLACEMENT PARTS SHALL
BE VALID OR ENFORCEABLE UNLESS BUYER’S WRITTEN NOTICE
THEREOF IS RECEIVED BY SELLER WITHIN ONE (1) YEAR FROM THE
DATE OF SELLER’S DELIVERY TO THE CARRIER, (ii) SUCH WARRANTY
WITH RESPECT TO THE BRAKE DISCS OF ANY GOOD SHALL BE VALID
OR ENFORCEABLE UNLESS BUYER’S WRITTEN NOTICE THEREOF
IS RECEIVED BY SELLER WITHIN THREE (3) YEARS FROM THE DATE
OF SELLER’S DELIVERY TO THE CARRIER AND (iii) SUCH WARRANTY
WITH RESPECT TO THE MECHANICAL COMPONENTS, INCLUDING,
WITHOUT LIMITATION, THE SIDEWINDER HOIST LEVER, OF ANY GOOD
(OTHER THAN THE BRAKE DISCS ON ANY GOOD) SHALL BE VALID
OR ENFORCEABLE UNLESS BUYER’S WRITTEN NOTICE THEREOF IS
RECEIVED BY SELLER WITHIN ONE (1) YEAR FROM THE DATE ANY AL-
LEGED CLAIM ACCRUES. EXCEPT FOR THE WARRANTIES SET FORTH
ABOVE, SELLER MAKES NO OTHER WARRANTIES WITH RESPECT TO
THE GOODS OR ANY REPLACEMENT PARTS, WHETHER EXPRESSED
OR IMPLIED, INCLUDING ANY WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, QUALITY AND/OR THOSE ARIS-
ING BY STATUTE OR OTHERWISE BY LAW OR FROM ANY COURSE OF
DEALING OR USE OF TRADE, ALL OF WHICH ARE HEREBY EXPRESSLY
DISCLAIMED.
C. IN NO EVENT SHALL SELLER BE LIABLE TO BUYER OR ANY THIRD
PARTY WITH RESPECT TO ANY GOOD OR REPLACEMENT PART,
WHETHER IN CONTRACT, TORT OR OTHER THEORY OF LAW, FOR
LOSS OF PROFITS OR LOSS OF USE, OR FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, HOW-
SOEVER CAUSED. SELLER’S MAXIMUM LIABILITY TO BUYER WITH
RESPECT TO THE GOODS OR ANY REPLACEMENT PART SHALL IN
NO EVENT EXCEED THE PRICE PAID BY BUYER FOR THE GOODS OR
REPLACEMENT PART THAT ARE THE SUBJECT OF THE APPLICABLE
CLAIM.
D. Seller shall not be liable for any damage, injury or loss arising out of the use
of the Goods or any Replacement Part if, prior to such damage, injury or
loss, such Goods or Replacement Parts are: (1) damaged or misused follow-
ing Seller’s delivery to the carrier; (2) not maintained, inspected, or used in
compliance with applicable law and Seller’s written instructions and recom-
mendations; or (3) installed, repaired, altered or modied (a) with any part or
accessory other than those supplied by Seller or (b) without compliance with
such laws, instructions or recommendations.
E. This warranty is limited and provided only to the original end user. Each
Good and Replacement Part must be registered within sixty (60)
days of receipt of each product to establish eligibility. Please register
at www.cmworks.com/hoist-warranty-registration or submit registration
card via US mail.
F. Any action against Seller for breach of warranty, negligence or otherwise
in connection with the electrical components of any Good must be com-
menced by Buyer within one (1) year after: (a) the date any alleged claim
accrues; or (b) the date of delivery of the Goods to Buyer, whichever
is earlier. Any action against Seller for breach of warranty, negligence
or otherwise in connection with the brake discs on any Good must be
commenced by Buyer within three (3) years after: (y) the date any alleged
claim accrues; or (z) the date of delivery of the Goods to Buyer, whichever
is earlier. Any action against Seller for breach of warranty, negligence or
otherwise in connection with the mechanical components of any Good
(other than the brake discs on any Good) must be commenced by Buyer
within one (1) year after the date any alleged claim accrues. Any action
against Seller for breach of warranty, negligence or otherwise in connec-
tion with any Replacement Part must be commenced by Buyer within
one (1) year after: (y) the date any alleged claim accrues; or (z) the date of
delivery of the Replacement Part to Buyer, whichever is earlier.
G.This warranty is contingent upon Buyer’s proper maintenance and care
of the Goods and/or Replacement Part, and does not extend to normal
wear and tear. Seller reserves the right, at its option, to void this warranty
in the event of Buyer’s use with the Goods and/or Replacement Parts of
parts or accessories other than those supplied by Seller.
Alterations or modications of equipment and use of non-Seller
replacement parts can lead to dangerous operation and injury.
TO AVOID INJURY:
• Do not alter or modify equipment.
• Do use only replacement parts manufactured by seller.
WARRANTY
LIMITATION OF WARRANTIES, REMEDIES AND DAMAGES

Description: Trolley UT
Capacity: 1000 - 3000 kg
Machine Type: Hoisting equipment
Relevant EC Directives: EC Machinery Directive 2006/42/EC
Transposed harmonised
standards in particular:
ISO 12100-1:2003/A1:2009
ISO 12100-2:2003/A1:2009
EN 349:2008
Applied Standards: ASME B30.11 (Monorail Systems and Underhung Cranes)
Quality Assurance : ISO 9001
Date: 7.13.2012
Identification of the Signee:
David K. Huber
Director – Product Engineering Systems & Standards
Hoist and Rigging Americas
Columbus McKinnon Corporation
DECLARATION OF CONFORMITY
In accordance with Machinery Directive 2006/42/EC (Appendix II A)
We hereby declare, that the design, construction and
commercialized execution of the below mentioned
machine complies with the essential health and safety
requirements of the EC Machinery Directive. The validity
of this declaration will cease in case of any modication
or supplement not being agreed with us previously.
Furthermore, validity of this declaration will cease in case
that the machine will not be operated correctly and in
accordance with the operating instructions and/or not be
inspected regularly.
© 2018 Columbus McKinnon Corporation. All Rights Reserved. August 2018
33339401 – ECN 152060
USA: Ph: (800) 888.0985 •(716) 689.5400 •Fax: (716) 689.5644 •www.cmworks.com
CANADA: Ph: (877) 264.6478 •Fax: (877) 264.6477 •www.cmworks.com
UK: Ph: +44 1244 375375 • Fax: +44 1244 377403 • www.cmco.eu
Other manuals for LODESTAR
1
This manual suits for next models
14
Table of contents
Other CM Lifting System manuals
Popular Lifting System manuals by other brands

Sabaj
Sabaj K-1 Rotolift+AutoLid Assembly and operating manual

Arjo
Arjo Opera Operating and Product Care Instructions

MattressJack
MattressJack Basic Series Installation and user instructions

Bend-Pak
Bend-Pak XPR-10S Installation and operation manual

Bend-Pak
Bend-Pak PL-12000DP Installation and operation manual

SilverStar
SilverStar BACKPACKER MV owner's manual
