CMC 83 HD+ ARBOR PRO User manual

83HD+
CMC MODEL
ARBOR PRO
S
S
S
S
A
A
A
A
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B

UNIQUE FEATURES
• Only 35'' wide when retracted in
travel mode
•46' of unrestricted LATERAL REACH with
507lbs weight capacity
•83' of vertical reach
• Telescopic lower boom allows for 43' up
and over reach
• Upper boom articulates down to the
ground and reaches 20' below grade
• Vertically and horizontally adjustable
tracks provide 15'' of ground clearance
while driving the tracks

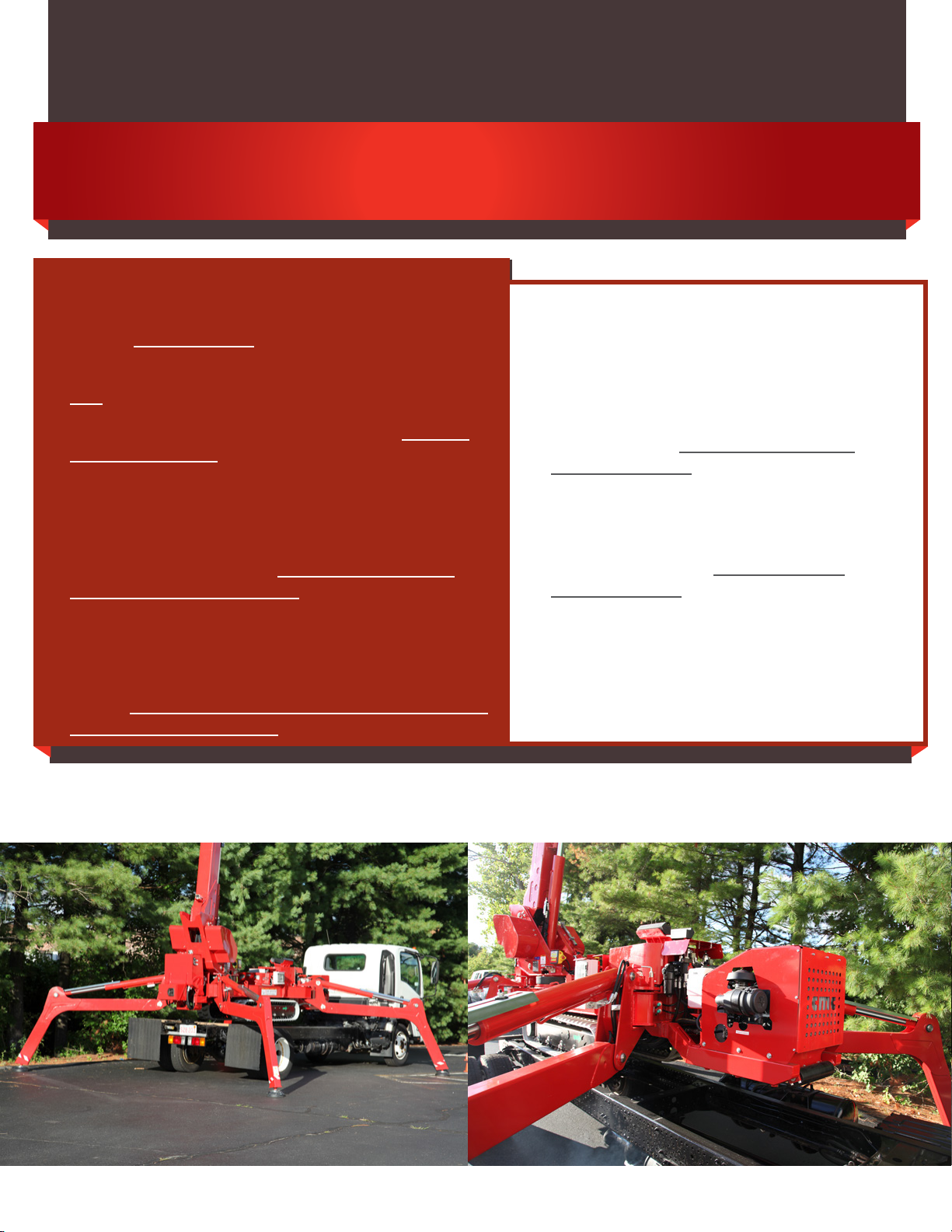

• Ability to setup and lift itself high enough
(43'')to self load onto the chassis of a
truck and use the lift directly from truck
• Up to 3 boom functions can be used at full
speed and same time
• Available one man fiberglass
basket. Interchange basket fast
with quick connect system
• Radio remote controls for all
functions on the ground
•All hydraulic hoses and cables
well protected on the entire lift. No
outside power tracks on the booms
with hoses or cables that can be
ripped out or caught
• Boom operation faster than a
bucket truck
•Rotating basket that allows full:
+/- 90°
• Weight of only 8,500lbs
• Rear mounted booms
83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]

Have questions? Get in touch with us at:
• FULL HYBRID AND LITHIUM
ION BATTERIES AVAILABLE
Gain 10x the number of charge
cycles with the highest quality,
full hybrid and lithium ion
batteries. Plug in anytime,
anywhere and get 4,000 to
4,500 charge cycles!
• One button “Go home” feature
for automatic boom park
•Independently movable 135°
articulating jib
• Greaseless booms with Teflon
wear pads, self-lubricating
teflon bushings and grease
fittings in every pivot point
• Short length of only 19'6'' –
capable of fitting inside a 20'
freight elevator
•Rotating turret +/- 400° (non-
continuous)
Office: [phone]
www.slaymakergroup.com
[email protected]

STANDARD FEATURES // AERIAL LIFT
STANDARD FEATURES // OUTRIGGERS

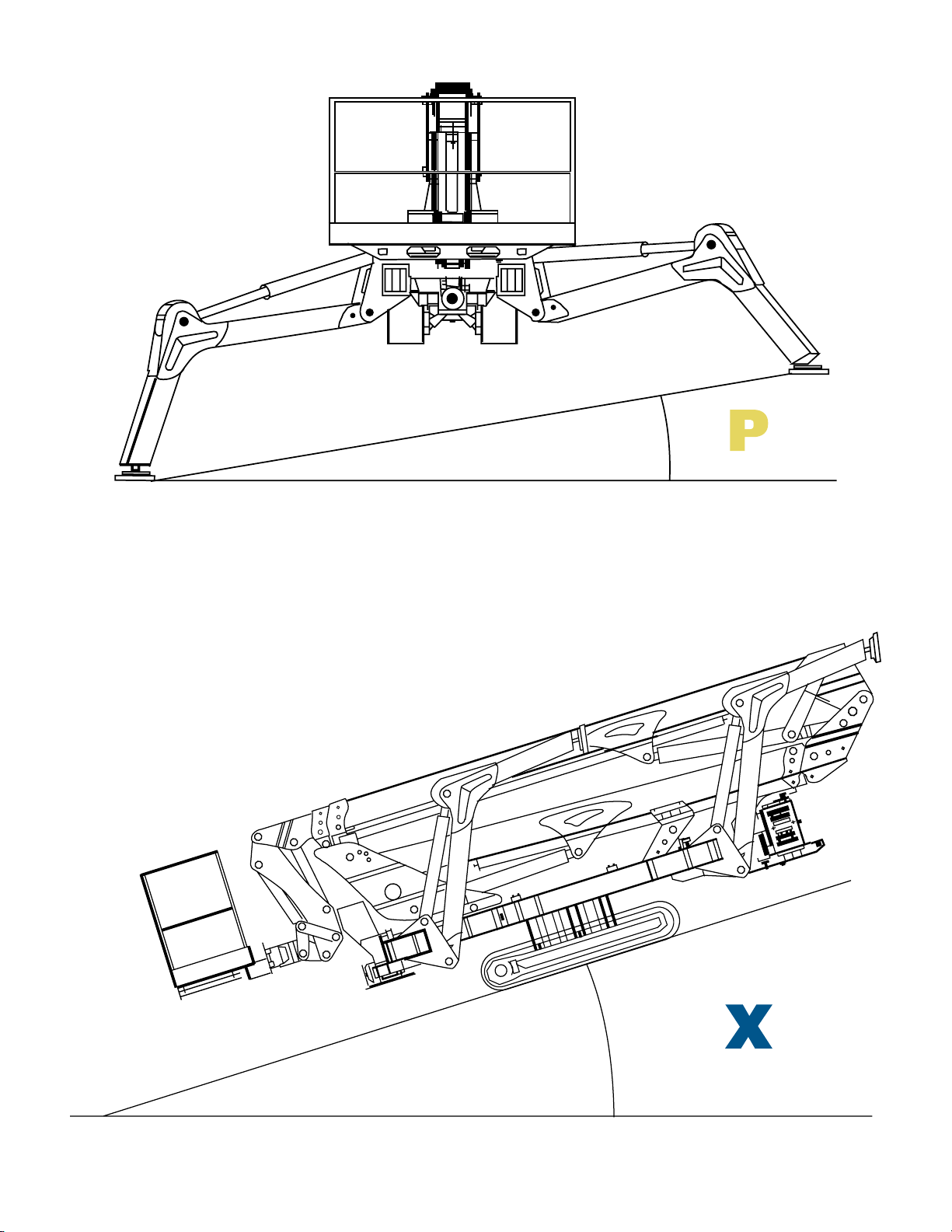

• Ability to setup on up to 19° or 34%
grade
• Automatic outrigger leveling, with
individual manual hydraulic override
controls

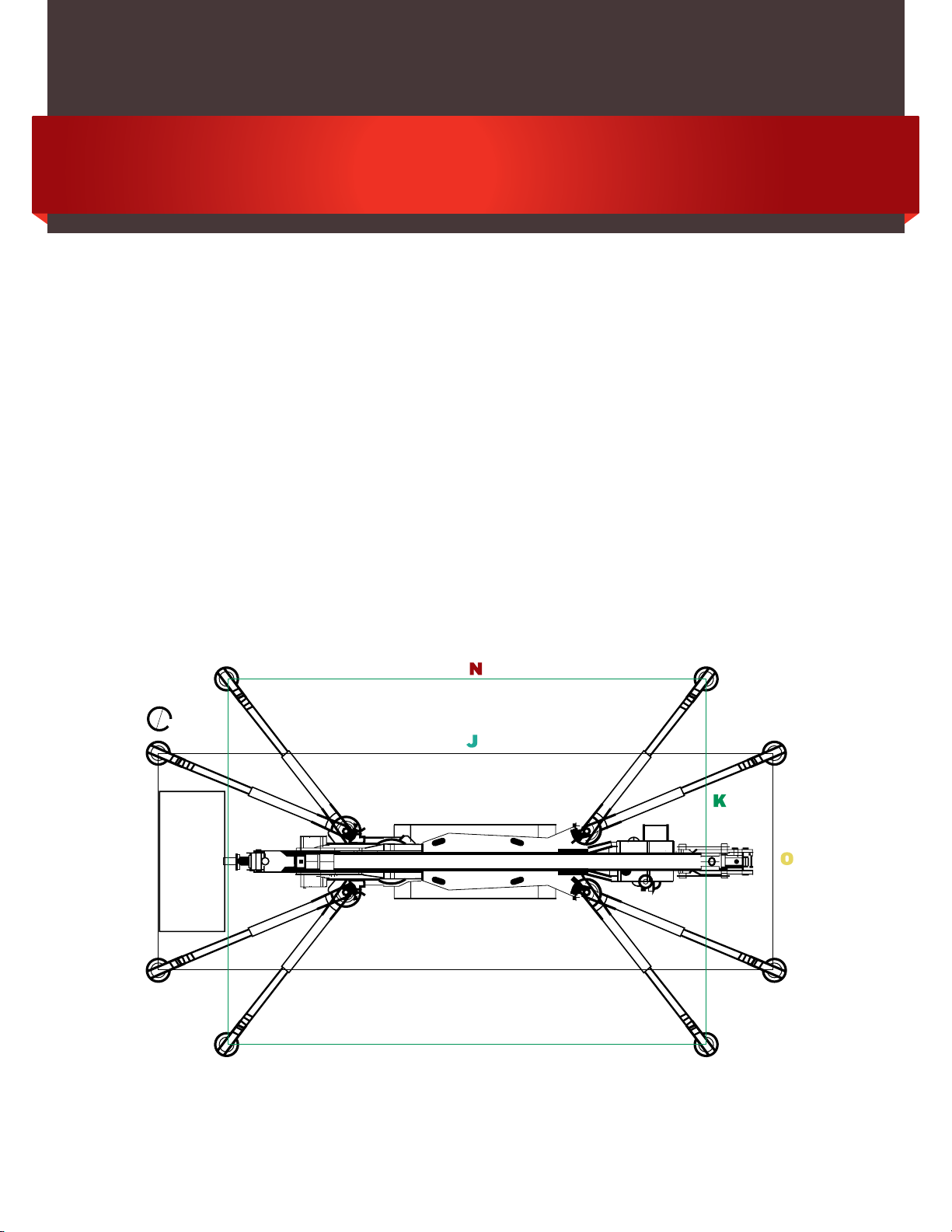

• 4 hydraulic outriggers with the ability
to vary the positioning based on work
zone requirements: Wide, narrow, wide
and narrow.
• Waterproof safety switches placed in
well protected positions
• Dual lock valves on all hydraulic
cylinders
• Outrigger feet with articulating pad
made of special anti-slip polymetric
plastic to ensure safety
• 83' working height
• 46' of unrestricted lateral reach with
507lbs weight capacity
• Proportional controls allow up to 3
functions at once at full speed
• Two articulating and telescopic booms
• Lower boom with one telescopic
extension
• Upper boom with two telescopic
extensions
• Hydraulic hoses and control cables
covered for complete protection, with
easy service access
• Telescoping boom sections with
hydraulic cylinders and leaf drive
chains
• 135° independently articulating jib
• Greaseless booms
• Rotating turret +/- 400°
• Emergency let down system
• Battery backup for lowering booms
Aluminum Basket:
• Full 180° rotation system (90 + 90)
•Access the aluminum basket
from either side with safety bar and
retractable ladder
• Wheels for easy transport
Easy on and off system allows
swapping out baskets, with 3
redundant safety devices
Automatic basket leveling
83HD+
ARBOR PRO
83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]

• Wireless remote control for all
functions, including track drive,
automatic outrigger leveling, and boom
controls
• Ultra strong hydraulic motor track
drive
• Heavy duty turret rotation motor and
gear box
Rubber tracks:
• High quality steel reinforced rubber
tracks
• Vertically and horizontally adjustable
tracks allow for up to 15'' ground
clearance for travel on difficult
terrain
• Ability to rotate tracks while machine
is stabilized on the outriggers for
maintenance or replacement
• Able to climb slopes up to 19° or 34%
-- But can also continue on to over
31° / 60% when user overrides the
standard setting.
• Cross hill slope travel up to 19° or
34% -- But can also continue to
travel 31° / 60% when user overrides
the standard setting
Wide and long tracks for:
≥ Superior climbing ability
≥ More weight distribution—low PSI
underneath the tracks. No damage
to lawns, stone, tile, or other
sensitive ground
≥ Travel speed up to 3mph
Track Drive:
≥ Slow, for precise movement
≥ Slow with torque, for precise
movement with power
≥ Fast, for traveling long distances
quickly
• Fully enclosed and protected hydraulic
motor system with easy access for
routine maintenance
• Hydraulic tank level sight glass
• Engine key start and stop with hour
meter
• Hydraulic hoses protected
• Ability to travel with jib raised to
facilitate hill climbing
• 4 tie down points for transport on
truck or trailer. Points can also be used
for crane lift
• Easy access engine compartment for
maintenance
• Easy access battery compartment
• Easy access fuse box containing
automotive style fuses
• Weatherproof storage box with:
≥ Space to store the radio remote
control
≥ Remote control battery charger
• Wireless remote control for all
functions, including track drive,
automatic outrigger leveling, and boom
controls
• Ultra strong hydraulic motor track
drive
• Heavy duty turret rotation motor and
gear box
Rubber tracks:
• High quality steel reinforced rubber
tracks
• Vertically and horizontally adjustable
tracks allow for up to 15'' ground
clearance for travel on difficult
terrain
• Ability to rotate tracks while machine
is stabilized on the outriggers for
maintenance or replacement
• Able to climb slopes up to 19° or 34%
-- But can also continue on to over
31° / 60% when user overrides the
standard setting.
• Cross hill slope travel up to 19° or
34% -- But can also continue to
travel 31° / 60% when user overrides
the standard setting
Wide and long tracks for:
≥ Superior climbing ability
≥ Better weight distribution—low
PSI underneath the tracks. No
damage to lawns, stone, tile, or
other sensitive ground
≥ Travel speed up to 3mph
Track Drive:
≥ Slow, for precise movement
≥ Slow with torque, for precise
movement with power
≥ Fast, for traveling long distances
quickly
• Fully enclosed and protected hydraulic
motor system with easy access for
routine maintenance
• Hydraulic tank level sight glass
• Engine key start and stop with hour
meter
• Hydraulic hoses protected
• Ability to travel with jib raised to
facilitate hill climbing
• 4 tie down points for transport on
truck or trailer. Points can also be used
for crane lift
• Easy access engine compartment for
maintenance
• Easy access battery compartment
• Easy access fuse box containing
automotive style fuses
• Weatherproof storage box with:
≥ Storage box to store the radio
remote control
≥ Built in remote control battery
charger
STANDARD FEATURES // CHASSIS
83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]

STANDARD FEATURES // CONTROLS
83HD+
ARBOR PRO
• Proportional controls allow up to 3
functions at once at full speed
• Diesel fuel level indicator in basket and
the radio remote control
Radio Remote Control
• Rugged and extremely durable. Built
with high quality components that are
waterproof and sealed in gel
• Remote control for all functions
including:
Boom operations
• Lower boom articulation
• Lower boom telescope
• Upper boom articulation
• Upper boom telescope
• Turret rotation +/- 400°
• Basket rotation 180°
• Jib up and down
• One button “Go home” feature for
automatic boom park
Track drive operations
• Height and width adjustment
• Three track drive speeds, 0 to
3mph
Automatic outrigger stabilization
(leveling)
• Ability to automatically setup
level on slopes up to 19° or 34%
Override standard settings button
to override the standard settings
for:
• Track drive slope. Standard slope
is up to 34%. When you press the
override button, it allows for travel
to over 60% grade
• Rotate the tracks while the tracks
are off the ground (when machine
is setup on the outriggers) for
service, such as track tension
adjustment or track replacement
• Lift the jib while the booms are
parked, and when on the tracks.
This allows for increased ability
to climb slopes and flexibility in
travel.
• Rotate the basket while the
booms are parked, and when
on the tracks. This allows for
flexibility in travel.
• Lower the booms in case of
emergency, such as the outriggers
becoming unleveled
• Includes 2 lithium ion batteries and
charger mounted in an enclosed
waterproof cabinet, a fully charged
battery is always ready to go
• Built in lit LED screen gives the
operator information on lift status
• Wireless connection up to 100'
• Automatically chooses the best radio
connection frequency based on
location
• Only two joysticks for simple operation
www.slaymakergroup.com [email protected] [phone]

FIXED, WIRED CONTROL STATION IN
THE BASKET
• Extremely durable and built with high
quality components that are waterproof
and sealed in gel
• Operator control station for all
functions including:
Boom operations
• Lower boom articulation
• Lower boom telescope
• Upper boom articulation
• Upper boom telescope
• Turret rotation +/- 400°
• Basket rotation 180°
• Jib up and down
• One button "Go Home" feature for
automatic boom park
Track drive operations
• Three track drive speeds,
0 to 3mph
Automatic outrigger stabilization
(leveling)
• Ability to automatically setup level
on slopes up to 19° or 34%
• Engine start, stop
• Electric motor / battery start stop
(optional)
• Emergency stop button
Only two joysticks for simple operation
• Hall effect joysticks with high
degree of protection (completely
sealed and waterproof)
• Single handed operation with
d-tent style joysticks in the basket
STANDARD FEATURES // POWER
• D902-E3B
• 21.6 HP
• 3200 RPM
• Liquid cooled
3 CYLINDER KUBOTA
DIESEL
POWER OPTIONS
• Lithium ion batteries -- Hybrid –
only the highest quality batteries to
last 10-15 years before replacement
is required. Plug in anytime,
anywhere. 4,000 to 4,500 charging
cycles! Leadacid batteries only have
400 to 500 cycles.
• Full battery version (no combustion
engine)
• Plug in electric 120V 20A -- Hybrid
83HD+
ARBOR PRO

• High quality, HSLA (high strength low
alloy) steel booms
• All hoses and cables protected on
entire machine, ready for rugged
outdoor use
• Only high quality, waterproof safety
switches are used
• High quality 4 coat paint process: sand
blasting, filling, two coats of primer and
two coats of paint
• All cables are “plug and play”
• Safety lock valves on all cylinders
• Self-lubricating bushings and grease
fittings on every pivot point
• Tight tolerances on pivot points
• Engine hour meter
• Greaseless booms
• Automotive style fuses
STANDARD FEATURES // SAFETY
STANDARD FEATURES // GENERAL
• ANSI (TUV) and CSA certified
• Emergency stop button in reach of operator
at all times
• Lock valves on all hydraulic cylinders
• Waterproof safety switches
• Redundant safety system
• Electronic inclinometer
• Basket weight sensor and overloaded alarm
• Lateral reach monitor and alarm for when
maximum has been reached
• Self-diagnostic LED display
83HD+
ARBOR PRO
83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]

83HD+ ARBOR PRO INCLUDES THESE
ADDITIONAL ITEMS:
• 12v battery emergency let down system
• Set of 4 specialty outrigger pads: $972
• 4 ratchet straps for transport
• Fall arrest aerial lift safety harness and
lanyard kit, including storage bag
• Spare fuses
83HD+ ARBOR PRO SPECIAL ORDER
OPTIONAL ITEMS:
• Hybrid: Diesel + lithium batteries:
$12,550
• Hybrid: Diesel + Plug in 120v electric
motor: $1,872
• Travel alarm: $275
• 120v Electric plug in the basket: $585
• Full battery version: $ask
• Light tower wiring: $385
• 8-10 GPM hydraulic tool outlet in
basket: $3,850
• Special paint color. 206 custom colors
available: $1,980
• Two special paint colors, 206 custom
colors available: $2,800
83HD+ ARBOR PRO ACCESSORIES:
• Custom lightweight, heavy duty steel
tilt bed trailer with ability to use lift
directly from the trailer: $8,250
• Enclosed trailer: $ask
• Lightweight Aluminum trailer: $ask
• Single man fiberglass basket instead of
aluminum basket: $750
• Two man fiberglass basket instead of
aluminum basket: $875
• Single man fiberglass basket in
addition to aluminum basket: $2,485
(includes quick connect)
• Two man fiberglass basket in addition
to aluminum basket: $2,685
(includes quick connect)
• Non-marking white rubber tracks
(instead of black tracks): $1,285
• Additional fall arrest aerial lift harness
and lanyard kit including storage bag:
$69
•Set of 4 cavity outrigger pads: $600
• Track Socks: $298
OPTIONAL FEATURES
83HD+
ARBOR PRO

TECHNICAL SPECIFICATIONS // PERFORMANCE
Maximum working height ........................................83'
Maximum side reach at 507 lbs, unrestricted.......................46'
Maximum weight load with standard basket........................507lbs
Maximum weight load with optional single man fiberglass basket.....537lbs
Moveable Jib articulting range....................................135°
Turret rotation range ............................................+/-400°
Basket rotation range............................................+/-90°
PMaximum slope to stabilize (deployment) ..........................19° (34%)
Height / Width tracks adjustment .................................7"
WMaximum slope approach angle / slope............................14° (25%)
XGradeability -- max. travel angle / slope* ...........................19° (34%)
Gradeability -- max. travel cross hill ...............................19° (34%)
Maximum crawler travel speed** ..................................3 mph
*This s the standard setting. The standard setting can be overridden to: 31° (60.1%)
**3 speeds: Slow, Slow with Torque, Fast
Have questions? Get in touch with us at:
83HD+
ARBOR PRO
Maximum Slope Approach Angel 25%
www.slaymakergroup.com [email protected] [phone]
Office: [phone]
[e-mail]
www.slaymakergroup.com

Climbing Maximum 34%

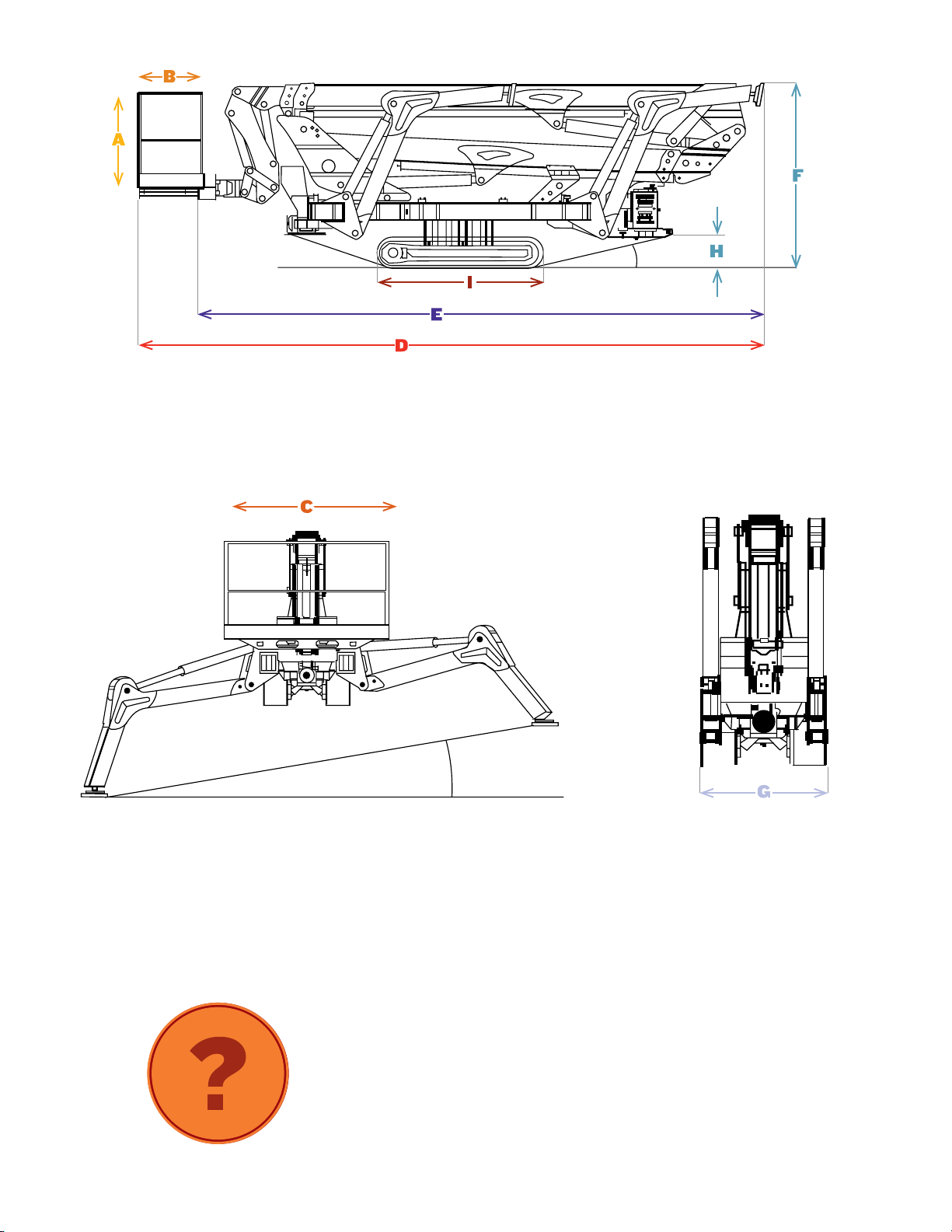

TECHNICAL SPECIFICATIONS // DIMENSIONS
ABasket height (basket is removable, size options available) .....................................43"
BBasket width ..............................................................................27"
CBasket length..............................................................................48"
DTotal length................................................................................21' 3"
ELength without basket......................................................................19' 6"
FHeight in transport position .................................................................78"
GTotal width (without basket).................................................................35"
HFree height from the ground .................................................................15"
I Tracks (LxW) ..............................................................................72" x 10"
JOutrigger spread length in narrow position....................................................21' 10"
Outrigger spread width in wide position.......................................................14' 5"
NOutrigger spread length in wide position ......................................................16' 11"
OOutrigger spread width in narrow position ....................................................8' 10"
MOutrigger (Stabilizer) plate (foot) diameter ...................................................9 1/2"
M
83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]

Have questions? Get in touch with us at:
Office: [phone]
[e-mail]
www.slaymakergroup.com

TECHNICAL SPECIFICATIONS // WEIGHT & POWER
WEIGHT
Total weight ....................................................8,500 lbs
RMaximum outrigger foot pressure .................................75.1 lb/1n2
SMaxium track pressure ..........................................3.41 lb/1n2
TMaximum pressure in travel ......................................146.85 lb/ft2
UMaximum pressure in work (Wide outrigger setup) .................26.22 lb/ft
VMaximum pressure in work (Narrow outrgger setup) ................39.12 lb/ft2
ZMaximum pressure in work (One side wide, one side narrow)........31.54 lb/ft2
POWER
Diesel engine. Kubota D-722 .....................................21.6 HP
Diesel fuel tank capacity .........................................4 gallons
120V 20A plug in electric
Lithium ion battery (optional)
Have questions? Get in touch with us at:
83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]
Office: [phone]
[e-mail]
www.slaymakergroup.com

83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]

507 LBS UNRESTRICTED
BASKET CAPACITY
13’
6.5’
- 20’
20’
26’
33’
39’
46’
53’
59’
66’
73’
79’
85’
83’
0’
13’ 20’ 26’ 33’ 39’ 46’
- 6.5’
- 13’
6.5’
- 19.5’
83HD+
ARBOR PRO
REACH DIAGRAM WITH MAXIMUM LOAD
www.slaymakergroup.com [email protected] [phone]

Technical data subject to change
Climbing Maximum 60.1%
Max angle of approach 25%
CLIMBING ABILITY
83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]

A CLOSER LOOK AT THE 83HD+
83HD+
ARBOR PRO
www.slaymakergroup.com [email protected] [phone]
B
B
BB
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
BB
B

www.slaymakergroup.com [email protected] [phone]
