Cochlear Nucleus 7 CP1000 User manual

Nucleus®7
SoundProcessor
User Guide
CP1000
DRAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 1 14/06/2016 1:22:53 PM

II NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Symbols used in this guide
NOTE
Important information or advice.
TIP
Time saving hint.
CAUTION (no harm)
Special care to be taken to ensure safety and effectiveness.
Could cause damage to equipment.
WARNING (harmful)
Potential safety hazards and serious adverse reactions.
Could cause harm to person.
This guide is intended for Cochlear implant recipients and their
carers using the Cochlear™ Nucleus® 7 Sound Processor (model
number: CP1000). The processor works with your implant to
transfer sound to your ear, and is made up of a processing unit,
earhook, coil and cable, and a battery module.
You can power your processor with disposable or rechargeable
batteries.
You can control your processor by pressing its button, or by using
your Cochlear Nucleus 7 Remote Control or the Nucleus Smart
app.
People with certain types of hearing loss can wear the processor
in Hybrid™ mode by adding an acoustic component which sends
amplified acoustic sound into the ear canal.
A number of tools and accessories are supplied with your
processor.
NOTES
• Refer to the relevant sections for cautions and warnings
relating to the use of the Nucleus 7 Sound Processor,
batteries and components.
• Please also refer to your Important Information document for
essential advice that applies to Cochlear implant systems.
DRAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 2 14/06/2016 1:22:53 PM

1NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Nucleus 7 Sound Processor
ABOUT
Microphones and
microphone
protectors Coil magnet
Indicator
light Coil
cable
Control
button
Nucleus 7
processing
unit
Serial
number
Earhook
Battery module
Coil
Made for iPhone (MFi)
Your sound processor is a Made for iPhone (MFi) hearing device.
This allows you to control your sound processor with some
iPhone® and iPod touch® devices using the Cochlear Nucleus
Smart app.
Please see the app’s user guide for details.
DRAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 1 14/06/2016 1:22:53 PM

2NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Contents
Power
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Battery life . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Lock the battery module to the processor . . . . . . . . 6
Lock the disposable battery module cover . . . . . . . . 7
Replace the battery module . . . . . . . . . . . . . . . . 8
Change disposable batteries . . . . . . . . . . . . . . . 10
Charge rechargeable batteries . . . . . . . . . . . . . . 12
Use
Turn on and off . . . . . . . . . . . . . . . . . . . . . . 18
Pair with remote or app. . . . . . . . . . . . . . . . . . 19
Lock the control button. . . . . . . . . . . . . . . . . . 19
Change program . . . . . . . . . . . . . . . . . . . . . 20
Change volume and sensitivity. . . . . . . . . . . . . . 20
Telecoil . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wireless accessories. . . . . . . . . . . . . . . . . . . . 22
Use monitor earphones . . . . . . . . . . . . . . . . . 24
Wear
Wear your processor . . . . . . . . . . . . . . . . . . . 26
For users with two implants . . . . . . . . . . . . . . . 27
Change earhooks . . . . . . . . . . . . . . . . . . . . . 28
Retention accessories . . . . . . . . . . . . . . . . . . . 29
Wear the Headband. . . . . . . . . . . . . . . . . . . . 32
Sport and exercise . . . . . . . . . . . . . . . . . . . . 35
Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Flight mode . . . . . . . . . . . . . . . . . . . . . . . . 37
DRAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 2 14/06/2016 1:22:53 PM

3NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Care
Regular care . . . . . . . . . . . . . . . . . . . . . . . . 38
Battery charger care . . . . . . . . . . . . . . . . . . . 40
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Water, sand and dirt . . . . . . . . . . . . . . . . . . . 42
Change microphone cover . . . . . . . . . . . . . . . . 44
Change the coil and cable . . . . . . . . . . . . . . . . 46
Change the coil magnet . . . . . . . . . . . . . . . . . 47
Lights and Beeps . . . . . . . . . . . . . 48
Troubleshoot . . . . . . . . . . . . . . . . 54
Cautions . . . . . . . . . . . . . . . . . . . . .61
Warnings
For parents and carers. . . . . . . . . . . . . . . . . . . 62
Processors and parts . . . . . . . . . . . . . . . . . . . 64
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Medical treatments . . . . . . . . . . . . . . . . . . . . 69
Other information . . . . . . . . . . . .72
DRAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 3 14/06/2016 1:22:53 PM

4UCLEUS 7 SOU D PROCESSOR USER GUIDE
Batteries
You have a choice of three battery types for the Nucleus 7
Sound Processor:
The disposable battery module
consists of:
• Cochlear Nucleus 7 Battery Cover
• Cochlear Nucleus 7 Battery Holder
It uses two disposable batteries and
has a tamper-resistant lock.
The Cochlear Nucleus 7 Standard
Rechargeable Battery Module
The Cochlear Nucleus 7 Compact
Rechargeable Battery Module
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 4 14/06/2016 1:22:54 PM

5UCLEUS 7 SOU D PROCESSOR USER GUIDE
Battery life
Batteries should be replaced as needed just as you would
with any other electronic device. Battery life varies
according to the programs used each day, your implant
type, the thickness of skin covering your implant, and the
size and type of battery.
The rechargeable battery’s lifespan is at least 400 charge
cycles. A completely empty rechargeable battery will take
approximately four hours to recharge.
Rechargeable batteries may take longer to fully recharge
with age. To get the longest life from the rechargeable
batteries, always recharge before use.
To help you get the longest life from the batteries, your
sound processor will turn off two minutes after you take it
off your implant, if enabled by your clinician.
POWER
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 5 14/06/2016 1:22:54 PM

6UCLEUS 7 SOU D PROCESSOR USER GUIDE

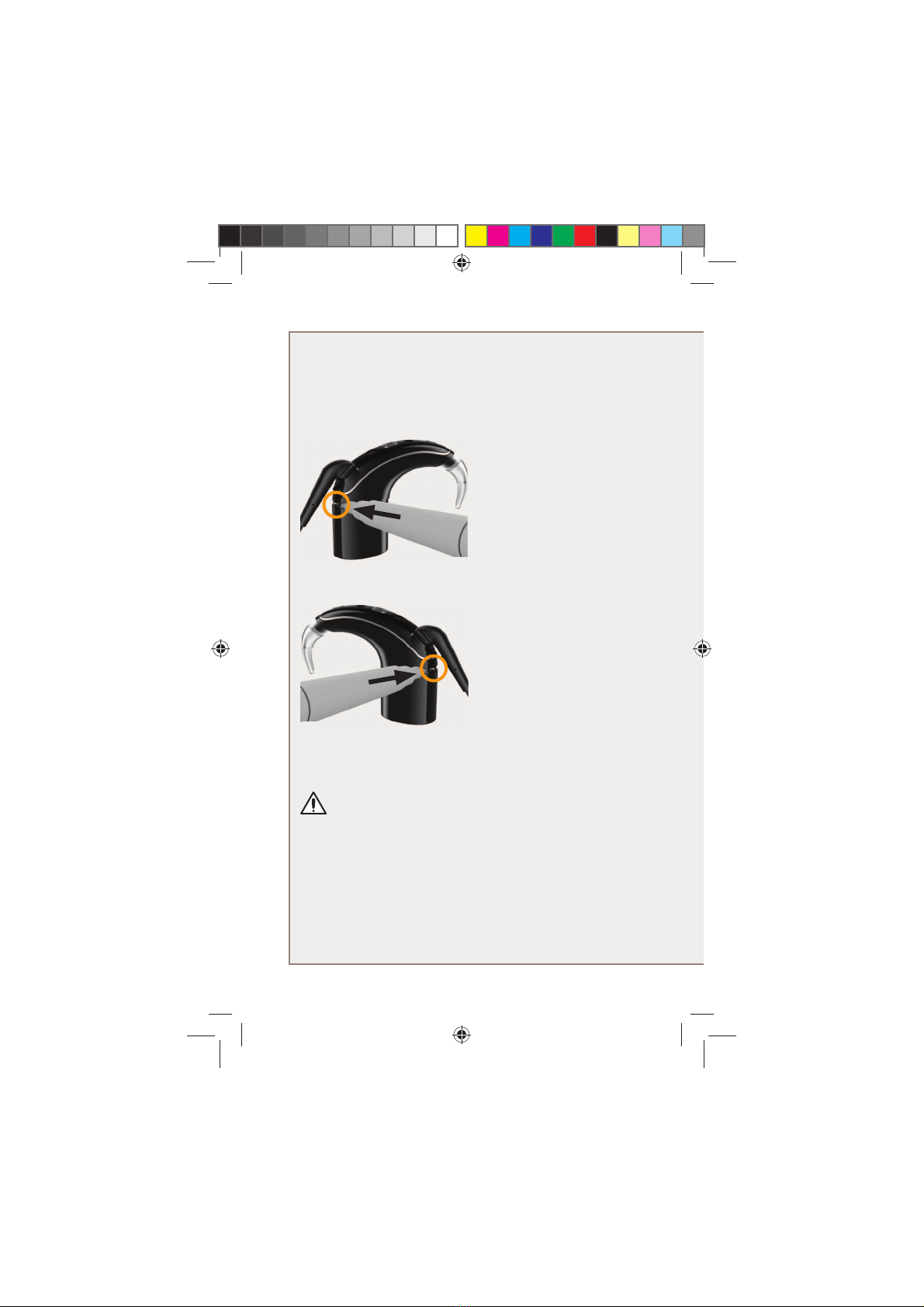

Lock the battery module to the
processor
To increase tamper resistance, the battery module can be
locked to the sound processor.
1. Use your battery
cover locking tool to
push the lock to the
far left to lock the
battery module.
2. Push the lock to the
far right to unlock the
battery module.
CAUTION
Always check this lock is unlocked before attaching or
removing the battery module.
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 6 14/06/2016 1:22:56 PM

7UCLEUS 7 SOU D PROCESSOR USER GUIDE
Lock the disposable battery
module cover
The disposable battery module has a tamper-resistant
lock to help prevent children opening the battery cover.
LOCK Turn the locking screw clockwise with the
battery cover locking tool until it is in a
horizontal position.
UNLOCK Turn the locking screw anticlockwise until
it is in a vertical position.
CAUTION
Always check the locking screw is unlocked before attaching
or removing the battery cover.
POWER
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 7 14/06/2016 1:22:56 PM

8UCLEUS 7 SOU D PROCESSOR USER GUIDE

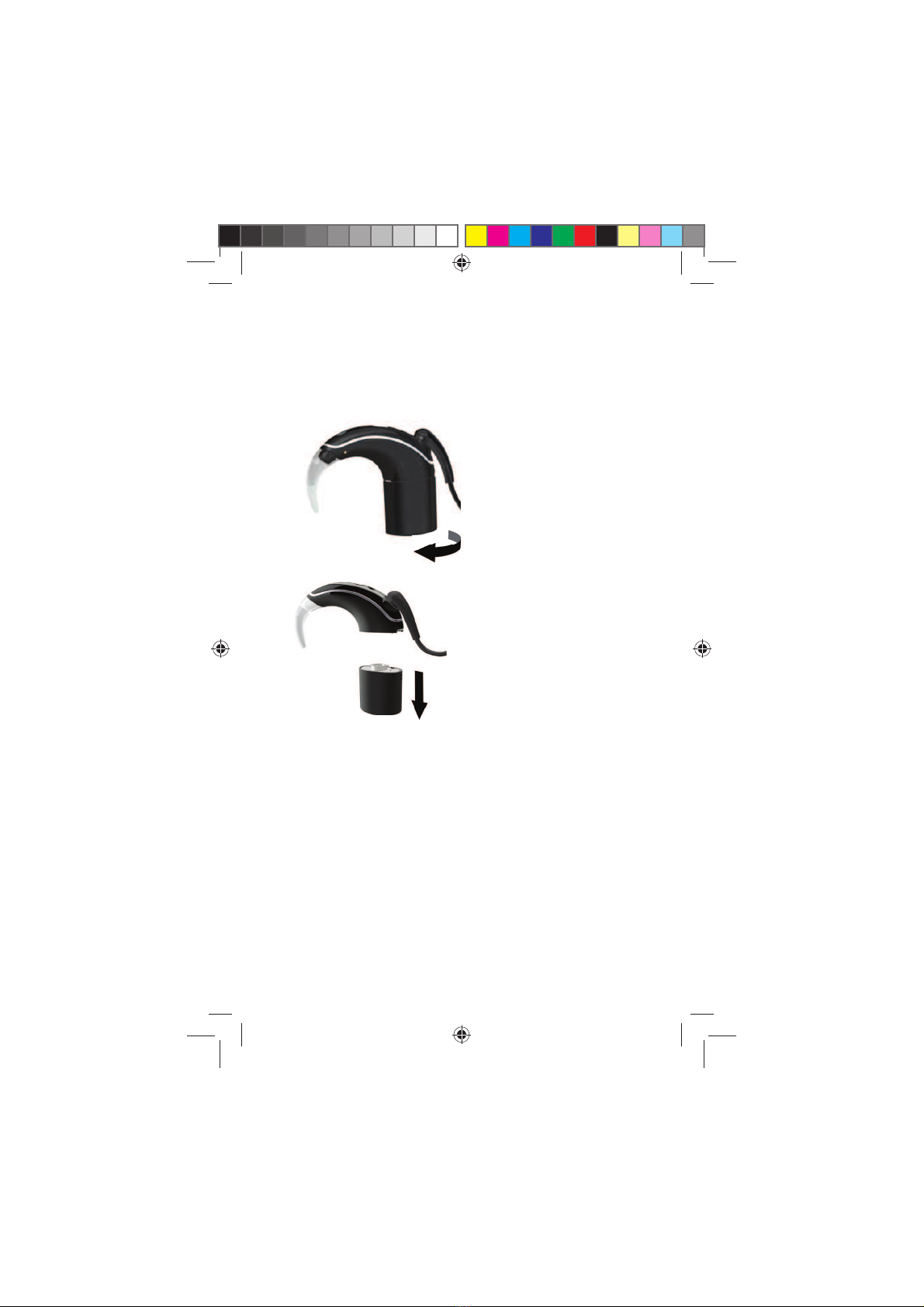

Replace the battery module
Remove the battery module
1. Twist the battery
module as shown to
release it from the
processing unit.
2. Pull the battery
module from the
processing unit.
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 8 14/06/2016 1:22:56 PM

9UCLEUS 7 SOU D PROCESSOR USER GUIDE
Attach the battery module
1. Align the battery module to the processor socket to fit
the parts together.
Rechargeable battery modules—
align raised marker on battery
module with back of processing
unit
Disposable battery module—
align indents and lock on battery
module with back of processing
unit
2. Twist the battery module
as shown to attach the
parts.
Your processor will turn
on automatically.
NOTE
If you do not put your processor on your implant, it will turn
off automatically after two minutes, if enabled by your
clinician.
POWER
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 9 14/06/2016 1:22:57 PM

10 UCLEUS 7 SOU D PROCESSOR USER GUIDE
Change disposable batteries
The disposable battery module uses two high power zinc
air batteries. Cochlear recommends 675 (PR44) zinc air
batteries designed for cochlear implant use. Do not use
silver oxide or alkaline batteries.
1. Press and hold the
button for 5 seconds,
then release to turn off
your processor.
2. Pull the unlocked battery
cover away from the
battery holder.
3. Remove the batteries
from the battery holder.
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 10 14/06/2016 1:22:57 PM

11UCLEUS 7 SOU D PROCESSOR USER GUIDE
POWER

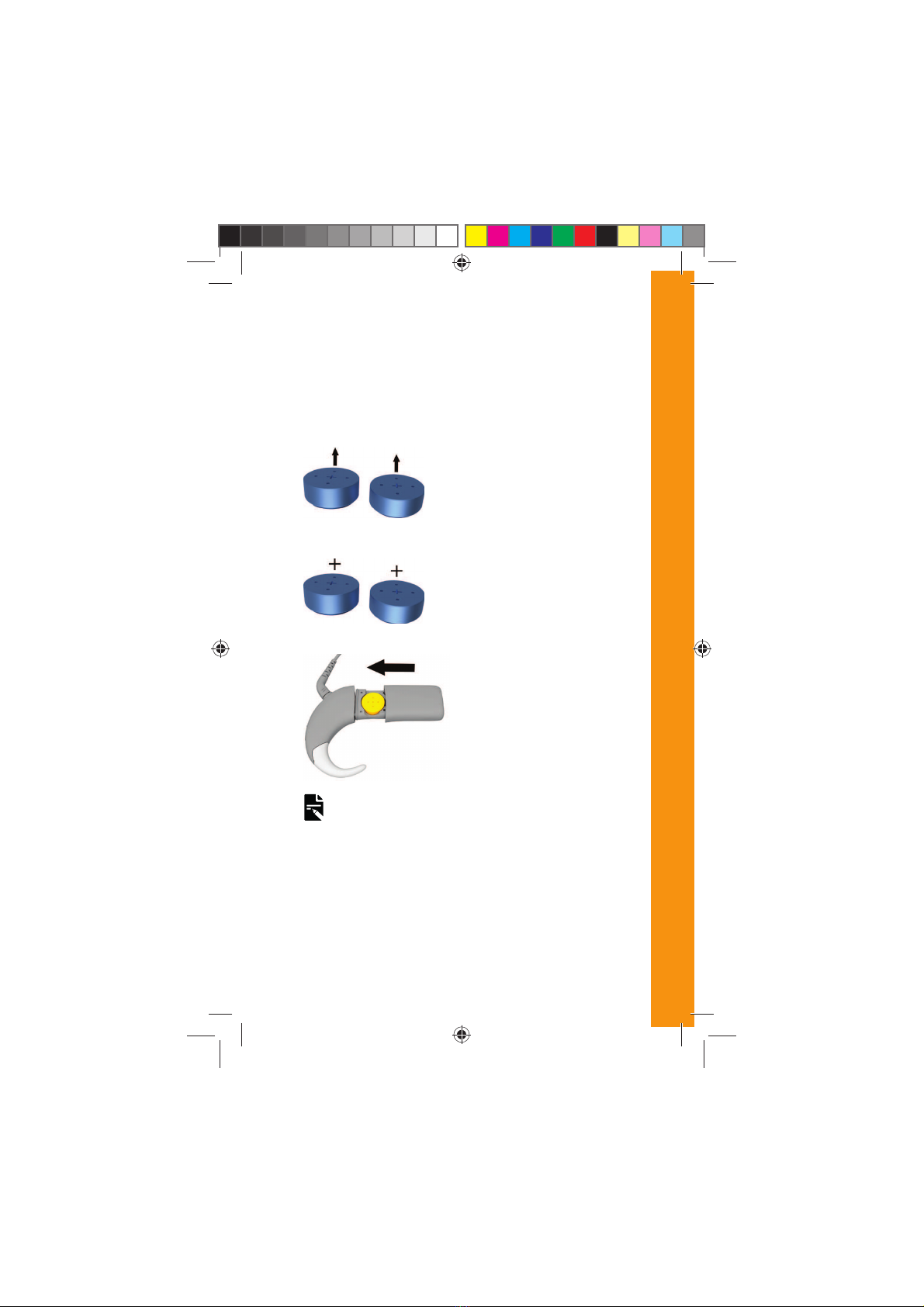

4. Remove the new batteries
from the packet, and let
them stand for a few
seconds.
5. Insert the batteries into
the battery holder with
the flat side (positive
terminal) facing up.
6. Replace the battery cover
by sliding it up towards
the processing unit.
Lock the cover if required
Your processor will
automatically turn on.
NOTE
If you do not put your processor on your implant, it will turn
off automatically after two minutes, if enabled by your
clinician.
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 11 14/06/2016 1:22:58 PM

12 UCLEUS 7 SOU D PROCESSOR USER GUIDE
Charge rechargeable batteries
There are two chargers that can be used with the
rechargeable battery modules:
• Cochlear Nucleus 7 Y Battery Charger (see page 14)
• Cochlear Nucleus 7 USB Battery Charger (see
page 16).
Before you start
Your Nucleus 7 rechargeable battery module has built-in
safety and monitoring features. Read this section before
using your battery charger.
SLEEP MODE
After manufacture, new rechargeable battery modules are put into
“sleep mode” which lasts for up to 2 years. This keeps some power
in the battery, as a completely flat battery won’t charge.
WHAT DO I DO? Before using a new battery module, you need to
“wake it up” by connecting it to a charger until it is fully charged.
STORING BATTERIES
Your rechargeable battery module will lose some power if you do
not use it for a period of time.
WHAT DO I DO? Charge your battery module before storing it.
CHARGING TEMPERATURE
Rechargeable battery modules have a built-in temperature sensor.
New batteries must be charged at 0 – 45° C (32 – 113° F). If battery
module temperature is outside this range, the LED will flash orange
(error).
WHAT DO I DO? Charge new rechargeable battery modules at a
room temperature of 0 – 45° C (32 – 113° F).
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 12 14/06/2016 1:22:58 PM

13UCLEUS 7 SOU D PROCESSOR USER GUIDE
POWER
FLAT BATTERIES
Even if your rechargeable battery module goes flat while being used
with your Nucleus 7, it should hold some battery life.
This means you can recharge a flat battery module up to 1 year after
running it flat.
WHAT DO I DO? Charge your flat battery module after use.
NOTE
If a rechargeable battery module is too flat to charge, the
LED will flash orange (error).
BATTERY HEALTH CHECK
Rechargeable battery modules have a built-in “health check”. If it
detects a problem, it will turn the battery off. If the problem is
fixed, the battery will turn back on again.
WHAT DO I DO? If a battery turns off, disconnect and reconnect it
to your processor. If this does not restore power, contact your
clinician.
CONNECTING TO ACCESSORIES
Some accessories (e.g. monitor earphone adaptor, FM adaptor) are
“sandwiched” between the rechargeable battery module and your
processing unit.
If you leave them attached after use, this will drain the battery.
WHAT DO I DO? Don’t leave your battery module attached to an
accessory after use.
Don’t attach an accessory with a rechargeable battery module
attached to the battery charger. This will cause an error.
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 13 14/06/2016 1:22:58 PM

14 UCLEUS 7 SOU D PROCESSOR USER GUIDE
Use the Y Battery Charger
The Y Battery Charger can charge two rechargeable battery
modules at once.
It uses the supplied USB cable to plug into:
• a wall power outlet using the supplied power adaptor
plug, or
• a USB port (e.g. computer).
1
3
3
2
2
1 Power cable
2 Rechargeable battery module connector
3 LED indicator
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 14 14/06/2016 1:22:58 PM

15UCLEUS 7 SOU D PROCESSOR USER GUIDE
POWER
1. Connect the rechargeable
battery module to the
charger.
2. Twist to lock.
3. Plug the charger into a power outlet or USB port.
The LED flashes green while charging.
USB
4. The LED changes to
steady green when the
module is fully charged.
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 15 14/06/2016 1:22:59 PM

16 UCLEUS 7 SOU D PROCESSOR USER GUIDE
Use the USB Battery Charger
The USB Battery Charger can charge one rechargeable
battery module at a time.
It uses a USB connector to plug into:
• a wall power outlet using the supplied cable and
power adaptor plug, or
• a USB port (e.g. computer).
1
3
2
1 USB connector
2 Rechargeable battery module connector
3 LED indicator
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 16 14/06/2016 1:23:01 PM

17UCLEUS 7 SOU D PROCESSOR USER GUIDE
POWER
1. Remove the covers from the charger.
2. Connect the
rechargeable battery
module to the
charger.
3. Plug the charger into a power outlet or USB port.
The LED flashes green while charging.
USB
4. The LED changes to
steady green when the
module is fully
charged.
RAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 17 14/06/2016 1:23:05 PM

18 NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Turn on and off
1. To turn on either:
• Connect the battery
(see page 9), or
• If the battery is already
connected, short press
the button.
2. To turn off, either:
• Disconnect the battery
(see page 8), or
• Press and hold the
button for 5 seconds,
then release.
The light will change to
steady orange as the
processor turns off.
NOTE
Your processor will also turn off automatically after being off
your implant for two minutes, if enabled by your clinician.
DRAFT ONLY FOR CLINICAL TESTING
592753_1-06_EN_CP1000_UG_EMEA.indd 18 14/06/2016 1:23:06 PM
