Coffee Queen Harmony User manual

Yourretaildealer
...............................................................................
...............................................................................
User manual
”...WITH A PASSION FOR COFFEE”
Rev. 080215
U / GB
Harmony
COFFEE QUEEN
...............................................................................
...............................................................................

1. Table (list) of contents.
1. Tableofcontents page. 2
2. General 3
3. Overviewofcomponentsfront 4
3. Overviewofcomponentsmixingsystem 5
4. SERVICE:Installationandstart 6 - 7
Placethe brewer
Connections:Electricity/Water
Startingupmachine
Fillcanisters with ingredients
Fillbean container with coffee beans
5. Operation
Brewingof coffeein cup 8
Brewingof jug 9
6. Cleaningprogram
Automaticcleaning of mixingbowls 10
AutomaticcleaningofIn/Outletvalves 11
Rotatebrewmechanism withoutwater or ingredients 12
Automaticcleaning of brewmechanism, mixingbowl 13-14
7. Weeklycleaning
dismantlemixersystem 15
washtheseparts 15
assemblemixer system 16
8. Cleaningandmaintenance
Outwardcleaningandwhen needed 17
Cleaning,grinder 17
Cleaningand dismantlingof coffee filter 18
8. Maintenance,grinder 19
9. Cup counterand Easyaccess 20
10. Safetyfunctions 21
11. Failure messages 21
12. Storage/Transport. 21
13. Dimensionsketch 22
14. Circuit diagram. 23
15. Installationofcoinmechanism 24
2.

2. General. Harmony
We congratulate toyour choiceofa CoffeeQueen Harmony Freshbrewmachine.
Please read this manual before you take the machine into operation for the first time.
Themanualcontains importantinstructions for asafe andproperuse ofthe machine.
Alwayskeepthis manualwithin reach forthe user!
Coffee Queen / Harmony
- Makingfreshlycoffee cupbycup
- Withan internalgrinder for grinding of coffee beans
- Jugfacilitywith key switch
- 10 choices of drinks,
- 3ingredientscanisters +bean container,
- Brewingmechanismwith coffeefilter
- Electronicallytemperaturecontrolled
- Adjustablecoffeestrength
- Illuminatedcupwhilebrewing
- Clockfunctions
Facts:
Height 925 mm
Width 420 mm
Depth 580 mm
Weight 43kg(+groundcabinet 25kg) packing approx.5kg
Tankage 2,4 litre
Electricity 230V/2200W
Waterconnection ½”outside thread (enclosed)
Ingredientscanisters 1. espresso
1.chocolate
1.topping
1.coffee beans
3.

3. Overview of components, front Harmony
4.
Outlet for drinks
Cupholder
Drip tray insert
Drip tray
Drinks
Door lock
Display
Strength of drinks ++ / - -
Key switch
Bean container
Lid, bean container
Optional:
Base cabinet with storage and
largewaste bin.

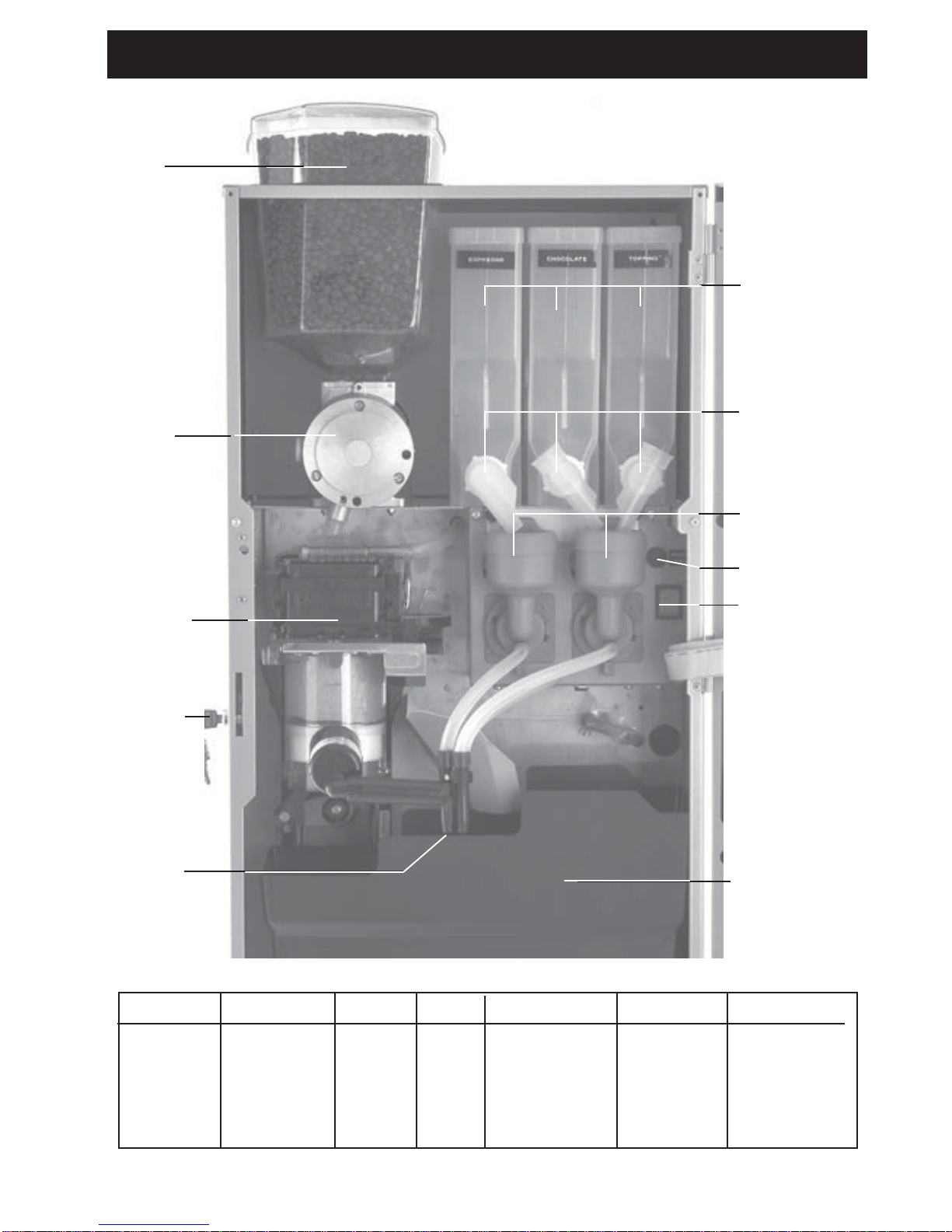

3. Overview of components, mixer system. Harmony
5.
Detail;Ingredients; Width; Height; Capacity./cups Volume/litre Amount/unit
Canister; coffee beans 165 190 2,5kg / 208 7,3 1
Canister; espresso 67 250 0,5kg / 220 2,55 1
Canister; chocolate 67 250 1,5kg / 50 2,55 1
Canister; topping 67 250 1,1kg / 120 2,55 1
Brewing
mechanism
Outlet
drinks Waste box
Bean
container
ON/OFF
switch
FUSE holder
Grinder
Mixer bowls
Chute
Ingredients-
canister
Door lock

6.
ON / OFF
switch
4. Service. Installation and start Harmony
1. Placethe breweron aflat Connect theelectrical plugto aseparate
levelandwaterproofsurface. grounded wall socket230V 10A
OBSERVE!
Make sure there is a space behind
the machine for free flow of air.
( minimum 10cm ).
2. Connectattached watertube to coldwater withan R 1/2”.
Makesurethat thewater hose notare kinkedanywherewhen machineis
pushedinto place.
Please flush water tube before connecting it to machine, this to avoid any
particles to damage the inlet valve.
3. Openthewaterinlet.
4. Turnon the ON-OFFswitchinside thedoor.
Water is beenfilled intothetankautomatically with
2,4 litresof water.Theheatingwill not startbefore
thewaterlevelreaches thelevelsensor.
Set temperature is approx 97ºC.
5. Close door.
90º

7.
4. Service. Installation and start Harmony
6. Fill canisters with ingredients.
Takeout(this toavoidunnecessary
spillagein the machine)ingredient
canistersandfill themwithingredients.
7. When placing the ingredient canisters;
Makesure that theoutlet pipeson the
ingredientcanisters are touchingthe steam
traps(A).
(A).
(A).
8. Fill bean container with coffee beans.
1.Remove lidon beancontainer and fill bean
containerwith coffeebeans without
additives (as tasted oils or sugar).
2.Openclosing hatchon bean container.
When water in tank have the right temperature
the message ”Low temp.” will disappear and ”please wait”
the machine is ready to use.

8.
Brewing of coffee in cup, etc.
1. Placea cup in the centreof thecup holder..
2. The strength has a standard setting,
if you wish to increase or decrease it, do as follows
ifnot continue topoint 3.
Stronger drink;
Increase by pushing + or ++ for 5% or 10%
alternative
Weaker drink;
Decrease by pushing - or -- for 5% or 10%
(theindication lampwill goup ordown
dependingof choice).
3. Choosedrinkby pushingonthe buttontothe right
ofeachmenu.
The display will show; ”Please wait”, and the cup
willbeilluminated.
Wait until thelight oncup andmessage
”Please wait”
hasbeenturned offbeforeyou take yourcup.
Enjoyyourdrink.
5. Operation: Brewing of coffee in cup Harmony
2.
3.

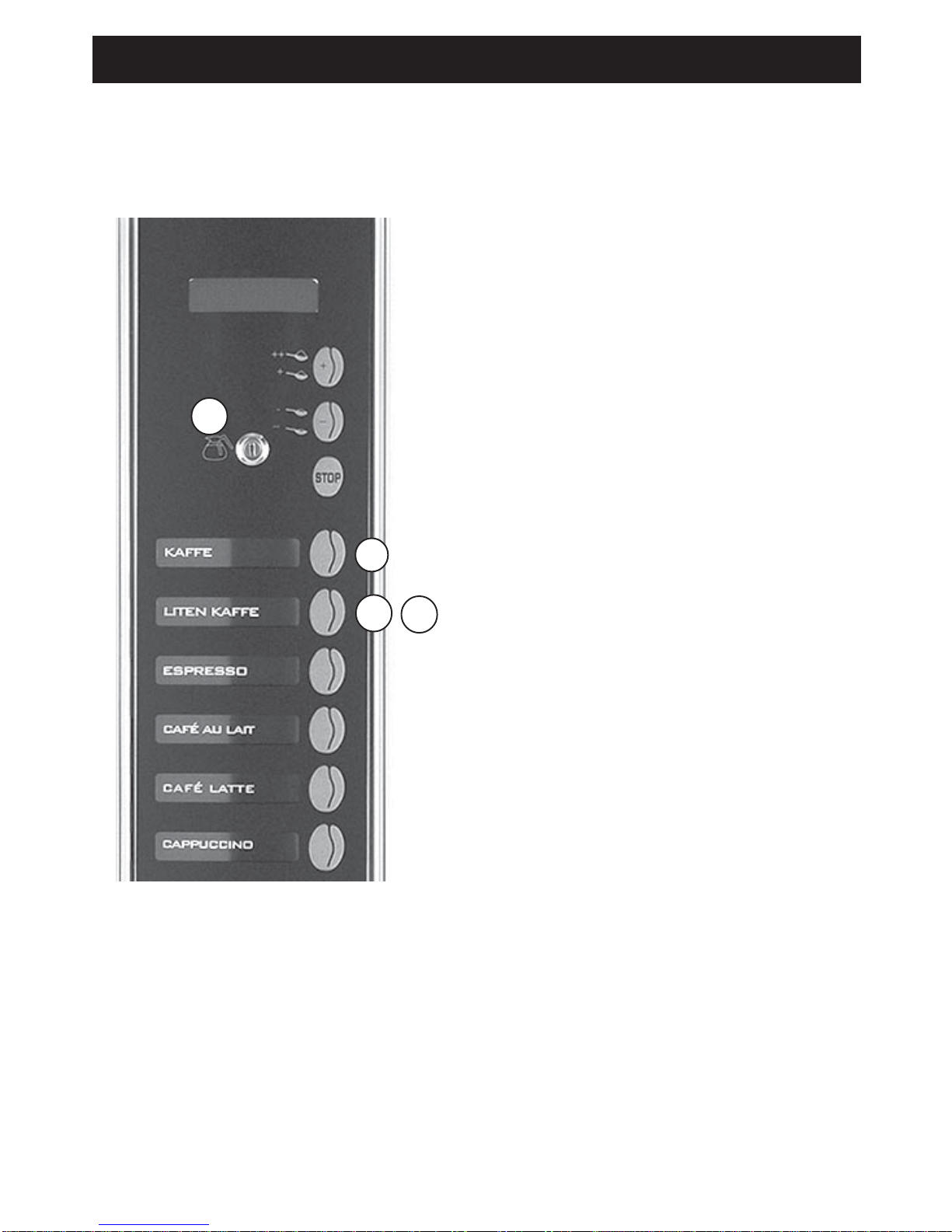

Brewing of jug.
1. Liftupthecupholder.
Placea jugin thecentre of drip tray.
2. Turnonthe keywithjugsymboleclockwise.
3. 6cups of brewing is standardsettings,
Changeamountof cupsbypushing + or- button.
Optionalup to12 cups ordown to1 cup brewing.
4. Pushthebutton for drink1.
Wait until the light and message ”Pleasewait” has
beenturnedoff beforeyoutake out thejug.
Servea jugwith goodcoffee.
5. Operation: Brewing of jug Harmony
9.
Serving pot 1, 8L
art.nr.110001
Servingpot 1,2L
art.nr.1103091
2. 3.
4
1

10.

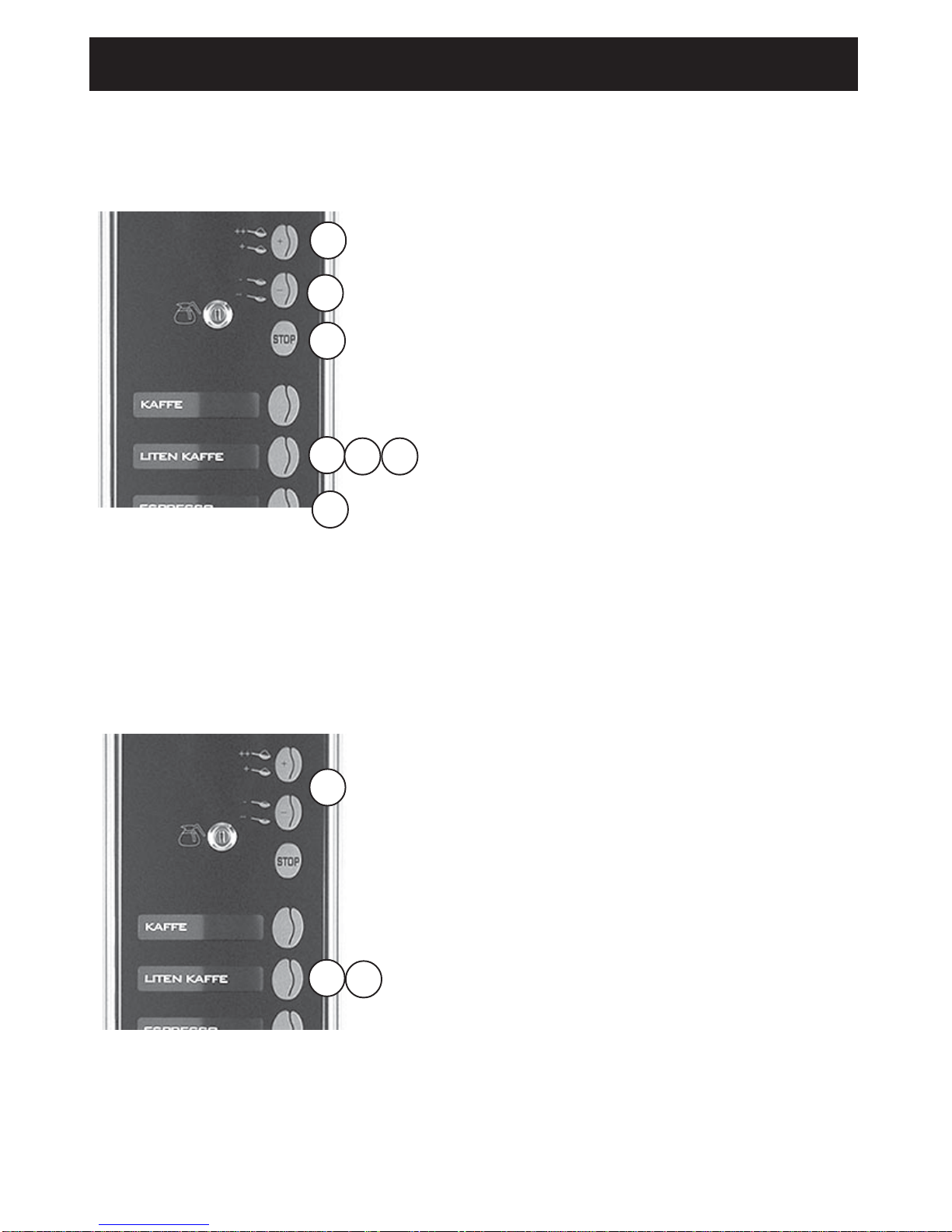

6. Cleaning program. Harmony
2.
By cleaning means that water is flushed and whipper motor rotates.
Themixer bowls caneasily becleaned with thekey switch
in”cup”(normal) position.
Automatic cleaning of mixer bowl No:2
Weekly cleaning! Automatic cleaning of mixing bowls 2 or 3.
Ifyouonly wish tocleanthe mixer bowlandwhipper house;Followthese
instructions:
1. Place a jug in the drip tray.
2. Turnthe key (1)slowly ninety degreesandback again.
3. Push button (3) for 6 seconds.
After4seconds thesignal willgo faster.
After6 seconds the mixer bowland thewhipper houseno.2
startsto be cleaned for5 seconds.
The display shows: ”Cleaning 2”.
Automatic cleaning of mixer bowl No:3
1. Place a jug in the drip tray.
2. Turnthe key slowlyninetydegrees andbackagain.
4. Push button (4) for 6 seconds.
After4seconds thesignal willgo faster.
After6 seconds the mixer bowland thewhipper houseno.3
startsto be cleaned for5 seconds.
The display shows: ”Cleaning 3”.
3.
4.

11.
6. Cleaning program CLEANING: Harmony
Automatic cleaning of In/Outlet valves:
TheIn/Outletvalvescan easilybecleanedwith thekeyswitchin ”cup”(normal)position.
1. Place a jug in the drip tray.
2. Turnthe keyslowlyninety degrees andbackagain.
3. Push button for drink 1 and 2 at the same time for
6 seconds.
Keep buttons down.
AllIn/Outletvalveswill now starttoopenand close
with2 pulses/secondin 10 seconds or aslong asyou
holdthebuttons.
The display shows: ”Cleaning valves”.
4. Push button for drink 2 for making a brew
cycleandflush remainingwaterand scalefromthe
cleaning.
2.
4
3
3

12.
6. Cleaning program CLEANING: Harmony
1. Push ”+” button for 6 seconds
After4seconds thesignal willgo faster.
The display shows: ”Change paper/Rotate”
”PushE/+”
2. Push + button.
The display shows:”Rotatecycle withoutwater”.
3. Pushbuttonfor drink 2.
The display shows: ”Rotate”
Thebrewmechanismrotate one turnwithoutwater
andingredients and the mechanism fallsinto position
if ithas been dismounted.
Observe! The push rod shall be in position
”8 o clock”
If not take out again and repeat the procedure.
Eight (8) o clock.
Rotate brew mechanism without water or ingredients:
Thebrewmechanism canbe rotatedwithout waterand ingredients withthe keyswitchin ”cup”
(normal)position.To beusedwhen brewmechanism has beendismounted forwashing andshall
beremounted.
12
3

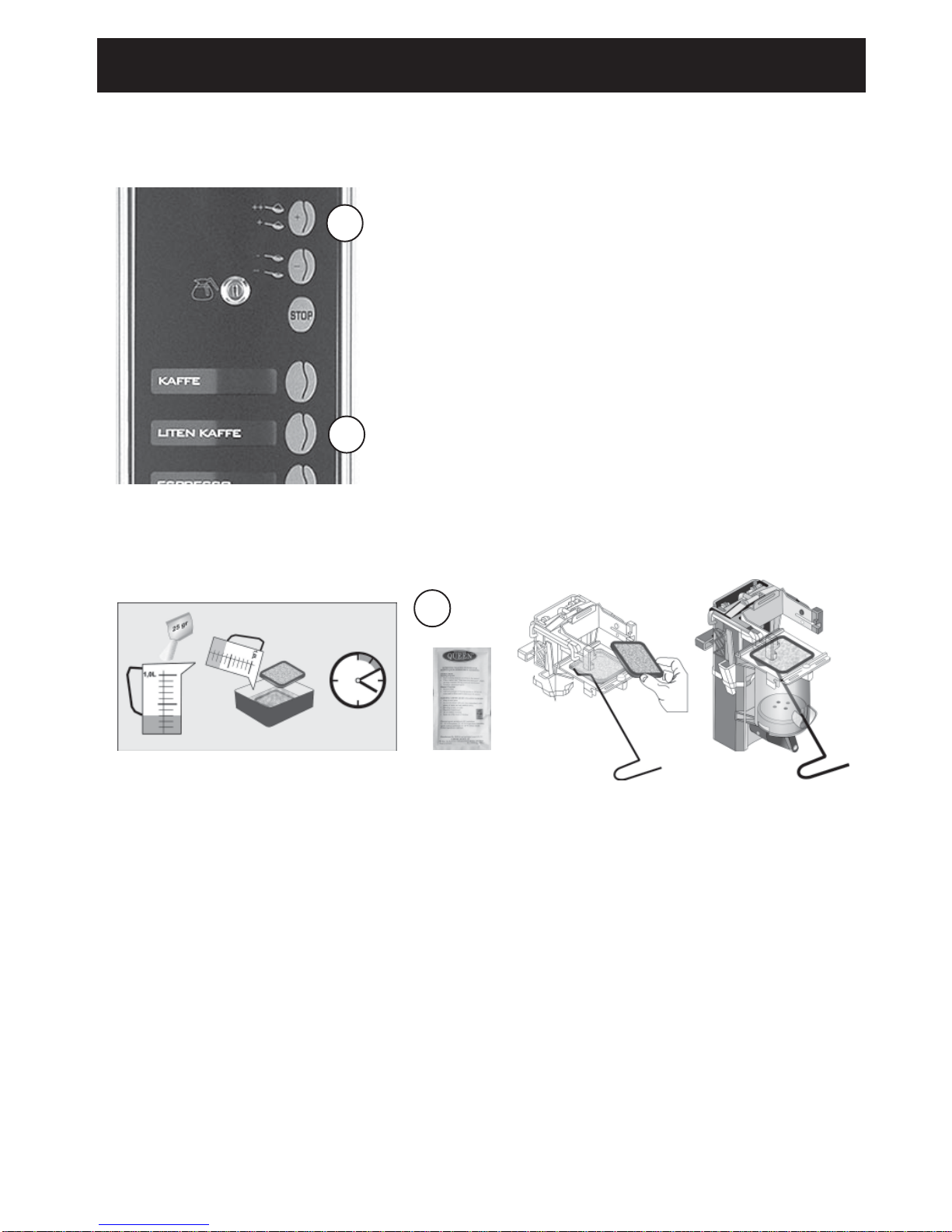

1. Turn the key slowly ninety degress and back again.
Push button for drink 1 for 6 seconds. Fig.A
2. After 4 seconds the signal will go faster.
3. After 6 seconds The display shows; ”Open door”
”load detergent”.
4. Fill 25gr detergent (one portion bag, see fig.A) into the brew
mechanism. fig. B.(Detergent will be supplied from your dealer)
5. The display shows; ”Close door”
6. The display shows; ” When ready press key”
Place a jug into the drip tray and push button for drink 1
7. The display shows; ”Cleaning mixer” (2....)
8. The display shows: ”Rinsing coffee” ”Soak time:”
The machine start to count down from 300 seconds.
9. The display shows. ”Brewer cycle” the machine is counting down.
13.
Automatic cleaning of brew mechanism, mixing bowl:
Shall been done every week.
The brewmechanism can easily be cleaned with the key switch in ”cup” (normal) position.
6. Cleaning program CLEANING Harmony
To stop cleaning process: push ”Stop” button.
The brew mechanism will go back to start position. NOTE! Dont stop the process when detergent
has been loaded the cleaning process must be finished.
10. Push ”+” button for 6 seconds
11. The display shows: ”Change paper/Rotate” ”Push E/ +”
12. Pusk button for drink 2.
13. The display shows; ”Preparing paperload”.
14. The machine will rotate in position.
15. The display shows,”Change paper”
16. Open door, dismantle, clean and reassemble brew house.
see page 14.
17. Close door.
18. Machine is ready to use again.
19. Take out a cup of coffee and pour it out to make sure that there is
nothing left of detergent.
IMPORTANT! Cleaning of brew house.
Afterthe automaticcleaning programis finished.Clean brewhouse! Thismust be done, to make
surethat you willremove residualdetergentsand coffeeremains!
Dismantling and cleaning/washing brew house: Do as follow in paragraph 10- 19.
If machine not will go
back in start position.
Restart machine.
6
1
10.
12.
1
Fig. B

14.
6. Cleaning program CLEANING Harmony

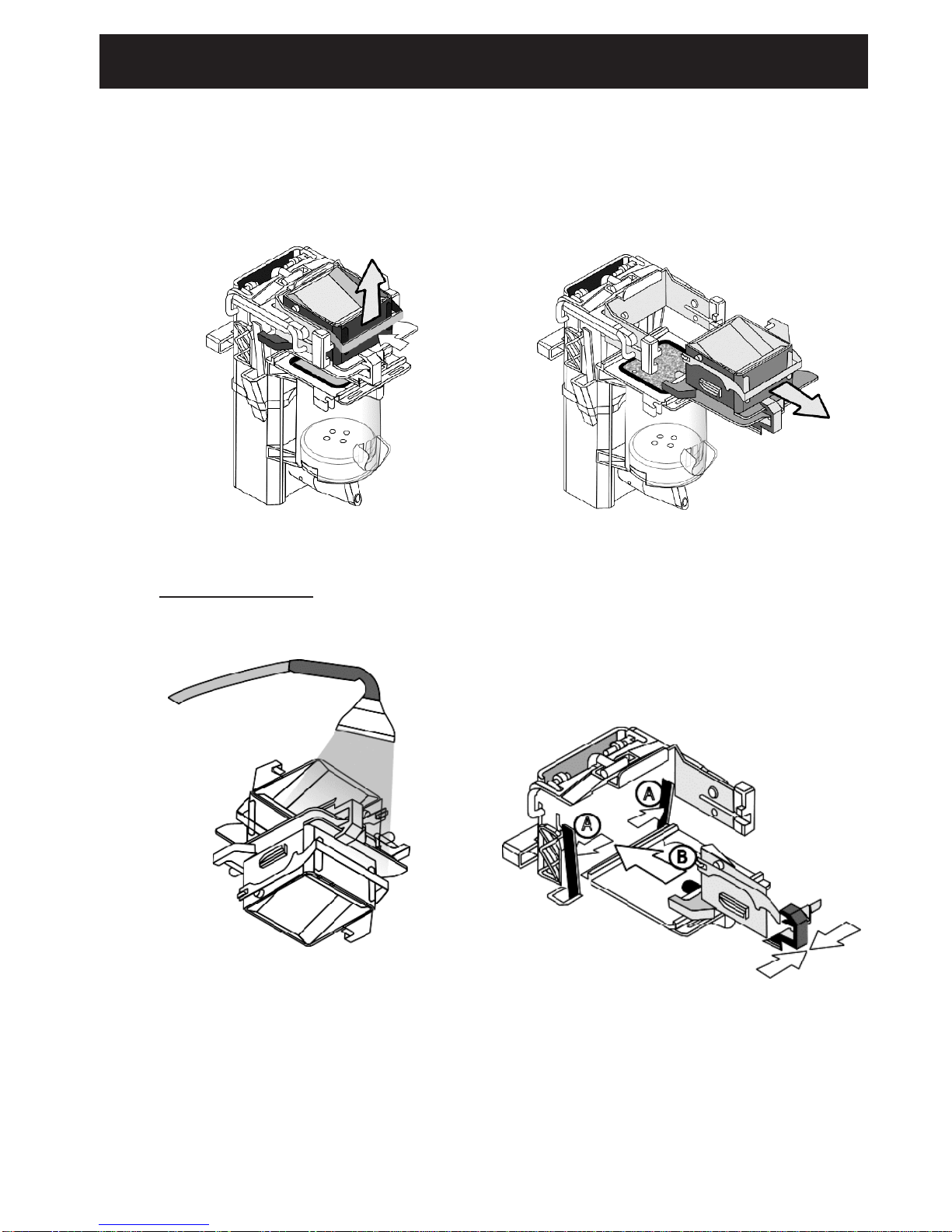

Dismantling and cleaning brew house:
Dismantle brew house:
1. 2.
4.
Reassemble brew house.
NOTE!Whenreassemble brewhouse
makesure that(B) wiper are between (A)
arms.
3. Flush brew house!
Toremove detergent andcoffeeremnants.
Important! wash carefully
To removecleaning
and coffee remains

15.
7. CLEANING: Weekly cleaning Harmony
(D)
Dismantle : Mixer system
1.
Loosenoutlethose (A) and
turnlockknob (B)
anti-clockwise.
3.
Loosenwhipper (D) pull
whipper straight out from the
machine.
(E)
(A)
(B) (C)
Cleaning
Wash these parts:
.6.
A. Mixerbowl
B. Steam trap
C. Whipper
D. Assemblyplate
Make sure this parts are dry
before use
2.
Loosenmixer bowl.
Pullapart (C).
4.
Turnlockknob anti-
clockwise.(E) untilit stops
5.Clean with a wet ragand
droughtdrily.

17.
7. CLEANING: Weekly cleaning Harmony
REASSEMBLE: Mixer system
7.
Reassembletheassembly plateby turning
lock knob (F) clockwise. INSPECT gaskets.
pil (G).
9.
Assemblewhipper, pulluntil
youhear aclicking noise.(H).
10.
Assemble mixerbowl and steam
trap(J) see picture.
11.
Easilypushthe mixerbowl
towards,according to(K) andlock
withlockknob (L).Connectoutlet
hose(M).
(NOTE!make surethat allwater
hoseare connectedat rightplace
(H)
(J)
(J)
(J)
(K)
(M)
(L)
(G)
F F
F
8.
Makesure that themotor whippersplane side
willbe inaccordance withthe whippers plane
side.see next(G) andpicture (H).
INSPECT
INSPECT

17.
8. Cleaning and maintenance Harmony
Cleaning when needed. Outside cleaning; use a
soft rag and liquid cleaning agent to
prevent scratches.
Cleaning of grinder
Seeservice manual
Cleaning bean container.
1.Shutclosinghatch.
2.Dismantle bean container.
Use a soft rag and liquid cleaning
agent to prevent scratches.
Note! Make sure thatall partsare dry
beforeuse.

4. Remountthescreen assembly andclosethe door.Then themachinewill
returnto start position and themachine isready foruse.
Ifmachine notwill goback in start position. Restart machine!
5. Makea cupof coffeeand throw it out.
Tomake surethat there isnothing left of detergent.
18.
8. Cleaning and maintenance. Harmony
Dismantling and cleaning coffee filter.
Atooldismantlingthe coffeefilter,comeswith machine.
Prolonged contact withcleaningagentmay damage the screen assembly. Once this is
done,thescreen shouldthen be thoroughlyrinsed with dishsoap andwarmwater toremove
anyleftoverresidue.
3
1. Push ”+ button” for6 seconds.
After6 secondsthe display shows; ”Change paper/ Rotate”
”PushE/+”.
2.Push button for drink 2.
The display shows; ”Preparing paperload”.
Themachine will rotatein position.
When the display shows,”Change paper” open the door
andinsertthe dismantlingtool(A) through thebrewer spout
alltheway tothe back ofthe cylinder, thenslide it upuntil
contactismade withthe screenassembly.Fig. 1.
Pushup on therear ofthe screenassembly until itpops out
ofthecylinder.Fig.2.
3. Soakthe screenassembly ina solutionof 25gr.cleaning
agentin 3dlwater fora maximumof 10minutes.Fig. 3.
.10 minutes
.3 dl water
97º Celsius
Cleaning agent: (brew mechanism) Coffee Queen article no 1104161
Filter: (brew mechanism) Coffee Queen article no 47200213
Tool: (dismantling filter) Coffee Queen article no 4720090
1
2
Fig. 2. Fig. 1.
Fig. 3.
(Cleaning agent is supplied by your retail dealer) (A)

8. Maintenance, Grinder. Harmony
19.
Outlet for
grinded coffee
Closing
hatch
Bean
container
Grinder,
house
Adjustments:
Theadjustment of theblades issetat thefactory.
Allmaintenance,adjustments and installationsshall be doneofan CoffeeQueenauthorized
servicetechnician. Thiscoffee grinderis only constructedto grindcoffee beans without
additives (as tasted oils or sugar).
Anykind ofuse apartfrom thatisimproperandtherefore unauthorized, theproducerrefuses all
responsibility for damages arising from improper use of the coffee grinder described in this
instruction.

20.
7.
1.
5.
2. 3. 4.
6.
1.
3. 4.
9. Cup counter and Easy Access Harmony
1. Push ”-” button for 6 seconds.
After4seconds thesignal willgo faster..
The display shows: ”Total xxx cups”
2. Pushbuttonfor drink 2.
The display shows: ”Choice 1 free xxx cups”
3. Pushbuttonfor drink 2.
The display shows ”Choice 1 coin xxx cups”
4. Pushbuttonfor drink 2.
The display shows ”Choice 1 xxx cups in can”
5. Push”+” button toreach to”choice 2”etc.
6. Pushchoice 3 toreset thecounter.
7. Push”Stop” button to goback touser mode.
Cup counter:
Themachine has a cup counterwhich isavailable tosee andreset with thekey switch
in”cup”(normal) position.
Easy Access:
Volume and strength can be adjusted with±15% with the key switch
in ”cup” (normal) position.
1. Push ”+” and ”-” button at the same time.
After4seconds thesignal willgo faster.
Thedisplay shows: ”Easyaccess” ”strength1 100%”
2. Choosethedrink youwant to change
bypushing”+”or”-”button.
3. Pushbuttonfor drink 2.
Thedisplayshows: forexample. Volume4 and”
Blinking100%”
Changebypushing”+” or”-”button.
4. Pushbuttonfor drink2to confirmthechange.
Press ”stop” to go back to user mode.
