Cole Parmer HBC-300 Series User manual

Instruction Manual
7002712-CPB Version 5
Cole-Parmer®
HBC-300 Series
Heating Block Calibrators

CONTENTS PAGE
INTRODUCTION 3
BEFORE USE 3
SAFETY AND INSTALLATION 4
English 4
Français 6
Deutsch 8
Español 10
Italia 12
SPECIFICATION 14
OPERATION 15
Button description 15
Icon description 15
Preparation 16
Setting the operating temperature 16
Changing the display units and setting two set temperatures 16
After use 16
ADDITIONAL INFORMATION 17
User maintenance 17
Cleaning 17
Fuses 17
Fault finding 17
TECHNICAL SUPPORT AND SERVICING 17
REPLACEMENT PARTS 18
AVAILABLE INSERTS 18
SPARE PARTS 18
DECLARATION OF CONFORMITY 19
2

INTRODUCTION
Please read all the information in this booklet before using the unit.

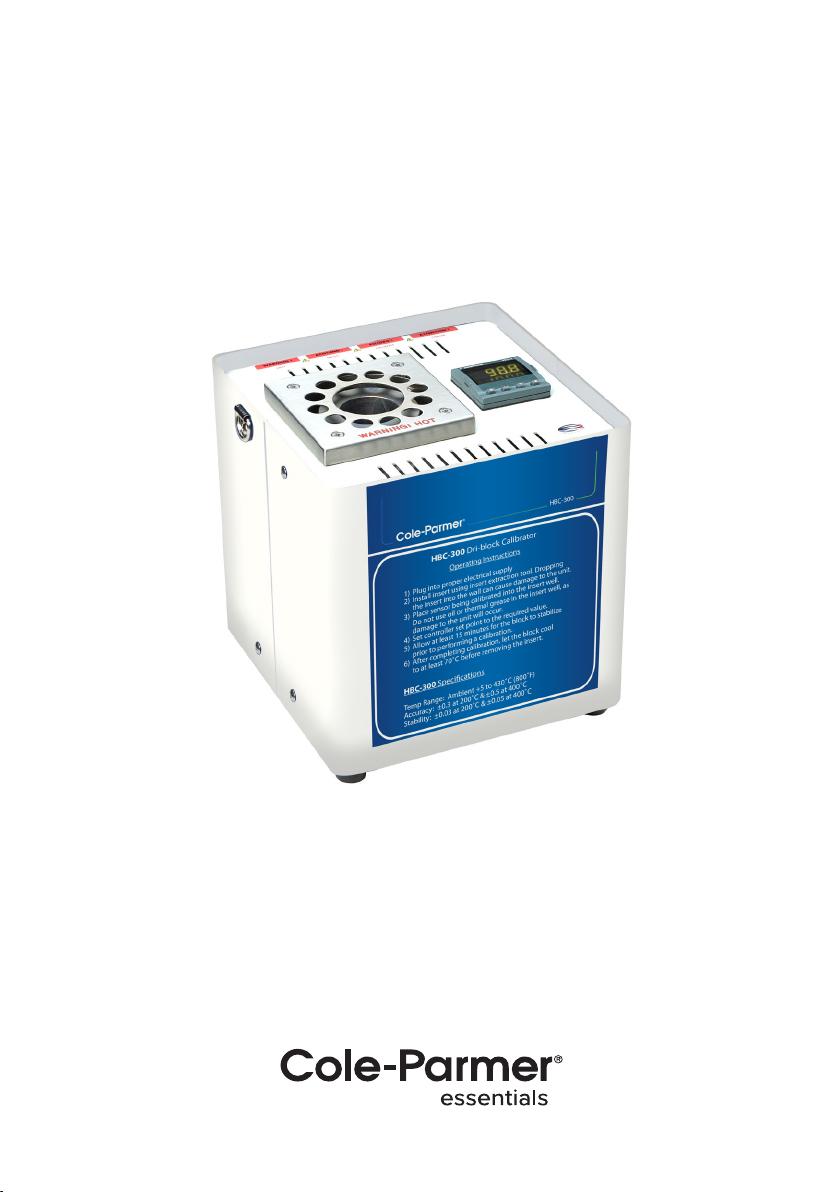

Cole-Parmer's HBC-300 Series calibrator provides a safe, dry, constant temperature source. It is fast and
economical and can be used either on a bench top or as a portable field unit. The weight of the unit is
only nine pounds/four kilograms. The unit covers the temperature range from 5°C above ambient up to
430°C using a machined aluminum insert block as the heat transfer medium. The temperature control
circuit is built into the unit.
Features include:
• 10 insert formats available
• Maximum temperature of 430°C/806°F
• An independent over-temperature cutout
• Temperature sensor burnout protection
Even though the unit heats up rapidly, highly efficient insulation ensures that the case remains cool
enough to handle even at maximum operating temperatures. Cole-Parmer's calibrator has been designed
to comply with all relevant Radio Frequency interference and electrical safety regulations.
The Calibrator is factory preset with all parameters and calibration data and therefore cannot be
calibrated or serviced in the field. Please contact Antylia Scientific for arrangements to have your unit
calibrated or serviced.
BEFORE USE
Before using the Calibrator please make sure you have read this manual carefully. If there is any doubt
relating to the proper use of this equipment, the staff at Antylia Scientific Ltd. or your supplier will be
happy to assist you.
Unpacking
When unpacking the unit please ensure that the following have been removed from the packaging:
HBC-300 Series Block Calibrator
Extraction Tool
Mains cables (UK and EU or US)
Operator’s manual
The user is advised to keep the original packaging in case the instrument ever needs to be returned for
service or repair. Antylia Scientific Ltd. accepts no responsibility for damage incurred unless the unit is
correctly packed and transported in its original packaging.
3

SAFETY AND INSTALLATION
Please read all the information in this manual before using the Calibrator.
WARNING
HIGH TEMPERATURES ARE DANGEROUS: they can cause serious burns to operators and ignite
combustible material.
Cole-Parmer have taken great care in the design of these units to protect operators from hazards, but
operators should pay attention to the following points:
• USE CARE AND WEAR PROTECTIVE GLOVES TO PROTECT HANDS.
• DO NOT use combustible substances near hot objects.
• DO NOT operate the instrument in the vicinity of inflammable liquids or gases.
• DO NOT place any liquid directly into the instrument.
Operator Safety
All operators of Cole-Parmer equipment must have available the relevant literature needed to ensure
their safety. It is important that only suitably trained personnel operate this equipment, in accordance
with the instructions contained in this manual and with general safety standards and procedures. If the
equipment is used in a manner not specified by Antylia Scientific Ltd. the protection provided by the
equipment to the operator may be impaired.
All Cole-Parmer instruments are designed to conform to international safety requirements and are fitted
with an over-temperature cut-out.
If a safety problem should be encountered, switch off the unit at the mains socket and remove the plug
from the electricity supply.
Installation
The unit should be carried using both hands. Never move or carry the instrument when in use or
connected to the mains electricity supply.
1. All Cole-Parmer instruments are supplied with a power cable; this may be integral or plug-in.
2. Before connecting the instrument to the mains electricity supply, check the voltage
against the rating plate (located on the back of the unit). Please note that the unit
must be earthed to ensure proper electrical safety. Connect the mains cable to a
suitable plug according to the table below.
Connections 220V-240V, 50/60Hz 110V-120V, 50/60Hz
Live Brown Black
Neutral Blue White
Earth Green/yellow Green
Note that units marked 230V on the rating plate work at 220V; units marked 120V work at 110V. In
both cases, however, the heating rate will degrade by approximately 8%.
3. Place the unit on a suitable flat bench or in a fume cupboard if required, ensuring that the air inlet
vents on the underside are free from obstruction.
4

4. Plug the mains cable into the socket on the back of the instrument.
5. Switch on the instrument. Symbols on or near the power switch of the unit have the following
meanings:
I Mains Switch On
O Mains Switch Off
Replacement cable
Should the mains lead need replacement, a cable of 1mm2of harmonized code H05VV-F connected to
an IEC320 plug should be used. IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN.
Environmental Conditions
The Calibrator is designed to operate under the following conditions:
• Indoor use
• Ambient temperature range +5ºC to +40ºC
• Altitude to 2000m
• Relative humidity up to 95%
• Mains supply fluctuations not exceeding 10%
• Over voltage category II IEC 60364-4-443
• Pollution degree 2
• Use with a minimum distance all-around of 200mm from walls or other items
Note: The control specifications are quoted at an ambient temperature of 20ºC. The specification may
deteriorate outside an ambient temperature of between 10ºC and 30ºC.
The unit has been tested for radio frequency interference and is certified under EN61326.
5

SÉCURITÉ ET CONSIGNES D’INSTALLATION
Veuillez lire attentivement toutes les instructions de ce document avant d’utiliser le Calibrator.
AVERTISSEMENT
Les TEMPÉRATURES ÉLEVÉES SONT DANGEREUSES car elles peuvent provoquer de graves brûlures chez
l’opérateur et enflammer les matériaux combustibles.
Cole-Parmer a apporté un soin tout particulier à la conception de ces appareils de façon à assurer une
protection maximale des opérateurs, mais il est recommandé aux utilisateurs de porter une attention
spéciale aux points suivants :
• PROCEDER AVEC PRUDENCE ET PORTER DES GANTS POUR SE PROTEGER LES MAINS
• NE PAS utiliser de matériaux combustibles auprès d’objets chauds.
• NE PAS utiliser l’appareil à proximité de liquides ou de gaz inflammables
• NE PAS verser de liquides directement dans l’appareil.
Sécurité de L'Opérateur
Tous les utilisateurs de produits Cole-Parmer doivent avoir pris connaissance des consignes et instructions
nécessaires à la garantie de leur sécurité. Important: cet appareil doit impérativement être manipulé par
un personnel qualifié et être utilisé selon les instructions données dans ce document, en accord avec les
normes et procédures de sécurité générales. Dans le cas où cet appareil ne serait pas utilisé selon les
consignes précisées par Antylia Scientific Ltd., la protection pour l’utilisateur ne serait alors plus garantie.
Tous les appareils Cole-Parmer sont conçus pour répondre aux normes de sécurité internationales et sont
dotés d’un coupe-circuit en cas de surchauffe.
En cas de problème de sécurité, couper l’alimentation électrique au niveau de la prise murale et enlevez
la prise connectée à l’appareil.
Installation
Porter l'appareil à deux mains. Ne jamais déplacer ou transporter l’appareil lorsqu’il est en fonctionnement
ou branché à l’alimentation électrique.
1. Tous les appareils Cole-Parmer sont livrés avec un câble d’alimentation qui peut être intégré à l’appareil
ou à raccorder.
2. Avant de raccorder l’appareil à l’alimentation électrique sur secteur, vérifier la tension
requise indiquée sur la plaque d’identification (située au dos de l’appareil). Il est
important que l’appareil soit relié à la terre pour assurer la protection électrique
requise. Brancher le câble secteur sur une prise appropriée, voir tableau ci-après.
Connexions 220V-240V, 50/60 Hz 115V, 50/60 Hz
Phase Marron Noir
Neutre Bleu Blanc
Terre Vert/jaune Vert
Remarque : les appareils dont la plaque indique 230 V peuvent fonctionner sur 220 V, et ceux dont la
plaque indique 120 V peuvent fonctionner sur 110 V. Dans les deux cas cependant, la capacité de
chauffage diminuera d’environ 8 %.
6

3. Placer l’appareil sur une surface plane ou si nécessaire sous une hotte d’aspiration, veiller à ce que
les trous d’aération situés sous l’appareil ne soient pas obstrués.
4. Raccorder le câble d’alimentation à la prise située à l’arrière de l’appareil.
5. Allumer l'appareil. Les symboles situés sur ou à côté de l’interrupteur de l’appareil ont la signification
suivante :
I Interrupteur secteur en position Marche
OInterrupteur secteur en position Arrêt
Câble de rechange
S’il s’avère nécessaire de remplacer le cordon d’alimentation, utiliser un câble de 1 mm² conforme à la
norme H05VV-F relié à une prise IEC320. EN CAS DE DOUTE, CONSULTER UN ELECTRICIEN
QUALIFIE.
Conditions Environnementales
Le Calibrator est conçu pour fonctionner dans les conditions suivantes:
• Pour un usage intérieur seulement
• Température ambiante +5°C à +40°C
• Altitudeinférieure à 2000m
• Humidité relative ne dépassant pas 95%
• Fluctuations de l’alimentation n’excédant pas 10% de la valeur nominale
• Catégorie II IEC 60364-4-443 de surtension
• Degré de pollution 2
• Utiliser à une distance minimale sur le pourtour de 200mm par rapport aux murs et autres
équipements
Remarque: Les paramètres sont indiqués pour une température ambiante de 20°C. Ces caractéristiques
peuvent se détériorer en dehors d’une température ambiante de 10 à 30°C.
L’appareil a été testé en matière de radiofréquences et est certifié selon la norme EN61326.
7

SICHERHEITS- UND INSTALLATIONSINFORMATIONEN
Lesen Sie diese Anleitung vor Verwendung des Calibrator bitte sorgfältig durch.
ACHTUNG
HOHE TEMPERATUREN STELLEN EINE GEFAHRENQUELLE DAR. Sie können schwere Brandverletzung
verursachen und brennbare Stoffe entzünden.
Cole-Parmer hat bei der Konstruktion dieses Gerätes sehr darauf geachtet, daß der Bediener vor Gefahren
geschützt ist. Dennoch sollten Sie auf die folgenden Punkte achten:
• UMSICHTIG VORGEHEN UND SCHUTZHANDSCHUHE TRAGEN
• KEINE brennbaren Stoffe in der Nähe heißer Gegenstände verwenden
• Das Gerät NICHT in der Nähe entzündlicher Flüssigkeiten oder Gase betreiben
• Flüssigkeiten NICHT direkt auf das Gerät auftragen.
Sicherheit des Bedienpersonals
Alle Benutzer von Cole-Parmer Geräten müssen Zugang zu der entsprechenden Literatur haben, um ihre
Sicherheit zu gewähren. Es ist wichtig, daß diese Geräte nur von entsprechend geschultem Personal
betrieben werden, das die in dieser Gebrauchsanweisung enthaltenen Maßnahmen und allgemeine
Sicherheitsbestimmungen und - vorkehrungen beachtet. Wenn das Gerät anders eingesetzt wird als vom
Hersteller empfohlen, kann dies die persönliche Sicherheit des Anwenders beeinträchtigen.
Die Geräte von Cole-Parmer entsprechen den internationalen Sicherheitsbestimmungen und sind mit
einem automatischen Übertemperaturabschalter ausgestattet.
Wenn ein Sicherheitsproblem auftreten sollte, muß das Gerät ausgeschaltet und vom Stromnetz getrennt
werden.
INBETRIEBNAHME
Das Gerät mit beiden Händen tragen. Das Gerät unter keinen Umständen transportieren, wenn es in
Betrieb ist, oder während das Gerät noch am Netz angeschlossen ist.
1. Alle Geräte von Cole-Parmer werden mit einem Netzkabel geliefert, das entweder eingesteckt wird
oder fest mit dem Gerät verbunden ist.
2. Vor dem Anschluss bitte kontrollieren, ob die Stromversorgung den Angaben auf dem
Typenschild (auf der Geräterückseite) entspricht. Um die elektrische Sicherheit zu
gewährleisten, muss dieses Gerät geerdet werden. Schließen Sie das Netzkabel
entsprechend der folgenden Tabelle an einen geeigneten Stecker an.
Anschluss 220V-240V, 50/60Hz 110V-120V, 50/60Hz
Phase Braun Schwarz
Neutral Blau Weiß
Erde Grün/Gelb Grün
Geräte, die für 230 Volt ausgelegt sind, können auch bei 220 Volt arbeiten, Geräte für 120 Volt auch bei
110 Volt. In beiden Fällen verringert sich die Aufheizrate um ca. 8%.
8

3. Stellen Sie das Gerät auf einen geeigneten ebenen Tisch oder in einem Abzugsschrank auf und
sorgen Sie dafür, dass die Lufteinlassschlitze auf der Geräteunterseite nicht blockiert sind.
4. Stecken Sie das Netzkabel in die Buchse auf der Geräterückseite ein.
5. Schalten Sie das Gerät ein:
I Netzschalter Ein
ONetzschalter Aus
Ersatzkabel
Bei einem eventuellen Austausch des Netzkabels wird ein Kabel vom Typ H05VV-F mit 1 mm2
Adernquerschnitt und Europastecker (IEC 320) benötigt.
IM ZWEIFELSFALL EINEN ELEKTRO-FACHMANN HINZUZIEHEN.
Umweltbedingungen
Der Calibrator ist für den Einsatz unter folgenden Bedingungen ausgelegt:
• Gebrauch in Innenräumen
• Umgebungstemperatur zwischen +5ºC to +40ºC
• Höhe: bis zu 2000 m
• Relative Feuchte nicht über 95%
• Netzspannungsschwankungen nicht über 10%
• Überspannungsklasse 2 IEC 60364-4-443
• Verschmutzungsgrad 2
• Der Mindestabstand zwischen dem Gerät und umgebenden Wänden oder Gegenständen muss
200mm betragen
Hinweis: Die Gerätespezifikationen beziehen sich auf eine Umgebungstemperatur von 20ºC und
können sich außerhalb des Bereichs 10ºC bis 30ºC verschlechtern.
Das Gerät wurde auf HF-Störeinflüsse geprüft und entspricht den EMV-Bedingungen nach EN61326.
9

INFORMAZIONI SULLA SICUREZZA E L'INSTALLAZIONE
Leggere attentamente il presente manuale prima di usare il Calibrator.
AVVERTENZA
Le ALTE TEMPERATURE SONO PERICOLOSE in quanto possono provocare serie ustioni agli operatori e
dare fuoco al materiale combustibile.
La Cole-Parmer ha posto particolare cura nel progettare questo strumento, al fine di proteggere gli
operatori da eventuali pericoli, ma gli utilizzatori devono prestare attenzione ai seguenti punti:
• PRESTARE ATTENZIONE ED INDOSSARE GUANTI PROTETTIVI PER LE MANI
• NON usare sostanze combustibili vicino ad oggetti caldi
• NON mettere in funzione lo strumento nei pressi di liquidi o gas infiammabili
• NON collocare alcun tipo di liquido direttamente nello strumento.
Sicurezza Dell'Operatore
Il personale che utilizza l’apparecchiatura Cole-Parmer deve avere a disposizione la documentazione
necessaria al fine di assicurare la loro incolumità. È importante che solo personale adeguatamente
addestrato utilizzi questo apparecchio, in conformità alle istruzioni contenute in questo manuale e nel
rispetto delle normative e procedure generali di sicurezza. Se l’apparecchio è utilizzato in modo non
specificato da Antylia Scientific Ltd., la protezione fornita dall’apparecchiatura all’utilizzatore potrebbe
essere a rischio.
Tutte le unità Cole-Parmer sono state progettate in conformità ai requisiti internazionali di sicurezza e
sono
equipaggiate con un interruttore anti surriscaldamento.
Se si dovesse verificare qualche problema di sicurezza, disconnettere l’apparecchio dalla rete.
Installazione
Occorre trasportare lo strumento usando entrambe le mani. Non spostare né trasportare lo strumento
quando è in funzione o collegato all’alimentazione elettrica di rete.
1. Tutti gli strumenti Cole-Parmer sono forniti con un cavo di alimentazione; può essere integrale o
plugin.
2. Prima di collegare lo strumento all'alimentazione elettrica di rete, controllare la tensione
confrontandola con la targhetta riportante i valori nominali (si trova sul retro dell'unità).
Notare che al fine di garantire la corretta sicurezza elettrica, occorre che l'unità
sia messa a terra. Collegare il cavo di rete ad una presa idonea secondo la tabella
riportata alla pagina successiva.
Connessione 220V-240V, 50/60Hz 110V-120V, 50/60Hz
Sotto tensione Marrone Nero
Neutro Blu Bianco
Terra Verde/giallo Verde
10

Tenere presente che gli apparecchi riportanti sulla targhetta 230 V funzionano a 220V. Gli apparecchi
riportanti 120V funzionano a 110V. Comunque, in entrambi i casi la velocità di riscaldamento diminuirà
approssimativamente dell’8%.
3. Collocare l'unità su un banco piano idoneo o in una cappa aspirante se necessario, assicurandosi che
gli sfiati delle prese d'aria nella parte inferiore non siano ostruiti.
4. Inserire il cavo di rete nella presa che si trova sul retro dello strumento.
5. Accendere lo strumento:
I Interruttore di rete Acceso
OInterruttore di rete Spento
Cavo di ricambio
Qualora occorra sostituire il cavo di rete, si dovrà utilizzare un cavo di 1mm2codice armonizzato H05VV-F
collegato ad una spina IEC 320. IN CASO DI DUBBIO, RIVOLGERSI A UN ELETTRICISTA QUALIFICATO.
Condizioni Ambientali
Il Calibrator è stato progettato per funzionare nelle seguenti condizioni:
• uso interno
• range di temperatura ambiente da +5ºC a +40ºC
• altitudine massima 2000 m.
• umidità relativa non superiore all’95%
• oscillazione dell’alimentazione di rete non superiore al 10%
• categoria di sovratensione II IEC 60364-4-443
• grado di inquinamento 2
• Con distanza minima tra i lati dell’apparecchio e il muro o altri oggetti di almeno 200mm
Nota: le specifiche di controllo sono indicate ad una temperatura ambiente di 20ºC. Le specifiche
potrebbero peggiorare fuori da una temperatura ambiente compresa tra 10ºC e 30ºC.
Lo strumento è stato collaudato per interferenze da radiofrequenze ed è certificato secondo la norma
EN61326.
11

INFORMACIÓN DE SEGURIDAD E INSTALACIÓN
Lea atentamente este manual antes de utilizar el Calibrator.
ADVERTENCIA
LAS ALTAS TEMPERATURAS SON PELIGROSAS, ya que pueden ocasionar quemaduras graves a los
operarios y prender el material combustible. Cole-Parmer ha puesto gran cuidado en el diseño de estos
aparatos para proteger al usuario de cualquier peligro; aún así se deberá prestar atención a los siguientes
puntos:
• TENGA CUIDADO Y LLEVE GUANTES DE PROTECCIÓN PARA PROTEGERSE LAS MANOS
• NO utilice sustancias combustibles cerca de objetos calientes
• NO utilice el instrumento cerca de líquidos o gases inflamables
• NO coloque un líquido directamente en el instrumento.
Seguridad Del Operario
Todos los usuarios de equipos Cole-Parmer deben disponer de la información necesaria para asegurar su
seguridad. De acuerdo con las instrucciones contenidas en este manual y con las normas y procedimientos
generales de seguridad, es muy importante que sólo personal debidamente capacitado opere estos
aparatos. De no ser así, la protección que el equipo le proporciona al usuario puede verse reducida.
Todos los equipos Cole-Parmer han sido diseñados para cumplir con los requisitos internacionales de
seguridad y traen incorporados un sistema de desconexión en caso de sobre temperatura.
En caso de que surgiera un problema de seguridad, desconecte el equipo de la red.
Instalación
El instrumento se debe transportar con las dos manos. No mueva ni lleve el instrumento cuando se utilice
o esté conectado al suministro eléctrico principal.
1. Todos los instrumentos Cole-Parmer se suministran con un cable de alimentación, que puede ser
integrado o ‘enchufable’.
2. Antes de conectar el instrumento al suministro eléctrico, compruebe que el voltaj coincida
con el indicado en la placa de régimen (situada en la parte trasera de la unidad). El
instrumento debe disponer de una toma de tierra para garantizar la seguridad
eléctrica adecuada. Conecte el cable de alimentación a un enchufe adecuado según la
siguiente tabla.
Conexión 220V-240V, 50/60Hz 110V-120V, 50/60Hz
Con corriente Marrón Negro
Neutro Azul Blanco
Toma de tierra Verde/amarillo Verde
Asegúrese de que los equipos marcados 230V en la placa indicadora funcionan a 220V y de que los
equipos marcados 120V funcionan a 110V. No obstante, en ambos casos la velocidad de calentamiento
se verá reducida en un 8% aproximadamente.
12

3. Sitúe la unidad sobre una mesa plana o en una campana de laboratorio si es necesario, y asegúrese
de que los orificios de ventilación situados en la parte inferior no tienen ninguna obstrucción.
4. Conecte el cable de alimentación en el enchufe situado en la parte trasera del instrumento.
5. Encienda el instrumento:
I Interruptor de alimentación encendido
OInterruptor de alimentación apagado
Cable de repuesto
Si es necesario sustituir el cable de alimentación, se debe utilizar un cable de 1mm2de código
armonizado H05VV, conectado a un enchufe IEC320. EN CASO DE DUDA, PÓNGASE EN CONTACTO
CON UN ELECTRICISTA.
Condiciones Ambientales
El Calibrator está diseñado para utilizarse en las condiciones siguientes:
• Uso en interior
• Intervalo de temperatura ambiente +5ºC a +40ºC
• Altitud: hasta 2000 m
• Humedad relativa no superior al 95%
• Fluctuaciones del suministro eléctrico no superiores al 10%
• Categoría de sobrevoltaje II IEC 60364-4-443
• Nivel de contaminación 2
• Separado de paredes u otros objetos a una distancia mínima de 200mm
Nota: Las especificaciones de control corresponden a una temperatura ambiental de 20ºC. Las
especificaciones pueden empeorar si se utiliza el instrumento fuera del intervalo de temperatura
comprendido entre 10ºC y 30ºC.
Se han realizado pruebas para comprobar la interferencia de radiofrecuencia del instrumento, el cual
cumple la normativa EN61326.
13

SPECIFICATION
Temperature range 5ºC / 9ºF above ambient to 430ºC / 806ºF
Over-temperature limit 450ºC / 852ºF (approximately)
Display resolution 0.1º
Accuracy ±0.3ºC at 200ºC ±0.5ºC at 400ºC
Stability (after 15 minutes) ±0.03ºC at 200ºC ±0.05ºC at 400ºC
Well to well uniformity ±0.015ºC ±0.025ºC
Heat up time 20ºC to 400ºC 12 minutes
Cool down 400ºC to 100ºC 21 minutes
Immersion Depth 114.3mm
Fan Cooling Automatic
Weight 4kg
Overall dimensions* (W x D x H) 203.2 x 203.2 x 222.25mm
*excluding the carrying strap
Electrical supply 230V, 50-60Hz, 900W
115V, 50-60Hz, 900W
Note: The above specifications are quoted for an ambient temperature range of 10°C/50°F to 30°C/86°F.
Outside this range, the quoted figures may deteriorate but the unit will still work safely.
14

15

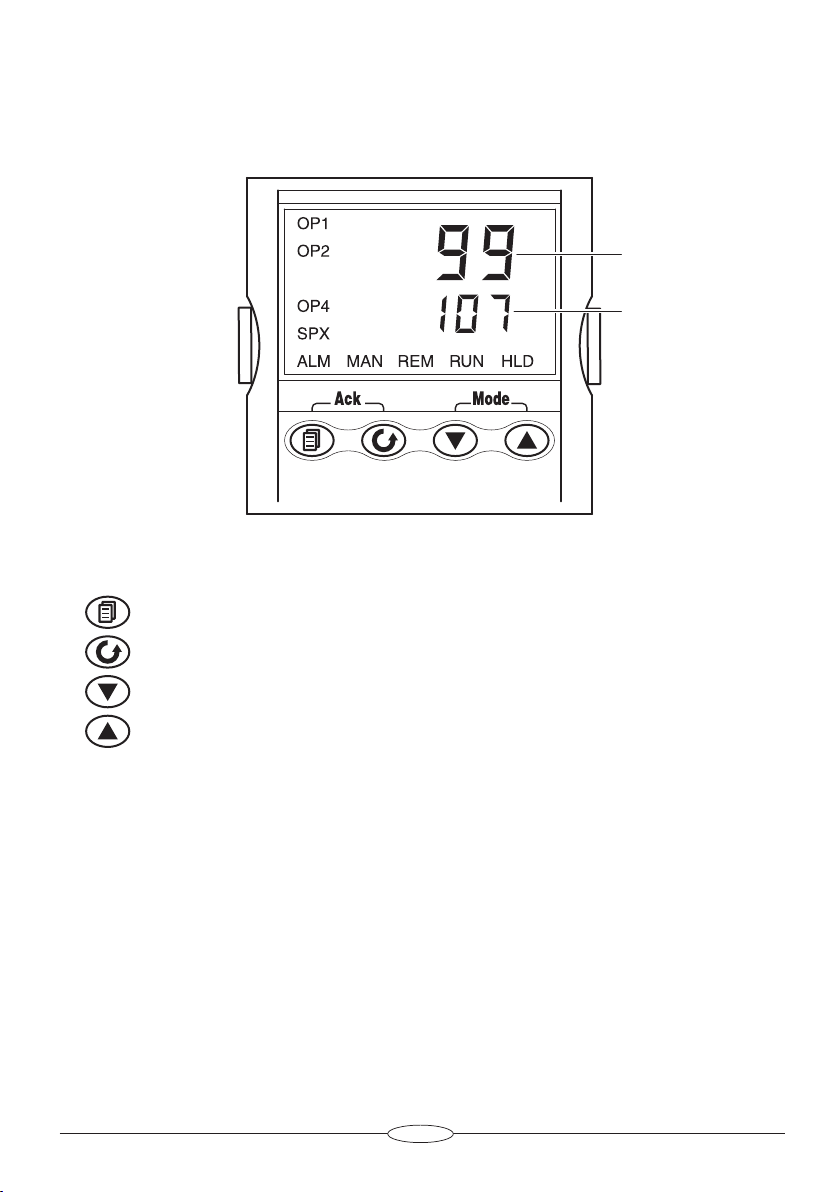

The control panel
OPERATION
Button Description
Page: From any display press to return to HOME display.
Scroll: Press to select a new parameter. If held down it will continually scroll through parameters.
Lower: Press to decrease an analogue value or to change the state of a digital (enumerated) value.
Raise: Press to increase an analogue value or to change the state of a digital (enumerated) value.
Icon Description
OP1 Lit when output 1 is ON (normally heating)
OP2 Lit when output 2 is ON (normally cooling)
OP4 Lit when AA relay is ON (normally alarm)
SPX Alternative setpoint in use (SP2)
ALM Alarm active (Red)
REM Remote setpoint or communications active
RUN Timer running
RUN Flashing Timer in hold
MAN Manual
Measured Temperature
(or Process Value 'PV')
Required Temperature
(or Setpoint 'SP')

16
Preparation
1. The heater design, temperature sensor and control circuit give good temperature control and
uniformity, but make sure that there is a close fit of the probes in the block to allow efficient heat
transfer.
2. Plug the power cable into the socket in the back of the unit. Connect the mains cable to the
electrical supply and switch the power on.
3. The diagram on page 15 is helpful to determine the meaning of the various indicators and displays.
It will be a useful reference when setting the setpoint and display units as discussed below.
Setting the Operating Temperature
1. To set the temperature required, press and hold either the up or down button depending on the
direction you need to take the set point.
2. When you have the correct set temperature displayed, release the up or down button and the unit
will start to heat or cool to the set point.
3. Once the process value/actual temperature reaches the set point, allow the block to stabilize for at
least 15 minutes before performing a calibration.
Changing the Display Units and Setting Two Set Temperatures
1. To change the display units from Celsius to Fahrenheit and vice versa, press the scroll button until
you see “UNITS” in the bottom display. Use the up and down buttons to make your selection.
2. Two setpoints can be entered for future recall, press the “Scroll” button to access SP1 and SP2. Set
a different value for each of these. “Scroll” to SP.SEL to select and use either SP1 or SP2.
After Use
When you have finished calibrating your devices, remember that parts of the unit and the
probe may be very hot; precautions should be taken to prevent injury.
For safety, set the set temperature and allow the unit to cool to below 50°C/122°F before
placing the unit in a carrying case or shipping carton.

17
ADDITIONAL INFORMATION
User Maintenance
NOTE THAT THIS EQUIPMENT SHOULD ONLY BE DISMANTLED BY PROPERLY TRAINED PERSONNEL.
REMOVING THE FRONT OR REAR PANELS EXPOSES POTENTIALLY LETHAL MAINS VOLTAGES. THERE ARE
NO OPERATOR MAINTAINABLE PARTS WITHIN THE EQUIPMENT.
In the unlikely event that you experience any problems with your unit which cannot easily be remedied,
you should contact your supplier and return the unit if necessary. Please include any details of the fault
observed and remember to return the unit in its original packing. Antylia Scientific will accept no
responsibility for any damage to units that are improperly packed for shipment. If in doubt, contact your
supplier. See the Decontamination Certificate supplied with your unit.
Cleaning
Before cleaning your unit, ALWAYS disconnect it from the power supply and allow it to cool below 50°
C. Your unit can be cleaned by wiping with a damp soapy cloth. Care should be exercised to prevent
water from running inside the unit. Do not use abrasive cleaners.
Fuses
Your unit is protected by two fuses. They should only be changed by suitably qualified
personnel. If the fuses blow persistently, a serious fault is indicated and you may need to return the unit
to your supplier for repair.
Fault Finding
Should you have any problems with your Calibrator which cannot be easily remedied, you should contact
your supplier and return the unit if necessary. Please include details of the fault observed and remember
to return the unit in its original packing. Antylia Scientific Ltd. accepts no responsibility for damage to
units which are not properly packed for shipping: if in doubt, contact your supplier, giving the full serial
number of the unit.
TECHNICAL SUPPORT AND SERVICING
If you require further technical or application assistance please contact:
Email: [email protected]
Phone: [phone]
For servicing information please contact:
Antylia Scientific Ltd.
Service Department,
Beacon Road,
Stone,
Staffordshire,
ST15 0SA,
Email: [email protected].
Phone: [phone]
We are continually striving to improve our products and software. If you have any comments and
suggestions on how we can do things better please send them to us at: [email protected]

18
REPLACEMENT PARTS
Part Number Description
FCABLEUK UK 240 volt Mains cable with 13amp UK plug (5 amp fuse)
FCABLEEU Euro style 240 volt Mains cable with R/A Schuko plug
7002705 US 120 volt Mains cable
7032722 insert extractor
7002712-CPB HBC-300 Series instruction manual
7032718 Carrying case
AVAILABLE INSERTS
Part Number Insert well Sizes
7022533 insert 5 x 1/4”
7032534 insert 1 each 1/8”, 3/16”, 1/4”, 5/16”, 3/8”
7032535 insert 2 x 1/4” & 2 x 3/8”
7032536 insert 2 x 1/4” & 2 x 1/2”
7032537 insert 1 x 1/4”
7032538 insert blank
7032574 insert 1 x 9/16” & 1 x 1/4”
7032575 insert 1 x 5/8” & 1 x 1/4”
7032576 insert 1 x 11/16” & 1 x 1/4”
7032577 insert 1 x 3/4” & 1 x 1/4”
SPARE PARTS
Part Number Description
7002695 225 watt, 120 volt heater
7002694 Temperature controller
7002697 PRT
7002698 Solid state relay
7002701 8 amp fuse (120 volt units)
6500131 4 amp fuse (240 volt units)

19
Declaration of Conformity is available to view online at www.coleparmer.com
This product meets the applicable CE Directives
and UKCA Legislation for radio frequency
interference and may be expected not to
interfere with, or be affected by, other equipment with similar
qualifications. We cannot be sure that other equipment used in its
vicinity will meet these standards and so we cannot guarantee
that interference will not occur in practise. Where
there is a possibility that injury, damage or loss might
occur if equipment malfunctions due to radio
frequency interference, or for general advise before
use, contact the manufacturer.
EU Representative address
Antylia Scientific GmbH
Futtererstraße 16
97877 Wertheim
Deutschland
Tel: [phone]
Email: [email protected]
UK Representative address
Antylia Scientific
9 Orion Court
Ambuscade Road
Colmworth Business Park
St. Neots
PE19 8YX
United Kingdom
Tel: [phone]
Email: [email protected]

Antylia Scientific Ltd.
Beacon Road,
Stone,
Staffordshire,
ST15 0SA,
United Kingdom
Warranty Registration
UK
T: [phone]
E: [email protected]
W: coleparmer.co.uk
Germany
T: [phone]
E: de[email protected]
W: coleparmer.de
France
T: [phone]
E: fr[email protected]
W: coleparmer.fr
Italy
T: [phone]
E: [email protected]
W: coleparmer.it
India
T: [phone]
E: [e-mail]
W: coleparmer.in
China
T: [phone]
E: [email protected]
W: coleparmer.com
USA
T: [phone]
E: [email protected]
W: coleparmer.com
Canada
T: [phone]
E: [email protected]
W: coleparmer.ca
Other
T: [phone]
Ordering Information
Order No. Series Model Legacy SKU
16101-98 HCB-300-400D HBC-300 FDBU400D
16101-97 HCB-300-400P HBC-300 FDBU400P
