INSTRUCTION MANUAL RECHARGEABLE PUMP
ENGLISH

4010019276 (ECN20022277-01)

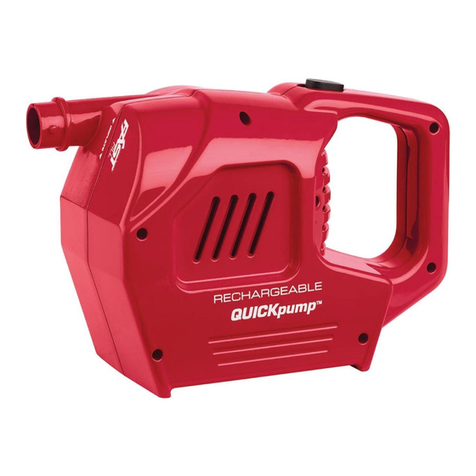

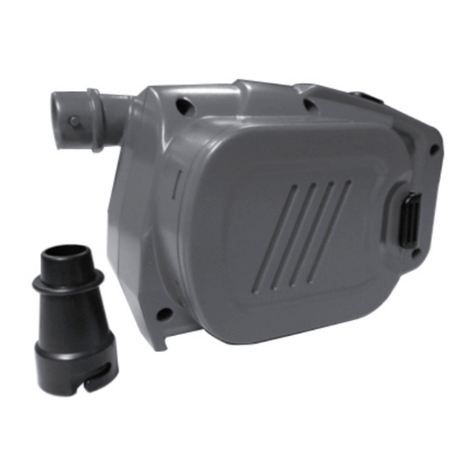

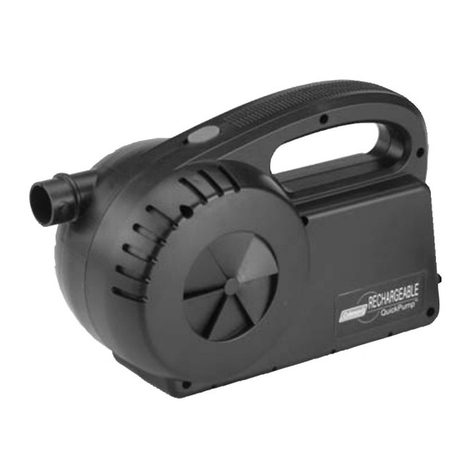

How to Use and Enjoy Your Coleman®
Water Resistant
Rechargeable Pump
Inflating Standard Pinch Valve
• Attach pinch valve adapter to inflation
end of pump.
• Insert pinch valve adapter into pinch valve.
• Make sure tip of adapter is extended
past inner “Flap” inside of valve.
Turn pump on.
• When fully inflated, remove pump from
valve and seal valve.
Other Valves
This pump is compatible with most valves on inatable products. If you
have an inatable product with a valve other than those described above,
rotate the adapter sleeve until nozzle end ts valve.
1. Remove adapter nozzle from
ination end and attach to
deation side of pump. Repeat
same steps as ination. This will
draw the air out quickly.
Deflation
Please call or write to us at our nearest location with any comments or questions.
TheColemanCompany,Inc.•3600NorthHydraulic•Wichita,Kansas67219U.S.A.
1-800-835-3278intheUnitedStates•www.coleman.com
SunbeamCorporation(Canada)Limited•DBAJardenConsumerSolutions
20BHerefordStreet•Brampton,ONL6Y0M1
1-800-387-6161inCanada•www.coleman.com
© 2012 The Coleman Company, Inc. All rights reserved.
Coleman®, , and are registered trademarks and
QuickPump™ and Double Lock™ are trademarks of
The Coleman Company, Inc.

Things You Should Know
• Carefully inspect the pump for damage before first use and every use
thereafter. Do not use if found damaged.
• Do not change the plug in any way.
• Keep unit out of reach of children.
• Do not expose to rain or sunlight. Household use only.
• This pump is a high-volume, low-pressure pump. It is intended to inflate
items requiring low pressure (such as inflatable beds, inflatable rafts, air
mattresses, etc.).
• For fast inflation and maximum motor cooling, always use the largest
size nozzle possible.
• Caution - Risk of fire and electric shock! Do not operate for more than
10 minutes. Allow 20 minutes off between each operation.
• Water resistant for marine environments.
• Pump is water resistant, but cannot be submerged in water.
• Not for use around salt water. Salt water can cause the pump
to corrode.
Note: Pump will not work on stem valves or needle valves commonly
used on bike tires, basketballs, etc.
Warnings
• Follow the instructions carefully on articles to be inflated, never exceed
recommended pressure. Bursting items can cause serious injury.
• Do not open case, electrical hazards may result. There are no user
serviceable parts.
• Never look into or point any opening toward your eyes while pump
is operating.
• Do not attempt to put any objects into the inflation or deflation port at
any time.
• Never leave pump unattended while in use.
• Do not leave pump connected to the power supply when not in use.
• Never twist the cord.
• Never allow sand, paper, debris or small articles to be sucked into pump
while operating.
• Let pump cool before storing the pump inside the box after use.
DO NOT EXCEED 10 MINUTES OF CONTINUOUS OPERATION.
ALLOW 20 MINUTES OFF BETWEEN EACH OPERATION.
CAUTION: Do not block the air portals during operation, this could
damage the motor.
About The Battery
This product used a sealed, lead acid, rechargeable battery. The battery
pack is recyclable. At the end of the battery pack’s useful life, the unit
should be recycled or properly disposed of. Do not discard in a landfill
or incinerate. Contact your city officials for battery disposal information.
If a battery collection program does not exist in your area, call Coleman
at 1-800-835-3278 in the US or at 1-800-387-6161 in Canada for battery
disposal information.
Operation
• The Coleman rechargeable Pump needs to be charged for 10 HOURS
(but no more than 24 hours) before the first use.
• Charge only with the transformer provided with the pump.
• After use, recharge the pump within 48 hours.
• Always store the pump with a full charge. To keep the battery at
optimum operating levels recharge the unit every 3-5 months, even if it
has not been used.
• Do not leave pump charging for more than 24 hours to avoid damage to
the battery.
1. To begin ination, open external
cap and pull rmly on the lanyard
to extend out. This will open
internal yellow seal.
4. Fully remove pump and close
external cap. Valve should appear
depressed into itself.

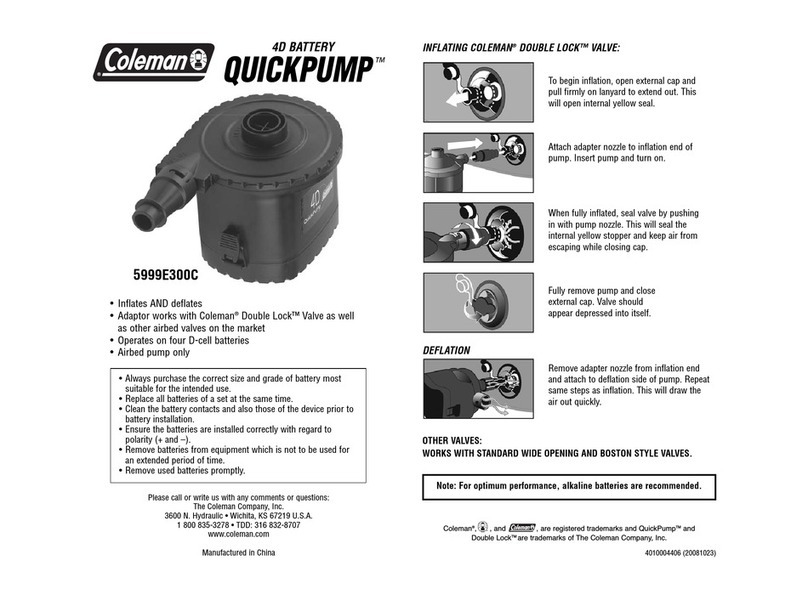

Inflating Coleman®Double Lock™ Valve
2. Attach adapter nozzle to ination
end of pump. Insert pump and
turn on.
Note: The pump may look
different from yours. It is for
illustration purposes only.
3. When fully inated, seal valve
by pushing in with pump nozzle.
This will seal the internal yellow
stopper and keep air from
escaping while closing cap.
Gently twist adapter sleeve to
right while backing pump out of
valve.
