COMAC OMNIA 26 User manual

USE AND MAINTENANCE MANUAL
OMNIA 26-32-42
ED. 06-2011 EN
ORIGINAL
INSTRUCTIONS
Doc. 10012143
Ver. AB

The descriptions contained in this document are not binding.
The company therefore reserves the right to make any modifications at any time to elements,
details, or accessory supply, as considered necessary for reasons of improvement or
manufacturing/commercial requirements.
The reproduction, even partial, of the text and drawings contained in this document is prohibited
by law.
The company reserves the right to make any technical and/or supply modifications. The images
are for reference purposes only, and are not binding in terms of design and supply.
Symbols used in the manual
Open book symbol with an "i"
Indicates that this document is an instruction manual
Open book symbol
Used to tell the operator to read the manual before using the machine
Warning symbol
Carefully read the sections marked with this symbol, for the safety of the
operator and the machine
Warning symbol
Indicates danger of gas exhalation and leakage of corrosive liquids
Warning symbol
Indicates the danger of fire
Do not go near with free flames
Warning symbol
Indicates that the packed product should be handled with suitable lifting
means that comply with the legal requirements

3
SOMMARIO
ON CONSIGNMENT OF THE MACHINE ..................................................................................................................................................4
SERIAL NUMBER PLATE.....................................................................................................................................................................4
INTRODUCTORY COMMENT................................................................................................................................................................4
INTENDED USE..................................................................................................................................................................................4
TECHNICAL DESCRIPTION..................................................................................................................................................................5
SYMBOLS USED ON THE MACHINE......................................................................................................................................................6
GENERAL SAFETY REGULATIONS.......................................................................................................................................................8
MACHINE PREPARATION....................................................................................................................................................................9
1. HANDLING OF THE PACKED MACHINE.........................................................................................................................................9
2. HOW TO UNPACK THE MACHINE.................................................................................................................................................9
3. CABLE CONNECTION TRACTION MOTOR .....................................................................................................................................9
4. INSTALLATION OF THE BATTERIES INTO THE MACHINE.................................................................................................................9
5. CONNECTION OF THE BATTERY CONNECTOR............................................................................................................................10
6. CONNECTION OF THE BATTERY CHARGER................................................................................................................................10
7. RECHARGE OF THE BATTERIES................................................................................................................................................10
8. LEVEL INDICATOR FOR THE CHARGE OF THE BATTERIES ...........................................................................................................11
9. SQUEEGEE ASSEMBLY............................................................................................................................................................11
10. SQUEEGEE ADJUSTMENT......................................................................................................................................................11
11. COVER ASSEMBLY OMNIA 42 .................................................................................................................................................11
12. ASSEMBLY ROTATING BRUSHES ............................................................................................................................................12
13. TANKS.................................................................................................................................................................................13
14. SOLUTION WATER.................................................................................................................................................................13
WORK ............................................................................................................................................................................................14
1. PREPARING TO WORK ..............................................................................................................................................................14
2. SQUEEGEE AUTOMATIC-MANUAL...............................................................................................................................................15
3. BRUSHES PRESSURE MANUAL ..................................................................................................................................................15
4. BRUSHES PRESSURE WITH AUTOMATIC CONTROL......................................................................................................................15
5. TRACTION ...............................................................................................................................................................................16
6. BRAKES...................................................................................................................................................................................16
7. DEVICE TOO FULL ....................................................................................................................................................................16
8. RECYCLING OF THE CLEANING SOLUTION ..................................................................................................................................16
AT THE END OF THE WORK ..............................................................................................................................................................17
1. AT THE END OF THE WORK........................................................................................................................................................17
DAILY MAINTENANCE ......................................................................................................................................................................18
1. CLEANING OF THE RECOVERY TANK..........................................................................................................................................18
2. CLEANING OF THE RECOVERY TANK FILTER...............................................................................................................................18
3. CLEANING OF THE SOLUTION TANK FILTER.................................................................................................................................19
4. CLEANING OF THE SQUEEGEE...................................................................................................................................................20
5. DISASSEMBLY OF THE ROTATING BRUSHES ...............................................................................................................................20
WEEKLY MAINTENANCE...................................................................................................................................................................21
1. REPLACEMENT REAR SQUEEGEE RUBBER .................................................................................................................................21
2. REPLACEMENT FRONT SQUEEGEE RUBBER ...............................................................................................................................21
3. REPLACEMENT SPLASH GUARD BRUSHES BASE.........................................................................................................................21
TROUBLESHOOTING........................................................................................................................................................................22
1. INSUFFICIENT WATER ONTO THE BRUSHES................................................................................................................................22
2. THE MACHINE DOES NOT CLEAN SATISFACTORILY......................................................................................................................22
3. THE SQUEEGEE DOES NOT DRY PERFECTLY..............................................................................................................................22
4. THE SUCTION MOTOR DOES NOT FUNCTION...............................................................................................................................22
5. EXCESSIVE FOAM PRODUCTION................................................................................................................................................23
DISPOSAL.......................................................................................................................................................................................24
CHOOSING AND USING THE BRUSHES...............................................................................................................................................25
EC DECLARATION OF COMPLIANCE..................................................................................................................................................26

4
On consignment of the machine
When the machine is delivered to the customer, an immediate check must
be performed to ensure all the material mentioned in the shipping
documents has been received, and also to check the machine has not
been damaged during transportation. If this is the case, the carrier must
ascertain the extent of the damage at once, informing our customer
service office. It is only by prompt action of this type that the missing
material can be obtained, and compensation for damage successfully
claimed.
Introductory comment
OMNIA is a floor scrubbing machine which, via the mechanical action of
the rotating brush and the chemical action of a water/detergent solution,
can clean any type of flooring. As it advances, it also collects the dirt
removed and the detergent solution not absorbed by the floor.
The machine must be used only for this purpose. Even the best
machines will only work well if used correctly and kept in good working
order. We therefore suggest you read this instruction booklet carefully and
read it again whenever difficulties arise while using the machine. If
necessary, remember that our assistance service (organised in
collaboration with our dealers) is always available for advice or direct
intervention.
Intended use
The scrubbing machine is designed exclusively for the professional
cleaning of surfaces and floors in industrial, commercial and public
environments. The machine is only suitable for use in closed (or at least
covered) places.
The machine is not suitable for use in the rain, or under water jets. It is
FORBIDDEN to use the machine in places with a potentially explosive
atmosphere, for picking up dangerous dusts or inflammable liquids. In
addition, it is not suitable as a means of transport for people or objects.
Serial number plate

5
TECHNICAL DESCRIPTION UM Omnia 26 Omnia 32 Omnia 42
Rated power W - - -
Working width mm 660 830 1040
Width of rear squeegee mm 1015 1115 1315
Work capacity, up to m2/h 2640 3320 4160
Brushes (diameter and quantity) ∅mm 345 / 2 430 / 2 533 / 2
Brush rotations giri/min. 220 210 170
Pressure on the brushes Kg 80 80 80
Maximum specific pressure on the brushes g/cm261 36 29
Brush motor V / W 36/1250 36/1250 36/1250
Type of advance aut. aut. aut.
Traction motor V / W 36/300 36/450 36/450
Maximum gradient % 10 10 10
Forward speed km/h 0 ÷ 4 0 ÷ 4 0 ÷ 4
Suction motor V / W 36/670 36/670 36/670
Suction vacuum mbar 190 190 190
Solution tank PE l 75 105 105
Recovery tank PE l 85 115 115
Machine net weight Kg 205 240 290
Gross weight of the machine ready for use Kg 600 630 680
Batteries (Voltage / Maximum capacity ) V / AhC5 36/270 36/270 36/270
Maximum weight of batteries Kg 315 315 315
Battery compartment dimensions (Length / Height / Width) mm 1600x1120x700 1650x1120x850
1750x1120x760
Machine dimensions (Length / Height / Width) mm 436x510x614 436x510x614 436x510x614
Noise level (in compliance with IEC 704/1) dB (A) <70 <70 <70
Vibration level m/s21.72 1.72 1.72

6
SYMBOLS USED ON THE MACHINE
Indicates the general switch
Indicates the exhaust pipe of the recovery tank
Symbol denoting cock
Indicates thecock lever
Indicates the solenoid valve switch
Symbol denoting up-down brushes base
Indicates the lever of the brushes base lifting
Symbol denoting up - down of the squeegee
Indicates the squeegee lever
Symbol denoting the brushes pressure
Symbol denoting brush
Indicates the switch of the brushes control
Symbol denoting suction motor
Indicates the suction motor switch
Symbol denoting charge level of the batteries
Symbol denoting brake
It is used on top of the emergency and parking brake lever
Symbol denoting brake
It is used to indicate the signal lamp of the hand brake
Indication of the maximum temperature of the solution detergent
Placed near the charging hole of the solution tank

7
SYMBOLS USED ON THE MACHINE
Symbol denoting the coupling
Indicates the anchor points and the load direction
Symbol recycling
Indicates the actuation control of the solution recycling system (optional)

8
GENERAL SAFETY REGULATIONS
The regulations below must be carefully followed in order to avoid harm to the operator and damage to the machine.
•Read the labels on the machine carefully. Do not cover them for any reason and replace them immediately if they become damaged.
•The machine must be used exclusively by authorised, trained personnel.
•During the working of the machine, pay attention to other people and especially to children.
•The machine is not suitable for cleaning carpets.
•The socket for the battery charger cable must have a prescribed earth connection.
•Avoid damaging the battery charger cable by crushing or bending it, or applying stress.
•Do not let the power cable come into contact with the rotating brush.
•If the power supply cable is damaged, do not use the machine and contact a COMAC service centre immediately
•If you notice any damage to the battery charger cable, contact a COMAC S.p.A. technical assistance centre immediately.
•Do not mix different types of detergent as this may produce harmful gases.
•Do not place any liquid containers on the machine.
•The storage temperature must be between -25°C and +55°C; do not store outdoors in damp conditions.
•Conditions of use: room temperature between 0°C and 40°C with relative humidity between 30 and 95%.
•Do not use the machine in an explosive atmosphere.
•Do not use the machine as a means of transport.
•Do not use acid solutions, which may damage the machine.
•Avoid working with the brushes when the machine is standing still, so as not to damage the floor.
•Do not vacuum inflammable liquids.
•Do not use the device to collect dangerous powders.
•In the event of a fire, use a powder extinguisher. Do not use water.
•Do not knock against shelving or scaffolding, where there is a danger of falling objects.
•If the machine is used where there is a risk of falling objects, the machine must be equipped with protections against falling objects.
•Do not use the machine on surfaces with an inclination greater than the one shown on the plate.
•The machine is designed to carry out the washing and drying operations simultaneously. Different operations should only be carried out in areas
where the passage of unauthorised persons is prohibited. Signal the presence of damp floors with suitable signs.
•If the machine does not work properly, check this is not caused by failure to carry out routine maintenance. Otherwise, request the intervention of a
COMAC S.p.A. technical assistance centre.
•If you need to replace any components, request the ORIGINAL spare parts from a COMAC S.p.A. dealer and/or Authorised Retailer.
•For all maintenance interventions, switch off the machine and disconnect the battery connector or the power supply cable.
•Do not remove any protection devices which require the use of tools in order to be removed.
•Do not wash the machine with direct water jets or with pressurised water, nor with corrosive substances.
•Send the machine to a COMAC S.p.A. technical assistance centre for servicing at least once a year.
•To prevent the formation of scale in the solution tank filter, do not fill the tank with detergent solution many hours before using the machine.
•Before using the machine, check that all the hatches and covers are positioned as shown in this Manual.
•When disposing of consumption materials, observe the laws and regulations in force.
•When your COMAC S.P.A. machine has reached the end of its long working life, dispose of the materials it contains in an appropriate manner, and
bearing in mind that the machine itself was constructed using 100% recyclable materials.
•Only use the brushes supplied with the device, or those specified in the Use and Maintenance Manual. The use of other brushes could compromise
safety levels.
•The device must be disconnected from the power supply before removing the battery.
•The battery must be removed from the device before this is disposed of.
•The battery and battery charger must be disposed of in a safe manner, scrupulously respecting the laws in force.
•The machine is not suitable for use by children or people with reduced physical, mental and sensorial capacities, or people lacking experience and
knowledge, unless supervised and instructed in the use of the machine by a person responsible for their safety.
•Children must be supervised to ensure they do not play with the device.
•The machine must be used mainly in closed environments, and never left outside, in damp areas.
•Check all covers and tanks are correctly fixed on the machine.
•The elements of the batteries used must have a cell voltage no greater than 2.7V.
•Whenever the machine is not being used, apply the emergency brake and remove the ignition key.

9
MACHINE PREPARATION
1.HANDLING OF THE PACKED MACHINE
The machine is packed in a specific package provided on a pallet for the handling with fork trucks. The
packages cannot be placed on top of each other.
The total weight is:
1. 277 kg per la OMNIA26
2. 312 kg per la OMNIA32
3. 327 kg per la OMNIA42
The overall dimensions are:
OMNIA
A 1260mm
B 1000mm
C 1740mm
A
CB
2.HOW TO UNPACK THE MACHINE
1. Take off the outer package
2. The machine is fixed on the pallet with metallic brackets
3. Take off these brackets and possible wedges which block the wheels
Note Remember to reset the fastenings removed to take off the brackets
4. Using a chute, get the machine down from the pallet, pushing it in reverse motion. Avoid violent
blows to the base
5. Keep the pallet and the fixing brackets for eventual transport necessities
3.CABLE CONNECTION TRACTION MOTOR
A technician of the Comac service dept. must carry out this operation.
4.INSTALLATION OF THE BATTERIES INTO THE MACHINE
The batteries are fitted in the appropriate compartment under the solution tank and must be handled
by using appropriate lifting equipment suitable both for the weight and for the coupler system. They
must moreover satisfy the requirements quoted in the Specification CEI 21-5. Dimensions of the
battery compartment: 436 x 614 x H510 mm
ATTTENTION! For maintenance and daily recharge of the batteries, it is
necessary to follow strictly all the indications given from the constructor or
from his dealer.Specialized staff must carry out all the installation and
maintenance operations.

10
MACHINE PREPARATION
For the battery installation it is necessary to:
1. Make sure that the solution tank is completely empty
2. Lift the solution tank completely
3. Move the coupler prop onto the outermost hole (1) maintaining the tank in a vertical position
4. After the installation of the batteries hook up again the prop into its original position
ATTTENTION! In order to avoid irreparable damages to the solution tank
and/or to the recovery tank, keep the solution tank lifted in vertical position
when the prop is being uncoupled from its support.
5.CONNECTION OF THE BATTERY CONNECTOR
The battery connector (2) is placed under the solution tank and has to be connected to the connector
of the machine (1).
6.CONNECTION OF THE BATTERY CHARGER
The coupling connector of the battery charger is delivered in the bag where this instruction booklet is
found and must be assembled on the battery charger cables following the suitable instructions
ATTENTION! This operation has to be carried out by specialized staff. A
wrong or incomplete cable connection to the connector can cause serious
damages to persons or things
7.RECHARGE OF THE BATTERIES
In order not to cause permanent damages to the batteries, one should at all costs avoid their complete
discharge and effect recharging within a few minutes after that the signal lamp of discharged batteries
begins to blink.
Note Never leave the batteries completely discharged, even if the machine is not being used.
When recharging the batteries, keep the solution tank open and blocked with its prop (the solution tank
has to be emptied previously). Every 20 recharging operations, check the level of the electrolyte and, if
necessary, top up with distilled water.
ATTENTION! For the daily recharge of the batteries, it is necessary to follow
strictly all the indications given from the constructor or from his dealer.
Specialized staff must carry out all the installation and maintenance
operations.
ATTENTION! Danger of gas exhalations and emission of corrosive liquids
ATTENTION! Fire danger: do not approach with free flames

11
MACHINE PREPARATION
8.LEVEL INDICATOR FOR THE CHARGE OF THE BATTERIES
The batteries’ indicator is digital with 4 fixed positions and a blinking one. The numbers, which appear
on the display, show the approximate charge level.
4= maximum charge, 3= charge 3/4, 2= charge 2/4, 1= charge 1/4, 0= (blinking) discharged
batteries
ATTENTION! Some seconds after that “0” blinks, the brushes motor
automatically switches off. Anyway, the machine can finish to dry before
recharging the batteries.
9.SQUEEGEE ASSEMBLY
The floor-wiper is supplied separately, dismantled from the machine, for packing reasons. It must be
installed as illustrated, first threading left pin (1) of the floor-wiper into the left slot on the arm and then
right pin (2) into the right slot, being careful to keep the spring and the washer above the arm’s flat
bar. This can be simplified by first loosening the handwheel on the pin. Then retighten the handwheel
to clamp the floor-wiper into position.
Now insert the floor-wiper tube into its specific fitting sleeve (3).
2
3
1
10.SQUEEGEE ADJUSTMENT
During operation the rear rubber must be slightly and uniformly bent back about 5 mm along its entire
length.
If it is necessary to increase curvature of the rubber in the central section then the wiper’s body must
be inclined backwards by rotating adjustment unit (1) counter-clockwise. To increase curvature of the
rubber on the sides of the floor-wiper rotate adjustment unit (1) clockwise.
The floor-wiper must be adjusted in height depending on rubber wear. Adjust height by rotating knob
(2) clockwise (tightening) to lift the floor-wiper and counter-clockwise (loosening) to lower it.
Note: The right and left wheels must be adjusted equally so that the floor-wiper works perfectly
parallel with the floor.
11.COVER ASSEMBLY OMNIA 42
The covers of the brushes base of Omnia 42 are packed separately from the machine. Before the
assembling operations are carried out, make sure that the battery connector has been uncoupled.
Then, proceed as follows:
1. Loosen the knobs on the brushes base
2. Insert the cover as shown in the figure
3. Tighten the knobs

12
MACHINE PREPARATION
12.ASSEMBLY ROTATING BRUSHES
1. Push downwards the control lever to lift the brushes base
Note In case of machines with automatic control (machines with actuator) rotate the switch with
key into position ON (1) and push the lever button (2) upwards so much until the signal lamp
of the up-down brushes base is coming off.
2. Turn the key into position OFF and take it off from the instrument board (1)
ATTENTION! To carry out the operations of brushes assembly with connected
current can cause serious damage to the hands
3. With the brushes base in lifted position, insert the brushes into the seat of the plate under the
base until the three buttons fit into the holes of the plate. Turn the brush so that the buttons are
pushed towards their retaining springs until the brush is clamped in place. The figure shows the
direction of rotation for the coupling of the brushes.
It is recommended to invert daily the position of the right brush with the left one and vice versa. If the
brushes are not new and they show deformed bristles, it is better to reassemble them in the same
position, in order to avoid that the different inclination of the bristles causes an overload to the
brushes motor and excessive vibrations.

13
MACHINE PREPARATION
13.TANKS
1. Check that the solution tank is empty, then lift it until the blocking prop is coupled. Check the
correct position of the suction hose in its seat (1), that the solution hose is firmly fixed to the
proper connector (2) and that the upper plug is closed (3).
2. Release the prop and lower the solution tank
3. Check that the rear plug (1) and the exhaust one (2) of the recovery tank are closed.
14.SOLUTION WATER
1. Fill the solution tank with clean water at a temperature not more than 50°C and add liquid
detergent in the proper concentration following the instructions of the manufacturer. Excess foam
in the recovery tank could damage the suction motor, so use only the minimum amount of
detergent necessary.
ATTENTION! Always use low foam detergent. To avoid the production of
foam, before starting to clean, put a minimum quantity of antifoam liquid into
the recovery tank.
2. Retighten the plug of the solution tank.
ATTENTION! Do absolutely not use pure acid.

14
WORK
1.PREPARING TO WORK
1. Carry out the operations for the preparation of the machine
2. Connect the connector to the batteries (1)
3. Check that the parking brake is released (2)
4. Turn the key of the general switch (3) clockwise of a quarter turn. Immediately, the general green
signal lamp comes on (4) and the digital display indicates the charge level of the batteries
2
34
ON/OFF
5. Press the brushes motor switch (1)
6. Press the suction motor switch (2)
Note The machines with automatic version have the functioning of the suction motor only during
forward motion
7. Press the solenoid valve switch (3) (only in the automatic versions)
8. Adjust the amount of detergent solution through the cock lever (4)
3
2
1
4
9. Push forward and lift the control lever to lower the brushes base and to adjust its pressure onto the
floor (1). In case of machines with actuator, lower the lever button (2) until the yellow lamp comes off
(3)
10.Lower the squeegee acting upon the lever (4)
Note For the automatic versions see further on in the paragraph “SQUEEGEE AUTOMATIC MANUAL”
12
34
11.Pushing forward the lever on the handle bar, the machine begins to move. During the first metres of
operating, check that the brushes pressure is suitable (see further on under “BRUSHES
PRESSURE”), that the quantity of the detergent solution is sufficient and that the squeegee dries
perfectly.
The machine will now start working efficiently until the detergent solution runs out.

15
WORK
ATTENTION! Whenever problems during operating occur, lower promptly the
lever of the emergency brake placed on the rear right side of the machine. This
command will block immediately the traction of the machine. To restart the
machine again, press the releasing trigger and lift the lever of the emergency
brake; then push forward the lever on the handle bar.
2.SQUEEGEE AUTOMATIC-MANUAL
The machines with automatic version have the possibility to control electrically the squeegee movement.
Depending on the position of the switch (1) the following functioning systems are activated.
Automatic If the switch is placed on automatic, lowering of the squeegee and starting of the suction
motor are obtained with the machine advancement. Also, lifting of the squeegee and
stopping of the suction motor are achieved with the reverse motion of the machine.
Manual If the switch is placed on manual, the squeegee lifts and lowers itself manually through the
commutator (2). The operation of the suction motor is commanded anyhow through the
squeegee.
12
A
UTO MAN
3.BRUSHES PRESSURE MANUAL
Brushes pressure can be adjusted through the lever shown in the figure. There are three predetermined
positions. Major is the pressure when the lever is in the highest position.
The pressure must be chosen based upon the type of floor and the type of dirt. Excessive pressure
causes higher brushes wear and major energy consumption.
4.BRUSHES PRESSURE WITH AUTOMATIC CONTROL
n case of machines equipped with automatic control (machines with actuator), the lever for the adjustment
of the brushes pressure allows four different levels. Also in this case, major is the pressure onto the
brushes when the lever is in its highest position.

16
WORK
5.TRACTION
These machines are equipped with electronically commanded traction, and continuous speed variation.
To move the machine, rotate the key into position ON, wait for three seconds and then push forwards
(forward movement) or backwards (rear movement) the lever placed on the handle bar.
For safety reasons, in reverse motion, the speed movement is reduced.
ATTENTION! When carrying out even short backward movements, make sure
that the squeegee is lifted.
6.BRAKES
The machine is equipped with two braking systems: a working brake controlled by the lever on the rear left
side (2) and a parking and emergency brake controlled by the lever placed on the rear right side (1).
Lower the levers to operate the brakes.
The lever of the emergency brake is equipped with a blocking device. To release this brake, press the
trigger placed on the lever (1) itself.
7.DEVICE TOO FULL
The machine is equipped with a float, which intervenes when the recovery tank is full. Its intervention
causes the closing of the suction hose. In this case, it is necessary to proceed with the emptying of the
recovery tank taking off the plug of the exhaust hose.
8.RECYCLING OF THE CLEANING SOLUTION
If the machine is equipped with a recycling system of the cleaning solution, for its use refer to the
instructions given with the device. In any case, it is necessary to pay attention to the following
recommendations:
1. the use of the recycling system must be limited to the cleaning of environments not excessively dirty
2. avoid absolutely to treat environments not homogeneous for use and typology of dirt or anyhow
separated between each other
3. normally, the treated surface does not have to exceed twice as much of the one treated without
recycling
4. remember that the detergent efficacy progressively gets exhausted and it is absolutely not
recommended to make additions in the dirty solution
5. clean thorou
g
hl
y
the filters and the tanks at the end of the work

17

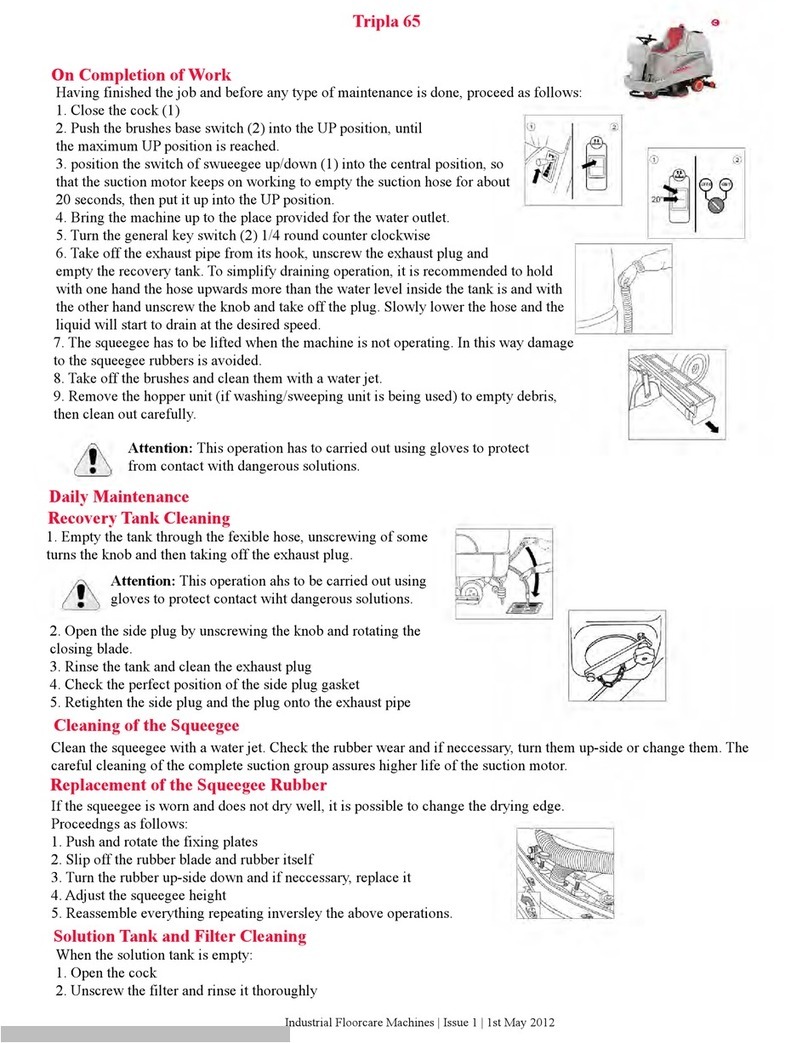

AT THE END OF THE WORK
1. AT THE END OF THE WORK
Having finished the job and before any type of maintenance is done, it is necessary to:
1. Close the water cock (1)
2. Lift the brushes base through the suitable lever if the machine is equipped with manual control (2) or
through the lever button, should the machine be equipped with the automatic control (3)
Note In case of machines with automatic control act upon the lever button (3) until the signal lamp of
the up-down brushes base is coming off.
3. Lift the squeegee (4). The squeegee has to be lifted when the machine is not operating. In this way
damage to the squeegee rubbers is avoided
Note In case of automatic versions, put the switch into the “MAN” position, in order to avoid that it is
being lowered during transfer 3
2
1
4
4. Switch off the brushes motor switch (1)
5. Switch off the suction motor switch (2)
6. Bring the machine up to the place provided for the water outlet
7. Turn the key into position OFF (3)
8. Insert the parking brake
3
2
1
9. Take off the exhaust pipe from its seat, unscrew the exhaust plug and empty the recovery tank.
ATTENTION! This operation has to be carried out using gloves to protect from
contact with dangerous solutions
10.Take off the brushes and clean them with a water jet (for the brushes disassembly please read further
on under “DISASSEMBLY OF THE ROTATING BRUSHES”)
11.Clean the squeegee with a water jet.

18
DAILY MAINTENANCE
PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE
1. CLEANING OF THE RECOVERY TANK
1. Empty the recovery tank completely
2. Empty the solution tank completely and lift it up to its vertical position blocking it through the suitable
prop
3. Unscrew the wing nuts of the recovery tank cover, rotate it of 90°and take it off
4. Take off the rear plug of the recovery tank (1)
5. Take off the exhaust hose from its seat and unscrew the plug (2)
6. Clean the inside of the recovery tank with a water jet
7. Reassemble everything repeating inversely above-mentioned operations
2. CLEANING OF THE RECOVERY TANK FILTER
1. Empty the solution tank completely and lift it up to its vertical position blocking it through the suitable
prop
2. Unscrew the filter cover rotating it counterclockwise
ATTENTION! Do not let in water into the hose connected to the filter cover
3. Extract the filter body from its housing and rinse it thoroughly
4. Reassemble everything repeating inversely above-mentioned operations

19
DAILY MAINTENANCE
3. CLEANING OF THE SOLUTION TANK FILTER
1. Open the cock of the water
2. Empty the solution tank completely
3. Unscrew the filter placed under the front right side of the machine
4. Take off the plug of the water inlet of the solution tank and the filter underneath
5. Clean the inside of the solution tank with a water jet (the water temperature does not have to exceed
50°C)
6. Extract the cartridge from the filter and clean it with a water jet
7. Clean the filter of the solution tank plug
8. Reassemble everything repeating inversely above-mentioned operations

20
DAILY MAINTENANCE
4. CLEANING OF THE SQUEEGEE
In order to have the best drying results, check that the squeegee is always clean. To clean the squeegee:
1. Lift the squeegee through the suitable lever
2. Clean accurately the inside of the squeegee with a water jet
3. Clean accurately the squeegee rubbers with a water jet
4. Check the rubber wear and if necessary, turn them upside-down or change them
Note The careful cleaning of the complete suction group assures higher life of the suction motor.
5. DISASSEMBLY OF THE ROTATING BRUSHES
1. Lift the brushes base acting upon the suitable handle
Note In case of machines with automatic control (machines with actuator), lift the brushes base acting
upon the suitable lever button.
2. Rotate the key into position OFF and take if off from the switch
ATTENTION! To carry out the operations of the rotary brushes’ disassembly with
connected current can cause serious damages to the hands.
3. Unhook the splash guard rubbers of the brushes base (for the disassembly of the splash guard
4. Rotate the brush until it comes off from the brush plate seat as shown in the figure. The figure shows
the rotating direction of the brushes disassembly.
