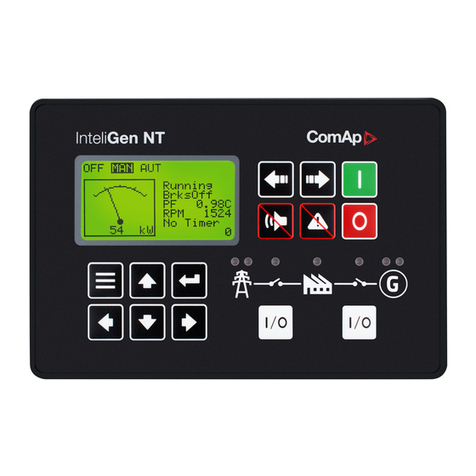

TROUBLESHOOTING GUIDE
Compact Controller for Stand-by and Parallel Operating Gen-sets
InteliGenNT, InteliSysNT,
InteliMainsNT
Modular Controller
Troubleshooting guide
IG-NT, IG-NTC, IG-NT-BB, IG-NTC-BB, IS-NT-BB, IS-NTC-BB,
IM-NT, IM-NT-BB, IM-NTC-BB
Software version IGS-NT-3.1.0, IM-NT-3.1.0, August 2018

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 2
IGS-NT Troubleshooting Guide.pdf
Table of Contents
Table of Contents .................................................................................................................................... 2
General guidelines................................................................................................................................... 4
Available related documentation ............................................................................................................. 5
Troubleshooting....................................................................................................................................... 6
Communication ................................................................................................................................... 6
RS232(x) communication doesn’t work .......................................................................................... 6
RS232(2) / RS485(2) / USB communication doesn’t work ............................................................. 6
Problem accessing controller after configuration programming error............................................ 6
Modem TC35i does not respond to SMS commands..................................................................... 6
Unsuccessful controller programming ............................................................................................ 7
How to check that CAN communication between controllers works .............................................. 8
CAN communication does not work................................................................................................ 9
Controller interface............................................................................................................................ 10
Setpoints setting cannot be changed............................................................................................ 10
Controller does not react to buttons pushing................................................................................ 10
Controller mode cannot be changed............................................................................................. 10
Some setpoints cannot be changed even if correct password is used......................................... 11
Unknown alarm is displayed......................................................................................................... 11
Wrong display HW message ........................................................................................................ 11
Configuration table error............................................................................................................... 11
Display is blank and LEDs are neither blinking nor glowing......................................................... 12
Display is blank, but backlight works............................................................................................ 12
Display is showing “Unsupported code page” .............................................................................. 12
INIT is displayed and controller mode cannot be changed .......................................................... 12
External display problems................................................................................................................. 12
No reaction to pushing command buttons or setting adjustments............................................... 12
InteliVision/InteliVision 8 and image retention.............................................................................. 13
Synchronizing, Load control.............................................................................................................. 14
Gen-set voltage is increasing/decreasing over/under the limits during synchronization.............. 14
GCB is opened before the Load ramp time is over ...................................................................... 14
Sync fail alarm is issued ............................................................................................................... 14
MGCB is not closed even all conditions are fulfilled..................................................................... 14
IM-NT BTB connects dead buses together .................................................................................. 15
Power management.......................................................................................................................... 15
Gen-set doesn't share load with other gen-sets........................................................................... 15
Running Hours Equalization does not work properly.................................................................... 15
Load shedding is active although not all gensets are loaded....................................................... 15
MGCB is not closed although gensets are running ...................................................................... 16
PC software....................................................................................................................................... 17
There is no history in .ant file........................................................................................................ 17
History is not complete ................................................................................................................. 17
Electrical measurement..................................................................................................................... 17
Controller measures wrong generator/mains/bus voltages or currents........................................ 17
Power measurement does not work............................................................................................. 18
Other ................................................................................................................................................. 20
SummerTime Mode causing time rollback and time desynchronization ...................................... 20
Wrn addr error occurs when updating to new FW........................................................................ 20
Statistic values window contains strange numbers upon start-up................................................ 20
Alarms stays in Alarm list even though Fault reset was used to acknowledge them................... 21
No active call after some protection has been activated .............................................................. 21
Forgotten controller password ..................................................................................................... 21
PID regulator doesn't work in the same way as in IS-CU............................................................. 21
MCB fail / GCB fail alarm is issued after switching controller on.................................................. 21
How to … ............................................................................................................................................... 23
Special applications .......................................................................................................................... 23

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 3
IGS-NT Troubleshooting Guide.pdf
Setup your controller to work as the SSB application................................................................... 23
Setup your controller to work as the SPM application.................................................................. 23
List of Abbreviations .............................................................................................................................. 24
List of Possible Events .......................................................................................................................... 27

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 4
IGS-NT Troubleshooting Guide.pdf
General guidelines
This manual provides list of typical problems you may come across when installing / operating the
IG/IS/IM-NT controllers. It also incorporates the “How to...” section with examples of some non-
standard or interesting applications of these controllers, List of Abbreviations and List of Possible
Events which contains information about alarm messages which can be displayed by a controller.
This manual is intended for everyone who is concerned with operation and maintenance of gen-sets.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 5
IGS-NT Troubleshooting Guide.pdf
Available related documentation
PDF files
Description
IGS-NT-SPTM-3.1.0 Reference Guide.pdf
General description of SPtM applications for
InteliGen NT and InteliSys NT. Contains
description of engine and generator control,
control of power in parallel to mains operation,
list of all Setpoints, Values, Logical Binary
Inputs and Logical Binary Output.
IGS-NT-SPI-3.1.0 Reference Guide.pdf
General description of SPI applications for
InteliGen NT and InteliSys NT. Contains
description of engine and generator control,
control of power in parallel to mains operation,
list of all Setpoints, Values, Logical Binary
Inputs and Logical Binary Output.
IGS-NT-MINT-3.1.0 Reference Guide.pdf
General description of MINT applications for
InteliGen NT and InteliSys NT. Contains
description of engine and generator control,
powermanagement, list of all Setpoints, Values,
Logical Binary Inputs and Logical Binary Output.
IGS-NT-Combi-3.1.0 Reference Guide.pdf
General description of Combi applications for
InteliGen NT and InteliSys NT. Contains
description of engine, and generator control in
SPTM, SPI and MINT mode,
powermanagement, list of all Setpoints, Values,
Logical Binary Inputs and Logical Binary Output.
IGS-NT-COX-3.1.0 Reference Guide.pdf
General description of COX applications for
InteliGen NT and InteliSys NT. Contains
description of engine and generator control,
powermanagement, list of all Setpoints, Values,
Logical Binary Inputs and Logical Binary Output.
IGS-NT Application Guide 05-2013.pdf
Applications of InteliGen NT, InteliSys NT and
InteliMains NT, examples of connection,
description of PLC functions, Virtual and Shared
peripheries.
IGS-NT Operator Guide 01-2014.pdf
Operator Guide for all hardware variation of
InteliGen NT and InteliSys NT, InteliVision 5 and
InteliVision 8.
IGS-NT Installation Guide 08-2014.pdf
Thorough description of installation and
technical information about InteliGen NT,
InteliSys NT and InteliMains NT and related
accessories.
IGS-NT Communication Guide 05-2013.pdf
Thorough description of connectivity and
communication for InteliGen NT, InteliSys NT
and InteliMains NT and related accessories.
IGS-NT Troubleshooting Guide 08-2014.pdf
How to solve most common troubles with
InteliGen NT and InteliSys NT controllers.
Including the list of alarm massages.
IGS-NT & ID-DCU Accessory Modules 07-2014.pdf
Thorough description of accessory modules for
IGS-NT family, technical data, information about
installation of the modules, how to connect them
to controller and set them properly.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 6
IGS-NT Troubleshooting Guide.pdf
Troubleshooting
Communication
RS232(x) communication doesn’t work
Solution:
a) Setpoint RS232(x) mode is set to different setting than DIRECT –change its setting to
DIRECT.
b) Converter to RS485 is active at this communication channel –change setpoint RS485(x)conv.
to DISABLED position.
c) Earthing problem exists between the PC and the controller, i.e. the battery negative potential
has different levels in the two devices. IG/IS/IM-NT controllers has a built-in protection which
disconnects battery negative (GND) from the RS232 terminal. Re-activation takes some time
(~ 1 min) after you disconnect the cable (component cools down).
You can temporarily disconnect your laptop PC from the grid (e.g. if you intend to download
controller configuration only). You can disconnect the earth wire from your PC. The best
solution is to use the RS232 galvanic separation device, e.g. one of those which are
mentioned in the InteliCommunication Guide, section Converters.
RS232(2) / RS485(2) / USB communication doesn’t work
Solution:
Relates to IG-NTC/EEC versions of IG-NT family and to IS-NT / IS-NT-BB. Controller FW
version is lower than 2.0 and/or controller was shipped from ComAp before September 2006.
It is necessary to download new FW into the communication sub-processor. It can be done by
sending unit to ComAp or by downloading the latest version of Peripheral modules upgrade
package and following procedure described in the attached documet.
Problem accessing controller after configuration programming error
Problem:
It can happen that remote configuration programming attempt fails (e.g. due to bad phone line
condition) and from that moment on controller shows on its display “CONTROLLER
CONFIGURATION ERROR”.
Solution:
In this stage, even with damaged configuration, controller is still able to receive another phone
call with another attempt to program configuration.
However, if the situation is to be solved locally (i.e. a local technician intends to re-program the
configuration), it is possible to switch the RS232(1) port back to the DIRECT connection mode
by simultaneous pressing up+left+right arrows on the controller.
It is strongly recommended not to upgrade controller firmware using a remote connection,
because in case of programming failure problem has to be solved locally using boot jumper
programming procedure. See Unsuccessful controller programming chapter for information
about this procedure.
Modem TC35i does not respond to SMS commands
Solution:
Do the following:
1. Send AT+CPMS="MT","MT","MT" command via hyperterminal or using the
RS232()MdmIni parameter.
2. Send AT+CPMS="SM","SM","SM" command via hyperterminal or using the
RS232()MdmIni parameter.
3. Restart the modem.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 7
IGS-NT Troubleshooting Guide.pdf
Unsuccessful controller programming
Procedure which is described in this chapter is part of the Boot Jumper Programming video which you
can watch here:
http://www.comap.cz/support/training/training-videos
It is necessary to use the boot jumper for controller programming in case of unsuccessful controller
firmware programming. It may for instance happen due to an accidental cable disconnection,
computer failure or remote connection drop out. If controller firmware programming was not
successful, it is not possible to open connection to a controller, it does not respond and controller
screen is blank. In such case you need to use this procedure for controller programming:
1. Close connection to controller and start GenConfig
2. Check communication port setting in GenConfig. Go to Options –Select connection and select
the right communication port. It is necessary to use the RS232 (1) controller interface, boot jumper
programming does not work with the RS232 (2) or USB controller interface.
3. Go to File –Firmware upgrade and Cloning… –FW upgrade (default configuration)… and select
firmware you would like to upload into a controller.
4. Follow instructions in the notification window:

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 8
IGS-NT Troubleshooting Guide.pdf
Opened BOOT LOADER jumper is marked on the picture (there are three different possibilities):
IG-NTC and IS-NT IG-NT IGS-NT(C)-BB
Close the jumper for programming.
5. Follow instructions in the notification window after programming:
It is possible to configure and program controller in the standard way after this procedure is done.
How to check that CAN communication between controllers works
Check strings CAN16 and CAN32 to see if controller communicates with other controllers via the
CAN2 bus (Intercontroller&Monitoring CAN2). Use InteliMonitor, go to Values - Info to check state of
the strings. These strings contains information about addresses of other controllers which
communicates with a particular controller. Position of each controller in the strings is given by setpoint
Comms setting: Contr. address.
Strings looks like this if you are checking strings on controller with Comms setting: Contr. address set
to 1 and controller does not communicate with any other controllers via CAN2:
CAN16 I000000000000000
CAN32 0000000000000000
Strings looks like this if you are checking strings on controller with Comms setting: Contr. address set
to 1 and controller communicates with controllers with Contr. address set to 2, 16 and 31:
CAN16 I I 0000000000000 I
CAN32 00000000000000 I 0
Strings Reg16 and Reg32 are available directly on controller screens if MINT, Combi or COX
application is used in controller. These strings contains information about addresses of controllers
which belongs into the same logical group as controller which displays this information. Strings Reg16
and Reg32 contains the similar information, however the symbol “I” is displayed only for controllers,
that belong to the same logical group as this controller.
For more information about logical groups see description of Pwr management: Control group,
GroupLinkLeft and GroupLinkRight setpoints (these setpoints are part of the ProcessControl group in
the COX application) in a relevant IGS-NT-xy-Reference Guide.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 9
IGS-NT Troubleshooting Guide.pdf
CAN communication does not work
Problem:
CAN communication (either via CAN1 or CAN2 interface) does not work.
Solution:
a) Check if CAN bus is properly terminated. Measure resistance between the H and L CAN
terminals when all devices connected to a CAN bus are switched off. Resistance between the
H and L should be about 60 Ω, because two 120 Ωresistors has to be used to terminate CAN
bus at the both ends of a CAN line. See External modules connection chapter in IGS-NT-
Installation Guide for information about CAN bus connection.
Be aware that some ComAp devices has a built in 120 Ωresistor which is connected to a CAN
bus if jumper next to a CAN interface is closed! Make sure that the terminating resistor jumper
is closed only in devices which are at the ends of a CAN line.
b) Check if each device connected to a CAN bus has a unique CAN address.
In case of the CAN 2 bus it means that Comms settings: Contr. address setpoint has to be
set to a unique number in each controller which is connected to the CAN2 bus. See Addresses
of Modules on CAN2 chapter in Inteli Communication Guide for information about setting of
CAN addresses in ComAp communication modules and InteliVision to avoid conflict between
addresses.
In case of devices connected to the CAN 1 bus make sure that addresses are set according to
instructions which are displayed upon module configuration on the GenConfig card Modules.
On the picture is example of information which is displayed about IGS-PTM module jumpers
setting. Similar information is displayed for all extension modules.
c) Check wiring topology of the whole CAN bus cable. The topology must be linear (straight), not
“star type” and must not contain any loops.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 10
IGS-NT Troubleshooting Guide.pdf
Controller interface
Setpoints setting cannot be changed
Solution:
a) Setpoints are password protected and password is not entered. Go to menu ->
Users/Password and log in. If your user profile has sufficient access rights, setpoints editing
will be unblocked. System administrator can change controller configuration to give you
access to setpoints.
b) Password is entered (= user is logged in), but setpoints cannot be changed. That means these
are probably blocked by some higher protection level than the current user has got. You need
to log in as a user with sufficient access rights or contact system administrator to give you
access to setpoints.
c) Access lock function is active. Switch the Access lock function off.
Controller does not react to buttons pushing
Problem:
Controller does not react to Start, Stop, Fault & Horn reset, GCB, MCB, MGCB or controller
mode ←,→ buttons pushing.
Solution:
a) Controller is not in MAN or SEM (IS-NT only) mode, switch it to one of these modes. See
OFF-MAN-AUT-TEST mode chapter in IGS-NT-x.y-Reference Guide for information which
buttons works in a particular mode. For example GCB, MCB, Start and Stop buttons does not
work in the AUT mode.
b) There are active alarms in controller alarm list. Button function can not be performed because
of an alarm activity. Get rid of an alarm first and use a button again.
c) Setpoint Basic settings: Local buttons is set to position EXTBUTTONS, which means that
only external control using binary inputs is enabled. Set this setpoint to position PANEL or
BOTH to be able to control genset using its panel buttons.
d) Access lock function is active. Switch the Access lock function off.
Controller mode cannot be changed
Problem:
Controller mode cannot be changed,
Solution:
a) The Basic settings: ControllerMode setpoint is password protected and password is not
entered. Go to menu -> Users/Password and log in. If your user profile has sufficient access
rights, setpoint will be unblocked. System administrator can change controller configuration to
give you access to commands and setpoints.
b) Function for controller mode forcing is active. Go to Measurement IO / Binary inputs and
check if binary input with Remote OFF, Remote MAN, Remote AUT or Remote TEST function
is active. If present and active (check also input polarity using GenConfig –input function can
be inverted), controller mode cannot be changed from mode selected with a binary input
function. It is necessary to change binary input state or disconnect binary inputs from
controller to be able to change controller mode. There may not be binary input with one of the
above mentioned functions.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 11
IGS-NT Troubleshooting Guide.pdf
Check the LBI card in GenConfig to see if e.g. PLC output is used to force controller into a particular
mode:
Some setpoints cannot be changed even if correct password is used
Solution:
Force value function is probably configured to a setpoint and activated. If the function is active
(i.e. alternative value is forced), the original value is not visible and cannot be changed. To
modify the original value, deactivate the Force value function(s) related to this setpoint first.
Letter F is displayed next to a setpoint if its setting is changed using the Force value function.
You can check in GenConfig if Force value is configured to a setpoint which can not be
changed and how it is activated.
Unknown alarm is displayed
Problem:
Alarm which can not be found in this guide or a Reference Guide is displayed by controller.
Solution:
All texts which are displayed by controller can be changed using Trasnlator in GenConfig.
Try to find an alarm text on the Translator card, use the Ctrl+F function to find and alarm text
and match it with the default English text. Check PLC functions Force protect setting and
customized protections (see card Protections in GenConfig) to find alarm messages which are
not listed in the List of Possible Events.
Wrong display HW message
Problem:
“WRONG DISPLAY HW” message is displayed if wrong display hardware is detected.
Solution:
It is necessary to send IS-Display/IG-Display to ComAp for repair if the message is displayed.
Configuration table error
Problem:
“Configuration table error” message is displayed by controller. There are two possible reason:
1. Controller configuration upload was not done properly (typical reason is cable disconnection
during configuration upload)
2. Controller was set up incorrectly during production
Solution:
Try to upload your configuration into controller again. Use one of default configuration files if it
does not help (in case that the original configuration is corrupted).
In case that configuration uploads does not help, connect InteliMonitor to the controller and
check if it is in the INIT state. It is necessary to send controller to ComAp for repair if the
message is displayed and controller is in the INIT state. In case that InteliVision is used, these
two messages has the same meaning as “Configuration table error“:
Comm. error (24492:080000F7)
Timeout (24571:080000BC)

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 12
IGS-NT Troubleshooting Guide.pdf
Display is blank and LEDs are neither blinking nor glowing
Problem:
There is nothing displayed by controller, display backlight is off and LEDs are not flashing or
glowing.
Solution:
a) There is no power supply voltage. Check the power supply voltage.
b) Boot jumper is closed, switch controller off, open the jumper and switch controller on.
Display is blank, but backlight works
Problem:
There is nothing displayed by controller, but display backlight is on.
Solution:
a) Previous controller programming failed, follow instructions in the Unsuccessful controller
programming section.
b) IG-NT, IG-Display: Display contrast is set to an extremely low value. Hold Enter and push the
arrow up ↑button then to increase contrast.
Display is showing “Unsupported code page”
Problem:
The following message is shown on the display: Unsupported code page
Solution:
The language used in the controller is not supported in the display (unsupported languages
with graphical characters). In this case, change the language of the controller and contact
ComAp to get more information about supported graphical languages (by default Chinese and
Korean).
INIT is displayed and controller mode cannot be changed
Problem:
The unit shows "INIT" and does not work, controller mode can not be changed. This situation
occurs after controller reset. Reason of the problem are either incorrectly set setpoints or flat
RTC battery.
Solution:
a) A new firmware containing new setpoints was uploaded into a controller. Use InteliMonitor
online connected to the controller to check all setpoints and fix setting of those which are set in
a wrong way. You have to change at least one setpoint setting. If all setpoints are correct,
change one of them and put it back to the original value to recalculate the checksum. It may
be necessary to switch controller off and on after changing setpoints setting. You can tick
Reset from Init state function in Options in GenConfig to avoid repeating of this problem (Init
state reset is done automatically by GenConfig if this function is active).
b) The RTC backup battery is flat. Send a controller to your distributor for battery exchange if the
RTCbatteryFlat message is displayed4.
External display problems
No reaction to pushing command buttons or setting adjustments
Problem:
It is not possible to adjust any setpoint setting and issue any command using IG-NT panel,
IG/IS-Display module or InteliVision (IV).
Solution:
Access lock input is active for that particular terminal, therefore this terminal can be used only
for monitoring. You can check this by looking on the first measurement screen (press Esc to
enter menu and select Measurement).
These symbols are displayed if access lock is active:
IS-Display –“crossed hand” symbol is displayed in the upper left corner
IG-Display and IG-NT –lock symbol is displayed in the upper right corner
InteliVision –“crossed hand” symbol is displayed in the upper right corner of the Status bar

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 13
IGS-NT Troubleshooting Guide.pdf
part of measurement screens (see Operator Interface chapter in an InteliVision
Reference Guide for information about the Status bar part of measurement
screens)
Binary input
function
Locked display module
AccessLock int
IG-NT/EE internal display, IS-Display and IV with Terminal address = 1
AccessLock D#2
IG-Display, IS-Display and IV with Terminal address = 2
AccessLock D#3
IS-Display and IV with Terminal address = 3
InteliVision/InteliVision 8 and image retention
Problem:
In general LCD screens are susceptible to image retention at varying degrees. Image
retention is caused by a parasitic capacitance build up within the LCD cell, which prevents the
liquid crystal molecules from returning to their normal relaxed state.
Image retention (reversing burn-in) can be observed during using InteliVision, when retention
of the main screen, which is displayed for most of the time, is strongly visible also on other
screens. This image retention is not permanent change. After some time it fades.
Solution:
DECREESE BRIGHTNESS of screen to approx. 50-60%.
This solution helps to decrease recovery time of a screen to less than 2 minutes, when an
image retention fades (the time can be longer if is used IV in too hot or too cold environment).
There are two brightness settings available:
•Day mode
•Night mode (especially for Marine applications)
Changing the modes can be done by holding the ESC button for 1 second.
Display brightness can be adjusted in range from 0 % to 100 % in both modes. Brightness of
the display can be increased/decreased by holding Esc button and repeated pushing .
See the picture below:
Push ESC + PgUp buttons or ESC + PgDn buttons to select mode which should be adjusted.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 14
IGS-NT Troubleshooting Guide.pdf
Synchronizing, Load control
Gen-set voltage is increasing/decreasing over/under the limits during
synchronization
Problem:
When gen-set is synchronizing to the Bus/Mains its voltage goes out of limits and GCB is
opened due to over/undervoltage protection.
Solution:
a) Check setpoints GenNomV or GenNomVph-ph if they are adjusted to proper value.
b) If the voltage is adjusted properly check if the same value is in MainsNomV/BusNomV or
MainsNomVph-ph/BusNomVph-ph. These values need to be adjusted to the same value
even if nominal voltages of gen-set and Bus/Mains are different!
c) See the example below for proper adjustment of system with different nominal voltages on
Mains/Bus and gen-set.
Example:
Both setpoints GenNomV or GenNomVph-ph and MainsNomV/BusNomV or MainsNomVph-
ph/BusNomVph-ph must be adjusted to the same values according to the value of actual
generator nominal voltage. E.g. gen-set nominal is 231 V but Bus/Mains nominal is 240 V.
- In this case both setpoints need to be adjusted to 231 V and setpoints of corresponding
protections for Bus/Mains need to be set assymetrically.
- For 240 V on Bus/Mains it is typical to open MCB when voltage reaches 254 V or 225 V.
- Since the setpoint for Mains/Bus nominal voltage is adjusted to 231 V corresponding
protection setpoints need to be adjusted to Mains >V/Bus >V = 106% and Mains <V/Bus
<V = 97 % (hence the desired values are reached).
GCB is opened before the Load ramp time is over
Problem:
After reverse synchronization and during generator unloading is GCB opened before the Load
ramp time is over.
Solution:
a) AMF settings: BreakerOverlap time is shorter than the Sync/Load ctrl: Load ramp time
setting. Set Breaker overlap to the same or longer time than Load ramp setpoint.
b) GCB is opened during generator unloading as soon as generator power level given by
setpoint Sync/Load ctrl: GCB open level is reached. Decrease the GCB open level setting to
avoid premature GCB opening.
c) Load in island was much lower than gen-set nominal power. The real time of load ramp is
Load ramp x Pinitial_island / Nomin power; controller switches off GCB immediately (with 1s
delay) as soon as generator power gets below the GCB open level.
Sync fail alarm is issued
Solution:
a) Setpoint Sync/Load ctrl: Sync timeout is set to too short time -> set it to a longer time to allow
controller to match all synchronizing conditions.
b) Speed governor or AVR control is not setup correctly. See chapters Speed Governor Interface
List and AVR Interface List in IGS-NT Installation Guide for information about proper
connection of a speed governor and AVR. See Sync/load control adjustment and Volt/PF
control adjustment chapters in an IGS-NT Reference Guide for information how to setup
controller speed and voltage regulation loops correctly.
MGCB is not closed even all conditions are fulfilled
Solution:
a) IM-NT Bus protect: Bus >V Hst, Bus <V Hst, Bus >f, Bus <f do not have the same settings as
IG/IS-NT generator control unit (use the same settings for generator and mains control unit).
b) IM-NT and other gen-sets are not in the same logical group. See setpoints Pwr Management:
Control group (Controller cannot see each other via CAN bus).

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 15
IGS-NT Troubleshooting Guide.pdf
IM-NT BTB connects dead buses together
Problem:
It happens, because even dead buses are evaluated by controller as “healthy”. Reason is
that either setpoints BusL protect: BusL Volt prot and BusLfreq prot are set to DISABLED or
setpoints BusR protect: BusR Volt prot and BusRfreq prot are set to DISABLED. These
settings means that controller does not evaluate if bus is healthy according to bus voltage and
frequency protections setpoints setting, because bus voltage and frequency check are simply
disabled.
Solution:
Change setting of at least one above mentioned setpoint (BusxVolt prot and/or Busxfreq prot)
to ENABLED (in both BusL protect and BusR protect groups) to avoid connecting of dead
buses.
Power management
Gen-set doesn't share load with other gen-sets
Solution:
Check if the gen-set is not running in the local baseload mode. This mode is active if setpoint
ProcessControl:LocalBaseload is set to other value than OFF. If this setpoint is not set to
OFF then the gen-set is taken out of Load sharing and Power management. Fof rmore details
see chapter Local Baseload in IGS-NT-MINT-x.y-Reference Guide.
Running Hours Equalization does not work properly
Problem:
Gensets priority switching based on engine running hours (Pwr management: PriorAutoSwap
is set to RUN HOURS EQU) does not work properly and some or all gensets has the same
priority. It means that gensets with the same priority behaves as one large genset and runs at
the same time.
Solution:
This problem is caused by incorrect priority switching system initialization. Follow these steps
to get rid of the problem:
1. Set #PriorAutoSwap setpoint to DISABLED
2. Set Priority setpoints in all controllers to unique numbers
3. Set #PriorAutoSwap setpoint to RUN HOURS EQU
Load shedding is active although not all gensets are loaded
Problem:
Load shedding outputs (LdShed stage 1,2 and 3) are active although not all available gensets
are loaded (running and connected to bus). The reason is that Load shedding and Power
management control systems are independent and it is necessary to set controller properly to
avoid this situation.
Solution:
Use controller power management in “relative” mode. It means that Pwr management: #Pwr
mgmt mode has to be set to REL (%). Make sure that Pwr management: #%LdResStrt x is
set below Load shedding: Ld shed level so idle genset is started before load shedding output
is activated.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 16
IGS-NT Troubleshooting Guide.pdf
Example of correct Power management and Load shedding setting is on this
picture:
You can see that the Pwr management: #%LdResStrt1 limit is crossed first when system load
goes up and request to start additional genset is issued before the load shedding request.
However, it is not enough to set limits in the suggested way to make system work properly. It
is important to set Pwr management: #NextStrt del much shorter than Load shedding: Ld
shed delay so there is enough time for starting genset to start, synchronise and take over load
before a load shedding output is activated.
MGCB is not closed although gensets are running
Problem:
All available gensets are running and connected to bus (GCB’s are closed), but IM-NT does
not close MGCB.
Reason of the problem is that Act Reserve (Actual load reserve) value is not higher than value
of currently used Pwr management: LoadResStrt x setpoint (binary input functions Load res
xcan be used for switching between LoadResStrt x setpoints). Act Reserve has to exceed a
LoadResStrt x value so IM-NT evaluates system reserve as sufficient to connect load to
gensets (this evaluation is not done when system should run in parallel with mains).
Check state of the Syst res OK signal in InteliMonitor (go to Values/Log Bout/LogBout 4) to
see if Act Reserve is evaluated by IM-NT as sufficient enough (condition for MGCB closing is
ActReserve > LoadResStrt x)
Solution:
a) Check if setpoint Pwr management: Pwr management is set to ENABLED in genset
controllers (there is no such setpoint in IM-NT itself). Act Reserve value (PBNom) in IM-NT is
based on information it receives from gensets power management system. There is no
information about available power sent from gensets controllers to IM-NT if Pwr management
is set to DISABLED.
b) Decrease value of a currently used Pwr management: #LoadResStrt x setpoint so available
Act Reserve (PBNom) is higher than the #LoadResStrt x setpoint. Do that if you consider
available Act Reserve power sufficient enough to cover a system load.
You can use alternative #LoadResStrt x setpoint with setting low enough to enable MGCB
closing (use a Load res x binary input function for switching to a different LoadResStrt x
setpoint).
c) Set Pwr management: #LoadResStrt x setpoint to a negative value if you can not set Pwr
management: Pwr management setpoint to ENABLED in gensets controllers (e.g. IGS-NT-
LSM+PMS dongle is not used in genset controllers and power management function is not
available then). It is necessary to fulfill the following condition to enable MGCB closing:
PBNom > PAkt + Reserve
PBNom Sum of the nominal power of all running gen-sets (displayed as Act Reserve
value by IM-NT)

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 17
IGS-NT Troubleshooting Guide.pdf
PAkt System load
Reserve selected setpoint #LoadResStrt x
Setting setpoint Pwr management to DISABLED in genset controllers means that PBNom is
always 0 in IM-NT (no power information is received from genset controllers) and it is
necessary to set #LoadResStrt x to a negative value to meet the condition for MGCB closing.
It is sufficient to set #LoadResStrt x to -1 if only one MGCB needs to be closed (PAkt is always
0 before the first MGCB breaker is closed). However, this setting is not sufficient if several
MGCBs should be closed and it is necessary to set #LoadResStrt x to a lower value.
E.g. it is necessary to set a #LoadResStrt x setpoint to -101 (or a lower value) to achieve
second MGCB closing if PAkt is 100 after closing of the first MGCB:
PBNom > PAkt + Reserve
0 > 100 + (-101)
PC software
There is no history in .ant file
Solution:
a) InteliMonitor / Settings / History –the Typical program setting is to “Site monitored from this
computer only”. If this is not true, i.e. some other computer may be connected sometimes to
the site (controller), it may read out the history records and after this computer is connected
again, there appear to be no records in the archive. In such a case (especially can happen
with remote, e.g. modem connections), please switch to “Site monitored from more
computers”, which ensures proper history reading. The first option provides faster history
reading if there are only few new records, but with more computers accessing the same site
leads to the above mentioned behaviour.
b) Archive was saved with GenConfig tool with version lower than 2.1. GenConfig is offline tool
for configuration purposes, so archives saved using this tool does not contain actual history
data. That’s why history is not saved at all with this tool. Starting from version 2.1, GenConfig
is able to read history from controller and save it as part of controller configuration file.
History is not complete
Problem:
Some history records which are available in controller are not included in downloaded history.
Solution:
This problem is caused by InteliMonitor setting. It happens if history reading is set to Site
monitored from this computer only and more computers are used to read data from a
controller. InteliMonitor with Site monitored from this computer only setting reads only history
records which were not downloaded during the last connection and records are missing if the
last connection was done using a different computer.
Go to Settings -> History and change setting from Site monitored from this computer only to
setting which matches your needs. Recommended settings are Site monitored from more
computers or Service tool (see InteliMonitor-x.y-Reference Guide manual for more
information).
Electrical measurement
Controller measures wrong generator/mains/bus voltages or currents
Problem:
Controller measures wrong generator/mains/bus voltages or currents, because setpoint Basic
settings: CT ratio prim / Im3ErFlCurCTp / VT ratio / Vm VT ratio is set to a wrong value.
Setpoint setting does not match CT / VT ratio of used measurement transformer.
Solution:
a) Change it to correct value according to the VT/CT specification.

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 18
IGS-NT Troubleshooting Guide.pdf
b) For IS-NT-BB or IG-xxC HW types, setpoint Basic settings: CT ratio sec / Im3ErFlCurCTs /
VgInpRangeSel / VmInpRangeSel is set to a wrong secondary voltage/current range. Set it to
correct range (5A or 1A, 120V or 277V).
Power measurement does not work
Problem:
It may happen that controller measures correct generator/mains/bus voltages and currents
values, but active and reactive power values displayed by controller are not correct or even
zero. Power Factor (PF) value is incorrect too and there is a big difference in PF between
phases (e.g. phase L1 power factor is 0,9 and in phase L2 power factor is 0,2).
Solution:
Solution is to adjust CTs connection, it means changing polarity of CTs and/or swapping their
order.
Correct voltage and current measurement connection:
Imagine that a generator is loaded with a load bank which burns 100 kW in each phase. Load
bank Power Factor (PF) is 1. If power in each phase is 100 kW, total generator power (PTOT)
displayed by controller is 300 kW. Calculation is as follows:
UL1=UL2=UL3= 400 V
IL1=IL2=IL3= 250 A
PFL1=PFL2=PFL3 = 1
PL1=PL2=PL3= UL1xIL1xPFL1=400x250x1= 100 kW
PTOT=PL1+PL2+PL3= 100+100+100= 300 kW
Example of incorrect connection with CTs swapped between phases L2 and L3:

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 19
IGS-NT Troubleshooting Guide.pdf
In this case 100 kW is still burned in each load bank phase, but PF in phases L2 and L3 is not
1 from controller point of view. PF in phases L2 and L3 is -0,5 due to phase shift between
voltages and currents which is caused by CTs swapping. The result is that total generator
power displayed by controller is 0 kW. Calculation is as follows:
UL1=UL2=UL3= 400 V
IL1=IL2=IL3= 250 A
PFL1=1
PFL2=PFL3= -0,5
PL1= UL1xIL1xPFL1=400x250x1= 100 kW
PL2=PL3=UL2xIL2xPFL2= -50 kW
PTOT=PL1+PL2+PL3= 100+(-50)+(-50)= 0 kW
Example of incorrect connection with wrong CT polarity in phase L2:
In this case 100 kW is still burned in each load bank phase, but PF in phase L2 is not 1 from
controller point of view. PF in phase L2 is -1, because current goes in the opposite way due to
wrong CT polarity. The result is that total generator power displayed by controller is 100 kW.
Calculation is as follows:
UL1=UL2=UL3= 400 V
IL1=IL2=IL3= 250 A
PFL1=PFL3=1
PFL2= -1
PL1=PL3= UL1xIL1xPFL1=400x250x1= 100 kW
PL2=UL2xIL2xPFL2= 400x250x(-1)= -100 kW

InteliGenNT, InteliSysNT, InteliMainsNT –Troubleshooting Guide,
SW version IGS-NT-3.1.0, IM-NT-3.1.0, ©ComAp –August 2018 20
IGS-NT Troubleshooting Guide.pdf
PTOT=PL1+PL2+PL3= 100+(-100)+100= 100 kW
Many different combinations of incorrect CTs connection are possible so check both, order of
CTs and their polarity. Reactive power measurement is affected by incorrect CTs connection
in similar way as active power measurement.
Other
SummerTime Mode causing time rollback and time desynchronization
Problem:
Situation: multiple controllers are used on CAN bus and some of them have FW 2.6.3 (IGS-
NT-Std) or 2.9.1 (IM-NT) and others have older versions of FW. SummerTime Mode is active
(i.e. it is not set to DISABLE). Controllers are not powered and time change is about to be
done.
Example:
One controller with IGS-NT-Std FW 2.6.3 and one controller with IGS-NT-Std FW 2.6.1 are
connected via CAN. Date is 27.10. 2013 and time is 2:59 am. SummerTime Mode is set to
SUMMER (i.e. time change is active). Controllers are powered down and stay powered down
for period longer than one hour (e.g. 8 hours). When powered back on time and SummerTime
Mode changes rapidly causing bad time value and moreover causing desynchronization of the
time between controllers (e.g. IGS-NT-Std 2.6.3 shows 2:05 am and IGS-NT-Std 2.6.1 shows
7:05 pm).
Solution:
All controllers FW need to be updated to the latest version to prevent this behavior. When all
controllers are updated, SummerTime Mode works properly.
Note: Note that this behavior occurs only when old and new versions are mixed. When only old
versions are present and controllers are powered down, time change does not occur (due to
previous error fixed in 2.6.3/2.9.1) but time is not desynchronized.
Wrn addr error occurs when updating to new FW
Problem:
Wrn addr error is issued. Controller address cannot be changed. (This may occur after
changing CANnegotiation setpoint to AUT and restarting the controller or after update to the
new FW version (e.g. IM-NT 2.9 to IM-NT 2.9.1) –the update may activate CANnegotiation.)
Solution:
This particular problem (Wrn addr) is caused by the function CANnegotiation and occurs only
if there are controllers with the same CAN address and without CANnegotiation ability. This
occurs only in specific case with specific hardware.
It is essential to check setpoints and write correct value in them. In this particular case please
locate the setpoint CANnegotiation (in Comms settings) and change its state (there may be
AUT or a number after update) to OFF mode. Then power down and power up the
controller. The warning should not be displayed anymore.
Note: Function CANnegotiation can be activated only when all controllers are able to perform this
function. If there are controllers with and without CANnegotiation (e.g. IM-NT and IG-MINT),
CANnegotiation must be switch OFF in all CANnegotiation capable controllers!
Statistic values window contains strange numbers upon start-up
Problem:
All NT controllers produced till March, 2007 (serial numbers 0703xxxx and lower) have
undefined values in statistics. Controllers produced later have all statistics values set to initial
value 0.
Solution:
Should you come across a controller with undefined statistic values, run InteliMonitor, go to
menu Monitor, select Set statistics, and click on button “Clear all”. Wait until all numbers lose
their bold form (writing in process) and close the window.
