Combi Coccoro 8220 Series User manual

• Certified for use in motor vehicles
and aircraft.
• Meets or exceeds all applicable
requirements of Federal Motor
Vehicle Safety Standard 213.
Convertible Car Seat
Compact & Colorful
3 to 40 lbs. (1.4 to 18 kg)
• Correct installation and
use can be a matter of ife
or Death!
• Read and understand these
instructions and the labels
on the car seat before
using this car seat.
WARNING
Para instrucciones en Español,
llamar al: 1-800-992-6624
or log onto www.CombiUSA.com. Coccoro 8220 Series
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 1

Section 1. Table of Contents.............................................................................1
Section 2. Warnings..........................................................................................3
Section 3. Proper Use Check List.....................................................................5
Section 4. Assistance............................................................................6
Section 5. Car Seat Parts
•Child ID Label Location.............................................................7
Section 6. Use Recommendations..................................................................11
Section 7. Preparing Car Seat For Use
•Rear-Facing Use - 33 lbs. (15 kg) or less...................................13
•Forward-Facing Use - 20 lbs. (9 kg) or more..............................14
Section 8. SelectingAVehicle Seating Location.............................................15
Section 9. LATCH System..............................................................................19
Section 10. Rear-facing Installation
10a Rear-facing Installation With LATCH..........................................22
10b Rear-facing Installation With Vehicle Seat Belt..........................28
Section 11. Forward-facing Installation
11a Forward-facing Installation With LATCH....................................34
11b Forward-facing Installation With Vehicle Seat Belt.....................41
Section 12. Securing Child In Car Seat.............................................................46
1
Section 1 - Table of Contents
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 2

2
Section 13. peration and Adjustments
13a. Harness Use andAdjustment.....................................................52
13b. Changing Harness Slot Positions...............................................56
13c. Infant Inserts (Use with infants less than 25 lbs. (11.4 kg).........61
13d. Rear-facing Tether Attachment Strap Installation...................62
Section 14. Vehicle Seat Belts..........................................................................64
Rear-facing Belt Lock-off............................................................69
Section 15. Additional Information
• Certification.................................................................................71
• Aircraft Use.................................................................................71
• Warm Weather............................................................................71
• Vehicle Seat Protection..............................................................71
• Car Seat Useful Life...................................................................71
• Instructions Manual Storage......................................................71
Section 16. CareAnd Cleaning.........................................................................72
Section 17. Registration Information.................................................................73
Section 18. Re-useAfterACrash.....................................................................74
Section 19. Limited Warranty............................................................................75
Keep this instruction manual for future use.
Store instruction manual in pocket at top of seat back.
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 3

3
Section 2 - Warnings
• Failure to follow these instructions and car seat labels can
result in injury or death to a child from striking the vehicle’s
interior during a sudden stop or crash.
• Use only in a rear-facing position when using this car seat
with an infant less than one year old and weighing less than
20 pounds (9 kg).
• Use only with children who weigh between 3 and 40 pounds
(1.4 and 18 kg) and whose height is 40 inches (102 cm) or less.
• Discontinue use when child’s weight exceeds 40 pounds
(18 kg) or shoulders are above the top harness slots.
• Snugly adjust harness provided with the car seat around child.
• For proper harness fit and crash protection:
- For rear-facing, shoulder harness slots MUST
be at or below shoulder and harness MUST be snugly
adjusted. Recheck for small infants.
- Infant seat insert MUST be used for children less than
25 lbs. (11.4 kg).
- Discontinue use of the infant inserts when shoulders are
above the top shoulder strap slots forward-facing or
shoulder straps become too short to fit child.
WARNING- DEATH or SERIOUS INJURY can occur
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 4

• Secure this child restraint with the vehicle’s ATCH System if
available or with a vehicle seat belt as shown in this manual.
• ATCH System or vehicle seat belt MUST stay tightly adjusted
around car seat at all times.
• Secure the top tether strap provided with this child restraint
as specified in this instruction manual.
• Securely belt this car seat in vehicle, even when not occupied.
An unsecured car seat can injure other occupants in a crash.
• Never leave child unattended, even when sleeping.
• Strangulation Hazard: Child can strangle in loose harness
straps. Never leave child in car seat when straps are loose or
unbuckled.
• DO NOT use accessories or parts other than those provided
by Combi USA, Inc. Use of accessories or parts from other
manufacturers could alter the performance of the car seat.
• DO NOT allow any re-use of this car seat after a crash unless
crash and car seat meet A conditions in “Re-use After A
Crash” section of this manual.
• DO NOT use this car seat if it is damaged, missing
instructions, or missing parts.
• Register your child restraint with the manufacturer.
4
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 5

5
Section 3 - Proper Use Check ist
DO NOT place rear-facing child seat
on front seat with air bag. DEATH
OR SERIOUS INJURY can occur.
The back seat is the safest place for
children 12 and under.
•wners of vehicles with front passenger side air bags should refer to
their vehicle owner’s manual for child restraint installation instructions.
•Securely install car seat with LATCH System or vehicle seat belt and
top tether strap.
•All infants less than one year old and 20 lbs. (9 kg) must use car seat
rear-facing.
•Snugly adjust harness around child.
•Infant insert MUST be used for children less than 25 lbs. (11.4 kg).
•Secure children in back seat whenever possible.
•Never leave child unattended.
•Do not allow anyone (babysitter, relatives, etc.) to use car seat without
first reading and understanding all instructions and car seat labels.
WARNING- DEATHorSERIOUSINJURYcanoccur
•Proper use is required. Read and understand instructions and car seat
labels.
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 6

6
Section 4 - Assistance
NEED HE P?
Contact Combi USA Customer Care at 1-800-992-6624, log onto Combi
Customer Care at www.CombiUSA.com or one of the following resources:
• Your vehicle dealer to locate a child safety seat Inspection station in your
area.
• Call 1-866-SEAT CHECK (1-866-732-8243).
• Log onto www.nhtsa.dot.gov
- Click on “Child Safety”.
- For a car seat inspection station use “Child Safety Seat/Inspection
Station Locator”.
• Log onto www.seatcheck.org.
roper Use Is Required:
No car seat can guarantee protection from injury in every situation,
but proper use helps reduce the risk of serious injury or death.
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 7

7

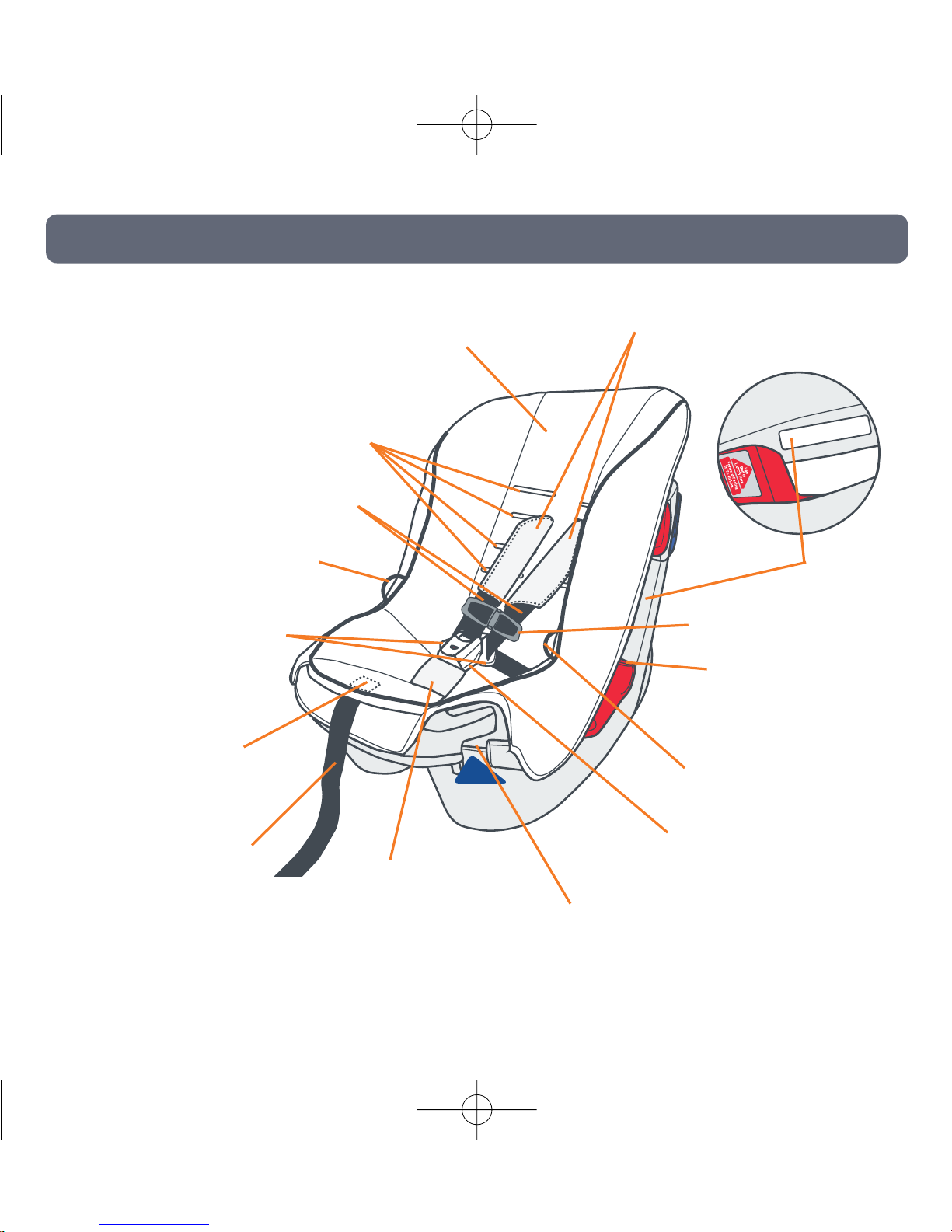

Section 5 - Car Seat Parts
Lap
Belt or
LATCH Here
Child’s Name:______________________ Date of Birth:___________
Parent’s Name:______________________ Home Phone:_________
Address:____________________________ Cell Phone:__________
_______________________________________________________
Allergies/Medical Conditions:________________________________
_______________________________________________________
Seat ad
Buckle
Tongues
Harness
Strap
Covers
Chest
Clip
Harness
Adjuster
Strap Tru-Safe Buckle
with Crotch Strap
Harness
Slots
Tummy
ad
Harness Adjuster
(Under Fabric
ad)
Shoulder
Harness Straps
Buckle Tongue
Storage Loop
Buckle Tongue
Storage Loop
Rear-facing Vehicle Belt ath
(Under Fabric ad)
(Unsnapped to Show Belt ath)
Forward-facing
Vehicle Belt ath
Child ID
Label
Location
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 8

8
Top Tether
Strap
Seat
Upper
Shoulder
Belt Guide
Harness
Cover
Upper
Shoulder
Belt Guide
Lower
Shoulder
Belt Guide
Lower
Shoulder
Belt Guide
Harness
Slots Harness
Slots
Rear-facing
Tether
Attachment
Strap
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 9

9

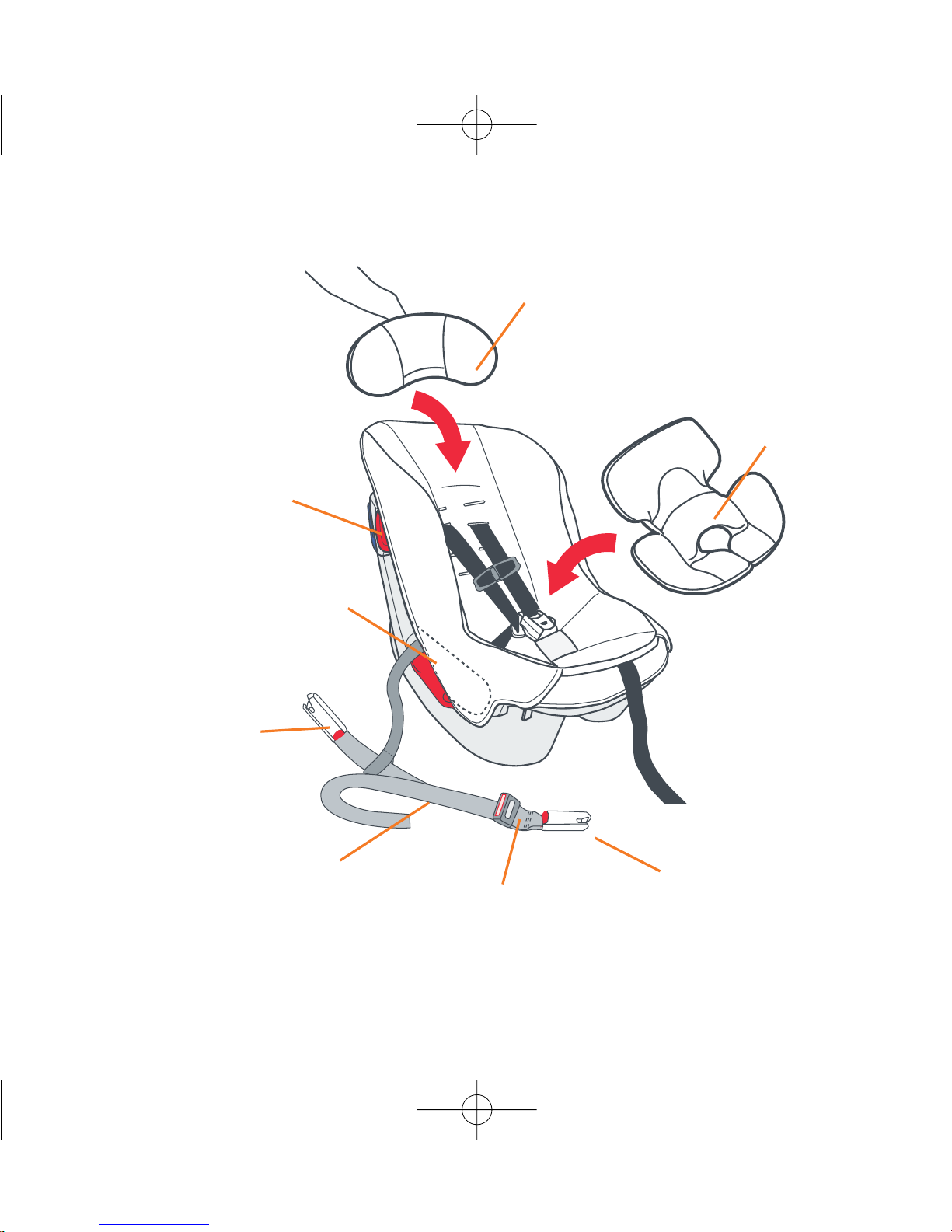

Infant
Seat
Insert
Forward-facing
Shoulder
Belt Lock-off
LATCH Storage
ocket
(Under Seat ad)
LATCH
Belt Adjuster
LATCH
ush-on
Connector
LATCH
ush-on
Connector
LATCH
Lower Anchor
Belt
Infant
Head
Insert
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 10

10

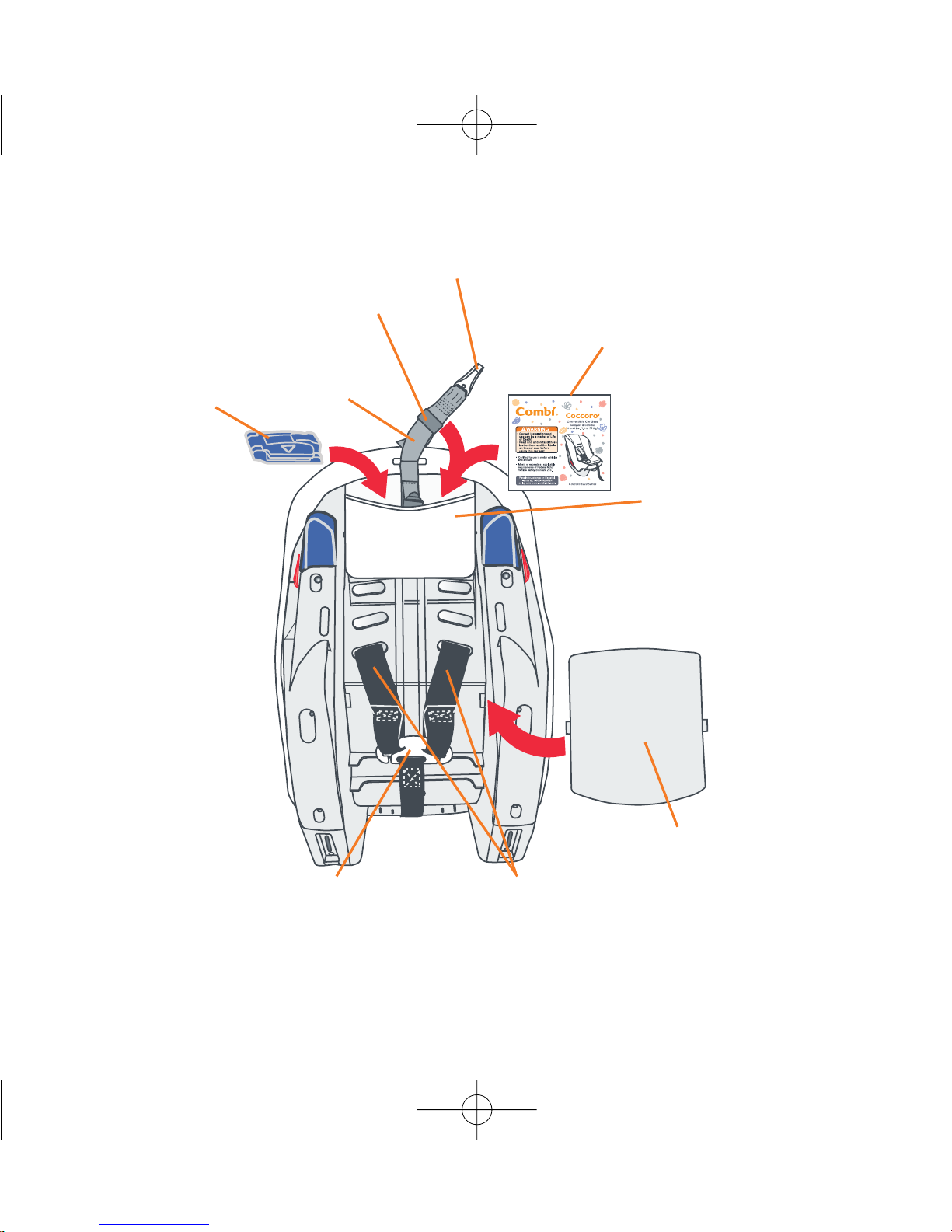

Instruction Manual
Metal Harness
late Shoulder
Harness
Straps
Rear-facing
Belt Lock-off
Storage ocket
for Instruction Manual,
Tether, Tether
Attachment Strap
and Rear-facing
Belt Lock-off
Harness Cover
(Removed to
show Harness)
Tether
Tether Strap
Adjuster
Tether Hook
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 11

Height and Weight imits:
This child restraint is designed for use only by children whose:
- Weight is between 3 and 40 pounds (1.4 and 18 kg) and,
- Height is between 19 and 40 inches (48 and 102 cm).
Infants With Special Needs
A preterm infant or low birth weight infant may be at special risk traveling
reclined in a vehicle or aircraft. According to the American Academy of
Pediatrics, these infants may be at increased risk of suffering breathing
or other difficulties if improperly reclined or positioned in a car seat.
Have your physician or hospital staff evaluate your infant in this car seat
before you and your infant leave the hospital. If your infant is not able to
travel in a reclined position, D N T use this car seat. Use a car bed for
your infant.
11
Section 6 - Use Recommendations
• Children less than one year old and 20 lbs. (9 kg) must
use this car seat rear-facing. Serious crippling injury or
death can result if infant faces front of vehicle.
WARNING- DEATHorSERIOUSINJURYcanoccur
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 12

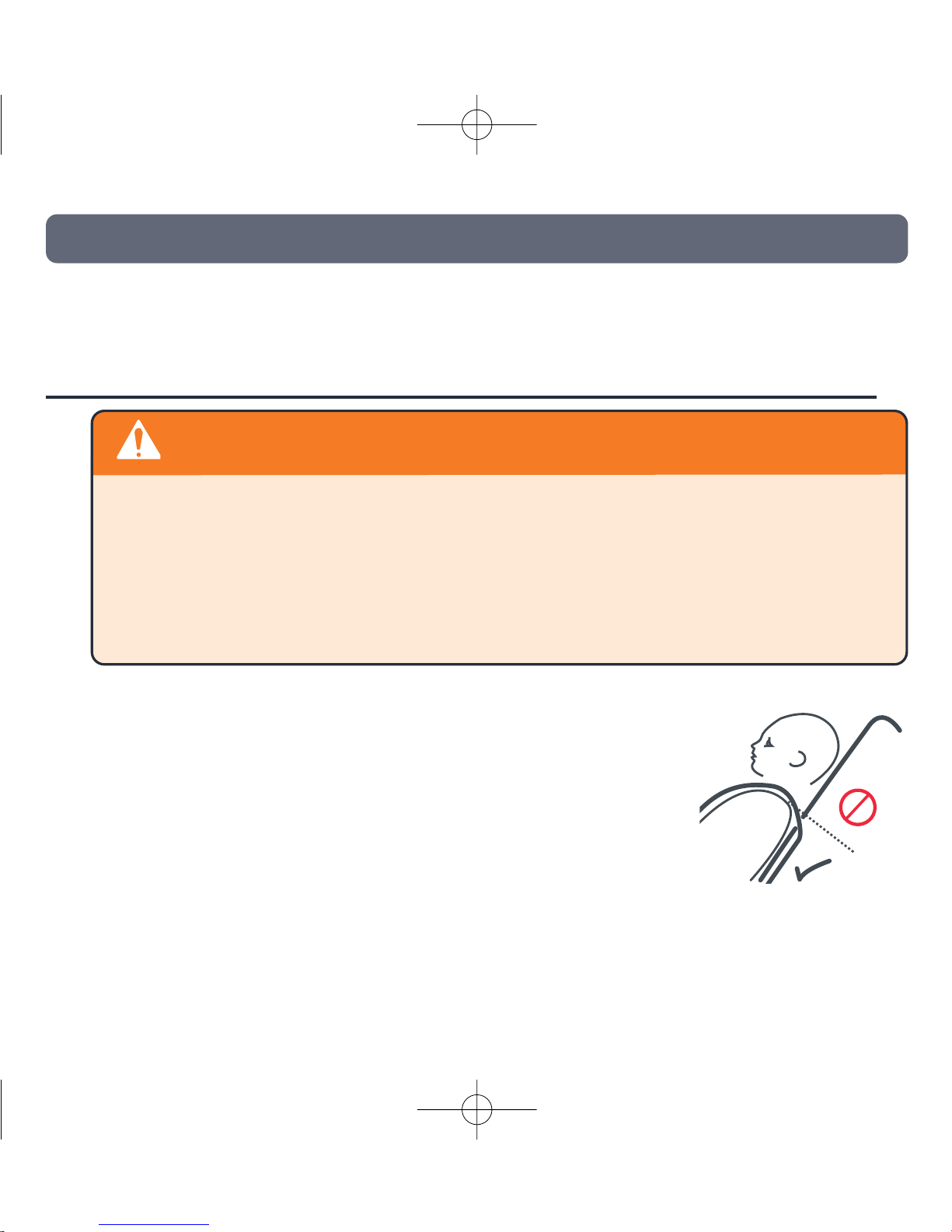

12
Rear-facing Use: 3 to 33 lbs. (1.4 to 15 kg)
•Shoulder harness slots MUST be at or below shoulder
and harness MUST be snugly adjusted. Recheck for
small infants.
•All infants less than one year old and 20 lbs. (9 kg)
MUST be rear-facing.
•Infant seat insert MUST be used for children less
than 25 lbs. (11.4 kg).
•Children 20 to 33 lbs. (9 to 15 kg) and up to
36 inches (91 cm) tall can use car seat rear-facing.
Forward-facing Use: 20 to 40 lbs. (9 to 18 kg)
•Toddlers 20 to 33 lbs. (9 to 15 kg), over one year of
age, and who are capable of sitting upright unassisted
may be forward-facing. If unable to sit unassisted,
use rear-facing.
The American Academy of Pediatrics recommends
keeping children over 1 year of age rear-facing as
long as possible.
•Infant seat insert MUST be used for children less
than 25 lbs. (11.4 kg).
•Toddlers 33 to 40 lbs. (15 to 18 kg) and up to
40 inches (102 cm) tall MUST be forward-facing.
• Children MUST be over one year of age to use car seat
forward-facing.
• To avoid injuries from whiplash, top of child’s ears must
be below top edge of car seat.
• Child’s shoulders MUST not be above top harness slots.
WARNING- DEATHorSERIOUSINJURYcanoccur
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 13

Section 7 - Preparing Car Seat For Use
13
• For proper harness fit and crash protection:
- Shoulder harness slots MUST be at or below shoulder and
harness MUST be snugly adjusted. Recheck for small infants.
-Infant seat insert MUST be used for children less than 25 lbs.
(11.4 kg).
•Discontinue use of the infant inserts when shoulders are above
the top shoulder strap slots forward-facing or shoulder straps
become too short to fit child.
WARNING- DEATHorSERIOUSINJURYcanoccur
Rear-facingUse-Infants33lbs.(15kg),36inches(91cm)orless:
The Coccoro Car Seat is color coded to identify use information and
vehicle belt path locations for both rear-facing and forward-facing use.
- Rear-facing information on the car seat is highlighted in blue.
- Forward-facing information on the car seat is highlighted in red.
1. All infants less than one year old and 20 lbs. (9 kg) MUST be rear-facing.
2. Shoulder harness position:
a.Shoulder harness straps MUST be through
harness slots at or below the shoulders of
the infant (fig. a).
b.Any set of harness slots can be used rear-facing.
To change shoulder harness slots, see ”Changing
Harness Position” section.
3. Infant seat insert:
- Must be used for children less than 25 lbs. (11.4 kg).
For installation, see “Infant Inserts” section.
- Discontinue use of the infant inserts when shoulders are above the
top shoulder strap slots forward-facing or shoulder straps become
too short to fit child.
D N T use this car seat for small infants whose shoulders are below
the lowest shoulder strap slots. Use an infant-only car seat which has
lower shoulder strap slots.
(fig. a)
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 14

1. Shoulder harness position:
a. Shoulder harness MUST be
through harness slots at or
above shoulders of child
(fig. b).
b. Use only the 3rd set or top
set of harness slots
forward-facing (fig. c).
2. To change shoulder harness
slots, see “Changing Harness
Position” section. 14
Forward-facing Use - Toddlers over 20 lbs. (9 kg):
(fig. c)
3rd Set of
Harness
Slots
Top Set of
Harness
Slots
• Discontinue use when child’s weight exceeds 40 pounds
(18 kg) or shoulders are above the top harness slots.
• Children less than one year old and 20 lbs. (9 kg) MUST
use this car seat rear-facing. Serious crippling injury or
death can result if infant faces front of vehicle.
• ATCH or vehicle seat belt MUST be routed though
forward-facing belt path when using car seat forward-facing.
• For proper harness fit and crash protection:
- Infant seat insert MUST be used for children less than
25 lbs. (11.4 kg).
• Discontinue use of the infant inserts when shoulders are
above the top shoulder strap slots forward-facing or
shoulder straps become too short to fit child.
WARNING- DEATHorSERIOUSINJURYcanoccur
(fig. b)
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 15

Refer to vehicle owner’s manual for car seat
installation instructions for your vehicle.
- Use car seat in a rear vehicle seat
location whenever possible.
- Never use a car seat in a front seat
location unless recommended in vehicle owner’s manual.
Section 8 - Selecting A Vehicle Seating ocation
15
• DO NOT use this child restraint rear-facing in a vehicle
front seating location with an air bag. Child’s head and
neck may be seriously injured when an inflating air bag
hits back of child restraint.
• Never put a car seat in a vehicle front seating location
unless recommended in vehicle owner’s manual.
WARNING- DEATHorSERIOUSINJURYcanoccur
• The National Highway Traffic Safety Administration
(NHTSA) alerts vehicle owners that according to accident
statistics, children 12 and under are safer when properly
restrained in the rear seating positions rather than
the front seating positions.
WARNING-The safest place for your
child is in the rear seat.
1
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 16

- For vehicles with air bags,
always follow child restraint
installation information provided
in vehicle owner’s manual.
D N T use car seat rear-facing
on front seat with an air bag.
For a toddler over one year old and forward-facing, if a vehicle
front seat location with an air bag must be used, follow the
vehicle manufacturer’s instructions for child restraint use and
move the vehicle seat back as far as possible.
Vehicle seats:
D N T use this Car Seat on the following types of vehicle seats:
DO NOT place rear-facing child seat
on front seat with air bag. DEATH OR
SERIOUS INJURY can occur.
The back seat is the safest place for
children 12 and under.
NO coloque el asiento infantil para el automóvil orientado hacia
atrás en el asiento delantero del vehículo que tenga una bolsa
neumática de seguridad. El niño podría MORIR O SUFRIR
LESIONES GRAVES. El asiento trasero es el lugar más seguro
para los niños de 12 años o menores.
WARNING
2
Seats Which Face
Sides Of Vehicle
Seats Which Face
Rear Of Vehicle
16
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 17

17
Options For Securing A Car Seat:
This car seat can be secured to a vehicle using the LATCH System
or a vehicle seat belt.
1. LATCH System:
ATCH stands for ower Anchors and Tethers
for CHildren.
Model year 2003 and newer vehicles are
equipped with LATCH Anchorage Systems.
Check vehicle owner’s manual to determine
if your vehicle has the LATCH Anchorage

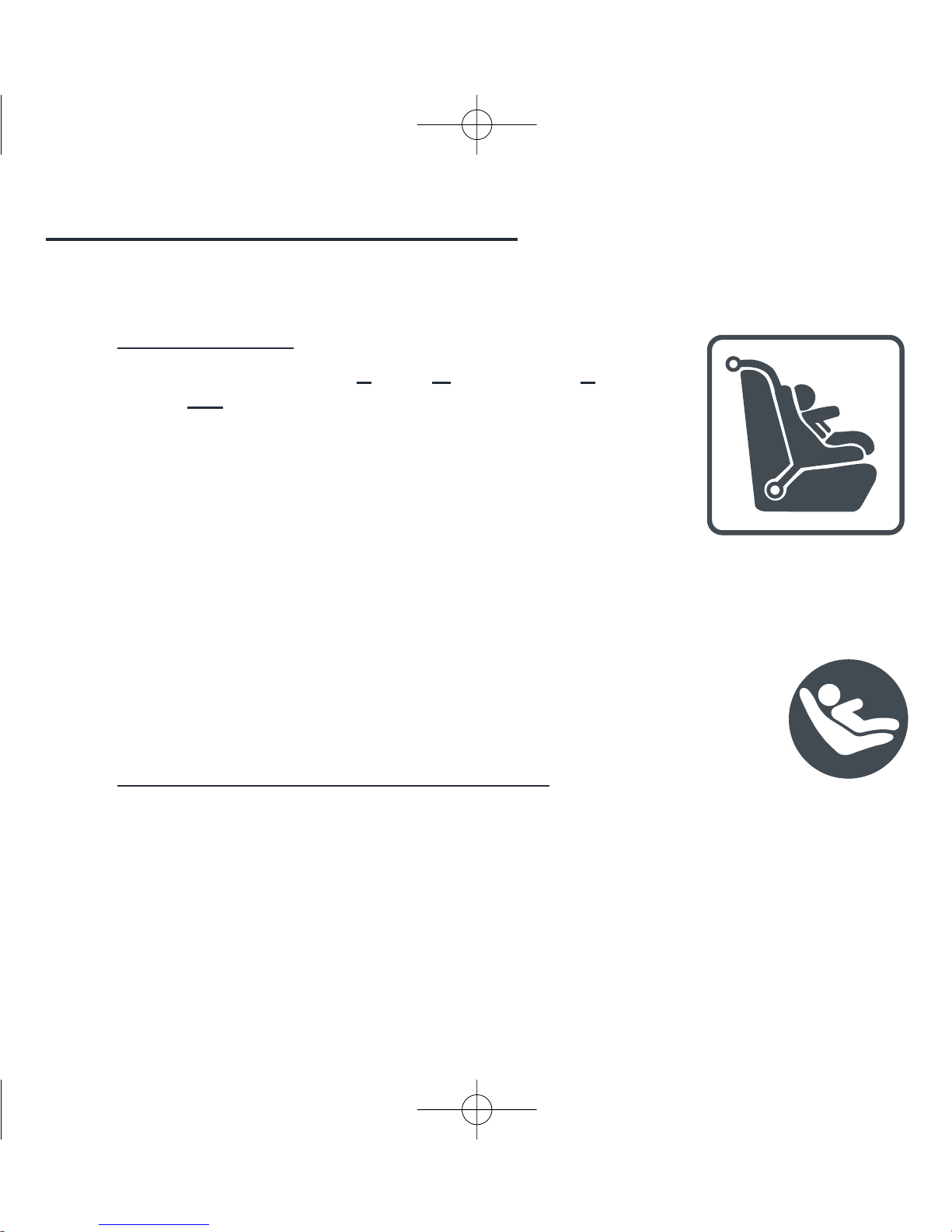

System. Look for LATCH system symbol (fig. a)
or the LATCH Lower Anchor symbol (fig. b).
Some vehicle owner’s manuals may identify the
LATCH System as “IS FIX”. An IS FIX System
can be used in the same way as the LATCH System.
If your vehicle has the LATCH System, the LATCH
System including top tether should be used whenever
possible.
2. Vehicle Seat Belt and Top Tether Strap:
If your vehicle does not have the LATCH System, the
car seat MUST be secured to the vehicle using a vehicle
seat belt and top tether strap as required.
Check vehicle owner’s manual for seating locations recommended
for car seat use and location of top tether anchorages.
NOTE: Tether strap should always be used when a tether anchor is available.
Tether strap use is recommended for rear-facing when possible.
(fig. b)
(fig. a)
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 18

18
Top Tether Information:
-If a top tether anchor is not available in your
vehicle, the car seat MUST be secured with
only the vehicle seat belt until a top tether
anchor can be installed.
- For those passenger vehicles or buses where
top tether anchors are not available, the
car seat may be used without the top tether
provided a secure installation can be achieved.
NOTE: Top tether use is recommended for
rear-facing when possible.
- When not in use, store top tether in pocket
at top of seat back (fig. c.).(fig. c)
Top Tether
Strap
Storage
ocket
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 19

Section 9 - ATCH System
19
LATCH System On This Car Seat:
The LATCH System on the Coccoro Car Seat
consists of a lower anchor belt with push-on
connectors and a top tether strap with tether
hook (fig. a & b).
Securing Car Seat To Vehicle:
Forward-Facing:
The lower anchor belt push-on connectors and
top tether hook on the car seat connect to the
LATCH Anchorage System in a vehicle.
Rear-Facing:
The lower anchor belt push-on connectors
connect to the LATCH Anchorage System
lower anchors and top tether hook connects
to the tether attachment strap (fig. c).
3
(fig. b)
1
2
3
32
(fig. a)
2
1
2
2
3
BELT
HERE
(fig. c)
4
2
2
3
2
3
4
CCS0210G (EN) 061711.qxd:CCS0210G (EN) 061711 6/17/11 2:24 PM Page 20
