1 Safety tips
THE PLANETARY MIXER IS A DANGEROUS APPLIANCE AND MUST ONLY BE USED BY TRAINED PERSONNEL IN
ACCORDANCE WITH THESE INSTRUCTIONS.
Position on a flat, stable surface.
•A service agent/qualified technician should carry out installation and any repairs if required. Do not remove
any components on this product.
•Consult Local and National Standards to comply with the following:
oHealth and Safety at Work Legislation
oBS EN Codes of Practice
oFire Precautions
oIEE Wiring Regulations
oBuilding Regulations
•Always stand BEHIND the safety guard when operating the appliance.
•DO NOT place hands near the rotating attachments when in use. This can result in severe injury.
•DO NOT remove food from the appliance until the mixing attachments have come to a complete stop.
•DO NOT immerse the appliance in water.
•DO NOT attempt to mix items that this machine is not designed for. This can damage the mixing attachments.
•DO NOT use with a damaged mixing attachment.
•DO NOT bypass the safety interlocks.
•Always switch off and disconnect the power supply to the appliance when not in use.
•NEVER leave the appliance unattended when in use.
•The appliance is heavy. Take care when moving.
•This appliance must only be used in accordance with these instructions and by persons competent to do so.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
•Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local
authorities.
•If the power cord is damaged, it must be replaced by an Creative Kitchen agent or a recommended qualified
technician in order to avoid a hazard.
2 Product description
PM10 / 7455.0100 - 10 litre planetary mixer
PM20 / 7455.0105 - 20 litre planetary mixer
PM30 / 7455.0110 - 30 litre planetary mixer
The Creative Kitchen Planetary Mixer is a freestanding machine that consists of a large bowl mounted below a
motor and gearbox arrangement to which a mixing tool can be attached.
3 Introduction
The planetary mixer has been designed to mix a range of foodstuffs, varying from cream to dough. Please take a
few moments to carefully read through this manual. Correct maintenance and operation of this machine will
provide the best possible performance from your Creative Kitchen product.

5
www.combisteel.com
4 Pack contents
The following is included:
Creative Kitchen planetary mixer
Mixing bowl
Spiral dough hook
Beater
Whisk
Instruction manual
CK prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully
functional and free of damage. Should you find any damage as a result of transit, please contact your Creative
Kitchen dealer immediately.
5 Installation
Ensure the location of the Planetary Mixer is capable of supporting its weight.
WARNING: The Planetary Mixer is very heavy, care must be taken when moving it.
6 Assembly
WARNING: The bowl must be attached and raised into position prior to starting the Planetary Mixer.
Creative Kitchen accept no responsibility for any injury caused by incorrect assembly of this appliance.
Note: Ensure the feet are level to reduce vibration during operation.
Remove the appliance from all packaging.
Fitting/Removing the Bowl
1. Turn off the appliance.
2. Open the safety guard by turning it to the left (7455.0100 &
7455.0105) or lifting it above the mixer (7455.0110).
3. Lower the bowl with the bowl handle.
4. Release the locking catches either side of the bowl.
5. Lift the bowl. The bowl is held in place by two pins securing
the handles to the cradle and a hole at the back of the
appliance which houses the lug on the bowl lip.
6. Reverse the procedure to fit the bowl.
Note: Ensure the handle is fully pushed back and the bowl is
completely raised or the mixer will not work.
Changing the Mixer Attachment
1. Turn Off the appliance.
2. Open the safety guard by turning it to the left (7455.0100
and 7455.0105) our lifting it above the mixer (7455.0110).
3. Lower the bowl with the bowl handle.
4. Push the mixer attachment up and to the left to release it.
5. Insert the desired attachment. Push up and to the right to lock it into place.
6. Raise the bowl.

6
www.combisteel.com

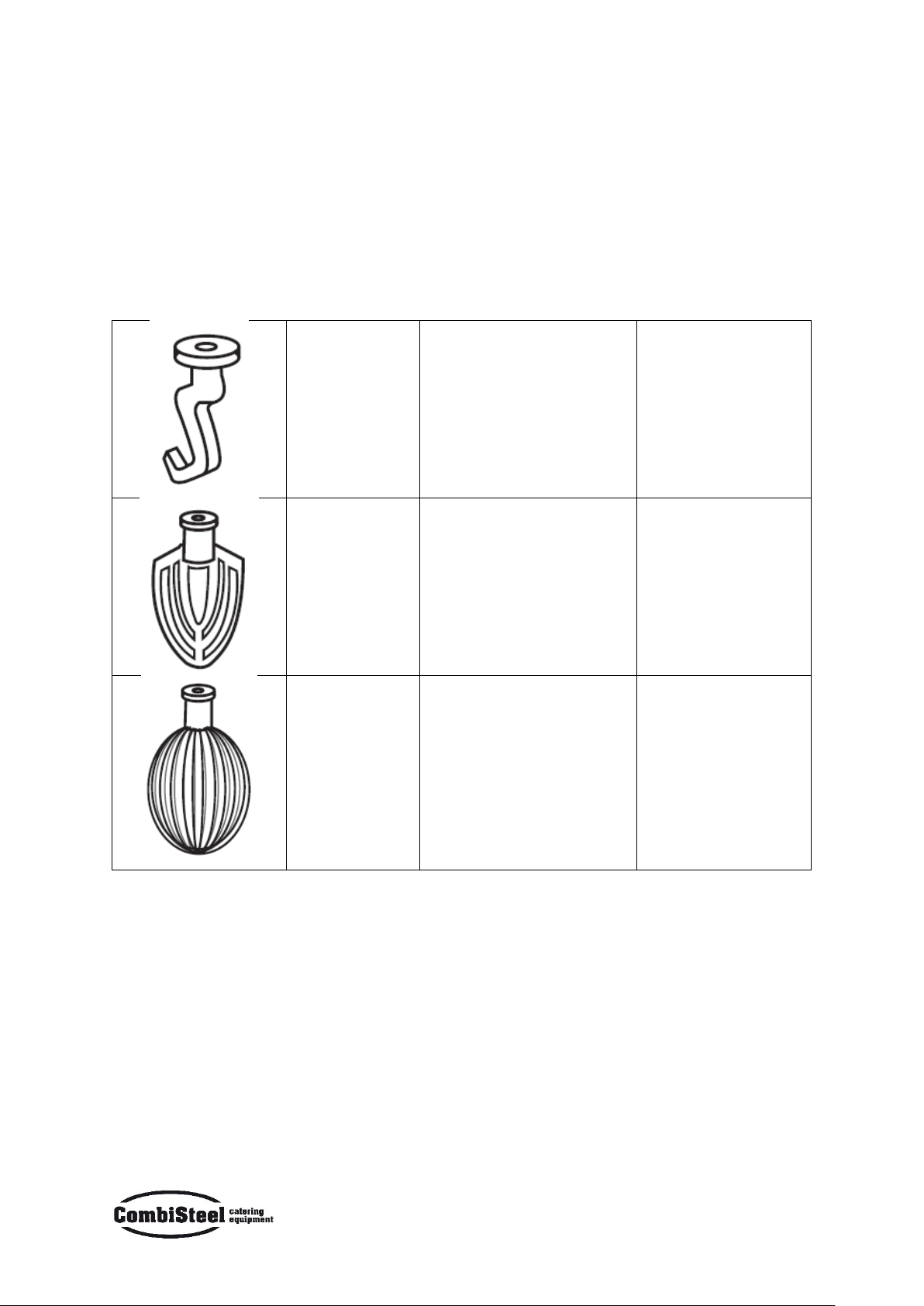

Creative Kitchen recommend the following uses for each attachment:
Spiral dough hook
Heavy mixes
dough, pie pastry, etc.
Suitable gears: 1
Slow
Beater
Firm mixes
light pastry, cake/biscuit
mix, icings, fillings and
mashed vegetables
Suitable gears: 1, 2
Medium
Whisk
Light mixes
Whipped cream,
mayonnaise, egg whites,
pancakes and soufflés
Suitable gears: 1, 2, 3
Fast

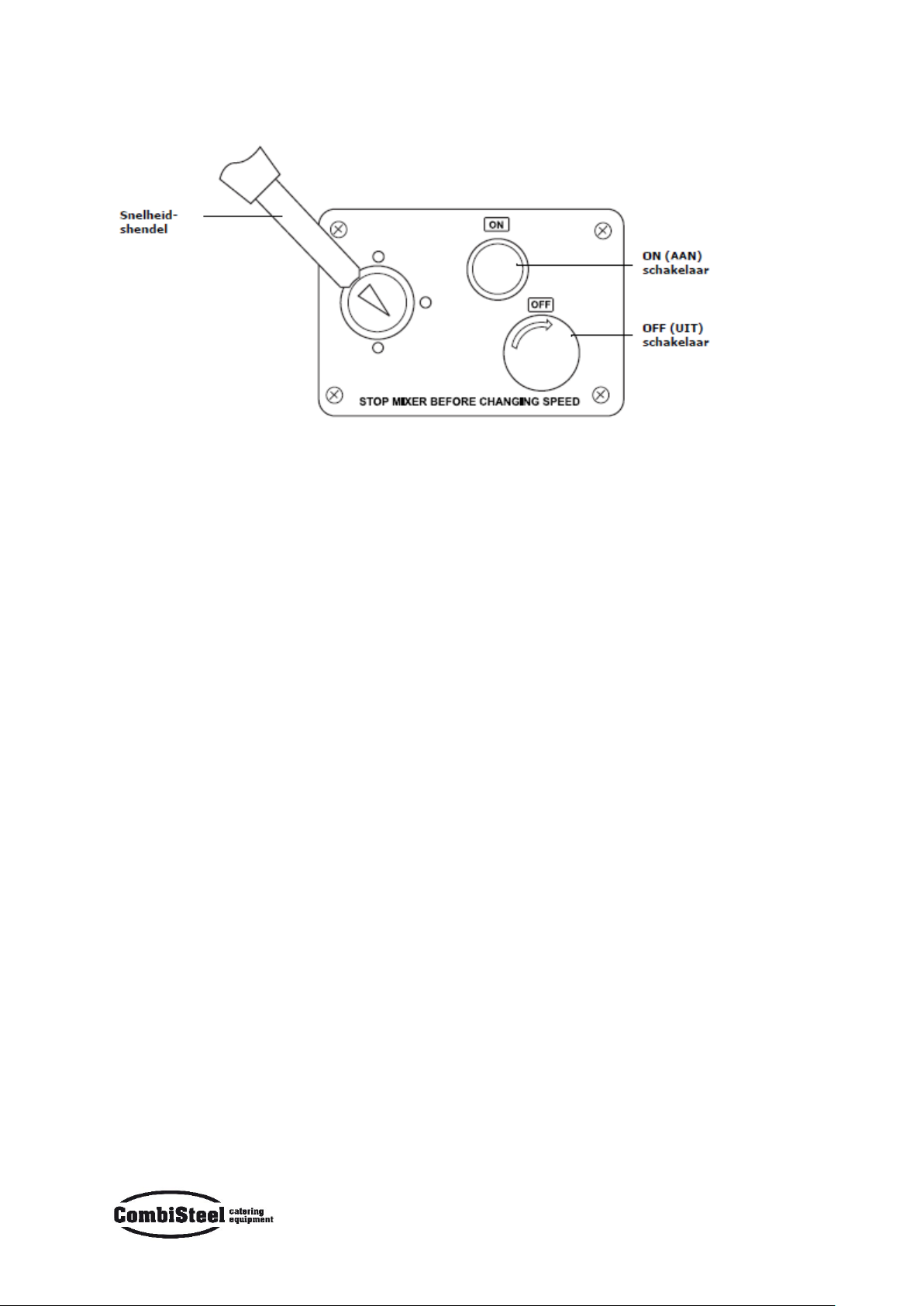

7 Layout of controls
ON button - Press to start the mixer.
OFF button - Press to stop the mixer. Twist clockwise to release and reset (7455.0110 only).
GEAR LEVER - Use to adjust the speed of the mixer.

7
www.combisteel.com
8 Operation
Note: Ensure that these instructions have been read thoroughly and the operation of the appliance is fully
understood before use.
All personnel must be fully trained on the operation and safety precautions of the Planetary Mixer.
Mixing
WARNING: Always ensure the appliance is turned off before placing hands in the mixing bowl.
1. Open the safety guard.
2. Fill the bowl.
3. Select the desired speed and close the guard.
Note: Creative Kitchen recommends you to start with the slowest speed. Ensure the safety guard is fully closed
or the mixer will not work.
4. Press the START button to begin mixing.
Note: If the appliance is straining to mix then turn the appliance Off and remove some of the contents of the
bowl before restarting.
Changing Mixing Speed
Note: ALWAYS stop the mixer before attempting to change the mixing speed.
With the appliance turned Off:
1. Select the required gear using the gear change lever.
2. Restart the appliance.
Overload Switch

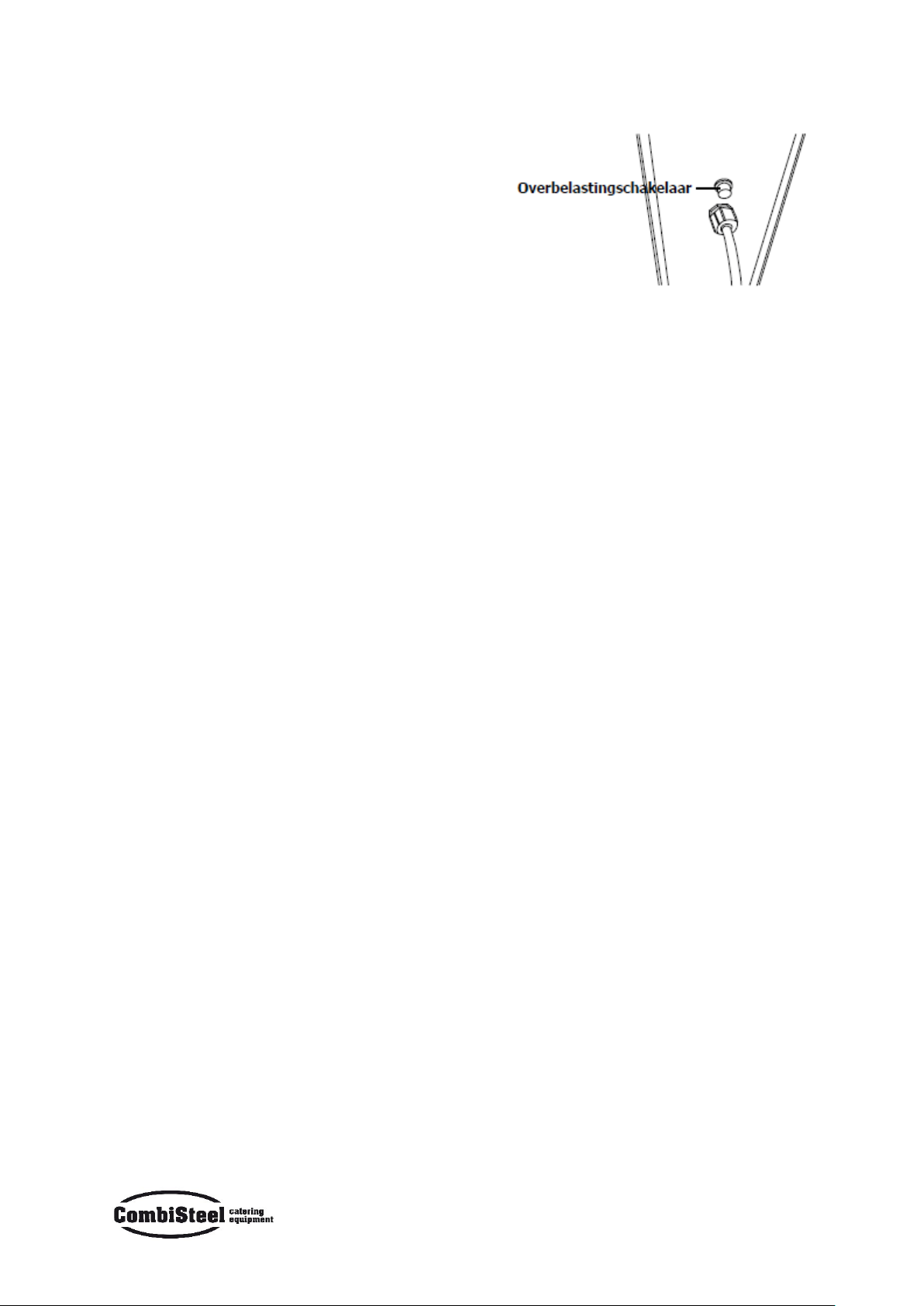

The Overload switch is situated at the back of the machine beside the
cable entry. If the appliance becomes too hot the Overload switch will
stop the machine automatically. If this happens:
1. Turn Off the mixer.
2. Reduce the load in the mixing bowl.
3. Push the Overload switch back in to reset it.
4. Allow the appliance to cool for 20 minutes.
Note: In the event of a power cut the Overload switch will cut in to prevent the appliance from restarting
automatically when power is restored.
Note: Always disconnect the Planetary Mixer from the mains powers supply when not in use.
9 Cleaning, Care & Maintenance
•Always turn off the mixer and disconnect from the power supply before cleaning.
•Use warm soapy water to clean the bowl and mixing attachments. Do not use abrasive cleaning chemicals
as these can leave harmful residues.
•Clean the exterior of the appliance with a damp cloth.
•Dry all parts thoroughly after cleaning.
•Do not use jet/pressure washers to clean the appliance.
•Clean the appliance regularly.

8
www.combisteel.com
10 Troubleshooting
If your Creative Kitchen appliance develops a fault, please check the following table before making a call.
Fault
Probable cause
Action
The appliance is not working
The unit is not switched on
Check if the unit is plugged in
correctly and switched on
The Stop button is not released
(7455.0110)
Turn button clockwise to release
Plug and lead are damaged
Call your Creative Kitchen agent
or qualified Technician
Fuse in the plug has blown
Replace the fuse
Power supply
Check power supply
The overload switch has activated
See overload switch information
in the Operation section of this
manual
Safety Guard not closed
Close Safety Guard fully
Appliance not in gear
Put in gear
Bowl not fully raised
Ensure the bowl lever is pushed
back fully
Bowl will not fit back in to place
Bowl pins or surrounding area
clogged with mix
Clean the appliance
The appliance is overheating
The mixing bowl is overloaded
Turn off the appliance and empty
some of the contents
The appliance has been operating
for too long
Turn off the appliance and allow
to cool down for 30 minutes
The appliance is noisy
Bowl or mixing attachment is not
correctly fitted
Remove and refit bowl/mixing
attachment
Worn bearings/damaged gears
Call your Creative Kitchen agent
or qualified Technician
The mixing attachment fails to
rotate properly
The belt has become loose
Call your Creative Kitchen agent
or qualified Technician
Cannot select gear
Gearing cogs misaligned
Turn Off appliance and manually
turn the whisk attachment
slightly. Select the gear again.
11 Technical Specifications
Model
Voltage
Power
Current
Dimensions
WxDxH (mm)
Weight
Bowl
volume
PM10 /
7455.0100
230V 50Hz
500W
2A
485x410x635
69kg
10 L
PM20 /
7455.0105
230V 50Hz
1100W
4.7A
560x540x765
99kg
20 L
PM30 /
7455.0110
230V 50Hz
1500W
6.5A
620x620x1125
172kg
30 L

9
www.combisteel.com
12 Electrical Wiring
This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13
amp fuse as standard.
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
•Live wire (coloured brown) to terminal marked L
•Neutral wire (coloured blue) to terminal marked N
•Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed, using a dedicated earthing circuit.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of
any emergency disconnection being required they must be readily accessible.
13 Compliance
The WEEE logo on this product or its documentation indicates that the product must not
be disposed of as household waste. To help prevent possible harm to human health
and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of this
product correctly, contact the product supplier, or the local authority responsible for
waste disposal in your area.
Creative Kitchen parts have undergone strict product testing in order to comply with
regulatory standards and specifications set by international, independent, and federal
authorities.
Creative Kitchen products have been approved to carry the following symbol:

10
www.combisteel.com
1 Veiligheidstips
•Plaatsen op een vlakke en stabiele ondergrond.
•De installatie en eventuele reparaties zijn door een servicetechnicus/vaktechnicus uit te voeren. Verwijder
geen componenten of servicepanelen van dit product.
•Raadpleeg en volg de plaatselijke en nationale regelgeving op m.b.t. tot het volgende:
oWetgeving van gezondheid en veiligheid op de werkplaats
oWerkregels
oBrandpreventie
oIEE bekabelingsnormen
oBouwverordeningen
•Dit apparaat mag uitsluitend in overeenstemming met deze instructies en door competente personen
worden gebruikt
•Dit apparaat is niet bedoeld voor gebruik door personen met lichamelijke, zintuiglijke of mentale
beperkingen (inclusief kinderen) of met gebrek aan ervaring of kennis, tenzij zij hierin worden begeleid of
zijn opgeleid in het gebruik van het apparaat door een persoon, die verantwoordelijk is voor hun veiligheid.
•Laat verpakkingsmateriaal niet binnen handbereik van kinderen. Verpakkingsmateriaal in overeenstemming
met de regelgeving van de plaatselijke overheden als afval laten verwerken.
•Indien de stroomkabel beschadigd raakt, dient men deze door een Creative Kitchen technicus of
vaktechnicus te laten vervangen om gevaarlijke situaties te verhinderen.
•Ga altijd ACHTER de veiligheidsscherm staan wanneer u het apparaat gebruikt.
•Bij gebruik, plaats uw handen NIET in de buurt van draaiende componenten. Dit kan ernstig letsel
veroorzaken.
•Verwijder GEEN voedsel uit het apparaat voordat alle mengcomponenten volledig tot stilstand zijn gekomen.
•Dit apparaat NIET in water dompelen.
•Probeer NIET items te mengen waarvoor dit apparaat niet ontworpen is. Dit kan de mengcomponenten
beschadigen.
•Gebruik het apparaat NIET met een beschadigd mengcomponent.
•Veiligheidsvergrendelingen NIET overbruggen.
•Laat het apparaat NOOIT zonder toezicht achter wanneer het in gebruik is.
•Het apparaat is zwaar. Wees zeer voorzichtig bij het verplaatsen van het apparaat.
2 Productbeschrijving
PM10 / 7455.0100 - Planetaire Mixer 10 liter
PM20 / 7455.0105 - Planetaire Mixer 20 liter
PM30 / 7455.0110 - Planetaire Mixer 30 liter
De Creative Kitchen planeetmenger is een vrijstaande machine en bestaat uit een grote kom gemonteerd
onder een motor en een versnellingsinrichting waaraan een mixing-tool kan worden bevestigd.
3 Inleiding
De Creative Kitchen planetaire mixer is ontworpen voor het mixen van een grote verscheidenheid aan voedings-
middelen, variërend van slagroom tot deeg.
Neem de tijd en lees deze handleiding aandachtig door. Een correct gebruik en onderhoud van deze machine
waarborgt de beste prestatie van uw Creative Kitchen product.
