COMECO H5700 User manual

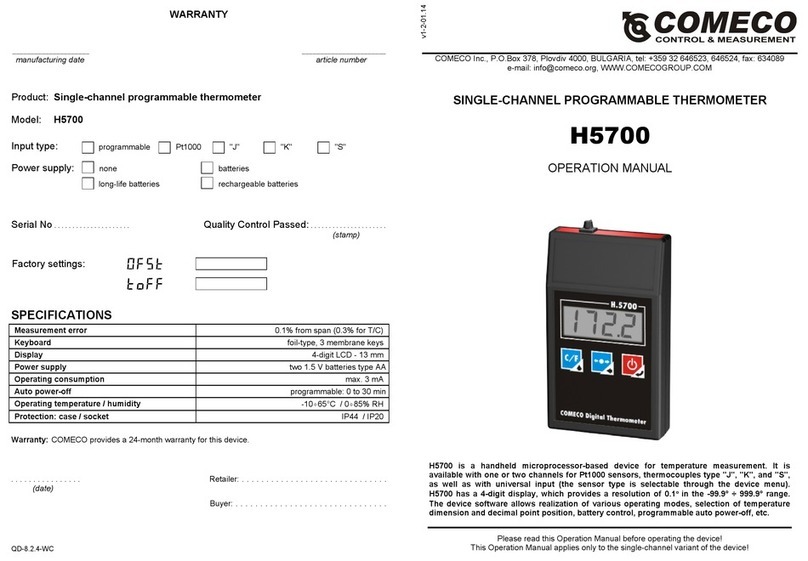

WARRANTY
_____________________ ________________________
production date warranty card number
Product: Double-channel programmable thermometer
Model: H5700
Input Ch1: programmable Pt1000 "J" "K" "S"
Input Ch2: programmable Pt1000 "J" "K" "S"
Power supply: none batteries
long-life batteries rechargeable batteries
Serial No . . . . . . . . . . . . . . . . . . . . . Quality Control Passed: . . . . . . . . . . . . . . . . . . . . .
(signature, stamp)
SPECIFICATIONS
Measurement error 0.1% from span (0.3% for T/C)
Keyboard foil-type, 3 membrane keys
Display 4-digit LCD - 13mm
Power supply Two 1.5V batteries type AA
Operating consumption Max. 3 mA
Auto power-off programmable: 0 to 30 min
Operating temperature / humidity -10÷65°C / 0÷85% RH
Protection: case / socket IP44 / IP20
. . . . . . . . . . . . . . . . Retailer: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(date)
Buyer: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
QD-8.2.4-WC
v0d-08.03
Comeco Ltd., p.o.box 378, 4000 Plovdiv, tel: ++359(0)32-621770, 664749, 634089, fax: 622719
DOUBLE-CHANNEL PROGRAMMABLE THERMOMETER
H5700
OPERATION MANUAL
H5700 is a handheld microprocessor-based device for temperature measurement. It is
available with one or two channels for Pt1000 sensors, thermocouples type "J", "K", and "S",
as well as with universal input (the sensor type is selectable through the device menu).
H5700 has a 4-digit display, which provides a resolution of 0.1° in the -99.9° ÷ 999.9° range.
The device software allows realization of various operating modes, selection of temperature
dimension and decimal point position, battery control, programmable auto power-off, etc.
Please read this Operation Manual before operating the device!
This Operation Manual applies only to the single-channel variant of the device!
OPERATING
Input sensors and ranges
The device operating ranges depending on the type of the connected temperature sensor are shown in Table 1.
Table 1
SENSOR TYPE OPERATING RANGE
Thermoresistance Pt 1000 -100÷660°C (-148÷1220°F)
Thermocouple Fe-CuNi (type "J") -100÷1200°C (-148÷2192°F)
Thermocouple NiCr-Ni (type "K") -100÷1300°C (-148÷2372°F)
Thermocouple PtRh-Pt (type "S") 0÷1700°C (32÷3092°F)
Control keys
The device is controlled via three keys. The right key ( ) serves for turning H5700 on and off while it is in measurement
mode, as well as for confirming selected value during thermometer adjustment. The middle key ( ) in measurement mode
serves for alternation of the “accuracy” (resolution) between without decimal part and with one digit after the decimal point.
In adjustment mode, the same key serves for selection and change of the adjusted parameter. The left key ( ) is used for
alternation of the input channels (in measurenet mode) and for changing parameter values during adjustment.
Turning on and off
Press the key once. The test string 88*8 appears on the display and the device enters measurement mode.
One measurement cycle lasts approximately half a second and the display readings refresh after its end. While the device is in
measurement mode, you can turn it off by pressing the key. The thermometer indicates 0FF and turns itself off.
"Accuracy" (resolution) selection
While the device is in measurement mode, use to alternate the resolution with which H5700 indicates the measured
temperature. The readings can be displayed either as whole numbers or as numbers with one digit after the decimal point.
After pressing the key, read for half a second respectively 0 or )0.
Notes:
1. Because the device display is 4-digit, temperatures below -99.9° and above 999.9° are always displayed as whole numbers.
2. If the resolution is “whole number”, H5700 will round off the readings with decimal part greater than or equal to 0.5° (e.g., if
the measured temperature is 342.7°, the device will indicate 343).
3. After recovery from power supply failure (for example, due to battery replacement), the thermometer will display the readings
with resolution “whole number” until the other resolution is selected.
4. When the input is from thermocouple type “S”, the readings are always whole numbers!
Input channel selection
H5700 can measure the temperature of the 1st channel (Т1) or the temperature of the 2nd channel as well as the difference (Т1-Т2).
For channel selection mode use . Press once to view the active channel or hold to change channel mode. If first channel
has been selected, the device will indicate CH 1; if the second channel has been selected, the device indicates CH 2; in
case of differential mode H5700 will indicate d1FF.
Note: After power on H5700 will enter in CH 1 measurement mode by default.
SENSOR FAILURE INDICATION
When the measured value is outside the input nominal range, which happens usually as a result of sensor failure or destroyed
connection (sensor break, short circuit), the SEn message appears on the display. Check the condition of the sensor and its
connections.
ADJUSTING
Use the adjustment mode to set the parameters auto-power-off time, offset, measuring units and sensor type (only for H5700
with programmable input). To enter this mode, press and simultaneously. Read on the display the parameter to be
adjusted: 0FSt (offset), Un1t (measuring units), toFF (auto-power-off time), or StYP (sensor type). Use or
to select a parameter. Confirm with .
Auto-power-off adjustment
The toFF parameter defines the time between the moment a key has been pressed for the last time and the moment the device
turns itself off automatically. The auto-power-off time is user-selectable in the range from 0 to 30 min. at intervals of 5 min. While
H5700 is in adjustment mode, select the “auto-power-off time” parameter with or and confirm it with .
Read the last parameter value on the display. Use to increase and to decrease the value at intervals of 5 min. Confirm
the changes by pressing . To exit without setting (confirming) the new value, press and simultaneously.
Offset adjustment
Use the 0FSt parameter to offset linearly the device scale. While H5700 is in adjustment mode, select the “offset” parameter
with or and confirm it with . Read the last parameter value on the display. The digit to be adjusted flashes.
Use to select the desired digit and to change its value. The last digit is the sign digit. Confirm the changes by
pressing . To exit without saving the changes, press and simultaneously.
Note: The offset programming can be done for the selected input channel, but not for the temperature difference mode!
In such case an error message will be displayed!
Measurement units
H5700 can display temperature in degreed Celsius or Fahrenheit. While H5700 is in adjustment mode, select the “units” parameter
(Un1t) with or and confirm with . Using or select °C ( .C) or °F ( .F) and confirm your
selection by . To exit without saving the changes, press and simultaneously.
Note: After power on H5700 will measure temperature in .C by default.
Sensor selection
H5700 with programmable input can operate with any of the following sensors: Pt1000, thermocouples type “J”, “K”, and “S”.
To set the sensor type, while the device is in adjustment mode, use or to select the “sensor type” parameter (StYP).
Confirm it with . Select sensor type: tYPt (Pt1000), tY ] (T/C “J”), tY " (T/C “K”), or tY 5 (T/C “S”).
Confirm the selection with or exit without confirming by pressing and simultaneously.
Note: 1. The sensor programming can be done for the selected input channel, but not for the temperature difference mode!
In such case an error message will be displayed!
2. If no key has been pressed for more than 5 sec., the device automatically returns to measurement mode without saving
the changed parameter values.
LOW BATTERY INDICATION
H5700 monitors the battery voltage, and when it drops bellow the critical (approx. 2.2V), each 10 sec. the device displays
bAtt for about half a second. Replace the battery.
