Replacing SkiErg Handles
Procedure
Note: This procedure will be easiest if there is
slack on the handle cords during replacement.

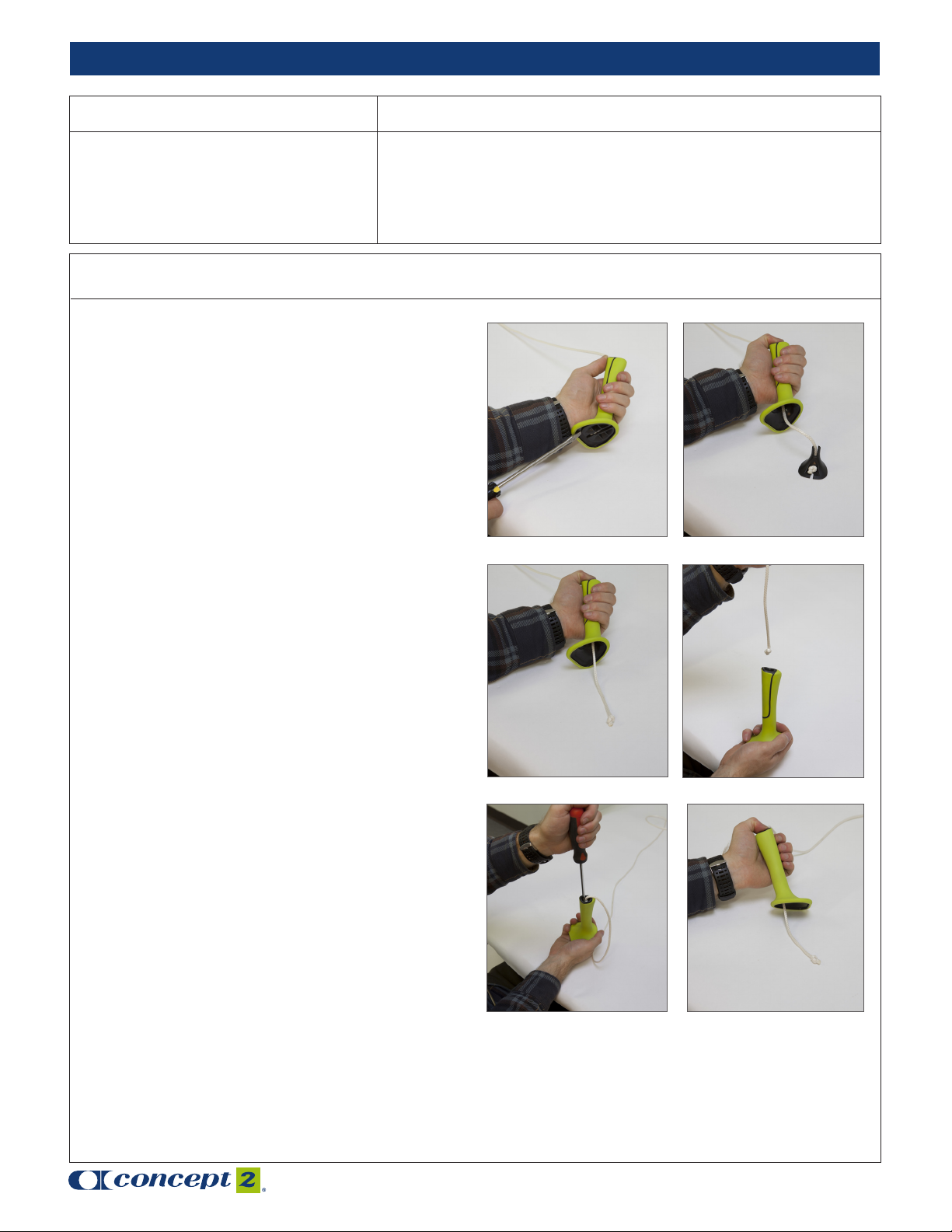

1. Using a flathead screwdriver, pry the handle
plug from the handle.
See photos A and B.
2. Remove the handle cord from the plug and
handle.
See photos C and D.
3. Using the 6-lobe driver from your SkiErg
assembly packet, insert the handle cord into
the replacement handle and push it through
with the driver. Note that the replacement
handles DO NOT have black lines on them.
See photos E and F.
AB
CD
EF
Materials Needed
• Handlesandhandleplugs
• Flatheadscrewdriver
• 6-lobedriver
Procedure Overview
• Removehandleplugsandremovethehandlecords
• Inserthandlecordsinreplacementhandles
• Attachhandlecordstohandleplugsandpressintohandle

Page 2 1014 concept2.com/ski
Replacing SkiErg Handles
Procedure
4. Position the knot of the handle cord into the
plug and wrap it around the plug as shown in
photosGandH.
Note: the difference in the new handle plug.
SeephotoI.
5. Installtheplugintothebottomofthehandle
and press into place. The new plug will be a
tight fit and will require a firm press to seat
fully.
See photos J and K.
6. Repeat for other handle.
H
G
JK
I
NEW OLD
