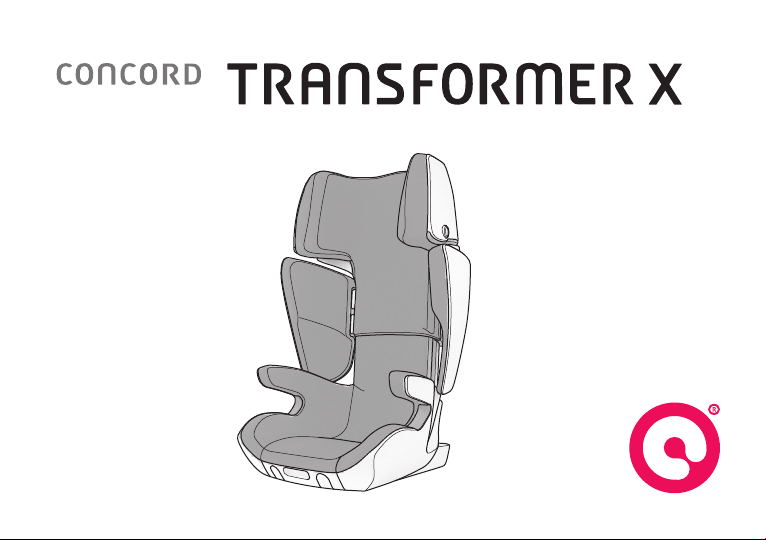

CONCORD TRANSFORMER X User manual

Norm ECE R44 04
standard ECE R44 04
norme ECE R44 04
norma ECE R44 04
szabvány ECE R44 04
DEUTSCH 03
ENGLISH 21
FRANÇAIS 39
ESPAÑOL 57
ITALIANO 75
PORTUGUÊS 93
NEDERLANDS 111
DANSK 129
Kindergewicht 15 kg- 36 kg
child‘s weight
ca. Alter 3-12 Jahre
approx age
ECE Gruppen II und III
ECE group

_ ENGLISH
OVERVIEW 22
THANK YOU! 24
NOTES 24
USING THE CONCORD TRANSFORMER 28
INSTALLING THE CONCORD TRANSFORMER 29
SECURING THE CHILD WITH THE THREE-POINT BELT 30
ADJUSTING THE INCLINATION 33
CARE INSTRUCTIONS 34
GENERAL INFORMATION 35
GUARANTEE 36
CONCORD ORIGINAL SPARE PARTS/ACCESSORIES 38
21

23
_ OVERVIEW
22
01 Head section
04 Seat
inclination button
02 Shoulder
shields
08
Storage compartment
for user instructions
05 Size
adjustment button
06 Shoulder
belt locking button
07
Shoulder belt guide
03 Lap belt guide

We are delighted that you have chosen a quality Concord product.
You are sure to be convinced by this product‘s versatility and safety.
We hope you enjoy using your new CONCORD TRANSFORMER.
25
WARNING!
• Do not leave your child unattended.
• Children sometimes have items in their jacket or trouser pockets (e.g. toy) or
wear hard items that are attached to their clothes (e.g. belt buckle). Make sure
that these items do not get between the child and the safety belt – they could
cause unnecessary injuries in the event of an accident.
These hazards also apply to adults!
• Naturally children can often be very lively. You should therefore explain to children
how important it is to always be safely fastened in. Children must understand
that they should never change the way the belts are positioned, and never open the
buckle.
• Only if safety equipment is correctly installed and used can your child enjoy
maximum safety.
• The system straps must be fitted tautly and without twists and must be protected
against damage.
• Protect those parts of the CONCORD TRANSFORMER that are not covered in
fabric from direct sunlight to avoid your child being burned.
• The child restraint system must not be damaged or trapped by moving parts in the
car interior or by doors.
• Never modify the CONCORD TRANSFORMER in any way – this will endanger your
child’s safety.
_ NOTES
24
ATTENTION!
• Please read the instructions for use thoroughly before using the CONCORD
TRANSFORMER and keep them carefully for later reference.
Not following the instructions described herein can put the safety of the child at risk!
Please also note the instructions in the car’s operating manual for transporting
children in a car.
_ THANK YOU!

27
local specialist child and baby shop, specialist departments in department stores, a
car accessories centre or mail order companies. There you will also be able to buy the
full range of accessories for CONCORD child car seats.
The buckle of the vehicle safety belt must not come above the edge of the lap belt
guide. If in doubt or if you are still uncertain, please contact CONCORD. The belts
may only be routed via the points of contact and the positions on the seat stated in
the user instructions. Belts must not be routed in any other way.
If the car seat used has a front airbag, we recommend positioning the car seat as far
back as possible. For cars with front and side airbags, the instructions in the car’s
operating manual must also be observed. The car’s shoulder/diagonal belt must pass
forwards from the vehicle bracket to the shoulder belt guide (07). Adjust the car seat
position if necessary.
26
• After an accident the CONCORD TRANSFORMER must be replaced or returned to
the manufacturer for testing, along with a report of the accident.
• You should also tell your passenger how to remove the child in the event of an
accident or danger.
• Do not leave your child in the child car seat unsupervised whether strapped
in or not.
• Secure luggage and other items to reduce the risk of injury in the event of an
accident.
• The user instructions must always accompany the child car seat.
• The use of accessories and replacement parts is not permissible and shall lead,
in the event of contravention, to the expiry of all claims under the warranty and of all
liability claims. Only special CONCORD original accessories are excluded.
• Suitable for cars with three-point (lap and diagonal) seat belts tested in accordance
with ECE Regulation 16 or a comparable standard.
As the period of use for the CONCORD TRANSFORMER is very long, it is natural that
seat covers and other used parts will each receive different degrees of wear and tear
depending on the individual duration and intensity of use and will need to be replaced.
For this reason it is not possible to give a blanket warranty of durability extending
beyond a six-month warranty period. For additional purchases, please contact your

29
_ INSTALLING THE CONCORD TRANSFORMER
Place the CONCORD TRANSFORMER on the car seat or
bench seat, facing in the direction of travel.
The CONCORD TRANSFORMER should lie flush with
the seat. In cars with standard headrests, these may be
adjusted or removed to make it easier to install the child car
seat.
Please note that the car headrests must be replaced and
re-positioned correctly when an adult is travelling in the car.
The seat may not be transported unsecured in the vehicle,
even if there is no child passenger. Otherwise passengers
risk injury during the journey or in the event of an accident.
For this reason, the belt must always be fastened when
travelling.
_ USING THE CONCORD TRANSFORMER
You have decided to purchase our CONCORD TRANSFORMER seat for the safety
of your child. This product is manufactured under strict quality controls. It can
only effectuate its maximum safety properties if it is used properly. The cover is an
important component and contributes to the seat’s effectiveness; for this reason the
seat must only be used with its original cover! You should therefore ensure that you
follow the instructions for fitting and use carefully.
The seat may be used on any seat in your car that is fitted with a three-point seat
belt. Statistics suggest that the place behind the passenger seat is the safest in the
car.
28

whilst moving the head section (01) into the required
position. The CONCORD TRANSFORMER can be
continuously adjusted to the right size and is locked
into the current position when the adjustment button
(05) is released.
3130
The shoulder belt guide (07) should be slightly above the top
of the child‘s shoulder. At the same time, the shoulder belt
should pass centrally between the child‘s neck and the outer
edge of the shoulder.
To adjust the CONCORD
TRANSFORMER to the size of the
child, gently press the head section
(01) down. Now press the size
adjustment button (05) on the back
of the backrest and keep it pressed
_ SECURING THE CHILD WITH THE THREE-POINT BELT
Seat your child well back in the seating area. Pass the
three-point belt across the front of the child to the seat
belt lock, and fasten it in the same way as for an adult.
(There must be an audible click.)
Now position the belts. Pass the lap belt across both
sides and the diagonal belt on the side of the seat belt
lock through the lap belt guide (03).
Finally, pass the diagonal belt through the provided
shoulder belt guide (07).
Make sure the belt passes
inside the securing hook.

3332
_ ADJUSTING THE INCLINATION
The inclination of the CONCORD
TRANSFORMER is continuously adjustable and
is locked into the current position when the seat
inclination button (04) is released.
To use the inclination adjuster on
the CONCORD TRANSFORMER,
press the seat inclination button
(04) on the front edge of the seat.
Keeping the button pressed, move
the seat into the required position.
Pull the belt taut so that the lap belt and diagonal belt are well positioned and ensure
that the belts are not twisted. The lap belt should be in the lowest possible position. If
your vehicle is fitted with a seat belt height adjuster, adjust its height accordingly.
When you wish to release the child from the seat, all you need to do is open the lock
and pass the strap back across the child. To remove the shoulder belt from the guide,
press the shoulder belt locking button (06) and pull the belt forwards and out.
It is important to ensure that the belts are always correctly positioned each time the
seat is used. If in doubt about any aspect of fitting, check with CONCORD. The belts
must pass through the guides marked in red on the seat. Belts must not be routed in
any other way.

3534
_ GENERAL INFORMATION
• This is a “universal” child restraint system. It is approved for general use in vehicles
in accordance with ECE Regulation 44, Amendment 04 and fits most, but not
all, passenger vehicle seats.
• This child restraint system from ECE groups II and III is suitable for children from
3–12 years weighing 15–36 kg.
• It can be assumed that the system will fit correctly if the vehicle manufacturer states
in the vehicle manual that the vehicle is suitable for the installation of a “universal”
child restraint system for the relevant age group.
• This child restraint system has been classified as being of the “universal” class,
satisfying stricter conditions than previous models which do not bear this label.
• If in doubt, please consult the manufacturer of the child restraint system or the
retailer.
• Only suitable for vehicles with three-point (lap and diagonal) seat belts tested and
approved in accordance with ECE Regulation 16 or a comparable standard.
_ CARE INSTRUCTIONS
The cover can be removed for washing.
To do so, move the head section (01) to its highest
position. To remove, pull the cover away from its
anchoring points. Begin by removing the head section
(01) followed by the seat section and the shoulder
shields (02).
To replace, start with the cover for the seat section.
First pull the cover over the cover panel on the backrest.
Then pass it beneath the lap belt guides (03) and insert
the fixings into the channel running along the edge of the
seat. Finally, attach the cover for the head section (01)
and shoulder shields (02).
• When they come into contact with moisture,
especially during washing, the cover fabrics may
fade slightly.
• Do not use solvents!

36 37
• repairs have been carried out on the product by third parties;
• the defect was caused as the result of an accident.
The guarantee makes no provision for any alteration or deterioration to the product
that is incurred through normal usage (wear and tear). The period of guarantee shall
not be extended by any remedial measures carried out by the manufacturers in the
event of a claim.
_ GUARANTEE
The guarantee begins on the day of purchase. The guarantee period corresponds
to the statutory warranty period in the end-user’s country concerned. At the
manufacturer’s discretion, the guarantee shall cover rectification, replacement or a
price reduction.
The guarantee is valid for the original purchaser only. In the event of any defect,
claims can not be considered unless the specialist dealer is notified of the fault as
soon as it occurs for the first time. If the specialist dealer is unable to remedy the
problem himself, he must return the product to the manufacturers together with
details of the complaint, official proof of purchase and the purchase date. The
manufacturers assume no liability for faulty goods that they did not supply.
The guarantee does not apply where:
• the product has been modified;
• the product is not brought back to the specialist dealer complete with
proof of purchase within 14 days of the defect occurring;
• the defect was caused by improper usage or maintenance or due to
anything else deemed to be the fault of the user, in particular failure to
comply with the instructions for use;

_ CONCORD ORIGINAL SPARE PARTS/ACCESSORIES
Information on Concord original spare parts/accessories is available at your retailer’s
or directly from Concord.
Concord GmbH
Industriestraße 25
95346 Stadtsteinach
Germany
Phone [phone]
Fax [phone]
[email protected]
www.concord.de
38

_ ORIGINALT CONCORD TILBEHØR
Oplysninger om originale Concord tilbehørsdele fås ved henvendelse til forhandleren
eller direkte hos Concord.
Concord GmbH
Industriestraße 25
95346 Stadtsteinach
Germany
Phone [phone]
Fax [phone]
[email protected]
www.concord.de
146
D // Um die Funktionsfähigkeit und Sicherheit Ihres Kinderautositzes
auch nach dem Austausch von Ersatz- und Zubehörteilen zu
gewährleisten, bitten wir Sie bei Bestellungen Ihrem Fachhändler die
Angaben auf der folgenden Seite mitzuteilen:
GB // To guarantee the continued functioning and safety of your child
car seat, even after the replacement of spare parts and accessories,
please give your dealer the details on the following page when placing
an order:
F // Afin de garantir un fonctionnement parfait et la sécurité de votre
siège auto, même après avoir changé des pièces de rechange ou des
accessoires, veuillez communiquer au revendeur auprès de qui vous
effectuez la commande les indications figurant à la page suivante :
E // Para garantizar el funcionamiento y la seguridad de su silla de
niños para coche, incluso después de cambiar piezas de repuesto
y de accesorios, al hacer los pedidos le rogamos comunique a su
comerciante los datos de la página siguiente:
I // Per garantire il funzionamento e la sicurezza del vostro seggiolino
auto per bambini anche in seguito alla sostituzione di pezzi di ricambio
o di accessori, al momento dell’ordine vi preghiamo di comunicare al
vostro rivenditore di fiducia i dati riportati alla pagina successiva:
P // Para garantir a funcionalidade e segurança da sua cadeira auto
mesmo após a substituição de peças ou acessórios, pedimos que
comunique os seguintes dados ao seu revendedor, juntamente com
a encomenda:
NL // Om het goed functioneren en de veiligheid van uw kinderzitje ook
naar vervanging van reserve- en accessoireonderdelen te garanderen,
vragen wij u om bij bestellingen de informatie op de volgende pagina
door te geven aan uw speciaalzaak:
DK // For at kunne garantere autostolens fulde funktion og sikkerhed,
også efter udskiftning af reservedele og tilbehør, beder
vi dig meddele din forhandler følgende ved bestillinger:

*OEVTUSJFTUSBF
4UBEUTUFJOBDI
.BEFJO(FSNBOZ
VOJWFSTBM
LH




&
$0/$03%
ECE-Nr. / ECE No. / Num. ECE / N° ECE / N° ECE / N.º ECE / ECE-nr. / ECE-Nr.
1
2Serien-Nr. / Serial No. / N°série / N° de serie / N° di serie / N.º de série / Serienr. / Serienr.
Ersatzteil / Spare part / Pièce de rechange / Pieza de repuesto / Ricambio / Peça de substituição / reserveonderdeel / Reservedel
Fachhändler / Dealer / Revendeur / Comerciante / Rivenditore specializzato / Revendedor especializado / Speciaalzaak / Forhandler
Meine Anschrift / My address / Mon adresse / Mi dirección / Il mio indirizzo / A minha morada / Mijn adres / Min adresse

Concord GmbH // Industriestraße 25
95346 Stadtsteinach // Germany
Phone [phone] // Fax [phone]
[email protected] // www.concord.de TR 01/1008
_ DEUTSCH
_ ENGLISH
_ FRANÇAIS
_ ESPAÑOL
_ ITALIANO
_ PORTUGUÊS
_ NEDERLANDS
_ DANSK
Einbau- und Bedienungsanleitung
Instructions for attachment and use
Directives d‘installation et mode d‘emploi
Instrucciones de montaje y de uso
Istruzioni per l‘uso e il montaggio
Manual de montagem e de utilização
Inbouw- en bedieningshandleiding
Monterings- og betjeningsvejledning
