!!!!!!!!!!!!!CBM3!Instruction!Manual!!
Congratulations!on!the!purchase!of!your!CBM3!Concourse!Golf!Buggy!
To!assist!you!in!setting!up!and!using!your!new!CBM3!Golf!Buggy!we!have!prepared!detailed!
instructions!to!guide!you!through!the!process,!but!if!at!any!time!you!require!any!further!assistance!!
Simply!call!us!Toll!Free!on!Australia: 1300 650 059 and one of our friendly team will assist
you. Picture of the Buggy on the cover !
Step!1:!Opening!The!Box:!When!you!first!open!the!box!this!is!what!you!will!see!as!per!Figs!1!&!2!
Below!!
!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!
Step2:!Remove!all!the!contents!from!the!box!and!it!will!contain!the!following!components!as!per!
Figure!No!3!below.!
1!x!CBM3!Mobilser!with!mounting!straps!
2!x!Rear!Wheels!
1!x!Front!Wheel!!
1!x!Wheel!Bag!!
! !
!
!
!

Step!3:!Read!the!information!on!the!yellow!sticker!situated!on!the!Top!Handle!and!then!slowly!
remove!the!sticker!as!per!Figure!No’s!4!&5!below.!
!
! !
!
Step!4:!Lay!the!buggy!assembly!on!a!bench!or!table!and!unwind!the!traps!as!per!Figs!5!&6!!below!!
Point!out!the!upper!and!lower!bag!supports!and!strap!assemblies!for!the!next!step!and!make!
buggies!face!the!same!way.!
!
Step!5:!Remove!the!lower!bag!support!and!strap!from!the!buggy!assembly!and!place!on!the!base!
at!the!rear!of!the!golf!bag!with!the!strap!passing!through!the!plastic!buckle!as!per!7!&!8!below.!!
!! !
Step!6:!Now!rotate!the!golf!bag!into!the!position!as!per!Fg!9!below!and!pull!the!strap!as!tight!as!
possible!and!while!holding!tension!on!the!strap!then!lock!the!velcro!strap!into!place.!
Note:!It!is!vitally!important!that!the!lower!bag!support!(once!tightened)!is!perfectly!central!on!the!
bag!base!as!per!fig!10!below.!It!may!take!a!couple!of!attempts!to!make!sure!the!lower!bag!support!id!
perfectly!central!on!the!bage!base!!
!

!
!
!

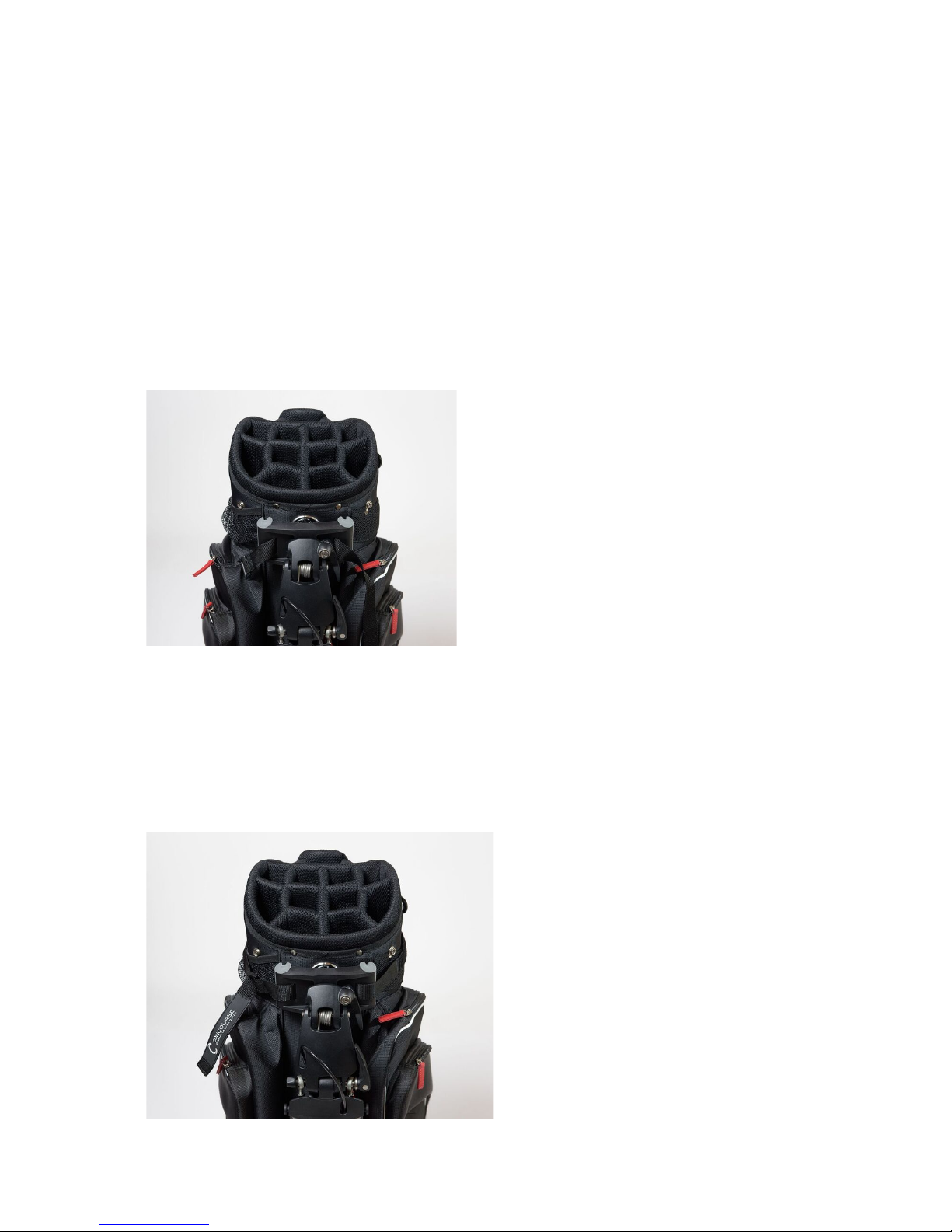

Step!7:!
Once!the!lower!bag!support!and!strap!have!been!fitted!as!per!step!6!then!stand!up!the!buggy!with!
the!top!strap!hanging!loose!as!per!Fig!11!below!
Note:!Please!ensure!that!the!Top!Bag!Support!is!central!at!the!top!of!the!bag!as!per!Fig!11!below!
We!will!need!to!add!some!arrows!and!text!on!the!image!plus!naming!the!top!bag!support!&!strap!!
!
!
Step!9:!Pass!the!Velcro!strap!through!the!plastic!buckle!on!the!top!bag!strap!as!per!fig!12!below.!
Hold!the!bag!securely!and!pull!on!the!strap!as!tight!as!possible!then!lock!the!Velcro!strap!into!
place.!
Please!Note-!Once!the!top!Bag!strap!is!tightened,!you!must!ensure!that!the!Top!Bag!Support!must!
still!be!centralised!on!the!golf!bag.!!
We!will!need!some!arrows!and!text!again!on!the!image!!
!

!
!

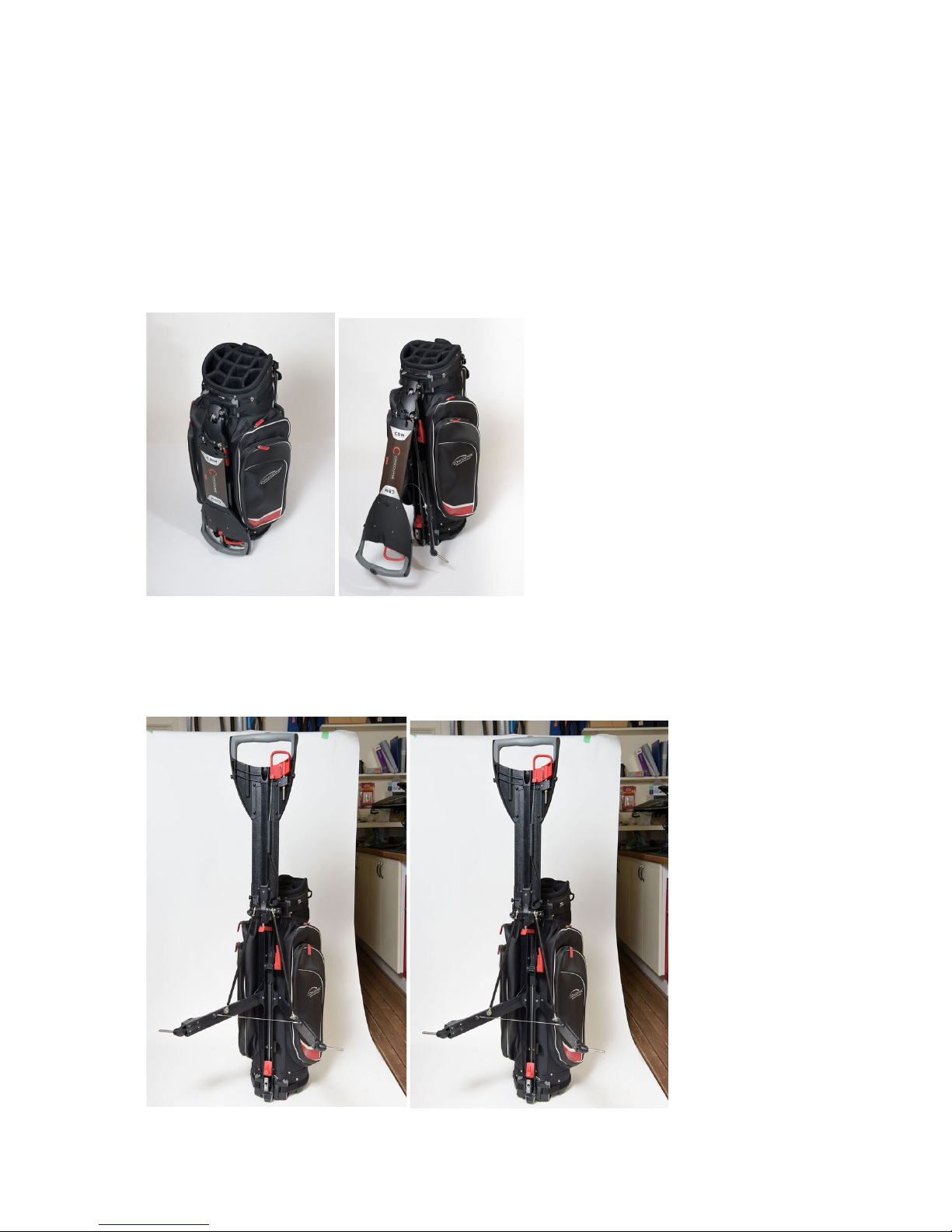

Step!9:!Unfolding!the!buggy;!
While!holding!the!buggy!securely,!press!the!Red!Unlock!Button!situated!on!the!Top!Handle!of!the!
buggy!as!per!fig!13!below!and!then!lift!the!top!handle!upwards!the!buggy!will!begin!to!unfold!as!
per!fig!14!below!
Arrows!and!text!required!on!images!!
! !
Step!10:!Fully!unlocked!position:!Carrying!on!from!step!9,!continue!to!lift!the!handle!upwards!until!
the!buggy!is!fully!unfolded!as!per!fig!15!below!and!it!will!automatically!lock!into!position!with!the!
upright!locking!pin!locating!itself!in!the!red!unlock!arm!as!per!fig16!below!!!
Arrows!and!text!required!on!images!–!image!on!right!to!highlight!the!upright!lick!lever!and!pin!!
! !

!
!
Step!11:!Fitting!the!front!Wheel.!!
While!holding!the!buggy!secure!-!Place!the!front!wheel!into!the!front!wheel!housing!as!per!fig!17!
below!and!push!inwards!as!per!fig!18!below!until!the!front!wheel!is!fully!inserted!into!the!front!
wheel!housing!as!per!fig!19!below!
Please!Note!–!The!front!wheel!is!secured!by!magnets!once!fully!installed.!!
! ! !
!
Step!13:!Fitting!the!Rear!wheels.!
While!holding!the!buggy!secure!-!Slide!both!rear!wheels!onto!the!axles!until!they!fully!click!into!place!
as!per!figs!20!&!21!below.!Arrows!and!text!to!be!added!
!!
!

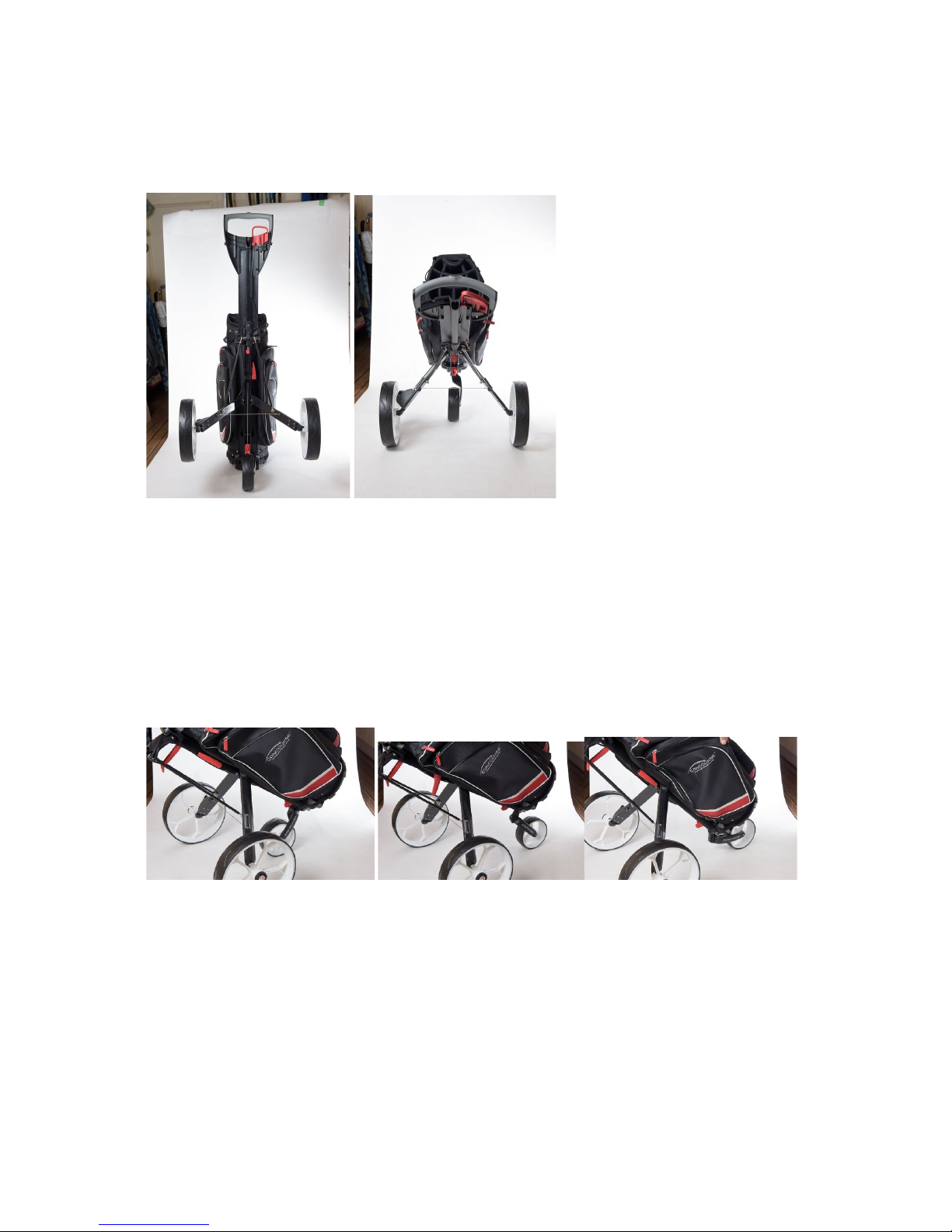

Step!13:!Setting!the!front!wheel!22!&!23!!
Now!that!all!3!wheels!have!been!fitted!as!per!fig!23!below,!pull!down!on!the!handle!and!allow!the!
buggy!to!sit!on!all!3!wheels!as!per!fig!23!below!–!Add!arrows!for!direction!of!pull!!
! !
!
Step!15:!Locking!the!front!wheel!–!24!25!26!
Located!on!the!side!of!the!main!buggy!frame!is!a!Red!Lever!that!positions!and!locks!the!front!wheel.!
Begin!by!pushing!down!on!the!handle!and!lifting!the!front!wheel!just!off!the!ground,!the!pull!the!Red!
Lever!outwards!to!unlock!the!lever!and!begin!to!turn!the!lever!towards!the!front!of!the!buggy!as!per!
figs!24!&!25!and!the!front!wheel!will!begin!to!move!forwrads!.!Continue!moving!the!lever!until!the!
lever!is!in!the!fully!forward!position!and!then!lock!the!lever!in!position!as!per!fig!26!–!Arrows!and!
text!
! !
!
!
!
!
!
!
!

Step!16:!Adjusting!the!Handle!Height!–!27!28!29!30!31!
On!the!lower!section!of!the!Handle!is!the!Handle!Lock!Lever.!To!adjust!the!handle!height!unlock!
the!handle!lock!by!pulling!down!on!the!lever!as!per!figs!27!&!28!
! !
The!handle!has!3!different!heights,!as!per!figs!29!30!&31,!when!you!have!chosen!your!preferred!
handle!height,!push!the!handle!lock!lever!upwards!to!lock!the!handle!into!position!
Please!Note:!You!can!leave!the!handle!height!to!your!desired!height!and!the!buggy!will!still!fold!up!
normally,!there!is!no!need!to!keep!adjusting!the!handle!each!time!you!unfold!and!fold!up!the!
buggy.!Arrows!and!text!required!!!!
!
!!!! !!!!! !!!!!!!!!! !!!!!
!
Step!17:!Using!the!Hand!Brake.!
To!apply!the!hand!brake,!simply!pull!upwards!on!the!Red!Handbrake!Lever!on!the!Handle!as!per!fig!
32,!until!the!lever!locks!into!the!locked!position!as!per!fig!33.!
To!unlock!the!brake!simply!pull!upwards!on!the!Lever!and!the!hand!brake!will!diddenage!and!the!
handle!will!return!to!the!off!position.!!-!Arrows!and!Text!!
!
!!!!!!!!!! !!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!

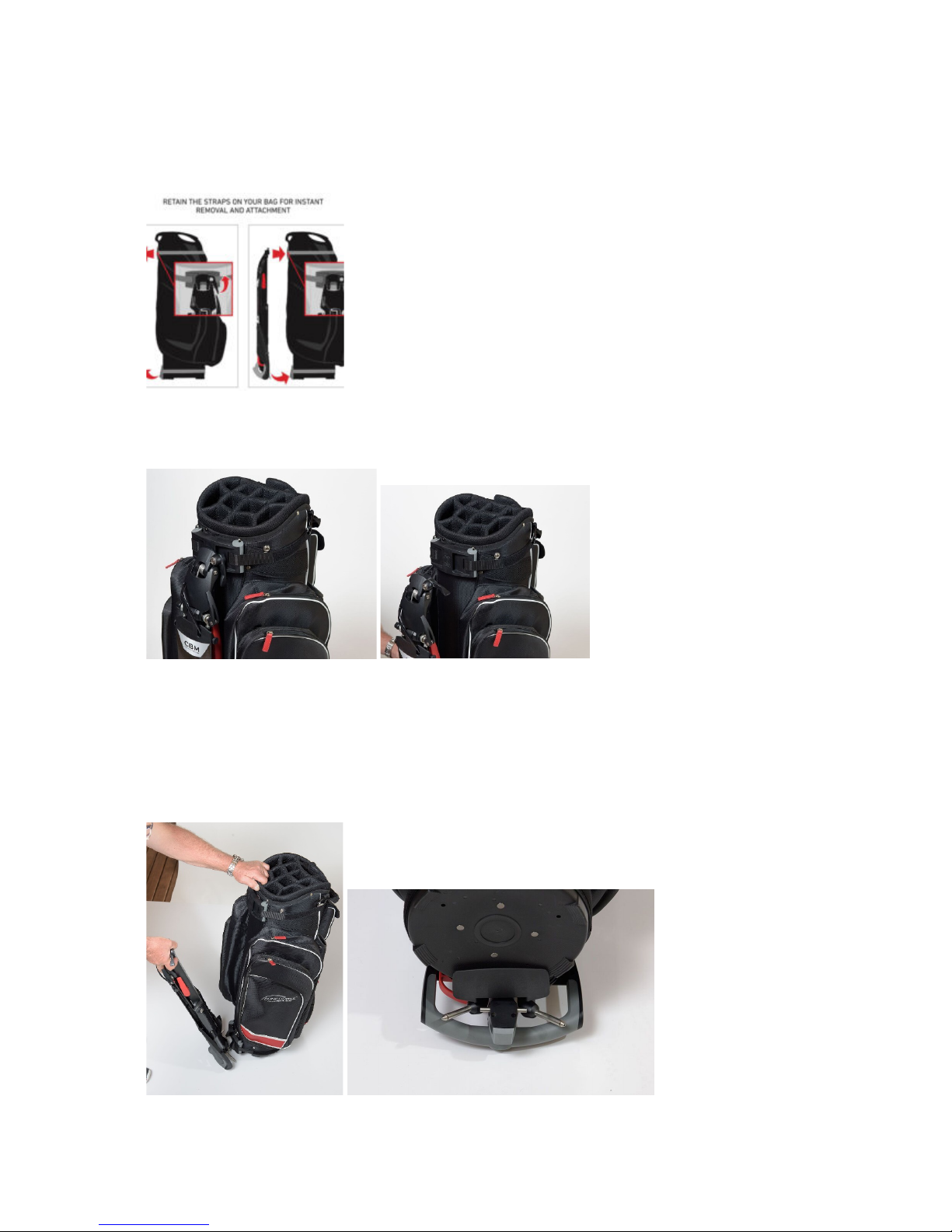

Step!18:!Removing!the!Buggy!Frame!from!the!Golf!Bag!!
The!CBM3!has!the!added!advantage!of!being!able!to!separate!the!buggy!frame!fron!the!Golf!Bag!
without!the!need!to!remove!the!Straps.!!
!
To!carry!out!this!process!lift!upwards!on!the!mobiliser!lock!mechanism!as!per!figs!34!&!35!!
Arrows!and!text!!
! !
Now!Hold!the!buggy!frame!upright!and!still!then!push!the!bag!golf!bag!away!from!the!buggy!frame!
and!the!bag!will!separate!from!the!buggy!as!per!fig!36!!
Once!the!bag!has!seperated!from!the!buggy!you!will!notice!2!silver!pins!which!locate!the!mobiliser!to!
the!lower!bag!support.!To!refit!the!mobiliser!to!the!bag,!simply!line!up!the!2!pins!with!the!slots!in!the!
lower!bag!support!(ref!fig37)!and!then!bring!the!mobiliser!up!to!the!bag!and!push!down!on!the!
mobiliser!lock!lever!to!lock!the!2!units!togethter!again.!!Arrows!and!Text!!
!!
