GENERAL INSTRUCTIONS
Please read this section carefully, especially if this is your first etched brass kit. Many modellers
fight shy of working in this medium, but the basic skills are relatively easy to acquire. Once
you’ve learned how to form and solder brass, you’ll find all kinds of modelling possibilities will
open up for you.
Assembling an etched kit involves exactly the same skills that a scratchbuilder uses – the only
difference is that the cutting out of the parts is already done for you. Some filing and trimming
will, however, be necessary from time to time. Where this is the case, I have highlighted it in the
instructions.
The main skill to master is soldering and I would recommend a Weller 40 Watt soldering iron.
This has a 6mm diameter, removable copper bit. The bit is shaped like a screwdriver and has a
bright coating of solder (tinned). This combination of iron and bit shape is ideal for running fillet
joints and has a good reserve of heat, that is necessary for soldering small parts on to large
components. Note the shape and condition of a new bit, as this won’t last long and will need
restoring back to this condition.
It is important to keep the bit clean and in good condition as you work. Get a soldering iron
stand containing a damp sponge; old oxidized solder is wiped off on this before picking up fresh
solder for each joint. If you haven’t made a joint for some time you may find that a hard black
crust has formed on the bit. Remove this with a brass wire brush (suede brush) and then feed
some multicore solder onto each side of the bit to restore a bright surface (referred to as wetting
or tinning the bit). After about 8 hours use you will find the bit is in poor condition, with holes and
a ragged edge. File the bit back to its original shape using a hand bastard file and then polish the
surfaces on emery cloth. Coat the bit with Fluxite Soldering Paste (traditionally used by
plumbers) and this will prevent the bare copper oxidizing as the iron heats up. Then feed
multicore solder onto the bit to form a generous coating and leave to bubble away for a couple of
minutes before wiping excess off to give a bit almost as good as new.
A smaller Antex 25 Watt iron with a 3.2mm screwdriver bit is very useful for small assemblies
and detail work such as handrails, but will have insufficient heat reserve for main assembly work.
The Antex has a plated iron bit, after a little use with 145° solder a grey oxide appears on the bit
that will prevent you from picking up the solder. Touch the bit to some multicore solder and it will
flash over the bit, wetting it so that you can continue picking up 145° solder. I have found no
problems with mixing the two solders in this way.
I use 145° solder for virtually all assembly work. I prefer it in wire form, available from
Branchlines, but it is also produced in stick form by Carrs. I find that its lower working
temperature helps to give a quick clean joint. Limiting the build up of heat in components, which
may cause distortion. I find that I can hold parts together with my finger ends and make a joint
before heat reaches my fingers or other etched parts drop off.
I use 60/40, tin/lead, fluxed multicore electrical solder (melting point about 190°) mainly to keep
the iron bits in good condition. As it gives a slightly stronger joint than 145° I sometimes use it for
small spot joints on handrail wire, lamp brackets etc, but still use extra liquid flux.
For all brass and nickel silver work I use Carrs green label liquid flux. You will soon get the feel
for how much to use but more problems are caused by too little flux than too much.
Before soldering components together, thoroughly clean both surfaces along the join line with a
glass fibre burnishing brush. Using your tweezers or a knife blade etc, hold the parts together in
the correct position and, with an old paintbrush, run some flux along the area to be joined. Still
keeping the parts correctly aligned, pick up a small quantity of solder on the tip of your iron and
carry it to the joint (unlike electrical soldering, when you feed solder into the joint). Hold the iron
against the joint just long enough for the solder to flash between the parts. Don’t let go of the
parts until the solder has cooled – this takes from five to ten seconds. To run a fillet of solder
along a joint, wait until the solder flashes between the parts and then pull the molten solder along
Page 2

the joint with the iron tip. Don’t load the iron tip with a lot of extra solder, but work the joint in 1”
lengths, bringing in small quantities of solder. Brass is a very forgiving material and if you get
something out of alignment, use heat from the iron to desolder the joint before starting again. For
complicated assemblies, it is a good idea to only tack solder parts together. You can then make
adjustments by desoldering until you are happy with the location of parts and then solder solid.
When you need to laminate two or more layers of brass together, align the parts and carefully
clamp them together, either in the vice or by holding them with miniature crocodile clips. Run flux
around the edges, and then go around with the soldering iron. Clean up thoroughly afterwards.
To fit small parts and overlays on to a larger assembly, such as strapping to a wagon side,
when you need to prevent finely detailed areas such as planking becoming clogged up with
solder. Tin the back of the small component first, then hold in place on the model and apply flux.
Carefully wipe the tip of your iron on a sponge to remove any solder from it (dry iron), and then
touch it against the parts to be joined. After a few seconds you’ll see molten solder bubbling from
the edges. Remove the iron, still holding the parts in place, and allow the joint to cool. An
alternative is to use solder paint (I would recommend Carrs 188 solder paste). As the name
suggests, this is a flux and solder in one. Simply apply a thin coat of solder paint to the back of
the component instead of tinning. Still apply a small amount of liquid flux before you solder the
part into place.
Any surplus solder should be removed using a craft knife, I find No 10 curved scalpel blades
ideal, then burnish clean with a glass fibre brush. With practice, you’ll learn how to use the
minimum amount of solder to do the job. Flux is corrosive so, after each soldering session, give
your model a good scrub with washing up liquid or Jif. After a day or two, any remaining flux
residues will show as a green film, which should be washed away.
To cut parts from the fret, use a sharp Stanley knife on a piece of hardboard or a pointed
scalpel blade on a block of softwood. Remove tags and burrs with a fine file.
Three-dimensional parts are formed by folding. On an etched brass kit, the fold lines are
normally half-etched on the inside of the fold. You’ll be able to fold most parts using smooth-
jawed pliers. For longer parts folding bars are desirable.
Other useful tools include a bench vice, a good pair of tweezers, a set of Swiss files (get a full
set of cheap ones and then buy quality replacements for the three that you use the most), a pin
vice with a selection of drills from 0.5mm to 2.1mm plus a few larger sizes that you use regularly
(2.6mm for axle bearings etc), some square-nosed pliers and some very pointed-nosed ones,
preferably with smooth jaws. Buy cheap tools first and duplicate the most used ones with quality.
Try to complete all high-temperature soldering before attaching any of the cast whitemetal
parts. These can be attached with two-part epoxy resin such as Devcon or Araldite Rapid.
Ensure the surfaces to be glued are clean and free of grease.
Abetter alternative is to solder your white metal castings using Carrs 70 degree low melt solder
and Carrs red label white metal flux. The iron should be run at a much lower heat so that you do
not melt the castings. I have a domestic light dimmer switch and plug socket fixed to a piece of
wood, wired up with a lead and 3 amp mains plug to the input side of the dimmer switch and the
output of the dimmer switch into the plug socket (remember to continue the earth). Plug your 40
Watt iron (25 Watt iron won’t work) with a clean and freshly tinned bit into this and experiment
with adjusting the switch until you find the range of temperature at which the solder melts, but a
scrap casting does not. Note as the iron is running at a lower voltage it will take longer to heat
up, so when you think the adjustment is correct do check a few minutes later on another scrap
casting to see that it doesn't melt. Then scribe a mark on the switch knob to indicate this position.
When attaching white metal fittings to brass the surface of the brass must be tinned with 145°
solder, to allow the solder to grip. The surface of the casting at the joint should be burnished
bright. The casting can then be soldered into place with 70° solder and fillets of solder run into
any gaps with no risk of melting the casting.
Page 3

Page 4

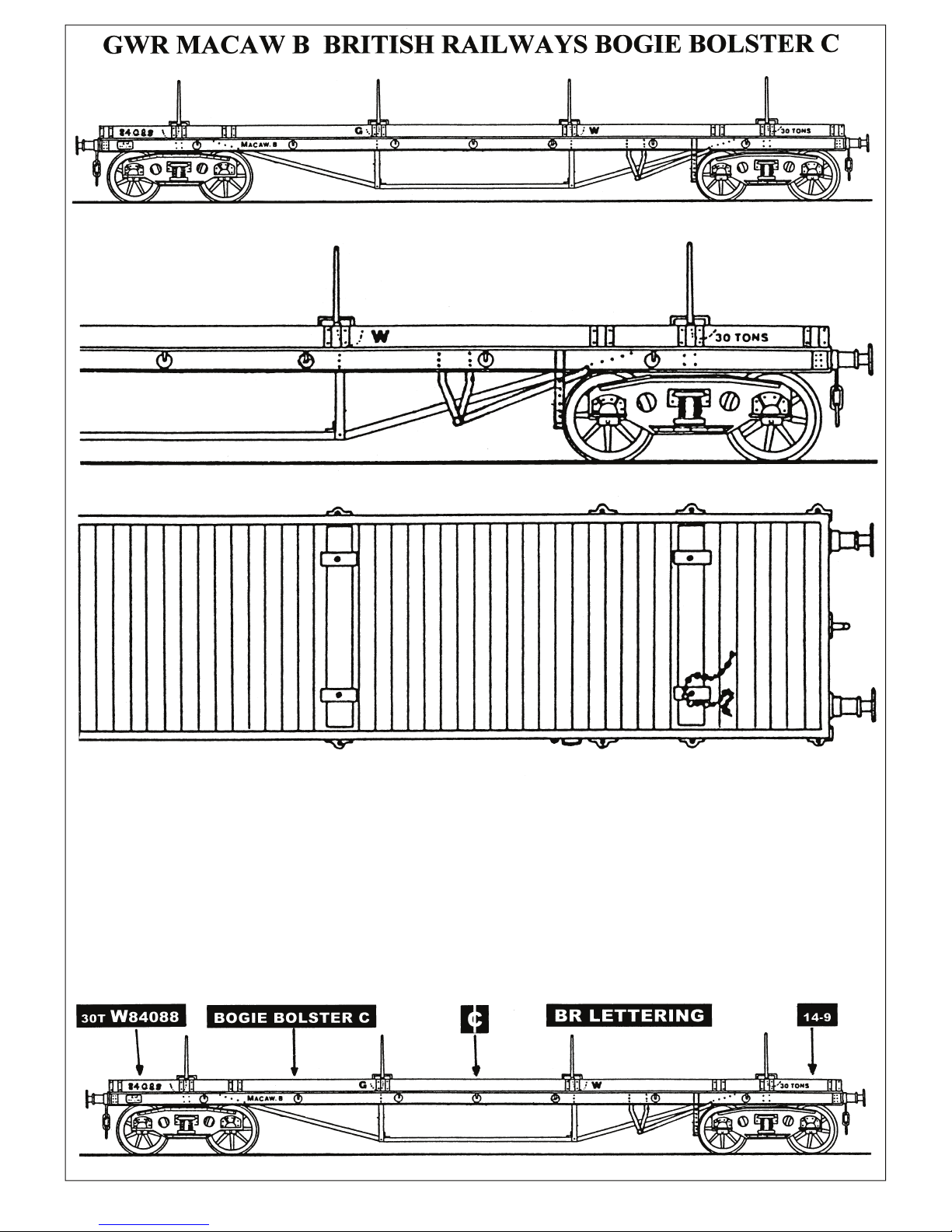

GWR Livery. All over GWR wagon grey (Railmatch enamel spray N0 1604). Planked Floor, dirty wood
(Humbrol enamel N0 110). White end to brake lever. Lettering, White (note that lettering position
varied between wagons). Transfers for lettering are available from :- HMRS, 8 Gilpin Green,
Harpenden, Herts, AL5 5NR, sheet No 11 GWR goods insignia (they are also stocked by the specialist
0 gauge model shops) or dry rub down transfers from, POW SIDES, Poplars Farm, Aythorpe Roding,
Dunmow, Essex, CM6 1RY.
BR Livery. Bodywork, BR early freight stock grey (Railmatch No 322). Solebars and bogies, Black.
White lettering on black background patches. Fox Transfers, 138 Main Street, Markfield,
Leicestershire, LE67 9UX, Tel [phone]. Produce Waterslide type transfers including black
patches onto which the lettering can be built up.

Page 5

Page 6

GWR MACAW B BOGIE BOLSTER

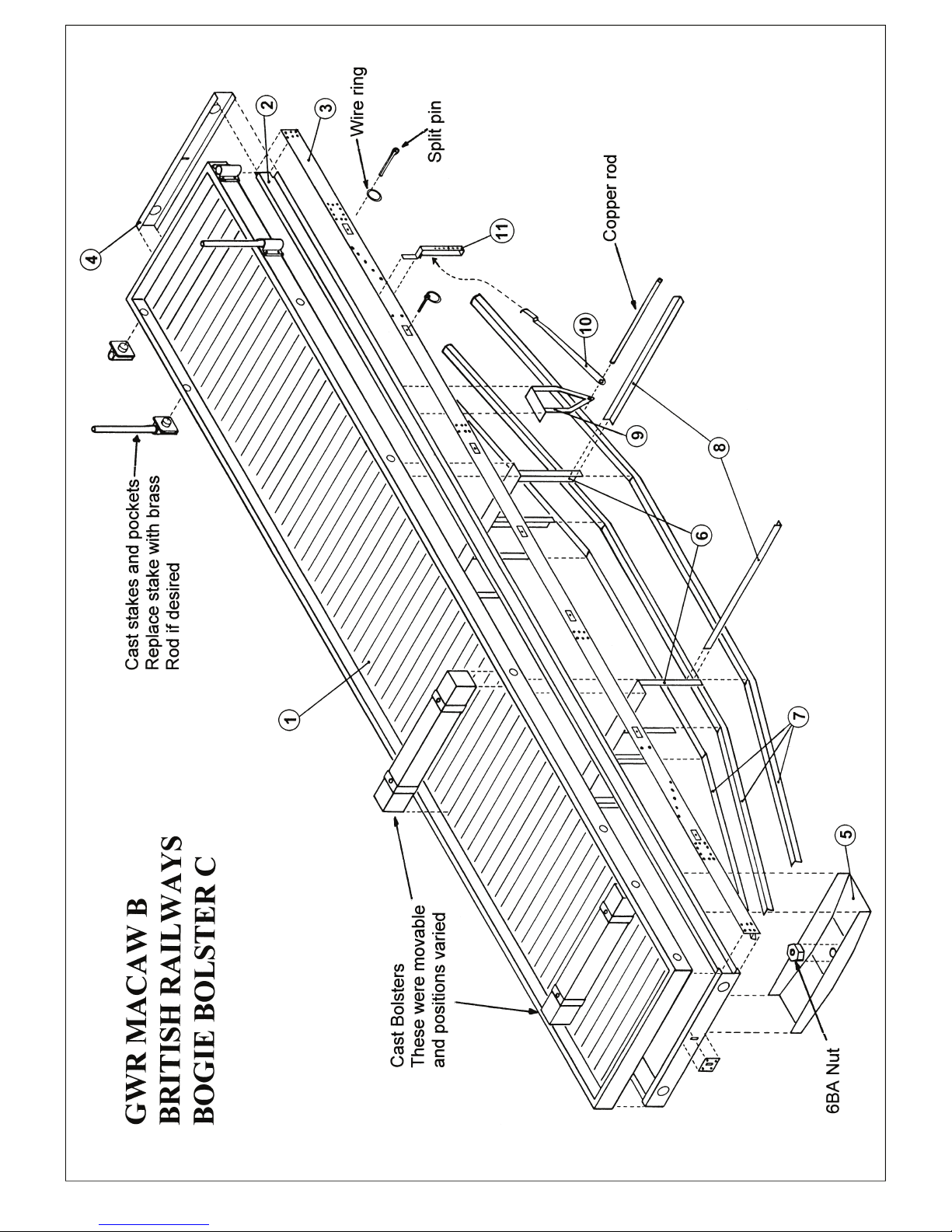

Parts Identification and Suggested Assembly Order
1. Using bending bars fold up the main body (part 1). The suggested order of folding being the
top lips of the sides first, then the main sides, then the top lip of the ends and finally the ends. For
the last fold of the ends you will not be able to use the bending bars so place the main body on a
flat surface and place a piece of square off cut of 2”X1” wood, hard down inside the floor. The
ends can then be folded up using finger pressure, the wood ensuring a 90° fold. Ensure that all is
square and then run a fillet of solder into each corner.
Even with bending bars the long folds can be a little tricky. Clamp the etch into the bending bars
as tightly as you can and then clamp one end of the bending bars in the jaws of your vice. Make a
bend through about 30° for 1/4of the length of the side (about the length that is supported by the
vice jaws). Then move the bending bars along and re-clamp in the vice jaws to bend the next 1/4of
the side through 30°. Work along to the other end and then work back forming the bend through
60° and then 90°. Stroking along the bend with a block of wood or gently tapping the wood block
with a hammer can correct any slight distortion.
My vice is a record No3 and is deep enough to take the floor as I make the second bend on the
side. But if you are not able to use your vice for this bend you may find it helpful to deepen the fold
line by pushing a triangular file up it until a faint witness mark appears on the other side of the
brass. This should reduce the amount of pressure required to make the bend and you should
manage without the bending bars being supported in the vice. If you have done this you may wish
to reinforce the fold by running a small fillet of solder between the plank ends and the side. Solder
all four corners and dress with a file to give a crisp square corner.
2. Fold the top and bottom of the solebars (parts 2) through 90°. Again us bending bars and
work the bend in sections.
3. Take the solebar overlays (parts 3) and check that they will be a snug fit into the solebar
channel. If a little filing of the edges is required it may be helpful to clamp the overlay into the
bending bars to support it as you dress the edge with a file. Emboss the bolt heads on the
securing ring plates and then solder the overlay into the channel.
Fitting the solebar overlay is probably a good job for solder paint or even resistance soldering
units. Alternatively tin the back of the overlay and the front face of the solebar. Solder the overlay
to the solebar at one end and check that the holes for the lashing rings line up. Flood plenty of flux
underneath the overlay and invert it onto a piece of scrap strip wood 5mm wide (lengths of this
hardwood are sold as beading in DIY shops and it has hundreds of modelling uses). Start from the
end that is all ready soldered and pressing the back of the solebar firmly onto the strip wood with
the end of an old file. Work slowly along the back of the solebar with the tip of your soldering iron.
Keep the tip of the iron lightly coated with solder to help the heat transfer. Work in short sections
as you will be getting a lot of heat into the solebar and you want the solder to cool and hold the
overlay flat before removing the pressure of the file end and moving on to the next section. Once
completed and cooled clean up the front face of the solebar with a fibreglass brush to remove
scorched splinters of wood etc.

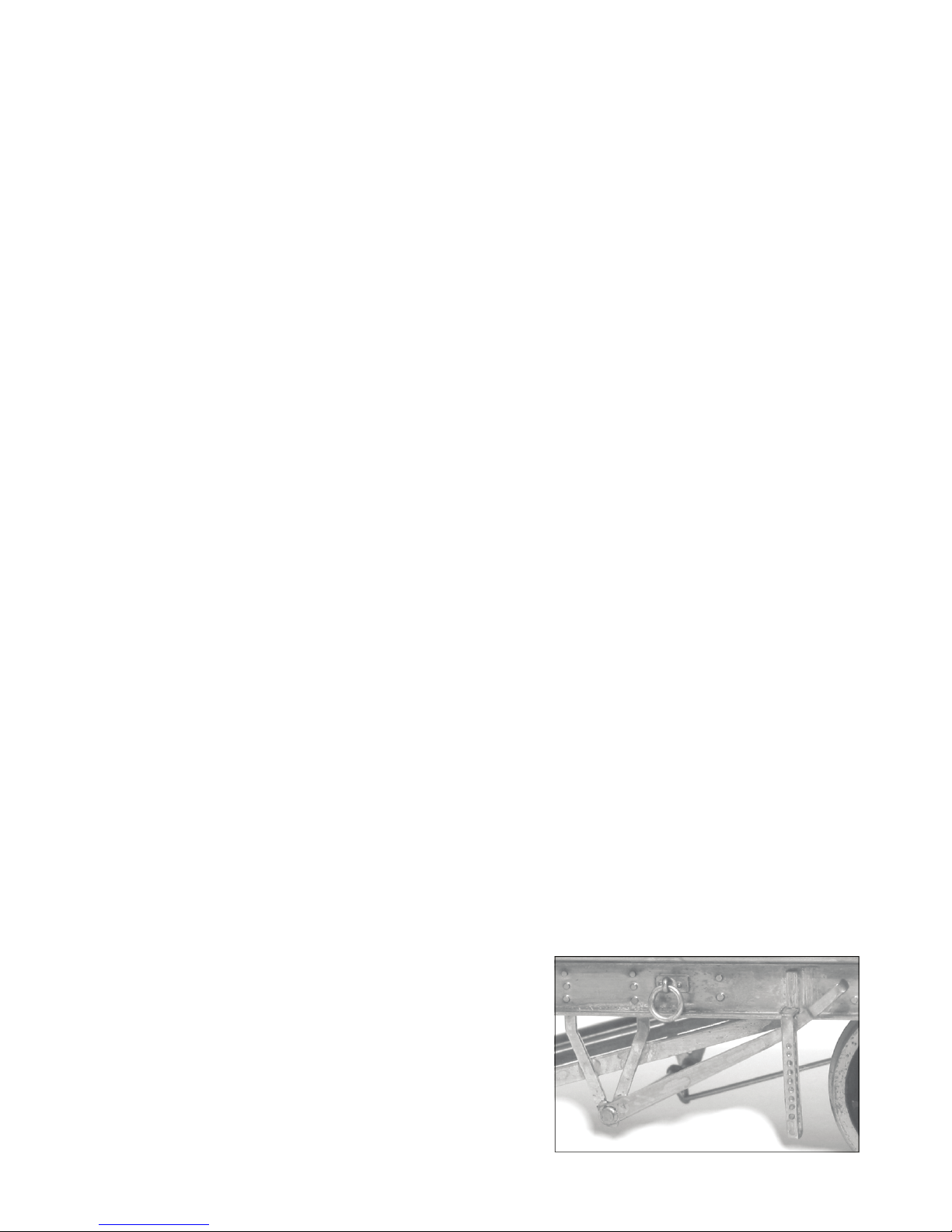

The lashing rings that fit into the holes in the plates on the solebars are represented by soft wire
rings and split pins. Wind the soft tinned copper wire around a 2.7mm (size for Slater’s axle
bearings) drill shank to form a tight coil (like a spring). Using flush cutting
side cutters snip into the coil to make the individual rings. Straighten up
each ring with long nosed pliers and then close each ring with a spot of
60/40 solder. Thread each ring onto a split pin and then gently squeeze
each head closed again. Thread each split pin through the hole in the
solebar and then splay out each leg of the split pin through 90°. This should
hold the split pin firmly and allow you to set all the split pin heads vertical in
the solebar. Turn the solebar upside down so that the rings hang down
freely and spot solder from the back of the solebar the split pins into the
holes. Snip off the legs of the split pins and with a file dress the remainder
Page 7

flush with the solebar back. You should now have separate moving lashing rings to secure a
wagon load too and impress your friends.
4. Fold up the headstocks (parts 4). Fold up and solder the bogie bearing plates (parts 5) and
then solder a nut over the hole on the inside of each. This is best done by first polishing the six
sides of each nut with a flat file. Then lock each nut into place with a screw that has a washer
between the screw head and the outside face of the bearing plate. If you put a spot of light oil onto
the screw thread this will prevent solder creeping in and locking everything solid. Now solder the
nut into place using a generous amount of solder so that the solder flows all around the nut and
part way up each of the six sides.
5. Using a scriber and engineers square mark lines across the underside of the floor using the
dimensions shown on the diagram. These are to help with the positioning of under floor
components.
Now solder the headstocks to the ends of the underside of the floor. Then solder the solebars to
the floor. You may have to dress the ends to fit snugly between the headstocks and ensure that
the solebar is the correct way up (use the number plate for reference). The edges of the solebar
lips are virtually flush with the ends of the headstocks. The solebar is best tacked into place first at
about 2” intervals. Then solder solid using 1” tacks rather than trying to solder a continuous fillet
as this will avoid excess heat and the risk of distortion. The bogie bearing plates (parts 5) are
useful as spacers to ensure that the solebars are square and at the correct distance apart. Then
solder the bearing plates to the floor using the scribed lines as a guide.
6. Fold up the truss rod queen post assembly (parts 6). If your bending bars are more than
6mm wide you may experience difficulty with the centre two bends so file a rebate in the bars or
cut the plate in the centre to separate them into two sections of two queen posts.
Fold up the truss rods (parts 7) to form an L shaped section. You may find it helpful to run a
triangular file up the fold line until a faint witness mark appears on the front face. This will reduce
the amount of pressure required to make the fold and give a crisper more square bend. Then fold
the transverse angles (parts 8). I have tried to make all these components to scale. Because of
this they are a little tricky to fold but if you form most of the fold by pressing forward with a block of
steel (I use the base of my engineers square) and then gently tap flat onto the bending bars with
hammer and block of wood. You should get a sharp and even bend.
7. Solder the bottom plate of the queen post assembly to the wagon floor using the scribed
lines as a guide. If you find that the queen posts are a tight fit between the solebars you may wish
to cut the bottom plate into two and file each section back slightly. Then solder the four outer
queen posts to the backs of the solebars. Check that they are square and at 90° to the
floor/solebars.
Build up the truss rod assembly by soldering the two outside truss rods to the queen posts, and
then fit the transverse angles. Solder the inside queen posts to these, followed by the two inside
truss rods. Check for squareness in all directions at each stage. Then solder the ends of the
outside truss rods to the backs of the sole bars and the inside ones to the floor.
8. Drill out the holes in the vee hangers (parts 9) 1.4mm to take the copper rod cross shafts.
Fold up the bases of the vee hangers and fit to the floor using the scribed lines as a guide but
ensure that the outer vee hanger lines up with the etched
bolt head detail on the solebars. The inside vee hanger is
fitted against the third truss rod with the copper rod
spanning three truss rods. Leave a length of copper rod
projecting out of the solebar vee hanger onto which the
brake handle is fitted. There is a couple of etched cross
shaft cranks that you can use if you wish to represent the
pull rods going into the bogies. Thread one of these onto
each cross shaft before soldering the rod.
Page 8

9. Fold up the brake pin guides and brake handles (parts 9 and 10) as shown in the diagram.
Put a blob of flux into the bottom fold of the pin guide and touch the edge with the iron tip loaded
with a spot of 60/40 solder. The flux should draw the solder into the fold lines to reinforce the
bottom of the pin guide. Solder the pin guide to the solebar 21mm from the centre line of the vee
hanger. Fit brake lever and solder at vee hanger and from the rear of the pin guide. Fit coupling
plate detail etches over the coupling slots on the headstocks.
10. Open out with a tapered reamer the location holes in the sides to take the cast stake pockets
and stakes. Fit four empty pockets and four with stakes in to each side. These stakes were
movable and would be fitted into different pockets depending upon the requirements of the load
being carried. The main drawing shows a typical arrangement.
If your wagon is to receive rough handling you may wish to replace the cast stakes with brass
rod. If this is the case fit eight empty pockets to each side. Drill out four pockets 1.6mm and fit
25mm long lengths of brass rod.
11. With a large course file dress the sides and ends of the cast wooden bolsters to remove any
part lines and imperfections. You may also wish to distress the castings with the file, as these
wooden bolsters got very battered on the prototype wagon. Fit the bolsters to the floor of the
wagon. Again these bolsters were movable to different positions but the drawing shows a typical
arrangement.
12. Drill out the back of the buffer bodies 2.1mm to take the shank and 4.2mm from the front to
take the wide part of the shank/head. Fit buffer heads/shanks into the bodies and check that they
will depress fully and turn within the body freely. You may have to open the holes to 2.2mm and
4.3mm to achieve full depression. If the heads are tight to turn, give them a few twists and then
look for shiny high spots on the shank. Dress these off with a file. Once happy fit a retaining collar
onto the back of the shank so that the slot is level with the end of the shank. Open out the holes in
the headstocks and fit the buffers.
Make up the coupling links and fit them into the coupling hooks. I close up the links by holding
the curved end in the jaws of a pair of round-nosed pliers in one hand and squeeze the flat parts
of the link parallel with long-nosed pliers (angled long-nosed pliers with serrated jaws are even
better) held in the other hand. When I have six even-shaped closed links, I open each one slightly
with long-nosed pliers and thread three together. The last link passes through the hole in the
coupling hook. I reinforce the joint of each link with a spot of 60/40 solder.
Pass a coupling hook through the slot in the headstocks and retain it with a length of spring wire
(make sure that the ends of this wire don’t jamb on the solebars). Polish the centre of this wire
with emery cloth first so that you can solder it to the coupling hook shank once you are happy that
the buffers spring freely.
13. Assemble the bogies. Drill out the holes in the side frames 2.6mm to accept the brass
bearing cups. You may find that the holes are slightly out of square so put a little sideways
pressure on the drill to square them up. Place a pair of wheels onto a flat surface with the
bearings on the axle ends and fit the sideframes over the bear-
ings. Drop the bogie stretcher into place between the side-
frames. With Slater’s wheels you will probably find that the
stretcher is slightly short. So file a little from the raised rings on
the back of the bogie sideframes so that the bearings will sit
slightly deeper allowing the sideframes to come closer to-
gether.
Once you are happy that the stretcher is a good fit and the
sideframes are square to the wheels. Disassemble, fit bear-
ings into the holes with a blob of Evo-Stick, re assemble on a
flat surface and solder stretcher to sideframes. Check that all
is square. It is important to get the joint between stretcher and sideframes as strong as possible
so solder at both the top and underside. It may be a good idea to make the underside joint with
145° solder and the iron on full heat, but be quick!
Page 9

Cut down the bogie pivot screws so that there is 18mm of thread between head and end. Fit coil
spring and then a brass washer onto screw thread and then screw the bogie into place. Try the
wagon on your layout and if you find that the buffer height is low. I have included steel packing
washers to fit between the top of the bogie stretcher and the underside of the wagon. After
painting smear a blob of Evo-Stick around the inside of the nut thread before reassembly and this
will prevent the screw working lose during running. You should still be able to crack the glue joint
and remove the screw if you need to remove the bogies.
14. If fitted, solder the brake cranks to the cross shafts on the centre line of the wagon and then
a length of 0.7mm wire running from the crank above the inboard axle and cut short of the bogie
stretcher.
Also included within the etch are extra vee hangers and brake parts for Dean Churchward
brakes. These are not intended to be part of the kit but are there to help modeller’s kit bash the
wagon into other diagrams of Macaws. If you are the sort of Great Western wagon enthusiast who
wants to do this then you will probably instantly recognise all the parts and what to do with them.
15. Painting is a vast subject that cannot be covered fully here. The important thing with a metal
model is to get a good base coat of primer. Hopefully you have been cleaning up and washing the
model at the end of each modelling session, but it will still need thoroughly cleaning before
painting. I give my models a good scrub with a stiff-bristled paint brush in a sink full of hot (as hot
as your hands can bear) water and cheap washing up liquid (the expensive stuff that’s kind to
your hands has an oil in it that will stop the paint keying to the metal). If you know somebody who
works in catering and can scrounge you some industrial-strength liquid this is better still. Then
rinse the model a couple of times in clean warm water and place in a dust-free box to dry. I use
car aerosol primer and Halfords grey primer is one of the best. For the best results you want to
spray at room temperature (25°C) on a dry (avoid cold, damp or humid) day. I find it helps to warm
the model to about 30°C (put it in the airing cupboard overnight) and I warm up the paint tin by
putting it onto a radiator (about 40°C, but use your common sense as I don’t want anybody
blowing themselves up). I find it best to prime the model in two light coats, about 15 minutes apart
and then leave for 48 hours to harden off (in the airing cupboard in a dust-free box).
I brush-paint my models with Humbrol enamel. For years I just stirred it up and painted straight
from the tin but I was never completely happy with the results. Recently two things have
transformed my painting. The first was a copy of Martyn Welch’s book, The Art of Weathering,
Wild Swan Publications, ISBN 1 874103 11 9. Martyn’s basic techniques are very useful and
almost foolproof. Martyn’s method of creating worn and weathered planking for wagon floors by
blending brown and grey paints to form a base. Then dry brushing darker shades to represent the
wood grain is particularly effective on this type of wagon. The second thing is to mix the paint in
the tin and then transfer it to a palette (a sheet of clean plasticard) with blobs of lighter and darker
shades of paint surrounding the main colour. Then work the paint with the brush on the palette,
slightly varying the tones of the paint. This seems to totally change the texture of the paint and the
way it goes on and covers on the model.
Page 10

For more information and photographs of the prototype wagon I would recommend, GWR Goods
Wagons, Atkins, Beard & Tourret, Tourret Publishing, ISBN 0-905878-07-8. Get it from your local
library via their book order system.
Fibreglass Scratch Brush
The use of this tool is mentioned in the instructions. This is like a propelling pencil holder into
which a fibreglass refill is fitted and which will give a vigorous abrasive action. I find this tool
indispensable for cleaning up and removing solder. One very useful tip is to soak the refills in
dilute PVA glue (Evostick resin W wood glue let down 50/50 with water and a spot of washing up
liquid) and then drill holes in a block of wood and stick the ends of the refills in the holes while
they harden off. This will make the refills much more abrasive and longer lasting, and also stops
the fibres breaking off and ending up in your fingers. You will need to give the refill a good rub to
get it started but if you use green label flux you will soon have plenty of rusty tools that need
cleaning. These and most other general modelling tools can be obtained from Squires Model and
Craft Tools, 100 London Rd, Bognor Regis, West Sussex, PO21 1DD, Tel [phone]. They
do a free catalogue and a very good mail order service.
Folding Bars
You will find a set of these very useful and
here are details of the set that I have made
for myself, in fact I have made three sets of
different sizes. The dimensions or materials
are not critical so make yourself a set to suit
the materials you can get hold of. The
important thing is that you can clamp the
part along its entire length, with the etched
fold line just above the front bar. Then
clamp the bars in the jaws of your vice, a
couple of 1” G clamps are also useful for
long folds, and laying a steel rule at the
back of the part to help transfer the pressure
from your fingers evenly, pull forward to
make the fold. Once the fold is close to 90° you can finish by pressing down on it with a block of
wood and moving the block along the fold with a stroking action or by giving gentle taps with a
small hammer on the wood block. Occasionally it is necessary to emboss bolt heads onto a part
before folding, by lining the face of one of the bars with two or three layers of masking tape, you
can still clamp the part without crushing the bolt heads but you wont get such a tight fold, so
deepen the fold line with a triangular file.
Can You Help Me?
If you have enjoyed building this kit and have been satisfied with the quality, I would be most
grateful if you could recommend it to your friends and fellow modellers. Although my kits are not
perfect, I try to put a lot of time and effort into producing them. If I can get extra sales of a kit
through customer’s personal recommendation and I find that word of mouth is the best form of
advertising. This will help me to put extra time and money into developing the next kit. Hopefully
this will give me more satisfied customer to recommend my kits to their friends.
If you are not happy with this kit then please tell me. Hopefully I will then be able to help and sort
out any problem.
16”
Page 11

GWR MACAW B
Page 12
